react前端艺术——赛博烟雾艺术品展示代码结构组件传值接口烟雾组件全局变量定义烟雾位置移动函数烟雾不同颜色改

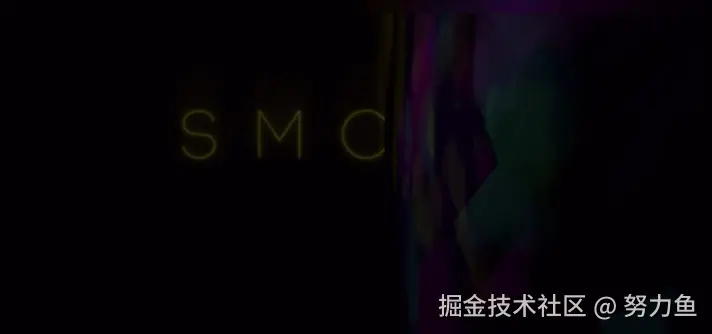

艺术品展示

代码结构

组件传值接口
烟雾组件全局变量定义
烟雾位置移动函数
烟雾不同颜色改变函数
动画函数
初始化webgl

interface Iprops {
    src: string;
    opacity: number;
    smokeSrc: string;
    smokeOpacity: number;
    height: string;
    width: string;
}
const CanvasSmoke = () => {
    const location = useLocation();
    const props: Iprops = location.state || {};
    const mount = useRef<HTMLDivElement>(null);
    const clockRef = useRef(new THREE.Clock());
    ......

    const evolveSmoke = useCallback(() => {
       ......
    }, []);
    const colorchange = useCallback(() => {
       ......
    }, []);
    const animate = useCallback(() => {
        ......
    }, [evolveSmoke, colorchange]);

    useEffect(() => {
       ......
    }, [props.src, props.opacity, props.smokeSrc, props.smokeOpacity, animate]);
    return (
        <div
            style={{
                height: props.height || '100vh',
                width: props.width || '100vw',
                margin: '0'
            }}
            ref={mount}
        />
    );
};

export default CanvasSmoke;

烟雾位置移动

获取粒子数量
循环给每个粒子围绕Z轴以及Y轴旋转，其中deltaRef是时间间隔
直到数量为0停止

evolveSmoke

 const evolveSmoke = useCallback(() => {
        let sp = smokeParticlesRef.current.length;
        while (sp--) {
            smokeParticlesRef.current[sp].rotation.z += deltaRef.current * 0.5;
            smokeParticlesRef.current[sp].rotation.y += 0.02;
            // smokeParticlesRef.current[sp].rotation.x += 0.02;
        }
    }, []);

烟雾设置不同颜色

设置随机颜色
关键说明

saturation 设为 1.0（最大饱和度） 0.0 = 灰色 0.5 = 中等饱和度 1.0 = 最大饱和度

// 高饱和度，较亮 const saturation = 1.0; const lightness = 0.6;

// 高饱和度，较暗 const saturation = 1.0; const lightness = 0.4;

colorchange

const colorchange = useCallback(() => {
        timeRef.current += deltaRef.current;
        const hue = (timeRef.current * 0.1 + 0.01) % 1;//色相
        const saturation = 1.0; // 饱和度：1.0 表示最饱和
        const lightness = 0.5; // 亮度：0.5 表示中等亮度

        colorRef.current = new THREE.Color().setHSL(hue, saturation, lightness);
    }, []);

动画

移动位置
设置颜色
更改文字材质颜色
渲染

const animate = useCallback(() => {
       if (!rendererRef.current || !sceneRef.current || !cameraRef.current || !meshRef.current) return;

       deltaRef.current = clockRef.current.getDelta();
       frameIdRef.current = requestAnimationFrame(animate);
       evolveSmoke();
       colorchange();

       meshRef.current.rotation.x += 0.005;
       meshRef.current.rotation.y += 0.01;
       cubeSineDriverRef.current += 0.01;
       meshRef.current.position.z = 100 + Math.sin(cubeSineDriverRef.current) * 500;

       if (textRef.current?.material instanceof THREE.MeshLambertMaterial) {
           textRef.current.material.color = colorRef.current;
           textRef.current.material.needsUpdate = true;
       }

       rendererRef.current.render(sceneRef.current, cameraRef.current);
   }, [evolveSmoke, colorchange]);

初始化

初始setup

设置渲染区域大小，相机位置，场景内容，背景材质

第一个textMaterial主要渲染文字

创建一个 300x300 的平面几何体用于显示文字

加载纹理

创建材质

创建网格

设置文字的位置

添加到场景

保存文字网格的引用

重要特性解释：

材质特性：

color: 基础颜色（从 colorRef 获取）
opacity: 透明度（从 props 获取）
transparent: 启用透明度处理
blending: 使用加法混合模式，使重叠部分更亮

AdditiveBlending（加法混合）：

将前景色与背景色的RGB值相加
创造出发光的效果
适合创建霓虹、光效等视觉效果

位置设置：

text.position.z = 800 将文字放在场景较远处
这样文字会在烟雾效果的后方显示

引用保存：

使用 textRef 保存文字网格的引用
方便后续对文字进行动画或其他操作

第二个textMaterial主要渲染烟雾

设置300*300的烟雾切片

对每个切片循环设置不同的颜色保存烟雾网格的引用

渲染

卸载动画以及渲染器

useEffect(() => {
        const mountElement = mount.current;
        if (!mountElement) return;

        const width = mountElement.clientWidth;
        const height = mountElement.clientHeight;

        //Three.js setup
        rendererRef.current = new THREE.WebGLRenderer();
        rendererRef.current.setSize(width, height);

        sceneRef.current = new THREE.Scene();
        cameraRef.current = new THREE.PerspectiveCamera(75, width / height, 1, 10000);
        cameraRef.current.position.z = 1000;
        sceneRef.current.add(cameraRef.current);
        let geometry = new THREE.BoxGeometry(200, 200, 200);
        let material = new THREE.MeshLambertMaterial({
            color: 0xaa6666,
            wireframe: false
        });

        meshRef.current = new THREE.Mesh(geometry, material);
        // 创建一个 300x300 的平面几何体用于显示文字
let textGeo = new THREE.PlaneGeometry(300, 300);

// 加载纹理
new THREE.TextureLoader().load(
    props.src,  // 纹理图片的源路径
    // 成功加载后的回调函数
    (textTexture) => {
        // 创建材质
        let textMaterial = new THREE.MeshLambertMaterial({
            color: colorRef.current,         // 使用引用的颜色
            opacity: props.opacity,          // 透明度
            map: textTexture,               // 加载的纹理
            transparent: true,              // 启用透明
            blending: THREE.AdditiveBlending // 加法混合模式
        });

        // 创建网格（结合几何体和材质）
        let text = new THREE.Mesh(textGeo, textMaterial);

        // 设置文字在 z 轴上的位置（距离相机 800 单位）
        text.position.z = 800;

        // 添加到场景
        sceneRef.current.add(text);

        // 保存文字网格的引用
        textRef.current = text;
    },
    undefined,  // 加载进度回调（这里未使用）
    (err) => { // 加载失败回调
        console.log('load failed.');
        console.log(err);
    }
);

        let light = new THREE.DirectionalLight(0xffffff, 0.5);
        light.position.set(-1, 0, 1);
        sceneRef.current.add(light);
        new THREE.TextureLoader().load(
            props.smokeSrc,
            (smokeTexture) => {
                for (let p = 0; p < 150; p++) {
                    const hue = Math.random();
                    const saturation = 1.0;
                    const lightness = 0.5;

                    const color = new THREE.Color().setHSL(hue, saturation, lightness);
                    let smokeMaterial = new THREE.MeshLambertMaterial({
                        color: color,
                        map: smokeTexture,
                        opacity: props.smokeOpacity,
                        transparent: true,
                        blending: THREE.AdditiveBlending
                    });
                    let smokeGeo = new THREE.PlaneGeometry(300, 300);
                    let particle = new THREE.Mesh(smokeGeo, smokeMaterial);
                    particle.position.set(
                        Math.random() * 500 - 250,
                        Math.random() * 500 - 250,
                        Math.random() * 1000 - 100
                    );
                    particle.rotation.z = Math.random() * 360;
                    sceneRef.current.add(particle);
                    smokeParticlesRef.current.push(particle);
                }
            },
            undefined,
            (err) => {
                console.log('load failed.');
                console.log(err);
            }
        );

        mountElement.appendChild(rendererRef.current.domElement);
        // remember these initial values
        // let tanFOV = Math.tan(((Math.PI / 180) * this.camera.fov) / 2);
        // let windowHeight = height;

        animate();
        return () => {
            if (frameIdRef.current) {
                cancelAnimationFrame(frameIdRef.current);
            }
            if (mountElement && rendererRef.current) {
                mountElement.removeChild(rendererRef.current.domElement);
            }
        };
    }, [props.src, props.opacity, props.smokeSrc, props.smokeOpacity, animate]);

完整内容

import React, {useCallback, useEffect, useRef} from 'react';
import {useLocation} from 'react-router-dom';
import * as THREE from 'three';

interface Iprops {
    src: string;
    opacity: number;
    smokeSrc: string;
    smokeOpacity: number;
    height: string;
    width: string;
}
const CanvasSmoke = () => {
    const location = useLocation();
    const props: Iprops = location.state || {};
    const mount = useRef<HTMLDivElement>(null);
    const clockRef = useRef(new THREE.Clock());
    const rendererRef = useRef<THREE.WebGLRenderer>(new THREE.WebGLRenderer());
    const sceneRef = useRef<THREE.Scene>(new THREE.Scene());
    const cameraRef = useRef<THREE.PerspectiveCamera>(new THREE.PerspectiveCamera());
    const meshRef = useRef<THREE.Mesh>(new THREE.Mesh());
    const smokeParticlesRef = useRef<THREE.Mesh[]>([]);
    const cubeSineDriverRef = useRef(0);
    const frameIdRef = useRef<number | undefined>(undefined);
    const deltaRef = useRef(0);
    const colorRef = useRef<THREE.Color>(new THREE.Color());
    const timeRef = useRef(0);
    const textRef = useRef<THREE.Mesh>(new THREE.Mesh());

    const evolveSmoke = useCallback(() => {
        let sp = smokeParticlesRef.current.length;
        while (sp--) {
            smokeParticlesRef.current[sp].rotation.z += deltaRef.current * 0.5;
            smokeParticlesRef.current[sp].rotation.y += 0.02;
            // smokeParticlesRef.current[sp].rotation.x += 0.02;
        }
    }, []);
    const colorchange = useCallback(() => {
        timeRef.current += deltaRef.current;
        const hue = (timeRef.current * 0.1 + 0.01) % 1;
        const saturation = 1.0; // 饱和度：1.0 表示最饱和
        const lightness = 0.5; // 亮度：0.5 表示中等亮度

        colorRef.current = new THREE.Color().setHSL(hue, saturation, lightness);
    }, []);
    const animate = useCallback(() => {
        if (!rendererRef.current || !sceneRef.current || !cameraRef.current || !meshRef.current) return;

        deltaRef.current = clockRef.current.getDelta();
        frameIdRef.current = requestAnimationFrame(animate);
        evolveSmoke();
        colorchange();

        meshRef.current.rotation.x += 0.005;
        meshRef.current.rotation.y += 0.01;
        cubeSineDriverRef.current += 0.01;
        meshRef.current.position.z = 100 + Math.sin(cubeSineDriverRef.current) * 500;

        if (textRef.current?.material instanceof THREE.MeshLambertMaterial) {
            textRef.current.material.color = colorRef.current;
            textRef.current.material.needsUpdate = true;
        }

        rendererRef.current.render(sceneRef.current, cameraRef.current);
    }, [evolveSmoke, colorchange]);

    useEffect(() => {
        const mountElement = mount.current;
        if (!mountElement) return;

        const width = mountElement.clientWidth;
        const height = mountElement.clientHeight;

        //Three.js setup
        rendererRef.current = new THREE.WebGLRenderer();
        rendererRef.current.setSize(width, height);

        sceneRef.current = new THREE.Scene();
        cameraRef.current = new THREE.PerspectiveCamera(75, width / height, 1, 10000);
        cameraRef.current.position.z = 1000;
        sceneRef.current.add(cameraRef.current);
        let geometry = new THREE.BoxGeometry(200, 200, 200);
        let material = new THREE.MeshLambertMaterial({
            color: 0xaa6666,
            wireframe: false
        });

        meshRef.current = new THREE.Mesh(geometry, material);
        let textGeo = new THREE.PlaneGeometry(300, 300);

        new THREE.TextureLoader().load(
            props.src,
            (textTexture) => {
                let textMaterial = new THREE.MeshLambertMaterial({
                    color: colorRef.current,
                    opacity: props.opacity,
                    map: textTexture,
                    transparent: true,
                    blending: THREE.AdditiveBlending
                });
                let text = new THREE.Mesh(textGeo, textMaterial);
                text.position.z = 800;
                sceneRef.current.add(text);
                textRef.current = text;
            },
            undefined,
            (err) => {
                console.log('load failed.');
                console.log(err);
            }
        );

        let light = new THREE.DirectionalLight(0xffffff, 0.5);
        light.position.set(-1, 0, 1);
        sceneRef.current.add(light);
        new THREE.TextureLoader().load(
            props.smokeSrc,
            (smokeTexture) => {
                for (let p = 0; p < 150; p++) {
                    const hue = Math.random();
                    const saturation = 1.0;
                    const lightness = 0.5;

                    const color = new THREE.Color().setHSL(hue, saturation, lightness);
                    let smokeMaterial = new THREE.MeshLambertMaterial({
                        color: color,
                        map: smokeTexture,
                        opacity: props.smokeOpacity,
                        transparent: true,
                        blending: THREE.AdditiveBlending
                    });
                    let smokeGeo = new THREE.PlaneGeometry(300, 300);
                    let particle = new THREE.Mesh(smokeGeo, smokeMaterial);
                    particle.position.set(
                        Math.random() * 500 - 250,
                        Math.random() * 500 - 250,
                        Math.random() * 1000 - 100
                    );
                    particle.rotation.z = Math.random() * 360;
                    sceneRef.current.add(particle);
                    smokeParticlesRef.current.push(particle);
                }
            },
            undefined,
            (err) => {
                console.log('load failed.');
                console.log(err);
            }
        );

        mountElement.appendChild(rendererRef.current.domElement);
        // remember these initial values
        // let tanFOV = Math.tan(((Math.PI / 180) * this.camera.fov) / 2);
        // let windowHeight = height;

        animate();
        return () => {
            if (frameIdRef.current) {
                cancelAnimationFrame(frameIdRef.current);
            }
            if (mountElement && rendererRef.current) {
                mountElement.removeChild(rendererRef.current.domElement);
            }
        };
    }, [props.src, props.opacity, props.smokeSrc, props.smokeOpacity, animate]);
    return (
        <div
            style={{
                height: props.height || '100vh',
                width: props.width || '100vw',
                margin: '0'
            }}
            ref={mount}
        />
    );
};

export default CanvasSmoke;
