已有项目部署在Gitea上，为实现CI/CD，通过Gitea Actions实现自动拉取Gitea仓库代码到Docker容器构建的自动化全过程。
1. Gitea Actions相关环境准备
1.1 启用仓库粒度Actions

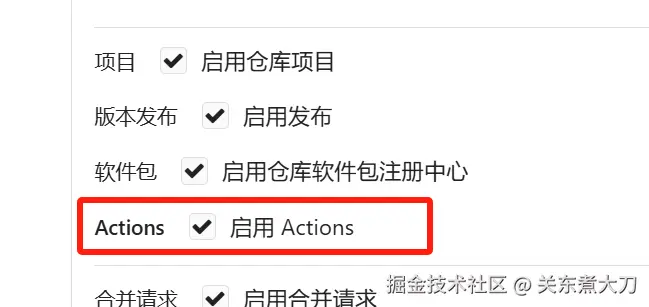

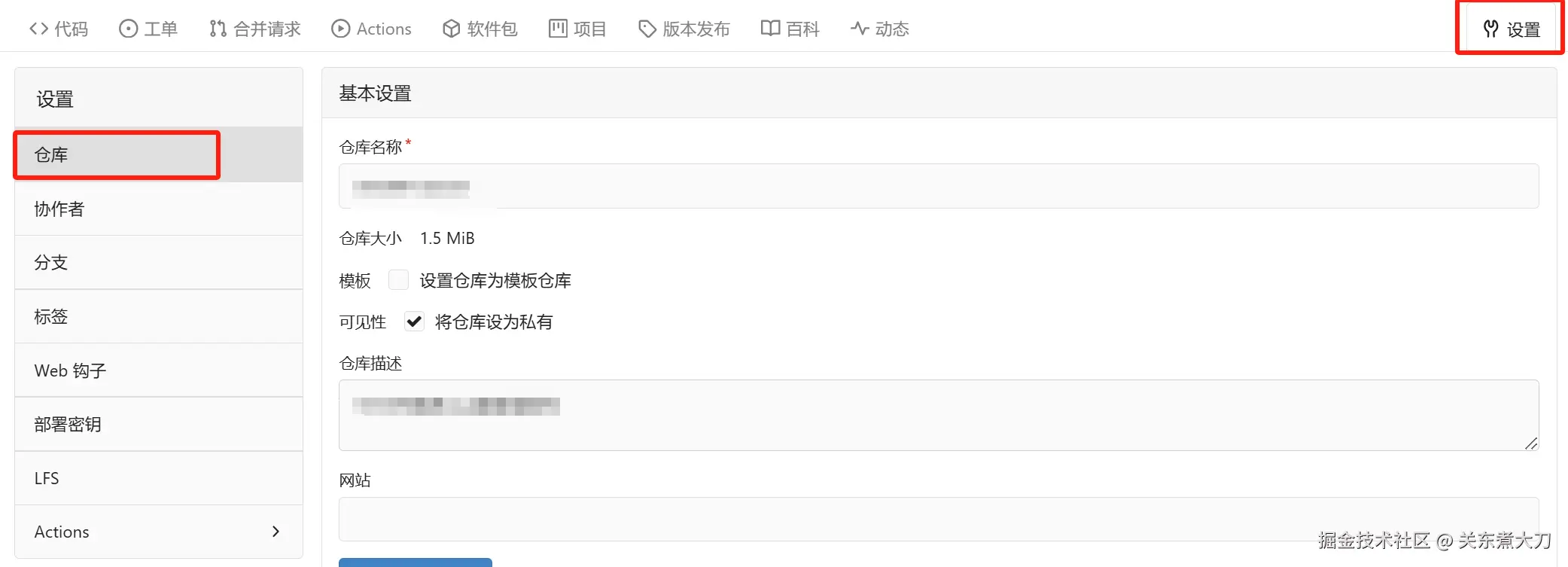

管理员权限下，选择需要开启Actions的库，设置-仓库-勾选启用Actions

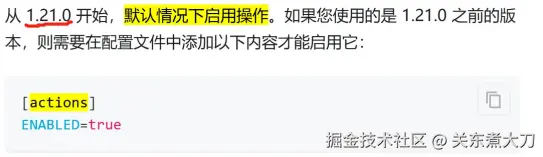

如果Gitea版本1.21.0之前需要先手动开启Gitea Actions
1.2 配置Runner
Gitea Actions 需要runner来运⾏作业，可通过docker或二进制文件方式安装runner，这里选择docker进行安装。
- 获取令牌

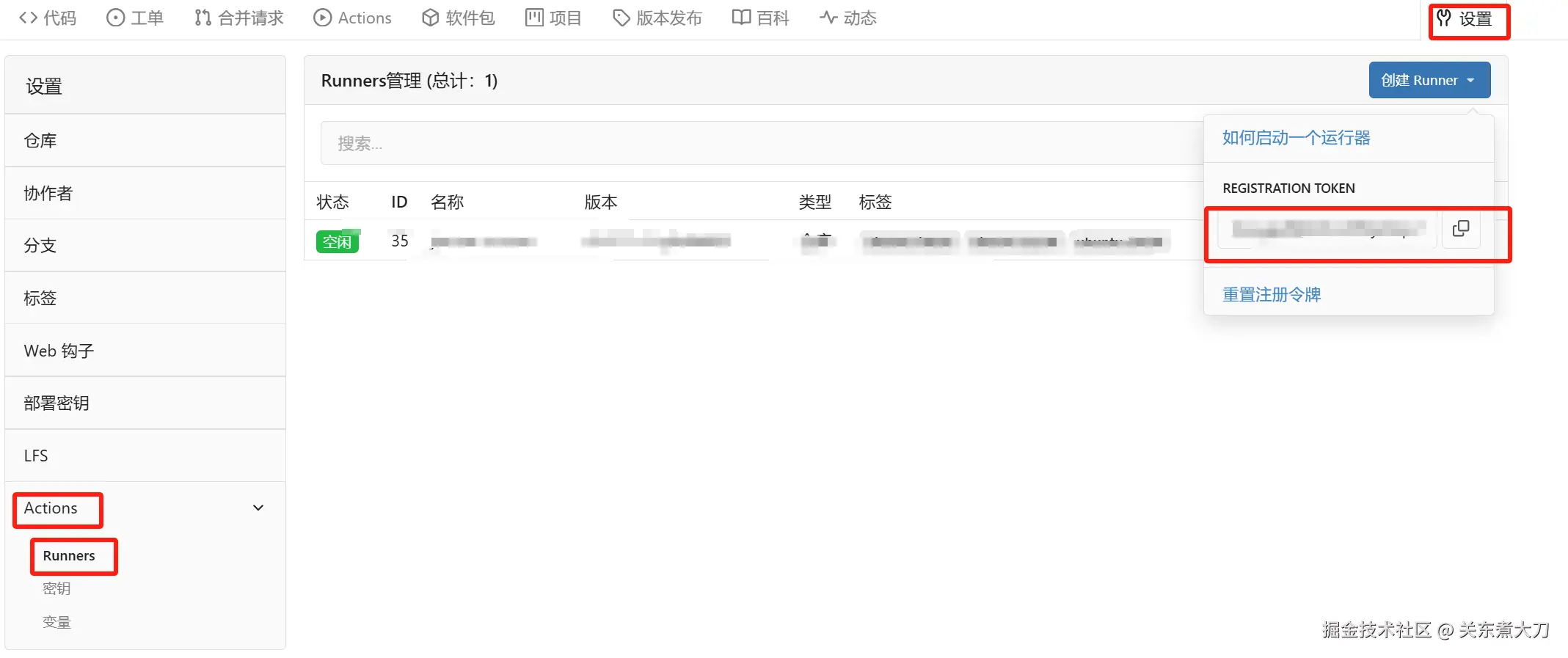

获取令牌可通过命令行或页面方式，这里选择通过页面获得令牌。在启用仓库Actions后，设置-Actions-Runner右上角可复制令牌。
- docker-compose编译Runner Docker
编写docker-compose构建Runner Docker容器。
services:
customer_runner:
image: gitea/act_runner:nightly # 使用最新的夜间构建版本
container_name: customer_runner
environment:
- CONFIG_FILE=/customer/config_customer.yaml # 指定配置文件路径
- GITEA_INSTANCE_URL=http://xxx:3000 # 替换为你的 Gitea 实例地址
- GITEA_RUNNER_REGISTRATION_TOKEN=xxx-TOKEN # 替换为你的 Runner 注册 Token
- GITEA_RUNNER_NAME=customer # Runner 名称
- GITEA_RUNNER_LABELS=ubuntu-latest # 标签
volumes:
- ./config_customer.yaml:/customer/config_customer.yaml # 将本地的 config.yaml 挂载到容器中
- ./runner_data_customer:/customer/runner_data_customer # 持久化 Runner 数据
- /var/run/docker.sock:/var/run/docker.sock # 允许 Runner 访问 Docker Socket
- Runner配置文件
# Example configuration file, it's safe to copy this as the default config file without any modification.
# You don't have to copy this file to your instance,
# just run `./act_runner generate-config > config.yaml` to generate a config file.
log:
# The level of logging, can be trace, debug, info, warn, error, fatal
level: info
runner:
# Where to store the registration result.
file: .runner
# Execute how many tasks concurrently at the same time.
capacity: 1
# Extra environment variables to run jobs.
envs:
RUNNER_TOOL_CACHE: /customer/toolcache
A_TEST_ENV_NAME_1: a_test_env_value_1
A_TEST_ENV_NAME_2: a_test_env_value_2
# Extra environment variables to run jobs from a file.
# It will be ignored if it's empty or the file doesn't exist.
env_file: .env
# The timeout for a job to be finished.
# Please note that the Gitea instance also has a timeout (3h by default) for the job.
# So the job could be stopped by the Gitea instance if it's timeout is shorter than this.
timeout: 3h
# The timeout for the runner to wait for running jobs to finish when shutting down.
# Any running jobs that haven't finished after this timeout will be cancelled.
shutdown_timeout: 0s
# Whether skip verifying the TLS certificate of the Gitea instance.
insecure: false
# The timeout for fetching the job from the Gitea instance.
fetch_timeout: 5s
# The interval for fetching the job from the Gitea instance.
fetch_interval: 2s
# The labels of a runner are used to determine which jobs the runner can run, and how to run them.
# Like: "macos-arm64:host" or "ubuntu-latest:docker://gitea/runner-images:ubuntu-latest"
# Find more images provided by Gitea at https://gitea.com/gitea/runner-images .
# If it's empty when registering, it will ask for inputting labels.
# If it's empty when execute `daemon`, will use labels in `.runner` file.
labels:
# - "windows-latest"
# - "node-20"
- "ubuntu-latest:docker://gitea/runner-images:ubuntu-latest"
- "ubuntu-22.04:docker://gitea/runner-images:ubuntu-22.04"
- "ubuntu-20.04:docker://gitea/runner-images:ubuntu-20.04"
#envs:
cache:
# Enable cache server to use actions/cache.
enabled: true
# The directory to store the cache data.
# If it's empty, the cache data will be stored in $HOME/.cache/actcache.
dir: ""
# The host of the cache server.
# It's not for the address to listen, but the address to connect from job containers.
# So 0.0.0.0 is a bad choice, leave it empty to detect automatically.
host: "xxx"
# The port of the cache server.
# 0 means to use a random available port.
port: xxx
# The external cache server URL. Valid only when enable is true.
# If it's specified, act_runner will use this URL as the ACTIONS_CACHE_URL rather than start a server by itself.
# The URL should generally end with "/".
external_server: ""
# Gitea 实例地址
gitea_instance_url: "http://xxx:3000"
# Runner 的注册 Token
gitea_runner_registration_token: ""
# Runner 的名称
gitea_runner_name: "customer_runner"
container:
# Specifies the network to which the container will connect.
# Could be host, bridge or the name of a custom network.
# If it's empty, act_runner will create a network automatically.
network: ""
# Whether to use privileged mode or not when launching task containers (privileged mode is required for Docker-in-Docker).
privileged: false
# And other options to be used when the container is started (eg, --add-host=my.gitea.url:host-gateway).
#image: "node:16" # 默认容器镜像
# options:
# - "run: npm install && npm test" # 默认运行的命令
options:
# The parent directory of a job's working directory.
# NOTE: There is no need to add the first '/' of the path as act_runner will add it automatically.
# If the path starts with '/', the '/' will be trimmed.
# For example, if the parent directory is /path/to/my/dir, workdir_parent should be path/to/my/dir
# If it's empty, /workspace will be used.
workdir_parent:
# Volumes (including bind mounts) can be mounted to containers. Glob syntax is supported, see https://github.com/gobwas/glob
# You can specify multiple volumes. If the sequence is empty, no volumes can be mounted.
# For example, if you only allow containers to mount the `data` volume and all the json files in `/src`, you should change the config to:
# valid_volumes:
# - data
# - /src/*.json
# If you want to allow any volume, please use the following configuration:
# valid_volumes:
# - '**'
valid_volumes: []
# overrides the docker client host with the specified one.
# If it's empty, act_runner will find an available docker host automatically.
# If it's "-", act_runner will find an available docker host automatically, but the docker host won't be mounted to the job containers and service containers.
# If it's not empty or "-", the specified docker host will be used. An error will be returned if it doesn't work.
docker_host: ""
# Pull docker image(s) even if already present
force_pull: false
# Rebuild docker image(s) even if already present
force_rebuild: false
host:
# The parent directory of a job's working directory.
# If it's empty, $HOME/.cache/act/ will be used.
workdir_parent:
- 运行Docker

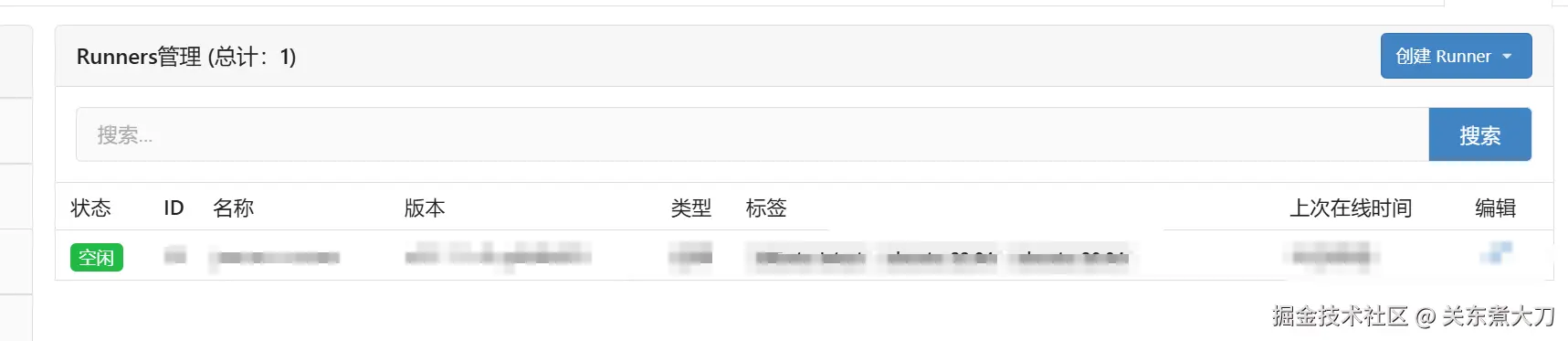

成功运行后，可以在仓库的设置-Actions-Runner下看到该Runner的信息。
2. Gitea工作流配置
在需要配置Actions的代码下，创建.gitea/workflow/xx.yaml,如docker.yaml，build自己的Dockerfile。
name: Build and Push Docker Image
on: [push]
jobs:
build-and-push:
runs-on: ubuntu-latest
env:
MYREGISTRY : 私有仓库
MYIMAGE : 镜像名
MYCONTAINER : 容器名
MYPORT: 端口号
steps:
- name: Checkout repository code
uses: https://gitea.com/actions/checkout@v4
- name: Build Docker image
run: docker build --no-cache -t $MYIMAGE .
- name: Tag and push Docker image
run: |
docker tag $MYIMAGE $MYREGISTRY/$MYIMAGE
docker push $MYREGISTRY/$MYIMAGE
- name: Check if container exists
id: check-container
run: |
if docker ps -a --format '{{.Names}}' | grep -q $MYCONTAINER; then
echo "Container $MYCONTAINER exists."
echo "container_exists=true" >> $GITHUB_ENV
else
echo "Container $MYCONTAINER does not exist."
echo "container_exists=false" >> $GITHUB_ENV
fi
- name: Stop and remove container if exists
if: ${{ env.container_exists == 'true' }}
run: |
docker stop $MYCONTAINER
docker rm $MYCONTAINER
echo "Container $MYCONTAINER has been stopped and removed."
- name: Run container if not exists
run: |
docker run -d -p $MYPORT --network mynetwork --name $MYCONTAINER $MYREGISTRY/$MYIMAGE
echo "Container $MYCONTAINER has been started."
3. 取得成功

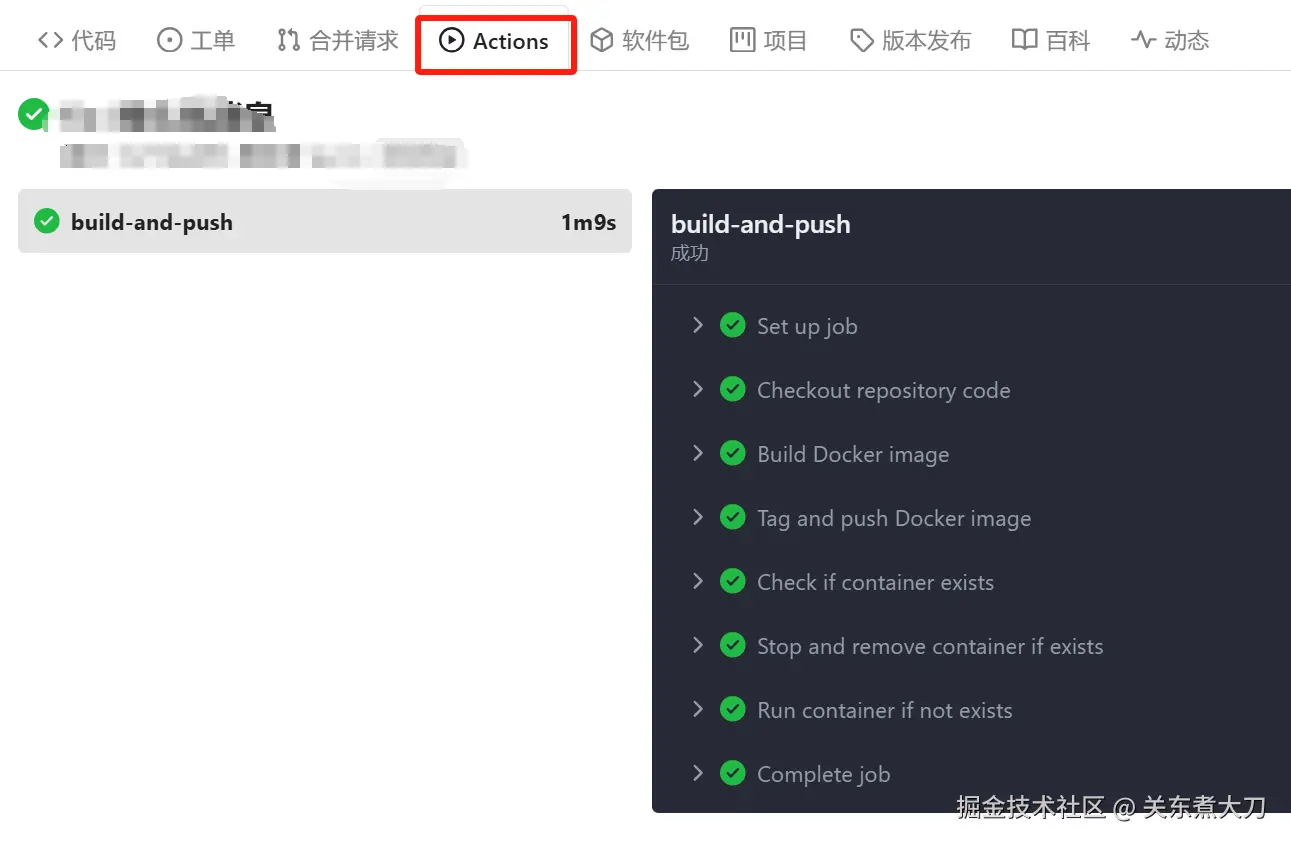

push代码后，可在仓库的Actions下看到执行结果。
