在AI的世界里，AutoGen AgentChat就像是一支拥有“超能力”的超级英雄团队！它们不仅能让AI聊天变得更智能，还能帮你完成各种复杂任务，比如搜索信息、分析数据、执行代码，甚至还能帮你点外卖（好吧，这个功能还在开发中）。今天，我们就来揭秘这些“超级英雄”的超能力，看看它们是如何颠覆你的AI体验的！
1. 超级英雄的诞生：AutoGen 是什么？
AutoGen 是一个用于创建多智能体 AI 应用的框架，你可以把它想象成一个“超级英雄训练营”。在这里，你可以组建一支由不同能力的AI智能体组成的团队，比如：
- 助手代理：负责回答问题、执行任务。
- 网络冲浪代理：帮你从网上抓取信息。
- 用户代理：代表你与AI团队互动。
举个例子，如果你想组建一个“网络浏览任务小队”，代码可以这样写：:
# pip install -U autogen-agentchat autogen-ext[openai,web-surfer]
# playwright install
import asyncio
from autogen_agentchat.agents import AssistantAgent, UserProxyAgent
from autogen_agentchat.conditions import TextMentionTermination
from autogen_agentchat.teams import RoundRobinGroupChat
from autogen_agentchat.ui import Console
from autogen_ext.models.openai import OpenAIChatCompletionClient
from autogen_ext.agents.web_surfer import MultimodalWebSurfer
async def main() -> None:
model_client = OpenAIChatCompletionClient(model="gpt-4o")
assistant = AssistantAgent("assistant", model_client)
web_surfer = MultimodalWebSurfer("web_surfer", model_client)
user_proxy = UserProxyAgent("user_proxy")
termination = TextMentionTermination("exit") # Type 'exit' to end the conversation.
team = RoundRobinGroupChat([web_surfer, assistant, user_proxy], termination_condition=termination)
await Console(team.run_stream(task="Find information about AutoGen and write a short summary."))
asyncio.run(main())
是不是有点像组建复仇者联盟？每个智能体都有自己的特长，团队合作才能完成任务！
2.超级英雄的核心能力：BaseChatAgent
所有的智能体都继承自 BaseChatAgent，你可以把它理解为“超级英雄的基因”。它定义了智能体的通用行为，比如：
name: 智能体的唯一名称description:文本中对智能体的角色描述on_messages()：向智能体发送一系列ChatMessage，得到一个Response。需要注意的是，智能体是有状态的，因此这个方法应该用新消息调用，而不是完整的历史记录on_messages_stream(): 与on_messages()相同，但返回一个由AgentEvent或ChatMessage组成的迭代器，Response作为最后一个元素on_reset()重置代理至初始状态run()和run_stream()：分别调用on_messages()和on_messages_stream()的便捷方法，但提供与 Teams 相同的接口
class BaseChatAgent(ChatAgent, ABC, ComponentBase[BaseModel]):
"""Base class for a chat agent.
.. note::
The caller should only pass the new messages to the agent on each call
to the :meth:`on_messages` or :meth:`on_messages_stream` method.
Do not pass the entire conversation history to the agent on each call.
This design principle must be followed when creating a new agent.
"""
component_type = "agent"
def __init__(self, name: str, description: str) -> None:
self._name = name
if self._name.isidentifier() is False:
raise ValueError("The agent name must be a valid Python identifier.")
self._description = description
@property
def name(self) -> str:
"""The name of the agent. This is used by team to uniquely identify
the agent. It should be unique within the team."""
return self._name
@property
def description(self) -> str:
"""The description of the agent. This is used by team to
make decisions about which agents to use. The description should
describe the agent's capabilities and how to interact with it."""
return self._description
@property
@abstractmethod
def produced_message_types(self) -> Sequence[type[ChatMessage]]:
"""The types of messages that the agent produces in the
:attr:`Response.chat_message` field. They must be :class:`ChatMessage` types."""
...
@abstractmethod
async def on_messages(self, messages: Sequence[ChatMessage], cancellation_token: CancellationToken) -> Response:
...
async def on_messages_stream(
self, messages: Sequence[ChatMessage], cancellation_token: CancellationToken
) -> AsyncGenerator[AgentEvent | ChatMessage | Response, None]:
"""Handles incoming messages and returns a stream of messages and
and the final item is the response. The base implementation in
:class:`BaseChatAgent` simply calls :meth:`on_messages` and yields
the messages in the response.
.. note::
Agents are stateful and the messages passed to this method should
be the new messages since the last call to this method. The agent
should maintain its state between calls to this method. For example,
if the agent needs to remember the previous messages to respond to
the current message, it should store the previous messages in the
agent state.
"""
response = await self.on_messages(messages, cancellation_token)
for inner_message in response.inner_messages or []:
yield inner_message
yield response
async def run(
self,
*,
task: str | ChatMessage | Sequence[ChatMessage] | None = None,
cancellation_token: CancellationToken | None = None,
) -> TaskResult:
"""Run the agent with the given task and return the result."""
if cancellation_token is None:
cancellation_token = CancellationToken()
input_messages: List[ChatMessage] = []
output_messages: List[AgentEvent | ChatMessage] = []
if task is None:
pass
elif isinstance(task, str):
text_msg = TextMessage(content=task, source="user")
input_messages.append(text_msg)
output_messages.append(text_msg)
elif isinstance(task, BaseChatMessage):
input_messages.append(task)
output_messages.append(task)
else:
if not task:
raise ValueError("Task list cannot be empty.")
# Task is a sequence of messages.
for msg in task:
if isinstance(msg, BaseChatMessage):
input_messages.append(msg)
output_messages.append(msg)
else:
raise ValueError(f"Invalid message type in sequence: {type(msg)}")
response = await self.on_messages(input_messages, cancellation_token)
if response.inner_messages is not None:
output_messages += response.inner_messages
output_messages.append(response.chat_message)
return TaskResult(messages=output_messages)
async def run_stream(
self,
*,
task: str | ChatMessage | Sequence[ChatMessage] | None = None,
cancellation_token: CancellationToken | None = None,
) -> AsyncGenerator[AgentEvent | ChatMessage | TaskResult, None]:
"""Run the agent with the given task and return a stream of messages
and the final task result as the last item in the stream."""
if cancellation_token is None:
cancellation_token = CancellationToken()
input_messages: List[ChatMessage] = []
output_messages: List[AgentEvent | ChatMessage] = []
if task is None:
pass
elif isinstance(task, str):
text_msg = TextMessage(content=task, source="user")
input_messages.append(text_msg)
output_messages.append(text_msg)
yield text_msg
elif isinstance(task, BaseChatMessage):
input_messages.append(task)
output_messages.append(task)
yield task
else:
if not task:
raise ValueError("Task list cannot be empty.")
for msg in task:
if isinstance(msg, BaseChatMessage):
input_messages.append(msg)
output_messages.append(msg)
yield msg
else:
raise ValueError(f"Invalid message type in sequence: {type(msg)}")
async for message in self.on_messages_stream(input_messages, cancellation_token):
if isinstance(message, Response):
yield message.chat_message
output_messages.append(message.chat_message)
yield TaskResult(messages=output_messages)
else:
output_messages.append(message)
yield message
@abstractmethod
async def on_reset(self, cancellation_token: CancellationToken) -> None:
"""Resets the agent to its initialization state."""
...
async def save_state(self) -> Mapping[str, Any]:
"""Export state. Default implementation for stateless agents."""
return BaseState().model_dump()
async def load_state(self, state: Mapping[str, Any]) -> None:
"""Restore agent from saved state. Default implementation for stateless agents."""
BaseState.model_validate(state)
async def close(self) -> None:
"""Called when the runtime is closed"""
pass
BaseChatAgent 继承与 ChatAgent,其实现了ChatAgent当中定义的异步的方法
- on_messages_stream
- run
- run_stream
- save_state
- load_state

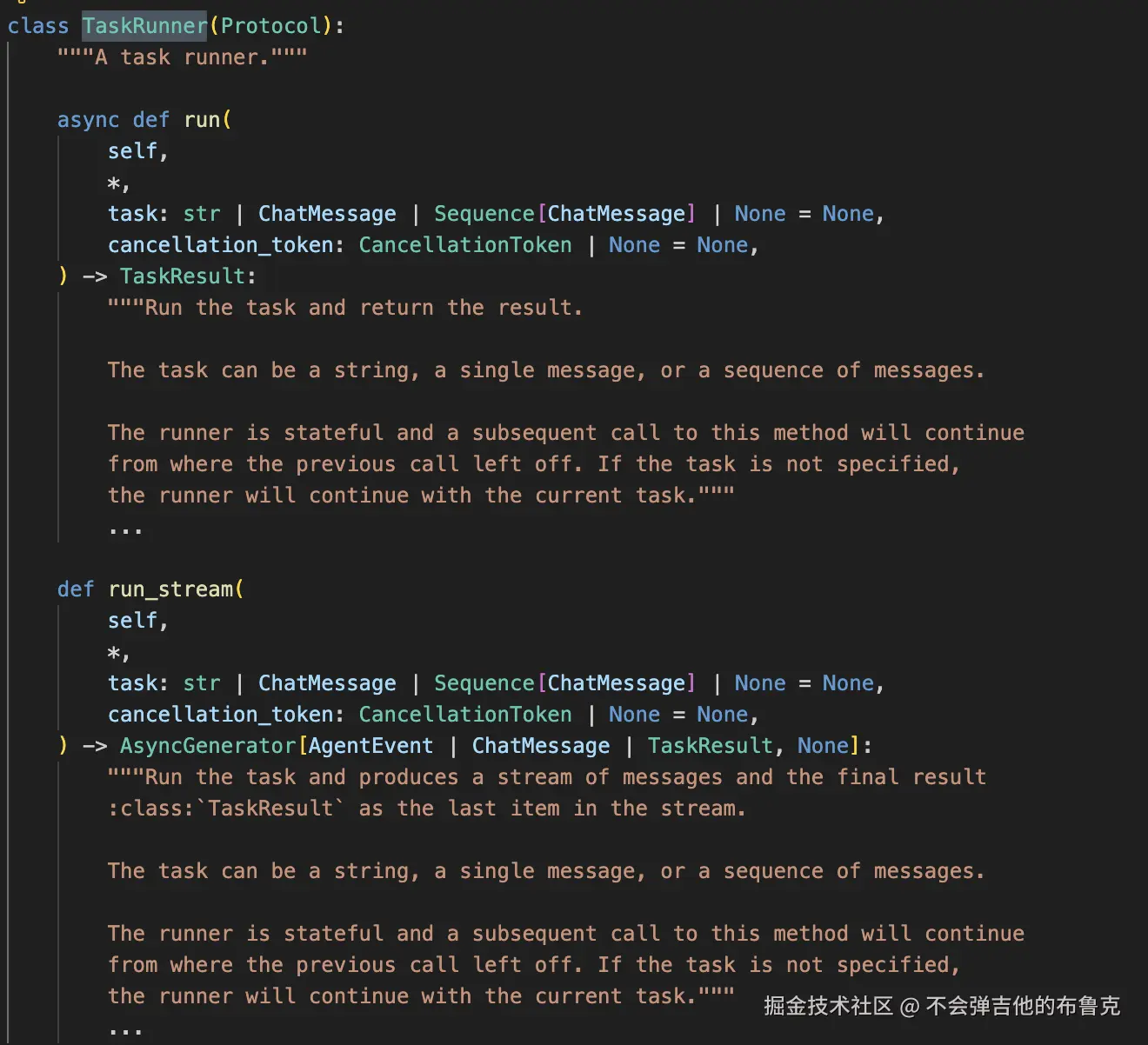

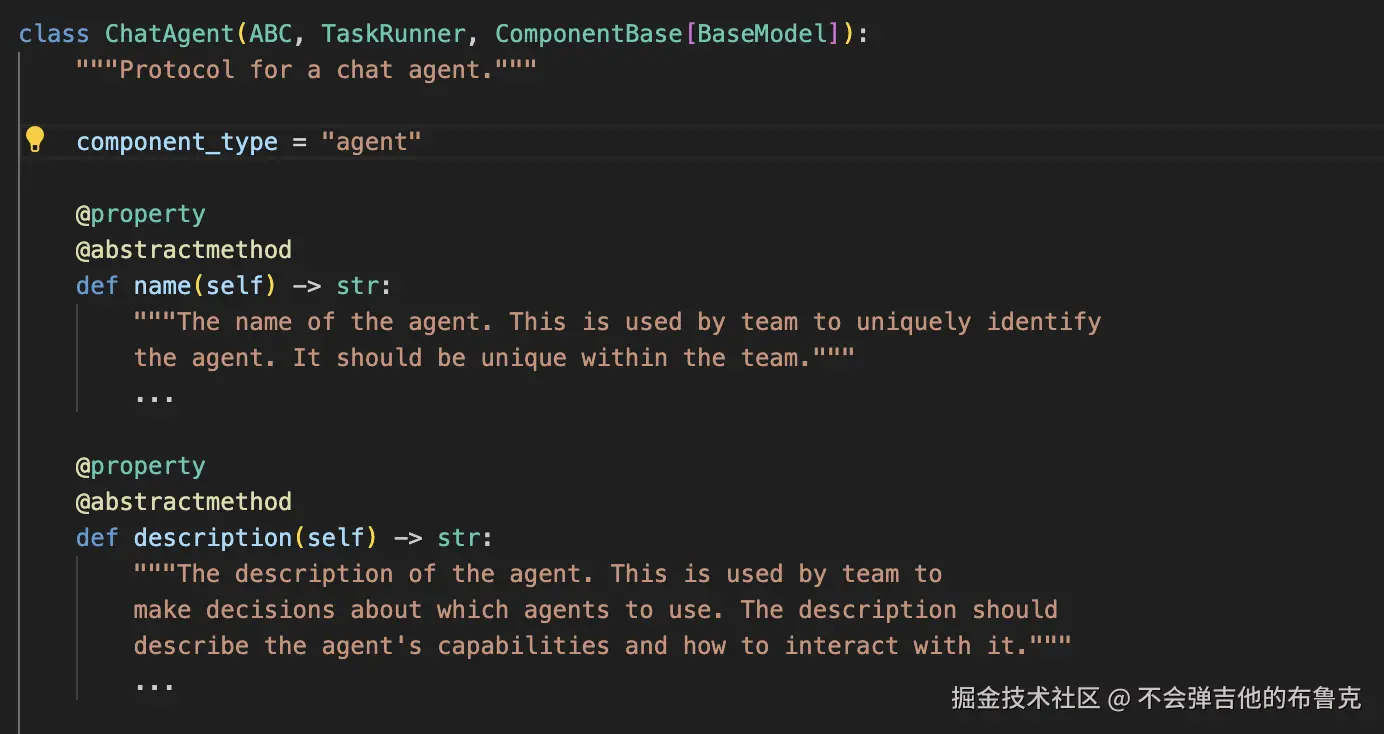

ChatAgent 和 TaskRunner 为纯智能体行为定义,TaskRunner 定义了智能体作为任务被调度执行的核心入口 run 和 run_stream
**3. 超级英雄的内部探秘：
让我们深入探秘已有的超级英雄智能体和如何构建一个新的超级英雄**
CodeExecutorAgent 是一个专门执行代码的智能体，它的超能力是从文本中提取代码并运行。比如，你发一条消息：“帮我运行这段代码：print('Hello, World!')”，它就会立刻执行并返回结果。
它的核心逻辑如下：
- 提取代码块：从消息中提取出代码片段。
- 执行代码：在安全的环境中运行代码。
- 返回结果：将执行结果返回给用户。
代码示例：
import asyncio
from autogen_agentchat.agents import CodeExecutorAgent
from autogen_agentchat.messages import TextMessage
from autogen_ext.code_executors.docker import DockerCommandLineCodeExecutor
async def run_code_executor_agent() -> None:
code_executor = DockerCommandLineCodeExecutor(work_dir="coding")
await code_executor.start()
code_executor_agent = CodeExecutorAgent("code_executor", code_executor=code_executor)
task = TextMessage(content='''Here is some code
```python
print('Hello world')
```
''', source="user")
response = await code_executor_agent.on_messages([task])
print(response.chat_message)
await code_executor.stop()
asyncio.run(run_code_executor_agent())
是不是很像钢铁侠的AI助手贾维斯？帮你写代码、运行代码，简直是程序员的福音！
AssistantAgent 是 AutoGen 中的“全能型英雄”，它不仅能回答问题，还能调用工具、处理转交任务，甚至能对工具调用结果进行总结。它的核心能力包括：
- 工具调用：支持注册和使用各种工具。
- 转交逻辑：将任务转交给其他智能体处理。
- 流式输出：逐步生成中间结果，最后返回最终响应。
它的工作流程如下：
- 接收消息：将用户输入添加到模型上下文中。
- 生成推理结果：调用模型生成响应。
- 执行工具调用：如果响应中包含工具调用，则执行工具并处理结果。
- 返回结果：将最终结果返回给用户。
代码示例：
class AssistantAgent(BaseChatAgent, Component[AssistantAgentConfig]):
"""An agent that provides assistance with tool use.
"""
component_config_schema = AssistantAgentConfig
component_provider_override = "autogen_agentchat.agents.AssistantAgent"
def __init__(
self,
name: str,
model_client: ChatCompletionClient,
*,
tools: List[BaseTool[Any, Any] | Callable[..., Any] | Callable[..., Awaitable[Any]]] | None = None,
handoffs: List[HandoffBase | str] | None = None,
model_context: ChatCompletionContext | None = None,
description: str = "An agent that provides assistance with ability to use tools.",
system_message: (
str | None
) = "You are a helpful AI assistant. Solve tasks using your tools. Reply with TERMINATE when the task has been completed.",
reflect_on_tool_use: bool = False,
tool_call_summary_format: str = "{result}",
memory: Sequence[Memory] | None = None,
):
super().__init__(name=name, description=description)
self._model_client = model_client
self._memory = None
if memory is not None:
if isinstance(memory, list):
self._memory = memory
else:
raise TypeError(f"Expected Memory, List[Memory], or None, got {type(memory)}")
self._system_messages: List[
SystemMessage | UserMessage | AssistantMessage | FunctionExecutionResultMessage
] = []
if system_message is None:
self._system_messages = []
else:
self._system_messages = [SystemMessage(content=system_message)]
self._tools: List[BaseTool[Any, Any]] = []
if tools is not None:
if model_client.model_info["function_calling"] is False:
raise ValueError("The model does not support function calling.")
for tool in tools:
if isinstance(tool, BaseTool):
self._tools.append(tool)
elif callable(tool):
if hasattr(tool, "__doc__") and tool.__doc__ is not None:
description = tool.__doc__
else:
description = ""
self._tools.append(FunctionTool(tool, description=description))
else:
raise ValueError(f"Unsupported tool type: {type(tool)}")
# Check if tool names are unique.
tool_names = [tool.name for tool in self._tools]
if len(tool_names) != len(set(tool_names)):
raise ValueError(f"Tool names must be unique: {tool_names}")
# Handoff tools.
self._handoff_tools: List[BaseTool[Any, Any]] = []
self._handoffs: Dict[str, HandoffBase] = {}
if handoffs is not None:
if model_client.model_info["function_calling"] is False:
raise ValueError("The model does not support function calling, which is needed for handoffs.")
for handoff in handoffs:
if isinstance(handoff, str):
handoff = HandoffBase(target=handoff)
if isinstance(handoff, HandoffBase):
self._handoff_tools.append(handoff.handoff_tool)
self._handoffs[handoff.name] = handoff
else:
raise ValueError(f"Unsupported handoff type: {type(handoff)}")
# Check if handoff tool names are unique.
handoff_tool_names = [tool.name for tool in self._handoff_tools]
if len(handoff_tool_names) != len(set(handoff_tool_names)):
raise ValueError(f"Handoff names must be unique: {handoff_tool_names}")
# Check if handoff tool names not in tool names.
if any(name in tool_names for name in handoff_tool_names):
raise ValueError(
f"Handoff names must be unique from tool names. Handoff names: {handoff_tool_names}; tool names: {tool_names}"
)
if model_context is not None:
self._model_context = model_context
else:
self._model_context = UnboundedChatCompletionContext()
self._reflect_on_tool_use = reflect_on_tool_use
self._tool_call_summary_format = tool_call_summary_format
self._is_running = False
@property
def produced_message_types(self) -> Sequence[type[ChatMessage]]:
"""The types of messages that the assistant agent produces."""
message_types: List[type[ChatMessage]] = [TextMessage]
if self._handoffs:
message_types.append(HandoffMessage)
if self._tools:
message_types.append(ToolCallSummaryMessage)
return tuple(message_types)
async def on_messages(self, messages: Sequence[ChatMessage], cancellation_token: CancellationToken) -> Response:
async for message in self.on_messages_stream(messages, cancellation_token):
if isinstance(message, Response):
return message
raise AssertionError("The stream should have returned the final result.")
async def on_messages_stream(
self, messages: Sequence[ChatMessage], cancellation_token: CancellationToken
) -> AsyncGenerator[AgentEvent | ChatMessage | Response, None]:
# Add messages to the model context.
for msg in messages:
if isinstance(msg, MultiModalMessage) and self._model_client.model_info["vision"] is False:
raise ValueError("The model does not support vision.")
if isinstance(msg, HandoffMessage):
# Add handoff context to the model context.
for context_msg in msg.context:
await self._model_context.add_message(context_msg)
await self._model_context.add_message(UserMessage(content=msg.content, source=msg.source))
# Inner messages.
inner_messages: List[AgentEvent | ChatMessage] = []
# Update the model context with memory content.
if self._memory:
for memory in self._memory:
update_context_result = await memory.update_context(self._model_context)
if update_context_result and len(update_context_result.memories.results) > 0:
memory_query_event_msg = MemoryQueryEvent(
content=update_context_result.memories.results, source=self.name
)
inner_messages.append(memory_query_event_msg)
yield memory_query_event_msg
# Generate an inference result based on the current model context.
llm_messages = self._system_messages + await self._model_context.get_messages()
model_result = await self._model_client.create(
llm_messages, tools=self._tools + self._handoff_tools, cancellation_token=cancellation_token
)
# Add the response to the model context.
await self._model_context.add_message(AssistantMessage(content=model_result.content, source=self.name))
# Check if the response is a string and return it.
if isinstance(model_result.content, str):
yield Response(
chat_message=TextMessage(
content=model_result.content, source=self.name, models_usage=model_result.usage
),
inner_messages=inner_messages,
)
return
# Process tool calls.
assert isinstance(model_result.content, list) and all(
isinstance(item, FunctionCall) for item in model_result.content
)
tool_call_msg = ToolCallRequestEvent(
content=model_result.content, source=self.name, models_usage=model_result.usage
)
event_logger.debug(tool_call_msg)
# Add the tool call message to the output.
inner_messages.append(tool_call_msg)
yield tool_call_msg
# Execute the tool calls.
exec_results = await asyncio.gather(
*[self._execute_tool_call(call, cancellation_token) for call in model_result.content]
)
tool_call_result_msg = ToolCallExecutionEvent(content=exec_results, source=self.name)
event_logger.debug(tool_call_result_msg)
await self._model_context.add_message(FunctionExecutionResultMessage(content=exec_results))
inner_messages.append(tool_call_result_msg)
yield tool_call_result_msg
# Correlate tool call results with tool calls.
tool_calls = [call for call in model_result.content if call.name not in self._handoffs]
tool_call_results: List[FunctionExecutionResult] = []
for tool_call in tool_calls:
found = False
for exec_result in exec_results:
if exec_result.call_id == tool_call.id:
found = True
tool_call_results.append(exec_result)
break
if not found:
raise RuntimeError(f"Tool call result not found for call id: {tool_call.id}")
# Detect handoff requests.
handoff_reqs = [call for call in model_result.content if call.name in self._handoffs]
if len(handoff_reqs) > 0:
handoffs = [self._handoffs[call.name] for call in handoff_reqs]
if len(handoffs) > 1:
# show warning if multiple handoffs detected
warnings.warn(
(
f"Multiple handoffs detected only the first is executed: {[handoff.name for handoff in handoffs]}. "
"Disable parallel tool call in the model client to avoid this warning."
),
stacklevel=2,
)
# Current context for handoff.
handoff_context: List[LLMMessage] = []
if len(tool_calls) > 0:
handoff_context.append(AssistantMessage(content=tool_calls, source=self.name))
handoff_context.append(FunctionExecutionResultMessage(content=tool_call_results))
# Return the output messages to signal the handoff.
yield Response(
chat_message=HandoffMessage(
content=handoffs[0].message, target=handoffs[0].target, source=self.name, context=handoff_context
),
inner_messages=inner_messages,
)
return
if self._reflect_on_tool_use:
# Generate another inference result based on the tool call and result.
llm_messages = self._system_messages + await self._model_context.get_messages()
model_result = await self._model_client.create(llm_messages, cancellation_token=cancellation_token)
assert isinstance(model_result.content, str)
# Add the response to the model context.
await self._model_context.add_message(AssistantMessage(content=model_result.content, source=self.name))
# Yield the response.
yield Response(
chat_message=TextMessage(
content=model_result.content, source=self.name, models_usage=model_result.usage
),
inner_messages=inner_messages,
)
else:
# Return tool call result as the response.
tool_call_summaries: List[str] = []
for tool_call, tool_call_result in zip(tool_calls, tool_call_results, strict=False):
tool_call_summaries.append(
self._tool_call_summary_format.format(
tool_name=tool_call.name,
arguments=tool_call.arguments,
result=tool_call_result.content,
),
)
tool_call_summary = "\n".join(tool_call_summaries)
yield Response(
chat_message=ToolCallSummaryMessage(content=tool_call_summary, source=self.name),
inner_messages=inner_messages,
)
async def _execute_tool_call(
self, tool_call: FunctionCall, cancellation_token: CancellationToken
) -> FunctionExecutionResult:
"""Execute a tool call and return the result."""
try:
if not self._tools + self._handoff_tools:
raise ValueError("No tools are available.")
tool = next((t for t in self._tools + self._handoff_tools if t.name == tool_call.name), None)
if tool is None:
raise ValueError(f"The tool '{tool_call.name}' is not available.")
arguments = json.loads(tool_call.arguments)
result = await tool.run_json(arguments, cancellation_token)
result_as_str = tool.return_value_as_string(result)
return FunctionExecutionResult(content=result_as_str, call_id=tool_call.id)
except Exception as e:
return FunctionExecutionResult(content=f"Error: {e}", call_id=tool_call.id)
async def on_reset(self, cancellation_token: CancellationToken) -> None:
"""Reset the assistant agent to its initialization state."""
await self._model_context.clear()
async def save_state(self) -> Mapping[str, Any]:
"""Save the current state of the assistant agent."""
model_context_state = await self._model_context.save_state()
return AssistantAgentState(llm_context=model_context_state).model_dump()
async def load_state(self, state: Mapping[str, Any]) -> None:
"""Load the state of the assistant agent"""
assistant_agent_state = AssistantAgentState.model_validate(state)
# Load the model context state.
await self._model_context.load_state(assistant_agent_state.llm_context)
def _to_config(self) -> AssistantAgentConfig:
"""Convert the assistant agent to a declarative config."""
return AssistantAgentConfig(
name=self.name,
model_client=self._model_client.dump_component(),
tools=[tool.dump_component() for tool in self._tools],
handoffs=list(self._handoffs.values()),
model_context=self._model_context.dump_component(),
description=self.description,
system_message=self._system_messages[0].content
if self._system_messages and isinstance(self._system_messages[0].content, str)
else None,
reflect_on_tool_use=self._reflect_on_tool_use,
tool_call_summary_format=self._tool_call_summary_format,
)
@classmethod
def _from_config(cls, config: AssistantAgentConfig) -> Self:
"""Create an assistant agent from a declarative config."""
return cls(
name=config.name,
model_client=ChatCompletionClient.load_component(config.model_client),
tools=[BaseTool.load_component(tool) for tool in config.tools] if config.tools else None,
handoffs=config.handoffs,
model_context=None,
description=config.description,
system_message=config.system_message,
reflect_on_tool_use=config.reflect_on_tool_use,
tool_call_summary_format=config.tool_call_summary_format,
)
5. 总结：超级英雄的未来
AutoGen AgentChat 就像一支AI世界的超级英雄团队，每个智能体都有自己的特长，团队合作可以完成各种复杂任务。无论是搜索信息、分析数据，还是执行代码，它们都能轻松搞定。未来，随着AI技术的不断发展，这些“超级英雄”的能力还会变得更加强大，甚至可能帮你完成更多不可思议的任务！
所以，准备好迎接AI超级英雄的时代了吗？让我们一起期待它们的更多精彩表现吧！🚀
引用链接:
