React18 阅读笔记 -- debug 环境搭建

配置好的仓库自取(带阅读笔记版): react-debug github link

vite环境搭建

创建项目

pnpm create vite
#  (根据提示配置项目)
...

下载 react 源码

github 地址：github.com/facebook/re… 切换 tag ，找到对应版本 本文是 18.2.0 版本

# 切换目录到src下，直接clone整个react资源包
cd src
git clone git@github.com:facebook/react.git

配置 vite.config.js

import { defineConfig } from "vite";
import react from "@vitejs/plugin-react";
import path from "path";

// https://vitejs.dev/config/
export default defineConfig({
  plugins: [react()],
  resolve: {
    // 配置别名
    alias: {
      react: path.posix.resolve("src/react/packages/react"),
      "react-dom": path.posix.resolve("src/react/packages/react-dom"),
      "react-dom-bindings": path.posix.resolve(
        "src/react/packages/react-dom-bindings"
      ),
      "react-reconciler": path.posix.resolve(
        "src/react/packages/react-reconciler"
      ),
      "react-client": path.posix.resolve("src/react/packages/react-client"),
      scheduler: path.posix.resolve("src/react/packages/scheduler"),
      shared: path.posix.resolve("src/react/packages/shared")
    }
  },
  // 配置环境变量
  define: {
    __DEV__: false,
    __EXPERIMENTAL__: true,
    __PROFILE__: true
  }
});

由于 DEV 配置的 false，需要手动改赋值一下 jsxDEV

// path: src/react/packages/react/src/jsx/ReactJSX.js

// 注释掉原来的 赋值 直接赋值为 _jsxDEV(之前赋值为 jsxProd 会报错 没解决掉)
// const jsxDEV      = __DEV__ ? _jsxDEV : undefined;
const jsxDEV = _jsxDEV;

配置 tsconfig.json / jsconfig.json

// ...
 "compilerOptions": {
    "baseUrl": "./",
    "paths": {
      "react/*": [
        "src/react/packages/react/*"
      ],
      "react-dom/*": [
        "src/react/packages/react-dom/*"
      ],
      "react-dom-bindings/*": [
        "src/react/packages/react-dom-bindings/*"
      ],
      "react-reconciler/*": [
        "src/react/packages/react-reconciler/*"
      ],
      "scheduler/*": [
        "src/react/packages/scheduler/*"
      ],
      "shared/*": [
        "src/react/packages/shared/*"
      ]
    }
  },
//   ...

vscode 调试

# 回退到项目根目录
cd ..
# 安装依赖
pnpm i
# 起项目
pnpm dev

F5 启动调试

解决报错

参考:

React 18 debugger 源码分析配置

webpack

创建项目

npx create-react-app debug-react

# 暴露webpack 配置
npm run eject

下载 react 源码

github 地址：github.com/facebook/re… 切换 tag ，找到对应版本 本文是 18.2.0 版本

# 切换目录到src下，直接clone整个react资源包
cd src
git clone git@github.com:facebook/react.git

修改配置

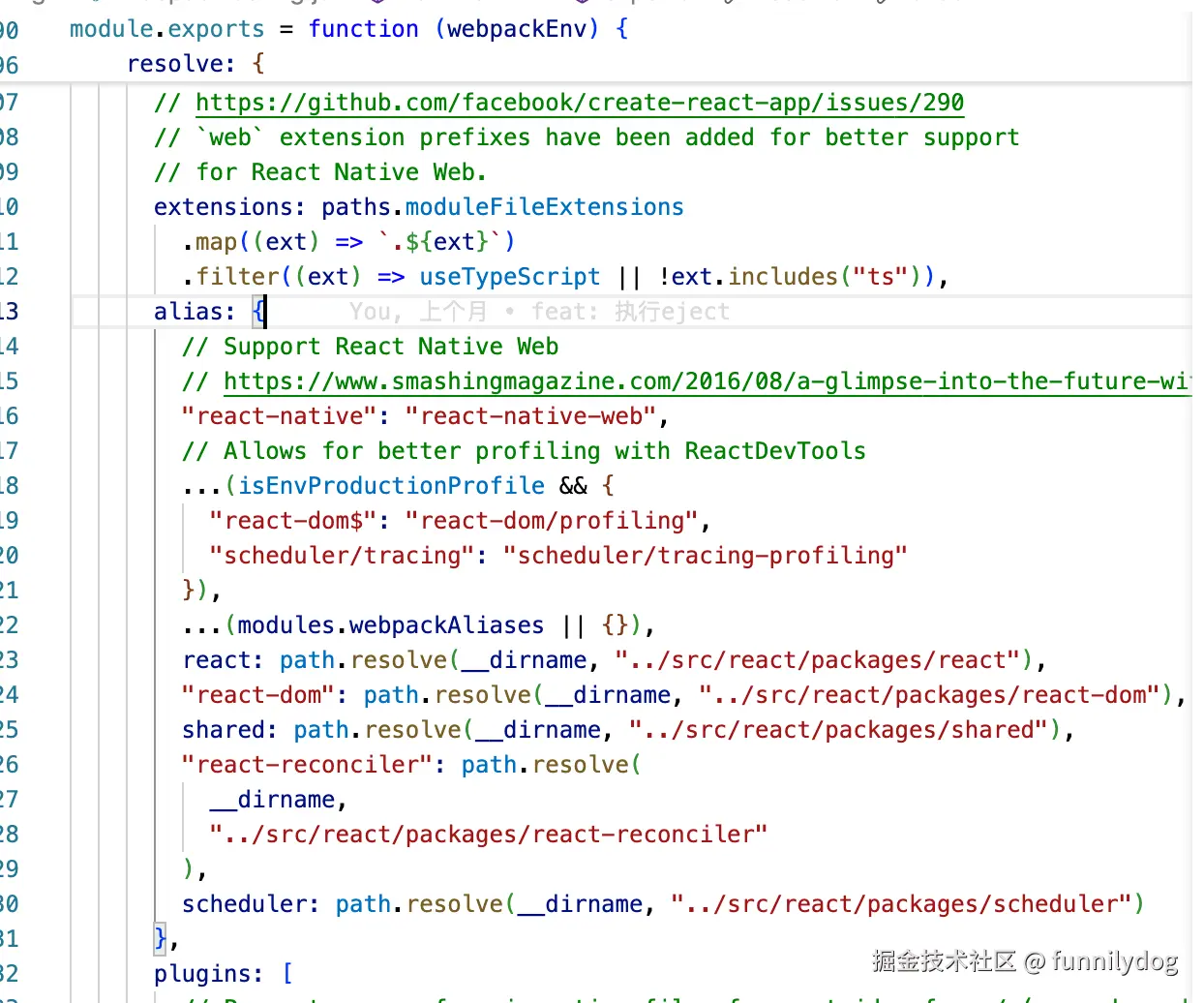

alias配置：

// config/webpack.config.js
'react': path.resolve(__dirname, '../src/react/packages/react'),
'react-dom': path.resolve(__dirname, '../src/reactpackages/react-dom'),
'react-dom-bindings': path.resolve(__dirname, '../srcreact/packages/react-dom-bindings'),
'react-reconciler': path.resolve(__dirname, '../srcreact/packages/react-reconciler'),
'shared': path.resolve(__dirname, '../src/react/packagesshared'),
'scheduler': path.resolve(__dirname, '../src/reactpackages/scheduler'),

全局变量配置：

// /config/env.js
__DEV__: true,
__PROFILE__: true,
__UMD__: true,
__EXPERIMENTAL__: true,
__VARIANT__: true,

解决报错

参考

手把手教你配置 React18 调试环境
