hessian序列化与反序列化过程分析

hessian序列化与反序列化过程分析

​ dubbo默认都是采用hessian2进行序列化与反序列化操作 ​ 下面从一个简单的例子说

public class PojoDemo implements Serializable {

    private String name;

    private String addr;

    private int   age;

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getAddr() {
        return addr;
    }

    public void setAddr(String addr) {
        this.addr = addr;
    }

    public int getAge() {
        return age;
    }

    public void setAge(int age) {
        this.age = age;
    }
}

​ 这里有引用了dubbo的测试类

class Hessian2SerializationTest {
    @Test
    void testReadString() throws IOException, ClassNotFoundException {
        FrameworkModel frameworkModel = new FrameworkModel();
        Serialization serialization =
                frameworkModel.getExtensionLoader(Serialization.class).getExtension("hessian2");
        URL url = URL.valueOf("").setScopeModel(frameworkModel);

        // write string, read string
        {
            ByteArrayOutputStream outputStream = new ByteArrayOutputStream();
            ObjectOutput objectOutput = serialization.serialize(url, outputStream);
            objectOutput.writeObject("hello");
            objectOutput.writeObject(pojoDemo);
           objectOutput.writeInt(42);
            objectOutput.writeObject("test");
            objectOutput.flushBuffer();

            byte[] bytes = outputStream.toByteArray();
            ByteArrayInputStream inputStream = new ByteArrayInputStream(bytes);
            ObjectInput objectInput = serialization.deserialize(url, inputStream);
            Object object = objectInput.readObject();

            Assertions.assertEquals("hello", objectInput.readUTF());
        }

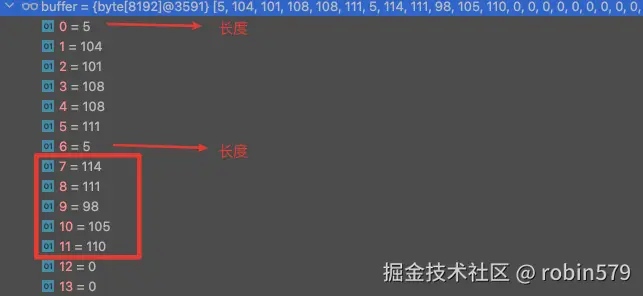

• 当objectOutput.writeObject("hello")时，第0号位置表示长度，这里长度为5,1-5分别表示hello的 每个字符
• 再写入robin字符内容

测试序列化对象及反序列化对象

class Hessian2SerializationTest {
    @Test
    void testReadString() throws IOException, ClassNotFoundException {
        FrameworkModel frameworkModel = new FrameworkModel();
        Serialization serialization =
                frameworkModel.getExtensionLoader(Serialization.class).getExtension("hessian2");
        URL url = URL.valueOf("").setScopeModel(frameworkModel);

        // write string, read string
        {

            ByteArrayOutputStream outputStream = new ByteArrayOutputStream();
            ObjectOutput objectOutput = serialization.serialize(url, outputStream);
            PojoDemo pojoDemo=new PojoDemo();
            pojoDemo.setAddr("hncn");
            pojoDemo.setAge(22);
            pojoDemo.setName("hello1");
            objectOutput.writeObject(pojoDemo);
            objectOutput.flushBuffer();

            byte[] bytes = outputStream.toByteArray();
            ByteArrayInputStream inputStream = new ByteArrayInputStream(bytes);
            ObjectInput objectInput = serialization.deserialize(url, inputStream);
            Object object = objectInput.readObject();

            Assertions.assertEquals("hello", objectInput.readUTF());
        }

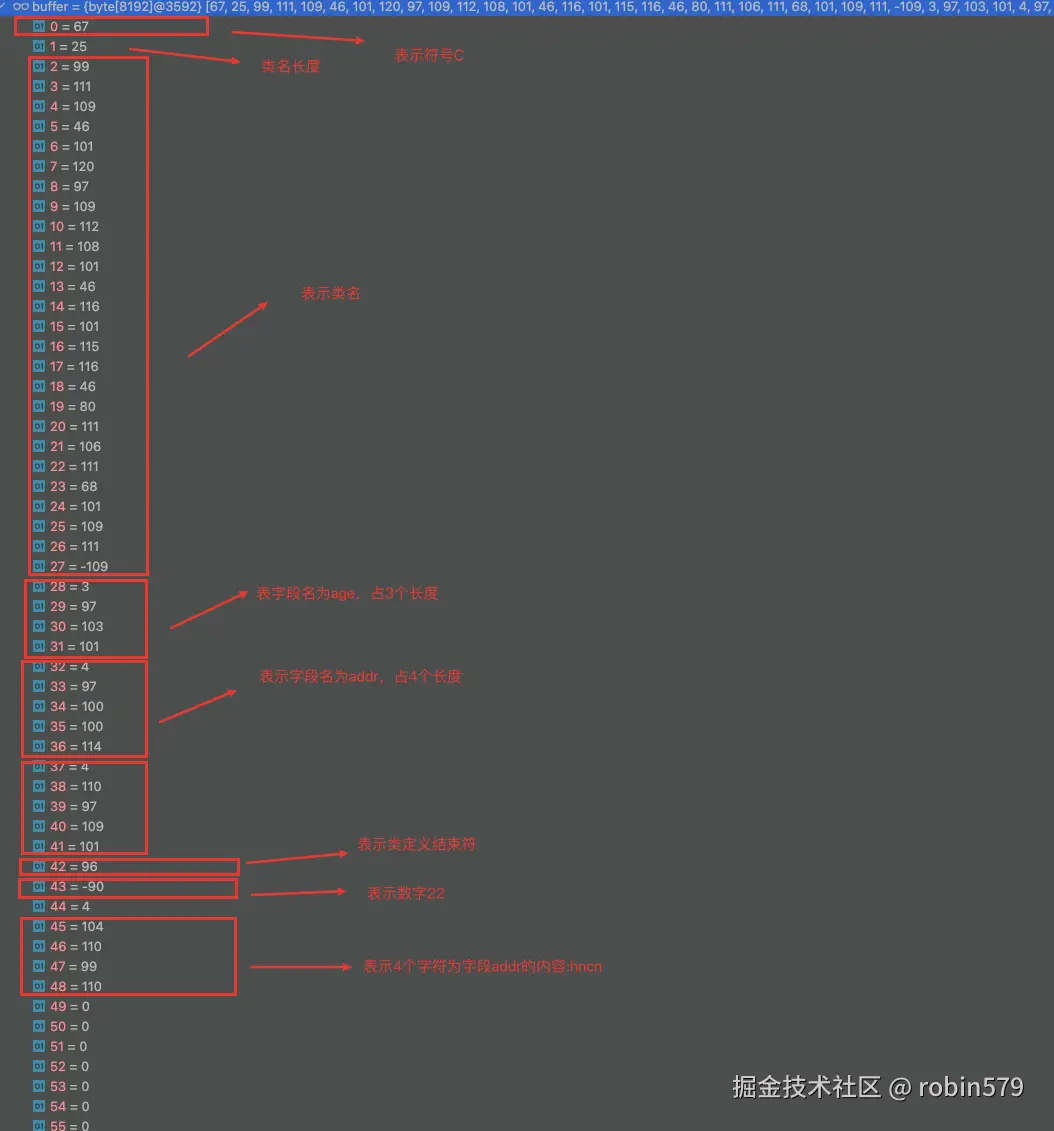

写入对象 objectOutput.writeObject;

• 第一步，写入类名，0号位置是类的标识67,即“C”字符，然后写入类名长度，接着是写入类名具体字节

• 第二步，写入类的字段总数量

• 第三步，写入每个字段的名称字符串长度，及字符串名称内容

• 第四步，写入一个标识BC_OBJECT_DIRECT，表示定义的部分就完成，下面是写入实例的数据

读取对象 readObject ：

• 读先取类名，再读取字段总个数

• 加载类名，再根据类名，加载 deserializer，unsafeDeserializer

• 再依次读取input流中每个字段的定义，为每个字段生成FieldDeserializer,用于反序列化，这个字段数组都是有顺序的

• 读取实例内容，就是从类定义那个分隔符后进行读取

• 调用unsafeDeserializer# readObject(this, fields)，读取每个字段的内容

• 依次调用 Deserialize字段数组

• 比如第一个是IntFieldDeserializer#readInt，然后调用_unsafe.putInt(obj, _offset, value)设值

• 比如第二个是StringFieldDeserializer#readString，然后调用_unsafe.putObject(obj, _offset, value) 设值
