Linux Kernel aarch64 Crypto原理和框架介绍

Arm精选
115 阅读3分钟

文章目录

  • 1、Linux的aarch64 crypto配置介绍

  • 2、Linux的aarch64 crypto的总结：

  • （1）、开启ARM-CE

  • （2）、开启ARM-NEON

  • （3）、纯软实现

  • 3、比较硬件实现和纯软实现

read-normal-img

1、Linux的aarch64 crypto配置介绍

开启ARM-CE或ARM-Neon，编译aes-glue.c文件，aes-glue.c是Linux kernel crypto aarch32/64下ARM-CE或ARM-NEON加解密调用的顶级文件。

  • CONFIG_CRYPTO_AES_ARM64_CE_BLK
  • CONFIG_CRYPTO_AES_ARM64_NEON_BLK

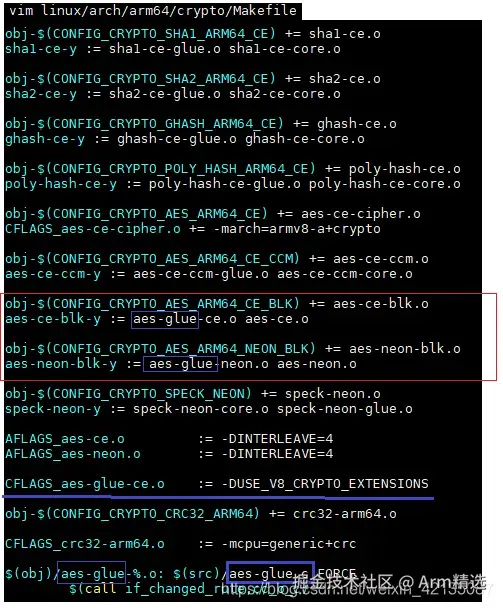

注意，如果开启的是ARM-CE，则加入USE_V8_CRYPTO_EXTENSIONS宏定义

read-normal-img

在aes-glue.c中，使用USE_V8_CRYPTO_EXTENSIONS宏控制的底层aes的链接.

  1. #ifdef USE_V8_CRYPTO_EXTENSIONS

  2. #define MODE "ce"

  3. #define PRIO 300

  4. #define aes_setkey ce_aes_setkey

  5. #define aes_expandkey ce_aes_expandkey

  6. #define aes_ecb_encrypt ce_aes_ecb_encrypt

  7. #define aes_ecb_decrypt ce_aes_ecb_decrypt

  8. #define aes_cbc_encrypt ce_aes_cbc_encrypt

  9. #define aes_cbc_decrypt ce_aes_cbc_decrypt

  10. #define aes_ctr_encrypt ce_aes_ctr_encrypt

  11. #define aes_xts_encrypt ce_aes_xts_encrypt

  12. #define aes_xts_decrypt ce_aes_xts_decrypt

  13. MODULE_DESCRIPTION("AES-ECB/CBC/CTR/XTS using ARMv8 Crypto Extensions");

  14. #else

  15. #define MODE "neon"

  16. #define PRIO 200

  17. #define aes_setkey crypto_aes_set_key

  18. #define aes_expandkey crypto_aes_expand_key

  19. #define aes_ecb_encrypt neon_aes_ecb_encrypt

  20. #define aes_ecb_decrypt neon_aes_ecb_decrypt

  21. #define aes_cbc_encrypt neon_aes_cbc_encrypt

  22. #define aes_cbc_decrypt neon_aes_cbc_decrypt

  23. #define aes_ctr_encrypt neon_aes_ctr_encrypt

  24. #define aes_xts_encrypt neon_aes_xts_encrypt

  25. #define aes_xts_decrypt neon_aes_xts_decrypt

  26. MODULE_DESCRIPTION("AES-ECB/CBC/CTR/XTS using ARMv8 NEON");

  27. MODULE_ALIAS_CRYPTO("ecb(aes)");

  28. MODULE_ALIAS_CRYPTO("cbc(aes)");

  29. MODULE_ALIAS_CRYPTO("ctr(aes)");

  30. MODULE_ALIAS_CRYPTO("xts(aes)");

  31. #endif

在Kconfig中可以看出，在开启CONFIG_CRYPTO_AES_ARM64_CE_BLK或CONFIG_CRYPTO_AES_ARM64_NEON_BLK，还需要再次选择底层的算法。

  1. config CRYPTO_AES_ARM64_CE_BLK

  2. tristate "AES in ECB/CBC/CTR/XTS modes using ARMv8 Crypto Extensions"

  3. depends on KERNEL_MODE_NEON

  4. select CRYPTO_BLKCIPHER

  5. select CRYPTO_AES_ARM64_CE

  6. select CRYPTO_AES_ARM64

  7. select CRYPTO_SIMD

  8. config CRYPTO_AES_ARM64_NEON_BLK

  9. tristate "AES in ECB/CBC/CTR/XTS modes using NEON instructions"

  10. depends on KERNEL_MODE_NEON

  11. select CRYPTO_BLKCIPHER

  12. select CRYPTO_AES_ARM64

  13. select CRYPTO_AES

  14. select CRYPTO_SIMD

如选择ARM-CE的aes，除了打开CONFIG_CRYPTO_AES_ARM64_CE_BLK，还需要再次开启CONFIG_CRYPTO_AES_ARM64_CE，编译aes-ce-cipher.S，该文件实现了ARM-CE的底层逻辑;

  1. obj-$(CONFIG_CRYPTO_AES_ARM64_CE) += aes-ce-cipher.o

  2. CFLAGS_aes-ce-cipher.o += -march=armv8-a+crypto

如选择ARM-NEON的aes，除了打开CONFIG_CRYPTO_AES_ARM64_NEON_BLK，不需要在额外增加别的宏了，因为在aes-neon.S中已经实现了ARM-NEON的底层逻辑;

  1. obj-$(CONFIG_CRYPTO_AES_ARM64_NEON_BLK) += aes-neon-blk.o

  2. aes-neon-blk-y := aes-glue-neon.o aes-neon.o

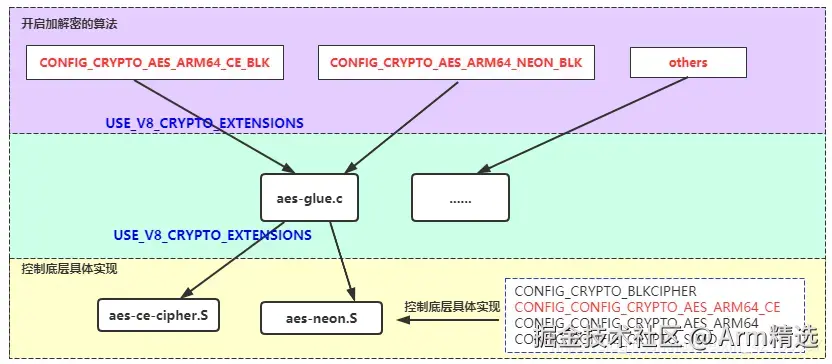

2、Linux的aarch64 crypto的总结：

read-normal-img

（1）、开启ARM-CE

如果开启ARM-CE，则需要打开：

CONFIG_CRYPTO_AES_ARM64_CE_BLK

CONFIG_CRYPTO_AES_ARM64_CE

接口实现：aes-glue.c

底层实现：aes-modes.S

接口形式:

  1. #define MODE "ce"

  2. （同步）

  3. .cra_name = "__ecb-aes-" MODE,

  4. .cra_name = "__cbc-aes-" MODE,

  5. .cra_name = "__ctr-aes-" MODE,

  6. .cra_name = "__xts-aes-" MODE,

  7. （异步）

  8. .cra_driver_name = "ecb-aes-" MODE,

  9. .cra_driver_name = "cbc-aes-" MODE,

  10. .cra_driver_name = "ctr-aes-" MODE,

  11. .cra_driver_name = "xts-aes-" MODE,

（2）、开启ARM-NEON

如果开启ARM-NEON，则需要打开：

CONFIG_CRYPTO_AES_ARM64_NEON_BLK

接口实现：aes-glue.c

底层实现：aes-neon.S

接口形式:

  1. #define MODE "neon"

  2. （同步）

  3. .cra_name = "__ecb-aes-" MODE,

  4. .cra_name = "__cbc-aes-" MODE,

  5. .cra_name = "__ctr-aes-" MODE,

  6. .cra_name = "__xts-aes-" MODE,

  7. （异步）

  8. .cra_driver_name = "ecb-aes-" MODE,

  9. .cra_driver_name = "cbc-aes-" MODE,

  10. .cra_driver_name = "ctr-aes-" MODE,

  11. .cra_driver_name = "xts-aes-" MODE,

（3）、纯软实现

如果以上都不开，则走纯软实现

接口实现:

linux/crypto$ ls ecb.c cbc.c ctr.c xts.c

cbc.c ctr.c ecb.c xts.c

接口形式:

  1. .name = "ecb",

  2. .name = "cbc",

  3. .name = "ctr",

  4. .name = "xts",

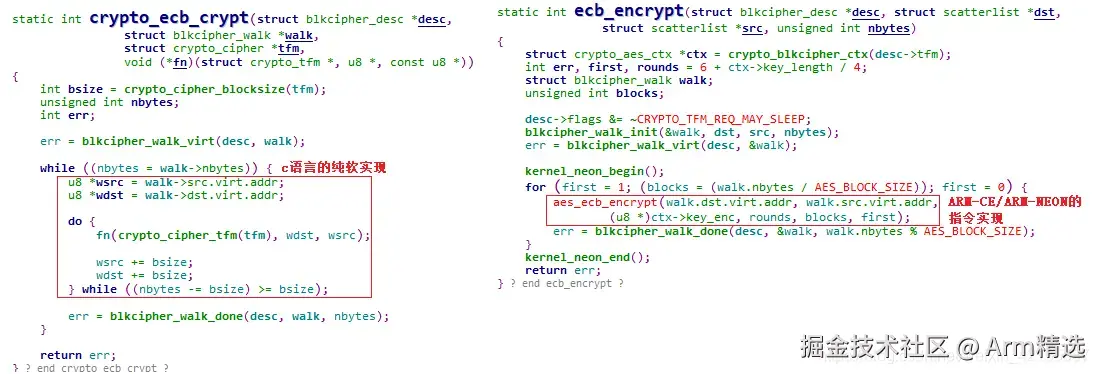

3、比较硬件实现和纯软实现

read-normal-img

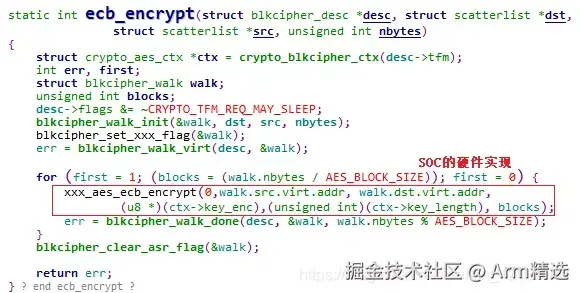

其实如果是芯片SOC的实现，方法也类似：

read-normal-img
