服务调用
本文仍然采用http插件为例，一个直连请求如下：
GET http://localhost:8189/order/findById?id=100
Accept: application/json
经过Shenyu网关之后，请求如下：
GET http://localhost:9195/http/order/findById?id=100
Accept: application/json

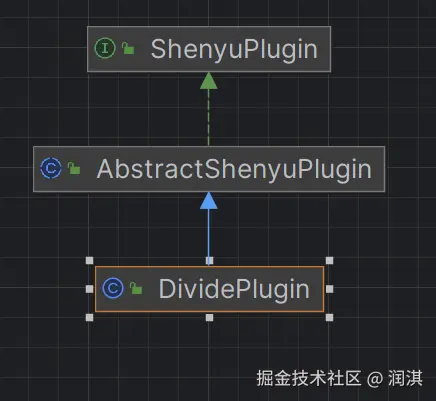

通过Shenyu网关代理后的服务能够请求到之前的服务，在这里起作用的就是divide插件。类继承关系如下：
- ShenyuPlugin：顶层接口，定义接口方法；
- AbstractShenyuPlugin：抽象类，实现插件共有逻辑；
- DividePlugin：Divide插件。
请求接收
通过Shenyu网关代理后，请求入口是ShenyuWebHandler，它实现了org.springframework.web.server.WebHandler
public final class ShenyuWebHandler implements WebHandler, ApplicationListener<SortPluginEvent> {
//......
/**
* 处理web请求
*/
@Override
public Mono<Void> handle(@NonNull final ServerWebExchange exchange) {
// 执行默认插件链
Mono<Void> execute = new DefaultShenyuPluginChain(plugins).execute(exchange);
if (scheduled) {
return execute.subscribeOn(scheduler);
}
return execute;
}
private static class DefaultShenyuPluginChain implements ShenyuPluginChain {
private int index;
private final List<ShenyuPlugin> plugins;
/**
* Instantiates a new Default shenyu plugin chain.
*
* @param plugins the plugins
*/
//实例化默认插件链
DefaultShenyuPluginChain(final List<ShenyuPlugin> plugins) {
this.plugins = plugins;
}
/**
* Delegate to the next {@code WebFilter} in the chain.
*
* @param exchange the current server exchange
* @return {@code Mono<Void>} to indicate when request handling is complete
*/
//执行每个插件
@Override
public Mono<Void> execute(final ServerWebExchange exchange) {
return Mono.defer(() -> {
if (this.index < plugins.size()) {
//获取当前执行插件
ShenyuPlugin plugin = plugins.get(this.index++);
//是否跳过当前插件
boolean skip = plugin.skip(exchange);
if (skip) {
//如果跳过就执行下一个
return this.execute(exchange);
}
//执行当前插件
return plugin.execute(exchange, this);
}
return Mono.empty();
});
}
}
}
这里顺便说一嘴，shenyu-ingerss-controller的目的就是启用插件，将对应的selectordata、ruledata以及metadata进行传入，直接到达请求接收这里，不需要使用服务注册等内容。
规则匹配
org.apache.shenyu.plugin.base.AbstractShenyuPlugin#execute()
在execute()方法中执行选择器和规则的匹配逻辑。
- 匹配选择器；
- 匹配规则；
- 执行插件。
@Override
public Mono<Void> execute(final ServerWebExchange exchange, final ShenyuPluginChain chain) {
// 插件名称
String pluginName = named();
// 插件信息
PluginData pluginData = BaseDataCache.getInstance().obtainPluginData(pluginName);
if (pluginData != null && pluginData.getEnabled()) {
// 选择器信息
final Collection<SelectorData> selectors = BaseDataCache.getInstance().obtainSelectorData(pluginName);
if (CollectionUtils.isEmpty(selectors)) {
return handleSelectorIfNull(pluginName, exchange, chain);
}
// 匹配选择器
SelectorData selectorData = matchSelector(exchange, selectors);
if (Objects.isNull(selectorData)) {
return handleSelectorIfNull(pluginName, exchange, chain);
}
selectorLog(selectorData, pluginName);
// 规则信息
List<RuleData> rules = BaseDataCache.getInstance().obtainRuleData(selectorData.getId());
if (CollectionUtils.isEmpty(rules)) {
return handleRuleIfNull(pluginName, exchange, chain);
}
// 匹配规则
RuleData rule;
if (selectorData.getType() == SelectorTypeEnum.FULL_FLOW.getCode()) {
//get last
rule = rules.get(rules.size() - 1);
} else {
rule = matchRule(exchange, rules);
}
if (Objects.isNull(rule)) {
return handleRuleIfNull(pluginName, exchange, chain);
}
ruleLog(rule, pluginName);
// 执行插件
return doExecute(exchange, chain, selectorData, rule);
}
return chain.execute(exchange);
}
执行divide插件
org.apache.shenyu.plugin.divide.DividePlugin#doExecute()
在doExecute()方法中执行divide插件的具体逻辑：
- 校验
header大小； - 校验
request大小； - 获取服务列表；
- 实现负载均衡；
- 设置请求
url，超时时间，重试策略。
@Override
protected Mono<Void> doExecute(final ServerWebExchange exchange, final ShenyuPluginChain chain, final SelectorData selector, final RuleData rule) {
// 获取上下文信息
ShenyuContext shenyuContext = exchange.getAttribute(Constants.CONTEXT);
assert shenyuContext != null;
// 获取规则的handle属性
DivideRuleHandle ruleHandle = DividePluginDataHandler.CACHED_HANDLE.get().obtainHandle(CacheKeyUtils.INST.getKey(rule));
long headerSize = 0;
// 校验header大小
for (List<String> multiHeader : exchange.getRequest().getHeaders().values()) {
for (String value : multiHeader) {
headerSize += value.getBytes(StandardCharsets.UTF_8).length;
}
}
if (headerSize > ruleHandle.getHeaderMaxSize()) {
LOG.error("request header is too large");
Object error = ShenyuResultWrap.error(exchange, ShenyuResultEnum.REQUEST_HEADER_TOO_LARGE, null);
return WebFluxResultUtils.result(exchange, error);
}
// 校验request大小
if (exchange.getRequest().getHeaders().getContentLength() > ruleHandle.getRequestMaxSize()) {
LOG.error("request entity is too large");
Object error = ShenyuResultWrap.error(exchange, ShenyuResultEnum.REQUEST_ENTITY_TOO_LARGE, null);
return WebFluxResultUtils.result(exchange, error);
}
// 获取服务列表upstreamList
List<Upstream> upstreamList = UpstreamCacheManager.getInstance().findUpstreamListBySelectorId(selector.getId());
if (CollectionUtils.isEmpty(upstreamList)) {
LOG.error("divide upstream configuration error： {}", rule);
Object error = ShenyuResultWrap.error(exchange, ShenyuResultEnum.CANNOT_FIND_HEALTHY_UPSTREAM_URL, null);
return WebFluxResultUtils.result(exchange, error);
}
// 请求ip
String ip = Objects.requireNonNull(exchange.getRequest().getRemoteAddress()).getAddress().getHostAddress();
// 实现负载均衡
Upstream upstream = LoadBalancerFactory.selector(upstreamList, ruleHandle.getLoadBalance(), ip);
if (Objects.isNull(upstream)) {
LOG.error("divide has no upstream");
Object error = ShenyuResultWrap.error(exchange, ShenyuResultEnum.CANNOT_FIND_HEALTHY_UPSTREAM_URL, null);
return WebFluxResultUtils.result(exchange, error);
}
// 设置url
String domain = upstream.buildDomain();
exchange.getAttributes().put(Constants.HTTP_DOMAIN, domain);
// 设置超时时间
exchange.getAttributes().put(Constants.HTTP_TIME_OUT, ruleHandle.getTimeout());
exchange.getAttributes().put(Constants.HTTP_RETRY, ruleHandle.getRetry());
// 设置重试策略
exchange.getAttributes().put(Constants.RETRY_STRATEGY, ruleHandle.getRetryStrategy());
exchange.getAttributes().put(Constants.LOAD_BALANCE, ruleHandle.getLoadBalance());
exchange.getAttributes().put(Constants.DIVIDE_SELECTOR_ID, selector.getId());
return chain.execute(exchange);
}
这里说一句，dubbo插件这个内容一定要进行查看，dubbo插件这里面还是有点东西的，顺便还能学习一下dubbo。
发起请求

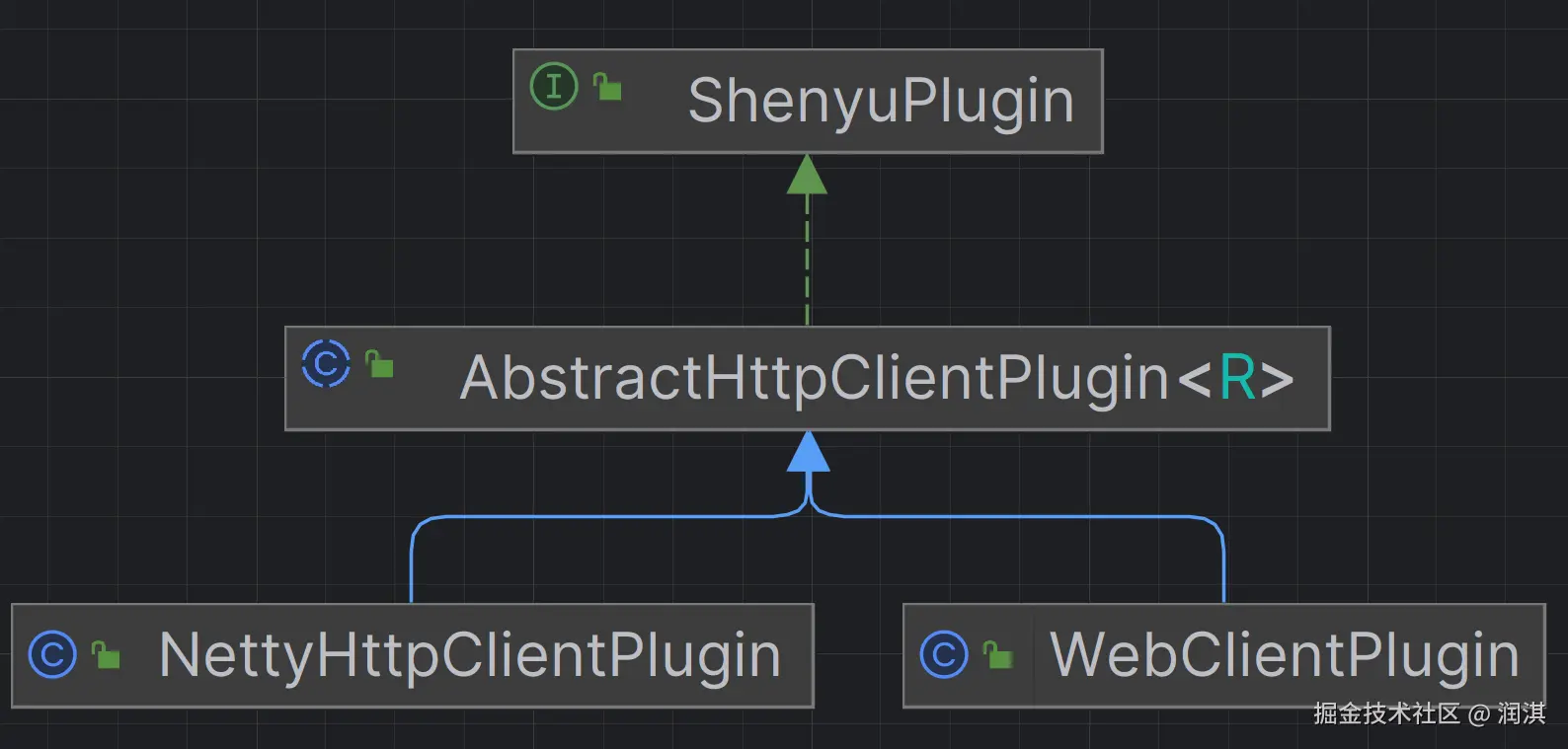

默认由WebClientPlugin向http服务发起调用请求，类继承关系如下：
- ShenyuPlugin：顶层插件，定义插件方法；
- AbstractHttpClientPlugin：抽象类，实现请求调用的公共逻辑；
- WebClientPlugin：通过
WebClient发起请求； - NettyHttpClientPlugin：通过
Netty发起请求。
发起请求调用：
org.apache.shenyu.plugin.httpclient.AbstractHttpClientPlugin#execute()
在execute()方法中发起请求调用：
- 获取指定的超时时间，重试次数
- 发起请求
- 根据指定的重试策略进行失败后重试操作
public abstract class AbstractHttpClientPlugin<R> implements ShenyuPlugin {
protected static final Logger LOG = LoggerFactory.getLogger(AbstractHttpClientPlugin.class);
@Override
public final Mono<Void> execute(final ServerWebExchange exchange, final ShenyuPluginChain chain) {
// 获取上下文信息
final ShenyuContext shenyuContext = exchange.getAttribute(Constants.CONTEXT);
assert shenyuContext != null;
// 获取uri
final URI uri = exchange.getAttribute(Constants.HTTP_URI);
if (Objects.isNull(uri)) {
Object error = ShenyuResultWrap.error(exchange, ShenyuResultEnum.CANNOT_FIND_URL, null);
return WebFluxResultUtils.result(exchange, error);
}
// 获取指定的超时时间
final long timeout = (long) Optional.ofNullable(exchange.getAttribute(Constants.HTTP_TIME_OUT)).orElse(3000L);
final Duration duration = Duration.ofMillis(timeout);
// 获取指定重试次数
final int retryTimes = (int) Optional.ofNullable(exchange.getAttribute(Constants.HTTP_RETRY)).orElse(0);
// 获取指定的重试策略
final String retryStrategy = (String) Optional.ofNullable(exchange.getAttribute(Constants.RETRY_STRATEGY)).orElseGet(RetryEnum.CURRENT::getName);
LOG.info("The request urlPath is {}, retryTimes is {}, retryStrategy is {}", uri.toASCIIString(), retryTimes, retryStrategy);
// 构建header
final HttpHeaders httpHeaders = buildHttpHeaders(exchange);
// 发起请求
final Mono<R> response = doRequest(exchange, exchange.getRequest().getMethodValue(), uri, httpHeaders, exchange.getRequest().getBody())
.timeout(duration, Mono.error(new TimeoutException("Response took longer than timeout: " + duration)))
.doOnError(e -> LOG.error(e.getMessage(), e));
// 重试策略CURRENT，对当前服务进行重试
if (RetryEnum.CURRENT.getName().equals(retryStrategy)) {
//old version of DividePlugin and SpringCloudPlugin will run on this
return response.retryWhen(Retry.anyOf(TimeoutException.class, ConnectTimeoutException.class, ReadTimeoutException.class, IllegalStateException.class)
.retryMax(retryTimes)
.backoff(Backoff.exponential(Duration.ofMillis(200), Duration.ofSeconds(20), 2, true)))
.onErrorMap(TimeoutException.class, th -> new ResponseStatusException(HttpStatus.GATEWAY_TIMEOUT, th.getMessage(), th))
.flatMap((Function<Object, Mono<? extends Void>>) o -> chain.execute(exchange));
}
// 对其他服务进行重试
// 排除已经调用过的服务
final Set<URI> exclude = Sets.newHashSet(uri);
// 请求重试
return resend(response, exchange, duration, httpHeaders, exclude, retryTimes)
.onErrorMap(TimeoutException.class, th -> new ResponseStatusException(HttpStatus.GATEWAY_TIMEOUT, th.getMessage(), th))
.flatMap((Function<Object, Mono<? extends Void>>) o -> chain.execute(exchange));
}
private Mono<R> resend(final Mono<R> clientResponse,
final ServerWebExchange exchange,
final Duration duration,
final HttpHeaders httpHeaders,
final Set<URI> exclude,
final int retryTimes) {
Mono<R> result = clientResponse;
// 根据指定的重试次数进行重试
for (int i = 0; i < retryTimes; i++) {
result = resend(result, exchange, duration, httpHeaders, exclude);
}
return result;
}
private Mono<R> resend(final Mono<R> response,
final ServerWebExchange exchange,
final Duration duration,
final HttpHeaders httpHeaders,
final Set<URI> exclude) {
return response.onErrorResume(th -> {
final String selectorId = exchange.getAttribute(Constants.DIVIDE_SELECTOR_ID);
final String loadBalance = exchange.getAttribute(Constants.LOAD_BALANCE);
//查询可用服务
final List<Upstream> upstreamList = UpstreamCacheManager.getInstance().findUpstreamListBySelectorId(selectorId)
.stream().filter(data -> {
final String trimUri = data.getUrl().trim();
for (URI needToExclude : exclude) {
// exclude already called
if ((needToExclude.getHost() + ":" + needToExclude.getPort()).equals(trimUri)) {
return false;
}
}
return true;
}).collect(Collectors.toList());
if (CollectionUtils.isEmpty(upstreamList)) {
// no need to retry anymore
return Mono.error(new ShenyuException(ShenyuResultEnum.CANNOT_FIND_HEALTHY_UPSTREAM_URL_AFTER_FAILOVER.getMsg()));
}
// 请求ip
final String ip = Objects.requireNonNull(exchange.getRequest().getRemoteAddress()).getAddress().getHostAddress();
// 实现负载均衡
final Upstream upstream = LoadBalancerFactory.selector(upstreamList, loadBalance, ip);
if (Objects.isNull(upstream)) {
// no need to retry anymore
return Mono.error(new ShenyuException(ShenyuResultEnum.CANNOT_FIND_HEALTHY_UPSTREAM_URL_AFTER_FAILOVER.getMsg()));
}
final URI newUri = RequestUrlUtils.buildRequestUri(exchange, upstream.buildDomain());
// 排除已经调用的uri
exclude.add(newUri);
// 进行再次调用
return doRequest(exchange, exchange.getRequest().getMethodValue(), newUri, httpHeaders, exchange.getRequest().getBody())
.timeout(duration, Mono.error(new TimeoutException("Response took longer than timeout: " + duration)))
.doOnError(e -> LOG.error(e.getMessage(), e));
});
}
//......
}
org.apache.shenyu.plugin.httpclient.WebClientPlugin#doRequest()
在doRequest()方法中通过webClient发起真正的请求调用。
@Override
protected Mono<ClientResponse> doRequest(final ServerWebExchange exchange, final String httpMethod, final URI uri,
final HttpHeaders httpHeaders, final Flux<DataBuffer> body) {
return webClient.method(HttpMethod.valueOf(httpMethod)).uri(uri) //请求uri
.headers(headers -> headers.addAll(httpHeaders)) // 请求header
.body(BodyInserters.fromDataBuffers(body))
.exchange() // 发起请求
.doOnSuccess(res -> {
if (res.statusCode().is2xxSuccessful()) { // 成功
exchange.getAttributes().put(Constants.CLIENT_RESPONSE_RESULT_TYPE, ResultEnum.SUCCESS.getName());
} else { // 失败
exchange.getAttributes().put(Constants.CLIENT_RESPONSE_RESULT_TYPE, ResultEnum.ERROR.getName());
}
exchange.getResponse().setStatusCode(res.statusCode());
exchange.getAttributes().put(Constants.CLIENT_RESPONSE_ATTR, res);
});
}
处理相应结果
org.apache.shenyu.plugin.response.ResponsePlugin#execute()
响应结果由ResponsePlugin插件处理。
@Override
public Mono<Void> execute(final ServerWebExchange exchange, final ShenyuPluginChain chain) {
ShenyuContext shenyuContext = exchange.getAttribute(Constants.CONTEXT);
assert shenyuContext != null;
// 根据rpc类型处理结果
return writerMap.get(shenyuContext.getRpcType()).writeWith(exchange, chain);
}

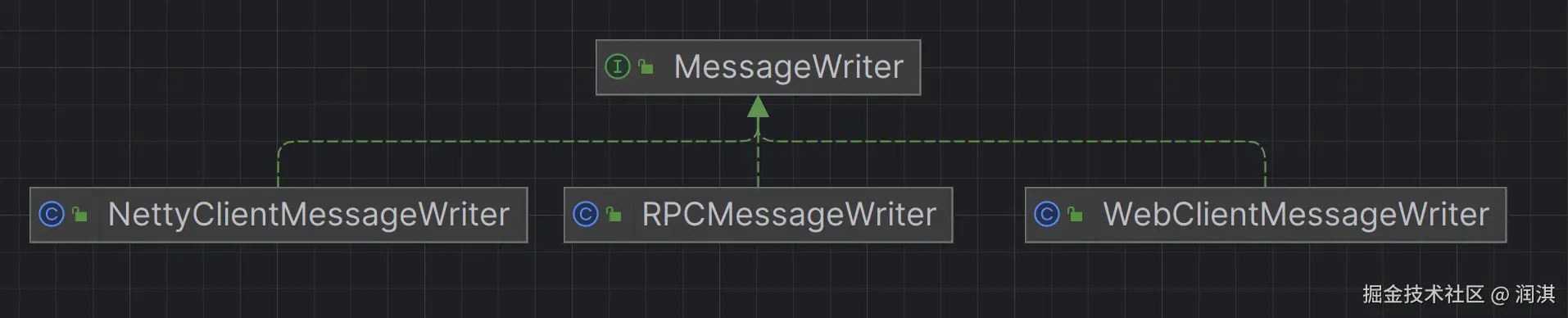

处理类型由MessageWriter决定，类继承关系如下：
- MessageWriter：接口，定义消息处理方法；
- NettyClientMessageWriter：处理
Netty调用结果； - RPCMessageWriter：处理
RPC调用结果； - WebClientMessageWriter：处理
WebClient调用结果；
默认是通过WebCient发起http请求。
org.apache.shenyu.plugin.response.strategy.WebClientMessageWriter#writeWith()
在writeWith()方法中处理响应结果。
@Override
public Mono<Void> writeWith(final ServerWebExchange exchange, final ShenyuPluginChain chain) {
return chain.execute(exchange).then(Mono.defer(() -> {
// 获取响应
ServerHttpResponse response = exchange.getResponse();
ClientResponse clientResponse = exchange.getAttribute(Constants.CLIENT_RESPONSE_ATTR);
if (Objects.isNull(clientResponse)) {
Object error = ShenyuResultWrap.error(exchange, ShenyuResultEnum.SERVICE_RESULT_ERROR, null);
return WebFluxResultUtils.result(exchange, error);
}
//获取cookies和headers
response.getCookies().putAll(clientResponse.cookies());
response.getHeaders().putAll(clientResponse.headers().asHttpHeaders());
// image, pdf or stream does not do format processing.
// 处理特殊响应类型
if (clientResponse.headers().contentType().isPresent()) {
final String media = clientResponse.headers().contentType().get().toString().toLowerCase();
if (media.matches(COMMON_BIN_MEDIA_TYPE_REGEX)) {
return response.writeWith(clientResponse.body(BodyExtractors.toDataBuffers()))
.doOnCancel(() -> clean(exchange));
}
}
// 处理一般响应类型
clientResponse = ResponseUtils.buildClientResponse(response, clientResponse.body(BodyExtractors.toDataBuffers()));
return clientResponse.bodyToMono(byte[].class)
.flatMap(originData -> WebFluxResultUtils.result(exchange, originData))
.doOnCancel(() -> clean(exchange));
}));
}

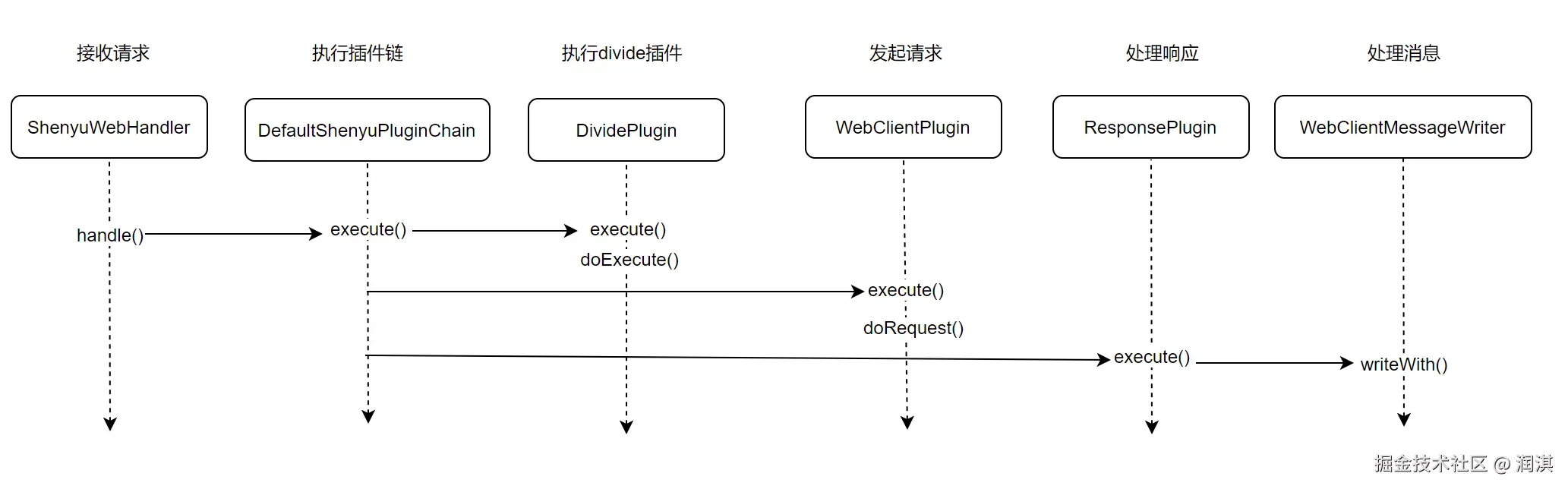

分析至此，关于Divide插件的源码分析就完成了，分析流程图如下：
总结
本文主要分析了Apache Shenyu的服务调用过程。
本系列是自己对shenyu进行学习的系列，参考了许多博客以及官网上面的内容，完全是班门弄斧，放在自己的博客上面，如果存在错误或者侵权，请在下面评论。
