最近开学了，折磨的机器学习回来了，讲道理，自己接这个任务时间点太不对了，自己都忙成狗了，还没有提前做完，最近还卡住了，但是无论如何，加油吧。
接着上一讲，在我们知道了shenyu的基本架构之后，分别启动shenyu-admin与shenyu-bootstrap。
下面将结合shenyu-examples-divide进行断点调试，试图找到shenyu插件请求处理的流程。
首先先来到shenyu-examples/shenyu-examples-divide下面，运行已经写好的divide插件，对应的日志如下：
2023-08-29 09:00:57.321 INFO 3136 --- [ main] o.a.s.e.http.ShenyuTestHttpApplication : Starting ShenyuTestHttpApplication using Java 1.8.0_333 on DESKTOP-M708U6C with PID 3136 (E:\shenyu\shenyu-examples\shenyu-examples-http\target\classes started by root in E:\shenyu)
2023-08-29 09:00:57.327 INFO 3136 --- [ main] o.a.s.e.http.ShenyuTestHttpApplication : No active profile set, falling back to 1 default profile: "default"
2023-08-29 09:00:59.179 INFO 3136 --- [ main] o.s.b.a.e.web.EndpointLinksResolver : Exposing 1 endpoint(s) beneath base path '/actuator'
2023-08-29 09:00:59.280 INFO 3136 --- [ main] o.a.s.c.c.s.ShenyuClientShutdownHook : Add hook ShenyuClientShutdownHook-1
2023-08-29 09:00:59.982 INFO 3136 --- [ main] o.s.b.web.embedded.netty.NettyWebServer : Netty started on port 8189
2023-08-29 09:01:00.335 INFO 3136 --- [ Thread-12] o.a.s.c.c.s.ShenyuClientShutdownHook : hook Thread-7 will sleep 3000ms when it start
2023-08-29 09:01:00.335 INFO 3136 --- [ Thread-12] o.a.s.c.c.s.ShenyuClientShutdownHook : hook Thread-0 will sleep 3000ms when it start
2023-08-29 09:01:00.335 INFO 3136 --- [ Thread-12] o.a.s.c.c.s.ShenyuClientShutdownHook : hook SpringApplicationShutdownHook will sleep 3000ms when it start
2023-08-29 09:01:01.407 INFO 3136 --- [or_consumer_-42] o.a.s.r.client.http.utils.RegisterUtils : login success: {"id":"1","userName":"admin","role":1,"enabled":true,"dateCreated":"2023-08-29 08:58:47","dateUpdated":"2023-08-29 08:58:47","token":"eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJ1c2VyTmFtZSI6ImFkbWluIiwiZXhwIjoxNjkzMzU3MjYxfQ.O2GeU9KyasKCqKNgLzCMqjSlbfp1GfuYG9vrsWW7npQ","expiredTime":86400000}
2023-08-29 09:01:01.436 INFO 3136 --- [or_consumer_-34] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/test/**","pathDesc":"","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.HttpTestController","ruleName":"/http/test/**","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860328,"addPrefixed":false}
2023-08-29 09:01:01.436 INFO 3136 --- [or_consumer_-46] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/post/hi","pathDesc":"spring annotation register","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"post","ruleName":"/http/post/hi","parameterTypes":"java.lang.String","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860334,"addPrefixed":false}
2023-08-29 09:01:01.436 INFO 3136 --- [or_consumer_-38] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/order/path/**/name","pathDesc":"","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.OrderController","methodName":"testRestFul","ruleName":"/http/order/path/**/name","parameterTypes":"java.lang.String","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860331,"addPrefixed":false}
2023-08-29 09:01:01.436 INFO 3136 --- [or_consumer_-56] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/oauth/authorize","httpMethod":0,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.OauthController","methodName":"testCode","parameterTypes":""}","apiOwner":"admin","apiDesc":"authorize","apiSource":1,"document":"{"tags":[],"operationId":"/http/oauth/authorize","parameters":[],"responses":{"200":{"description":"/http/oauth/authorize","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/oauth/authorize] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:01.436 INFO 3136 --- [or_consumer_-37] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/order/oauth2/test","pathDesc":"","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.OrderController","methodName":"testRestFul","ruleName":"/http/order/oauth2/test","parameterTypes":"org.springframework.http.server.reactive.ServerHttpRequest","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860330,"addPrefixed":false}
2023-08-29 09:01:01.436 INFO 3136 --- [or_consumer_-49] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/upload/**","pathDesc":"","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.UploadController","ruleName":"/http/upload/**","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860335,"addPrefixed":false}
2023-08-29 09:01:01.436 INFO 3136 --- [or_consumer_-44] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/shenyu/client/hello","pathDesc":"","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.ShenyuClientPathController","methodName":"hello","ruleName":"/http/shenyu/client/hello","parameterTypes":"","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860333,"addPrefixed":false}
2023-08-29 09:01:01.436 INFO 3136 --- [or_consumer_-53] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/test/path/{id}/name","httpMethod":0,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{}","apiOwner":"admin","apiDesc":"path/{id}/name","apiSource":1,"document":"{"tags":[],"operationId":"/http/test/path/{id}/name","parameters":[{"name":"id","in":"path","required":true,"schema":{"type":"string"}}],"responses":{"200":{"description":"/http/test/path/{id}/name","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/test/path/{id}/name] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:01.438 INFO 3136 --- [or_consumer_-45] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/shenyu/client/hi","pathDesc":"","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.ShenyuClientPathController","methodName":"hello","ruleName":"/http/shenyu/client/hi","parameterTypes":"java.lang.String","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860333,"addPrefixed":false}
2023-08-29 09:01:01.438 INFO 3136 --- [or_consumer_-54] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/test/findByPage","httpMethod":0,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{}","apiOwner":"admin","apiDesc":"findByPage","apiSource":1,"document":"{"tags":[],"operationId":"/http/test/findByPage","parameters":[],"responses":{"200":{"description":"/http/test/findByPage","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/test/findByPage] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:01.440 INFO 3136 --- [or_consumer_-50] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/test/payment","httpMethod":2,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{}","apiOwner":"admin","apiDesc":"payment","apiSource":1,"document":"{"tags":[],"operationId":"/http/test/payment","parameters":[],"responses":{"200":{"description":"/http/test/payment","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/test/payment] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:01.440 INFO 3136 --- [or_consumer_-55] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/test/path/{id}","httpMethod":0,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{}","apiOwner":"admin","apiDesc":"path/{id}","apiSource":1,"document":"{"tags":[],"operationId":"/http/test/path/{id}","parameters":[{"name":"id","in":"path","required":true,"schema":{"type":"string"}}],"responses":{"200":{"description":"/http/test/path/{id}","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/test/path/{id}] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:01.440 INFO 3136 --- [or_consumer_-35] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/oauth/oauth","pathDesc":"","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.OauthController","methodName":"testCode","ruleName":"/http/oauth/oauth","parameterTypes":"","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860329,"addPrefixed":false}
2023-08-29 09:01:01.441 INFO 3136 --- [or_consumer_-47] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/hello","pathDesc":"spring annotation register","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","ruleName":"/http/hello","parameterTypes":"","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860334,"addPrefixed":false}
2023-08-29 09:01:01.444 INFO 3136 --- [or_consumer_-48] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/hi","pathDesc":"spring annotation register","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","ruleName":"/http/hi","parameterTypes":"java.lang.String","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860334,"addPrefixed":false}
2023-08-29 09:01:01.444 INFO 3136 --- [or_consumer_-51] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/test/findByUserId","httpMethod":0,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{}","apiOwner":"admin","apiDesc":"findByUserId","apiSource":1,"document":"{"tags":[],"operationId":"/http/test/findByUserId","parameters":[{"name":"userId","in":"query","required":true,"schema":{"type":"string"}}],"responses":{"200":{"description":"/http/test/findByUserId","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/test/findByUserId] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:01.444 INFO 3136 --- [or_consumer_-52] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/test/findByUserIdName","httpMethod":0,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{}","apiOwner":"admin","apiDesc":"findByUserIdName","apiSource":1,"document":"{"tags":[],"operationId":"/http/test/findByUserIdName","parameters":[{"name":"userId","in":"query","required":true,"schema":{"type":"string"}},{"name":"name","in":"query","required":true,"schema":{"type":"string"}}],"responses":{"200":{"description":"/http/test/findByUserIdName","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/test/findByUserIdName] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:01.445 INFO 3136 --- [or_consumer_-40] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/request/**","pathDesc":"","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.RequestController","ruleName":"/http/request/**","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860331,"addPrefixed":false}
2023-08-29 09:01:01.445 INFO 3136 --- [or_consumer_-36] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/order/save","pathDesc":"","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.OrderController","methodName":"save","ruleName":"/http/order/save","parameterTypes":"org.apache.shenyu.examples.http.dto.OrderDTO","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860330,"addPrefixed":false}
2023-08-29 09:01:01.445 INFO 3136 --- [or_consumer_-39] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/order/path/**","pathDesc":"","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.OrderController","methodName":"getPathVariable","ruleName":"/http/order/path/**","parameterTypes":"java.lang.String,java.lang.String","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860331,"addPrefixed":false}
2023-08-29 09:01:01.447 INFO 3136 --- [or_consumer_-42] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/shenyu/client/timeout","pathDesc":"","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.ShenyuClientPathController","methodName":"timeout","ruleName":"/http/shenyu/client/timeout","parameterTypes":"","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860332,"addPrefixed":false}
2023-08-29 09:01:01.447 INFO 3136 --- [or_consumer_-41] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/order/findById","pathDesc":"","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.OrderController","methodName":"findById","ruleName":"/http/order/findById","parameterTypes":"java.lang.String","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860331,"addPrefixed":false}
2023-08-29 09:01:01.447 INFO 3136 --- [or_consumer_-43] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/shenyu/client/post/hi","pathDesc":"shenyu client annotation register","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.ShenyuClientPathController","methodName":"post","ruleName":"/http/shenyu/client/post/hi","parameterTypes":"java.lang.String","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860333,"addPrefixed":false}
2023-08-29 09:01:01.447 INFO 3136 --- [or_consumer_-57] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/order/save","httpMethod":2,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.OrderController","methodName":"save","parameterTypes":"org.apache.shenyu.examples.http.dto.OrderDTO"}","apiOwner":"admin","apiDesc":"save","apiSource":1,"document":"{"tags":[],"operationId":"/http/order/save","parameters":[],"responses":{"200":{"description":"/http/order/save","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/order/save] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:01.448 INFO 3136 --- [or_consumer_-33] o.a.s.r.client.http.utils.RegisterUtils : uri client register success: {"protocol":"http://","appName":"http","contextPath":"/http","rpcType":"http","host":"192.168.186.1","port":8189,"eventType":"REGISTER"}
2023-08-29 09:01:01.641 INFO 3136 --- [or_consumer_-58] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/order/oauth2/test","httpMethod":0,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.OrderController","methodName":"testRestFul","parameterTypes":"org.springframework.http.server.reactive.ServerHttpRequest"}","apiOwner":"admin","apiDesc":"oauth2/test","apiSource":1,"document":"{"tags":[],"operationId":"/http/order/oauth2/test","parameters":[],"responses":{"200":{"description":"/http/order/oauth2/test","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/order/oauth2/test] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:02.040 INFO 3136 --- [or_consumer_-59] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/order/path/{id}/name","httpMethod":0,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.OrderController","methodName":"testRestFul","parameterTypes":"java.lang.String"}","apiOwner":"admin","apiDesc":"path/**/name","apiSource":1,"document":"{"tags":[],"operationId":"/http/order/path/{id}/name","parameters":[{"name":"id","in":"path","required":true,"schema":{"type":"string"}}],"responses":{"200":{"description":"/http/order/path/{id}/name","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/order/path/{id}/name] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:02.369 INFO 3136 --- [or_consumer_-60] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/order/path/{id}/{name}","httpMethod":0,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.OrderController","methodName":"getPathVariable","parameterTypes":"java.lang.String,java.lang.String"}","apiOwner":"admin","apiDesc":"path/**","apiSource":1,"document":"{"tags":[],"operationId":"/http/order/path/{id}/{name}","parameters":[{"name":"id","in":"path","required":true,"schema":{"type":"string"}},{"name":"name","in":"path","required":true,"schema":{"type":"string"}}],"responses":{"200":{"description":"/http/order/path/{id}/{name}","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/order/path/{id}/{name}] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:02.667 INFO 3136 --- [or_consumer_-61] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/order/findById","httpMethod":0,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.OrderController","methodName":"findById","parameterTypes":"java.lang.String"}","apiOwner":"admin","apiDesc":"findById","apiSource":1,"document":"{"tags":[],"operationId":"/http/order/findById","parameters":[{"name":"id","in":"query","required":true,"schema":{"type":"string"}}],"responses":{"200":{"description":"/http/order/findById","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/order/findById] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:02.995 INFO 3136 --- [or_consumer_-62] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/post/hi","httpMethod":2,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"post","parameterTypes":"java.lang.String"}","apiOwner":"admin","apiDesc":"post/hi","apiSource":1,"document":"{"tags":[],"operationId":"/http/post/hi","parameters":[],"responses":{"200":{"description":"/http/post/hi","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/post/hi] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:06.461 INFO 3136 --- [or_consumer_-34] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/hello","httpMethod":1,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","parameterTypes":""}","apiOwner":"admin","apiDesc":"hello","apiSource":1,"document":"{"tags":[],"operationId":"/http/hello","parameters":[],"responses":{"200":{"description":"/http/hello","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/hello] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:06.461 INFO 3136 --- [or_consumer_-37] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/hello","httpMethod":4,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","parameterTypes":""}","apiOwner":"admin","apiDesc":"hello","apiSource":1,"document":"{"tags":[],"operationId":"/http/hello","parameters":[],"responses":{"200":{"description":"/http/hello","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/hello] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:06.461 INFO 3136 --- [or_consumer_-56] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/hello","httpMethod":2,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","parameterTypes":""}","apiOwner":"admin","apiDesc":"hello","apiSource":1,"document":"{"tags":[],"operationId":"/http/hello","parameters":[],"responses":{"200":{"description":"/http/hello","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/hello] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:06.461 INFO 3136 --- [or_consumer_-46] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/hello","httpMethod":0,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","parameterTypes":""}","apiOwner":"admin","apiDesc":"hello","apiSource":1,"document":"{"tags":[],"operationId":"/http/hello","parameters":[],"responses":{"200":{"description":"/http/hello","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/hello] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:06.461 INFO 3136 --- [or_consumer_-49] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/hello","httpMethod":7,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","parameterTypes":""}","apiOwner":"admin","apiDesc":"hello","apiSource":1,"document":"{"tags":[],"operationId":"/http/hello","parameters":[],"responses":{"200":{"description":"/http/hello","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/hello] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:06.462 INFO 3136 --- [or_consumer_-64] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/hello","httpMethod":5,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","parameterTypes":""}","apiOwner":"admin","apiDesc":"hello","apiSource":1,"document":"{"tags":[],"operationId":"/http/hello","parameters":[],"responses":{"200":{"description":"/http/hello","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/hello] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:06.462 INFO 3136 --- [or_consumer_-63] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/hello","httpMethod":6,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","parameterTypes":""}","apiOwner":"admin","apiDesc":"hello","apiSource":1,"document":"{"tags":[],"operationId":"/http/hello","parameters":[],"responses":{"200":{"description":"/http/hello","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/hello] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:06.463 INFO 3136 --- [or_consumer_-38] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/hello","httpMethod":3,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","parameterTypes":""}","apiOwner":"admin","apiDesc":"hello","apiSource":1,"document":"{"tags":[],"operationId":"/http/hello","parameters":[],"responses":{"200":{"description":"/http/hello","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/hello] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:09.793 INFO 3136 --- [or_consumer_-35] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/hi","httpMethod":5,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","parameterTypes":"java.lang.String"}","apiOwner":"admin","apiDesc":"hi","apiSource":1,"document":"{"tags":[],"operationId":"/http/hi","parameters":[],"responses":{"200":{"description":"/http/hi","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/hi] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:09.793 INFO 3136 --- [or_consumer_-50] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/hi","httpMethod":3,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","parameterTypes":"java.lang.String"}","apiOwner":"admin","apiDesc":"hi","apiSource":1,"document":"{"tags":[],"operationId":"/http/hi","parameters":[],"responses":{"200":{"description":"/http/hi","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/hi] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:09.793 INFO 3136 --- [or_consumer_-44] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/hi","httpMethod":6,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","parameterTypes":"java.lang.String"}","apiOwner":"admin","apiDesc":"hi","apiSource":1,"document":"{"tags":[],"operationId":"/http/hi","parameters":[],"responses":{"200":{"description":"/http/hi","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/hi] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:09.793 INFO 3136 --- [or_consumer_-54] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/hi","httpMethod":2,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","parameterTypes":"java.lang.String"}","apiOwner":"admin","apiDesc":"hi","apiSource":1,"document":"{"tags":[],"operationId":"/http/hi","parameters":[],"responses":{"200":{"description":"/http/hi","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/hi] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:09.794 INFO 3136 --- [or_consumer_-45] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/hi","httpMethod":7,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","parameterTypes":"java.lang.String"}","apiOwner":"admin","apiDesc":"hi","apiSource":1,"document":"{"tags":[],"operationId":"/http/hi","parameters":[],"responses":{"200":{"description":"/http/hi","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/hi] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:09.795 INFO 3136 --- [or_consumer_-53] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/hi","httpMethod":4,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","parameterTypes":"java.lang.String"}","apiOwner":"admin","apiDesc":"hi","apiSource":1,"document":"{"tags":[],"operationId":"/http/hi","parameters":[],"responses":{"200":{"description":"/http/hi","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/hi] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:09.796 INFO 3136 --- [or_consumer_-48] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/upload/webFluxFiles","httpMethod":2,"consume":"multipart/form-data,text/plain","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{}","apiOwner":"admin","apiDesc":"webFluxFiles","apiSource":1,"document":"{"tags":[],"operationId":"/http/upload/webFluxFiles","parameters":[{"name":"files","in":"query","required":false,"schema":{"type":"string"}}],"responses":{"200":{"description":"/http/upload/webFluxFiles","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/upload/webFluxFiles] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:09.798 INFO 3136 --- [or_consumer_-55] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/hi","httpMethod":1,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","parameterTypes":"java.lang.String"}","apiOwner":"admin","apiDesc":"hi","apiSource":1,"document":"{"tags":[],"operationId":"/http/hi","parameters":[],"responses":{"200":{"description":"/http/hi","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/hi] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:09.799 INFO 3136 --- [or_consumer_-35] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/upload/webFluxSingle","httpMethod":2,"consume":"multipart/form-data,text/plain","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{}","apiOwner":"admin","apiDesc":"webFluxSingle","apiSource":1,"document":"{"tags":[],"operationId":"/http/upload/webFluxSingle","parameters":[{"name":"file","in":"query","required":true,"schema":{"type":"string"}}],"responses":{"200":{"description":"/http/upload/webFluxSingle","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/upload/webFluxSingle] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:09.799 INFO 3136 --- [or_consumer_-47] o.a.s.r.client.http.utils.RegisterUtils : apiDoc client register success: {"contextPath":"/http","apiPath":"/http/hi","httpMethod":0,"consume":"*/*","produce":"*/*","version":"v0.01","rpcType":"http","state":0,"ext":"{"protocol":"http://","host":"192.168.186.1","port":8189,"addPrefixed":false,"serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"hello","parameterTypes":"java.lang.String"}","apiOwner":"admin","apiDesc":"hi","apiSource":1,"document":"{"tags":[],"operationId":"/http/hi","parameters":[],"responses":{"200":{"description":"/http/hi","content":{"*/*":{"schema":{"type":"string"}}}},"404":{"description":"the path [/http/hi] not found","content":{"*/*":{"schema":{"type":"string"}}}},"409":{"description":"conflict","content":{"*/*":{"schema":{"type":"string"}}}}}}","eventType":"REGISTER","tags":[]}
2023-08-29 09:01:09.804 INFO 3136 --- [ main] o.a.s.e.http.ShenyuTestHttpApplication : Started ShenyuTestHttpApplication in 13.143 seconds (JVM running for 14.434)
从日志上面分析，判断注入到网关上面需要经历的过程：
服务注册
首先先看第一句：
2023-08-29 09:01:01.407 INFO 3136 --- [or_consumer_-42] o.a.s.r.client.http.utils.RegisterUtils : login success: {"id":"1","userName":"admin","role":1,"enabled":true,"dateCreated":"2023-08-29 08:58:47","dateUpdated":"2023-08-29 08:58:47","token":"eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJ1c2VyTmFtZSI6ImFkbWluIiwiZXhwIjoxNjkzMzU3MjYxfQ.O2GeU9KyasKCqKNgLzCMqjSlbfp1GfuYG9vrsWW7npQ","expiredTime":86400000}
这个其实就是首先登录与shenyu-admin进行连接，这个在yaml文档中有配置：
shenyu:
register:
registerType: http #zookeeper #etcd #nacos #consul
serverLists: http://localhost:9095 #localhost:2181 #http://localhost:2379 #localhost:8848
props:
username: admin
password: 123456
shenyu.register.registerType代表类型，包括http,zk,nacos等。
shenyu.register.serverListsd代表shenyu-admin的地址或者是其他服务的地址，根据对应的地址注入对应的形式。
shenyu.register.props标识需要输入的用户名以及密码。
然后是怎么进行连接的，这里直接使用admin接口进行同步。
这里直接看shenyu-register-http(application中可以进行映射，先将文件中的配置进行读入，TODO搞清楚为什么能够来到这个类)
这里的话应该涉及到数据同步的内容吧，这里先按下不表。
这里其实可以看到是道道HttpClientRegisterRepository中，这里肯定直接调用了对应的内容。
然后找到下面这个类：
public final class RegisterUtils {
/**
* Do register.
*
* @param json the json
* @param url the url
* @param type the type
* @throws IOException the io exception
*/
public static void doRegister(final String json, final String url, final String type) throws IOException {
String result = OkHttpTools.getInstance().post(url, json);
if (Objects.equals(SUCCESS, result)) {
LOGGER.info("{} client register success: {} ", type, json);
} else {
LOGGER.error("{} client register error: {} ", type, json);
}
}
这个可以知道对应这里，但是怎么讲数据传输过来，虽然找到了部分源码，但是应该与spring也有关系，这里来个TODO。
这部分使用的到的是服务注册中的内容，可以看服务注册的那篇文章。
ok，这一句的作用讲解完毕，看下面的日志：
2023-08-29 09:01:01.436 INFO 3136 --- [or_consumer_-34] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/test/**","pathDesc":"","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.HttpTestController","ruleName":"/http/test/**","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860328,"addPrefixed":false}
2023-08-29 09:01:01.436 INFO 3136 --- [or_consumer_-34] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/test/**","pathDesc":"","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.HttpTestController","ruleName":"/http/test/**","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860328,"addPrefixed":false}
2023-08-29 09:01:01.436 INFO 3136 --- [or_consumer_-46] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/post/hi","pathDesc":"spring annotation register","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.SpringMvcMappingPathController","methodName":"post","ruleName":"/http/post/hi","parameterTypes":"java.lang.String","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860334,"addPrefixed":false}
2023-08-29 09:01:01.436 INFO 3136 --- [or_consumer_-38] o.a.s.r.client.http.utils.RegisterUtils : metadata client register success: {"appName":"http","contextPath":"/http","path":"/http/order/path/**/name","pathDesc":"","rpcType":"http","serviceName":"org.apache.shenyu.examples.http.controller.OrderController","methodName":"testRestFul","ruleName":"/http/order/path/**/name","parameterTypes":"java.lang.String","enabled":true,"pluginNames":[],"registerMetaData":true,"timeMillis":1693270860331,"addPrefixed":false}
这个就是将客户端的内容注册到网关之中，如下：
client:
http:
props:
contextPath: /http
appName: http
# port: 8189
这里最近在编写自己的插件时，产生了一些疑问：
按照shenyu的架构，在这里编写的client应该会跳转到shenyu-client下面进行调用。
首先先看上面的日志，最开始第一句，用户仍然会调用到RegisterUtils中：
public final class RegisterUtils {
private static final Logger LOGGER = LoggerFactory.getLogger(RegisterUtils.class);
private RegisterUtils() {
}
/**
* Do register.
*
* @param json the json
* @param url the url
* @param type the type
* @param accessToken the token
* @throws IOException the io exception
*/
public static void doRegister(final String json, final String url, final String type, final String accessToken) throws IOException {
if (StringUtils.isBlank(accessToken)) {
LOGGER.error("{} client register error accessToken is null, please check the config : {} ", type, json);
return;
}
Headers headers = new Headers.Builder().add(Constants.X_ACCESS_TOKEN, accessToken).build();
String result = OkHttpTools.getInstance().post(url, json, headers);
if (Objects.equals(SUCCESS, result)) {
LOGGER.info("{} client register success: {} ", type, json);
} else {
LOGGER.error("{} client register error: {} ", type, json);
}
}
/**
* Do register.
*
* @param json the json
* @param url the url
* @param type the type
* @throws IOException the io exception
*/
public static void doRegister(final String json, final String url, final String type) throws IOException {
String result = OkHttpTools.getInstance().post(url, json);
if (Objects.equals(SUCCESS, result)) {
LOGGER.info("{} client register success: {} ", type, json);
} else {
LOGGER.error("{} client register error: {} ", type, json);
}
}

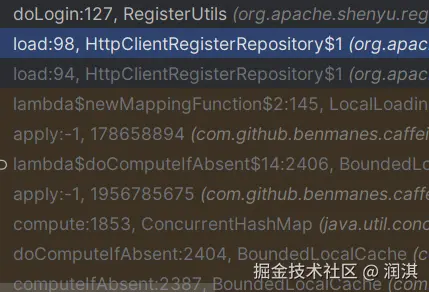

这里不妨使用断点进行跳转，直接运行起来，在这个位置打上断点。

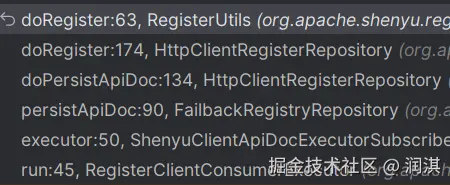

打上断点直接到达这里，这里应该是使用spring boot中的内容，这里值得好好研究一番。
这一个也是服务注册的内容，也可以看服务注册的文章。
服务调用
当我们请求服务时，会经过什么过程，这个请看服务调用的文章。
服务同步
此处如何进行服务同步，请看服务同步的那篇文章。
