在我们炼丹的时候，一般卷积神经网络是我们 不可避免 接触到的概念，就算你 使用使用时 Transformer，其实也是跟卷积神将网络中的 部分思想是相关，本文将会 解析 Pytorch 中 conv2d 中的源码，简单说明其中 的原理，只有深度了解了对应的 原理，才能更好的进行 修改。
首先的话还是老规矩，看官方链接。
从连接上面虽然可以对每个变量有深刻的理解，但是还是迷迷糊糊，为了更改好的理解，本文从一个例子说起，说明其中对应的内容，然后与 前面编写 e2cnn 的群卷积神经网络 进行对比，争取彻底理解二者之间 每一步的关联以及对应的意思。
这个例子很简单，就是下面一句代码：
m = nn.Conv2d(16, 33, 3, stride=2)
其中16时我们输入特征的通道数，33时我们设置的输出特征的通道数，3时卷积核的大小（3 \times 3），stride是步长。然后我们看Conv2d的源码。
class Conv2d(_ConvNd):
__doc__ = r"""Applies a 2D convolution over an input signal composed of several input
planes.
In the simplest case, the output value of the layer with input size
:math:`(N, C_{\text{in}}, H, W)` and output :math:`(N, C_{\text{out}}, H_{\text{out}}, W_{\text{out}})`
can be precisely described as:
.. math::
\text{out}(N_i, C_{\text{out}_j}) = \text{bias}(C_{\text{out}_j}) +
\sum_{k = 0}^{C_{\text{in}} - 1} \text{weight}(C_{\text{out}_j}, k) \star \text{input}(N_i, k)
where :math:`\star` is the valid 2D `cross-correlation`_ operator,
:math:`N` is a batch size, :math:`C` denotes a number of channels,
:math:`H` is a height of input planes in pixels, and :math:`W` is
width in pixels.
""" + r"""
This module supports :ref:`TensorFloat32<tf32_on_ampere>`.
* :attr:`stride` controls the stride for the cross-correlation, a single
number or a tuple.
* :attr:`padding` controls the amount of padding applied to the input. It
can be either a string {{'valid', 'same'}} or a tuple of ints giving the
amount of implicit padding applied on both sides.
* :attr:`dilation` controls the spacing between the kernel points; also
known as the à trous algorithm. It is harder to describe, but this `link`_
has a nice visualization of what :attr:`dilation` does.
{groups_note}
The parameters :attr:`kernel_size`, :attr:`stride`, :attr:`padding`, :attr:`dilation` can either be:
- a single ``int`` -- in which case the same value is used for the height and width dimension
- a ``tuple`` of two ints -- in which case, the first `int` is used for the height dimension,
and the second `int` for the width dimension
Note:
{depthwise_separable_note}
Note:
{cudnn_reproducibility_note}
Note:
``padding='valid'`` is the same as no padding. ``padding='same'`` pads
the input so the output has the shape as the input. However, this mode
doesn't support any stride values other than 1.
Args:
in_channels (int): Number of channels in the input image
out_channels (int): Number of channels produced by the convolution
kernel_size (int or tuple): Size of the convolving kernel
stride (int or tuple, optional): Stride of the convolution. Default: 1
padding (int, tuple or str, optional): Padding added to all four sides of
the input. Default: 0
padding_mode (string, optional): ``'zeros'``, ``'reflect'``,
``'replicate'`` or ``'circular'``. Default: ``'zeros'``
dilation (int or tuple, optional): Spacing between kernel elements. Default: 1
groups (int, optional): Number of blocked connections from input
channels to output channels. Default: 1
bias (bool, optional): If ``True``, adds a learnable bias to the
output. Default: ``True``
""".format(**reproducibility_notes, **convolution_notes) + r"""
Shape:
- Input: :math:`(N, C_{in}, H_{in}, W_{in})` or :math:`(C_{in}, H_{in}, W_{in})`
- Output: :math:`(N, C_{out}, H_{out}, W_{out})` or :math:`(C_{out}, H_{out}, W_{out})`, where
.. math::
H_{out} = \left\lfloor\frac{H_{in} + 2 \times \text{padding}[0] - \text{dilation}[0]
\times (\text{kernel_size}[0] - 1) - 1}{\text{stride}[0]} + 1\right\rfloor
.. math::
W_{out} = \left\lfloor\frac{W_{in} + 2 \times \text{padding}[1] - \text{dilation}[1]
\times (\text{kernel_size}[1] - 1) - 1}{\text{stride}[1]} + 1\right\rfloor
Attributes:
weight (Tensor): the learnable weights of the module of shape
:math:`(\text{out_channels}, \frac{\text{in_channels}}{\text{groups}},`
:math:`\text{kernel_size[0]}, \text{kernel_size[1]})`.
The values of these weights are sampled from
:math:`\mathcal{U}(-\sqrt{k}, \sqrt{k})` where
:math:`k = \frac{groups}{C_\text{in} * \prod_{i=0}^{1}\text{kernel_size}[i]}`
bias (Tensor): the learnable bias of the module of shape
(out_channels). If :attr:`bias` is ``True``,
then the values of these weights are
sampled from :math:`\mathcal{U}(-\sqrt{k}, \sqrt{k})` where
:math:`k = \frac{groups}{C_\text{in} * \prod_{i=0}^{1}\text{kernel_size}[i]}`
Examples:
>>> # With square kernels and equal stride
>>> m = nn.Conv2d(16, 33, 3, stride=2)
>>> # non-square kernels and unequal stride and with padding
>>> m = nn.Conv2d(16, 33, (3, 5), stride=(2, 1), padding=(4, 2))
>>> # non-square kernels and unequal stride and with padding and dilation
>>> m = nn.Conv2d(16, 33, (3, 5), stride=(2, 1), padding=(4, 2), dilation=(3, 1))
>>> input = torch.randn(20, 16, 50, 100)
>>> output = m(input)
.. _cross-correlation:
https://en.wikipedia.org/wiki/Cross-correlation
.. _link:
https://github.com/vdumoulin/conv_arithmetic/blob/master/README.md
"""
def __init__(
self,
in_channels: int,
out_channels: int,
kernel_size: _size_2_t,
stride: _size_2_t = 1,
padding: Union[str, _size_2_t] = 0,
dilation: _size_2_t = 1,
groups: int = 1,
bias: bool = True,
padding_mode: str = 'zeros', # TODO: refine this type
device=None,
dtype=None
) -> None:
factory_kwargs = {'device': device, 'dtype': dtype}
kernel_size_ = _pair(kernel_size)
stride_ = _pair(stride)
padding_ = padding if isinstance(padding, str) else _pair(padding)
dilation_ = _pair(dilation)
super(Conv2d, self).__init__(
in_channels, out_channels, kernel_size_, stride_, padding_, dilation_,
False, _pair(0), groups, bias, padding_mode, **factory_kwargs)

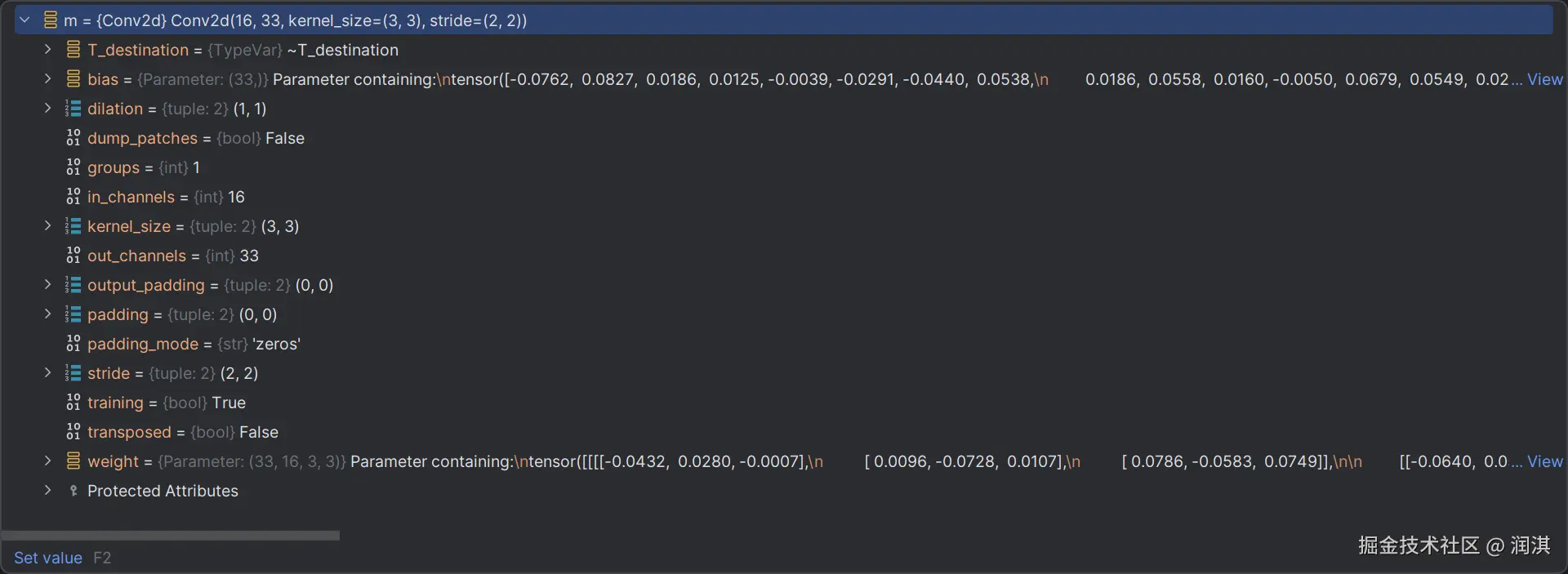

ok，在了解了我们输入的变量之后，下面一句来看其中的内容。
factory_kwargs = {'device': device, 'dtype': dtype}这个就是指定你先使用的 设备 是什么（CPU or CUDA）。
kernel_size_ = _pair(kernel_size)就是将对应 我们输入的卷积核大小变成对应的pair形式(3 -> 3 \times 3)。
stride_ = _pair(stride)这个的话同理，将数值变成 对应的pair形式(2 -> 2 \times 2)。
padding_ = padding if isinstance(padding, str) else _pair(padding)也是同理，不过是这里你再输入的时候可能已经是对应padding形式。
dilation_ = _pair(dilation)这句话依然是同理，将数值变成对应的pair形式()。
super(Conv2d, self).__init__(in_channels, out_channels, kernel_size_, stride_, padding_, dilation_,False, _pair(0), groups, bias, padding_mode, **factory_kwargs)这个函数是我们需要着重关注的 。
def __init__(self,
in_channels: int,
out_channels: int,
kernel_size: Tuple[int, ...],
stride: Tuple[int, ...],
padding: Tuple[int, ...],
dilation: Tuple[int, ...],
transposed: bool,
output_padding: Tuple[int, ...],
groups: int,
bias: bool,
padding_mode: str,
device=None,
dtype=None) -> None:
factory_kwargs = {'device': device, 'dtype': dtype}
super(_ConvNd, self).__init__()
if in_channels % groups != 0:
raise ValueError('in_channels must be divisible by groups')
if out_channels % groups != 0:
raise ValueError('out_channels must be divisible by groups')
valid_padding_strings = {'same', 'valid'}
if isinstance(padding, str):
if padding not in valid_padding_strings:
raise ValueError(
"Invalid padding string {!r}, should be one of {}".format(
padding, valid_padding_strings))
if padding == 'same' and any(s != 1 for s in stride):
raise ValueError("padding='same' is not supported for strided convolutions")
valid_padding_modes = {'zeros', 'reflect', 'replicate', 'circular'}
if padding_mode not in valid_padding_modes:
raise ValueError("padding_mode must be one of {}, but got padding_mode='{}'".format(
valid_padding_modes, padding_mode))
self.in_channels = in_channels
self.out_channels = out_channels
self.kernel_size = kernel_size
self.stride = stride
self.padding = padding
self.dilation = dilation
self.transposed = transposed
self.output_padding = output_padding
self.groups = groups
self.padding_mode = padding_mode
# `_reversed_padding_repeated_twice` is the padding to be passed to
# `F.pad` if needed (e.g., for non-zero padding types that are
# implemented as two ops: padding + conv). `F.pad` accepts paddings in
# reverse order than the dimension.
if isinstance(self.padding, str):
self._reversed_padding_repeated_twice = [0, 0] * len(kernel_size)
if padding == 'same':
for d, k, i in zip(dilation, kernel_size,
range(len(kernel_size) - 1, -1, -1)):
total_padding = d * (k - 1)
left_pad = total_padding // 2
self._reversed_padding_repeated_twice[2 * i] = left_pad
self._reversed_padding_repeated_twice[2 * i + 1] = (
total_padding - left_pad)
else:
self._reversed_padding_repeated_twice = _reverse_repeat_tuple(self.padding, 2)
if transposed:
self.weight = Parameter(torch.empty(
(in_channels, out_channels // groups, *kernel_size), **factory_kwargs))
else:
self.weight = Parameter(torch.empty(
(out_channels, in_channels // groups, *kernel_size), **factory_kwargs))
if bias:
self.bias = Parameter(torch.empty(out_channels, **factory_kwargs))
else:
self.register_parameter('bias', None)
self.reset_parameters()
这个函数中仍然是相同的，最开始进行初始化，指定 weight，bias的大小。然后看 reset_parameters这个函数。
def reset_parameters(self) -> None:
# Setting a=sqrt(5) in kaiming_uniform is the same as initializing with
# uniform(-1/sqrt(k), 1/sqrt(k)), where k = weight.size(1) * prod(*kernel_size)
# For more details see: https://github.com/pytorch/pytorch/issues/15314#issuecomment-477448573
init.kaiming_uniform_(self.weight, a=math.sqrt(5))
if self.bias is not None:
fan_in, _ = init._calculate_fan_in_and_fan_out(self.weight)
if fan_in != 0:
bound = 1 / math.sqrt(fan_in)
init.uniform_(self.bias, -bound, bound)
这段代码的作用时重新初始化层的 参数（权重和偏置）。
然后我们逐步检查这个方法的功能：
init.kaiming_uniform_(self.weight, a=math.sqrt(5))：这个的话使用了PyTorch的kaiming_uniform_初始化方法 ，采用Kaiming He等人提出的初始化策略，针对ReLU激活函数的权重初始化方法。然后的话看这个函数。
def kaiming_uniform_(tensor, a=0, mode='fan_in', nonlinearity='leaky_relu'):
r"""Fills the input `Tensor` with values according to the method
described in `Delving deep into rectifiers: Surpassing human-level
performance on ImageNet classification` - He, K. et al. (2015), using a
uniform distribution. The resulting tensor will have values sampled from
:math:`\mathcal{U}(-\text{bound}, \text{bound})` where
.. math::
\text{bound} = \text{gain} \times \sqrt{\frac{3}{\text{fan_mode}}}
Also known as He initialization.
Args:
tensor: an n-dimensional `torch.Tensor`
a: the negative slope of the rectifier used after this layer (only
used with ``'leaky_relu'``)
mode: either ``'fan_in'`` (default) or ``'fan_out'``. Choosing ``'fan_in'``
preserves the magnitude of the variance of the weights in the
forward pass. Choosing ``'fan_out'`` preserves the magnitudes in the
backwards pass.
nonlinearity: the non-linear function (`nn.functional` name),
recommended to use only with ``'relu'`` or ``'leaky_relu'`` (default).
Examples:
>>> w = torch.empty(3, 5)
>>> nn.init.kaiming_uniform_(w, mode='fan_in', nonlinearity='relu')
"""
if torch.overrides.has_torch_function_variadic(tensor):
return torch.overrides.handle_torch_function(
kaiming_uniform_,
(tensor,),
tensor=tensor,
a=a,
mode=mode,
nonlinearity=nonlinearity)
if 0 in tensor.shape:
warnings.warn("Initializing zero-element tensors is a no-op")
return tensor
fan = _calculate_correct_fan(tensor, mode)
gain = calculate_gain(nonlinearity, a)
std = gain / math.sqrt(fan)
bound = math.sqrt(3.0) * std # Calculate uniform bounds from standard deviation
with torch.no_grad():
return tensor.uniform_(-bound, bound)
这段代码的作用初始化权重的代码之一，使用均匀分布初始化权重。
计算_calculate_correct_fan函数计算对应 的权重张量。然后的话看这个函数。
def _calculate_correct_fan(tensor, mode):
mode = mode.lower()
valid_modes = ['fan_in', 'fan_out']
if mode not in valid_modes:
raise ValueError("Mode {} not supported, please use one of {}".format(mode, valid_modes))
fan_in, fan_out = _calculate_fan_in_and_fan_out(tensor)
return fan_in if mode == 'fan_in' else fan_out
套娃函数，看_calculate_fan_in_and_fan_out这个函数。
def _calculate_fan_in_and_fan_out(tensor):
dimensions = tensor.dim()
if dimensions < 2:
raise ValueError("Fan in and fan out can not be computed for tensor with fewer than 2 dimensions")
num_input_fmaps = tensor.size(1)
num_output_fmaps = tensor.size(0)
receptive_field_size = 1
if tensor.dim() > 2:
# math.prod is not always available, accumulate the product manually
# we could use functools.reduce but that is not supported by TorchScript
for s in tensor.shape[2:]:
receptive_field_size *= s
fan_in = num_input_fmaps * receptive_field_size
fan_out = num_output_fmaps * receptive_field_size
return fan_in, fan_out
这个函数算是看到对应的 内容是怎么计算的了，首先，我们先获取权重，通过权重的大小计算fan_in和 fan_out。
dimensions = tensor.dim(): 获取张量的维度数。
如果张量的维度数小于 2，则抛出异常，因为无法为少于 2 维的张量计算 fan_in 和 fan_out。
计算 num_input_fmaps 和 num_output_fmaps：
num_input_fmaps是输入特征图的数量，通常对应于输入张量的第二个维度的大小（索引为 1）。num_output_fmaps是输出特征图的数量，通常对应于输出张量的第一个维度的大小（索引为 0）。
如果张量的维度大于 2：
- 初始化
receptive_field_size为 1。 - 对张量的除了前两个维度（通常是批量大小和通道数）之外的维度进行遍历，计算这些维度的乘积，以计算感受野的大小。
- 这里采用了一个循环，将除前两个维度外的所有维度大小相乘，得到
receptive_field_size。
然后计算fan_in和fan_out：
fan_in是输入通道数量，是输入特征图数量乘以感受野大小的结果。fan_out是输出通道数量，是输出特征图数量乘以感受野大小的结果。
然后计算返回计算得到的fan_in和fan_out。
ok，现在我们得到对应的权重张量，然后接着看下面的函数。
gain = calculate_gain(nonlinearity, a)
std = gain / math.sqrt(fan)
bound = math.sqrt(3.0) * std # Calculate uniform bounds from standard deviation
with torch.no_grad():
return tensor.uniform_(-bound, bound)
然后这里我们需要看计算gain(增益)的函数。
def calculate_gain(nonlinearity, param=None):
r"""Return the recommended gain value for the given nonlinearity function.
The values are as follows:
================= ====================================================
nonlinearity gain
================= ====================================================
Linear / Identity :math:`1`
Conv{1,2,3}D :math:`1`
Sigmoid :math:`1`
Tanh :math:`\frac{5}{3}`
ReLU :math:`\sqrt{2}`
Leaky Relu :math:`\sqrt{\frac{2}{1 + \text{negative_slope}^2}}`
SELU :math:`\frac{3}{4}`
================= ====================================================
.. warning::
In order to implement `Self-Normalizing Neural Networks`_ ,
you should use ``nonlinearity='linear'`` instead of ``nonlinearity='selu'``.
This gives the initial weights a variance of ``1 / N``,
which is necessary to induce a stable fixed point in the forward pass.
In contrast, the default gain for ``SELU`` sacrifices the normalisation
effect for more stable gradient flow in rectangular layers.
Args:
nonlinearity: the non-linear function (`nn.functional` name)
param: optional parameter for the non-linear function
Examples:
>>> gain = nn.init.calculate_gain('leaky_relu', 0.2) # leaky_relu with negative_slope=0.2
.. _Self-Normalizing Neural Networks: https://papers.nips.cc/paper/2017/hash/5d44ee6f2c3f71b73125876103c8f6c4-Abstract.html
"""
linear_fns = ['linear', 'conv1d', 'conv2d', 'conv3d', 'conv_transpose1d', 'conv_transpose2d', 'conv_transpose3d']
if nonlinearity in linear_fns or nonlinearity == 'sigmoid':
return 1
elif nonlinearity == 'tanh':
return 5.0 / 3
elif nonlinearity == 'relu':
return math.sqrt(2.0)
elif nonlinearity == 'leaky_relu':
if param is None:
negative_slope = 0.01
elif not isinstance(param, bool) and isinstance(param, int) or isinstance(param, float):
# True/False are instances of int, hence check above
negative_slope = param
else:
raise ValueError("negative_slope {} not a valid number".format(param))
return math.sqrt(2.0 / (1 + negative_slope ** 2))
elif nonlinearity == 'selu':
return 3.0 / 4 # Value found empirically (https://github.com/pytorch/pytorch/pull/50664)
else:
raise ValueError("Unsupported nonlinearity {}".format(nonlinearity))
LeakyReLU: 返回\sqrt\frac{2}{1 + negative_slope}
计算出对应的gain，然后接着往下走。
std = gain / math.sqrt(fan)
bound = math.sqrt(3.0) * std # Calculate uniform bounds from standard deviation
with torch.no_grad():
return tensor.uniform_(-bound, bound)
这个的话就是数值 计算出对应的标准差以及均匀分布的边界bound，这个是\sqrt 3乘以对应的 标准差。
计算出来这些之后，进行返回。然后接着看返回后的 下面的 函数。
if self.bias is not None:
fan_in, _ = init._calculate_fan_in_and_fan_out(self.weight)
if fan_in != 0:
bound = 1 / math.sqrt(fan_in)
init.uniform_(self.bias, -bound, bound)
这几句话的作用时 如果当前 偏置参数不为空，通过权重计算出对应fain_in（输入通道数量），如果说当前输入通道数不为0，则对方法偏执参数的均匀分布的重新初始化。
这些都计算完毕之后，就返回了。
返回的内容如下 ：
得到了对应的内容，然后我们看官网中有这么 一个公式：
其实上面的过程，就是这个公式的计算。
总结
其实我们在使用的 时候，一般不会看着详细的计算过程，因为这个公式已经介绍的很清楚了，但是最近在看群卷积神经网络，对于卷积这块突然间不知道对应的滤波是怎么进行设置，因此将这部分重新简单看下，这部分比较简单，但是其中也有很多细节值得深究，象何凯明大佬里面的leaky_relu这个函数的设置等等，不得不承认好的开源社区就是充满活力，代码写的真的好。
