实现规约组件模块

组件地址

<dependency>
    <groupId>org.opengoofy.index12306</groupId>
    <artifactId>index12306-convention-spring-boot-starter</artifactId>
    <version>${project.version}</version>
</dependency>

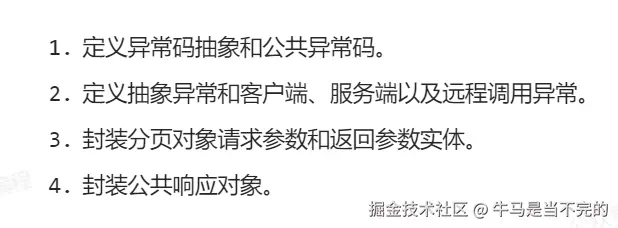

组件功能

异常码抽象和公共异常码

异常码接口抽象

package org.opengoofy.index12306.framework.starter.convention.errorcode;

/**
 * 平台错误码
 *
 */
public interface IErrorCode {

    /**
     * 错误码
     */
    String code();

    /**
     * 错误信息
     */
    String message();
}

封装常用的公共异常码

package org.opengoofy.index12306.framework.starter.convention.errorcode;

/**
 * 基础错误码定义
 *
 * @公众号：马丁玩编程，回复：加群，添加马哥微信（备注：12306）获取项目资料
 */
public enum BaseErrorCode implements IErrorCode {

    // ========== 一级宏观错误码 客户端错误 ==========
    CLIENT_ERROR("A000001", "用户端错误"),

    // ========== 二级宏观错误码 用户注册错误 ==========
    USER_REGISTER_ERROR("A000100", "用户注册错误"),
    USER_NAME_VERIFY_ERROR("A000110", "用户名校验失败"),
    USER_NAME_EXIST_ERROR("A000111", "用户名已存在"),
    USER_NAME_SENSITIVE_ERROR("A000112", "用户名包含敏感词"),
    USER_NAME_SPECIAL_CHARACTER_ERROR("A000113", "用户名包含特殊字符"),
    PASSWORD_VERIFY_ERROR("A000120", "密码校验失败"),
    PASSWORD_SHORT_ERROR("A000121", "密码长度不够"),
    PHONE_VERIFY_ERROR("A000151", "手机格式校验失败"),

    // ========== 二级宏观错误码 系统请求缺少幂等Token ==========
    IDEMPOTENT_TOKEN_NULL_ERROR("A000200", "幂等Token为空"),
    IDEMPOTENT_TOKEN_DELETE_ERROR("A000201", "幂等Token已被使用或失效"),

    // ========== 一级宏观错误码 系统执行出错 ==========
    SERVICE_ERROR("B000001", "系统执行出错"),
    // ========== 二级宏观错误码 系统执行超时 ==========
    SERVICE_TIMEOUT_ERROR("B000100", "系统执行超时"),

    // ========== 一级宏观错误码 调用第三方服务出错 ==========
    REMOTE_ERROR("C000001", "调用第三方服务出错");

    private final String code;

    private final String message;

    BaseErrorCode(String code, String message) {
        this.code = code;
        this.message = message;
    }

    @Override
    public String code() {
        return code;
    }

    @Override
    public String message() {
        return message;
    }
}

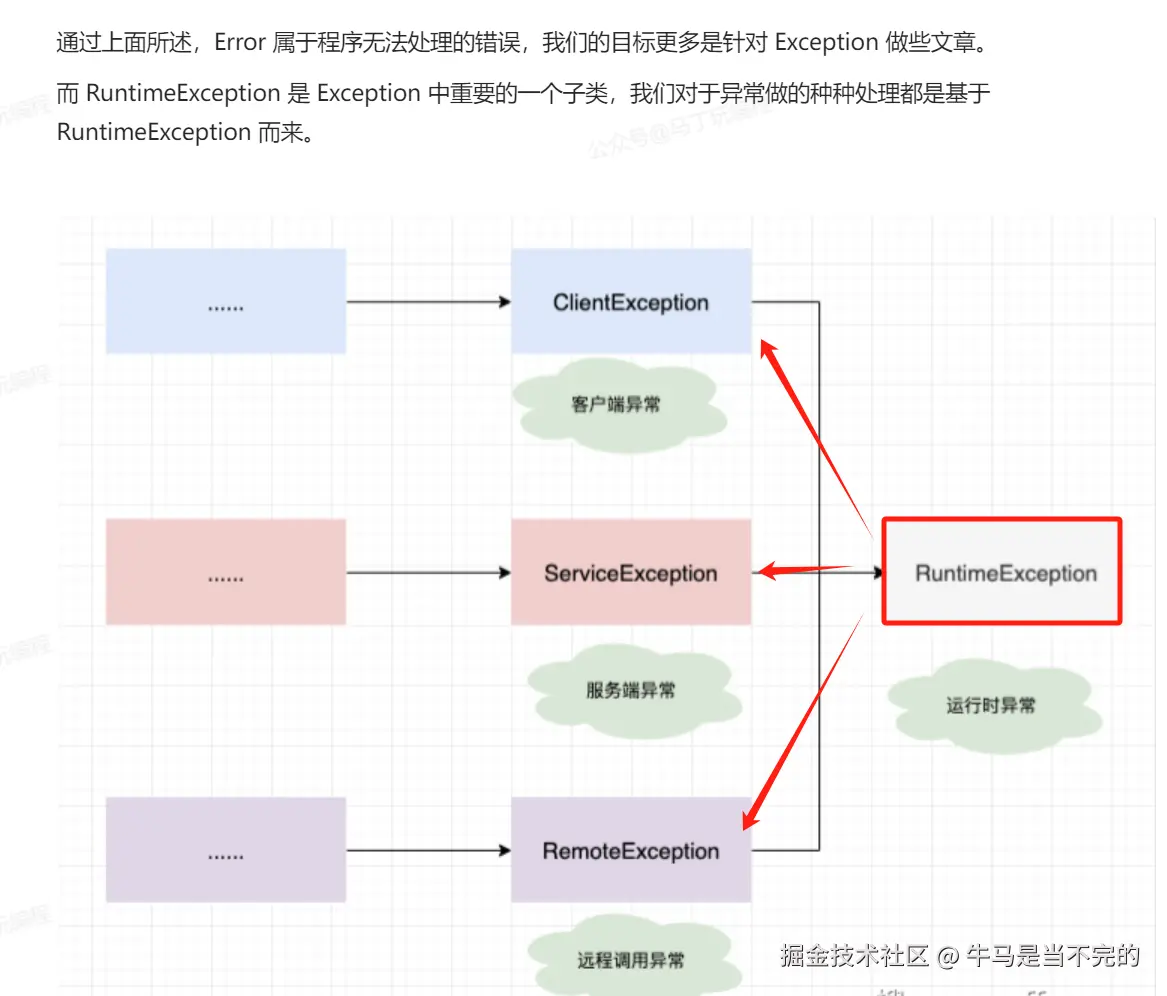

异常分类

既然定义了异常码，就需要知道异常是如何分类的

抽象异常

由于客户端异常、服务端异常、远程调用异常都继承于运行时异常，则三种异常必然会有相似之处，因此统一抽象层AbstractException

package org.opengoofy.congomall.springboot.starter.convention.exception;

import com.google.common.base.Strings;
import lombok.Getter;
import org.opengoofy.congomall.springboot.starter.convention.errorcode.IErrorCode;

import java.util.Optional;

/**
 * 抽象项目中三类异常体系，客户端异常、服务端异常以及远程服务调用异常
 *
 * @see ClientException
 * @see ServiceException
 * @see RemoteException
 */
@Getter
public abstract class AbstractException extends RuntimeException {

    public final String errorCode;

    public final String errorMessage;

    public AbstractException(String message, Throwable throwable, IErrorCode errorCode) {
        super(message, throwable);
        this.errorCode = errorCode.code();
        this.errorMessage = Optional.ofNullable(Strings.emptyToNull(message)).orElse(errorCode.message());
    }
}

客户端异常

参数校验失败异常、幂等异常.....

package org.opengoofy.congomall.springboot.starter.convention.exception;

import org.opengoofy.congomall.springboot.starter.convention.errorcode.BaseErrorCode;
import org.opengoofy.congomall.springboot.starter.convention.errorcode.IErrorCode;

/**
 * 客户端异常
 *
 */
public class ClientException extends AbstractException {

    public ClientException(IErrorCode errorCode) {
        this(null, null, errorCode);
    }

    public ClientException(String message) {
        this(message, null, BaseErrorCode.CLIENT_ERROR);
    }

    public ClientException(String message, IErrorCode errorCode) {
        this(message, null, errorCode);
    }

    public ClientException(String message, Throwable throwable, IErrorCode errorCode) {
        super(message, throwable, errorCode);
    }

    @Override
    public String toString() {
        return "ClientException{" +
                "code='" + errorCode + "'," +
                "message='" + errorMessage + "'" +
                '}';
    }
}

服务端异常

消息模版不合规、消息内容包含关键字......

package org.opengoofy.congomall.springboot.starter.convention.exception;

import org.opengoofy.congomall.springboot.starter.convention.errorcode.BaseErrorCode;
import org.opengoofy.congomall.springboot.starter.convention.errorcode.IErrorCode;

/**
 * 服务端异常
 *
 */
public class ServiceException extends AbstractException {

    public ServiceException(String message) {
        this(message, null, BaseErrorCode.SERVICE_ERROR);
    }

    public ServiceException(IErrorCode errorCode) {
        this(null, errorCode);
    }

    public ServiceException(String message, IErrorCode errorCode) {
        this(message, null, errorCode);
    }

    public ServiceException(String message, Throwable throwable, IErrorCode errorCode) {
        super(message, throwable, errorCode);
    }

    @Override
    public String toString() {
        return "ServiceException{" +
                "code='" + errorCode + "'," +
                "message='" + errorMessage + "'" +
                '}';
    }
}

远程调用异常

package org.opengoofy.congomall.springboot.starter.convention.exception;

import org.opengoofy.congomall.springboot.starter.convention.errorcode.IErrorCode;

/**
 * 远程服务调用异常
 *
 */
public class RemoteException extends AbstractException {

    public RemoteException(String message, IErrorCode errorCode) {
        this(message, null, errorCode);
    }

    public RemoteException(String message, Throwable throwable, IErrorCode errorCode) {
        super(message, throwable, errorCode);
    }

    @Override
    public String toString() {
        return "RemoteException{" +
                "code='" + errorCode + "'," +
                "message='" + errorMessage + "'" +
                '}';
    }
}

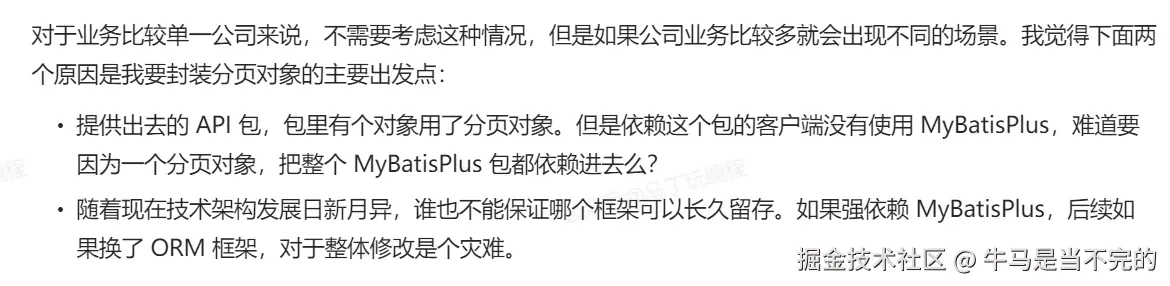

封装分页对象

分页请求参数对象（入参）

package org.opengoofy.index12306.framework.starter.convention.page;

import lombok.Data;

/**
 * 分页请求对象
 *
 * <p> {@link PageRequest}、{@link PageResponse}
 * 可以理解是防腐层的一种实现，不论底层 ORM 框架，对外分页参数属性不变
 *
 */
@Data
public class PageRequest {

    /**
     * 当前页
     */
    private Long current = 1L;

    /**
     * 每页显示条数
     */
    private Long size = 10L;
}

分页返回参数对象（出参）

package org.opengoofy.index12306.framework.starter.convention.page;

import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.io.Serializable;
import java.util.Collections;
import java.util.List;
import java.util.function.Function;
import java.util.stream.Collectors;

/**
 * 分页返回对象
 *
 * <p> {@link PageRequest}、{@link PageResponse}
 * 可以理解是防腐层的一种实现，不论底层 ORM 框架，对外分页参数属性不变
 *
 */
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class PageResponse<T> implements Serializable {

    private static final long serialVersionUID = 1L;

    /**
     * 当前页
     */
    private Long current;

    /**
     * 每页显示条数
     */
    private Long size = 10L;

    /**
     * 总数
     */
    private Long total;

    /**
     * 查询数据列表
     */
    private List<T> records = Collections.emptyList();

    public PageResponse(long current, long size) {
        this(current, size, 0);
    }

    public PageResponse(long current, long size, long total) {
        if (current > 1) {
            this.current = current;
        }
        this.size = size;
        this.total = total;
    }

    public PageResponse setRecords(List<T> records) {
        this.records = records;
        return this;
    }

    public <R> PageResponse<R> convert(Function<? super T, ? extends R> mapper) {
        List<R> collect = this.getRecords().stream().map(mapper).collect(Collectors.toList());
        return ((PageResponse<R>) this).setRecords(collect);
    }
}

提供 MyBatisPlus 分页和自定义分页对象之间的转换工具类，帮助开发提高开发效率

package org.opengoofy.index12306.framework.starter.database.toolkit;

import com.baomidou.mybatisplus.core.metadata.IPage;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import org.opengoofy.index12306.framework.starter.common.toolkit.BeanUtil;
import org.opengoofy.index12306.framework.starter.convention.page.PageRequest;
import org.opengoofy.index12306.framework.starter.convention.page.PageResponse;

import java.util.List;
import java.util.function.Function;
import java.util.stream.Collectors;

/**
 * 分页工具类
 *
 */
public class PageUtil {

    /**
     * {@link PageRequest} to {@link Page}
     */
    public static Page convert(PageRequest pageRequest) {
        return convert(pageRequest.getCurrent(), pageRequest.getSize());
    }

    /**
     * {@link PageRequest} to {@link Page}
     */
    public static Page convert(long current, long size) {
        return new Page(current, size);
    }

    /**
     * {@link IPage} to {@link PageResponse}
     */
    public static PageResponse convert(IPage iPage) {
        return buildConventionPage(iPage);
    }

    /**
     * {@link IPage} to {@link PageResponse}
     */
    public static <TARGET, ORIGINAL> PageResponse<TARGET> convert(IPage<ORIGINAL> iPage, Class<TARGET> targetClass) {
        iPage.convert(each -> BeanUtil.convert(each, targetClass));
        return buildConventionPage(iPage);
    }

    /**
     * {@link IPage} to {@link PageResponse}
     */
    public static <TARGET, ORIGINAL> PageResponse<TARGET> convert(IPage<ORIGINAL> iPage, Function<? super ORIGINAL, ? extends TARGET> mapper) {
        List<TARGET> targetDataList = iPage.getRecords().stream()
                .map(mapper)
                .collect(Collectors.toList());
        return PageResponse.<TARGET>builder()
                .current(iPage.getCurrent())
                .size(iPage.getSize())
                .records(targetDataList)
                .total(iPage.getTotal())
                .build();
    }

    /**
     * {@link IPage} build to {@link PageResponse}
     */
    private static PageResponse buildConventionPage(IPage iPage) {
        return PageResponse.builder()
                .current(iPage.getCurrent())
                .size(iPage.getSize())
                .records(iPage.getRecords())
                .total(iPage.getTotal())
                .build();
    }
}

封装公共响应对象

定义返回体

package org.opengoofy.congomall.springboot.starter.convention.result;

import lombok.Data;
import lombok.experimental.Accessors;

import java.io.Serializable;

/**
 * 全局返回对象
 */
@Data
@Accessors(chain = true)
public class Result<T> implements Serializable {

    private static final long serialVersionUID = 5679018624309023727L;

    /**
     * 正确返回码
     */
    public static final String SUCCESS_CODE = "0";

    /**
     * 返回码
     */
    private String code;

    /**
     * 返回消息
     */
    private String message;

    /**
     * 响应数据
     */
    private T data;

    /**
     * 请求ID
     */
    private String requestId;

    public boolean isSuccess() {
        return SUCCESS_CODE.equals(code);
    }
}

同时，为了方便 Result 的创建，通过一个 Results 工具类用来创建返回类。

package org.opengoofy.congomall.springboot.starter.web;

import org.apache.skywalking.apm.toolkit.trace.TraceContext;
import org.opengoofy.congomall.springboot.starter.convention.errorcode.BaseErrorCode;
import org.opengoofy.congomall.springboot.starter.convention.exception.AbstractException;
import org.opengoofy.congomall.springboot.starter.convention.result.Result;

import java.util.Optional;

/**
 * 全局返回对象构造器
 */
public final class Results {

    /**
     * 构造成功响应
     *
     * @return
     */
    public static Result<Void> success() {
        return new Result<Void>()
                .setCode(Result.SUCCESS_CODE)
                .setRequestId(TraceContext.traceId());
    }

    /**
     * 构造带返回数据的成功响应
     *
     * @param data
     * @param <T>
     * @return
     */
    public static <T> Result<T> success(T data) {
        return new Result<T>()
                .setCode(Result.SUCCESS_CODE)
                .setRequestId(TraceContext.traceId())
                .setData(data);
    }

    /**
     * 构建服务端失败响应
     *
     * @return
     */
    protected static Result<Void> failure() {
        return new Result<Void>()
                .setCode(BaseErrorCode.SERVICE_ERROR.code())
                .setRequestId(TraceContext.traceId())
                .setMessage(BaseErrorCode.SERVICE_ERROR.message());
    }

    /**
     * 通过 {@link AbstractException} 构建失败响应
     *
     * @param abstractException
     * @return
     */
    protected static Result<Void> failure(AbstractException abstractException) {
        String errorCode = Optional.ofNullable(abstractException.getErrorCode())
                .orElse(BaseErrorCode.SERVICE_ERROR.code());
        String errorMessage = Optional.ofNullable(abstractException.getErrorMessage())
                .orElse(BaseErrorCode.SERVICE_ERROR.message());
        return new Result<Void>()
                .setCode(errorCode)
                .setRequestId(TraceContext.traceId())
                .setMessage(errorMessage);
    }

    /**
     * 通过 errorCode、errorMessage 构建失败响应
     *
     * @param errorCode
     * @param errorMessage
     * @return
     */
    protected static Result<Void> failure(String errorCode, String errorMessage) {
        return new Result<Void>()
                .setCode(errorCode)
                .setRequestId(TraceContext.traceId())
                .setMessage(errorMessage);
    }
}

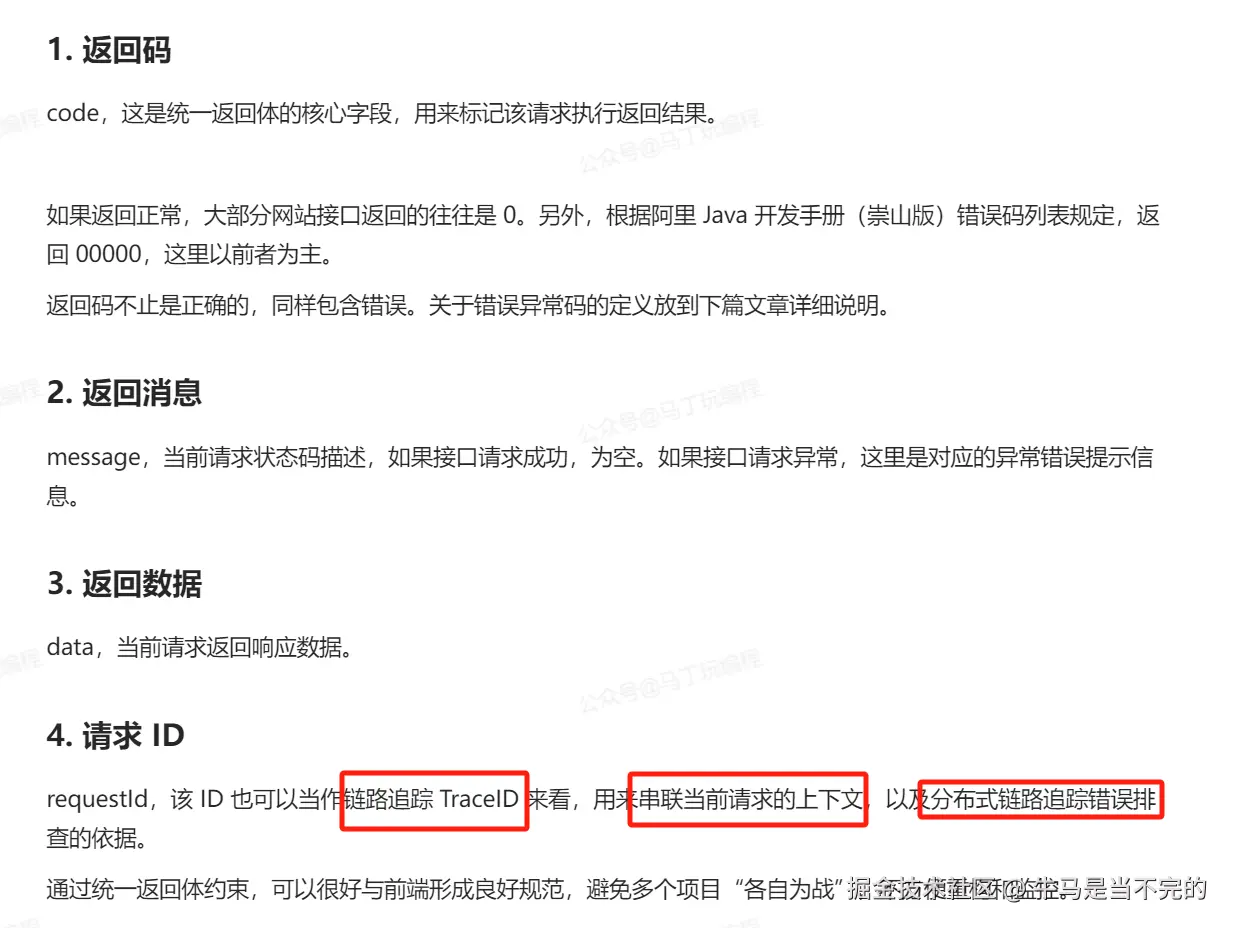

具体参数

响应示例

{
  "code": "0",
  "message": null,
  "data": {
    "productBrand": {
      "id": 1477055818267025408,
      "name": "小米",
      "desc": "小米是一家以手机、智能硬件和IoT平台为核心的互联网公司，以智能手机、智能电视、笔记本等丰富的产品与服务。致力于让全球每个人都能享受科技带来的美好生活",
      "pic": null,
      "sort": 1
    },
    "productSpu": {
      "id": 1477055850256982016,
      "categoryId": 1477055818388660224,
      "brandId": 1477055818267025408,
      "name": "小米MIX Fold2 轻薄折叠 骁龙8+旗舰处理器 徕卡光学镜头 自研微水滴形态转轴 12GB+512GB 月影黑 5G手机",
      "productSn": "100033890205",
      "pic": "",
      "photoAlbum": null,
      "price": 9999,
      "promotionPrice": 9988,
      "promotionStartTime": "2022-09-14T13:02:26.000+00:00",
      "promotionEndTime": "2022-09-14T13:02:26.000+00:00",
      "subTitle": "轻薄折叠机,整机轻至262g,展开厚度5.4mm,骁龙8+旗舰处理器!【点击抢购小米11Ultra】",
      "sales": 0,
      "unit": "件",
      "detail": null,
      "publishStatus": 0,
      "newStatus": 0,
      "recommandStatus": 0
    },
    "productSkus": [
      {
        "id": 1477056250724933632,
        "productId": 1477055850256982016,
        "price": 9999,
        "stock": 99526,
        "lockStock": 474,
        "pic": "",
        "attribute": "[{\"key\":\"外观\",\"value\":\"月影黑\"},{\"key\":\"版本\",\"value\":\"12GB+256GB\"}]"
      },
      {
        "id": 1477056250741710848,
        "productId": 1477055850256982016,
        "price": 11999,
        "stock": 299,
        "lockStock": 5,
        "pic": "",
        "attribute": "[{\"key\":\"外观\",\"value\":\"月影黑\"},{\"key\":\"版本\",\"value\":\"12GB+512GB\"}]"
      },
      {
        "id": 1477056338104868864,
        "productId": 1477055850256982016,
        "price": 9999,
        "stock": 188,
        "lockStock": 2,
        "pic": "",
        "attribute": "[{\"key\":\"外观\",\"value\":\"星耀金\"},{\"key\":\"版本\",\"value\":\"12GB+256GB\"}]"
      },
      {
        "id": 1477056338335555584,
        "productId": 1477055850256982016,
        "price": 11999,
        "stock": 299,
        "lockStock": 4,
        "pic": "",
        "attribute": "[{\"key\":\"外观\",\"value\":\"星耀金\"},{\"key\":\"版本\",\"value\":\"12GB+512GB\"}]"
      }
    ]
  },
  "requestId": "4a2c99691f1f4d7dbc944ddbcf60108d.423.16777712688418813",
  "success": true
}
