为什么可以AutoWired注入HttpServletRequest对象？

xmwenaa
494 阅读4分钟

背景

时间：2024年12月22日13:54:12，周日

这两天在做一个需求的时候，需要在service中使用http调用其他系统的查询接口，调用的时候需要登录态，方案是获取当前request对象，把所有cookie都传过去。于是看看service参数中能不能取到request对象，发现取不到，新增参数的话改造成本较大。最后老大哥告诉我可以使用AutoWired直接注入HttpServletRequest对象。

问题来了，request应该是和当前请求线程绑定的，每个请求，request中的数据应该都不一样，为什么可以注入呢？带着这个疑问，今天打算从spring源码的角度，去理解这个问题

测试代码

package com.wxm.controller;
​
import org.springframework.beans.factory.InitializingBean;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
​
import javax.servlet.http.HttpServletRequest;
​
/**
 * @author
 * @ClassName HelloController.java
 * @Description TODO
 */
@Controller
public class HelloController implements InitializingBean {
    @Autowired
    private HttpServletRequest request;
    @Autowired
    private TestComp testComp;
    @GetMapping("hello")
    public String hello () {
        System.out.println(request.toString());
        System.out.println(request.getRequestURI());
        return "index";
    }
​
    @Override
    public void afterPropertiesSet() throws Exception {
        System.out.println("request=========" + request);
    }
}
​

debug过程

启动阶段

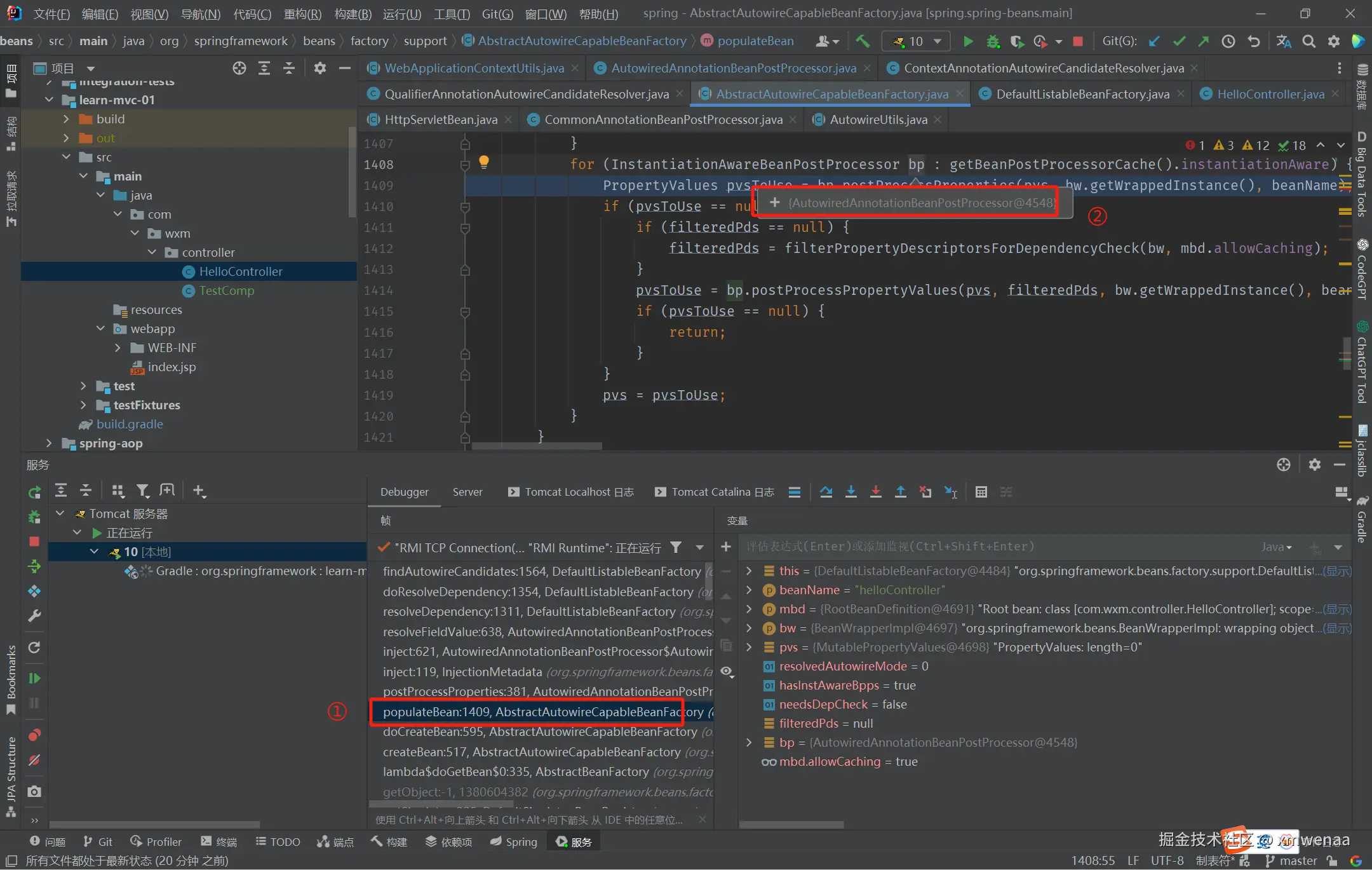

image-20241222140449507.png 首先启动tomcat，在DispatcherServlet中会创建容器，然后创建单例bean，比如上面的helloController，newInstance完成后，会调用populateBean方法，这个方法是用来注入依赖的。接着往下看

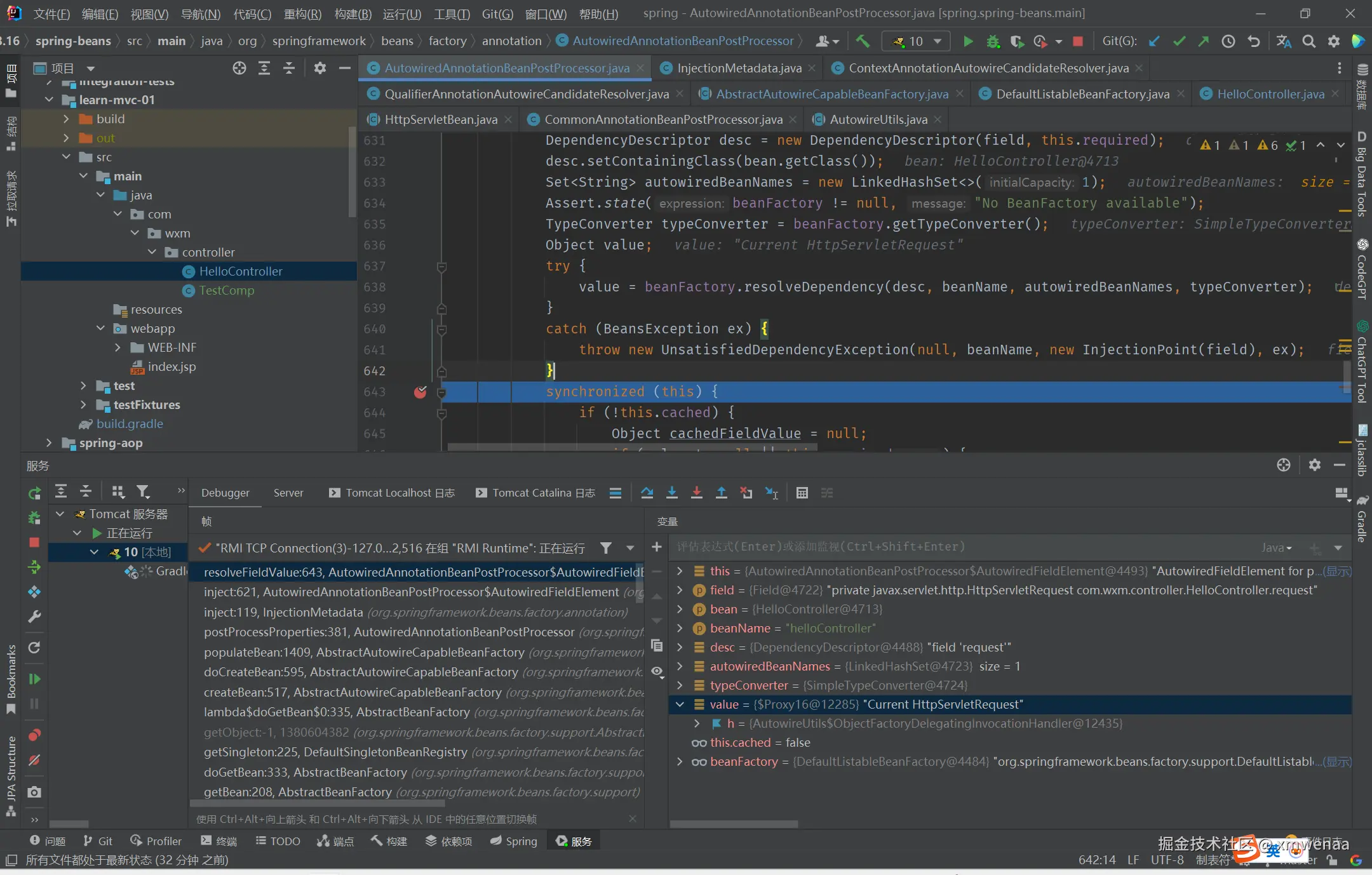

image-20241222141542096.png 断点停在上面，从上图得出以下信息

AutoWiredAnnotationBeanPostProcessor会调用beanFactory#resolveDependency方法（实际上是DefaultListableBeanfactory）来解析依赖，最终返回我们想要的对象

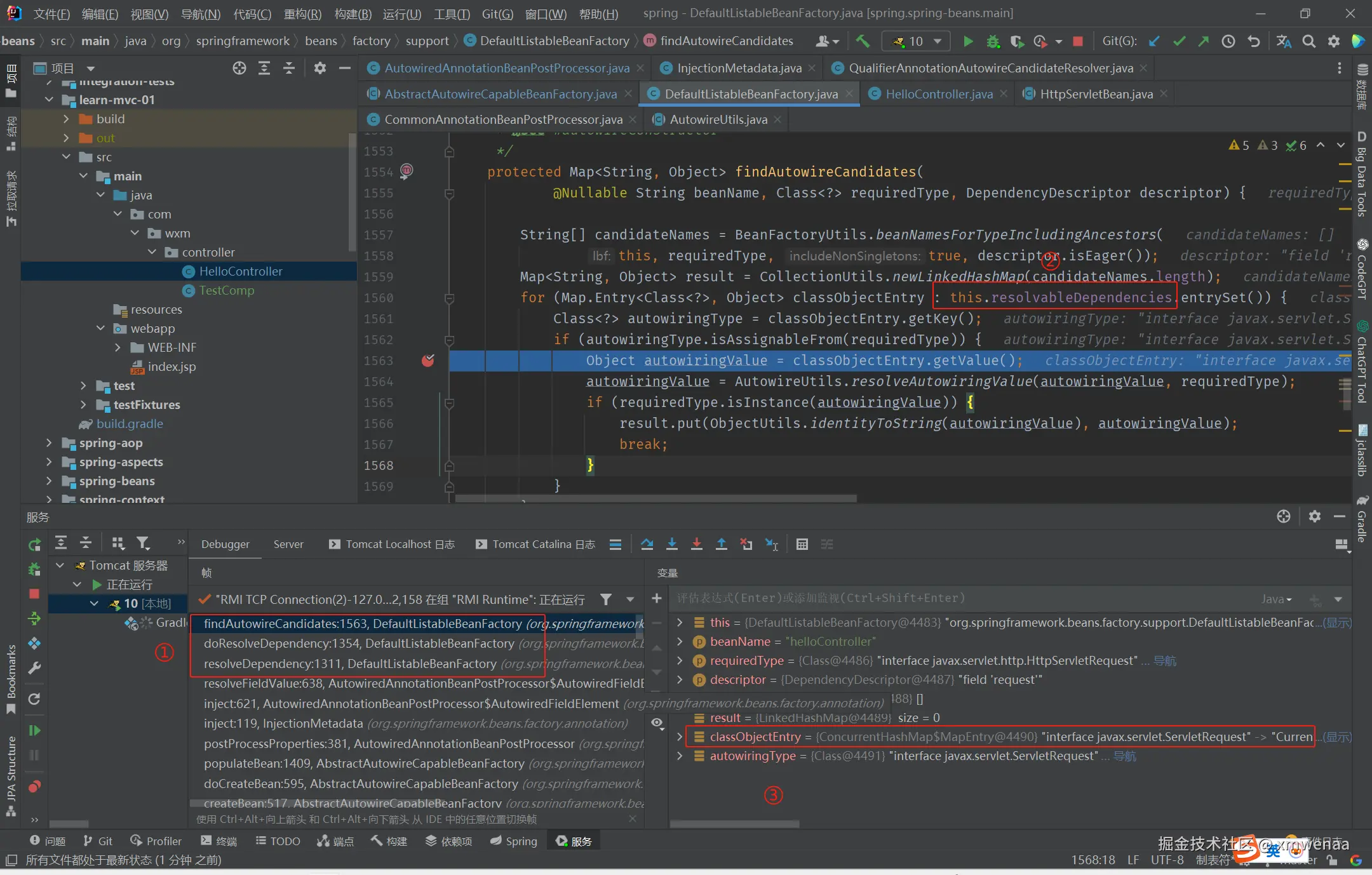

image-20241222142719360.png 接下来进DefaultListableBeanfactory的resolveDependency方法看看

①：经过一个内部方法后，进入到findAutowireCandidates方法

②：DefaultListableBeanfactory中有一个resolvableDependencies属性，是一个Map，获取内部的entrySet进行循环，key是一个Class对象，如果与要注入的对象的类型匹配的话，就获取对应的value，然后通过AutowireUtils.resolveAutowiringValue(autowiringValue, requiredType)生成代理对象返回。代码如下

//关键代码
        for (Map.Entry<Class<?>, Object> classObjectEntry : this.resolvableDependencies.entrySet()) {
            Class<?> autowiringType = classObjectEntry.getKey();
            if (autowiringType.isAssignableFrom(requiredType)) {
                //autowiringValue是WebApplicationContextUtils$RequestObjectFactory,实现自ObjectFactory
                Object autowiringValue = classObjectEntry.getValue();
                //生成代理对象
                autowiringValue = AutowireUtils.resolveAutowiringValue(autowiringValue, requiredType);
                if (requiredType.isInstance(autowiringValue)) {
                    result.put(ObjectUtils.identityToString(autowiringValue), autowiringValue);
                    break;
                }
            }
        }

    /**

     * Resolve the given autowiring value against the given required type,
     * e.g. an {@link ObjectFactory} value to its actual object result.
     * @param autowiringValue the value to resolve
     * @param requiredType the type to assign the result to
     * @return the resolved value
     */
    public static Object resolveAutowiringValue(Object autowiringValue, Class<?> requiredType) {
        if (autowiringValue instanceof ObjectFactory && !requiredType.isInstance(autowiringValue)) {
            ObjectFactory<?> factory = (ObjectFactory<?>) autowiringValue;
            if (autowiringValue instanceof Serializable && requiredType.isInterface()) {
                autowiringValue = Proxy.newProxyInstance(requiredType.getClassLoader(),
                        new Class<?>[] {requiredType}, new ObjectFactoryDelegatingInvocationHandler(factory));
            }
            else {
                return factory.getObject();
            }
        }
        return autowiringValue;
    }

AutoWiredUtis$ObjectFactoryDelegatingInvocationHandler

    /**
     * Reflective {@link InvocationHandler} for lazy access to the current target object.
     */
    @SuppressWarnings("serial")
    private static class ObjectFactoryDelegatingInvocationHandler implements InvocationHandler, Serializable {
​
        private final ObjectFactory<?> objectFactory;
​
        ObjectFactoryDelegatingInvocationHandler(ObjectFactory<?> objectFactory) {
            this.objectFactory = objectFactory;
        }
​
        @Override
        public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
            switch (method.getName()) {
                case "equals":
                    // Only consider equal when proxies are identical.
                    return (proxy == args[0]);
                case "hashCode":
                    // Use hashCode of proxy.
                    return System.identityHashCode(proxy);
                case "toString":
                    return this.objectFactory.toString();
            }
            try {
                return method.invoke(this.objectFactory.getObject(), args);
            }
            catch (InvocationTargetException ex) {
                throw ex.getTargetException();
            }
        }
    }

@FunctionalInterface
public interface ObjectFactory<T> {
​
    /**
     * Return an instance (possibly shared or independent)
     * of the object managed by this factory.
     * @return the resulting instance
     * @throws BeansException in case of creation errors
     */
    T getObject() throws BeansException;
​
}

至此，把依赖的对象解析成一个代理对象注入到了helloController中了。

还有一个疑问，DefaultListableBeanfactory中有一个resolvableDependencies属性是干嘛的，在什么时候初始化？因为requestObjectFactory是从resolvableDependencies拿到的，搞清楚很有必要

继续debug

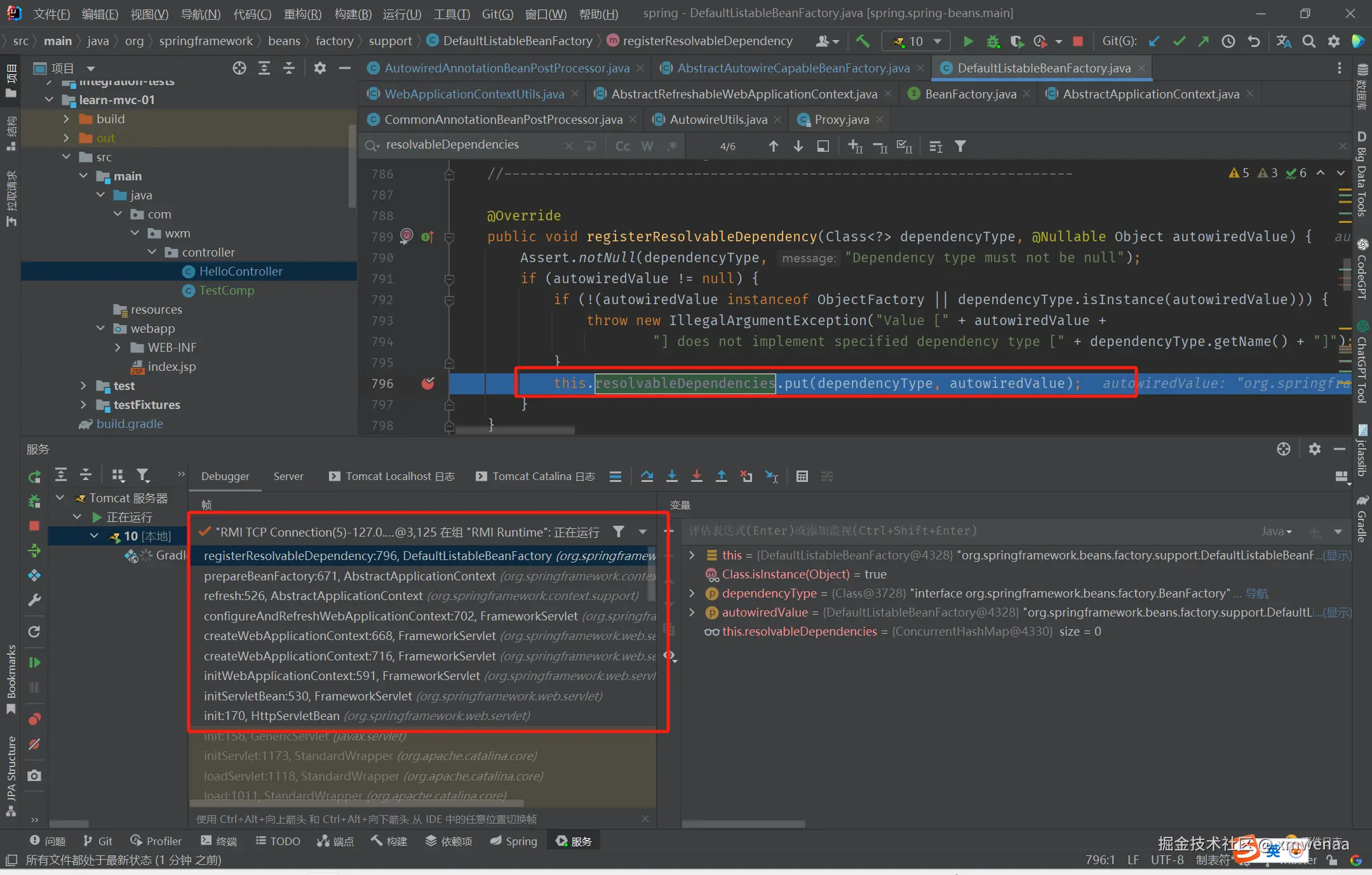

image-20241222151442859.png 断点打到resolvableDependencies的put方法处，发现很简单，tomcat启动初始化唯一的DispatcherServlet，DispatcherServlet会创建IOC容器，调用AbstractApplicationContext的refresh方法中，会准备BeanFactory

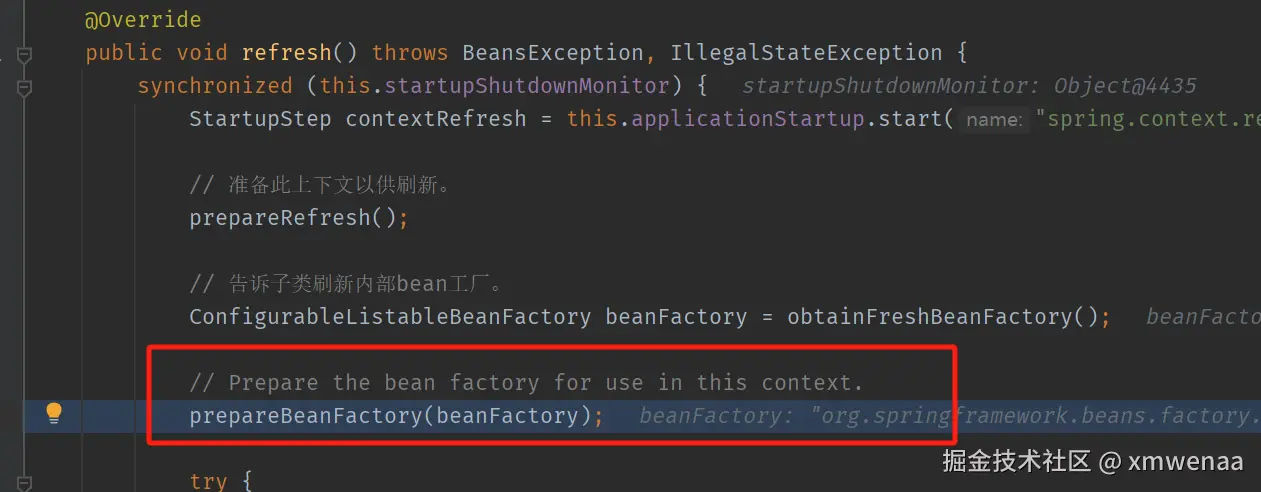

image-20241222151841564.png 在这个方法中，会注册一些对象

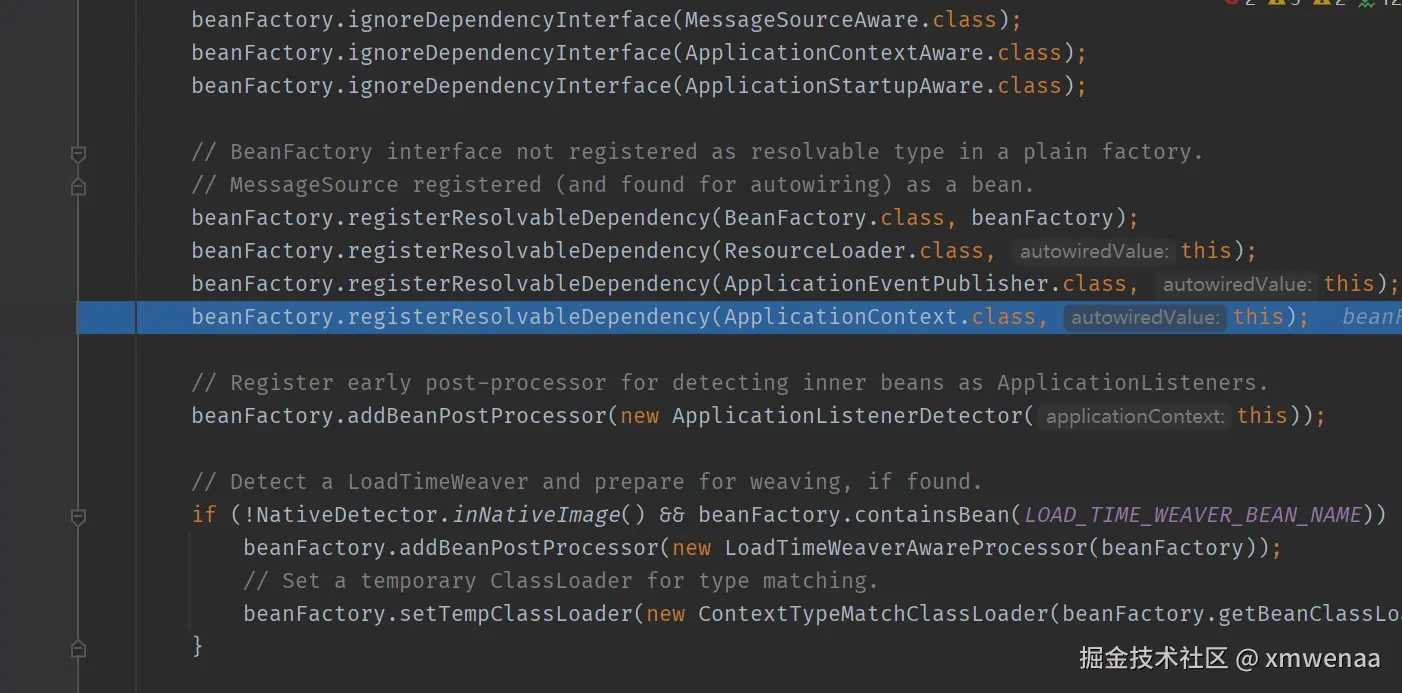

image-20241222152356397.png 还没到我们的RequestObjectFactory对象

refresh往下走

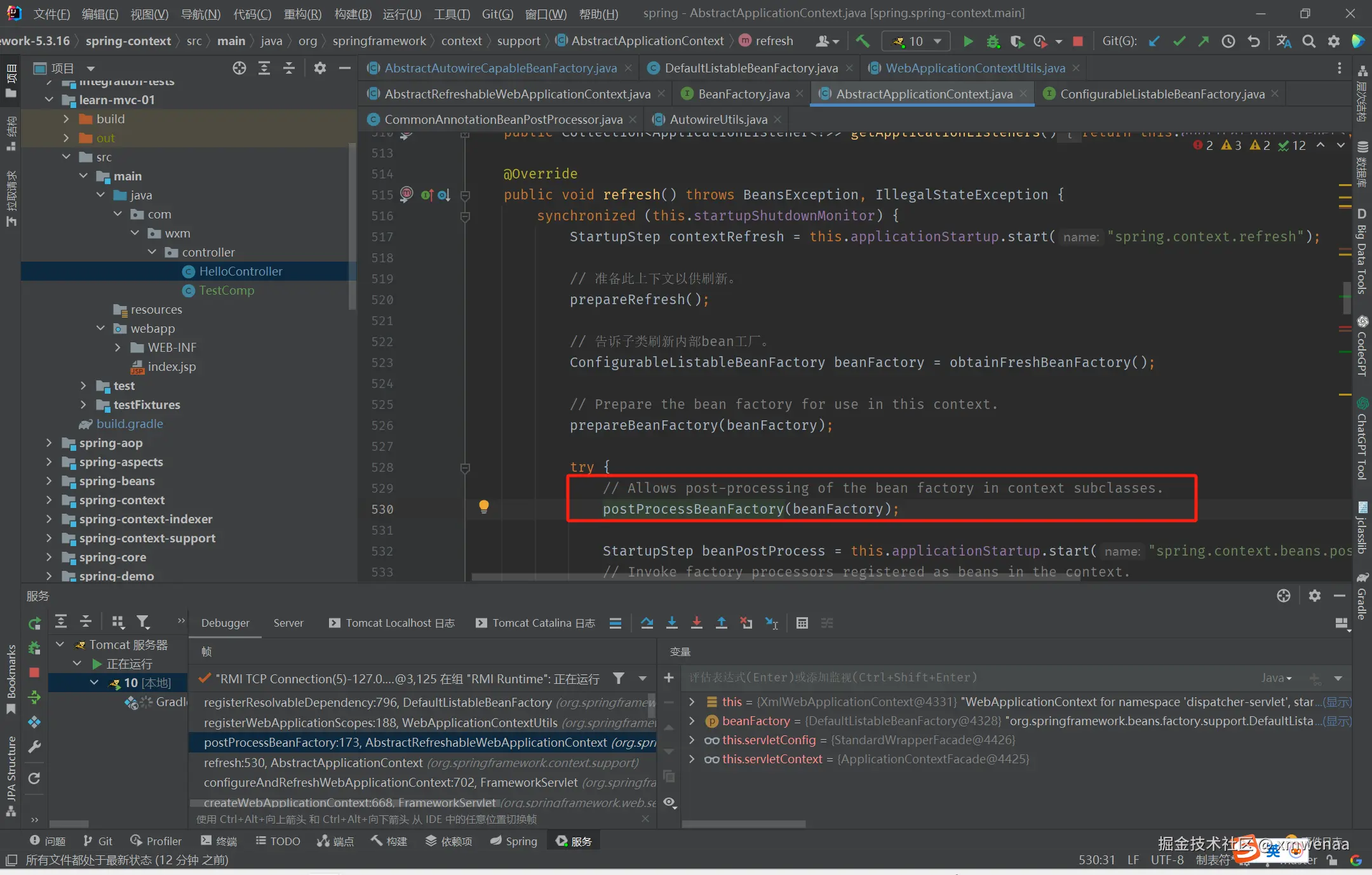

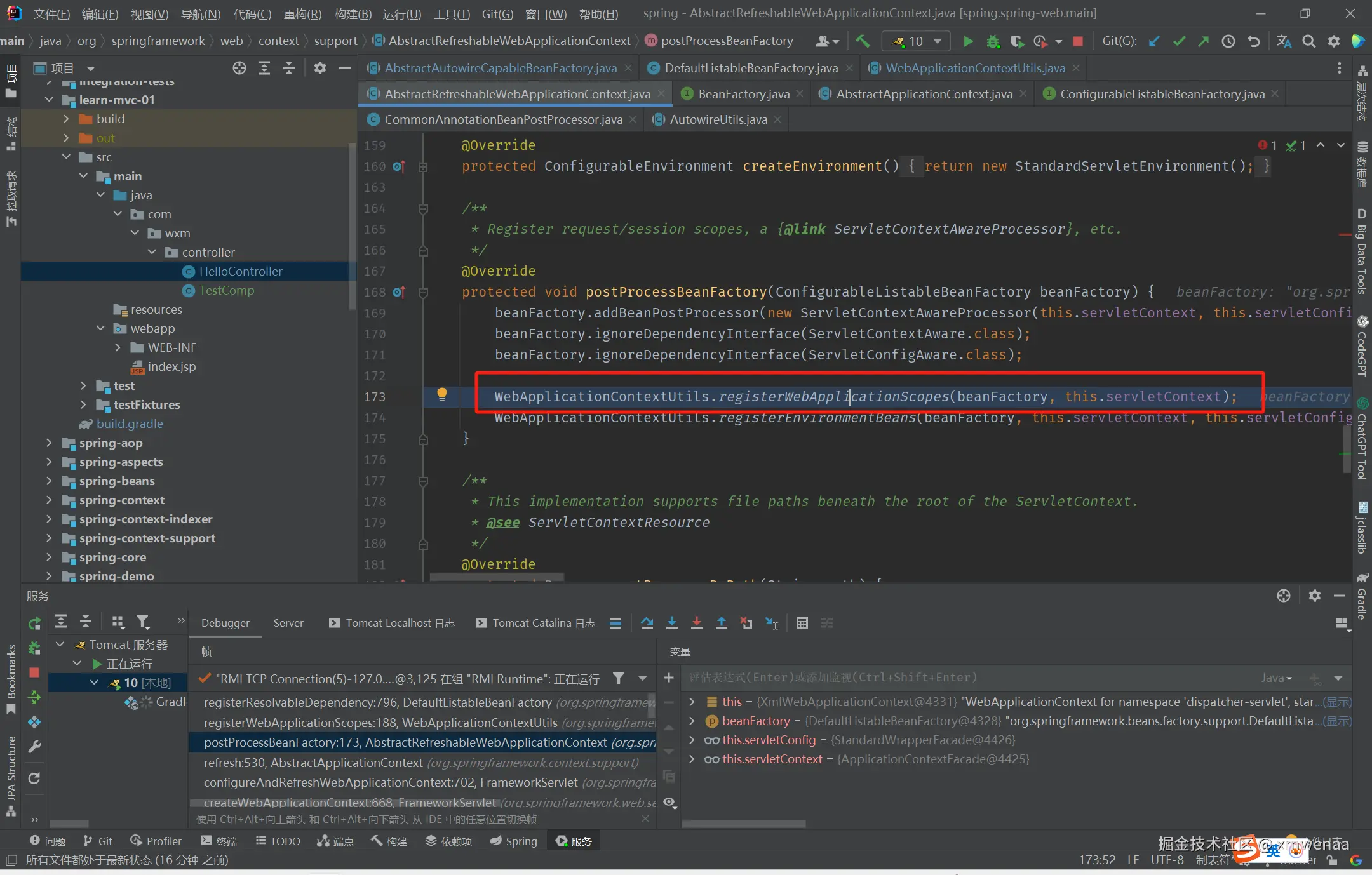

到了postProcessBeanFactory，之前已经new了DefaultListableBeanfactory对象了，这个方法会做一些后置处理，并且是给子类实现的（当前抽象类是空方法），因为我们是web环境，所以进去后如下图，红框中会注册web环境中相关的scope对象。


    public static void registerWebApplicationScopes(ConfigurableListableBeanFactory beanFactory,
            @Nullable ServletContext sc) {
​
        beanFactory.registerScope(WebApplicationContext.SCOPE_REQUEST, new RequestScope());
        beanFactory.registerScope(WebApplicationContext.SCOPE_SESSION, new SessionScope());
        if (sc != null) {
            ServletContextScope appScope = new ServletContextScope(sc);
            beanFactory.registerScope(WebApplicationContext.SCOPE_APPLICATION, appScope);
            // Register as ServletContext attribute, for ContextCleanupListener to detect it.
            sc.setAttribute(ServletContextScope.class.getName(), appScope);
        }
        //就是这个对象
        beanFactory.registerResolvableDependency(ServletRequest.class, new RequestObjectFactory());
        beanFactory.registerResolvableDependency(ServletResponse.class, new ResponseObjectFactory());
        beanFactory.registerResolvableDependency(HttpSession.class, new SessionObjectFactory());
        beanFactory.registerResolvableDependency(WebRequest.class, new WebRequestObjectFactory());
        if (jsfPresent) {
            FacesDependencyRegistrar.registerFacesDependencies(beanFactory);
        }
    }

请求阶段

我们知道helloController已经注入了一个代理对象，所以在controller使用System.out.println(request.getRequestURI());时，会先执行代理逻辑：调用被代理对象的getObject方法，看下面代码就知道了

/**  切面
     * Reflective {@link InvocationHandler} for lazy access to the current target object.
     */
    @SuppressWarnings("serial")
    private static class ObjectFactoryDelegatingInvocationHandler implements InvocationHandler, Serializable {
        //被代理对象
        private final ObjectFactory<?> objectFactory;
​
        ObjectFactoryDelegatingInvocationHandler(ObjectFactory<?> objectFactory) {
            this.objectFactory = objectFactory;
        }
​
        @Override
        public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
            switch (method.getName()) {
                case "equals":
                    // Only consider equal when proxies are identical.
                    return (proxy == args[0]);
                case "hashCode":
                    // Use hashCode of proxy.
                    return System.identityHashCode(proxy);
                case "toString":
                    return this.objectFactory.toString();
            }
            try {
                //执行之前，调用被代理对象的getObject方法，从RequestContextHolder中获取真实request对象，然后执行getRequestURI方法，
                return method.invoke(this.objectFactory.getObject(), args);
            }
            catch (InvocationTargetException ex) {
                throw ex.getTargetException();
            }
        }
    }

延伸思考

0、RequestContextHolder是用ThreadLocal存储当前线程的request的，当前请求新开了一个线程，还能拿到request吗？

1、将lambda表达式或者匿名内部类参数化，传递到方法中，可以延迟执行代码

2、ObjectFactory在spring中的作用，或者说与aop的作用，bean加载的作用

3、jdk动态代理的参数？ 有类加载器、接口的Class数组、InvocationHandler（方法调用处理器，相当于切面）

4、在spring中，InvocationHandler和切面的关系是什么
