从 koa 到 mini-vite(三)资源处理及模块依赖和热更新
这个是仓库地址
1、处理图片资源的路径
我们先对资源路径进行处理,不过react和vue的资源处理大有不同,我们这里先论证react,你可以从cyber文件中看到vue是如何处理的;
//..........
import koaStatic from "koa-static";
//..........
const serverContext: ServerContext = {
root: process.cwd(),
PluginContainer,
app,
plugins: plugins,
moduleGraph,
ws,
clientPath,
watcher,
};
bindingHMREvents(serverContext);
app.use(koaStatic(path.join(process.cwd(), "/src/client/")));
for (const plugin of plugins) {
if (plugin.configureServer) {
await plugin.configureServer(serverContext);
}
}
app.use(indexHtmlMiddware(serverContext));
app.use(transformMiddleware(serverContext));
//..........
我们这边使用koa-static静态资源包对其客户端文件进行代理/src/client/;
react的资源处理就完成了,但是也是有其局限性的,无法对其相对路径进行处理。我在cyber.ts中,写了一个简单的 demo,使其vue实现了对相对路径的处理,你可以参考一下。
我简单的介绍一下 vue 我是如何处理的;
- 我通过观察得到,在
vue/compiler-sfc的处理中,会将src请求的url,转换为import路径,然后使用虚拟node,对其进行处理,见图
- 解析出来的路径是一个
import,我们通过resolve方法将其路径改写为基于服务器的绝对路径 - 我们的图片可不能使用
import引入,我们暴露一个虚拟模块 - 改写路径时在后面加上一个
?import符号 - 在引入时,我们解析此路径,返回
code为
export default "src/cyber/components/171536_380.png";
这样我们就能引入图片,并实现引入图片的懒加载了。
2、处理 Svg 资源
对于 svg 资源的处理,我在这里书写了一个plugin,在书写一个程序前,确立两点有助于帮助我们快速的实现
- 确定输入的是什么
- 确定输出的是什么
实际上也就是确定I/O;
我们来看看,我们需要怎么去实现一个 svg 的处理,先看需求代码
import "./App.css";
import React from "react";
import logo from "./logo.svg";
// import logo from "./logo.svg";
function App() {
return (
<div className="App">
<header className="App-header">
<p>dsdsHell ssf sadsf</p>
<p></p>
<img src="/public/OIP-C.jpg" alt="" />
<p>
ds<code>sdssdafsssfadsa</code> sans save es tsest.
</p>
<img className="App-logo" src={logo} alt="" />
<p></p>
</header>
</div>
);
}
我们可以清晰的看到,我们的 src 值是引入的logo,src接受的是地址,我们需要处理的是将 logo 转化为export default 真实路径;而vite插件中,load钩子是返回code的,我们就在此处做文章
import { Plugin } from "./plugin";
import { ServerContext } from "../../index";
import { cleanUrl, getShortName, normalizePath, removeImportQuery } from "../utils";
import path from "path";
export function assetPlugin(): Plugin {
let serverContext: ServerContext;
return {
name: "m-vite:asset",
configureServer(s) {
serverContext = s;
},
async load(id) {
const cleanedId = removeImportQuery(cleanUrl(id));
const resolvedId = `/${path
.relative(path.join(serverContext.root, "/src/client/"), cleanedId)
.replaceAll("\\", "/")}`;
if (cleanedId.endsWith(".svg")) {
return {
code: `export default "${resolvedId}"`,
};
}
},
};
}
我们在 load 中将传入的id,由经resolve的处理,我们的id是绝对路径,能读取到位置的绝对路径,后续再使用path.relative,将路径做相对路径处理,这样我们就能得到相对于当前文件的位置,因为我们在前文koa-static代理的路径是/src/client/,所以我们需要在此处进行一下处理
3、css 处理
我们css的处理用一个plugin,我们来确定一下思路,我们的目的是将import "./index.css";转化为浏览器可读的style样式;我们来梳理一下处理思路;
- 将 css 文本进行读取
- 使用 style 标签注入 css
- 将 style 标签注入
html
这里是cssplugin 代码,后续会为了热更新我们会进行进一步的改善
// plugins/css.ts
import { readFile } from "fs-extra";
import { Plugin } from "../plugin";
export function cssPlugin(): Plugin {
return {
name: "m-vite:css",
load(id) {
// 加载
if (id.endsWith(".css")) {
return readFile(id, "utf-8");
}
},
// 转换逻辑
async transform(code, id) {
if (id.endsWith(".css")) {
// 包装成 JS 模块
const jsContent = `
const css = "${code.replace(/\n/g, "")}";
const style = document.createElement("style");
style.setAttribute("type", "text/css");
style.innerHTML = css;
document.head.appendChild(style);
export default css;
`.trim();
return {
code: jsContent,
};
}
return null;
},
};
}
4、依赖图谱
依赖图谱主要有以下几个作用
- 构建依赖关系
- 进行缓存
- 热更新的索引映射
我们来确定一下,我们的依赖图谱每一个节点需要的是哪些参数,这里提供一个class,我们来进行参考
export class ModuleNode {
// 资源访问 url
url: string;
// 资源绝对路径
id: string | null = null;
importers = new Set<ModuleNode>();
importedModules = new Set<ModuleNode>();
transformResult: TransformResult | null = null;
lastHMRTimestamp = 0;
constructor(url: string) {
this.url = url;
}
}
我们可以看到,一个 moduleNode 类,需要的是
url请求连接id模块的绝对路径importers引入者(该id被谁引入)importedModules被引入者(该id引入了哪些模块)transformResult代码片段lastHMRTimestamp时间戳,用于判断是否需要重新编译
此类,在后续的生成中,我们命名为mod节点,我们从url到importAnalysis中间件,来看看他是如何处理的
首先,我们从 url 的中间件开始

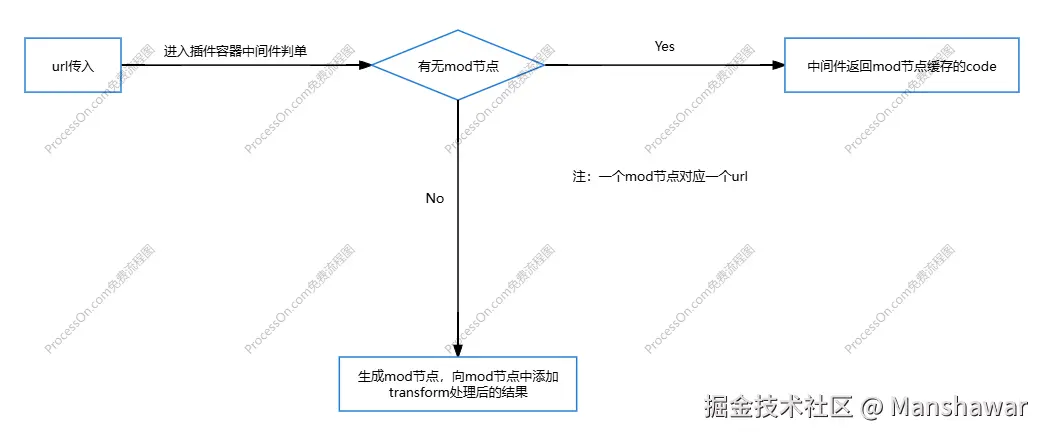

这里有张流程图,我们的代码处理如下
//src\node\middlewares\transformMiddleware.ts
//........
async function transformRequest(url: string, serverContext: ServerContext) {
const { PluginContainer, moduleGraph } = serverContext;
let query = url.split("?")[1];
url = cleanUrl(url);
let mod = await moduleGraph.getModuleByUrl(url);
if (mod && mod.transformResult && !query) {
return mod.transformResult;
}
let res;
let resolveId = await PluginContainer.resolveId(url);
if (resolveId?.id) {
let code = await PluginContainer.load(resolveId?.id);
if (typeof code === "object" && code !== null) {
code = code.code;
}
mod = await moduleGraph.ensureEntryFromUrl(url);
if (code) {
res = await PluginContainer.transform(code, resolveId?.id);
}
if (mod) {
mod.transformResult = res;
}
}
return res;
}
//........
我们的moduleGraph对象会一点一点的进行介绍,一下子说完会感觉有点乱,
我们来看看,他这里调用的getModuleByUrl方法是什么
//src\node\ModuleGraph.ts
//moduleGraph.getModuleByUrl(url);
export class ModuleGraph {
urlToModuleMap = new Map<string, ModuleNode>();
idToModuleMap = new Map<string, ModuleNode>();
constructor(private resolveId: (url: string) => Promise<PartialResolvedId | null>) {}
getModuleById(url: string): ModuleNode | undefined {
return this.idToModuleMap.get(url);
}
async getModuleByUrl(rawUrl: string): Promise<ModuleNode | undefined> {
const { url } = await this._resolve(rawUrl);
return this.urlToModuleMap.get(cleanUrl(url));
}
async ensureEntryFromUrl(rawUrl: string): Promise<ModuleNode | undefined> {
const { url, resolvedId } = await this._resolve(rawUrl);
if (this.urlToModuleMap.has(url)) {
return this.urlToModuleMap.get(url) as ModuleNode;
}
const mod = new ModuleNode(url);
mod.id = resolvedId;
this.urlToModuleMap.set(url, mod);
this.idToModuleMap.set(resolvedId, mod);
return mod;
}
}
//src\index.ts
const moduleGraph = new ModuleGraph(url => PluginContainer.resolveId(url));
这个类的constructor的参数传入的是插件容器定义的 resolveId 路径解析方法
他会帮助我们解析路径,返回由插件容器解析的路径;
getModuleById通过 id 寻找模块getModuleByUrl通过 url 转换成 id 寻找模块ensureEntryFromUrl通过 url 转换成 id 寻找模块,如果存在则获取模块,如果不存在,则创建一个模块,并添加到模块依赖的缓存中
我们从流程图上来看:
- 判断是否存在于模块依赖的缓存中
- 如果存在,则从缓存中提取模块依赖(不会再重复相同的文件进行重复读写,esbuild 进行读写和修改 import 引入是及其
heavy) - 如果不存在,则再
load后,使用ensureEntryFromUrl判断是否存在该缓存,如果存在则获取模块,如果不存在,则创建一个模块,并添加到模块依赖的缓存中 - 对于转换好的
code,则写入缓存中
importAnalysis预设进行依赖收集
// src\node\plugins\importAnalysis.ts
//.....length
async transform(code, id) {
const { moduleGraph } = serverContext;
const curmod = moduleGraph.getModuleById(id)!;
const importedModules = new Set<string>();
//....
for (const importInfo of imports) {
const { s: modStart, e: modEnd, n: modSource } = importInfo;
if (!modSource) continue;
//....
if (BARE_IMPORT_RE.test(modSource as string)) {
const bundlePath = normalizePath(
path.join('/', PRE_BUNDLE_DIR, `${modSource}.js`)
);
importedModules.add(bundlePath);
ms.overwrite(modStart, modEnd, bundlePath as string)
} else if (modSource.startsWith(".") || modSource.startsWith("/")) {
//....
if (resolved) {
ms.overwrite(modStart, modEnd, resolved);
importedModules.add(resolved);
}
}
};
//....
moduleGraph.updataModuleInfo(curmod, importedModules);
return {
code: ms.toString(),
map: ms.generateMap()
}
}

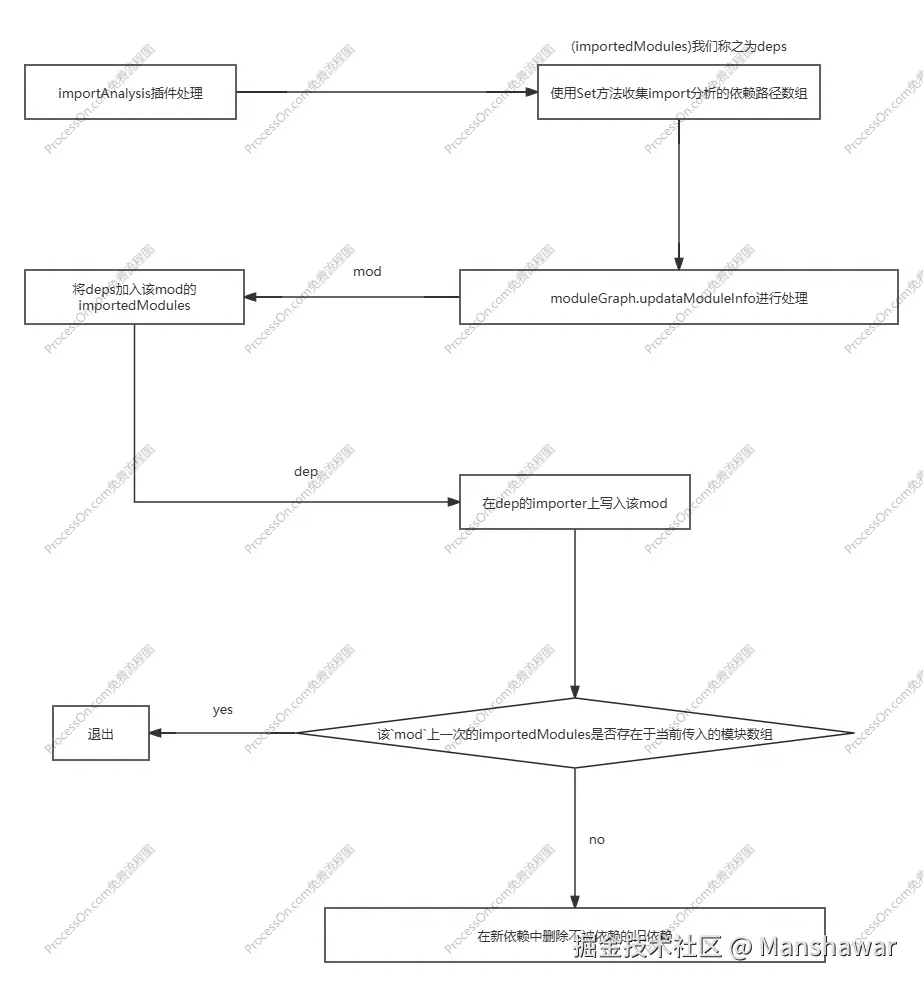

我们跟着流程图看
- 通过
getModuleById获取前文的mod模块 - 在
imports的依赖分析中收集子模块数组 - 使用
moduleGraph.updataModuleInfo方法对依赖进行标记 - 确保依赖是否存在,如果存在则获取,不存在则新建,并将依赖写入map中
- 在当前
mod上写入dep作为importedModules - 在
dep上写入引入mod作为源头importers - 该
mod上一次的importedModules是否存在于当前传入的模块数组中,如果不存在,则删除
export class ModuleGraph {
urlToModuleMap = new Map<string, ModuleNode>();
idToModuleMap = new Map<string, ModuleNode>();
//....
async updateModuleInfo(mod: ModuleNode, importedModules: Set<string | ModuleNode>) {
const prevImports = mod.importedModules;
for (const curImports of importedModules) {
const dep =
typeof curImports === "string"
? await this.ensureEntryFromUrl(cleanUrl(curImports))
: curImports;
if (dep) {
mod.importedModules.add(dep);
dep.importers.add(mod);
}
}
// 清除已经不再被引用的依赖
for (const prevImport of prevImports) {
if (!importedModules.has(prevImport.url)) {
prevImport.importers.delete(mod);
}
}
}
}
//....
这里是完整的ModuleGraph代码,可以参考一下,具体更改的文件过多,请于仓库中查看
import { PartialResolvedId, TransformResult } from "rollup";
import { cleanUrl } from "./utils";
import { debug } from "console";
import { getboundaries } from "./plugins/hmr/boundaries"
export class ModuleNode {
url: string = "";
id: string = "";
importers = new Set<ModuleNode>();
importedModules = new Set<ModuleNode>();
transformResult: TransformResult | null = null;
lastHMRTimetamp = 0;
constructor(url: string) {
this.url = url
}
};
export class ModuleGraph {
urlToModuleMap = new Map<string, ModuleNode>();
idToModuleMap = new Map<string, ModuleNode>();
constructor(private resolveId: (url: string) => Promise<PartialResolvedId | null>) { };
getModuleById(url: string): ModuleNode | undefined {
return this.idToModuleMap.get(url)
}
async getModuleByUrl(rawUrl: string): Promise<ModuleNode | undefined> {
const { url } = await this._resolve(rawUrl);
return this.urlToModuleMap.get(cleanUrl(url))
}
async ensureEntryFromUrl(rawUrl: string): Promise<ModuleNode | undefined> {
const { url, resolvedId } = await this._resolve(rawUrl);
if (this.urlToModuleMap.has(url)) {
return this.urlToModuleMap.get(url) as ModuleNode
}
const mod = new ModuleNode(url);
mod.id = resolvedId;
this.urlToModuleMap.set(url, mod);
this.idToModuleMap.set(resolvedId, mod)
return mod;
};
async updataModuleInfo(mod: ModuleNode, importedModules: Set<string | ModuleNode>) {
const prevImports = mod.importedModules;
for (const curImports of importedModules) {
const dep = typeof curImports === "string" ? await this.ensureEntryFromUrl(cleanUrl(curImports)) : curImports;
if (dep) {
mod.importedModules.add(dep);
dep.importers.add(mod);
}
}
for (const preImport of prevImports) {
// console.log(importedModules.has(preImport.url as string))
if (!importedModules.has(preImport.url as string)) {
preImport.importers.delete(mod)
}
}
};
invalidateModule(file: string) {
const mod = this.idToModuleMap.get(file);
if (mod) {
mod.lastHMRTimetamp = Date.now();
mod.transformResult = null;
mod.importers.forEach((importer) => {
this.invalidateModule(importer.id!)
})
}
}
private async _resolve(url: string): Promise<{ url: string, resolvedId: string }> {
const resolved = await this.resolveId(url);
const resolvedId = resolved?.id as string;
return { url, resolvedId }
}
getboundaries(url: string) {
let curmod = this.urlToModuleMap.get(url)!;
return Array.from(getboundaries(curmod, new Set()))
}
}
5、热更新
热更新这里还有一些问题值得思考,我会带大家实现一个无状态保留的热更新,具体的热更新政策,我们还是需要去读react或者vue的热更新源码,这里就不做详细介绍。 我们来确定,热更新需要的一些物料
- 使用
ws像客户端传递信息 - 使用
chokidar监听文件更新

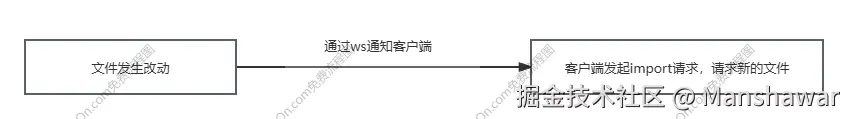

热更新整体流程图如下
//src\index.ts
const watcher = chokidar.watch(clientPath, {
ignored: [/node_modules/, /\.git/],
ignoreInitial: true
});
const ws = createWebSocketServer(app);
const serverContext: ServerContext = {
root: process.cwd(),
PluginContainer,
app,
plugins: plugins,
moduleGraph,
ws,
clientPath,
watcher
};
bindingHMREvents(serverContext)
我们先来看看webSokect
//src\node\ModuleGraph.ts
import { WebSocketServer, WebSocket } from "ws";
import { HMR_PORT } from "./contants";
import color from "picocolors";
export function createWebSocketServer(server: any): { send: (msg: string) => void; close: () => void } {
let wss: WebSocketServer;
wss = new WebSocketServer({ port: HMR_PORT });
wss.on("connection", (socket) => {
socket.send(JSON.stringify({ type: "connected" }))
});
wss.on("error", (e: Error & { code: string }) => {
if (e.code !== "EADDRINUSE") {
console.error(color.red(`WebSocket server error:\n${e.stack || e.message}`))
}
})
return {
send(payload: Object) {
const stringified = JSON.stringify(payload);
wss.clients.forEach((client) => {
if (client.readyState === WebSocket.OPEN) {
client.send(stringified)
}
})
},
close() {
wss.close()
}
}
}
这是封装的一个websocket服务,他会返回一个对象,这个对象可以向我们的服务端广播更新的信息,我们只需要调用这个对象的send方法即可
再来看看hmr的代码
import { ServerContext } from './../index';
import picocolors from "picocolors";
import { getShortName } from "./utils";
export function bindingHMREvents(serverContext: ServerContext) {
const { watcher, ws, root } = serverContext;
watcher.on("change", async (file) => {
console.log(`✨${picocolors.blue("[hmr]")} ${picocolors.green(file)} changed`);
const { moduleGraph } = serverContext;
await moduleGraph.invalidateModule(file);
let arr = moduleGraph.getboundaries("/" + getShortName(file, root)).map(item => ({
type: "js-update",
timeStamp: Date.now(),
path: item,
acceptedPath: item
}))
ws.send({
type: "update",
updates: arr,
})
})
}
这里是监听文件变化,如果文件发送变化,则使用ws发动更新信息,通知客户端,这里有个边界寻找方法moduleGraph.getboundaries("/" + getShortName(file, root))这个方法会帮助我们找到所有的依赖此文件的父级。
这是一个虚拟模块,它会将src\node\plugins\hmr\client.ts中的代码注入到客户端中
//src\node\plugins\clientInject.ts
import { CLIENT_PUBLIC_PATH, HMR_PORT } from "../contants";
import { Plugin } from "./plugin";
import fs from "fs-extra";
import esbuild from "esbuild"
import path from "path";
import { ServerContext } from "../../index";
function clientInjectPlugin(): Plugin {
let serverContext: ServerContext;
return {
name: "m-vite:client-inject",
configureServer(s) {
serverContext = s
},
resolveId(id) {
if (id === CLIENT_PUBLIC_PATH) {
return { id }
}
return null
},
async load(id) {
if (id === CLIENT_PUBLIC_PATH) {
let realpath = path.join(import.meta.dirname, "hmr", "client.ts");
let { code } = await esbuild.transform(await fs.readFile(realpath, "utf-8"), {
loader: "ts",
target: "esnext"
})
code = code.replace("__HMR_PORT__", JSON.stringify(HMR_PORT));
return code
}
},
transformIndexHtml(raw) {
return raw.replace(/(<head[^>]*>)/i, `$1<script type="module" src="${CLIENT_PUBLIC_PATH}"></script>`)
}
}
}
export { clientInjectPlugin }
与此同时,src\node\plugins\importAnalysis.ts中也要修改一下code,方便客户端使用。
if (!id.includes("node_modules")) {
let res = Array.from(getboundaries(curmod, new Set()));
ms.prepend(`import { createHotContext as __vite__createHotContext } from "${CLIENT_PUBLIC_PATH}";` + `import.meta.hot = __vite__createHotContext(${JSON.stringify(cleanUrl(curmod.url))},${JSON.stringify(res)});`)
}
这里我们建立websocket的链接,一旦我们接受到服务器的信息,就会执行handleMessage方法;
const socket = new WebSocket(`ws://localhost:__HMR_PORT__`, "vite-hmr");
let boundaries: any;
socket.addEventListener("message", async ({ data }) => {
handleMessage(JSON.parse(data)).catch(console.error)
});
async function handleMessage(payload: any) {
switch (payload.type) {
case "connection":
console.log(`[vite] connected.`);
setInterval(() => socket.send("ping"), 1000);
break;
case "update":
console.log(payload.updates)
payload.updates.forEach((update: any) => {
if (update.type === "js-update") {
fetchUpdate(update)
}
})
break;
}
}
我们会使用心跳检测,去判断是否能链接上服务器,如果能链接上,则会发送一个心跳包
如果是服务端发送的更新请求,则会调用fetchUpdate方法对依赖进行重新拉取
async function fetchUpdate({ path, timeStamp }: any) {
// console.log(path)
const mod = hotModulesMap.get(path);
console.log(boundaries, "mod---------------------", path)
if (!mod) return;
const moduleMap = new Map();
const modulesToUpdate = new Set<string>();
modulesToUpdate.add(path);
// boundaries.forEach((item:string) => {
// modulesToUpdate.add(item);
// })
await Promise.all(Array.from(modulesToUpdate).map(async (dep) => {
const [path, query] = dep.split("?");
try {
const newMod = await import(path + `?t=${timeStamp}${query ? `&${query}` : ""}`);
moduleMap.set(dep, newMod)
} catch (e) {
console.error(e)
}
}))
return () => {
for (const { deps, fn } of mod.callbacks) {
fn(deps.map(dep => moduleMap.get(dep)));
console.log(`[vite] hot updated: ${path}`);
}
}
}
这里我们就将更新过的mod信息,通过fetchUpdate方法,重新加载模块,然后执行回调函数,实现热更新。
我们css的热更新也是这个方式,只不过我们是在更新的时候重新读取css文件,将文件写入style标签中,每一次更新 则是委托客户端重新引入新的csscontent文件;
我们的热更新也就初步实现了
但我们还有以下几个问题
- 写入
import.meta.hot上面的方法,对齐热更新依赖图谱 - 这个热更新是摧毁式的热更新,我们该怎么处理
我在这里抛砖引玉,这也就是剩下的一部分工作了,我先提几个点,日后有时间会续写上去的。
5.1、探讨如何写入import.meta.hot方法和其作用
if (!id.includes("node_modules")) {
let res = Array.from(getboundaries(curmod, new Set()));
ms.prepend(`import { createHotContext as __vite__createHotContext } from "${CLIENT_PUBLIC_PATH}";` + `import.meta.hot = __vite__createHotContext(${JSON.stringify(cleanUrl(curmod.url))},${JSON.stringify(res)});`)
}
这里个方法主要目的是接受服务端的mod信息,构建热更新环境
export const createHotContext = (ownerPath: string, arr: any) => {
boundaries = arr;
const mod: HotModule = hotModulesMap.get(ownerPath) || {
id: ownerPath,
callbacks: []
};
hotModulesMap.set(ownerPath, mod)
if (mod) {
mod.callbacks = []
}
function acceptDeps(deps: string[], callback: any) {
const mod: HotModule = hotModulesMap.get(ownerPath) || {
id: ownerPath,
callbacks: []
};
mod.callbacks.push({ deps, fn: callback });
hotModulesMap.set(ownerPath, mod)
}
return {
accept(deps: any, callback?: any) {
if (typeof deps === "function" || !deps) {
//@ts-ignore
acceptDeps([ownerPath], ([mod]) => deps && deps(mod))
}
},
prune(cb: (data: any) => void) {
pruneMap.set(ownerPath, cb)
}
}
}
我们这里会对依赖进行收集,但这个代码并不能使用来实现毫秒级的保留状态的热更新,我们在acceptDeps方法中,并没有实现提取该依赖更新的deps,我们提取deps后,需要重新的根据deps引入新的代码块,来实现重新渲染,之前使用的方法则是不管其他,我们将所有相关的文件重新拉去,这里则是需要进行细化的地方,比如寻找热更新的边界,如何确定热更新最大影响的区域。确定后我们需要重新的对deps进行拉去,需要由一定的vue-hmr和react-hmr插件的支持,我们要将发送过来的code文本,进行重新的渲染;
5.2、探讨如何寻找热更新边界
第二个难点是如何去进行热更新边界的判断,在vite源码中,是通过propagateUpdate这个方法递归往上查找的,如果往上查找到了热更新边界则会退出,如果没查到则会一直查下去,直到没有为止,这个代码改写难度太大了,希望各位有更好的方法融入
// 热更新边界收集
function propagateUpdate(
node: ModuleNode,
boundaries: Set<{
boundary: ModuleNode
acceptedVia: ModuleNode
}>,
currentChain: ModuleNode[] = [node]
): boolean {
// 接受自身模块更新
if (node.isSelfAccepting) {
boundaries.add({
boundary: node,
acceptedVia: node
})
return false
}
// 入口模块
if (!node.importers.size) {
return true
}
// 遍历引用方
for (const importer of node.importers) {
const subChain = currentChain.concat(importer)
// 如果某个引用方模块接受了当前模块的更新
// 那么将这个引用方模块作为热更新的边界
if (importer.acceptedHmrDeps.has(node)) {
boundaries.add({
boundary: importer,
acceptedVia: node
})
continue
}
if (currentChain.includes(importer)) {
// 出现循环依赖,需要强制刷新页面
return true
}
// 递归向更上层的引用方寻找热更新边界
if (propagateUpdate(importer, boundaries, subChain)) {
return true
}
}
return false
}
