xxl-job客户端的创建步骤
应用作为xxl-job客户端的接入步骤：
- 应用引入xxl-job核心依赖：
<dependency>
<groupId>com.xuxueli</groupId>
<artifactId>xxl-job-core</artifactId>
<version>${project.parent.version}</version>
</dependency>
- 增加xxl-job相关配置：
xxl.job.admin.addresses=http://127.0.0.1:8080/xxl-job-admin
### xxl-job, access token
xxl.job.accessToken=default_token
### xxl-job executor appname
xxl.job.executor.appname=xxl-job-executor-sample
### xxl-job executor registry-address: default use address to registry , otherwise use ip:port if address is null
xxl.job.executor.address=
### xxl-job executor server-info
xxl.job.executor.ip=
xxl.job.executor.port=9998
### xxl-job executor log-path
xxl.job.executor.logpath=/data/applogs/xxl-job/jobhandler
### xxl-job executor log-retention-days
xxl.job.executor.logretentiondays=30
- 在spring中，使用@Component配合@XxlJob注解在服务中定义一个任务处理器：
@Component
public class SampleXxlJob {
private static Logger logger = LoggerFactory.getLogger(SampleXxlJob.class);
/**
* 1、简单任务示例（Bean模式）
*/
@XxlJob(value = "demoJobHandler", init = "init", destroy = "destroy")
public void demoJobHandler() throws Exception {
XxlJobHelper.log("XXL-JOB, Hello World.");
for (int i = 0; i < 5; i++) {
XxlJobHelper.log("beat at:" + i);
TimeUnit.SECONDS.sleep(2);
}
// default success
}
public void init(){
logger.info("init");
}
public void destroy(){
logger.info("destroy");
}
}
- 将任务执行器XxlJobSpringExecutor对象注入到spring容器中
@Configuration
public class XxlJobConfig {
private Logger logger = LoggerFactory.getLogger(XxlJobConfig.class);
@Value("${xxl.job.admin.addresses}")
private String adminAddresses;
@Value("${xxl.job.accessToken}")
private String accessToken;
@Value("${xxl.job.executor.appname}")
private String appname;
@Value("${xxl.job.executor.address}")
private String address;
@Value("${xxl.job.executor.ip}")
private String ip;
@Value("${xxl.job.executor.port}")
private int port;
@Value("${xxl.job.executor.logpath}")
private String logPath;
@Value("${xxl.job.executor.logretentiondays}")
private int logRetentionDays;
@Bean
public XxlJobSpringExecutor xxlJobExecutor() {
logger.info(">>>>>>>>>>> xxl-job config init.");
XxlJobSpringExecutor xxlJobSpringExecutor = new XxlJobSpringExecutor();
xxlJobSpringExecutor.setAdminAddresses(adminAddresses);
xxlJobSpringExecutor.setAppname(appname);
xxlJobSpringExecutor.setAddress(address);
xxlJobSpringExecutor.setIp(ip);
xxlJobSpringExecutor.setPort(port);
xxlJobSpringExecutor.setAccessToken(accessToken);
xxlJobSpringExecutor.setLogPath(logPath);
xxlJobSpringExecutor.setLogRetentionDays(logRetentionDays);
return xxlJobSpringExecutor;
}
/**
* 针对多网卡、容器内部署等情况，可借助 "spring-cloud-commons" 提供的 "InetUtils" 组件灵活定制注册IP；
*
* 1、引入依赖：
* <dependency>
* <groupId>org.springframework.cloud</groupId>
* <artifactId>spring-cloud-commons</artifactId>
* <version>${version}</version>
* </dependency>
*
* 2、配置文件，或者容器启动变量
* spring.cloud.inetutils.preferred-networks: 'xxx.xxx.xxx.'
*
* 3、获取IP
* String ip_ = inetUtils.findFirstNonLoopbackHostInfo().getIpAddress();
*/
}

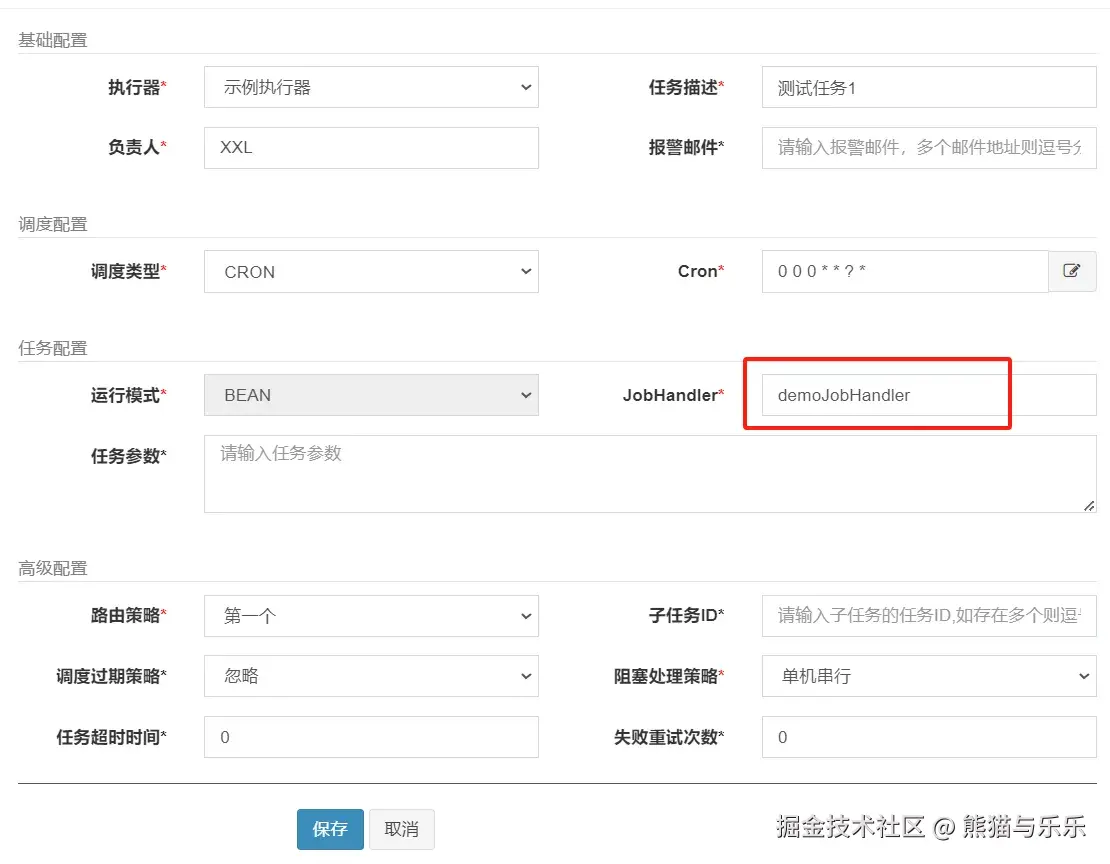

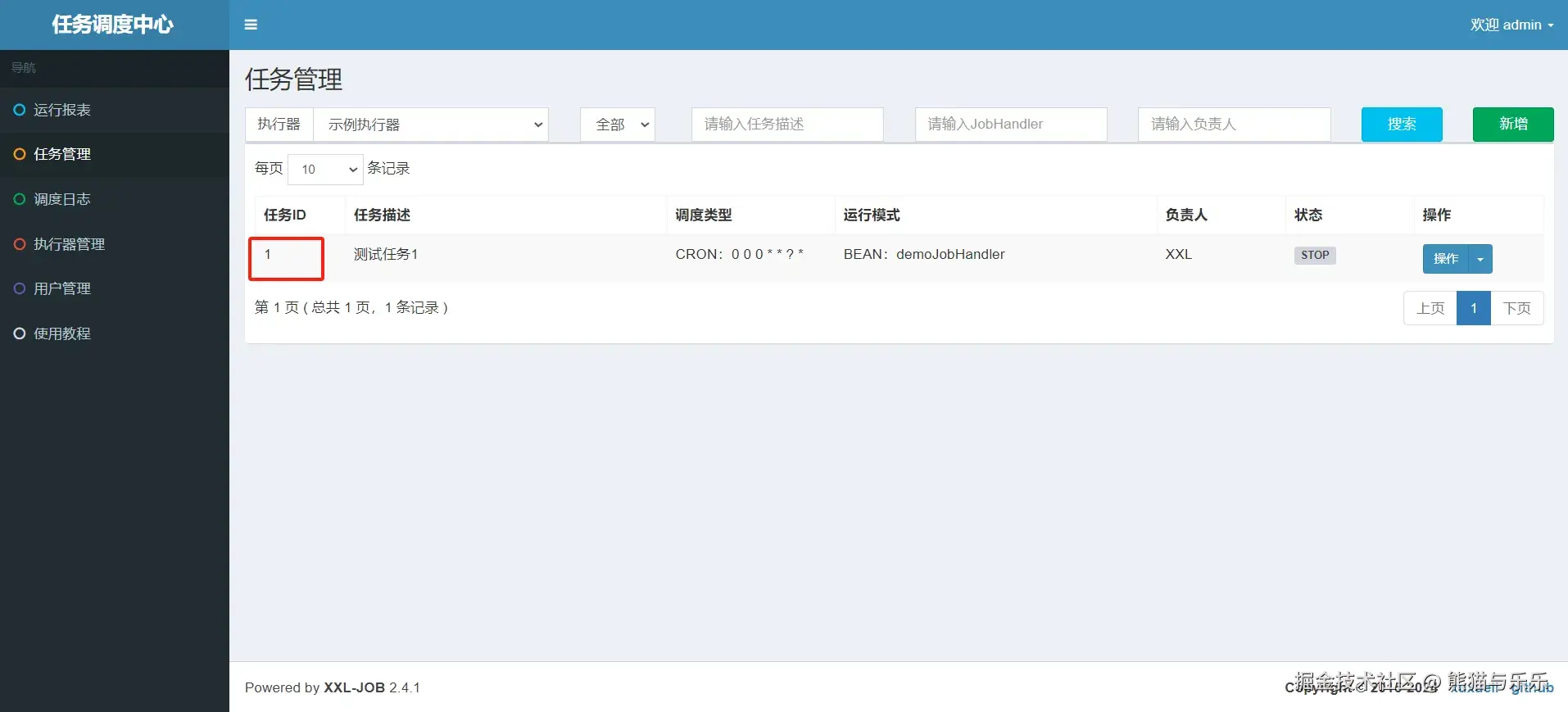

完成上述步骤，一个xxl-job客户端就定义好了，如果想让定时任务被xxl-job服务端调度，还需要在xxl-job服务端新增名为demoJobHandler（通过@XxlJob的value属性自定义）的任务。
任务执行器和任务处理器

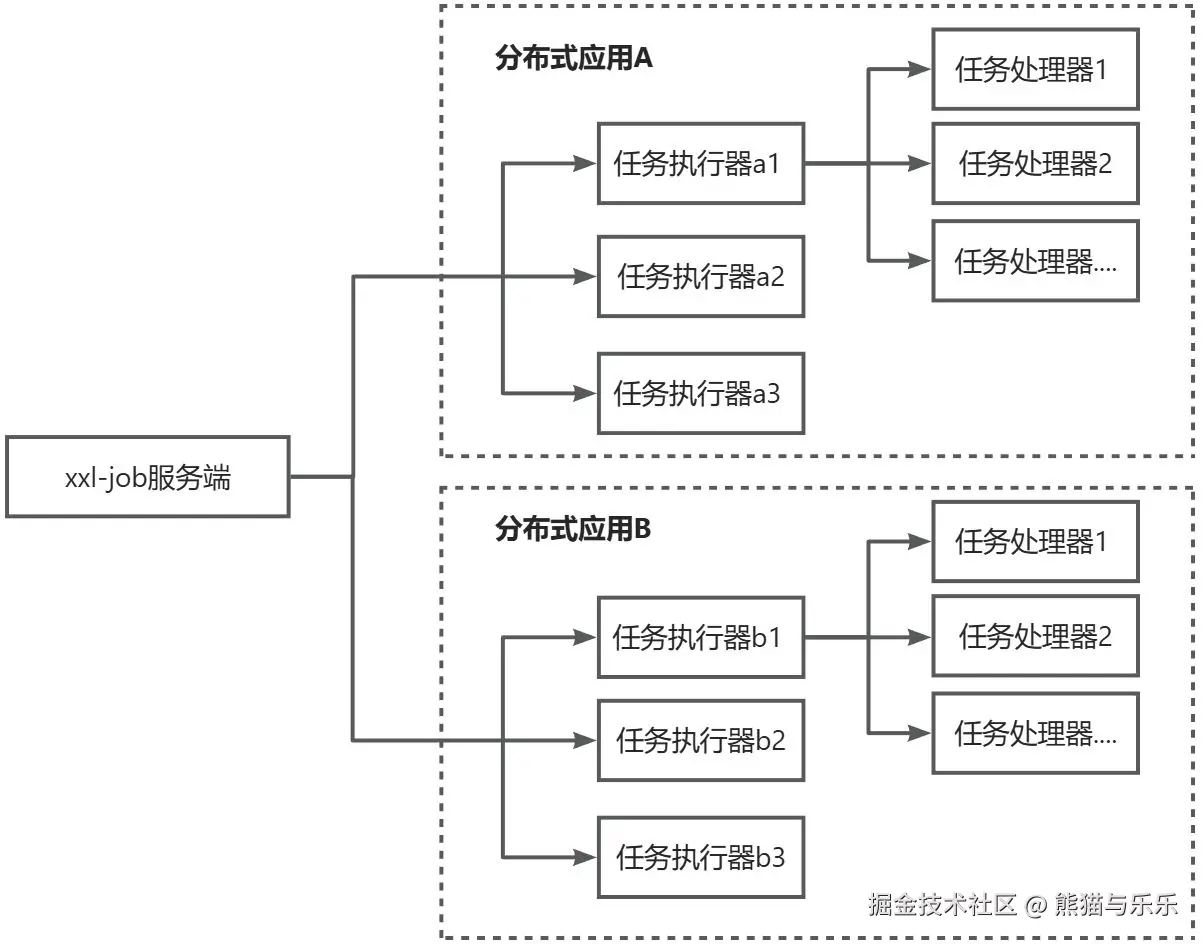

在xxl-job定义的语境中，一个xxl-job客户端就是一个任务执行器，定义在xxl-job客户端内的定时任务就是任务处理器。所以，对于存在多个定时任务的分布式应用来说，任务调度过程就是在从一组任务执行器中选择一个执行器去执行其内部的某一个任务处理器。
对xxl-job客户端有了大概的了解之后，还需要了解以下问题：
- xxl-job客户端的启动流程是怎样的？也就是xxl-job客户端做了哪些铺垫工作让@XxlJob注解定义的任务处理器能被xxl-job服务端调度？
- xxl-job客户端的数据模型是怎样的？也就是@XxlJob注解的value属性值、任务处理器、任务执行线程之间的关系是怎么样的？
- xxl-job客户端的任务处理器的执行过程是怎样的？
- xxl-job客户端和服务端之间是如何通信的？
本文将详细介绍第一个问题：xxl-job客户端的启动流程。如有错误，请多包涵，如有疑问读者可以查看xxl-job的官方文档。
客户端的启动流程
启动流程总览
定义xxl-job客户端，其中一个步骤是将XxlJobSpringExecutor注入spring容器，可见XxlJobSpringExecutor就是xxl-job客户端的启动入口。XxlJobSpringExecutor继承了XxlJobExecutor，实现了AppliactionAware、SmartInitializingSingleton、DisposableBean接口。它们的作用依次是：
- 父类XxlJobExecutor定义了启动客户端的主要步骤。
- 通过实现AppliactionAware接口，可以通过setApplicationContext方法得到spring中ApplicationContext对象。
- 通过实现SmartInitializingSingleton接口，当所有单例bean被实例化之后，XxlJobSpringExecutor实现的afterSingletonsInstantiated方法会被调用。
- 通过实现DisposableBean接口，当XxlJobSpringExecutor的bean被销户时，XxlJobSpringExecutor实现的destroy方法会被调用。
重点关注SmartInitializingSingleton的afterSingletonsInstantiated方法，XxlJobSpringExecutor对它的实现是：
@Override
public void afterSingletonsInstantiated() {
// init JobHandler Repository
/*initJobHandlerRepository(applicationContext);*/
// init JobHandler Repository (for method)
initJobHandlerMethodRepository(applicationContext);
// refresh GlueFactory
GlueFactory.refreshInstance(1);
// super start
try {
super.start();
} catch (Exception e) {
throw new RuntimeException(e);
}
}
可以看到最后调用XxlJobSpringExecutor的父类的start()，XxlJobExecutor的start()的逻辑是：
// ---------------------- start + stop ----------------------
public void start() throws Exception {
// init logpath
XxlJobFileAppender.initLogPath(logPath);
// init invoker, admin-client
initAdminBizList(adminAddresses, accessToken);
// init JobLogFileCleanThread
JobLogFileCleanThread.getInstance().start(logRetentionDays);
// init TriggerCallbackThread
TriggerCallbackThread.getInstance().start();
// init executor-server
initEmbedServer(address, ip, port, appname, accessToken);
}
从注释中可以看出xxl-job的启动流程：
- init JobHandler Repository：初始化任务处理器。
- refresh GlueFactory：刷新GlueFactory工厂
- init logpath：初始化日志文件夹。
- init invoker, admin-client：初始化xxl-job服务端的client。
- init JobLogFileCleanThread：初始化日志文件清理线程
- init TriggerCallbackThread：创建触发器回调线程
- init executor-server：初始化任务执行器内置服务
- 在第七步，还初始化了任务执行器注册线程
启动流程解析
初始化任务处理器
初始化任务处理器是启动过程的关键步骤，这一步将@XxlJob定义的定时任务封装成任务处理器，将任务处理器名称（@XxlJob的value值）和任务处理器（MethodJobHandler）的映射关系维护在全局的、线程安全的ConcurrentMap jobHandlerRepository。实现细节是： private void initJobHandlerMethodRepository(ApplicationContext applicationContext) {
if (applicationContext == null) {
return;
}
// init job handler from method
String[] beanDefinitionNames = applicationContext.getBeanNamesForType(Object.class, false, true);
for (String beanDefinitionName : beanDefinitionNames) {
// get bean
Object bean = null;
Lazy onBean = applicationContext.findAnnotationOnBean(beanDefinitionName, Lazy.class);
if (onBean!=null){
logger.debug("xxl-job annotation scan, skip @Lazy Bean:{}", beanDefinitionName);
continue;
}else {
bean = applicationContext.getBean(beanDefinitionName);
}
// filter method
Map<Method, XxlJob> annotatedMethods = null; // referred to ：org.springframework.context.event.EventListenerMethodProcessor.processBean
try {
annotatedMethods = MethodIntrospector.selectMethods(bean.getClass(),
new MethodIntrospector.MetadataLookup<XxlJob>() {
@Override
public XxlJob inspect(Method method) {
return AnnotatedElementUtils.findMergedAnnotation(method, XxlJob.class);
}
});
} catch (Throwable ex) {
logger.error("xxl-job method-jobhandler resolve error for bean[" + beanDefinitionName + "].", ex);
}
if (annotatedMethods==null || annotatedMethods.isEmpty()) {
continue;
}
// generate and regist method job handler
for (Map.Entry<Method, XxlJob> methodXxlJobEntry : annotatedMethods.entrySet()) {
Method executeMethod = methodXxlJobEntry.getKey();
XxlJob xxlJob = methodXxlJobEntry.getValue();
// regist
registJobHandler(xxlJob, bean, executeMethod);
}
}
}
protected void registJobHandler(XxlJob xxlJob, Object bean, Method executeMethod){
if (xxlJob == null) {
return;
}
String name = xxlJob.value();
//make and simplify the variables since they'll be called several times later
Class<?> clazz = bean.getClass();
String methodName = executeMethod.getName();
if (name.trim().length() == 0) {
throw new RuntimeException("xxl-job method-jobhandler name invalid, for[" + clazz + "#" + methodName + "] .");
}
if (loadJobHandler(name) != null) {
throw new RuntimeException("xxl-job jobhandler[" + name + "] naming conflicts.");
}
// execute method
/*if (!(method.getParameterTypes().length == 1 && method.getParameterTypes()[0].isAssignableFrom(String.class))) {
throw new RuntimeException("xxl-job method-jobhandler param-classtype invalid, for[" + bean.getClass() + "#" + method.getName() + "] , " +
"The correct method format like \" public ReturnT<String> execute(String param) \" .");
}
if (!method.getReturnType().isAssignableFrom(ReturnT.class)) {
throw new RuntimeException("xxl-job method-jobhandler return-classtype invalid, for[" + bean.getClass() + "#" + method.getName() + "] , " +
"The correct method format like \" public ReturnT<String> execute(String param) \" .");
}*/
executeMethod.setAccessible(true);
// init and destroy
Method initMethod = null;
Method destroyMethod = null;
if (xxlJob.init().trim().length() > 0) {
try {
initMethod = clazz.getDeclaredMethod(xxlJob.init());
initMethod.setAccessible(true);
} catch (NoSuchMethodException e) {
throw new RuntimeException("xxl-job method-jobhandler initMethod invalid, for[" + clazz + "#" + methodName + "] .");
}
}
if (xxlJob.destroy().trim().length() > 0) {
try {
destroyMethod = clazz.getDeclaredMethod(xxlJob.destroy());
destroyMethod.setAccessible(true);
} catch (NoSuchMethodException e) {
throw new RuntimeException("xxl-job method-jobhandler destroyMethod invalid, for[" + clazz + "#" + methodName + "] .");
}
}
// registry jobhandler
registJobHandler(name, new MethodJobHandler(bean, executeMethod, initMethod, destroyMethod));
}
public static IJobHandler registJobHandler(String name, IJobHandler jobHandler){
logger.info(">>>>>>>>>>> xxl-job register jobhandler success, name:{}, jobHandler:{}", name, jobHandler);
return jobHandlerRepository.put(name, jobHandler);
}
// ---------------------- job handler repository ----------------------
private static ConcurrentMap<String, IJobHandler> jobHandlerRepository = new ConcurrentHashMap<String, IJobHandler>();

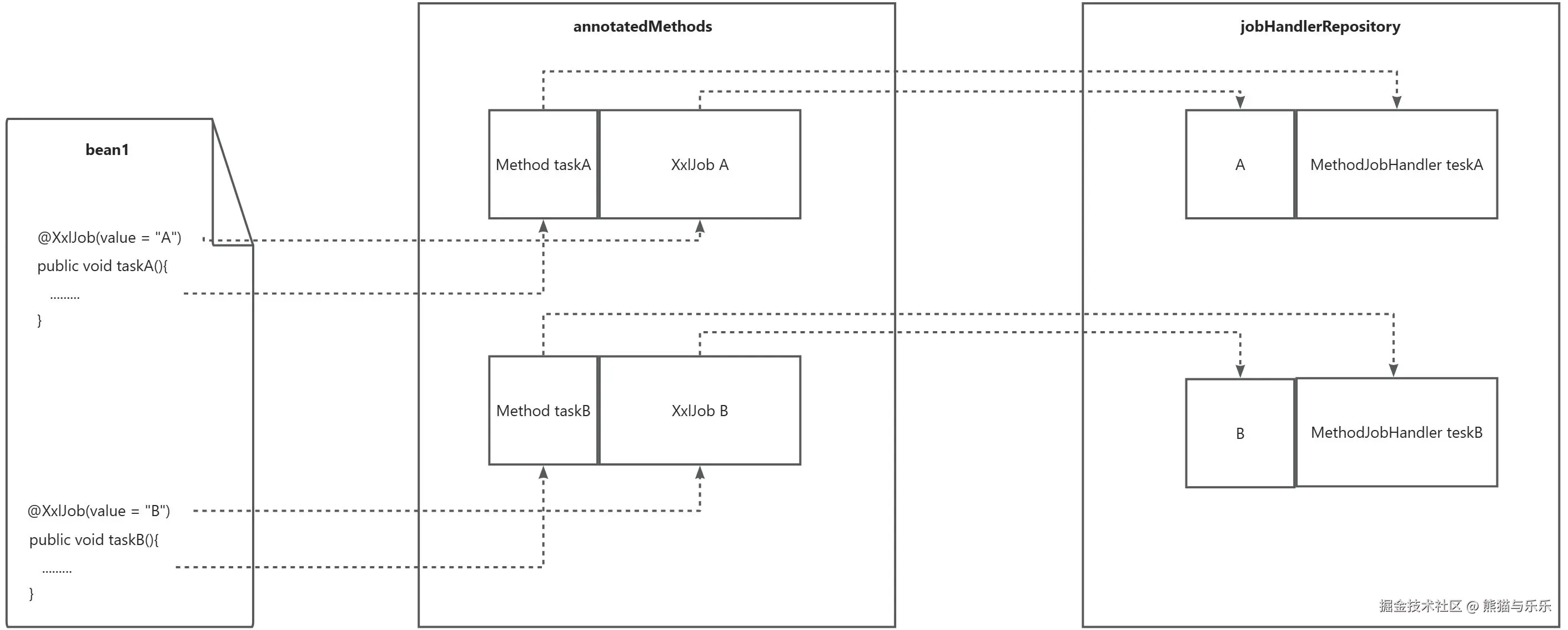

- 通过实现ApplicationContextAware接口获取applictionContext对象（spring容器），再借助applicationContext对象遍历所有非懒加载的bean。
- 拿到一个bean之后，尝试从bean中获取XxlJob注解对象和被@XxlJob注解标注的Method对象，并将Method对象和XxlJob对象的映射关系存入Map<Method, XxlJob> annotatedMethods中，如果annotatedMethods不为空，说明bean定义了定时任务。
- 遍历annotatedMethods，将Method对象封装成MethodJobHandler对象（任务处理器），将对应的XxlJob对象的value属性值作为key，MethodJobHandler对象作为value存入jobHandlerRepository中。
刷新GlueFactory工厂
初始化日志文件夹
private static String logBasePath = "/data/applogs/xxl-job/jobhandler";
private static String glueSrcPath = logBasePath.concat("/gluesource");
public static void initLogPath(String logPath){
// init
if (logPath!=null && logPath.trim().length()>0) {
logBasePath = logPath;
}
// mk base dir
File logPathDir = new File(logBasePath);
if (!logPathDir.exists()) {
logPathDir.mkdirs();
}
logBasePath = logPathDir.getPath();
// mk glue dir
File glueBaseDir = new File(logPathDir, "gluesource");
if (!glueBaseDir.exists()) {
glueBaseDir.mkdirs();
}
glueSrcPath = glueBaseDir.getPath();
}
如果xxl.job.executor.logpath配置为空，则使用默认路径/data/applogs/xxl-job/jobhandler，否则使用配置值，判断日志文件夹是否存在，不存在则创建。
初始化xxl-job服务端的client
// ---------------------- admin-client (rpc invoker) ----------------------
private static List<AdminBiz> adminBizList;
private void initAdminBizList(String adminAddresses, String accessToken) throws Exception {
if (adminAddresses!=null && adminAddresses.trim().length()>0) {
for (String address: adminAddresses.trim().split(",")) {
if (address!=null && address.trim().length()>0) {
AdminBiz adminBiz = new AdminBizClient(address.trim(), accessToken);
if (adminBizList == null) {
adminBizList = new ArrayList<AdminBiz>();
}
adminBizList.add(adminBiz);
}
}
}
}
将xxl.job.admin.addresses配置值用逗号分隔，将多个xxl-job服务端地址封装成AdminBizClient对象列表方，便调用xxl-job服务端的接口。
AdminBizClient对象提供3个xxl-job服务端的接口：
@Override
public ReturnT<String> callback(List<HandleCallbackParam> callbackParamList) {
return XxlJobRemotingUtil.postBody(addressUrl+"api/callback", accessToken, timeout, callbackParamList, String.class);
}
@Override
public ReturnT<String> registry(RegistryParam registryParam) {
return XxlJobRemotingUtil.postBody(addressUrl + "api/registry", accessToken, timeout, registryParam, String.class);
}
@Override
public ReturnT<String> registryRemove(RegistryParam registryParam) {
return XxlJobRemotingUtil.postBody(addressUrl + "api/registryRemove", accessToken, timeout, registryParam, String.class);
}
- callback()的作用是将任务处理器的执行结果发送给xxl-job服务端。
- registry()的作用是将任务执行器（xxl-job客户端）的名称、ip发送给xxl-job服务端。
- registryRemove()的作用是将任务执行器（xxl-job客户端）从xxl-job服务端注销。
初始化日志文件清理线程
public void start(final long logRetentionDays){
// limit min value
if (logRetentionDays < 3 ) {
return;
}
localThread = new Thread(new Runnable() {
@Override
public void run() {
while (!toStop) {
try {
// clean log dir, over logRetentionDays
File[] childDirs = new File(XxlJobFileAppender.getLogPath()).listFiles();
if (childDirs!=null && childDirs.length>0) {
// today
Calendar todayCal = Calendar.getInstance();
todayCal.set(Calendar.HOUR_OF_DAY,0);
todayCal.set(Calendar.MINUTE,0);
todayCal.set(Calendar.SECOND,0);
todayCal.set(Calendar.MILLISECOND,0);
Date todayDate = todayCal.getTime();
for (File childFile: childDirs) {
// valid
if (!childFile.isDirectory()) {
continue;
}
if (childFile.getName().indexOf("-") == -1) {
continue;
}
// file create date
Date logFileCreateDate = null;
try {
SimpleDateFormat simpleDateFormat = new SimpleDateFormat("yyyy-MM-dd");
logFileCreateDate = simpleDateFormat.parse(childFile.getName());
} catch (ParseException e) {
logger.error(e.getMessage(), e);
}
if (logFileCreateDate == null) {
continue;
}
if ((todayDate.getTime()-logFileCreateDate.getTime()) >= logRetentionDays * (24 * 60 * 60 * 1000) ) {
FileUtil.deleteRecursively(childFile);
}
}
}
} catch (Exception e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
try {
TimeUnit.DAYS.sleep(1);
} catch (InterruptedException e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
}
logger.info(">>>>>>>>>>> xxl-job, executor JobLogFileCleanThread thread destroy.");
}
});
localThread.setDaemon(true);
localThread.setName("xxl-job, executor JobLogFileCleanThread");
localThread.start();
}
通过xxl.job.executor.logretentiondays设置日志保留天数，如果设置值小于3天，则不会创建定期清理日志的线程。清理日志的线程每天执行一次，执行逻辑是：遍历文件夹下的日志文件，从文件名中解析创建时间，将超过保留天数的日志文件删除。
创建触发器回调线程
触发器回调线程的作用是：将任务处理器的执行结果发异步发送给xxl-job服务端。触发器回调线程内部主要的字段有：
/**
* job results callback queue
*/
private LinkedBlockingQueue<HandleCallbackParam> callBackQueue = new LinkedBlockingQueue<HandleCallbackParam>();
public static void pushCallBack(HandleCallbackParam callback){
getInstance().callBackQueue.add(callback);
logger.debug(">>>>>>>>>>> xxl-job, push callback request, logId:{}", callback.getLogId());
}
/**
* callback thread
*/
private Thread triggerCallbackThread;
private Thread triggerRetryCallbackThread;
private volatile boolean toStop = false;
- callBackQueue是一个不限长度的阻塞队列，用于暂存任务处理器的执行结果。
- triggerCallbackThread是一个不停将执行结果发送给xxl-job服务端的线程。
- triggerRetryCallbackThread是一个重试线程，对triggerCallbackThread中发送失败的执行结果进行重试。
主要看触发器回调线程的的start()处理逻辑：
public void start() {
// valid
if (XxlJobExecutor.getAdminBizList() == null) {
logger.warn(">>>>>>>>>>> xxl-job, executor callback config fail, adminAddresses is null.");
return;
}
// callback
triggerCallbackThread = new Thread(new Runnable() {
@Override
public void run() {
// normal callback
while(!toStop){
try {
HandleCallbackParam callback = getInstance().callBackQueue.take();
if (callback != null) {
// callback list param
List<HandleCallbackParam> callbackParamList = new ArrayList<HandleCallbackParam>();
int drainToNum = getInstance().callBackQueue.drainTo(callbackParamList);
callbackParamList.add(callback);
// callback, will retry if error
if (callbackParamList!=null && callbackParamList.size()>0) {
doCallback(callbackParamList);
}
}
} catch (Exception e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
}
// last callback
try {
List<HandleCallbackParam> callbackParamList = new ArrayList<HandleCallbackParam>();
int drainToNum = getInstance().callBackQueue.drainTo(callbackParamList);
if (callbackParamList!=null && callbackParamList.size()>0) {
doCallback(callbackParamList);
}
} catch (Exception e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
logger.info(">>>>>>>>>>> xxl-job, executor callback thread destroy.");
}
});
triggerCallbackThread.setDaemon(true);
triggerCallbackThread.setName("xxl-job, executor TriggerCallbackThread");
triggerCallbackThread.start();
// retry
triggerRetryCallbackThread = new Thread(new Runnable() {
@Override
public void run() {
while(!toStop){
try {
retryFailCallbackFile();
} catch (Exception e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
try {
TimeUnit.SECONDS.sleep(RegistryConfig.BEAT_TIMEOUT);
} catch (InterruptedException e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
}
logger.info(">>>>>>>>>>> xxl-job, executor retry callback thread destroy.");
}
});
triggerRetryCallbackThread.setDaemon(true);
triggerRetryCallbackThread.start();
}
- 初始化triggerCallbackThread线程，其run方法的逻辑是，通过while(!toStop)的方式不断从callBackQueue阻塞队列中拉去一批任务处理器执行结果，调用doCallBack()方法。doCallBack()的执行逻辑：从AdminBizClient对象列表中找一个可用的AdminBizClient，调用其callBack方法将任务处理器执行结果批量发送到xxl-job服务器。
/**
* do callback, will retry if error
* @param callbackParamList
*/
private void doCallback(List<HandleCallbackParam> callbackParamList){
boolean callbackRet = false;
// callback, will retry if error
for (AdminBiz adminBiz: XxlJobExecutor.getAdminBizList()) {
try {
ReturnT<String> callbackResult = adminBiz.callback(callbackParamList);
if (callbackResult!=null && ReturnT.SUCCESS_CODE == callbackResult.getCode()) {
callbackLog(callbackParamList, "<br>----------- xxl-job job callback finish.");
callbackRet = true;
break;
} else {
callbackLog(callbackParamList, "<br>----------- xxl-job job callback fail, callbackResult:" + callbackResult);
}
} catch (Exception e) {
callbackLog(callbackParamList, "<br>----------- xxl-job job callback error, errorMsg:" + e.getMessage());
}
}
if (!callbackRet) {
appendFailCallbackFile(callbackParamList);
}
}
- 初始化triggerRetryCallbackThread线程，通过while(!toStop)和TimeUnit.SECONDS.sleep(RegistryConfig.BEAT_TIMEOUT)每隔30秒调用retryFailCallbackFile()方法。retryFailCallbackFile()的执行逻辑是遍历failCallbackFilePath路径下的文件，读取文件内容转成List callbackParamList对象，调用上述的doCallback()方法。
private void retryFailCallbackFile(){
// valid
File callbackLogPath = new File(failCallbackFilePath);
if (!callbackLogPath.exists()) {
return;
}
if (callbackLogPath.isFile()) {
callbackLogPath.delete();
}
if (!(callbackLogPath.isDirectory() && callbackLogPath.list()!=null && callbackLogPath.list().length>0)) {
return;
}
// load and clear file, retry
for (File callbaclLogFile: callbackLogPath.listFiles()) {
byte[] callbackParamList_bytes = FileUtil.readFileContent(callbaclLogFile);
// avoid empty file
if(callbackParamList_bytes == null || callbackParamList_bytes.length < 1){
callbaclLogFile.delete();
continue;
}
List<HandleCallbackParam> callbackParamList = (List<HandleCallbackParam>) JdkSerializeTool.deserialize(callbackParamList_bytes, List.class);
callbaclLogFile.delete();
doCallback(callbackParamList);
}
}
初始化任务执行器内置服务
任务执行器内置服务的作用是：监听指定端口（默认9999）接收来自xxl-job服务端的调用。任务执行器内置服务初始化过程：
private void initEmbedServer(String address, String ip, int port, String appname, String accessToken) throws Exception {
// fill ip port
port = port>0?port: NetUtil.findAvailablePort(9999);
ip = (ip!=null&&ip.trim().length()>0)?ip: IpUtil.getIp();
// generate address
if (address==null || address.trim().length()==0) {
String ip_port_address = IpUtil.getIpPort(ip, port); // registry-address：default use address to registry , otherwise use ip:port if address is null
address = "http://{ip_port}/".replace("{ip_port}", ip_port_address);
}
// accessToken
if (accessToken==null || accessToken.trim().length()==0) {
logger.warn(">>>>>>>>>>> xxl-job accessToken is empty. To ensure system security, please set the accessToken.");
}
// start
embedServer = new EmbedServer();
embedServer.start(address, port, appname, accessToken);
}
创建一个任务执行器内置服务EmbedServer对象，调用其start()方法，将下列配置值作为参数传入
- xxl.job.executor.appname：执行器名称
- xxl.job.executor.address：执行器的地址，如果该配置为空，使用http://{xxl.job.executor.ip:xxl.job.executor.port}作为address。
- xxl.job.executor.ip：执行器的ip
- xxl.job.executor.port= 执行器监听端口
EmbedServer的start()如下，其实就是使用netty对端口进行监听
public void start(final String address, final int port, final String appname, final String accessToken) {
executorBiz = new ExecutorBizImpl();
thread = new Thread(new Runnable() {
@Override
public void run() {
// param
EventLoopGroup bossGroup = new NioEventLoopGroup();
EventLoopGroup workerGroup = new NioEventLoopGroup();
ThreadPoolExecutor bizThreadPool = new ThreadPoolExecutor(
0,
200,
60L,
TimeUnit.SECONDS,
new LinkedBlockingQueue<Runnable>(2000),
new ThreadFactory() {
@Override
public Thread newThread(Runnable r) {
return new Thread(r, "xxl-job, EmbedServer bizThreadPool-" + r.hashCode());
}
},
new RejectedExecutionHandler() {
@Override
public void rejectedExecution(Runnable r, ThreadPoolExecutor executor) {
throw new RuntimeException("xxl-job, EmbedServer bizThreadPool is EXHAUSTED!");
}
});
try {
// start server
ServerBootstrap bootstrap = new ServerBootstrap();
bootstrap.group(bossGroup, workerGroup)
.channel(NioServerSocketChannel.class)
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
public void initChannel(SocketChannel channel) throws Exception {
channel.pipeline()
.addLast(new IdleStateHandler(0, 0, 30 * 3, TimeUnit.SECONDS)) // beat 3N, close if idle
.addLast(new HttpServerCodec())
.addLast(new HttpObjectAggregator(5 * 1024 * 1024)) // merge request & reponse to FULL
.addLast(new EmbedHttpServerHandler(executorBiz, accessToken, bizThreadPool));
}
})
.childOption(ChannelOption.SO_KEEPALIVE, true);
// bind
ChannelFuture future = bootstrap.bind(port).sync();
logger.info(">>>>>>>>>>> xxl-job remoting server start success, nettype = {}, port = {}", EmbedServer.class, port);
// start registry
startRegistry(appname, address);
// wait util stop
future.channel().closeFuture().sync();
} catch (InterruptedException e) {
logger.info(">>>>>>>>>>> xxl-job remoting server stop.");
} catch (Exception e) {
logger.error(">>>>>>>>>>> xxl-job remoting server error.", e);
} finally {
// stop
try {
workerGroup.shutdownGracefully();
bossGroup.shutdownGracefully();
} catch (Exception e) {
logger.error(e.getMessage(), e);
}
}
}
});
thread.setDaemon(true); // daemon, service jvm, user thread leave >>> daemon leave >>> jvm leave
thread.start();
}
端口的处理委托给EmbedHttpServerHandler的process()：
private Object process(HttpMethod httpMethod, String uri, String requestData, String accessTokenReq) {
// valid
if (HttpMethod.POST != httpMethod) {
return new ReturnT<String>(ReturnT.FAIL_CODE, "invalid request, HttpMethod not support.");
}
if (uri == null || uri.trim().length() == 0) {
return new ReturnT<String>(ReturnT.FAIL_CODE, "invalid request, uri-mapping empty.");
}
if (accessToken != null
&& accessToken.trim().length() > 0
&& !accessToken.equals(accessTokenReq)) {
return new ReturnT<String>(ReturnT.FAIL_CODE, "The access token is wrong.");
}
// services mapping
try {
switch (uri) {
case "/beat":
return executorBiz.beat();
case "/idleBeat":
IdleBeatParam idleBeatParam = GsonTool.fromJson(requestData, IdleBeatParam.class);
return executorBiz.idleBeat(idleBeatParam);
case "/run":
TriggerParam triggerParam = GsonTool.fromJson(requestData, TriggerParam.class);
return executorBiz.run(triggerParam);
case "/kill":
KillParam killParam = GsonTool.fromJson(requestData, KillParam.class);
return executorBiz.kill(killParam);
case "/log":
LogParam logParam = GsonTool.fromJson(requestData, LogParam.class);
return executorBiz.log(logParam);
default:
return new ReturnT<String>(ReturnT.FAIL_CODE, "invalid request, uri-mapping(" + uri + ") not found.");
}
} catch (Exception e) {
logger.error(e.getMessage(), e);
return new ReturnT<String>(ReturnT.FAIL_CODE, "request error:" + ThrowableUtil.toString(e));
}
}
真正的处理逻辑委托又给ExecutorBiz的实现类ExecutorBizImpl，ExecutorBiz接口支持5个方法：
public interface ExecutorBiz {
/**
* beat
* @return
*/
public ReturnT<String> beat();
/**
* idle beat
*
* @param idleBeatParam
* @return
*/
public ReturnT<String> idleBeat(IdleBeatParam idleBeatParam);
/**
* run
* @param triggerParam
* @return
*/
public ReturnT<String> run(TriggerParam triggerParam);
/**
* kill
* @param killParam
* @return
*/
public ReturnT<String> kill(KillParam killParam);
/**
* log
* @param logParam
* @return
*/
public ReturnT<LogResult> log(LogParam logParam);
}
- beat()：用于xxl-job服务端检测任务执行器（xxl-job客户端）的心跳。
- idleBeat()：用于xxl-job服务端检测任务执行器（xxl-job客户端）的任务处理器是否空闲。
- run()：用于xxl-job服务端调度任务处理器，调度一次相当于定时任务执行了一次。
- kill()：用于xxl-jbo服务端关闭任务处理器。
- log()：用于xxl-job服务端读取任务处理器的执行日志。
初始化任务执行器注册线程
在EmbedServer的start()方法中，startRegistry(appname, address)创建了一个任务执行器注册线程，作用是定时将地址发送给xxl-job服务端。public void start(final String appname, final String address){
// valid
if (appname==null || appname.trim().length()==0) {
logger.warn(">>>>>>>>>>> xxl-job, executor registry config fail, appname is null.");
return;
}
if (XxlJobExecutor.getAdminBizList() == null) {
logger.warn(">>>>>>>>>>> xxl-job, executor registry config fail, adminAddresses is null.");
return;
}
registryThread = new Thread(new Runnable() {
@Override
public void run() {
// registry
while (!toStop) {
try {
RegistryParam registryParam = new RegistryParam(RegistryConfig.RegistType.EXECUTOR.name(), appname, address);
for (AdminBiz adminBiz: XxlJobExecutor.getAdminBizList()) {
try {
ReturnT<String> registryResult = adminBiz.registry(registryParam);
if (registryResult!=null && ReturnT.SUCCESS_CODE == registryResult.getCode()) {
registryResult = ReturnT.SUCCESS;
logger.debug(">>>>>>>>>>> xxl-job registry success, registryParam:{}, registryResult:{}", new Object[]{registryParam, registryResult});
break;
} else {
logger.info(">>>>>>>>>>> xxl-job registry fail, registryParam:{}, registryResult:{}", new Object[]{registryParam, registryResult});
}
} catch (Exception e) {
logger.info(">>>>>>>>>>> xxl-job registry error, registryParam:{}", registryParam, e);
}
}
} catch (Exception e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
try {
if (!toStop) {
TimeUnit.SECONDS.sleep(RegistryConfig.BEAT_TIMEOUT);
}
} catch (InterruptedException e) {
if (!toStop) {
logger.warn(">>>>>>>>>>> xxl-job, executor registry thread interrupted, error msg:{}", e.getMessage());
}
}
}
// registry remove
try {
RegistryParam registryParam = new RegistryParam(RegistryConfig.RegistType.EXECUTOR.name(), appname, address);
for (AdminBiz adminBiz: XxlJobExecutor.getAdminBizList()) {
try {
ReturnT<String> registryResult = adminBiz.registryRemove(registryParam);
if (registryResult!=null && ReturnT.SUCCESS_CODE == registryResult.getCode()) {
registryResult = ReturnT.SUCCESS;
logger.info(">>>>>>>>>>> xxl-job registry-remove success, registryParam:{}, registryResult:{}", new Object[]{registryParam, registryResult});
break;
} else {
logger.info(">>>>>>>>>>> xxl-job registry-remove fail, registryParam:{}, registryResult:{}", new Object[]{registryParam, registryResult});
}
} catch (Exception e) {
if (!toStop) {
logger.info(">>>>>>>>>>> xxl-job registry-remove error, registryParam:{}", registryParam, e);
}
}
}
} catch (Exception e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
logger.info(">>>>>>>>>>> xxl-job, executor registry thread destroy.");
}
});
registryThread.setDaemon(true);
registryThread.setName("xxl-job, executor ExecutorRegistryThread");
registryThread.start();
}
总结
xxl-job客户端的启动流程又很多可以学习的地方，比如- 如何从bean中获取被指定注解修饰的方法。
- 如何使用netty监听端口，定义我们自己的逻辑。
- 如何优雅的开启和关闭线程，以及配合阻塞队列实现并发情况下的异步处理。
