cesium结合geoserver利用WFS服务实现图层新增1.cesium结合geoserver利用WFS服务实现图层

1.cesium结合geoserver利用WFS服务实现图层新增功能

2.源代码demo下载

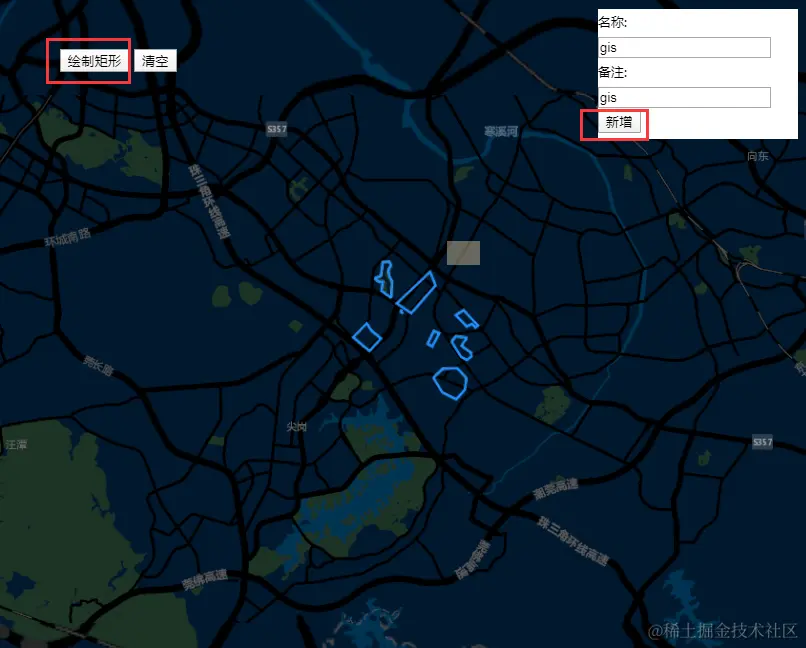

效果图如下：

本篇主要是cesium通过调用geoserver发布的地图服务WFS来达到图层新增记录的目的。与GeoServer的WFS进行基于Rest交互关键就在于请求参数，值得注意的是这些请求最好采用POST方法发送。查询可以采用json，但增加，删除，修改都只能采用XML形式Transaction

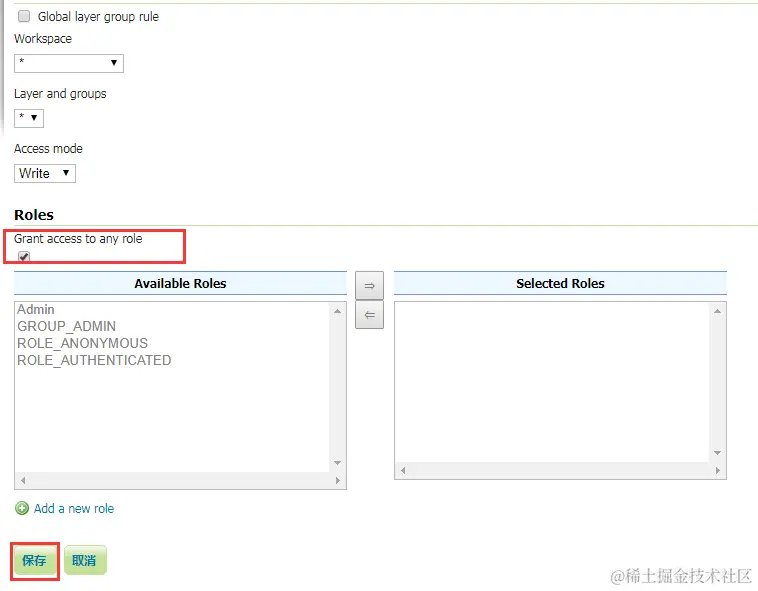

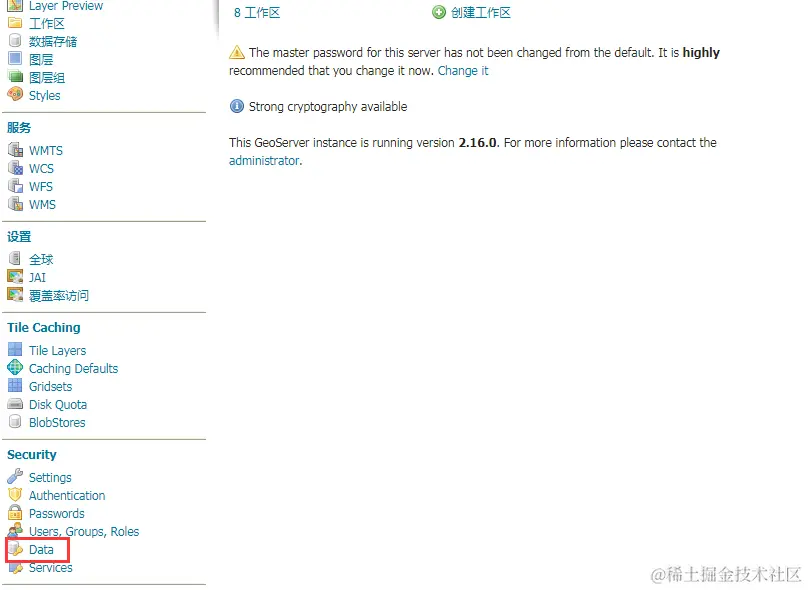

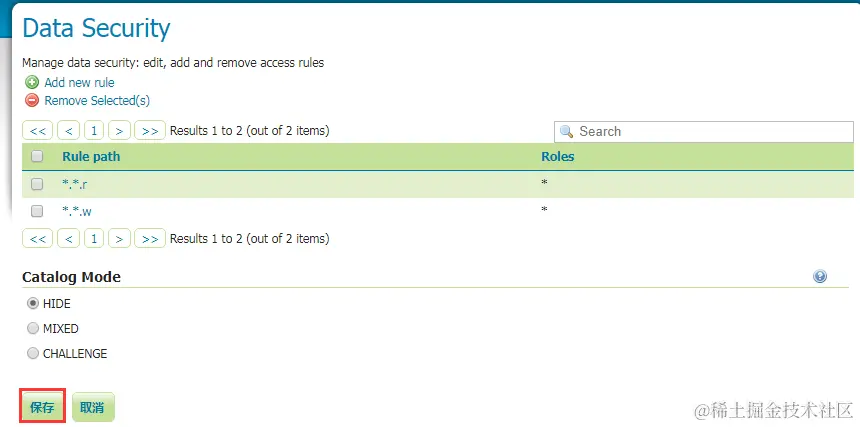

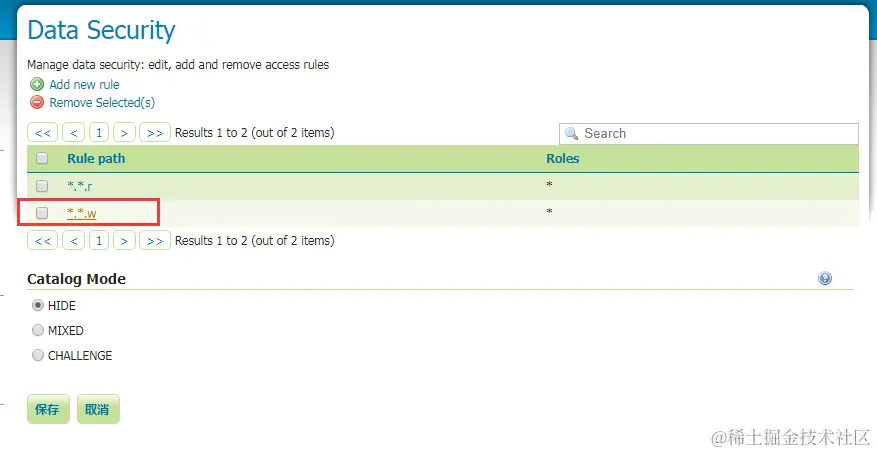

geoserver默认WFS服务是没有编辑操作权限的，所以需要在geoserver设置权限，允许编辑操作才行，截图如下：

部分核心代码：

//绘制geojson图层样式
var geoJsonStyle = {
  stroke: Cesium.Color.YELLOW,
  strokeWidth: 3,
  fill: Cesium.Color.YELLOW.withAlpha(0.1)
};
var geoserverUrl = 'http://localhost:8080/geoserver/WebGIS';
var image_Source = new Cesium.UrlTemplateImageryProvider({
    //url: 'http://mt0.google.cn/vt/lyrs=t,r&hl=zh-CN&gl=cn&x={x}&y={y}&z={z}',
    //url: 'https://server.arcgisonline.com/arcgis/rest/services/World_Imagery/MapServer/tile/{z}/{y}/{x}',
    url: "http://map.geoq.cn/ArcGIS/rest/services/ChinaOnlineStreetPurplishBlue/MapServer/tile/{z}/{y}/{x}",
    //tilingScheme : new Cesium.GeographicTilingScheme(),
    credit: ''
});
var viewer = new Cesium.Viewer('map', {
    geocoder: false,
    homeButton: false,
    sceneModePicker: false,
    fullscreenButton: false,
    vrButton: false,
    baseLayerPicker: false,
    infoBox: false,
    selectionIndicator: false,
    animation: false,
    timeline: false,
    shouldAnimate: true,
    navigationHelpButton: false,
    navigationInstructionsInitiallyVisible: false,
    imageryProvider: image_Source
});

//加载geoserver wms服务
var wms = new Cesium.WebMapServiceImageryProvider({
          url: geoserverUrl+'/wms',
          layers: 'WebGIS:testLayer',
          parameters: {
                 service : 'WMS',
              format: 'image/png',
              transparent: true,
          }
 });
 viewer.imageryLayers.addImageryProvider(wms);


viewer._cesiumWidget._creditContainer.style.display = "none";
viewer.scene.globe.enableLighting = false;
//viewer.scene.globe.depthTestAgainstTerrain = true;
viewer.scene.globe.showGroundAtmosphere = false;

viewer.camera.flyTo({
    destination : Cesium.Cartesian3.fromDegrees(113.90271877, 22.95186415,30000.0)
});


 var handler = new Cesium.ScreenSpaceEventHandler(viewer.scene.canvas);
 var ellipsoid = viewer.scene.globe.ellipsoid;
 handler.setInputAction(function (movement) {
        //通过指定的椭球或者地图对应的坐标系，将鼠标的二维坐标转换为对应椭球体三维坐标
        cartesian = viewer.camera.pickEllipsoid(movement.position, ellipsoid);
        if (cartesian) {
            //将笛卡尔坐标转换为地理坐标
            var cartographic = ellipsoid.cartesianToCartographic(cartesian);
            //将弧度转为度的十进制度表示
            var longitudeString = Cesium.Math.toDegrees(cartographic.longitude);
            var latitudeString = Cesium.Math.toDegrees(cartographic.latitude);
            var point = longitudeString + ',' + latitudeString;
            queryByPoint(point,'testLayer',callbackLastQueryWFSService);
        }
}, Cesium.ScreenSpaceEventType.LEFT_CLICK);

var drawTool = new DrawTool({ viewer: viewer, hasEdit: false });

//绘制矩形 $("#rect_btn").click(function(){ //clearMap() if (!drawTool) return; drawTool.startDraw({ type: "rectangle", style: { heightReference: Cesium.HeightReference.CLAMP_TO_GROUND, //material:Cesium.Color.WHITE material:Cesium.Color.fromRgba(0x67ADDFFF) }, success: function (evt) { //console.log('evt',evt); var leftup = evt.leftup; var rightdown = evt.rightdown; //世界坐标转地理坐标（弧度） var leftupcartographic = viewer.scene.globe.ellipsoid.cartesianToCartographic(leftup); var rightdowncartographic = viewer.scene.globe.ellipsoid.cartesianToCartographic(rightdown); //console.log('leftupcartographic',leftupcartographic); //地理坐标（弧度）转经纬度坐标 var leftuppoint = [leftupcartographic.longitude / Math.PI * 180, leftupcartographic.latitude / Math.PI * 180]; console.log('leftuppoint',leftuppoint); var rightdownpoint = [rightdowncartographic.longitude / Math.PI * 180, rightdowncartographic.latitude / Math.PI * 180]; console.log('rightdown',rightdown); var extent = [leftuppoint[0].toFixed(6),leftuppoint[1].toFixed(6),rightdownpoint[0].toFixed(6),rightdownpoint[1].toFixed(6)]; var polygon = null; if(extent && extent.length>0){ //构造polygon polygon = ''; polygon += extent[0] + ',' + extent[1] + ' ' ; polygon += extent[2] + ',' + extent[1] + ' ' ; polygon += extent[2] + ',' + extent[3] + ' ' ; polygon += extent[0] + ',' + extent[3] + ' ' ; polygon += extent[0] + ',' + extent[1] + ' ' ; } console.log('polygon',polygon); if(polygon){ var content = '<span>名称:</span><input type="text" id="estate_num" /></br><span>备注:</span><input type="text" id="holder_nam" /></br><button type="button" id="addBtn">新增</button>';$ ("#infowindow").show(); $("#infowindow").empty();$ ("#infowindow").append(content); $("#addBtn").click(function(){ console.log('点击事件响应'); addLayers(polygon,$ ("#estate_num").val(),$("#holder_nam").val(),callbackAddLayersWFSService); }); } } }); });

图层新增函数

/*图层新增 *@method addLayers *@param polygon 图形 *@param fieldValue1 字段1值 *@param fieldValue2 字段2值 *@return callback */ function addLayers(polygon,fieldValue1,fieldValue2, callback){ var xml = '<wfs:Transaction service="WFS" version="1.0.0" xmlns:opengis="webgis.com" xmlns:wfs="www.opengis.net/wfs" xmlns:ogc="www.opengis.net/ogc" xmlns:gml="www.opengis.net/gml" xmlns:xsi="www.w3.org/2001/XMLSch…" xsi:schemaLocation="www.opengis.net/wfs schemas.opengis.net/wfs/1.0.0/W…'; xml += '<wfs:Insert handle="WebGIS">'; xml += 'opengis:testLayer'; xml += 'opengis:the_geom'; xml += '<gml:MultiPolygon srsName="EPSG:4326">'; xml += 'gml:polygonMember'; xml += 'gml:Polygon'; xml += 'gml:outerBoundaryIs'; xml += 'gml:LinearRing'; xml += '<gml:coordinates decimal="." cs="," ts=" ">' + polygon + '</gml:coordinates>'; xml += '</gml:LinearRing>'; xml += '</gml:outerBoundaryIs>'; xml += '</gml:Polygon>'; xml += '</gml:polygonMember>'; xml += '</gml:MultiPolygon>'; xml += '</opengis:the_geom>'; xml += 'opengis:estate_num' + fieldValue1 + '</opengis:estate_num>'; xml += 'opengis:holder_nam' + fieldValue2 + '</opengis:holder_nam>'; xml += '</opengis:testLayer>'; xml += '</wfs:Insert>'; xml += '</wfs:Transaction>';
```
$.ajax({
    url: geoserverUrl+'/wfs',
    async: true,
    data:xml,
    type:'Post',
    contentType: 'text/xml',
    success(result) {
        callback(result);
    },
    error(err) {
        console.log(err);
    }
})
```
}

几点说明：

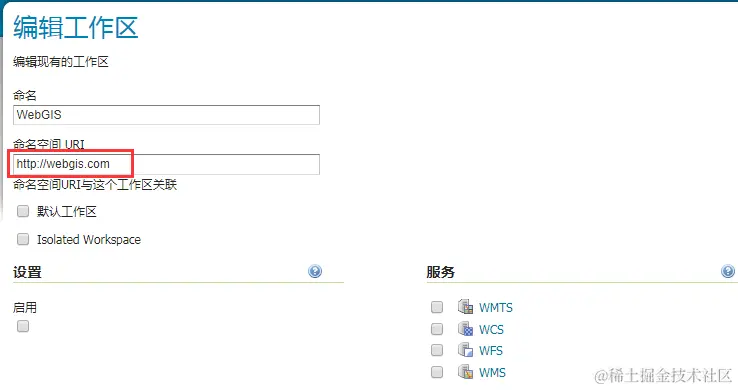

1.xmlns:opengis="webgis.com"，geoserver工作区的url；

2.WebGIS，geoserver工作区；
3.testLayer，操作图层名称；
4.the_geom，操作图层的几何字段；
5.estate_num，holder_nam，分别是操作图层的属性字段。

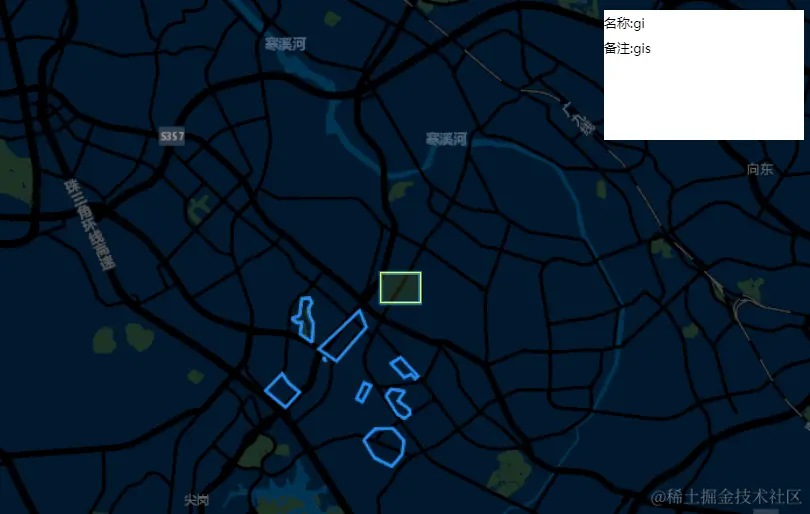

图层新增回调函数，操作成功或者失败，可以在网页的控制台网络看请求结果

/*
- 图层新增回调函数 */ function callbackAddLayersWFSService(data){ console.log('data',data); //暂时刷新页面形式刷新图层 window.location.reload();
}

link==>
