面试这种场合,大家最怕的就是面试官让我们现场手撕代码,让你写点“平时压根不写”的问题——比如:

手写模拟SpringBoot核心流程

就像领导站在你的背后,让你快点写,但是你却需要百度一下的窘迫。

这不,最近就有小伙伴再面试过程中遇到了这道堪称难得一遇的面试题。

想要回答好这个问题,我们首先要明白面试官想要通过这道题考核我们哪方面的能力

面试官出这道题,其实是想要考核你对SpringBoot框架有没有更深入的了解(比如阅读过源码),顺便考验下你的代码能力。

所以如果我们实在写不出来,也可以把SpringBoot的核心启动流程、自动配置流程说一下,也是很好的加分项

下面小北就通过手写模拟实现一个Spring Boot,让大家能以非常简单的方式就能知道Spring Boot大概是如何工作的

完整的代码地址:gitee.com/martinyun/x…

最近无意间获得一份阿里大佬写的刷题笔记,一下子打通了我的任督二脉,进大厂原来没那么难。这是大佬写的 7701页的BAT大佬写的刷题笔记,让我offer拿到手软

问题背景分析

1. SpringBoot的核心流程有哪些

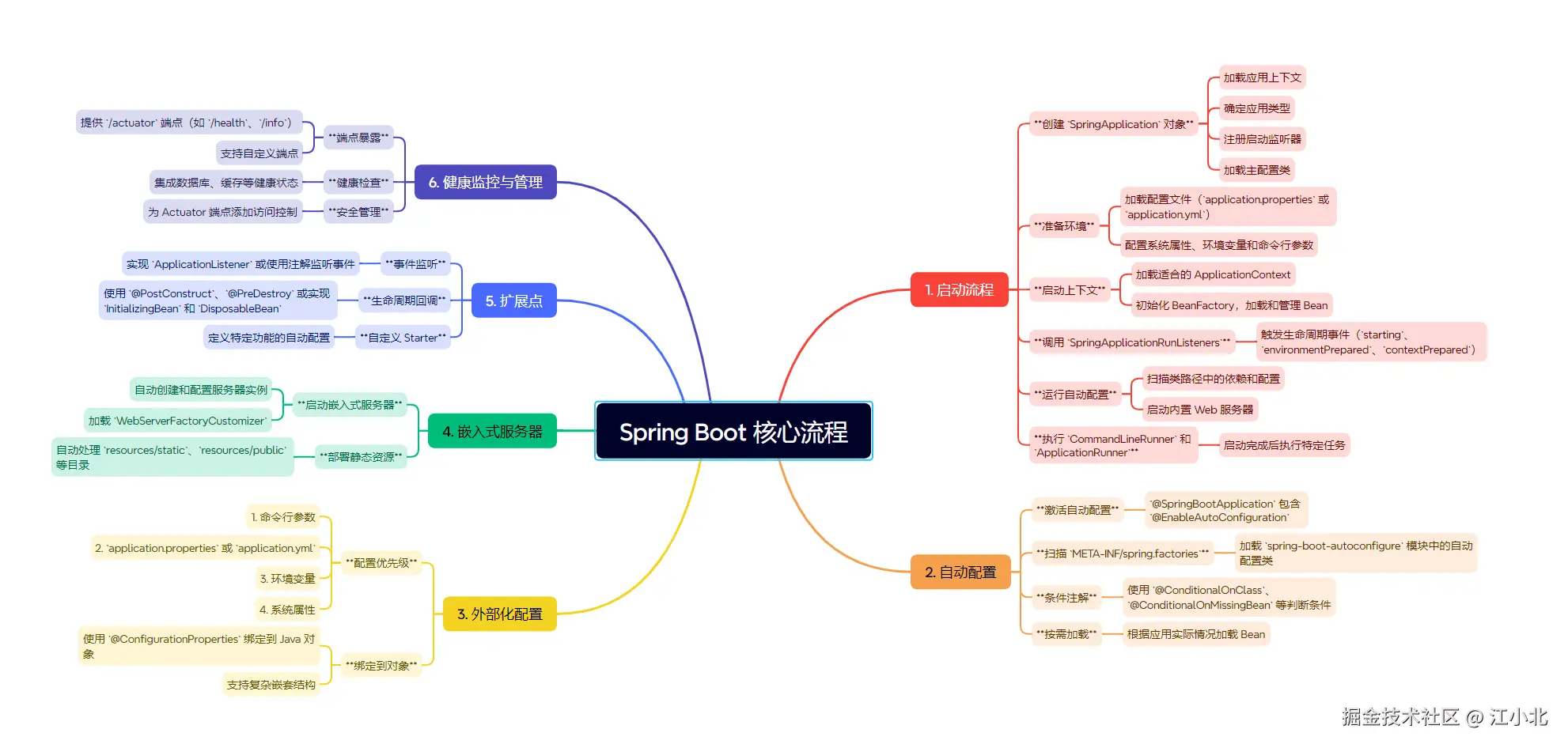

SpringBoot的核心流程有很多,如下图:

但是在面试过程中,我们肯定不能写出这么多代码,所以我们只需要回答最核心的就行。

SpringBoot最核心流程:

1、手写模拟SpringBoot启动过程
2、手写模拟SpringBoot条件注解功能
3、手写模拟SpringBoot自动配置功能

正文

1、项目搭建

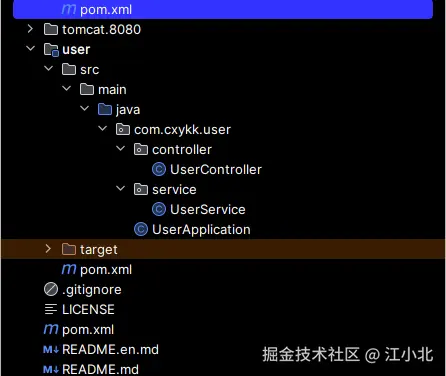

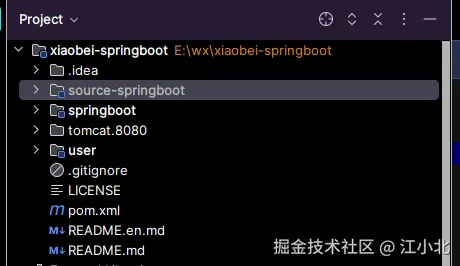

新建一个工程,两个Module,工程结构如下:

springboot模块,表示springboot框架的源码实现
user包,表示用户业务系统,用来写业务代码来测试我们所模拟出来的SpringBoot

首先,SpringBoot是基于的Spring,所以我们要依赖Spring,然后我希望我们模拟出来的SpringBoot也支持Spring MVC的那一套功能,所以也要依赖Spring MVC,包括Tomcat等,所以在SpringBoot模块中要添加以下依赖:

<dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>5.3.18</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>5.3.18</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.3.18</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>4.0.1</version>
        </dependency>
        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-core</artifactId>
            <version>9.0.60</version>
        </dependency>
    </dependencies>

然后在User模块下定义相关的Controller和Service:

因为我们模拟实现的是SpringBoot,而不是SpringMVC,所以我直接在user包下定义了UserController和UserService

最终我希望能运行UserApplication中的main方法,就直接启动了项目,并能在浏览器中正常的访问到UserController中的某个方法。

2、核心注解和核心类

我们在真正使用SpringBoot时,核心会用到SpringBoot一个类和注解: 1.@SpringBootApplication,这个注解是加在应用启动类上的,也就是main方法所在的类 2.SpringApplication,这个类中有个run()方法,用来启动SpringBoot应用的 所以我们也来模拟实现他们。

一个@XiaobeiSpringBootApplication注解:

/**
 * 江小北(公众号:程序员江小北)
 */
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Configuration
@ComponentScan
public @interface XiaobeiSpringBootApplication {

}

一个用来实现启动逻辑的XiaobeiSpringApplication类。

/**
     * 在run方法中,我们要实现的逻辑如下:
     * 1.创建一个Spring容器
     * 2.创建Tomcat对象
     * 3.生成DispatcherServlet对象,并且和前面创建出来的Spring容器进行绑定
     * 4.将DispatcherServlet添加到Tomcat中
     * 5.启动Tomcat
     * @param clazz
     */
    public static void run(Class clazz) {

    }

注意run方法需要接收一个Class类型的参数,这个class是用来干嘛的,等会就知道了。

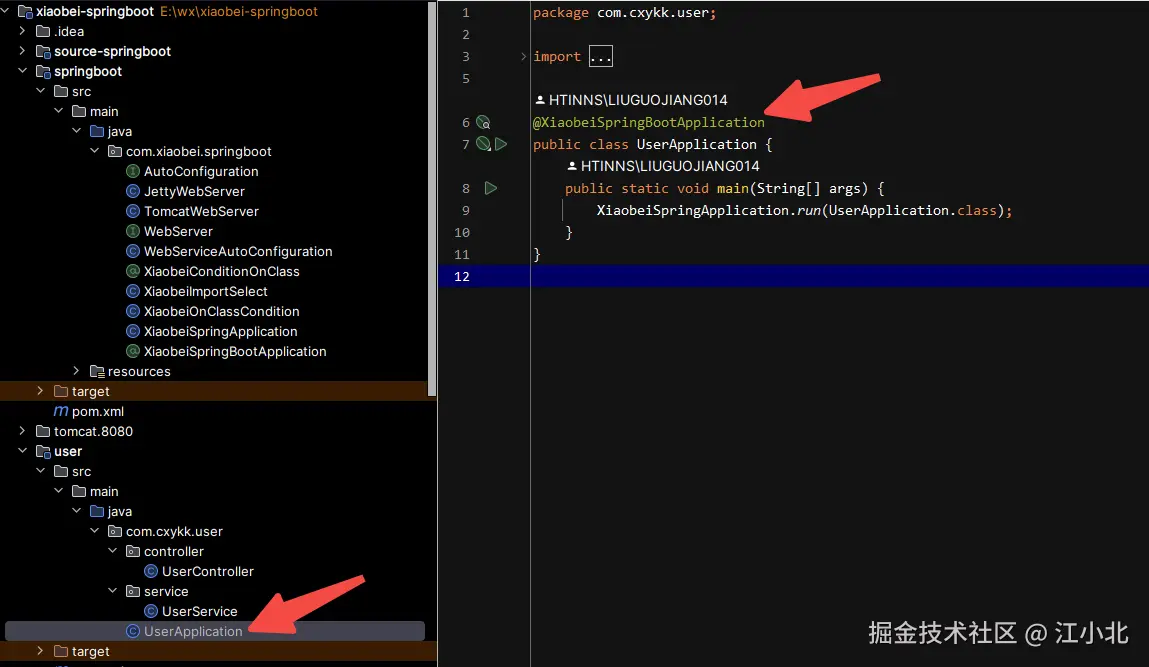

有了以上两者,我们就可以在UserApplication中来使用了,比如:

现在用来是有模有样了,但中看不中用,所以我们要来好好实现以下run方法中的逻辑了。

run方法实现

run方法中需要实现什么具体的逻辑呢?

首先,我们希望run方法一旦执行完,我们就能在浏览器中访问到UserController,那势必在run方法中要启动Tomcat,通过Tomcat就能接收到请求了。

大家如果学过Spring MVC的底层原理就会知道,在SpringMVC中有一个Servlet非常核心,那就是DispatcherServlet,这个DispatcherServlet需要绑定一个Spring容器,因为DispatcherServlet接收到请求后,就会从所绑定的Spring容器中找到所匹配的Controller,并执行所匹配的方法。

所以,在run方法中,我们要实现的逻辑如下:

  1. 创建一个Spring容器
  2. 创建Tomcat对象
  3. 生成DispatcherServlet对象,并且和前面创建出来的Spring容器进行绑定
  4. 将DispatcherServlet添加到Tomcat中
  5. 启动Tomcat
1、创建Spring容器

这个步骤比较简单,代码如下:

public static void run(Class clazz) {
        AnnotationConfigWebApplicationContext applicationContext = new AnnotationConfigWebApplicationContext();
        applicationContext.register(clazz);
        applicationContext.refresh();
    }

我们创建的是一个AnnotationConfigWebApplicationContext容器,并且把run方法传入进来的class作为容器的配置类。

比如在UserApplication的run方法中,我们就是把UserApplication.class传入到了run方法中,最终UserApplication就是所创建出来的Spring容器的配置类。

并且由于UserApplication类上有@XiaobeiSpringBootApplication注解,而@XiaobeiSpringBootApplication注解的定义上又存在@ComponentScan注解,所以AnnotationConfigWebApplicationContext容器在执行refresh时,就会解析UserApplication这个配置类,从而发现定义了@ComponentScan注解,也就知道了要进行扫描,只不过扫描路径为空。

而AnnotationConfigWebApplicationContext容器会处理这种情况,如果扫描路径会空,则会将UserApplication所在的包路径做为扫描路径,从而就会扫描到UserService和UserController。

所以Spring容器创建完之后,容器内部就拥有了UserService和UserController这两个Bean。

2、启动Tomcat

我们用的是Embed-Tomcat,也就是内嵌的Tomcat,真正的SpringBoot中也用的是内嵌的Tomcat,而对于启动内嵌的Tomcat,也并不麻烦,代码如下:

public static void startTomcat(WebApplicationContext applicationContext) {
        Tomcat tomcat = new Tomcat();
        Server server = tomcat.getServer();
        Service service = server.findService("Tomcat");
        Connector connector = new Connector();
        connector.setPort(8082);
        Engine engine = new StandardEngine();
        engine.setDefaultHost("localhost");
        Host host = new StandardHost();
        host.setName("localhost");
        String contextPath = "";
        Context context = new StandardContext();
        context.setPath(contextPath);
        context.addLifecycleListener(new Tomcat.FixContextListener());
        host.addChild(context);
        engine.addChild(host);
        service.setContainer(engine);
        service.addConnector(connector);
        tomcat.addServlet(contextPath, "dispatcher", new DispatcherServlet(applicationContext));
        context.addServletMappingDecoded("/*", "dispatcher");
        try {
            tomcat.start();
        } catch (Exception ex) {
            ex.printStackTrace();
        }
    }

代码虽然看上去比较多,但是逻辑并不复杂,比如配置了Tomcat绑定的端口为8081,后面向当前Tomcat中添加了DispatcherServlet,并设置了一个Mapping关系,最后启动,其他代码则不用太过关心。

而且在构造DispatcherServlet对象时,传入了一个ApplicationContext对象,也就是一个Spring容器,就是我们前文说的,DispatcherServlet对象和一个Spring容器进行绑定。

接下来,我们只需要在run方法中,调用startTomcat即可:

public static void run(Class clazz) {
        AnnotationConfigWebApplicationContext applicationContext = new AnnotationConfigWebApplicationContext();
        applicationContext.register(clazz);
        applicationContext.refresh();
        startTomcat(applicationContext);
    }

实际上代码写到这,一个极度精简版的SpringBoot就写出来了,比如现在运行UserApplication,就能正常的启动项目,并能接收请求。

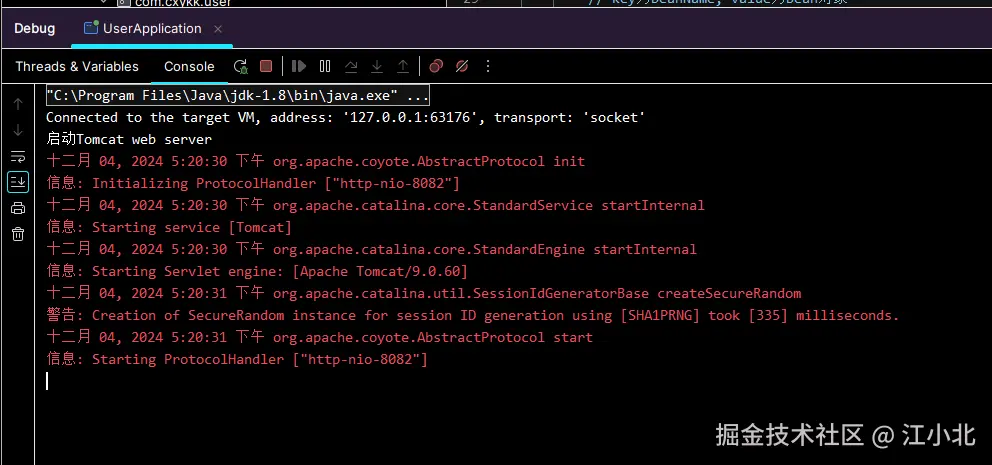

启动能看到Tomcat的启动日志:

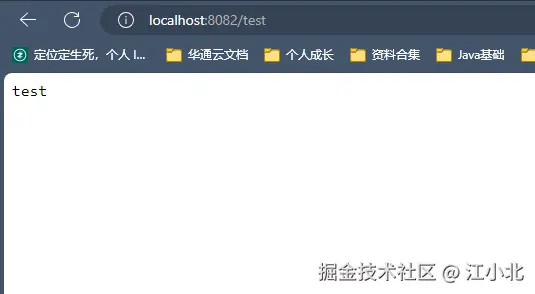

然后在浏览器上访问:http://localhost:8081/test

此时,你可以继续去写其他的Controller和Service了,照样能正常访问到,而我们的业务代码中仍然只用到了XiaobeiSpringApplication类和@XiaobeiSpringBootApplication注解。

3、实现Tomcat和Jetty的切换

虽然我们前面已经实现了一个比较简单的SpringBoot,不过我们可以继续来扩充它的功能,比如现在我有这么一个需求,这个需求就是我现在不想使用Tomcat了,而是想要用Jetty,那该怎么办?

我们前面代码中默认启动的是Tomcat,那我现在想改成这样子:

  1. 如果项目中有Tomcat的依赖,那就启动Tomcat
  2. 如果项目中有Jetty的依赖就启动Jetty
  3. 如果两者都没有则报错
  4. 如果两者都有也报错

这个逻辑希望SpringBoot自动帮我实现,对于程序员用户而言,只要在Pom文件中添加相关依赖就可以了,想用Tomcat就加Tomcat依赖,想用Jetty就加Jetty依赖。

那SpringBoot该如何实现呢?

我们知道,不管是Tomcat还是Jetty,它们都是应用服务器,或者是Servlet容器,所以我们可以定义接口来表示它们,这个接口叫做WebServer(别问我为什么叫这个,因为真正的SpringBoot源码中也叫这个)。

并且在这个接口中定义一个start方法:

/**
 * 江小北(公众号:程序员江小北)
 */
public interface WebServer {
    void start(WebApplicationContext applicationContext);
}

有了WebServer接口之后,就针对Tomcat和Jetty提供两个实现类: Tomcat实现类:

/**
 * 江小北(公众号:程序员江小北)
 */
public class TomcatWebServer implements WebServer{
    @Override
    public void start(WebApplicationContext applicationContext) {
        System.out.println("启动Tomcat web server");
        //此处复用上方启动tomcat代码
        startTomcat(applicationContext);
    }
  }

Jetty实现类:

/**
 * 江小北(公众号:程序员江小北)
 */
public class JettyWebServer implements WebServer{
    @Override
    public void start(WebApplicationContext applicationContext) {
        System.out.println("启动Jetty Web Server");
    }
}

而在XiaobeiSpringApplication中的run方法中,我们就要去获取对应的WebServer,然后启动对应的webServer,代码为:

public static void run(Class clazz) {
        AnnotationConfigWebApplicationContext applicationContext = new AnnotationConfigWebApplicationContext();
        applicationContext.register(clazz);
        applicationContext.refresh();
        WebServer webServer = getWebServer(applicationContext);
        webServer.start(applicationContext);
    }

这样,我们就只需要在getWebServer方法中去判断到底该返回TomcatWebServer还是JettyWebServer。

前面提到过,我们希望根据项目中的依赖情况,来决定到底用哪个WebServer,我就直接用SpringBoot中的源码实现方式来模拟了。

模拟实现条件注解

首先我们得实现一个条件注解@XiaobeiConditionalOnClass,对应代码如下:

/**
 * 江小北(公众号:程序员江小北)
 */
@Target({ElementType.TYPE,ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Conditional(XiaobeiOnClassCondition.class)
public @interface XiaobeiConditionOnClass {
    String value() default "";
}

注意核心为@Conditional(XiaobeiOnClassCondition.class)中的XiaobeiOnClassCondition,因为它才是真正得条件逻辑:

public class XiaobeiOnClassCondition implements Condition {
    @Override
    public boolean matches(ConditionContext context, AnnotatedTypeMetadata metadata) {
        Map<String, Object> attributes = metadata.getAnnotationAttributes(XiaobeiConditionOnClass.class.getName());
        String className = (String) attributes.get("value");
        try{
            context.getClassLoader().loadClass(className);
            return true;
        }catch (ClassNotFoundException ex){
            return false;
        }
    }
}

具体逻辑为,拿到@XiaobeiConditionalOnClass中的value属性,然后用类加载器进行加载,如果加载到了所指定的这个类,那就表示符合条件,如果加载不到,则表示不符合条件。

模拟实现自动配置

有了条件注解,我们就可以来使用它了,那如何实现呢?

这里就要用到自动配置类的概念,我们先看代码:

public class WebServiceAutoConfiguration implements AutoConfiguration{
    @Bean
    @XiaobeiConditionOnClass("org.apache.catalina.startup.Tomcat")
    public TomcatWebServer tomcatWebServer(){
        return new TomcatWebServer();
    }

    @Bean
    @XiaobeiConditionOnClass("org.eclipse.jetty.server.Server")
    public JettyWebServer jettyWebServer(){
        return new JettyWebServer();
    }
}

这个代码还是比较简单的,通过一个WebServiceAutoConfiguration的Spring配置类,在里面定义了两个Bean,一个TomcatWebServer,一个JettyWebServer,不过这两个要生效的前提是符合当前所指定的条件,比如: 1.只有存在"org.apache.catalina.startup.Tomcat"类,那么才有TomcatWebServer这个Bean 2.只有存在"org.eclipse.jetty.server.Server"类,那么才有TomcatWebServer这个Bean

并且我们只需要在XiaobeiSpringApplication中getWebServer方法,如此实现:

public static WebServer getWebServer(AnnotationConfigWebApplicationContext applicationContext) {
        // key为beanName, value为Bean对象
        Map<String, WebServer> webServers = applicationContext.getBeansOfType(WebServer.class);

        if (webServers.isEmpty()) {
            throw new NullPointerException();
        }
        if (webServers.size() > 1) {
            throw new IllegalStateException();
        }

        // 返回唯一的一个
        return webServers.values().stream().findFirst().get();
    }

这样整体SpringBoot启动逻辑就是这样的:

  1. 创建一个AnnotationConfigWebApplicationContext容器
  2. 解析UserApplication类,然后进行扫描
  3. 通过getWebServer方法从Spring容器中获取WebServer类型的Bean
  4. 调用WebServer对象的start方法

有了以上步骤,我们还差了一个关键步骤,就是Spring要能解析到WebServiceAutoConfiguration这个自动配置类,因为不管这个类里写了什么代码,Spring不去解析它,那都是没用的,此时我们需要SpringBoot在run方法中,能找到WebServiceAutoConfiguration这个配置类并添加到Spring容器中。

UserApplication是Spring的一个配置类,但是UserApplication是我们传递给SpringBoot,从而添加到Spring容器中去的,而WebServiceAutoConfiguration就需要SpringBoot去自动发现,而不需要程序员做任何配置才能把它添加到Spring容器中去,而且要注意的是,Spring容器扫描也是扫描不到WebServiceAutoConfiguration这个类的,因为我们的扫描路径是"com.xiaobei.user",而WebServiceAutoConfiguration所在的包路径为"com.xiaobei.springboot"。

那SpringBoot中是如何实现的呢?通过SPI,当然SpringBoot中自己实现了一套SPI机制,也就是我们熟知的spring.factories文件,那么我们模拟就不搞复杂了,就直接用JDK自带的SPI机制。

发现自动配置类

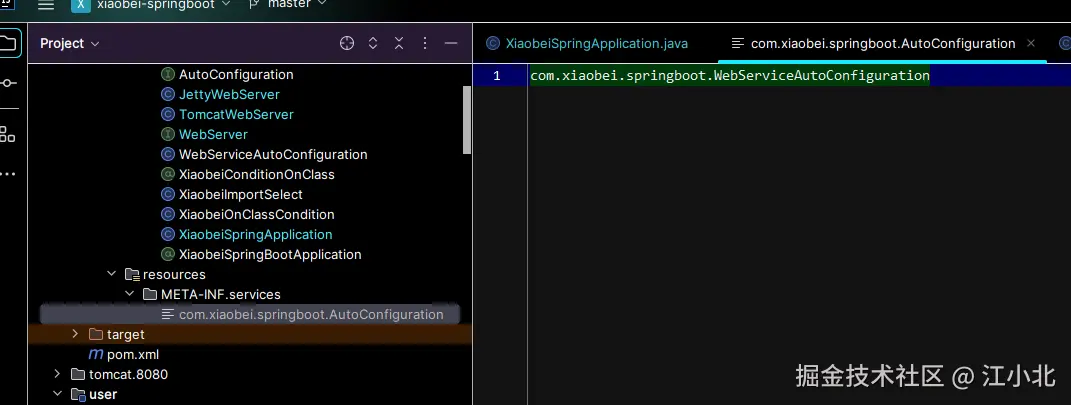

现在我们只需要在springboot项目中的resources目录下添加如下目录(META-INF/services)和文件:

SPI的配置就完成了,相当于通过com.xiaobei.springboot.AutoConfiguration文件配置了springboot中所提供的配置类。

并且提供一个接口:

public interface AutoConfiguration {
}

并且WebServiceAutoConfiguration实现该接口:

public class WebServiceAutoConfiguration implements AutoConfiguration{
    @Bean
    @XiaobeiConditionOnClass("org.apache.catalina.startup.Tomcat")
    public TomcatWebServer tomcatWebServer(){
        return new TomcatWebServer();
    }

    @Bean
    @XiaobeiConditionOnClass("org.eclipse.jetty.server.Server")
    public JettyWebServer jettyWebServer(){
        return new JettyWebServer();
    }
}

然后我们再利用spring中的@Import技术来导入这些配置类,我们在@XiaobeiSpringBootApplication的定义上增加如下代码:

/**
 * 江小北(公众号:程序员江小北)
 */
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Configuration
@ComponentScan
@Import(XiaobeiImportSelect.class)
public @interface XiaobeiSpringBootApplication {

}

XiaobeiImportSelect类为:

public class XiaobeiImportSelect implements DeferredImportSelector {
    @Override
    public String[] selectImports(AnnotationMetadata importingClassMetadata) {
        ServiceLoader<AutoConfiguration> loader = ServiceLoader.load(AutoConfiguration.class);
        List<String> list = new ArrayList<>();
        for (AutoConfiguration configuration : loader) {
            list.add(configuration.getClass().getName());
        }
        return list.toArray(new String[0]);
    }
}

这就完成了从com.xiaobei.springboot.AutoConfiguration文件中获取自动配置类的名字,并导入到Spring容器中,从而Spring容器就知道了这些配置类的存在,而对于user项目而言,是不需要修改代码的。

此时运行UserApplication,就能看到启动了Tomcat:

因为SpringBoot默认在依赖中添加了Tomcat依赖,而如果在User模块中再添加jetty的依赖:

<dependency>
            <groupId>org.eclipse.jetty</groupId>
            <artifactId>jetty-server</artifactId>
            <version>9.4.43.v20210629</version>
        </dependency>

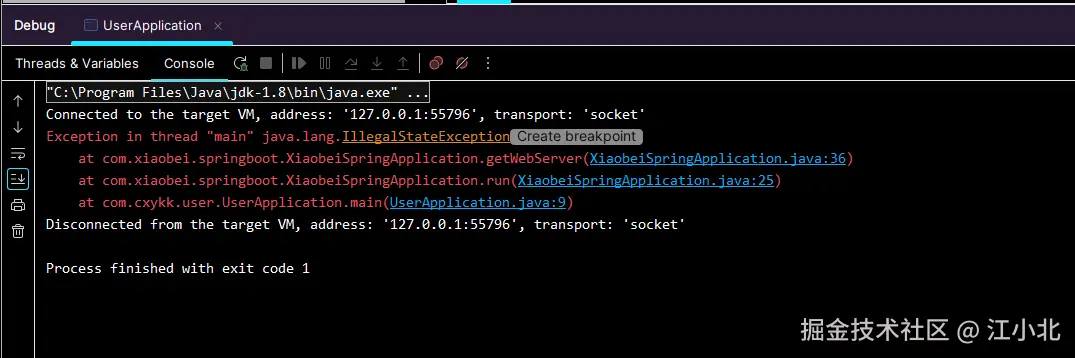

那么启动UserApplication就会报错:

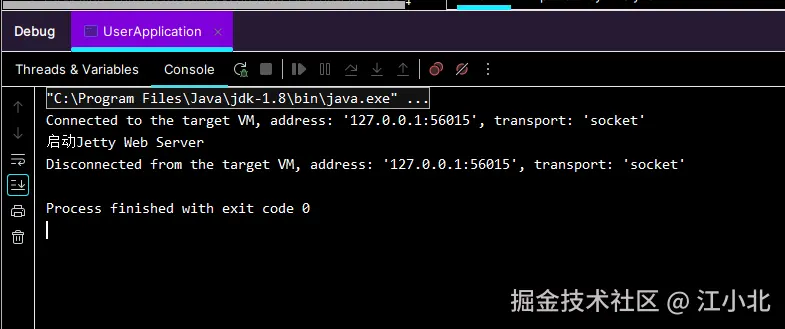

只有先排除到Tomcat的依赖,再添加Jetty的依赖才能启动Jetty:

<dependencies>
        <dependency>
            <groupId>org.cxykk</groupId>
            <artifactId>springboot</artifactId>
            <version>1.0-SNAPSHOT</version>
            <exclusions>
                <exclusion>
                    <groupId>org.apache.tomcat.embed</groupId>
                    <artifactId>tomcat-embed-core</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.eclipse.jetty</groupId>
            <artifactId>jetty-server</artifactId>
            <version>9.4.43.v20210629</version>
        </dependency>
    </dependencies>

注意:由于没有了Tomcat的依赖,记得把最开始写的startTomcat方法给注释掉,并删除掉相关依赖。

总结

到此,我们实现了一个简单版本的SpringBoot,因为SpringBoot首先是基于Spring的,而且提供的功能也更加强大,也希望大家都自己去实现一边,完整的代码地址:gitee.com/martinyun/x…
