Flutter的文字高度及行高简单计算

328 阅读1分钟

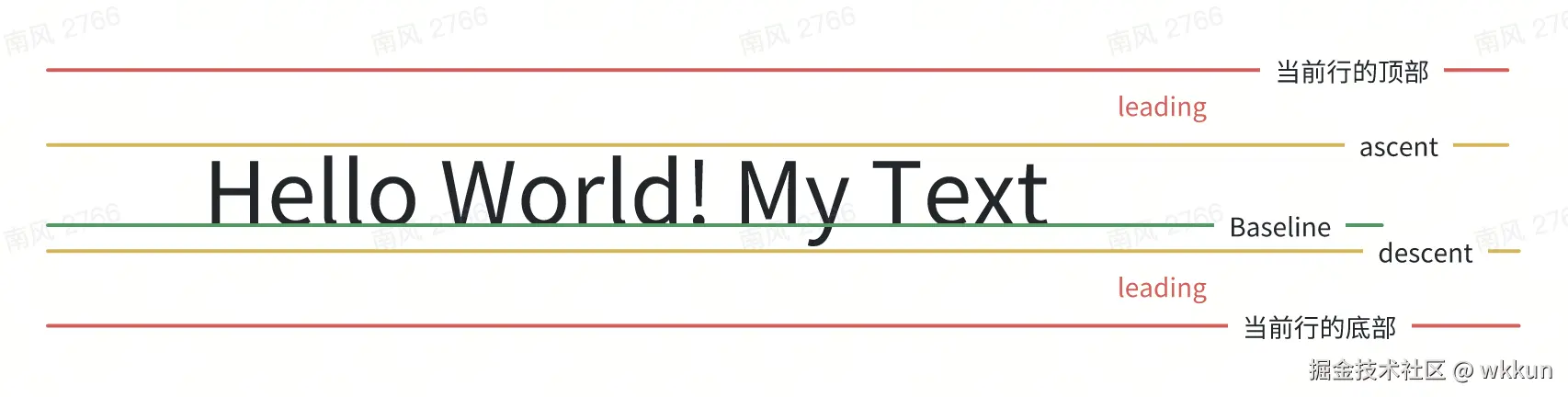

行高度简单示意图


以RichText为例,可以通过设置style以及strutStyle共同作用文字的样式,

一、其中当仅设置style时:

  1. 当height不为空

字体及行高 = fontSize*height

  1. 当height为空

字体及行高 取决于 字体的量度及其字体大小

如下为官网对height和行高关系的解释

 /// When [height] is null or omitted, the line height will be determined
/// by the font's metrics directly, which may differ from the fontSize.
/// When [height] is non-null, the line height of the span of text will be a
/// multiple of [fontSize] and be exactly `fontSize * height` logical pixels
/// tall.

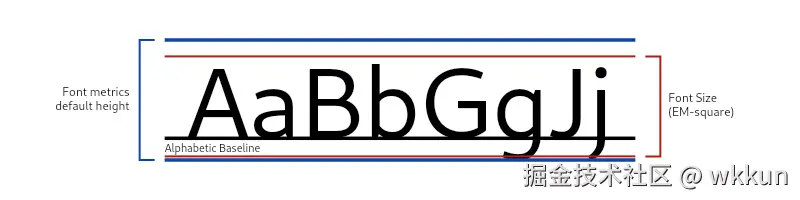

如下为字体规格和行高的关系示意图


如果此时设置字体的背景 则背景的高度和字体的高度及行高都一致

一、当仅设置strutStyle时:

flutter的struct概念可参考en.wikipedia.org 及 CSS的行高概念Visual formatting model details

它的作用可以简单的理解为在每一行开始的地方插入一个没有宽度 和strutStyle定义的高度相同的字符。如果text中的字符高度小于strutStyle的高度则以strutStyle高度为最终值,如果大于strutStyle的高度,则不受影响正常布局。strutStyle定义了行的最小高度,

但是若strutStyle定义forceStrutHeight为true,则所有的字符样式都使用strutStyle规定的高度

strutStyle的高度

计算公式为:

fontSize * height + fontSize * leading

参考:

api.flutter.dev/flutter/pai…

api.flutter.dev/flutter/pai…

en.wikipedia.org/wiki/Strut_…

www.w3.org/TR/CSS2/vis…
