本任务使用torch.nn.LSTM实现时序预测，火灾温度数据集采用CSV格式存储。重点在于构建torch框架实现时序预测任务。
- 🍨 本文为🔗365天深度学习训练营 中的学习记录博客
- 🍖 原作者：K同学啊
一. 数据预处理

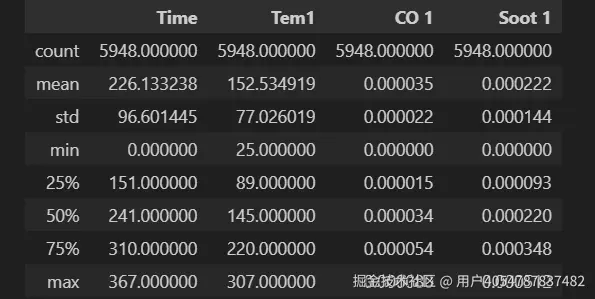

调用data.describe()查看数据统计特征：
data = pd.read_csv('woodpine2.csv')
data.describe()
共5948条时序数据，除时间戳外有三个变量。

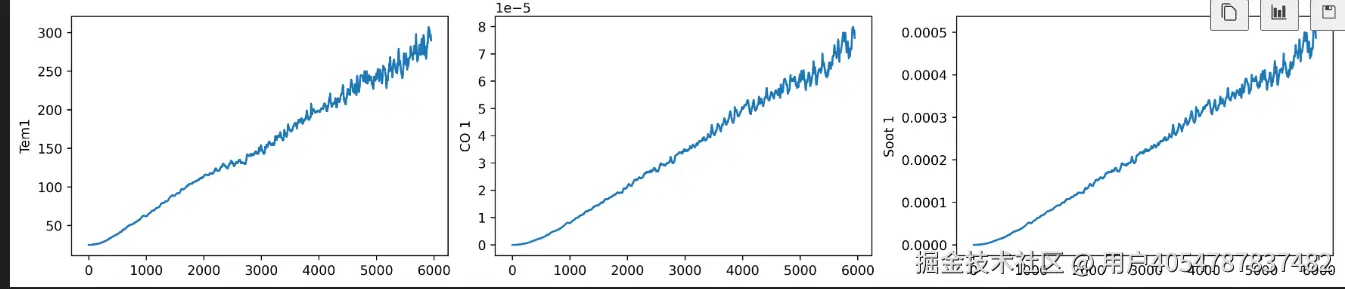

使用seaborn做数据可视化
import seaborn as sns
import matplotlib.pyplot as plt
# 调整欲保存图片像素
plt.rcParams['savefig.dpi'] = 500
# 调整加载图片分辨率
plt.rcParams['figure.dpi'] = 500
fig, ax = plt.subplots(1, 3, constrained_layout=True, figsize=(14, 3))
# 绘制三个变量关于时间的折线图
sns.lineplot(data=data['Tem1'], ax=ax[0])
sns.lineplot(data=data['CO 1'], ax=ax[1])
sns.lineplot(data=data['Soot 1'], ax=ax[2])
plt.show()
预处理方法通常采用MinmaxScaler，即把原始数据通过和最大值最小映射到某一范围上。或是StandardScaler把数据标准化，转化成均值为0，方差为1的正态分布。
from sklearn.preprocessing import MinMaxScaler
dataFrame = data.iloc[:, 1:]
print(dataFrame.shape)
scalar = MinMaxScaler() # 默认缩放到【0,1】
trained_data = scalar.fit_transform(dataFrame)
二. 构建dataloader
使用当前窗口内的数据预测下一时间步的数据，相应的dataloader如下。需要将ndarray数据转化成Tensor。
from torch.utils.data import TensorDataset, DataLoader
import numpy as np
import torch
from torch.utils.data import Dataset, DataLoader
class TimeSeriesDataset(Dataset):
def __init__(self, data, window_size=5):
"""
:param data: 输入的时序数据，维度为 (T, n)
:param window_size: 滑动窗口大小，默认值为5
"""
self.data = data
self.window_size = window_size
def __len__(self):
return len(self.data) - self.window_size
def __getitem__(self, idx):
x = self.data[idx:idx + self.window_size] # 窗口内的输入数据 (window_size, n)
y = self.data[idx + self.window_size] # 预测下一个时间步的数据 (n,)
return torch.tensor(x, dtype=torch.float32), torch.tensor(y, dtype=torch.float32)
data = torch.from_numpy(dataFrame)
# 创建数据集实例
window_size = 10 # 假设我们使用10个时间步的数据来预测下一个时间步
dataset = TimeSeriesDataset(data, window_size)
# 创建DataLoader
batch_size = 32
dataloader = DataLoader(dataset, batch_size=batch_size, shuffle=True)
# 测试DataLoader
for x_batch, y_batch in dataloader:
print(x_batch.shape) # (batch_size, window_size, n)
print(y_batch.shape) # (batch_size, n)
break
三. 模型搭建
使用torch构建一个LSTM+FC的结构并且测试跑通.
nn.LSTM输出包含两个部分：输出序列h_n（所有时间步的输出）和最后的隐藏状态c_n（只在最后一个时间步的输出)。h_n的形状是 (num_layers, batch_size, hidden_size)，我们取最后一层的输出作为FC层的输入。
class net(nn.Module):
def __init__(self, input_size, hidden_size, output_size, nums_layer):
super(net, self).__init__()
# LSTM层
self.lstm = nn.LSTM(input_size, hidden_size, num_layers, batch_first=True)
# 全连接层
self.fc = nn.Linear(hidden_size, output_size)
def forward(self, x):
lstm_out, (h_n, c_n) = self.lstm(x)
final_hidden_state = h_n[-1]
# 通过全连接层得到输出
output = self.fc(final_hidden_state)
return output
测试：
input_size = 3 # 每个时间步的特征数
hidden_size = 64 # LSTM隐藏层的大小
output_size = 1 # 预测的输出维度，假设是单一值
num_layers = 1 # LSTM的层数
device = torch.device('cuda:0')
# 创建模型
model = net(input_size, hidden_size, output_size, num_layers)
x = torch.randn(32, 10, 3)
output = model(x)
print(output.shape)
# torch.Size([32, 1])
四. 模型训练
踩过的坑：
- 使用notebook时coding时，尽量不要在原地覆盖，这样不好检查中间结果
- 回归任务使用MSE作为loss
训练函数:
def train(dataloader, model, loss_fn, optimizer, device, scheduler):
size = len(dataloader.dataset)
num_batches = len(dataloader)
train_loss = 0 # 初始化训练损失
for X, y in dataloader: # 获取输入数据和目标
X, y = X.to(device), y.to(device)
# 计算预测值
pred = model(X) # 网络输出
loss = loss_fn(pred, y) # 计算网络输出和真实值之间的损失
# 反向传播
optimizer.zero_grad() # 清空梯度
loss.backward() # 反向传播
optimizer.step() # 更新模型参数
# 累加损失
train_loss += loss.item()
scheduler.step()
# 计算平均损失
train_loss /= num_batches
return train_loss
测试函数：
def test(dataloader, model, loss_fn, device):
size = len(dataloader.dataset) # 测试集的大小
num_batches = len(dataloader) # 批次数目
test_loss = 0 # 初始化测试损失
# 当不进行训练时，停止梯度更新，节省计算资源
with torch.no_grad():
for X, y in dataloader:
X, y = X.to(device), y.to(device)
# 计算模型的预测
pred = model(X)
# 计算损失
loss = loss_fn(pred, y)
# 累加损失
test_loss += loss.item()
# 计算平均损失
test_loss /= num_batches
return test_loss
主函数
import torch.optim
model = net(input_size, hidden_size, output_size, num_layers)
device = torch.device('cuda:0' if torch.cuda.is_available() else 'cpu')
model = model.to(device)
loss_fn = nn.MSELoss()
learn_rate = 1e-2
opt = torch.optim.SGD(model.parameters(), lr=learn_rate)
scheduler = torch.optim.lr_scheduler.StepLR(opt, step_size=5, gamma=0.5)
epochs = 20
train_loss = []
test_loss = []
for epoch in range(epochs):
model.train()
epoch_train_loss = train(train_dl, model, loss_fn, opt, device, scheduler)
model.eval()
epoch_test_loss = test(test_dl, model, loss_fn, device)
train_loss.append(epoch_train_loss)
test_loss.append(epoch_test_loss)
template = ('Epoch:{:2d}, Train_loss:{:.3f}, Test_loss:{:.3f}')
print(template.format(epoch+1, epoch_train_loss, epoch_test_loss))
print('Done')

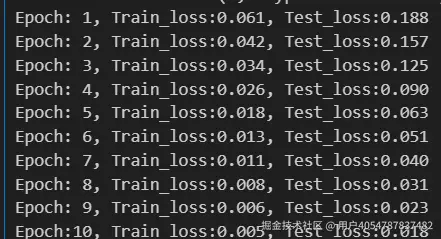

训练日志
