前端表格 vxe-table 使用 el- 渲染，集成 element-plus 组件库的使用分享

在公司开发大型项目中，使用主流表格库 vxe-table 和 element-plus 组件库，可以在可编辑单元格中渲染非常简单的使用更多的组件，分享公司中常用的几种渲染方式，也可以使用插槽模板

官网：vxetable.cn/
Gitee：gitee.com/x-extends/v…
Github：github.com/x-extends/v…

安装

npm install vxe-pc-ui@4.3.6 vxe-table@4.9.9 @vxe-ui/plugin-render-element@4.0.7

// ...
import VxeUI from 'vxe-pc-ui'
import 'vxe-pc-ui/lib/style.css'
import VxeUITable from 'vxe-table'
import 'vxe-table/lib/style.css'
import VxeUIPluginRenderElement from '@vxe-ui/plugin-render-element'
import '@vxe-ui/plugin-render-element/dist/style.css'
// ...

import ElementPlus from 'element-plus'
import 'element-plus/dist/index.css'

VxeUI.use(VxeUIPluginRenderElement)

createApp(App).use(VxeUI).use(VxeUITable).use(ElementPlus).mount('#app')

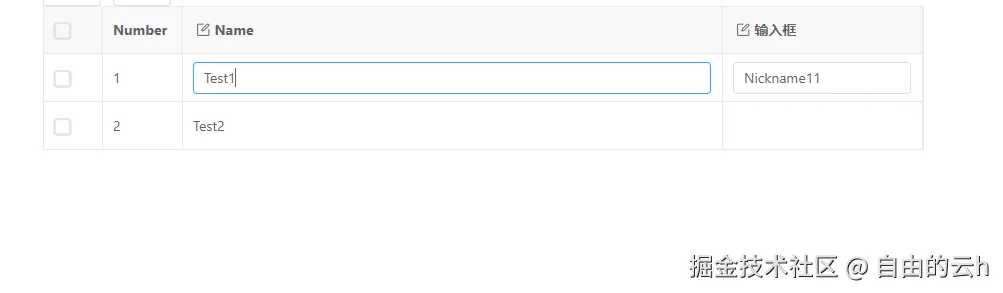

使用输入框 el-input

<template>
  <div>
    <vxe-grid ref="gridRef" v-bind="gridOptions"></vxe-grid>
  </div>
</template>

<script setup>
import { reactive, ref } from 'vue'

const gridRef = ref()

const gridOptions = reactive({
  border: true,
  showOverflow: true,
  keepSource: true,
  editConfig: {
    trigger: 'click',
    mode: 'row'
  },
  columns: [
    { type: 'checkbox', width: 60 },
    { type: 'seq', title: 'Number', width: 80 },
    { field: 'name', title: 'Name', minWidth: 140, editRender: { name: 'ElInput' } },
    { field: 'nickname', title: '输入框', width: 200, editRender: { name: 'ElInput' } }
  ],
  data: [
    { id: 10001, name: 'Test1', nickname: 'Nickname11' },
    { id: 10002, name: 'Test2', nickname: '' }
  ]
})
</script>

使用下拉框 el-select

<template>
  <div>
    <vxe-button @click="insertEvent">新增</vxe-button>
    <vxe-button @click="saveEvent">保存</vxe-button>

    <vxe-grid ref="gridRef" v-bind="gridOptions"></vxe-grid>
  </div>
</template>

<script setup>
import { reactive, ref } from 'vue'

const gridRef = ref()

const sexEditRender = reactive({
  name: 'ElSelect',
  options: [
    { label: '男', value: '1' },
    { label: '女', value: '0' }
  ]
})

const sexListEditRender = reactive({
  name: 'ElSelect',
  props: {
    multiple: true
  },
  options: [
    { label: '男', value: '1' },
    { label: '女', value: '0' }
  ]
})

const gridOptions = reactive({
  border: true,
  showOverflow: true,
  keepSource: true,
  editConfig: {
    trigger: 'click',
    mode: 'row'
  },
  columns: [
    { type: 'checkbox', width: 60 },
    { type: 'seq', title: 'Number', width: 80 },
    { field: 'name', title: 'Name', minWidth: 140, editRender: { name: 'ElInput' } },
    { field: 'sex', title: '下拉框', width: 200, editRender: sexEditRender },
    { field: 'sexList', title: '下拉框多选', width: 200, editRender: sexListEditRender }
  ],
  data: [
    { id: 10001, name: 'Test1', sex: '1', sexList: [] },
    { id: 10002, name: 'Test2', sex: '', sexList: ['0', '1'] }
  ]
})
</script>

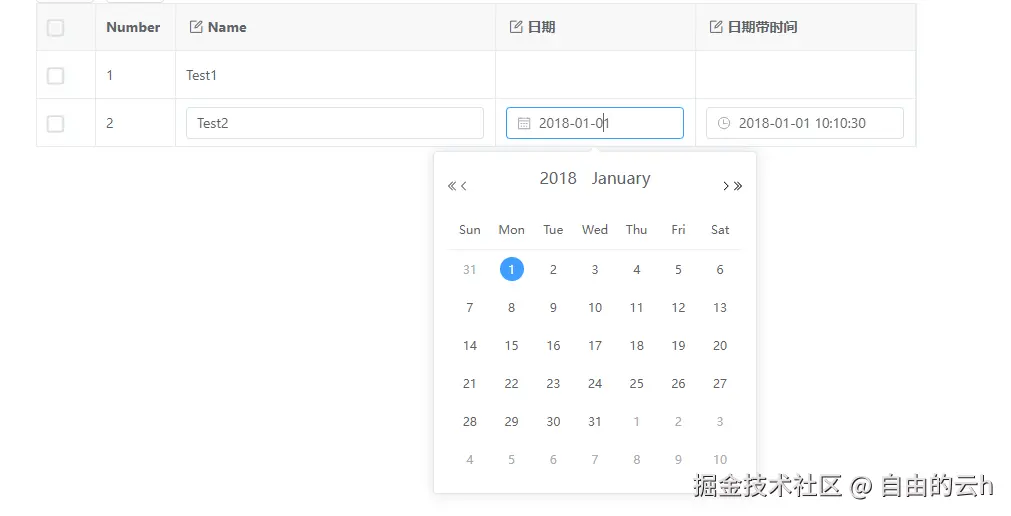

使用日期选择 el-date-picker

<template>
  <div>
    <vxe-button @click="insertEvent">新增</vxe-button>
    <vxe-button @click="saveEvent">保存</vxe-button>

    <vxe-grid ref="gridRef" v-bind="gridOptions"></vxe-grid>
  </div>
</template>

<script setup>
import { reactive, ref } from 'vue'

const gridRef = ref()

const gridOptions = reactive({
  border: true,
  showOverflow: true,
  keepSource: true,
  editConfig: {
    trigger: 'click',
    mode: 'row'
  },
  columns: [
    { type: 'checkbox', width: 60 },
    { type: 'seq', title: 'Number', width: 80 },
    { field: 'name', title: 'Name', minWidth: 140, editRender: { name: 'ElInput' } },
    { field: 'date1', title: '日期', width: 200, editRender: { name: 'ElDatePicker', props: { type: 'date', valueFormat: 'YYYY-MM-DD' } } },
    { field: 'date2', title: '日期带时间', width: 220, editRender: { name: 'ElDatePicker', props: { type: 'datetime', valueFormat: 'YYYY-MM-DD HH:mm:ss' } } }
  ],
  data: [
    { id: 10001, name: 'Test1', date1: '', date2: '' },
    { id: 10002, name: 'Test2', date1: '2018-01-01', date2: '2018-01-01 10:10:30' }
  ]
})
</script>

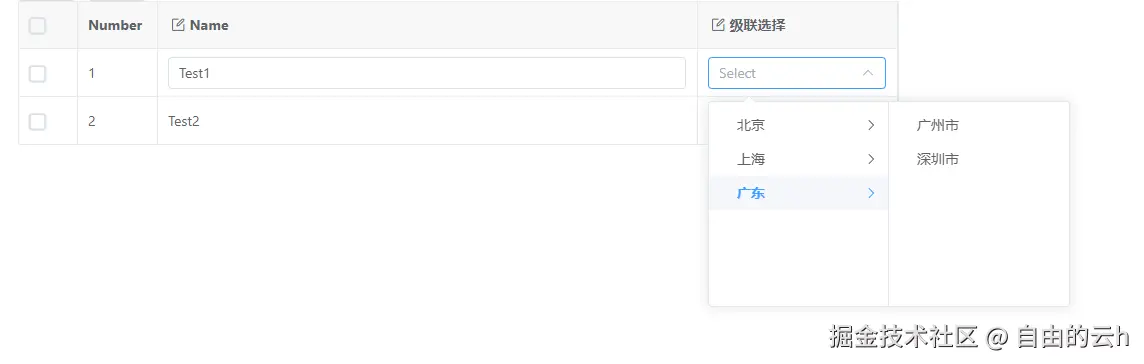

使用级联选择 el-cascader

<template>
  <div>
    <vxe-button @click="insertEvent">新增</vxe-button>
    <vxe-button @click="saveEvent">保存</vxe-button>

    <vxe-grid ref="gridRef" v-bind="gridOptions"></vxe-grid>
  </div>
</template>

<script setup>
import { reactive, ref } from 'vue'

const gridRef = ref()

const regionList = [
  {
    label: '北京',
    value: 1,
    children: [
      { value: 3, label: '东城区' },
      { value: 4, label: '西城区' }
    ]
  },
  {
    label: '上海',
    value: 21,
    children: [
      { value: 23, label: '黄浦区' },
      { value: 24, label: '卢湾区' }
    ]
  },
  {
    label: '广东',
    value: 42,
    children: [
      { value: 43, label: '广州市' },
      { value: 67, label: '深圳市' }
    ]
  }
]

const regionEditRender = reactive({
  name: 'ElCascader',
  props: {
    options: regionList
  }
})

const gridOptions = reactive({
  border: true,
  showOverflow: true,
  keepSource: true,
  editConfig: {
    trigger: 'click',
    mode: 'row'
  },
  columns: [
    { type: 'checkbox', width: 60 },
    { type: 'seq', title: 'Number', width: 80 },
    { field: 'name', title: 'Name', minWidth: 140, editRender: { name: 'ElInput' } },
    { field: 'region', title: '级联选择', width: 200, editRender: regionEditRender }
  ],
  data: [
    { id: 10001, name: 'Test1', region: [] },
    { id: 10002, name: 'Test2', region: [21, 24] }
  ]
})
</script>

功能太多了，具体需要去看官网文档了

gitee.com/xuliangzhan…
