Spring Data Neo4j实现知识图谱的效果
快速集成
Docker部署neo4j：
version: '3.8'
services:
neo4j:
image: neo4j
container_name: neo4j
restart: always
ports:
- "7474:7474"
- "7687:7687"
volumes:
- ./data:/data
- ./plugins:/plugins
environment:
- NEO4J_apoc_export_file_enabled=true
- NEO4J_apoc_import_file_enabled=true
- NEO4J_apoc_import_file_use__neo4j__config=true
- NEO4JLABS_PLUGINS=["apoc"]
- NEO4J_dbms_security_procedures_unrestricted=apoc.*
SpringBoot中使用neo4j,添加依赖：
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-neo4j</artifactId>
</dependency>
导入neo4j配置信息：
# Neo4j
spring.neo4j.uri=neo4j://localhost:7687
spring.neo4j.authentication.username=neo4j
spring.neo4j.authentication.password=xxx
实体关系定义
@Node注解：这个注解标识一个类作为Neo4j数据库中的一个节点实体。在Neo4j中，节点通常表示一个实体对象，每个节点可以有属性和关系。@Id：该注解标识一个字段为节点的唯一标识符，类似于数据库中的主键。Neo4j中的每个节点都可以有一个唯一的标识符，用来区分不同的节点。@GeneratedValue表示这个ID会自动生成，通常是在插入节点时由Neo4j自动生成。@Property：这个注解用于将类中的字段映射到Neo4j节点的属性。它指定了该字段在Neo4j节点中的属性名。@Relationship注解用来定义Neo4j节点之间的关系。它描述了当前节点与其他节点的关系类型和方向。
type：指定关系的类型，在这里是scope，表示该关系的名称。
direction：指定关系的方向。Relationship.Direction.OUTGOING表示当前节点到目标节点的方向，Relationship.Direction.INCOMING表示目标节点到当前节点的方向。OUTGOING表示从当前节点指向其他节点。
例子：
/**
* 创作一个对应 KnowledgeEntity 实体对象 -> 对应我们 Neo4j数据库中的 Node 对象
*/
@Data
@Node("KnowledgePoint")
public class KnowledgePointNode {
@GeneratedValue
@Id
private Long id;
@Property("name")
private String name;
@Property("description")
private String description;
@Relationship(type = "scope", direction = Relationship.Direction.OUTGOING)
private ScopeNode scopeNode;
@Data
@Node("scope")
@AllArgsConstructor(staticName = "of")
public static class ScopeNode {
@Property("name")
@Id
private String name;
}
}
存储层实现
@Repository 是Spring的一个标记注解，表示该接口是一个数据访问层的接口，负责与数据库进行交互。在Spring容器中，@Repository 注解的类会被自动扫描和注册为一个Bean
Neo4jRepository是Spring Data Neo4j提供的一个接口，类似于Spring Data JPA中的JpaRepository。通过继承 Neo4jRepository，你可以直接使用其提供的一些标准方法（如保存、删除、查询等），同时也能通过自定义查询来执行复杂的Cypher查询。
@Query 注解允许你使用Cypher查询语言直接编写自定义查询，而不需要依赖Spring Data Neo4j的自动查询解析机制。
@Param 注解用于将方法参数传递给查询中的占位符（如 $name）。通过 MATCH, WHERE, RETURN 等Cypher语法，可以构建强大的查询来从Neo4j数据库中检索数据。
@Repository
public interface KnowledgePointRepository extends Neo4jRepository<KnowledgePointNode, Long> {
@Query("MATCH (kp:KnowledgePoint)-[:grade]->(g:grade) WHERE g.name = $gradeName RETURN kp")
List<KnowledgePointNode> findByGrade(@Param("gradeName") String gradeName);
@Query("MATCH (n:KnowledgePointNode) WHERE n.name CONTAINS $name RETURN n")
List<KnowledgePointNode> findByNameContainingCypher(String name);
@Query("MATCH (n) <-[r]->(m) where n.name contains($name) return 10")
List<KnowledgePointNode> findByName(String name);
}
查询关联节点
上面的存储层我用起来不是特别方便，所以去网站找了个工具了，可以查询一个节点的相关节点以及边。
查询请求实体：
@Data
public class GraphQuery {
private String nodeName;
private int pageSize = 10;
public String toCypher() {
String cypher = "";
if (StringUtils.isNotEmpty(nodeName)) {
cypher = "MATCH (n) <-[r]->(m) where n.name contains('" + nodeName + "') return * limit " + pageSize;
} else {
cypher = "MATCH (n) <-[r]->(m) return * limit " + pageSize;
}
return cypher;
}
}
工具类：
功能就是去执行cypherSql，得到对应的节点和关系
public HashMap<String, Object> getGraphNodeAndShip(String cypherSql) {
HashMap<String, Object> mo = new HashMap<>();
try (Session session = neo4jDriver.session()) {
Result result = session.run(cypherSql); // 使用 session.run 执行查询
List<HashMap<String, Object>> ents = new ArrayList<>();
List<HashMap<String, Object>> ships = new ArrayList<>();
List<String> uuids = new ArrayList<>();
List<String> shipids = new ArrayList<>();
// 逐条遍历结果
while (result.hasNext()) {
Record recordItem = result.next(); // 获取每一条记录
List<Pair<String, Value>> fields = recordItem.fields();
for (Pair<String, Value> pair : fields) {
HashMap<String, Object> rships = new HashMap<>();
HashMap<String, Object> rss = new HashMap<>();
String typeName = pair.value().type().name();
if ("NULL".equals(typeName)) {
} else if ("NODE".equals(typeName)) {
Node neo4jNode = pair.value().asNode();
Map<String, Object> map = neo4jNode.asMap();
String uuid = String.valueOf(neo4jNode.id());
if (!uuids.contains(uuid)) {
for (Entry<String, Object> entry : map.entrySet()) {
String key = entry.getKey();
rss.put(key, entry.getValue());
}
rss.put("uuid", uuid);
uuids.add(uuid);
}
if (!rss.isEmpty()) {
ents.add(rss);
}
} else if ("RELATIONSHIP".equals(typeName)) {
Relationship rship = pair.value().asRelationship();
String uuid = String.valueOf(rship.id());
if (!shipids.contains(uuid)) {
String sourceid = String.valueOf(rship.startNodeId());
String targetid = String.valueOf(rship.endNodeId());
Map<String, Object> map = rship.asMap();
for (Entry<String, Object> entry : map.entrySet()) {
String key = entry.getKey();
rships.put(key, entry.getValue());
}
rships.put("uuid", uuid);
rships.put("sourceid", sourceid);
rships.put("targetid", targetid);
shipids.add(uuid);
ships.add(rships);
}
} else if ("PATH".equals(typeName)) {
Path path = pair.value().asPath();
Map<String, Object> startNodemap = path.start().asMap();
String startNodeuuid = String.valueOf(path.start().id());
if (!uuids.contains(startNodeuuid)) {
rss = new HashMap<String, Object>();
for (Entry<String, Object> entry : startNodemap.entrySet()) {
String key = entry.getKey();
rss.put(key, entry.getValue());
}
rss.put("uuid", startNodeuuid);
uuids.add(startNodeuuid);
ents.add(rss);
}
Map<String, Object> endNodemap = path.end().asMap();
String endNodeuuid = String.valueOf(path.end().id());
if (!uuids.contains(endNodeuuid)) {
rss = new HashMap<String, Object>();
for (Entry<String, Object> entry : endNodemap.entrySet()) {
String key = entry.getKey();
rss.put(key, entry.getValue());
}
rss.put("uuid", endNodeuuid);
uuids.add(endNodeuuid);
ents.add(rss);
}
for (Node next : path.nodes()) {
String uuid = String.valueOf(next.id());
if (!uuids.contains(uuid)) {
rss = new HashMap<String, Object>();
Map<String, Object> map = next.asMap();
for (Entry<String, Object> entry : map.entrySet()) {
String key = entry.getKey();
rss.put(key, entry.getValue());
}
rss.put("uuid", uuid);
uuids.add(uuid);
ents.add(rss);
}
}
for (Relationship next : path.relationships()) {
String uuid = String.valueOf(next.id());
if (!shipids.contains(uuid)) {
rships = new HashMap<String, Object>();
String sourceid = String.valueOf(next.startNodeId());
String targetid = String.valueOf(next.endNodeId());
Map<String, Object> map = next.asMap();
for (Entry<String, Object> entry : map.entrySet()) {
String key = entry.getKey();
rships.put(key, entry.getValue());
}
rships.put("uuid", uuid);
rships.put("sourceid", sourceid);
rships.put("targetid", targetid);
shipids.add(uuid);
ships.add(rships);
}
}
} else if (typeName.contains("LIST")) {
Iterable<Value> values = pair.value().values();
Value next = values.iterator().next();
String type = next.type().name();
if ("RELATIONSHIP".equals(type)) {
Relationship rship = next.asRelationship();
String uuid = String.valueOf(rship.id());
if (!shipids.contains(uuid)) {
String sourceid = String.valueOf(rship.startNodeId());
String targetid = String.valueOf(rship.endNodeId());
Map<String, Object> map = rship.asMap();
for (Entry<String, Object> entry : map.entrySet()) {
String key = entry.getKey();
rships.put(key, entry.getValue());
}
rships.put("uuid", uuid);
rships.put("sourceid", sourceid);
rships.put("targetid", targetid);
shipids.add(uuid);
ships.add(rships);
}
}
} else if (typeName.contains("MAP")) {
rss.put(pair.key(), pair.value().asMap());
} else {
rss.put(pair.key(), pair.value().toString());
ents.add(rss);
}
}
}
mo.put("node", ents);
mo.put("relationship", ships);
} catch (Exception e) {
throw new RuntimeException("执行Cypher查询异常", e);
}
return mo;
}
前端实现
前端使用React+vis-network来实现知识图谱的效果，
官网：visjs.github.io/vis-network…

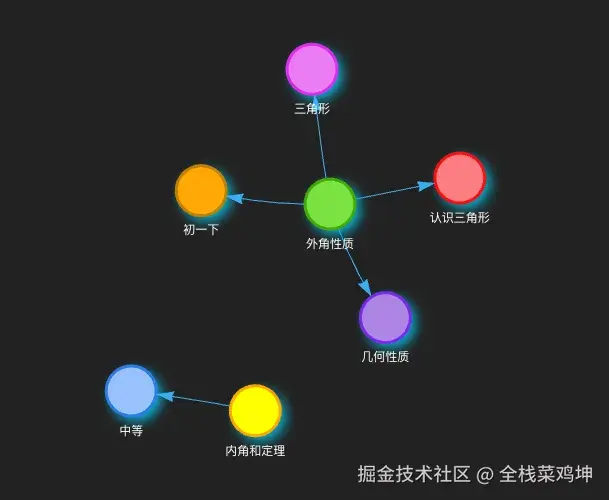

实现的效果：
首先是展示整个图谱的容器div
<div ref={networkContainerRef} id="mynetwork" style={{
width: "80%",
height: "80vh",
border: "1px solid #444444",
backgroundColor: '#222222'
}}/>
我们使用networkContainerRef可以方便的去操作这个Dom
初始化的时候去加载所有的数据
const getDataFromServer = async (nodeName = "", pageSize = 10) => {
const res = await getDomainGraph({
nodeName: nodeName,
pageSize: pageSize
})
if (res.code === 0) {
const node = res.data.node;
const relationship = res.data.relationship;
console.log("node", node)
console.log("relationship", relationship)
return {
vertices: node,
edges: relationship
}
}
}
拿到对应的节点和边的关系
接着去执行绘图的操作：
const drawGraph = (vertices, edges) => {
addNode(vertices);
addEdge(edges);
const data = {
nodes: graphNodes.current,
edges: graphEdges.current
}
const network = new Network(networkContainerRef.current as any, data, options);
network.on('doubleClick', (params) => doubleClick(params))
network.on('click', (params) => leftClick(params))
network.on('oncontext', (params) => rightClick(params))
}
我想要实现双击节点，可以查询到新的关于这个节点的信息，相邻节点以及边的关系，那么每次添加节点的时候，都需要去做一个去重的操作
const addNode = (vertices: any[]) => {
console.log("vertices", vertices)
vertices?.forEach((vertex) => {
if (!graphNodes.current.get(vertex.uuid)) {
graphNodes.current.add({
id: vertex.uuid,
label: vertex.name,
group: vertex.name,
vertex: vertex,
} as any);
}
});
};
const addEdge = (edges: any[]) => {
edges?.forEach((edge) => {
if (!graphEdges.current.get(edge.uuid)) {
graphEdges.current.add({
id: edge.uuid,
from: edge.sourceid,
to: edge.targetid,
edge: edge,
} as any);
}
});
};
其他的一些变量：
const options = {
autoResize: true,
width: '100%',
interaction: {
hover: true,
navigationButtons: true,
zoomView: true
},
nodes: {
font: {
color: "#fff",
face: "arial",
size: 12,
},
shape: 'dot',
color: {
background: '#00ccff',
border: '#00ccff',
highlight: {background: '#fb6a02', border: '#fb6a02'},
hover: {background: '#ec3112', border: '#ec3112'}
},
borderWidth: 3,
shadow: {
enabled: true,
color: 'rgba(1, 187, 223, 1)',
size: 12,
},
},
edges: {
arrows: 'to',
color: {color: "#39ADF1"},
smooth: {
type: 'dynamic'
},
},
physics: {
maxVelocity: 50,
solver: 'barnesHut',
timestep: 0.3,
stabilization: {iterations: 150}
}
}
const graphNodes = useRef(new DataSet());
const graphEdges = useRef(new DataSet());
