官网：vxetable.cn/
Gitee：gitee.com/x-extends/v…
Github：github.com/x-extends/v…

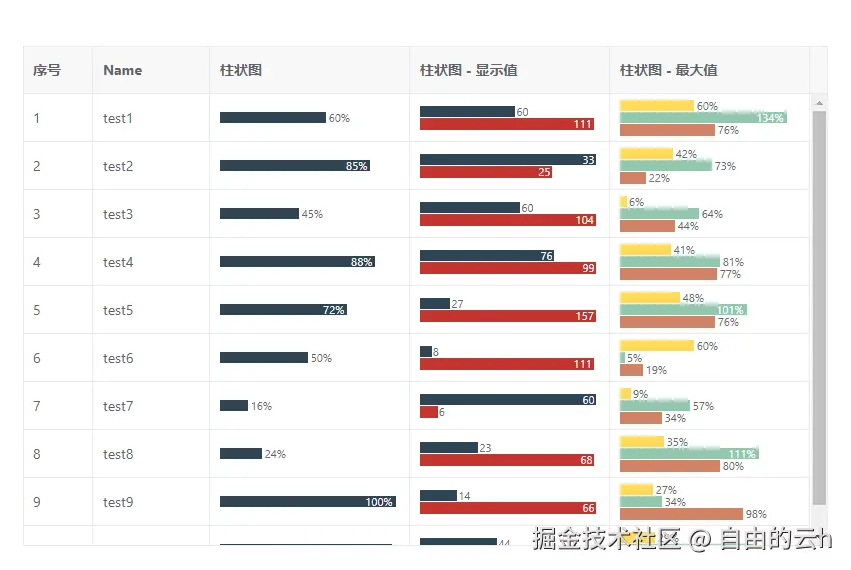

轻量级图表，超高性能的在表格中渲染柱状图，即使是渲染上万条数据单元格图表，也是非常流畅的。
npm install vxe-pc-ui@4.3.6 vxe-table@4.9.8 @vxe-ui/plugin-render-chart@4.0.1
// ...
import { VxeUI } from 'vxe-pc-ui'
import VxeUIPluginRenderChart from '@vxe-ui/plugin-render-chart'
import '@vxe-ui/plugin-render-chart/dist/style.css'
// ...
VxeUI.use(VxeUIPluginRenderChart)
<template>
<div>
<vxe-grid v-bind="gridOptions"></vxe-grid>
</div>
</template>
<script>
export default {
data () {
return {
gridOptions: {
border: true,
showOverflow: true,
height: 500,
columnConfig: {
resizable: true
},
columns: [
{ type: 'seq', width: 70 },
{ field: 'name', title: 'Name' },
{
field: 'num10',
title: '柱状图',
width: 200,
cellRender: {
name: 'bar',
props: {
bar: {
max: 100
},
label: {
formatter: '{value}%'
}
}
}
},
{
field: 'num11',
title: '柱状图 - 显示值',
width: 200,
cellRender: {
name: 'bar',
props: {
label: {
formatter: '{value}'
}
}
}
},
{
field: 'num12',
title: '柱状图 - 最大值',
width: 200,
cellRender: {
name: 'bar',
props: {
bar: {
max: 140
},
colors: ['#FFDB5C', '#91C7AE', '#D48265'],
tooltip: {
formatter: '值：{value}%'
},
label: {
formatter: '{value}%'
}
}
}
}
],
data: [
{ id: 101, name: 'test1', num10: [60], num11: [60, 111], num12: [60, 134, 76] },
{ id: 102, name: 'test2', num10: [85], num11: [33, 25], num12: [42, 73, 22] },
{ id: 103, name: 'test3', num10: [45], num11: [60, 104], num12: [6, 64, 44] },
{ id: 104, name: 'test4', num10: [88], num11: [76, 99], num12: [41, 81, 77] },
{ id: 105, name: 'test5', num10: [72], num11: [27, 157], num12: [48, 101, 76] },
{ id: 106, name: 'test6', num10: [50], num11: [8, 111], num12: [60, 5, 19] },
{ id: 107, name: 'test7', num10: [16], num11: [60, 6], num12: [9, 57, 34] },
{ id: 108, name: 'test8', num10: [24], num11: [23, 68], num12: [35, 111, 80] },
{ id: 109, name: 'test9', num10: [100], num11: [14, 66], num12: [27, 34, 98] },
{ id: 1010, name: 'test10', num10: [98], num11: [44, 98], num12: [29, 107, 127] }
]
}
}
}
}
</script>
