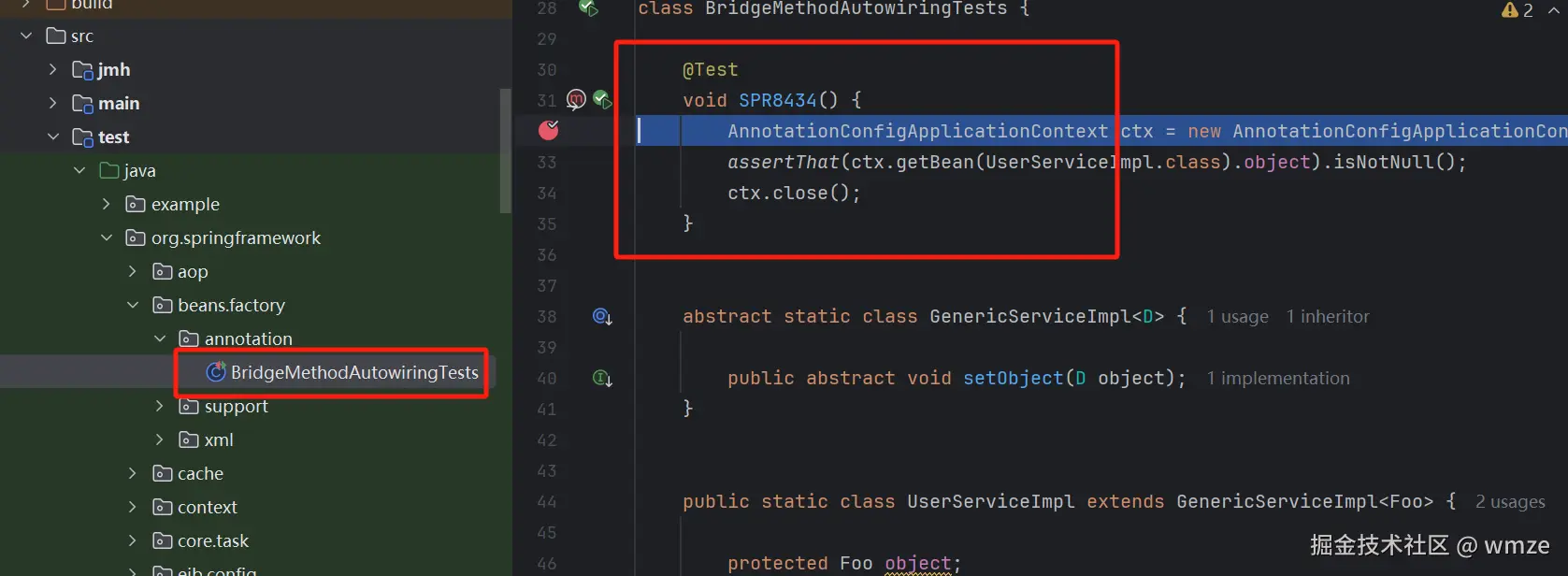

测试入口
用源码里的测试接口
@Test
void SPR8434() {
AnnotationConfigApplicationContext ctx = new AnnotationConfigApplicationContext(UserServiceImpl.class, Foo.class);
assertThat(ctx.getBean(UserServiceImpl.class).object).isNotNull();
ctx.close();
}
AnnotationConfigApplicationContext
AnnotationConfigApplicationContext ctx = new AnnotationConfigApplicationContext(UserServiceImpl.class, Foo.class)进入构造方法
public AnnotationConfigApplicationContext(Class<?>... componentClasses) {
this();
register(componentClasses);
refresh();
}
this()
public AnnotationConfigApplicationContext() {
StartupStep createAnnotatedBeanDefReader = getApplicationStartup().start("spring.context.annotated-bean-reader.create");
this.reader = new AnnotatedBeanDefinitionReader(this);
createAnnotatedBeanDefReader.end();
this.scanner = new ClassPathBeanDefinitionScanner(this);
}
- 3行，创建一个注解的BeanDefiniton读取器
- 5行，创建一个Bean的扫描器
register(componentClasses);
public void register(Class<?>... componentClasses) {
Assert.notEmpty(componentClasses, "At least one component class must be specified");
StartupStep registerComponentClass = getApplicationStartup().start("spring.context.component-classes.register")
.tag("classes", () -> Arrays.toString(componentClasses));
this.reader.register(componentClasses);
registerComponentClass.end();
}
第5行进入 register 方法 注册一个或多个要处理的组件类。
public void register(Class<?>... componentClasses) {
for (Class<?> componentClass : componentClasses) {
registerBean(componentClass);
}
}
registerBean(componentClass)
public void registerBean(Class<?> beanClass) {
doRegisterBean(beanClass, null, null, null, null);
}
doRegisterBean(beanClass, null, null, null, null)
private <T> void doRegisterBean(Class<T> beanClass, @Nullable String name,
@Nullable Class<? extends Annotation>[] qualifiers, @Nullable Supplier<T> supplier,
@Nullable BeanDefinitionCustomizer[] customizers) {
AnnotatedGenericBeanDefinition abd = new AnnotatedGenericBeanDefinition(beanClass);
if (this.conditionEvaluator.shouldSkip(abd.getMetadata())) {
return;
}
abd.setAttribute(ConfigurationClassUtils.CANDIDATE_ATTRIBUTE, Boolean.TRUE);
abd.setInstanceSupplier(supplier);
ScopeMetadata scopeMetadata = this.scopeMetadataResolver.resolveScopeMetadata(abd);
abd.setScope(scopeMetadata.getScopeName());
String beanName = (name != null ? name : this.beanNameGenerator.generateBeanName(abd, this.registry));
AnnotationConfigUtils.processCommonDefinitionAnnotations(abd);
if (qualifiers != null) {
for (Class<? extends Annotation> qualifier : qualifiers) {
if (Primary.class == qualifier) {
abd.setPrimary(true);
}
else if (Lazy.class == qualifier) {
abd.setLazyInit(true);
}
else {
abd.addQualifier(new AutowireCandidateQualifier(qualifier));
}
}
}
if (customizers != null) {
for (BeanDefinitionCustomizer customizer : customizers) {
customizer.customize(abd);
}
}
BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(abd, beanName);
definitionHolder = AnnotationConfigUtils.applyScopedProxyMode(scopeMetadata, definitionHolder, this.registry);
BeanDefinitionReaderUtils.registerBeanDefinition(definitionHolder, this.registry);
}
- 5行，将bean包装成AnnotatedGenericBeanDefinition
- 6行，判断是否需要跳过处理，@Conditional注解的一些匹配
- 10行，当设置为BooleanTRUE时，此属性表示默认情况下，在“lite”模式下
- 11行，指定用于创建 Bean 实例的回调，作为声明性指定的工厂方法的替代方法，如果设置了这样的回调，它将覆盖任何其他构造函数或工厂方法元数据。但是，bean 属性填充和潜在的注释驱动注入仍将照常应用。
- 13行，设置作用域singleton
- 14行，获取bean 名称
- 36行，包装成BeanDefinitionHolder
- 37行，判断是否需要创建代理
- 38行，注册BeanDefinition
BeanDefinitionReaderUtils.registerBeanDefinition(definitionHolder, this.registry);
public static void registerBeanDefinition(
BeanDefinitionHolder definitionHolder, BeanDefinitionRegistry registry)
throws BeanDefinitionStoreException {
// Register bean definition under primary name.
String beanName = definitionHolder.getBeanName();
registry.registerBeanDefinition(beanName, definitionHolder.getBeanDefinition());
// Register aliases for bean name, if any.
String[] aliases = definitionHolder.getAliases();
if (aliases != null) {
for (String alias : aliases) {
registry.registerAlias(beanName, alias);
}
}
}
7行进入
@Override
public void registerBeanDefinition(String beanName, BeanDefinition beanDefinition)
throws BeanDefinitionStoreException {
Assert.hasText(beanName, "Bean name must not be empty");
Assert.notNull(beanDefinition, "BeanDefinition must not be null");
if (beanDefinition instanceof AbstractBeanDefinition abd) {
try {
abd.validate();
}
catch (BeanDefinitionValidationException ex) {
throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName,
"Validation of bean definition failed", ex);
}
}
BeanDefinition existingDefinition = this.beanDefinitionMap.get(beanName);
if (existingDefinition != null) {
if (!isBeanDefinitionOverridable(beanName)) {
throw new BeanDefinitionOverrideException(beanName, beanDefinition, existingDefinition);
}
else if (existingDefinition.getRole() < beanDefinition.getRole()) {
// e.g. was ROLE_APPLICATION, now overriding with ROLE_SUPPORT or ROLE_INFRASTRUCTURE
if (logger.isInfoEnabled()) {
logger.info("Overriding user-defined bean definition for bean '" + beanName +
"' with a framework-generated bean definition: replacing [" +
existingDefinition + "] with [" + beanDefinition + "]");
}
}
else if (!beanDefinition.equals(existingDefinition)) {
if (logger.isDebugEnabled()) {
logger.debug("Overriding bean definition for bean '" + beanName +
"' with a different definition: replacing [" + existingDefinition +
"] with [" + beanDefinition + "]");
}
}
else {
if (logger.isTraceEnabled()) {
logger.trace("Overriding bean definition for bean '" + beanName +
"' with an equivalent definition: replacing [" + existingDefinition +
"] with [" + beanDefinition + "]");
}
}
this.beanDefinitionMap.put(beanName, beanDefinition);
}
else {
if (isAlias(beanName)) {
String aliasedName = canonicalName(beanName);
if (!isBeanDefinitionOverridable(aliasedName)) {
if (containsBeanDefinition(aliasedName)) { // alias for existing bean definition
throw new BeanDefinitionOverrideException(
beanName, beanDefinition, getBeanDefinition(aliasedName));
}
else { // alias pointing to non-existing bean definition
throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName,
"Cannot register bean definition for bean '" + beanName +
"' since there is already an alias for bean '" + aliasedName + "' bound.");
}
}
else {
removeAlias(beanName);
}
}
if (hasBeanCreationStarted()) {
// Cannot modify startup-time collection elements anymore (for stable iteration)
synchronized (this.beanDefinitionMap) {
this.beanDefinitionMap.put(beanName, beanDefinition);
List<String> updatedDefinitions = new ArrayList<>(this.beanDefinitionNames.size() + 1);
updatedDefinitions.addAll(this.beanDefinitionNames);
updatedDefinitions.add(beanName);
this.beanDefinitionNames = updatedDefinitions;
removeManualSingletonName(beanName);
}
}
else {
// Still in startup registration phase
this.beanDefinitionMap.put(beanName, beanDefinition);
this.beanDefinitionNames.add(beanName);
removeManualSingletonName(beanName);
}
this.frozenBeanDefinitionNames = null;
}
if (existingDefinition != null || containsSingleton(beanName)) {
resetBeanDefinition(beanName);
}
else if (isConfigurationFrozen()) {
clearByTypeCache();
}
}
- 78行，放入DefaultListableBeanFactory 的private final Map<String, BeanDefinition> beanDefinitionMap = new ConcurrentHashMap<>(256)中
- 79行，放入DefaultListableBeanFactory的private volatile List beanDefinitionNames = new ArrayList<>(256)中
- 注解方式将Bean解析为BeanDefinition并加载到工厂中结束。
