Thrift 02 | Spring 整合Thrift

本篇主要介绍的是Spring与Thrift简单整合，将Thrift Bean的生命周期托管给Spring进行管理，更贴近实际工程使用。仍然是分为服务端与客户端部分。

客户端

工程结构如下

客户端主要分为两个部分

1. 注册Thrfit Bean到Spring

2. 访问服务端

Bean注册

下面注册了一个自定义的UserThriftService，这个是在Server端定义

import ltd.klein.thrift.server.api.iface.UserThriftService;
import org.apache.thrift.protocol.TBinaryProtocol;
import org.apache.thrift.transport.TSocket;
import org.apache.thrift.transport.TTransport;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public  class ThriftConfig  {

@Bean
   public UserThriftService.Client userServiceClient  ()   throws Exception  {
TTransport transport = new TSocket  (  "localhost" , 9001  )  ;
      transport.open  ()  ;

      TBinaryProtocol protocol = new TBinaryProtocol  (  transport  )  ;
      return  new UserThriftService.Client  (  protocol  )  ;
    }
 }

服务调用

通过注册的Bean访问远程User服务，注意如果返回为空会抛异常

import ltd.klein.thrift.server.api.iface.UserThriftService;
import ltd.klein.thrift.server.api.param.User;
import org.apache.thrift.TException;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

@RestController
@RequestMapping  (  "/user"  )
public  class UserController  {

@Resource
   private UserThriftService.Client userServiceClient;

   @GetMapping  (  "/{id}"  )
 public User findUserById  (  @PathVariable int id  )   {
 try   {
 return userServiceClient.findUser  (  id  )  ; // org.apache.thrift.TApplicationException: findUser failed: unknown result
  }  catch   (  TException e  ) {
e.printStackTrace  ()  ;
         return  null;
       }
 }
 }

服务端

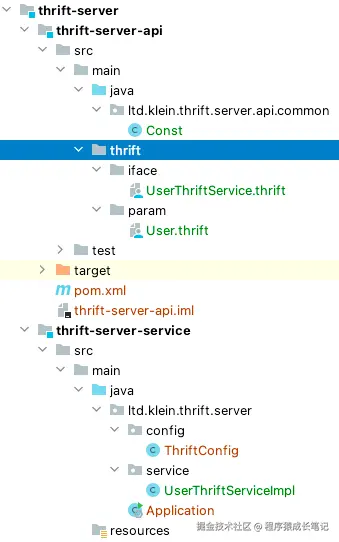

服务端的工程结构如下。拆分了api和service两个model，其中api中定义了请求参数、接口等idl，客户端通过maven将其引入。service中将服务注册为Bean，并实现了具体业务逻辑。

IDL

UserThriftService

namespace java ltd.klein.thrift.server.api.iface

include '../param/User.thrift'

service UserThriftService  {

User.User findUser  (  1:i32 id  )  ;
 }

User

namespace java ltd.klein.thrift.server.api.param

struct User  {
1: string name;
    2: i32 id;
 }

Bean注册

import ltd.klein.thrift.server.api.iface.UserThriftService;
import org.apache.thrift.TProcessor;
import org.apache.thrift.protocol.TBinaryProtocol;
import org.apache.thrift.server.TServer;
import org.apache.thrift.server.TSimpleServer;
import org.apache.thrift.transport.TServerSocket;
import org.apache.thrift.transport.TServerTransport;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.annotation.Resource;

/**
*  @author  Klein
*  @date  2024-10-20 20:22
*/
@Configuration
public  class ThriftConfig  {

@Resource
   private UserThriftService.Iface userThriftService;

   @Bean  (  initMethod = "serve" , destroyMethod = "stop"  )
 public TServer thriftServer  ()   {
 try   {
TProcessor processor = new UserThriftService.Processor  <>(  userThriftService  )  ;
         TServerTransport serverTransport = new TServerSocket  (  9001  )  ;
         TServer server = new TSimpleServer  (  new TServer.Args  (  serverTransport  )  .processor  (  processor  )  .protocolFactory  (  new TBinaryProtocol.Factory  ()))  ;
         return server;
       }  catch   (  Exception e  ) {
 throw  new RuntimeException  (  e  )  ;
       }
 }

 }

服务端实现

业务实现不是本期重点，这里仅简单介绍

实现类实现UserThriftService.Iface(IDL编译后生成)

@Service
public  class UserThriftServiceImpl implements UserThriftService.Iface  {

@Override
   public User findUser  (  int id  )   throws TException  {
 if   (  id == 0  ) {
User user = new User  ()  ;
         user.setId  (  id  )  ;
         user.setName  (  "zhangsan"  )  ;
         return user;
  }
 return  null;
    }
 }

本篇整合Thrift就到这里，下一篇会介绍Thrift的IDL编写。如有问题，欢迎留言讨论。
