状态模式：下单-支付-运输-签收场景

0.基础

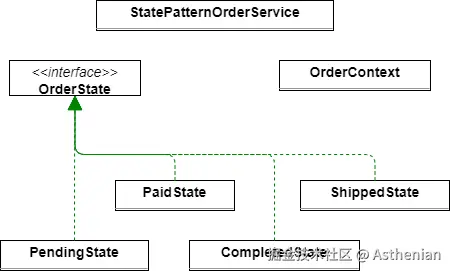

0.1代码结构

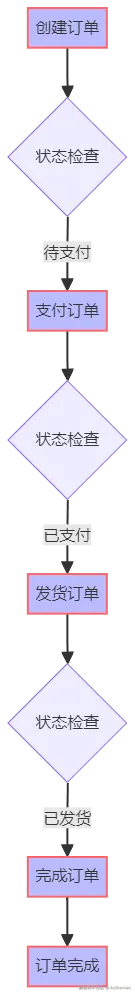

0.2业务流程

0.3请求格式

1. 创建订单 请求 URL： POST http://localhost:8080/orders/create 请求体：无 (简单地发送一个 POST 请求即可) 响应体：

   {
       "status": "success",
       "message": "订单创建成功，当前状态：待支付"
   }


2. 支付订单 请求 URL： POST http://localhost:8080/orders/pay/{orderId} 其中 {orderId} 为你创建订单时生成的订单 ID。假设订单 ID 为 1，请求 URL 将是： POST http://localhost:8080/orders/pay/1 请求体：无 (简单地发送一个 POST 请求即可) 响应体：

   {
       "status": "success",
       "message": "订单支付成功，当前状态：已支付"
   }


3. 发货订单 请求 URL： POST http://localhost:8080/orders/ship/{orderId} 假设你要发货的订单 ID 是 1，请求 URL 将是： POST http://localhost:8080/orders/ship/1 请求体：无 (简单地发送一个 POST 请求即可) 响应体：

   {
       "status": "success",
       "message": "订单发货成功，当前状态：已发货"
   }


4. 完成订单 请求 URL： POST http://localhost:8080/orders/complete/{orderId} 假设你要完成的订单 ID 是 1，请求 URL 将是： POST http://localhost:8080/orders/complete/1 请求体：无 (简单地发送一个 POST 请求即可) 响应体：

   {
       "status": "success",
       "message": "订单已完成"
   }


1.代码

1.1POJO设计

package com.xiaoyongcai.io.designmode.pojo.StatePattern;
​
public interface OrderState {
    void handleRequest(OrderContext context);}
​

package com.xiaoyongcai.io.designmode.pojo.StatePattern;
​
public class OrderContext {
    private OrderState state;
    public OrderContext(OrderState state) {
        this.state = state;
    }
    public void setState(OrderState state) {
        this.state = state;
    }
    public void request(){
        state.handleRequest(this);
    }
}
​

package com.xiaoyongcai.io.designmode.pojo.StatePattern.Impl;
​
import com.xiaoyongcai.io.designmode.pojo.StatePattern.OrderContext;
import com.xiaoyongcai.io.designmode.pojo.StatePattern.OrderState;
​
public class PendingState implements OrderState {
    @Override
    public void handleRequest(OrderContext context) {
        System.out.println("[状态模式]：订单状态为：订单正在支付中");
        context.setState(new PaidState());
    }
}
​

package com.xiaoyongcai.io.designmode.pojo.StatePattern.Impl;
​
import com.xiaoyongcai.io.designmode.pojo.StatePattern.OrderContext;
import com.xiaoyongcai.io.designmode.pojo.StatePattern.OrderState;
​
public class PaidState implements OrderState {
    @Override
    public void handleRequest(OrderContext context) {
        System.out.println("[状态模式]：订单状态为：订单已经支付,下一步是发货");
        context.setState(new ShippedState());
    }
}
​

package com.xiaoyongcai.io.designmode.pojo.StatePattern.Impl;
​
import com.xiaoyongcai.io.designmode.pojo.StatePattern.OrderContext;
import com.xiaoyongcai.io.designmode.pojo.StatePattern.OrderState;
​
public class ShippedState implements OrderState {
    @Override
    public void handleRequest(OrderContext context) {
        System.out.println("[状态模式]：订单状态为：您下单的商品正在运输中,运输成功之后订单即可完成");
        context.setState(new CompletedState());
    }
}
​

package com.xiaoyongcai.io.designmode.pojo.StatePattern.Impl;
​
import com.xiaoyongcai.io.designmode.pojo.StatePattern.OrderContext;
import com.xiaoyongcai.io.designmode.pojo.StatePattern.OrderState;
​
public class CompletedState implements OrderState {
    @Override
    public void handleRequest(OrderContext context) {
        System.out.println("[状态模式]：订单状态为：订单已经完成");
    }
}
​

1.2Service设计

package com.xiaoyongcai.io.designmode.Service.StatePattern;
​
import com.xiaoyongcai.io.designmode.pojo.StatePattern.Impl.PendingState;
import com.xiaoyongcai.io.designmode.pojo.StatePattern.OrderContext;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;
​
import java.util.HashMap;
import java.util.Map;
@Service
@Slf4j
public class StatePatternOrderService {
    private static Map<Long, OrderContext> orders = new HashMap<>();
    private static Long orderIdCounter = 0L;
​
    // 创建订单并初始化状态为待支付
    public static void createOrder() {
        orderIdCounter++;
        OrderContext context = new OrderContext(new PendingState());
        log.info("[状态模式]：订单创建成功，订单序号为"+orderIdCounter);
        orders.put(orderIdCounter, context);
​
    }
​
    // 支付订单
    public static void payOrder(Long orderId) {
        OrderContext context = orders.get(orderId);
        if(context == null) {
            log.info("[状态模式]：尚未查询到该订单号，还请生成订单后再做订单状态变更");
​
        }
        if (context != null) {
            context.request(); // 执行状态转换
            log.info("[状态模式]：订单支付成功，订单序号为"+orderIdCounter);
        }
​
    }
​
    // 发货订单
    public static void shipOrder(Long orderId) {
        OrderContext context = orders.get(orderId);
        if(context == null) {
            log.info("[状态模式]：尚未查询到该订单号，还请生成订单后再做订单状态变更");
​
        }
        if (context != null) {
            context.request(); // 执行状态转换
            log.info("[状态模式]：订单发货成功，订单序号为"+orderIdCounter);
        }
​
    }
​
    // 完成订单
    public static void completeOrder(Long orderId) {
        OrderContext context = orders.get(orderId);
        if(context == null) {
            log.info("[状态模式]：尚未查询到该订单号，还请生成订单后再做订单状态变更");
​
        }
        if (context != null) {
            context.request(); // 执行状态转换
            log.info("[状态模式]：订单已经完成交易，订单序号为"+orderIdCounter);
        }
    }
}
​

1.3Controller设计

package com.xiaoyongcai.io.designmode.Controller.StatePattern;
​
import com.xiaoyongcai.io.designmode.Service.BridgePattern.OrderService;
import com.xiaoyongcai.io.designmode.Service.StatePattern.StatePatternOrderService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
​
@RestController
@RequestMapping("/orders")
public class StatePatternController {
    @Autowired
    private final StatePatternOrderService statePatternOrderService;
​
    public StatePatternController(StatePatternOrderService statePatternOrderService) {
        this.statePatternOrderService = statePatternOrderService;
    }
    // 创建订单并设置初始状态
    @PostMapping("/create")
    public ResponseEntity<String> createOrder() {
        StatePatternOrderService.createOrder();
        return ResponseEntity.ok("订单创建成功，当前状态：待支付");
    }
​
    // 触发状态变化
    @PostMapping("/pay/{orderId}")
    public ResponseEntity<String> payOrder(@PathVariable Long orderId) {
        StatePatternOrderService.payOrder(orderId);
        return ResponseEntity.ok("订单支付成功，当前状态：已支付");
    }
​
    @PostMapping("/ship/{orderId}")
    public ResponseEntity<String> shipOrder(@PathVariable Long orderId) {
        StatePatternOrderService.shipOrder(orderId);
        return ResponseEntity.ok("订单发货成功，当前状态：已发货");
    }
​
    @PostMapping("/complete/{orderId}")
    public ResponseEntity<String> completeOrder(@PathVariable Long orderId) {
        StatePatternOrderService.completeOrder(orderId);
        return ResponseEntity.ok("订单已完成");
    }
​
}
​
