模板模式：抽离普通订单和秒杀订单的公有部分

0.基础

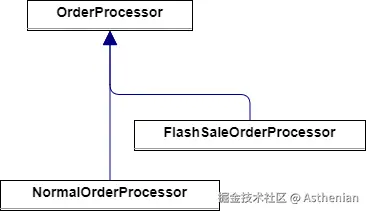

0.0代码架构图

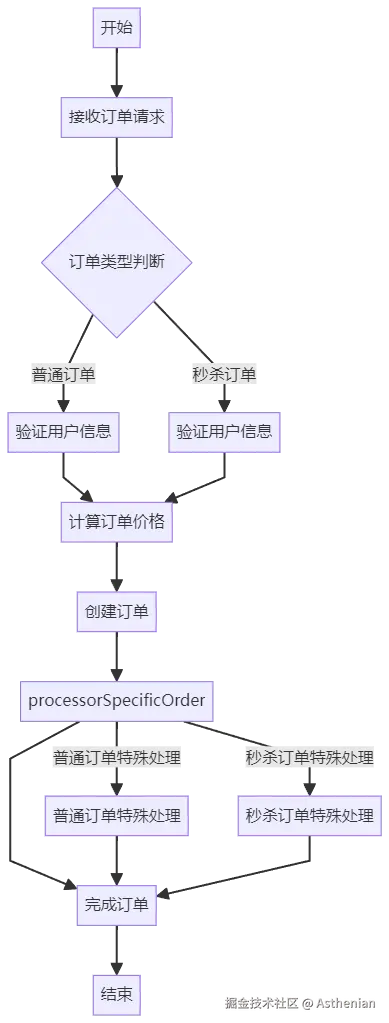

0.1业务流程图

0.2用于测试的Json

localhost:8080/orders/normal
{
  "orderId": "购物卡A",
  "userId": "普通用户A",
  "totalPrice": 199.99
}

localhost:8080/orders/flashsale
    {
  "orderId": "购物卡B",
  "userId": "秒杀用户B",
  "totalPrice": 199.99
}

1.代码

1.0:POJO设计

package com.xiaoyongcai.io.designmode.pojo.TemplateMethodPattern;
​
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
​
@Data
@AllArgsConstructor
@NoArgsConstructor
public class OrderRequest {
    private String orderId;
    private String userId;
    private double totalPrice;
}
​

1.1Service设计

• 注意一点：
• 模板方法的使用final修饰，意味着子类无法继承
• 而钩子方法中又分为普通流程和特殊流程，特殊流程使用abstract修饰，由于OrderProcessor是一个抽象类：而抽象类的子类必须复写父类的抽象方法。因此子类只去实现这个具体的特定业务就可以。
• 倘若不使用模板模式：我们针对普通订单和秒杀订单，都得把验证用户信息，计算订单价格，创建订单，完成订单等通用的过程走一遍，产生了大量代码冗余

package com.xiaoyongcai.io.designmode.Service.TemplateMethodPattern;
​
import com.xiaoyongcai.io.designmode.pojo.TemplateMethodPattern.OrderRequest;
import org.springframework.stereotype.Service;
​
@Service
public abstract class OrderProcessor {
    public final void processorOrder(OrderRequest orderRequest){
        validateUser(orderRequest);
        calculatePrice(orderRequest);
        createOrder(orderRequest);
        processorSpecificOrder(orderRequest);
        finishOrder(orderRequest);
    }
​
    private void validateUser(OrderRequest orderRequest){
        System.out.println("[模版方法模式->通用模版]验证用户信息："+orderRequest.getUserId());
    }
    private void calculatePrice(OrderRequest orderRequest){
        System.out.println("[模版方法模式->通用模版]计算订单价格："+orderRequest.getTotalPrice());
    }
    private void createOrder(OrderRequest orderRequest){
        System.out.println("[模版方法模式-通用模版]创建订单："+orderRequest.getOrderId());
    }
    protected abstract void processorSpecificOrder(OrderRequest orderRequest);
​
    private void finishOrder(OrderRequest orderRequest){
        System.out.println("[模版方法模式-通用模版]订单处理完成："+orderRequest.getOrderId());
    }
}
​

package com.xiaoyongcai.io.designmode.Service.TemplateMethodPattern.Impl;
​
import com.xiaoyongcai.io.designmode.Service.TemplateMethodPattern.OrderProcessor;
import com.xiaoyongcai.io.designmode.pojo.TemplateMethodPattern.OrderRequest;
import org.springframework.stereotype.Service;
​
@Service
public class NormalOrderProcessor extends OrderProcessor {
    @Override
    protected void processorSpecificOrder(OrderRequest orderRequest) {
        System.out.println("[模板方法模式->具体订单处理]普通订单特殊处理：发货处理");
    }
}
​

package com.xiaoyongcai.io.designmode.Service.TemplateMethodPattern.Impl;
​
import com.xiaoyongcai.io.designmode.Service.TemplateMethodPattern.OrderProcessor;
import com.xiaoyongcai.io.designmode.pojo.TemplateMethodPattern.OrderRequest;
import org.springframework.stereotype.Service;
​
@Service
public class FlashSaleOrderProcessor extends OrderProcessor {
    @Override
    protected void processorSpecificOrder(OrderRequest orderRequest) {
        System.out.println("[模板方法模式->具体订单处理]:秒杀订单处理：因为是秒杀订单，因此需要执行库存检查的业务");
    }
}
​

1.2Controller设计

package com.xiaoyongcai.io.designmode.Controller.TemplateMethodPattern;
​
import com.xiaoyongcai.io.designmode.Service.TemplateMethodPattern.Impl.FlashSaleOrderProcessor;
import com.xiaoyongcai.io.designmode.Service.TemplateMethodPattern.Impl.NormalOrderProcessor;
import com.xiaoyongcai.io.designmode.pojo.TemplateMethodPattern.OrderRequest;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
​
@RestController
@RequestMapping("/orders")
public class TemplateMethodPatternOrderController {
​
    @Autowired
    private NormalOrderProcessor normalOrderProcessor;
​
    @Autowired
    private FlashSaleOrderProcessor flashSaleOrderProcessor;
​
    // 创建普通订单
    @PostMapping("/normal")
    public ResponseEntity<String> createNormalOrder(@RequestBody OrderRequest orderRequest) {
        normalOrderProcessor.processorOrder(orderRequest);
        return ResponseEntity.ok("普通订单处理完成");
    }
​
    // 创建秒杀订单
    @PostMapping("/flashsale")
    public ResponseEntity<String> createFlashSaleOrder(@RequestBody OrderRequest orderRequest) {
        flashSaleOrderProcessor.processorOrder(orderRequest);
        return ResponseEntity.ok("秒杀订单处理完成");
    }
}
​
