前端设计模式应用

什么是设计模式

设计模式就是软件设计中常见问题的解决方案模型

  • 历史经验的总结
  • 与特定语言无关

设计模式背景

  • 两本书:

    1. 模式语言:城镇、建筑、建造(A Pattern Language: Towns, Buildings, Construction) 1977
    2. 设计模式:可复用面向对象软件的基础(Design Patterns: Elements of Reusable Object-Oriented Software) 1994

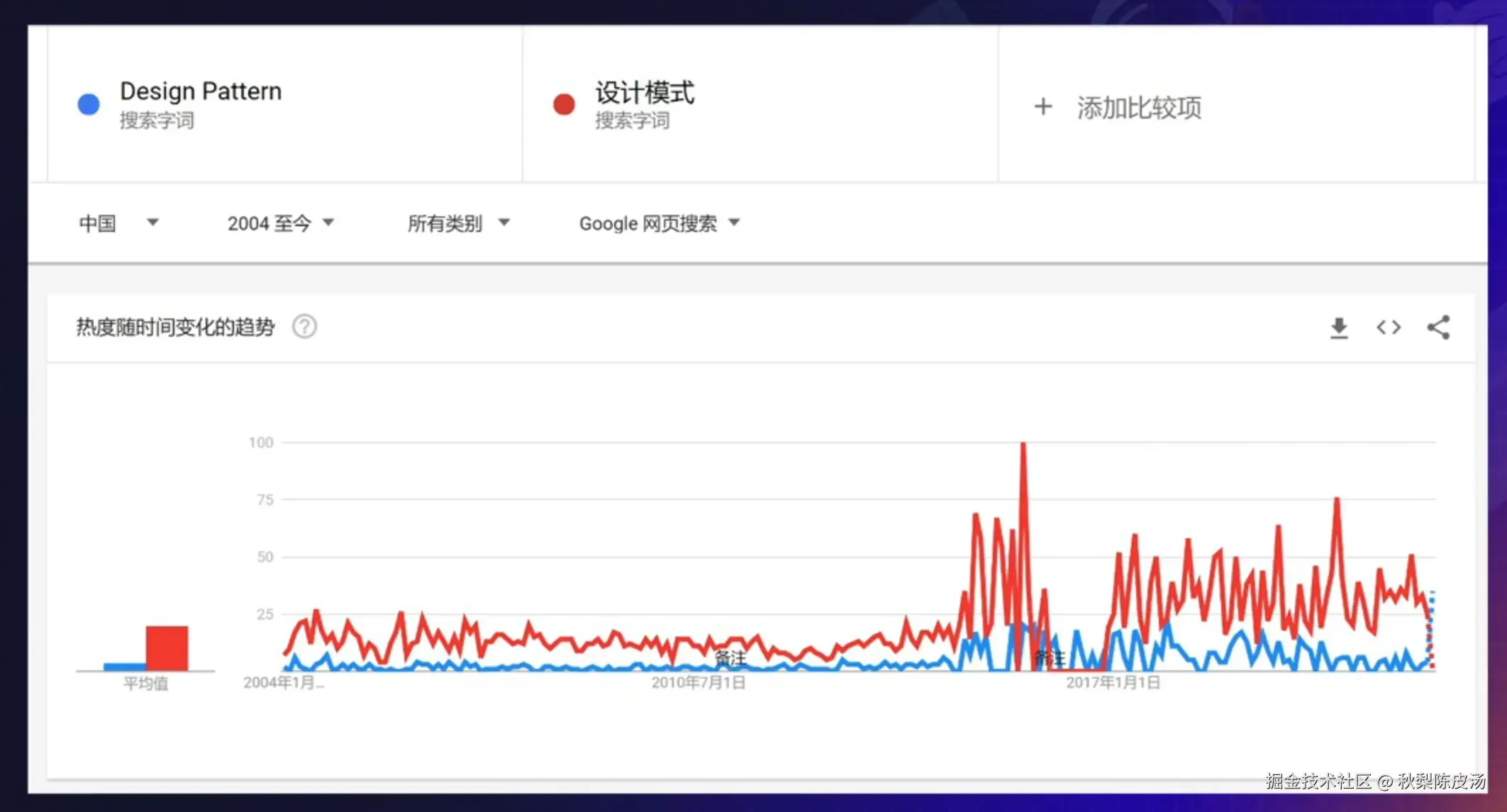

设计模式趋势



设计模式分类

23种设计模式

  • 创建型-如何创建一个对象
  • 结构型-如何灵活的将对象组装成较大的结构
  • 行为型-负责对象间的高效通信和职责划分

前端场景下的设计模式

浏览器API中的设计模式
单例模式

  • 定义:全局唯一访问对象


  • 应用场景:缓存,全局状态管理等

  • 用单例模式实现请求缓存

    import { api } from "./utils";
​
export class Requset {
    static instance: Requset;
    private cache: Record<string, string>;
​
    constructor() {
        this.cache = {};
    }

    //如果instance存在就返回自身 没有就新建
    static getInstance() {
        if (this.instance) {
            return this.instance;
        }

        this.instance = new Requset();
        return this.instance;
    }

    //缓存的实现
    public async request(url: string) {
        if (this.cache[url]) {
            return this.cache[url];
        }
        const response = await api(url);
        this. cache[url] = response;
​
        return response;
    }
}

    //两个keys
//没有缓存
test ("should response more than 500ms with class", async () => {
    const request = Requset.getInstance();
​
    const startTime = Date.now();
    await request.request("/user/1");
    const endTime = Date.now();
​
    const costTime = endTime - startTime;
​
    expect(costTime).toBeGreaterThanOrEqual(500);
});
​
//有缓存
test("should response quickly second time with class", async () => {
    const request1 = Requset.getInstance();
    await request1.request("/user/1");
​
    const startTime = Date.now();
    const request2 = Requset.getInstance();
    await request2.request("/user/1");
    const endTime = Date.now();
​
    const costTime = endTime - startTime;
​
    expect(costTime).toBeLessThan(50);
});

    或者

    import { api } from "./utils";
​
const cache: Record<string, string> = {};
​
export const request = async (url: string) => {
    if (cache[url]) {
        return cache[url];
    }
​
    const response = await api(url);
​
    cache[url] = response;
    return response;
};

    test("should response quickly second time", async () =>{
    await request("/user/1");
    const startTime = Date.now();
    await request("/user/1");
    const endTime = Date.now();
​
    const costTime = endTime - startTime;
​
    expect(costTime).toBeLessThan(50);
});
发布订阅模式

  • 定义: 一种订阅机制,可在被订阅对象发生变化时通知订阅者

  • 应用场景: 从系统架构之间的解耦,到业务中一些实现模式,像邮件订阅,上线订阅等等,应用广泛

  • 例子:

    const button = document.getElementById("button");
​
//订阅者是一个函数
const doSomthing1 = () = {
    console. log("Send message to user");
};
​
const doSomthing2 = () = {
    console. log ("Log ... ");
};
​
button.addEventListener("click", doSomthing1);
button.addEventListener("click", doSomthing2);
//...

  • 用发布订阅模式实现用户上线订阅

    type Notify = (user: User) = void;
​
//用户的定义
export class User {
    name: string;
    status: "offline" | "online";
    followers: { user: User; notify: Notify }[];
​
    //初始化
    constructor(name: string) {
        this.name = name;
        this.status = "offline";
        this.followers = [];
    }

    subscribe(user: User, notify: Notify) {
        user.followers.push({ user, notify });
    }

    online () {
        this.status = "online";
​
        this. followers.forEach(({ notify }) = {
            notify(this);
        });
    }
}

    test("should notify followers when user is online for multiple users", () => {
    const user1 = new User("user1");
    const user2 = new User("user2");
    const user3 = new User("user3");
​
    const mockNotifyUser1 = jest.fn();
    const mockNotifyUser2 = jest.fn();
​
    //订阅者
    user1.subscribe(user3, mockNotifyUser1);
    user2.subscribe(user3, mockNotifyUser2);
​
    //发布者
    user3.online();
​
    expect(mockNotifyUser1).toBeCalledWith(user3);
    expect(mockNotifyUser2).toBeCalledWith(user3);
});
JavaScript中的设计模式
原型模式

  • 定义:复制已有对象来创建新的对象

  • 应用场景:JS中对象创建的基本模式

  • 用原型模式创建上线订阅中的用户

    //创建一个原型对象
const baseUser: User = {
    name : "",
    status: "offline",
    followers: [],
​
    subscribe(user, notify) {
    user. followers.push({ user, notify });
    },
    online () {
        this.status = "online";
​
        this. followers. forEach(({ notify }) => {
            notify(this);
        });
    },
};
​
//创建用户
export const createUser = (name: string) => {
    const user: User = Object.create(baseUser);
​
    user. name = name;
    user. followers = [];
​
    return user;
};

    test("should notify followers when user is online for multiple users", () => {
    const user1 = createUser("user1");
    const user2 = createUser("user2");
    const user3 = createUser("user3");
​
    const mockNotifyUser1 = jest.fn();
    const mockNotifyUser2 = jest.fn();
​
    user1.subscribe(user3, mockNotifyUser1);
    user2.subscribe(user3, mockNotifyUser2);
​
    user3.online();
​
    expect(mockNotifyUser1).toBeCalledWith(user3);
    expect(mockNotifyUser2).toBeCalledWith(user3);
});
代理模式

  • 定义:可自定义控制对原对象的访问方式,并且允许在更新前后做一些额外处理

  • 应用场景:监控,代理工具,前端框架实现等

  • 用代理模式创建上线订阅中的用户

    type Notify = (user: User) = void;
​
export class User {
    name: string;
    status: "offline" | "online";
    followers: { user: User; notify: Notify }[];
​
    constructor(name: string) {
        this.name = name;
        this.status = "offline";
        this. followers = [];
    }
​
    subscribe(user: User, notify: Notify) {
        user.followers.push({ user, notify });
    }

    //做了两件事情
    online () {
        this.status = "online";
​
        this. followers. forEach(({ notify }) = {
            notify(this);
        });
    }
}

    优化

    type Notify = (user: User) = void;
​
export class User {
    name: string;
    status: "offline" | "online";
    followers: { user: User; notify: Notify }[];
​
    constructor(name: string) {
        this.name = name;
        this.status = "offline";
        this. followers = [];
    }
​
    subscribe(user: User, notify: Notify) {
        user.followers.push({ user, notify });
    }

    //做了两件事情
    online () {
        this.status = "online";
    }
}

    export const createProxyUser = (name: string) => {
    const user = new User(name);
​
    const proxyUser = new Proxy(user, {
        set: (target, prop: keyof User, value) = {
            target[prop] = value;
            if (prop === "status") {
                notifyStatusHandlers(target, value);
            }
            return true;
        },
    });
​
    const notifyStatusHandlers = (user: User, status: "online" | "offline") => {
        if (status === "online") {
            user.followers.forEach(({ notify }) => {
                notify(user);
            });
        }
    };
​
    return proxyUser;
};
迭代器模式

  • 定义:在不暴露数据类型的情况下访问集合中的数据

  • 应用场景:数据结构中有多种数据类型,列表,树等,提供通用操作接口

    const numbers = [1, 2, 3];
​
const map = new Map();
map.set("k1", "v1");
map.set("k2", "v2");
​
const set = new Set(["1", "2", "3"]);
​
for (const number of numbers) {
    // ...
}
​
for (const [key, value] of map) {
    // ...
}
​
for (const key of set) {
    // ...
}

    • 用 for of 迭代所有组件

      class MyDomElement {
    tag: string;
    children: MyDomElement[];
    constructor(tag: string) {
        this.tag = tag;
        this. children = [];
    }
​
    addChildren (component: MyDomElement){
        this.children.push(component);
    }
    //JavaScript内置方法:可以让组件变成可迭代的
    [Symbol.iterator] () {
        const list = [ ... this.children];
        let node;
​
        return {
            next: () => {
                while ((node = list.shift())) {
                    node.children.length > 0 && list.push( ... node.children);
​
                    return { value: node, done: false };
                }
                return { value: null, done: true };
            },
        };
    }
}

      test("can iterate root element", () => {
    const body = new MyDomElement("body");
​
    const header = new MyDomElement("header");
​
    const main = new MyDomElement("main");
​
    const banner = new MyDomElement("banner");
    const content = new MyDomElement("content");
​
    const footer = new MyDomElement("footer");
​
    body.addChildren(header);
    body.addChildren(main);
    body.addChildren(footer);
​
    main.addChildren(banner);
    main.addChildren(content);
​
    const expectTags: string[] = [];
    for (const element of body) {
    if (element) {
        expectTags.push(element.tag);
    }
}
​
    expect(expectTags.length).toBe(5);
});

前端框架中的设计模式

代理模式

  • Vue组件实现计数器

    <template>
    <button @click="count++">count is: {{ count }}</button>
</template>
​
<script setup lang="ts">
import { ref } from "vue";
​
const count = ref(0);
</script>

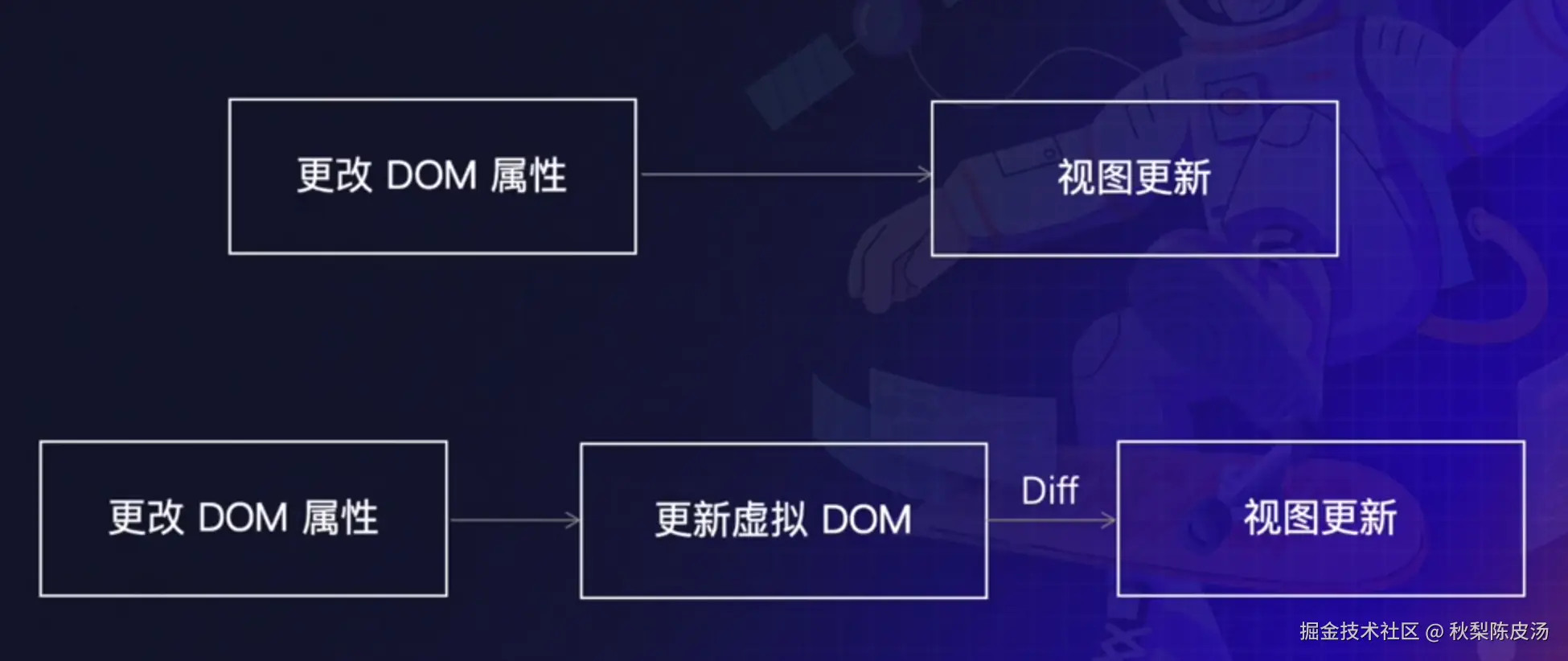

  • 前端框架中对DOM操作的代理


  • Dom更新前后的钩子

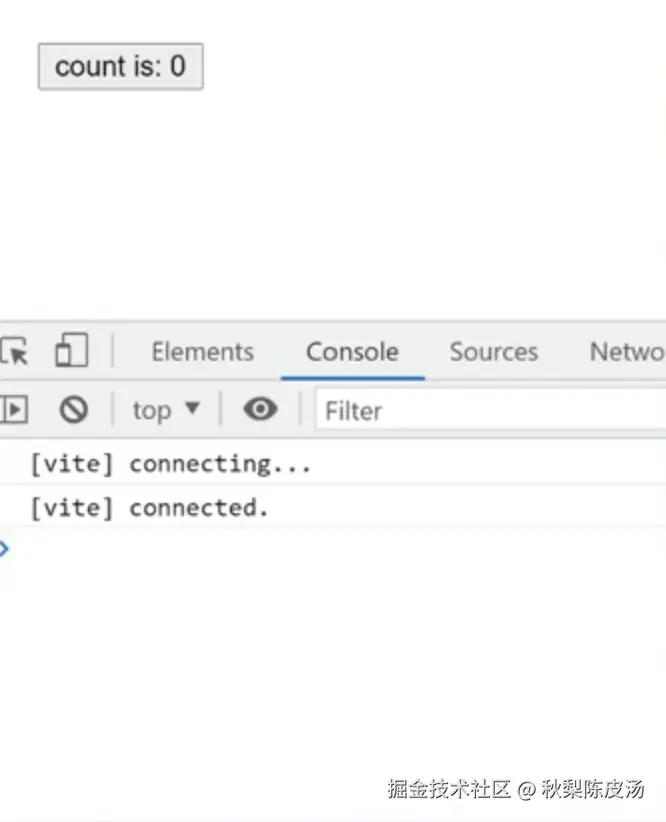

    <template>
    <button @click="count++" ref="dom">count is: {{ count }}</button>
</template>
​
<script setup lang="ts">
import { ref, onBeforeUpdate, onUpdated } from "vue";
​
const count = ref(0);
const dom = ref<HTMLButtonElement>();
​
onBeforeUpdate (() = {
    console.log("Dom before update", dom.value ?. innerText) ;
}
onUpdated(() = {
    console. log("Dom after update", dom.value ?. innerText);
}
</script>


组合模式

  • 定义: 可多个对象组合使用,也可单个对象独立使用

  • 应用场景: DOM, 前端组件, 文件目录, 部门

  • React 的组件结构

    export const Count = () = {
    const [count, setCount] = useState(0);
​
    return(
        <button onClick={() = setCount((count) = count + 1)}>
            count is: {count}
        </button>
    );
};

    function App() {
    return (
        <div className="App">
            <Header />
            <Count />
            <Footer />
        </div>
    );
}

设计模式不是银弹

  • 总结出抽象的模式相对比较简单,但是想要将抽象的模式套用到场景中却非常困难
  • 现代编程语言的多编程范式带来的更多可能性
  • 真正优秀的开源项目学习设计模式并不断实践
