Spring事务传播机制

1、什么是Spring的传播机制

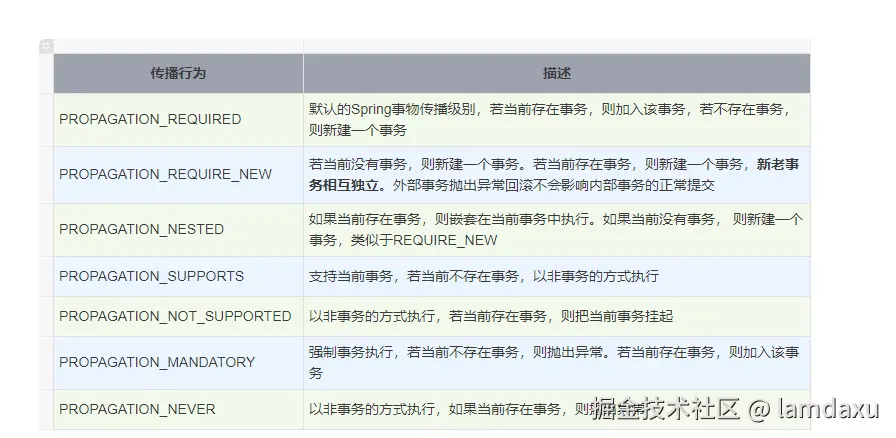

事务的传播，是A方法调用B方法并将事务传递给它。事务的传播机制主要针对被调用者而言，控制它是否被传播或者被怎样传播。spring事务的传播机制有七种：

1. required：必须的 说明事务时必须的 没有就新建事务
2. supports::支持 说明仅仅支持事务 没有事务就以非事务方法执行
3. mandatory:强制的, 说明一定要有事务，没有事务就抛异常
4. reuquires_new 必须新建事务，当前有事务，就将当前事务挂起
5. not_supported: 不支持事务，如果存在事务就挂起
6. never:绝不会有事务 如果存在事务就抛出异常
7. nested:嵌套，当前有事务，新建一个事务嵌套到父事务中，父事务回归，新建的事务也会回滚。当前没有事务就新建一个事务

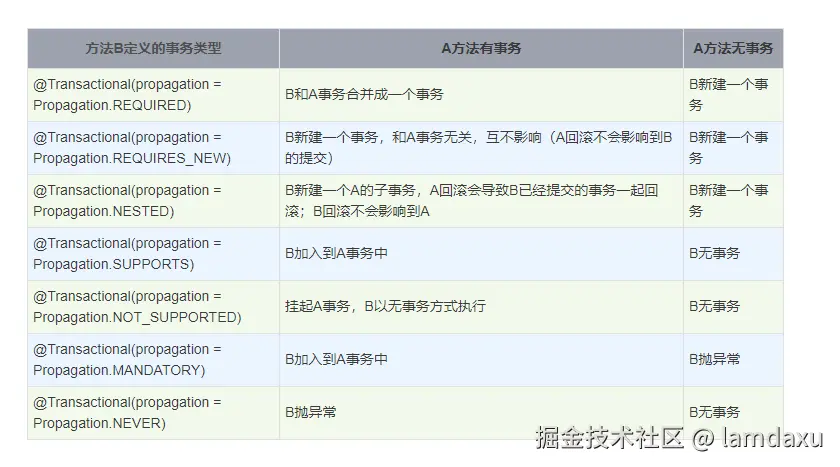

传播级别一般不需要定义，默认就是PROPAGATION_REQUIRED，除非在嵌套事务的情况。上述描述表格的描述还是比较抽象，下面我们使用一个例子来说明这个传播机制。假定方法A调用方法B：

2、七种事务传播机制

现在在这里，我们假定方法A 是 StudentService类中的方法，方法B是CourseService类中的方法

2.1、@Transactional(propagation = Propagation.REQUIRED)

A中没有事务，B中有事务。A调用B的时候，B方法会新创建事务

@Service
public class StudentService {


    @Autowired
    private StudentMapper studentMapper;

    @Autowired
    private CourseService courseService;



    //这里没有开启事务，courseService.insertCourse会自己开启一个事务运行
    //而且两个添加操作都会成功，因为studentMapper.insert(student);是自动提交的
    public void insert0(){

        courseService.insertCourse();

        Student student = new Student();
        student.setId(1);
        student.setName("student_"+ System.currentTimeMillis());
        studentMapper.insert(student);


        int i = 1/0;//这里抛出异常，两个添加操作都不会回滚
    }

}

@Service
public class CourseService {

    @Autowired
    private CourseMapper courseMapper;



    @Transactional(propagation = Propagation.REQUIRED)
    public void insertCourse(){
        Course course = new Course();
        course.setId(1);
        course.setName("course_"+  System.currentTimeMillis());
        courseMapper.insert(course);

    }
}

A和B两个方法都有事务，会合并在同一个事务当中

@Service
public class StudentService {


    @Autowired
    private StudentMapper studentMapper;

    @Autowired
    private CourseService courseService;



    //两个方法都使用了@Transactional(propagation = Propagation.REQUIRED)
    //courseService.insertCourse()会加入到insert0方法开启的事务中，所以两个方法在同一事务中
    @Transactional(propagation = Propagation.REQUIRED)
    public void insert0(){

        courseService.insertCourse();

        Student student = new Student();
        student.setId(1);
        student.setName("student_"+ System.currentTimeMillis());
        studentMapper.insert(student);


        int i = 1/0;//这里抛出异常，两个添加操作都被回滚
    }

}

@Service
public class CourseService {

    @Autowired
    private CourseMapper courseMapper;


    @Transactional(propagation = Propagation.REQUIRED)
    public void insertCourse(){
        Course course = new Course();
        course.setId(1);
        course.setName("course_"+  System.currentTimeMillis());
        courseMapper.insert(course);

    }
}

2.2、@Transactional(propagation = Propagation.REQUIRES_NEW)

在A方法的事务中抛出异常，B方法正确执行，正常提交

@Service
public class StudentService {


    @Autowired
    private StudentMapper studentMapper;

    @Autowired
    private CourseService courseService;



    //courseService.insertCourse()方法用了@Transactional(propagation = Propagation.REQUIRES_NEW)
    //开启了一个独立的新的事务，在独立的事务中运行，
    // 并且insert0()开启的事务被挂起
    //等courseService.insertCourse()运行完毕，再恢复insert0()的事务
    //两个事务的提交和回滚都在各自事务中完成
    @Transactional(propagation = Propagation.REQUIRED)
    public void insert0(){

        courseService.insertCourse();

        Student student = new Student();
        student.setId(1);
        student.setName("student_"+ System.currentTimeMillis());
        studentMapper.insert(student);


        //这里抛出异常，courseService.insertCourse()不会回滚
        //但是studentMapper.insert会被回滚
        int i = 1/0;
    }

}

@Service
public class CourseService {

    @Autowired
    private CourseMapper courseMapper;


    @Transactional(propagation = Propagation.REQUIRES_NEW)
    public void insertCourse(){
        Course course = new Course();
        course.setId(1);
        course.setName("course_"+  System.currentTimeMillis());
        courseMapper.insert(course);

    }
}

在B方法中抛出异常，A和B都被回滚

@Service
public class StudentService {


    @Autowired
    private StudentMapper studentMapper;

    @Autowired
    private CourseService courseService;



    //courseService.insertCourse()方法用了@Transactional(propagation = Propagation.REQUIRES_NEW)
    //courseService.insertCourse()会抛出异常给insert0()方法，导致两个方法都被回滚
    @Transactional(propagation = Propagation.REQUIRED)
    public void insert0(){

        Student student = new Student();
        student.setId(1);
        student.setName("student_"+ System.currentTimeMillis());
        studentMapper.insert(student);
        //这里调用的insertCourse会抛出异常
        courseService.insertCourse();


    }

}

@Service
public class CourseService {

    @Autowired
    private CourseMapper courseMapper;


    @Transactional(propagation = Propagation.REQUIRES_NEW)
    public void insertCourse(){
        Course course = new Course();
        course.setId(1);
        course.setName("course_"+  System.currentTimeMillis());
        courseMapper.insert(course);
        //这里抛出异常，异常会被抛给调用这个方法的调用者
        int i = 1/0;
    }
}

2.3、@Transactional(propagation = Propagation.SUPPORTS)

A方法有事务，B加入到事务中

@Service
public class StudentService {


    @Autowired
    private StudentMapper studentMapper;

    @Autowired
    private CourseService courseService;



    //由于courseService.insertCourse使用@Transactional(propagation = Propagation.SUPPORTS)
    //所以会加入到insert0()开启的事务中，被一起回滚
    @Transactional(propagation = Propagation.REQUIRED)
    public void insert0(){

        courseService.insertCourse();

        Student student = new Student();
        student.setId(1);
        student.setName("student_"+ System.currentTimeMillis());
        studentMapper.insert(student);

        //这里抛出异常，courseService.insertCourse()也会被回滚
        int i=1/0;


    }

}

@Service
public class CourseService {

    @Autowired
    private CourseMapper courseMapper;


    @Transactional(propagation = Propagation.SUPPORTS)
    public void insertCourse(){
        Course course = new Course();
        course.setId(1);
        course.setName("course_"+  System.currentTimeMillis());
        courseMapper.insert(course);

    }
}

A没有事务，B以无事务方式运行

@Service
public class StudentService {


    @Autowired
    private StudentMapper studentMapper;

    @Autowired
    private CourseService courseService;



    //由于courseService.insertCourse使用@Transactional(propagation = Propagation.SUPPORTS)
    //由于insert0没有开启事务，所以两个方法都以无事务方式运行，都会自动提交
    public void insert0(){

        courseService.insertCourse();

        Student student = new Student();
        student.setId(1);
        student.setName("student_"+ System.currentTimeMillis());
        studentMapper.insert(student);

        //这里抛出异常，courseService.insertCourse()不会被回滚
        //studentMapper.insert(student);也不会被回滚
        int i=1/0;


    }

}

@Service
public class CourseService {

    @Autowired
    private CourseMapper courseMapper;


    @Transactional(propagation = Propagation.SUPPORTS)
    public void insertCourse(){
        Course course = new Course();
        course.setId(1);
        course.setName("course_"+  System.currentTimeMillis());
        courseMapper.insert(course);

    }
}

2.4、@Transactional(propagation = Propagation.NOT_SUPPORTED)

A有事务，B以无事务方式运行（自动提交）

@Service
public class StudentService {


    @Autowired
    private StudentMapper studentMapper;

    @Autowired
    private CourseService courseService;



    //由于courseService.insertCourse使用@Transactional(propagation = Propagation.NOT_SUPPORTED)
    //所以courseService.insertCourse会以无事务方式运行，自动提交
    @Transactional(propagation = Propagation.REQUIRED)
    public void insert0(){

        courseService.insertCourse();

        Student student = new Student();
        student.setId(1);
        student.setName("student_"+ System.currentTimeMillis());
        studentMapper.insert(student);

        //这里抛出异常，courseService.insertCourse()不会被回滚
        //studentMapper.insert(student);会被回滚
        int i=1/0;


    }

}

@Service
public class CourseService {

    @Autowired
    private CourseMapper courseMapper;


    @Transactional(propagation = Propagation.NOT_SUPPORTED)
    public void insertCourse(){
        Course course = new Course();
        course.setId(1);
        course.setName("course_"+  System.currentTimeMillis());
        courseMapper.insert(course);

    }
}

2.5、@Transactional(propagation = Propagation.MANDATORY)

A有事务，B加入事务中

@Service
public class StudentService {


    @Autowired
    private StudentMapper studentMapper;

    @Autowired
    private CourseService courseService;



    //由于courseService.insertCourse使用@Transactional(propagation = Propagation.MANDATORY)
    //所以courseService.insertCourse会加入到insert0()的事务中，一起回滚
    @Transactional(propagation = Propagation.REQUIRED)
    public void insert0(){

        courseService.insertCourse();

        Student student = new Student();
        student.setId(1);
        student.setName("student_"+ System.currentTimeMillis());
        studentMapper.insert(student);

        //这里抛出异常，courseService.insertCourse()会被回滚
        //studentMapper.insert(student);会被回滚
        int i=1/0;

    }


}

@Service
public class CourseService {


    @Autowired
    private CourseMapper courseMapper;

    @Transactional(propagation = Propagation.MANDATORY)
    public void insertCourse(){
        Course course = new Course();
        course.setId(1);
        course.setName("course_"+  System.currentTimeMillis());
        courseMapper.insert(course);

    }
}

A没有事务，B会抛出异常

@Service
public class StudentService {


    @Autowired
    private StudentMapper studentMapper;

    @Autowired
    private CourseService courseService;



    //由于courseService.insertCourse使用@Transactional(propagation = Propagation.MANDATORY)
    //courseService.insertCourse();会抛出异常
    public void insert0(){

        courseService.insertCourse();

        Student student = new Student();
        student.setId(1);
        student.setName("student_"+ System.currentTimeMillis());
        studentMapper.insert(student);

    }

}

@Service
public class CourseService {

    @Autowired
    private CourseMapper courseMapper;


    @Transactional(propagation = Propagation.MANDATORY)
    public void insertCourse(){
        Course course = new Course();
        course.setId(1);
        course.setName("course_"+  System.currentTimeMillis());
        courseMapper.insert(course);

    }
}

2.6、@Transactional(propagation = Propagation.NEVER)

A方法无事务，A和B都以无事务方式运行

@Service
public class StudentService {


    @Autowired
    private StudentMapper studentMapper;

    @Autowired
    private CourseService courseService;



    //由于courseService.insertCourse使用@Transactional(propagation = Propagation.NEVER)
    //courseService.insertCourse();以无事务方式运行，两个添加都不会被回滚
    public void insert0(){

        courseService.insertCourse();

        Student student = new Student();
        student.setId(1);
        student.setName("student_"+ System.currentTimeMillis());
        studentMapper.insert(student);

        //这里抛出异常，但是两个添加操作都是自动提交的，都不会被回滚
        int i = 1/0;

    }

}

@Service
public class CourseService {


    @Autowired
    private CourseMapper courseMapper;

    @Transactional(propagation = Propagation.NEVER)
    public void insertCourse(){
        Course course = new Course();
        course.setId(1);
        course.setName("course_"+  System.currentTimeMillis());
        courseMapper.insert(course);

    }
}

A方法有事务，B抛出异常

@Service
public class StudentService {


    @Autowired
    private StudentMapper studentMapper;

    @Autowired
    private CourseService courseService;



    //由于courseService.insertCourse使用@Transactional(propagation = Propagation.NEVER)
    //由于insert0()开启了一个事务，所以courseService.insertCourse();会抛出异常
    @Transactional(propagation = Propagation.REQUIRED)
    public void insert0(){



        Student student = new Student();
        student.setId(1);
        student.setName("student_"+ System.currentTimeMillis());
        studentMapper.insert(student);

        //这里会抛出异常，因为courseService.insertCourse不支持事务
        courseService.insertCourse();

    }

}

@Service
public class CourseService {

    @Autowired
    private CourseMapper courseMapper;


    @Transactional(propagation = Propagation.NEVER)
    public void insertCourse(){
        Course course = new Course();
        course.setId(1);
        course.setName("course_"+  System.currentTimeMillis());
        courseMapper.insert(course);

    }
}

2.7、@Transactional(propagation = Propagation.NESTED)

A方法抛出异常，B方法成功的提交也被回滚

@Service
public class StudentService {


    @Autowired
    private StudentMapper studentMapper;

    @Autowired
    private CourseService courseService;



    //由于courseService.insertCourse使用@Transactional(propagation = Propagation.NESTED)
    //由于insert0()开启了一个事务，所以courseService.insertCourse();在嵌套事务内层运行
    //当courseService.insertCourse()成功提交后，insert0()最后抛出异常，会导致courseService.insertCourse()也会被回滚
    @Transactional(propagation = Propagation.REQUIRED)
    public void insert0(){

        try {
            courseService.insertCourse();
        } catch (Exception e) {
            e.printStackTrace();
        }

        Student student = new Student();
        student.setId(1);
        student.setName("student_"+ System.currentTimeMillis());
        studentMapper.insert(student);

        //这里抛出异常会导致courseService.insertCourse()成功的提交也被回滚
        //studentMapper.insert(student)提交的也会被回滚
        int i = 1/0;
    }

}

@Service
public class CourseService {

    @Autowired
    private CourseMapper courseMapper;


    @Transactional(propagation = Propagation.NESTED)
    public void insertCourse(){
        Course course = new Course();
        course.setId(1);
        course.setName("course_"+  System.currentTimeMillis());
        courseMapper.insert(course);


    }
}

A方法执行成功，B方法抛出异常，只有B的提交被回滚，A的提交成功执行

@Service
public class StudentService {


    @Autowired
    private StudentMapper studentMapper;

    @Autowired
    private CourseService courseService;



    //由于courseService.insertCourse使用@Transactional(propagation = Propagation.NESTED)
    //由于insert0()开启了一个事务，所以courseService.insertCourse();在嵌套事务内层运行
    //当courseService.insertCourse()抛出异常会被catch，insert0会成功执行
    //最后，insert0成功提交，courseService.insertCourse()被回滚了
    @Transactional(propagation = Propagation.REQUIRED)
    public void insert0(){

        try {
            courseService.insertCourse();
        } catch (Exception e) {
            e.printStackTrace();
        }

        Student student = new Student();
        student.setId(1);
        student.setName("student_"+ System.currentTimeMillis());
        studentMapper.insert(student);


    }

}

@Service
public class CourseService {

    @Autowired
    private CourseMapper courseMapper;


    @Transactional(propagation = Propagation.NESTED)
    public void insertCourse(){
        Course course = new Course();
        course.setId(1);
        course.setName("course_"+  System.currentTimeMillis());
        courseMapper.insert(course);
        //这个方法抛出异常，只会回滚当前这个方法
        int i = 1/0;
    }
}

A方法提交成功，B方法也提交成功

@Service
public class StudentService {


    @Autowired
    private StudentMapper studentMapper;

    @Autowired
    private CourseService courseService;



    //由于courseService.insertCourse使用@Transactional(propagation = Propagation.NESTED)
    //由于insert0()开启了一个事务，所以courseService.insertCourse();在嵌套事务内层运行
    //当courseService.insertCourse()抛出异常会被catch，insert0会成功执行
    //最后，insert0成功提交，courseService.insertCourse()被回滚了
    @Transactional(propagation = Propagation.REQUIRED)
    public void insert0(){

        try {
            courseService.insertCourse();
        } catch (Exception e) {
            e.printStackTrace();
        }

        Student student = new Student();
        student.setId(1);
        student.setName("student_"+ System.currentTimeMillis());
        studentMapper.insert(student);


    }

}

@Service
public class CourseService {

    @Autowired
    private CourseMapper courseMapper;


    @Transactional(propagation = Propagation.NESTED)
    public void insertCourse(){
        Course course = new Course();
        course.setId(1);
        course.setName("course_"+  System.currentTimeMillis());
        courseMapper.insert(course);

    }
}

B方法都用@Transactional(propagation = Propagation.REQUIRES_NEW)来修饰，是否也能达到这个效果呢？

@Service
public class StudentService {


    @Autowired
    private StudentMapper studentMapper;

    @Autowired
    private CourseService courseService;




    @Transactional(propagation = Propagation.REQUIRED)
    public void insert0(){

        try {
            //由于这个方法使用了@Transactional(propagation = Propagation.REQUIRES_NEW)
            //尽管内部抛出异常，但是，insert0()方法的事务不会被影响
            courseService.insertCourse();
        } catch (Exception e) {
            e.printStackTrace();
        }

        Student student = new Student();
        student.setId(1);
        student.setName("student_"+ System.currentTimeMillis());
        studentMapper.insert(student);


    }

}

@Service
public class CourseService {

    @Autowired
    private CourseMapper courseMapper;


    @Transactional(propagation = Propagation.REQUIRES_NEW)
    public void insertCourse(){
        Course course = new Course();
        course.setId(1);
        course.setName("course_"+  System.currentTimeMillis());
        courseMapper.insert(course);

        int i = 1/0;
    }
}

2.8、无事务运行

@Service
public class StudentService {


    @Autowired
    private StudentMapper studentMapper;



    //没有使用@Transactional注解，以无事务方式运行
    //studentMapper.insert(student);自动提交，不会被回滚
    public void insert0(){

        Student student = new Student();
        student.setId(1);
        student.setName("student_"+ System.currentTimeMillis());
        studentMapper.insert(student);

        int i = 1/0;//这里抛出异常，但是studentMapper.insert会自动提交，不会被回滚


    }

}

3、事务失效情况

3.1、使用了@Transactional的方法，被同一个类里面的无@Transactional方法调用，@Transactional的方法无效。

下面的这种情况，student表 和 source表 都能成功添加数据，回滚失败。注意：这是在同一个类中的方法相互调用，上述的是不同类的方法调用，上下文不违背！

@Service
public class StudentImpl implements IStudent {

    @Autowired
    public StudentMapper studentMapper;

    @Autowired
    public SourceMapper sourceMapper;

    @Autowired
    public ISource source;

    @Override
    public void insert0() {
        Student student = new Student();
        student.setId(1);
        student.setName("student:123-sad");
        studentMapper.insert(student);

        insertProxy();
    }

    @Transactional
    public void insertProxy(){
        Source source = new Source();
        source.setId(210);
        source.setName("source:210=qqwe");
        sourceMapper.insert(source);

        int i = 1/0;
    }

但是下面这种情况B方法是可以回滚成功的，但A方法不能回滚

@Service
public class StudentImpl implements IStudent {

    @Autowired
    public StudentMapper studentMapper;

    @Autowired
    public SourceMapper sourceMapper;

    @Autowired
    public ISource source;

    @Override
    public void insert0() {
        Student student = new Student();
        student.setId(1);
        student.setName("student:123-sad");
        studentMapper.insert(student);

        insertProxy();
    }

    //无论这里有没有@Transactional注解，source.insert0()一样能回滚成功
    @Transactional
    public void insertProxy(){
        source.insert0();
    }

@Service
public class SourceImpl implements ISource {

   @Autowired
   public SourceMapper sourceMapper;

   @Override
   @Transactional
   public void insert0() {
       Source source = new Source();
       source.setId(210);
       source.setName("source:210=qqwe");
       sourceMapper.insert(source);

       int i = 1/0;

   }
}

原因：Spring的事务管理是基于动态代理对象的代理逻辑实现的，那么如果在类内部的非事务方法调用类内部的事务方法，这个调用事务方法的过程并不是通过代理对象来调用的，而是直接通过this对象来调用方法，绕过的代理对象，肯定就是没有代理逻辑了。可以理解为使用了Spring注入的bean才会生成动态代理对象

解决方法：使用在类中注入自己的bean，加上@Lazy是为了防止bean的循环依赖注入。但是在实际开发中很少这样写，但这样确实能解决@Transactional失效的问题

@Service
public class StudentImpl implements IStudent {

    @Autowired
    public StudentMapper studentMapper;

    @Autowired
    public SourceMapper sourceMapper;

    @Autowired
    public ISource source;

    @Autowired
    @Lazy
    public StudentImpl studentImpl;

    @Override
    public void insert0() {

        Student student = new Student();
        student.setId(1);
        student.setName("student:123-sad");
        studentMapper.insert(student);

        studentImpl.insertProxy();
    }

    //insertProxy()方法能成功回滚，Source表没有数据，但insert0()还是会添加成功，Student表有数据
    @Transactional
    public void insertProxy(){
        Source source1 = new Source();
        source1.setId(999);
        source1.setName("source:999=qqwe");
        sourceMapper.insert(source1);

        int i = 1/0;
    }
}

区分：下面这种情况是 绝对能回滚 的，insertProxy()方法只是对代码的抽取而已，请不要搞混。

@Service
public class StudentImpl implements IStudent {

    @Autowired
    public StudentMapper studentMapper;

    @Autowired
    public SourceMapper sourceMapper;

    @Autowired
    public ISource source;

    @Override
    @Transactional
    public void insert0() {
        Student student = new Student();
        student.setId(1);
        student.setName("student:123-sad");
        studentMapper.insert(student);

        insertProxy();
    }

    private void insertProxy(){
        Source source = new Source();
        source.setId(210);
        source.setName("source:210=qqwe");
        sourceMapper.insert(source);

        int i = 1/0;
    }

4、抛异常的方式回滚

我们都知道，在Service层打上@Transactional后，若在该层操作出错了，不捕获异常，交由Controller层去捕获，则会回滚；但是如果异常在Service层就被捕获了，则不会回滚。

但有以下方式，即使在Service层捕获了异常，仍然可以回滚成功。

@RestController
public class InsertController {

    @Autowired
    public IStudent studentService;

    @GetMapping("/insert")
    public String insert(){
        String result = "error";
        try {
            result = studentService.insert0();
        } catch (Exception e) {
            e.printStackTrace();
        }
        return result;
    }
}

@Service
public class StudentImpl implements IStudent {
    @Autowired
    public ISource sourceService;

    @Override
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.REQUIRED)
    public String insert0() throws Exception {
        String result = sourceService.insert0();
        if ("fail".equals(result)) {
            throw new Exception();
        }
        return "OK";
    }
}

@Service
public class SourceImpl implements ISource {

    @Autowired
    public SourceMapper sourceMapper;

    @Override
    @Transactional(rollbackFor = Exception.class, propagation = Propagation.REQUIRED)
    public String insert0() throws Exception{
        String result = "success";
        try {
            Source source = new Source();
            source.setName("source:210=qqwe");
            sourceMapper.insert(source);

            int i = 1/0;
        }catch (Exception e){
            result = "fail";
        }
        return result;
    }
}

这是因为A方法调用了B方法，A方法和B方法组成了一个事务，虽然B方法异常确实是被捕获到了，但是抛出异常的是A方法，由于A方法和B方法已经组成了一个事务了，所以这两个方法会一起回滚！
