利用Cesium实现逼真的雪景效果
冬季景色总是能够给人带来宁静祥和的感觉，而通过编程手段模拟这样的自然现象不仅能够提升用户体验，还能增加应用程序的趣味性和吸引力。本项目旨在利用Cesium的自定义着色器功能，结合WebGL的高级图形渲染技术，实现一个逼真的雪景效果。
技术实现
首先，我们需要初始化Cesium Viewer，并加载地形数据。这里我们选择使用Cesium提供的世界地形服务：
const initViewer = () => {
viewer = new Cesium.Viewer("sceneContainer", {
terrain: Cesium.Terrain.fromWorldTerrain(),
});
};
为了使场景更加生动，我们还添加了一个后处理阶段，用于渲染下落的雪花。这部分通过PostProcessStage实现，近一步可以实现动态控制雪花的数量、大小和速度
let snowEffect = new Cesium.PostProcessStage({
fragmentShader: `
precision highp float;
uniform sampler2D colorTexture;
uniform sampler2D depthTexture;
in vec2 v_textureCoordinates;
float time;
#define HASHSCALE1 .1031
#define HASHSCALE3 vec3(.1031, .1030, .0973)
#define HASHSCALE4 vec3(.1031, .1030, .0973, .1099)
float SIZE_RATE = 0.1;
float XSPEED = 0.2;
float YSPEED = 0.5;
float LAYERS = 10.;
float Hash11(float p)
{
vec3 p3 = fract(vec3(p) * HASHSCALE1);
p3 += dot(p3, p3.yzx + 19.19);
return fract((p3.x + p3.y) * p3.z);
}
vec2 Hash22(vec2 p)
{
vec3 p3 = fract(vec3(p.xyx) * HASHSCALE3);
p3 += dot(p3, p3.yzx+19.19);
return fract((p3.xx+p3.yz)*p3.zy);
}
vec2 Rand22(vec2 co)
{
float x = fract(sin(dot(co.xy ,vec2(122.9898,783.233))) * 43758.5453);
float y = fract(sin(dot(co.xy ,vec2(457.6537,537.2793))) * 37573.5913);
return vec2(x,y);
}
vec3 SnowSingleLayer(vec2 uv,float layer){
vec3 acc = vec3(0.3);
uv = uv * (2.0+layer);
float xOffset = uv.y * (((Hash11(layer)*2.-1.)*0.5+1.)*XSPEED);
float yOffset = (YSPEED*time);
uv += vec2(xOffset,yOffset);
vec2 rgrid = Hash22(floor(uv)+(31.1759*layer));
uv = fract(uv);
uv -= (rgrid*2.-1.0) * 0.35;
uv -=0.5;
float r = length(uv);
float circleSize = 0.08*(1.0+0.3*sin(time*SIZE_RATE));
float val = smoothstep(circleSize,-circleSize,r);
vec3 col = vec3(val,val,val)* rgrid.x ;
return col;
}
void main()
{
time = czm_frameNumber / 120.0;
vec3 col = vec3(0.3, .3, .3);
// Normalized pixel coordinates (from 0 to 1)
vec2 uv = gl_FragCoord.xy/czm_viewport.zw;
uv *= vec2(czm_viewport.z/czm_viewport.w,1.0);
vec3 acc = vec3(0,0,0);
for (float i=0.;i<LAYERS;i++) {
acc += SnowSingleLayer(uv,i);
}
out_FragColor = mix( texture(colorTexture, v_textureCoordinates), vec4(acc,1.0) , 0.5);
}
`,
});
viewer.scene.postProcessStages.add(snowEffect);

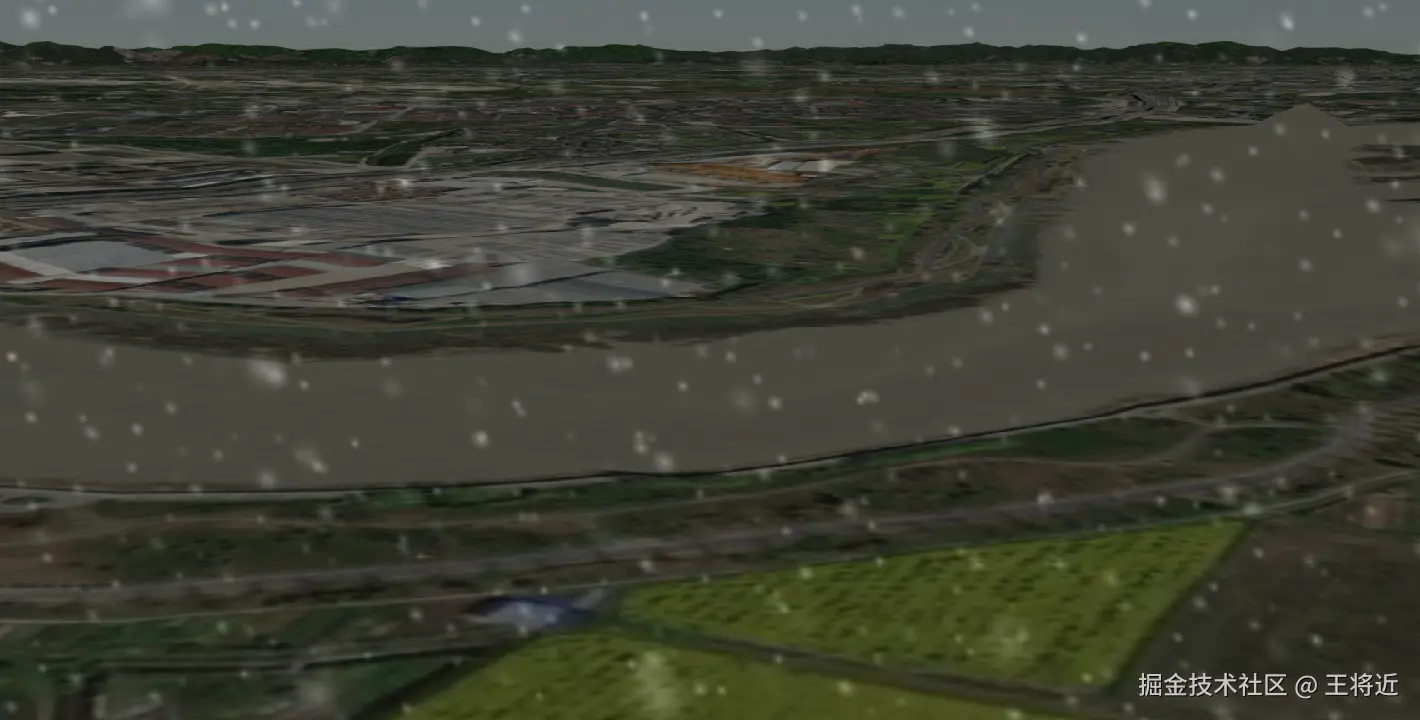

出来的效果应该是如下图

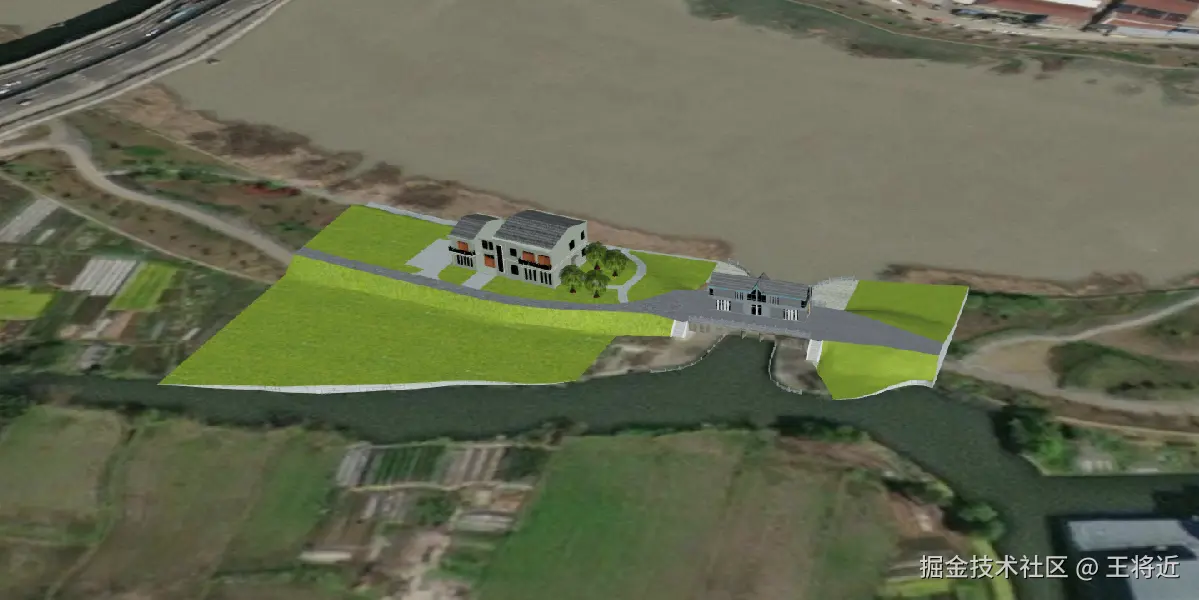

然后我们加载一个3dtiles模型实现模型积雪的效果这一步是customShader这一官方API实现的 这部分把积雪参数u_snowAlpha提取出来 当作参数做动态处理 初始值为0此时的模型是没有积雪的
let tileset = await Cesium.Cesium3DTileset.fromUrl(
"http://data.mars3d.cn/3dtiles/max-fsdzm/tileset.json",
{
customShader: new Cesium.CustomShader({
uniforms: {
u_lightColor: {
type: Cesium.UniformType.VEC3,
value: new Cesium.Cartesian3(1, 1, 1),
},
u_snowAlpha: {
type: Cesium.UniformType.FLOAT,
value: 0,
},
},
fragmentShaderText: `
#define MAX_RADIUS 2
// Set to 1 to hash twice. Slower, but less patterns.
#define DOUBLE_HASH 0
// Hash functions shamefully stolen from:
// https://www.shadertoy.com/view/4djSRW
#define HASHSCALE1 .1031
#define HASHSCALE3 vec3(.1031, .1030, .0973)
float hash12(vec2 p)
{
vec3 p3 = fract(vec3(p.xyx) * HASHSCALE1);
p3 += dot(p3, p3.yzx + 19.19);
return fract((p3.x + p3.y) * p3.z);
}
vec2 hash22(vec2 p)
{
vec3 p3 = fract(vec3(p.xyx) * HASHSCALE3);
p3 += dot(p3, p3.yzx+19.19);
return fract((p3.xx+p3.yz)*p3.zy);
}
void fragmentMain(FragmentInput fsInput, inout czm_modelMaterial material) {
vec3 positionEC = fsInput.attributes.positionEC;
vec3 positionMC = fsInput.attributes.positionMC;
vec2 uv = fsInput.attributes.texCoord_0 * 500.;
vec3 pos_dx = dFdx(positionEC);
vec3 pos_dy = dFdy(positionEC);
vec3 normalEC = normalize(cross(pos_dx, pos_dy));
vec4 positionWC = normalize(czm_inverseView * vec4(positionEC,1.0));
vec3 normalWC = normalize(czm_inverseViewRotation * normalEC);
float time = czm_frameNumber / 60.0;
vec2 p0 = floor(uv);
vec2 circles = vec2(0.);
for (int j = -MAX_RADIUS; j <= MAX_RADIUS; ++j)
{
for (int i = -MAX_RADIUS; i <= MAX_RADIUS; ++i)
{
vec2 pi = p0 + vec2(i, j);
#if DOUBLE_HASH
vec2 hsh = hash22(pi);
#else
vec2 hsh = pi;
#endif
vec2 p = pi + hash22(hsh);
float t = fract(0.3*time + hash12(hsh));
vec2 v = p - uv;
float d = length(v) - (float(MAX_RADIUS) + 1.)*t;
float h = 1e-3;
float d1 = d - h;
float d2 = d + h;
float p1 = sin(31.*d1) * smoothstep(-0.6, -0.3, d1) * smoothstep(0., -0.3, d1);
float p2 = sin(31.*d2) * smoothstep(-0.6, -0.3, d2) * smoothstep(0., -0.3, d2);
circles += 0.5 * normalize(v) * ((p2 - p1) / (2. * h) * (1. - t) * (1. - t));
}
}
circles /= float((MAX_RADIUS*2+1)*(MAX_RADIUS*2+1));
vec3 n = vec3(circles, sqrt(1. - dot(circles, circles)));
material.diffuse = mix(material.diffuse, vec3(1.0) , u_snowAlpha * smoothstep(0., .5, dot(positionWC.xyz, normalWC)));
material.diffuse *= min(max(0.0, dot(normalEC, czm_sunDirectionEC) * 1.0) + u_lightColor, 1.0);
}
`,
}),
}
);
最后，我们设置一个定时器逐渐增加雪的透明度，从而实现从无到有的过渡效果：
setInterval(() => {
if (tileset.customShader.uniforms.u_snowAlpha.value >= 1.0) return;
tileset.customShader.uniforms.u_snowAlpha.value += 0.01;
}, 20);

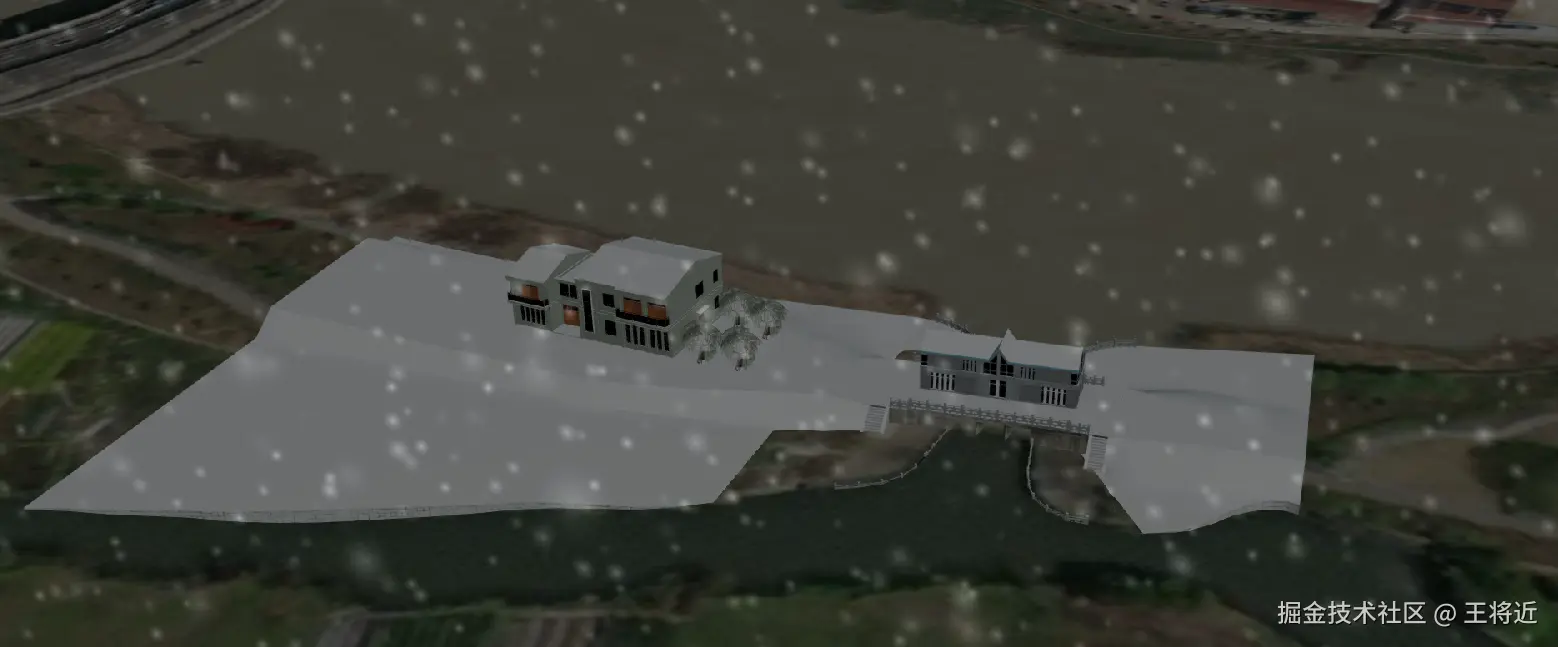

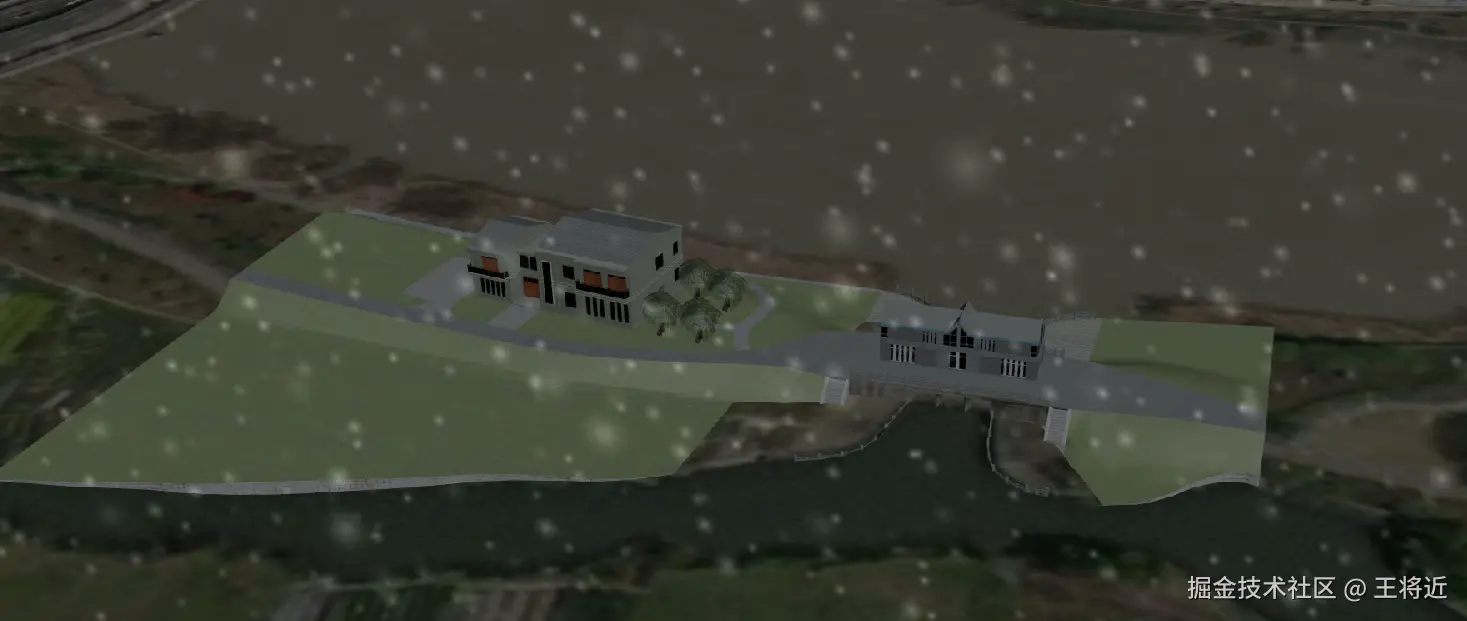

效果展示
通过上述步骤，我们成功创建了一个具有动态雪景效果的三维场景。用户可以通过浏览器访问该应用，体验到如同置身于冬日雪原般的视觉享受。。
总结
本文介绍了使用Cesium和WebGL技术实现动态雪景的方法。通过自定义着色器和后处理阶段，我们能够创造出令人惊叹的视觉效果。希望这篇文章能给对三维地球可视化感兴趣的开发者提供一些灵感和帮助。未来，随着技术的发展，我们可以期待更多创新的应用出现在这一领域。
