Kibana:使用 Devtools console 把请求变成 Python 或 Nodejs 的代码

220 阅读4分钟

本文由 简悦 SimpRead 转码, 原文地址 blog.csdn.net

特别指出,这个最新的 Elastic Stack 8.16 发布版的功能。我很兴奋地来尝试这个功能。在今天的文章中,我们来使用一个例子来进行详细地描述。

安装

如果你还没有安装好自己的 Elasticsearch 及 Kibana,请参考如下的文章来进行安装:

你在选择安装的时候,请选择 8.x 的文档来进行安装。特别指出的是,你需要安装 Elastic Stack 8.16,因为只有这个版本才开始有这个功能。在安装的时候,我们也可以启动 SSL 安全访问。

展示

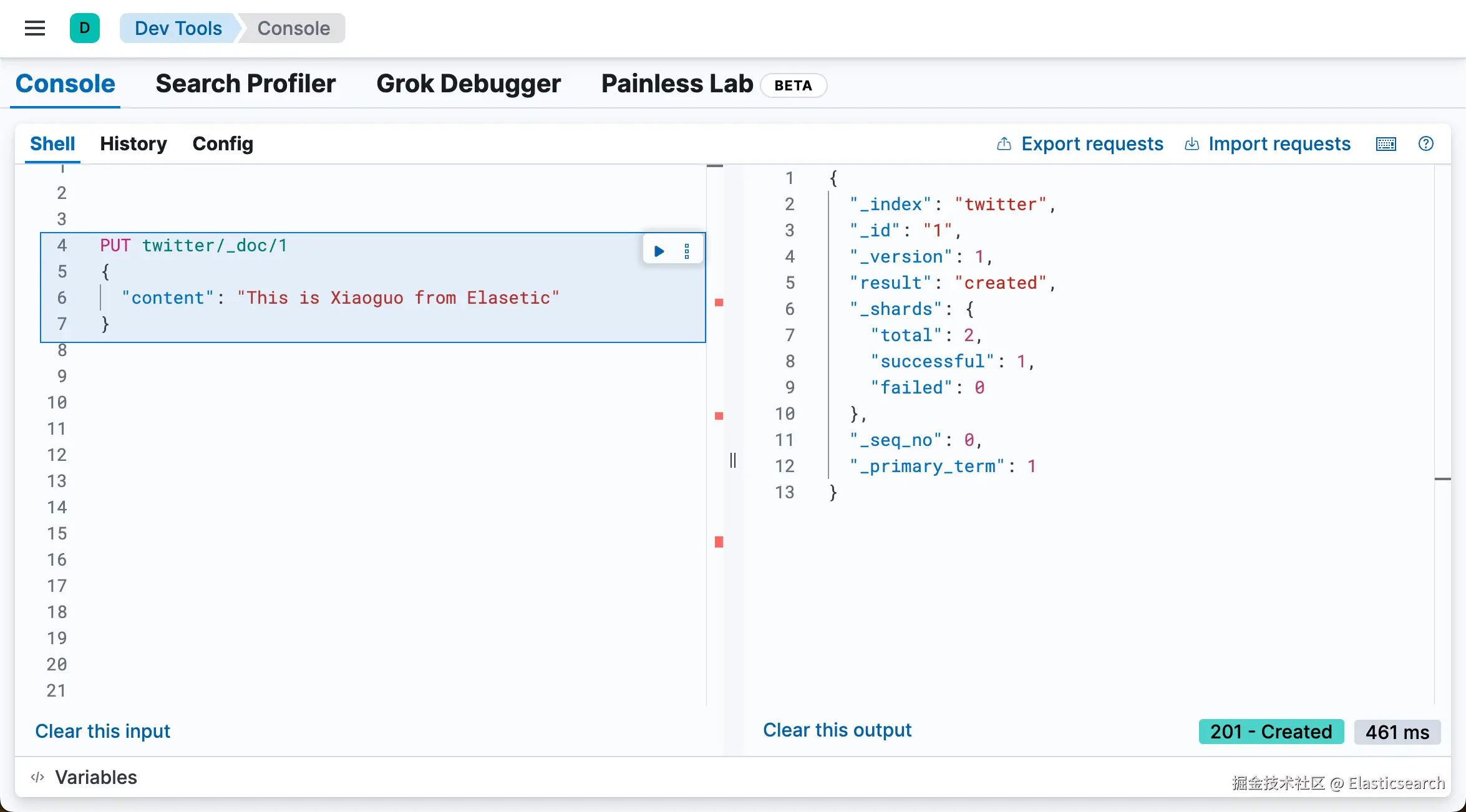

我们启动 Kibana,并进入到 DevTools console 中:

如上所示,我们打入如上的命令/请求:



1.  PUT twitter/_doc/1
2.  {
3.    "content": "This is Xiaoguo from Elasetic"
4.  }

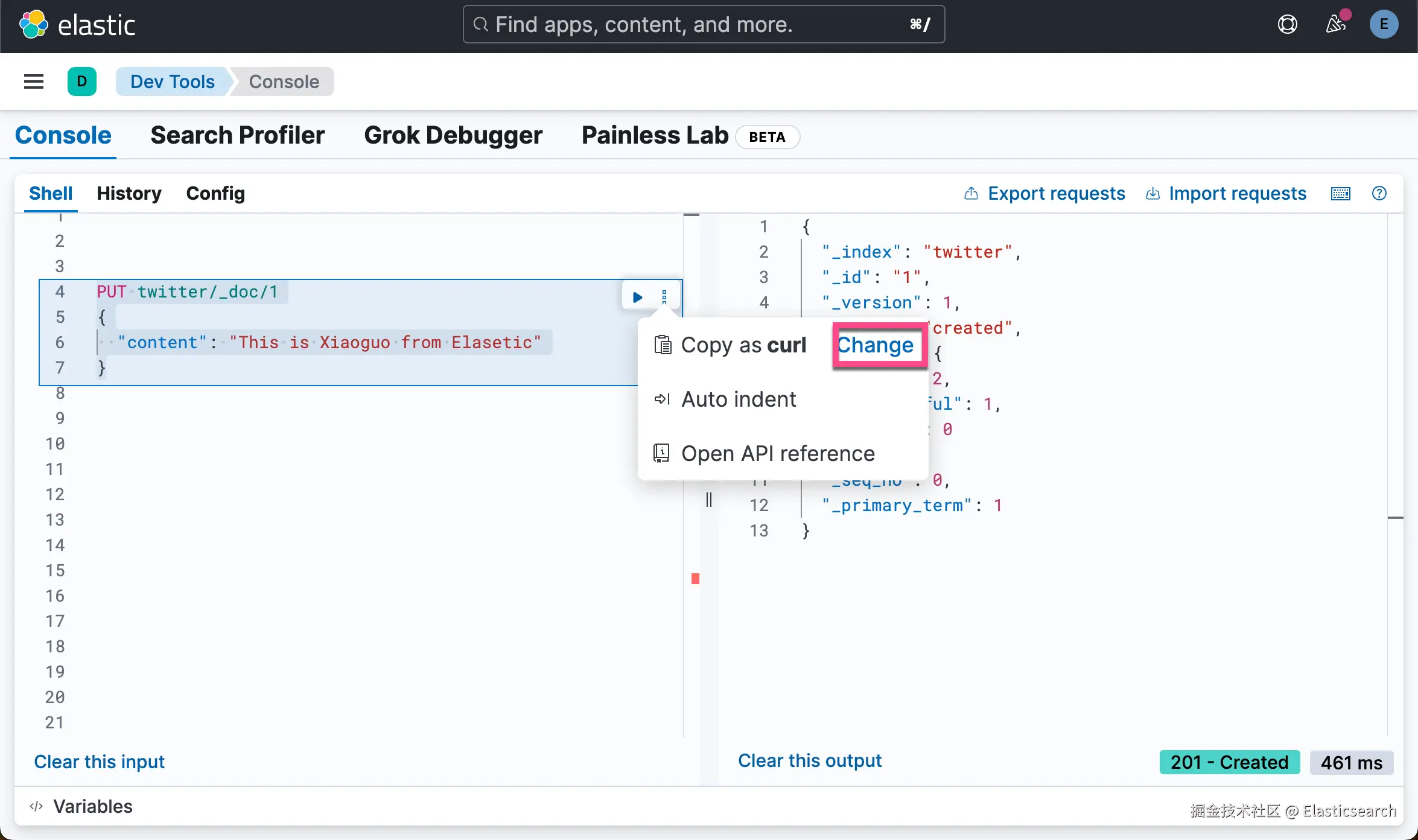

上面的命令被用来写入一个文档到 twitter 索引之中。我们接下来使用如下的操作:

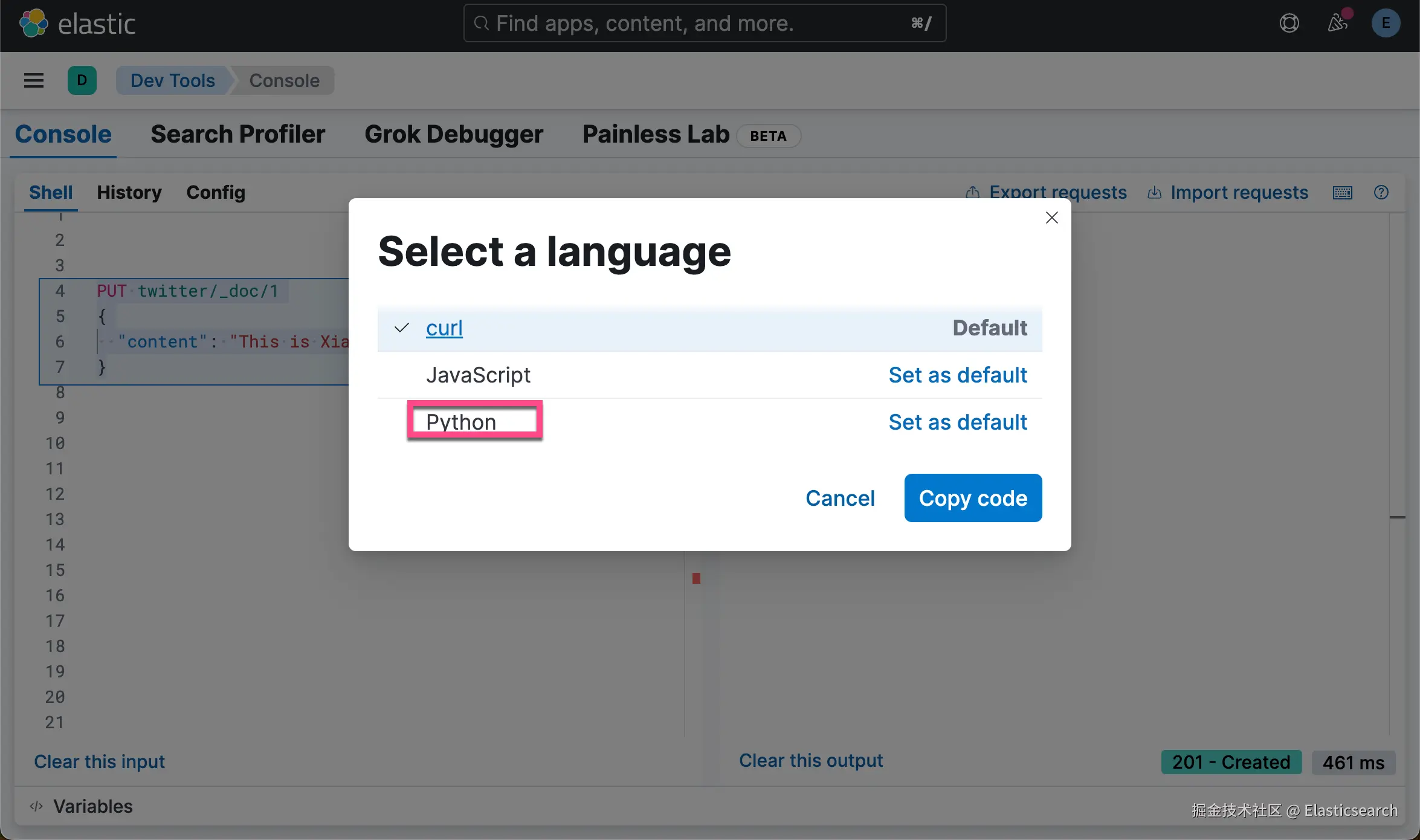

我们选择 Python,并拷贝代码:

1.  import os
2.  from elasticsearch import Elasticsearch

4.  client = Elasticsearch(
5.      hosts=["https://192.168.101.107:9200"],
6.      api_key=os.getenv("ELASTIC_API_KEY"),
7.  )

9.  resp = client.index(
10.      index="twitter",
11.      id="1",
12.      document={
13.          "content": "This is Xiaoguo from Elasetic"
14.      },
15.  )
16.  print(resp)

上面就是我们用来生成 twitter 索引,并写入文档到 Elasticsearch 中的代码。

细心的开发者可以发现,如果我们使用这个代码,并对没有安全设置的 Elasticsearch 安装来说是没有任何问题的。如果你的安装已经启用了 HTTPS 安全访问那么,我们该如何进行修改呢?

我们首先参考我之前写的文章 “Elasticsearch:关于在 Python 中使用 Elasticsearch 你需要知道的一切 - 8.x”。我们需要对代码进行修改。

拷贝 Elasticsearch 证书

我们执行如下的命令把 Elasticsearch 的证书拷贝到当前的目录中:



1.  $ pwd
2.  /Users/liuxg/python/console
3.  $ cp ~/elastic/elasticsearch-8.16.0/config/certs/http_ca.crt .
4.  $ ls
5.  http_ca.crt


创建 API key

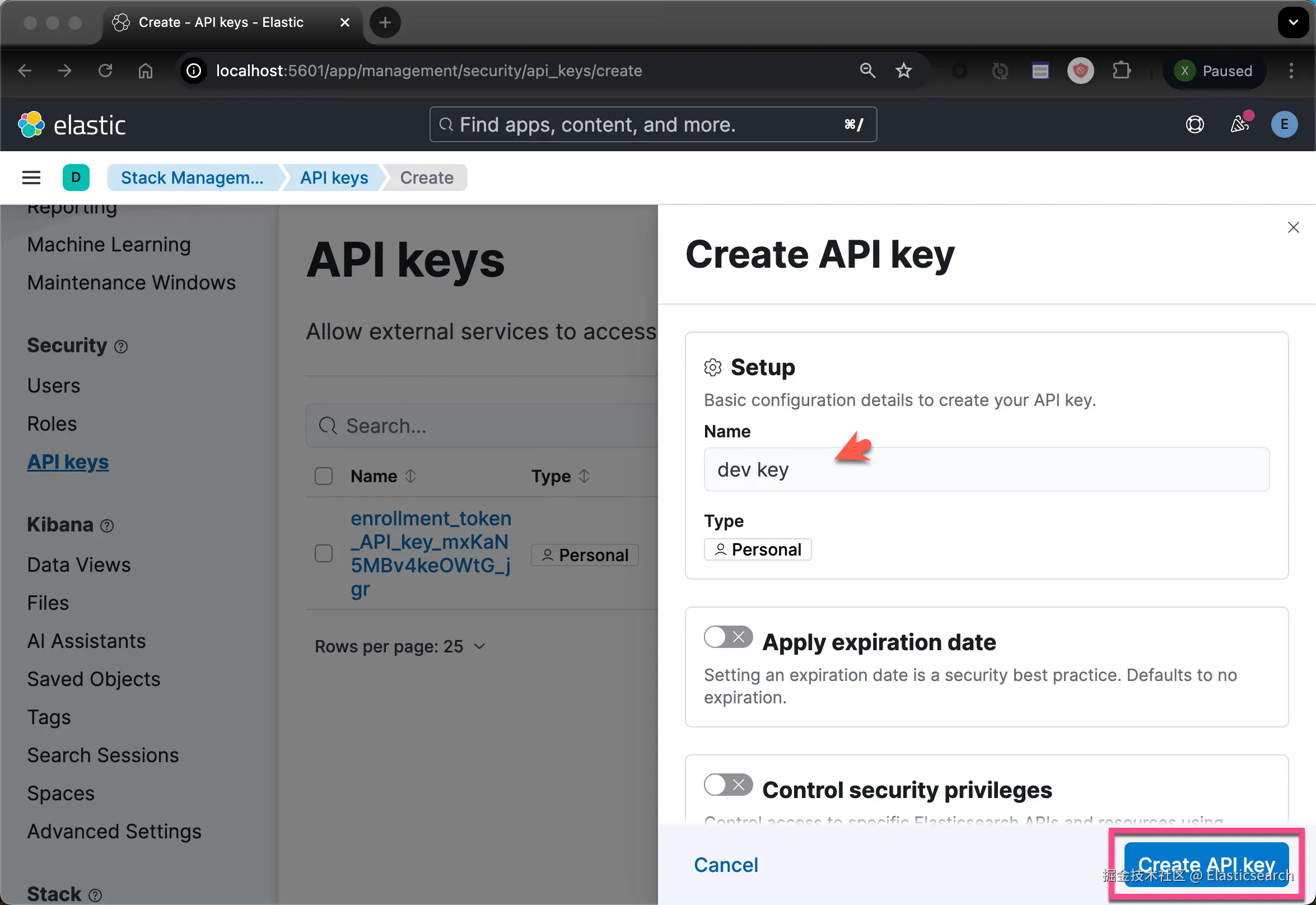

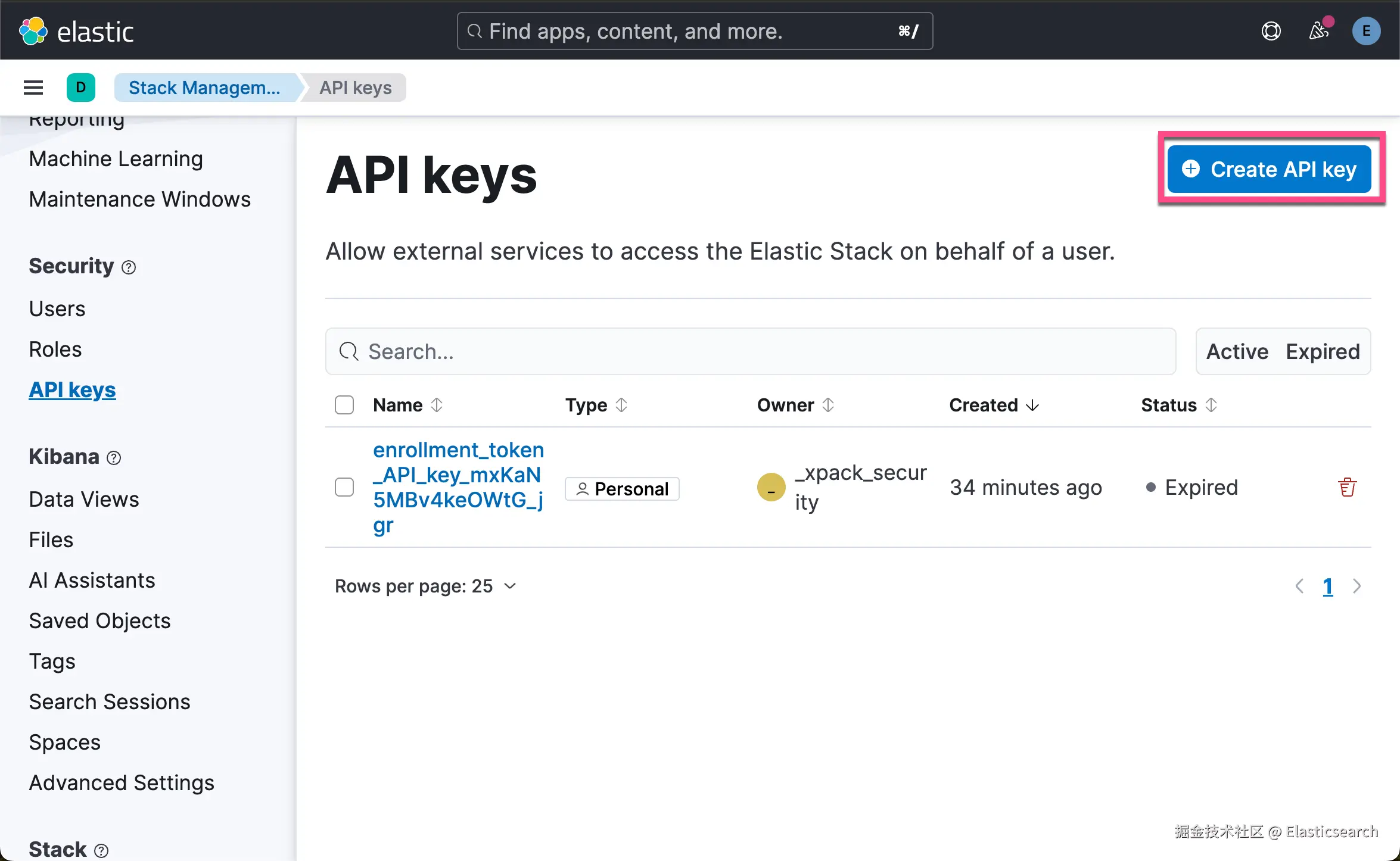

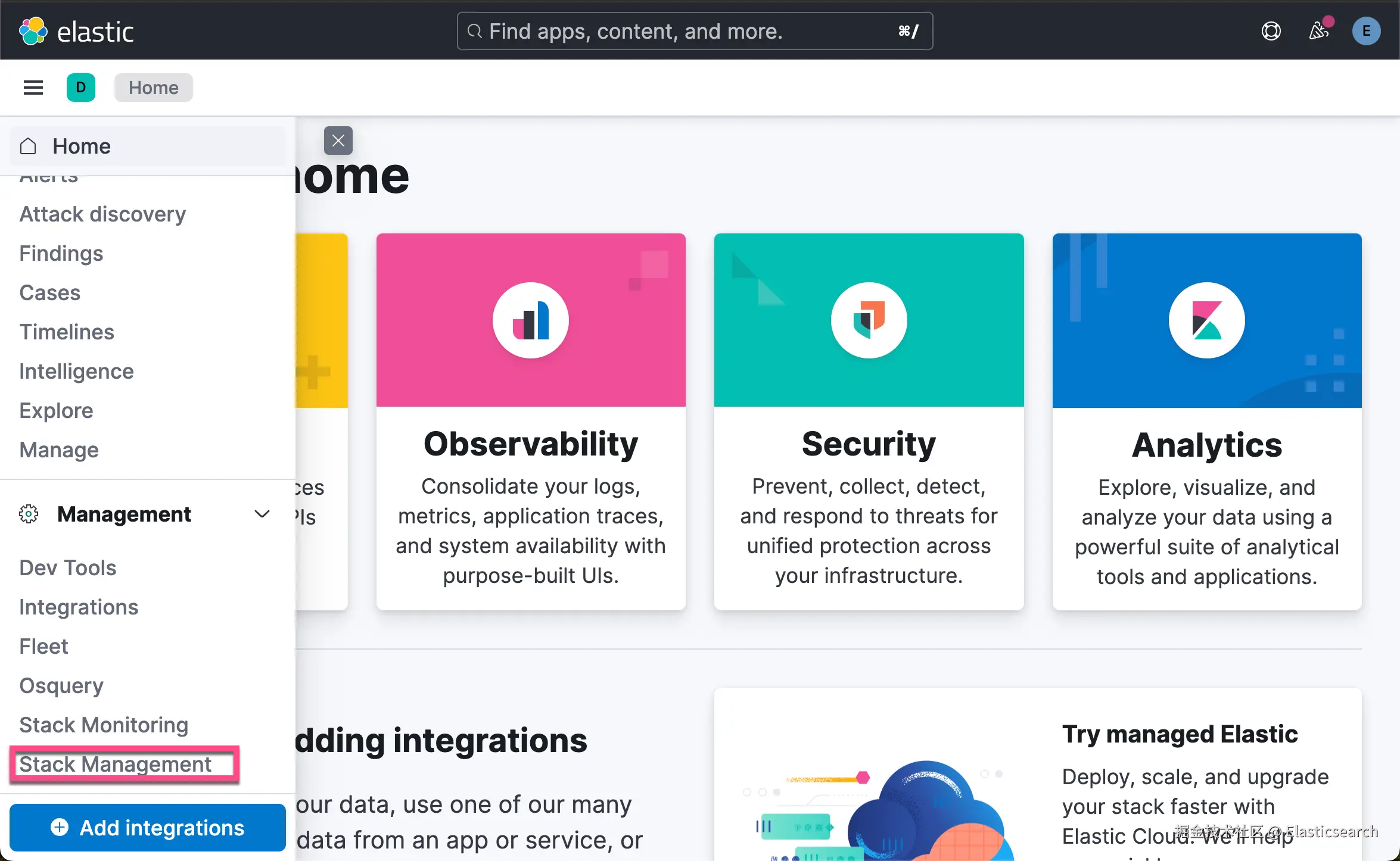

我们可以按照如下的步骤来获取 API key:

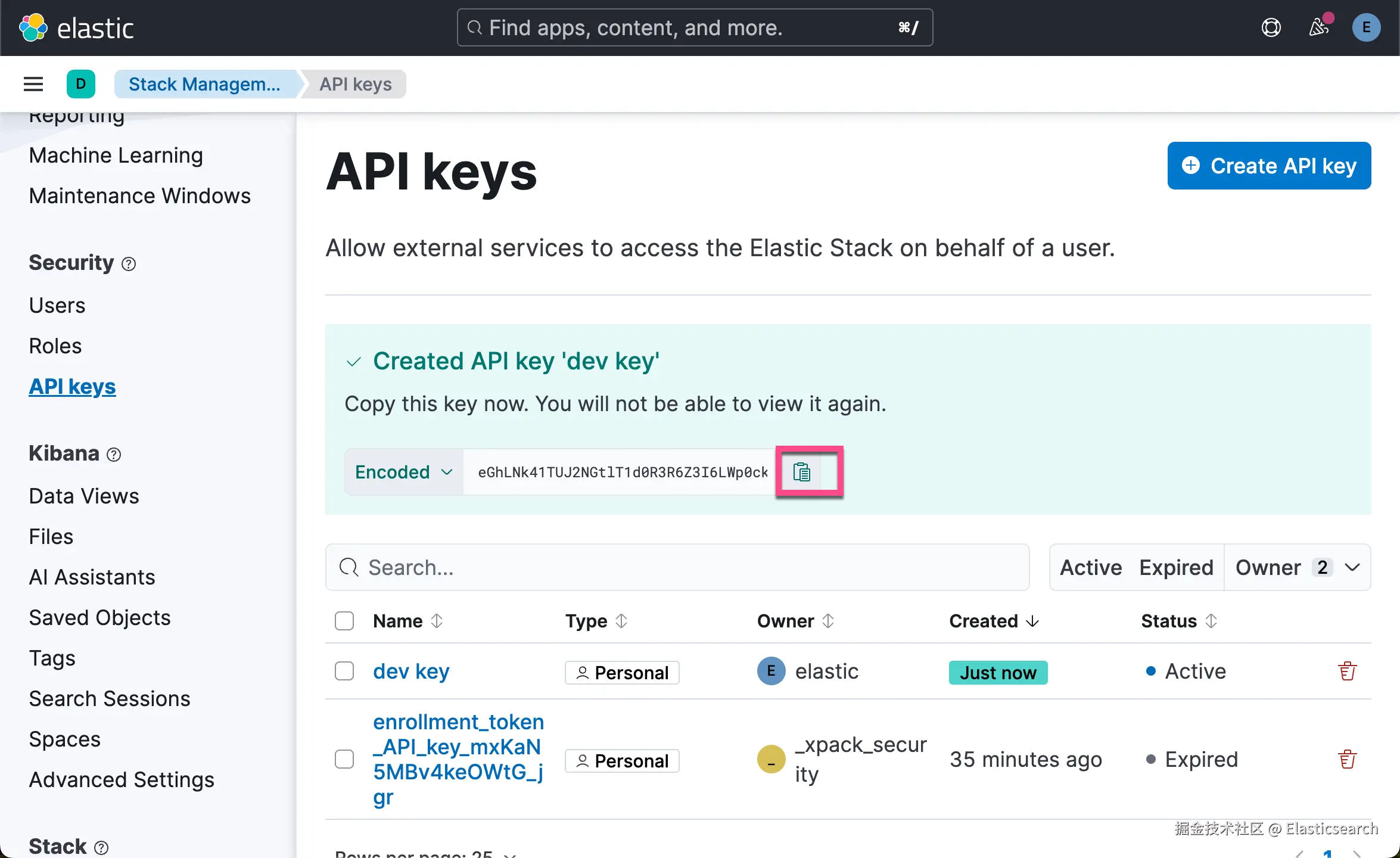

我们拷贝上面的 key 并在下面的代码中进行使用。

创建 Python 代码并修改

我们在当前的目录下创建 main.py 文件,并把之前拷贝的代码粘贴进去。我们需要做相应的修改:

main.py

1.  import os
2.  from elasticsearch import Elasticsearch

5.  client = Elasticsearch(
6.      hosts=["https://192.168.101.107:9200"],
7.      api_key="eGhLNk41TUJ2NGtlT1d0R3R6Z3I6LWp0ckxuY0xSU09jaDAwVHNISmZUZw==",
8.      ca_certs="./http_ca.crt",
9.      verify_certs = True
10.  )

12.  print(client.info())

14.  resp = client.index(
15.      index="twitter",
16.      id="2",
17.      document={
18.          "content": "This is Xiaoguo from Elasetic"
19.      },
20.  )

22.  print(resp)

为了测试的方便,我们使用了不同的文档 id (2) 来进行测试。我们运行上面的脚本:



1.  $ pwd
2.  /Users/liuxg/python/console
3.  $ ls
4.  http_ca.crt main.py
5.  $ python3 main.py
6.  {'name': 'liuxgm.local', 'cluster_name': 'elasticsearch', 'cluster_uuid': 'HF3DAYNQSnOq0D1NmsNubg', 'version': {'number': '8.16.0', 'build_flavor': 'default', 'build_type': 'tar', 'build_hash': '12ff76a92922609df4aba61a368e7adf65589749', 'build_date': '2024-11-08T10:05:56.292914697Z', 'build_snapshot': False, 'lucene_version': '9.12.0', 'minimum_wire_compatibility_version': '7.17.0', 'minimum_index_compatibility_version': '7.0.0'}, 'tagline': 'You Know, for Search'}
7.  {'_index': 'twitter', '_id': '2', '_version': 1, 'result': 'created', '_shards': {'total': 2, 'successful': 1, 'failed': 0}, '_seq_no': 1, '_primary_term': 1}


上面显示我们的代码已经成功地运行了。

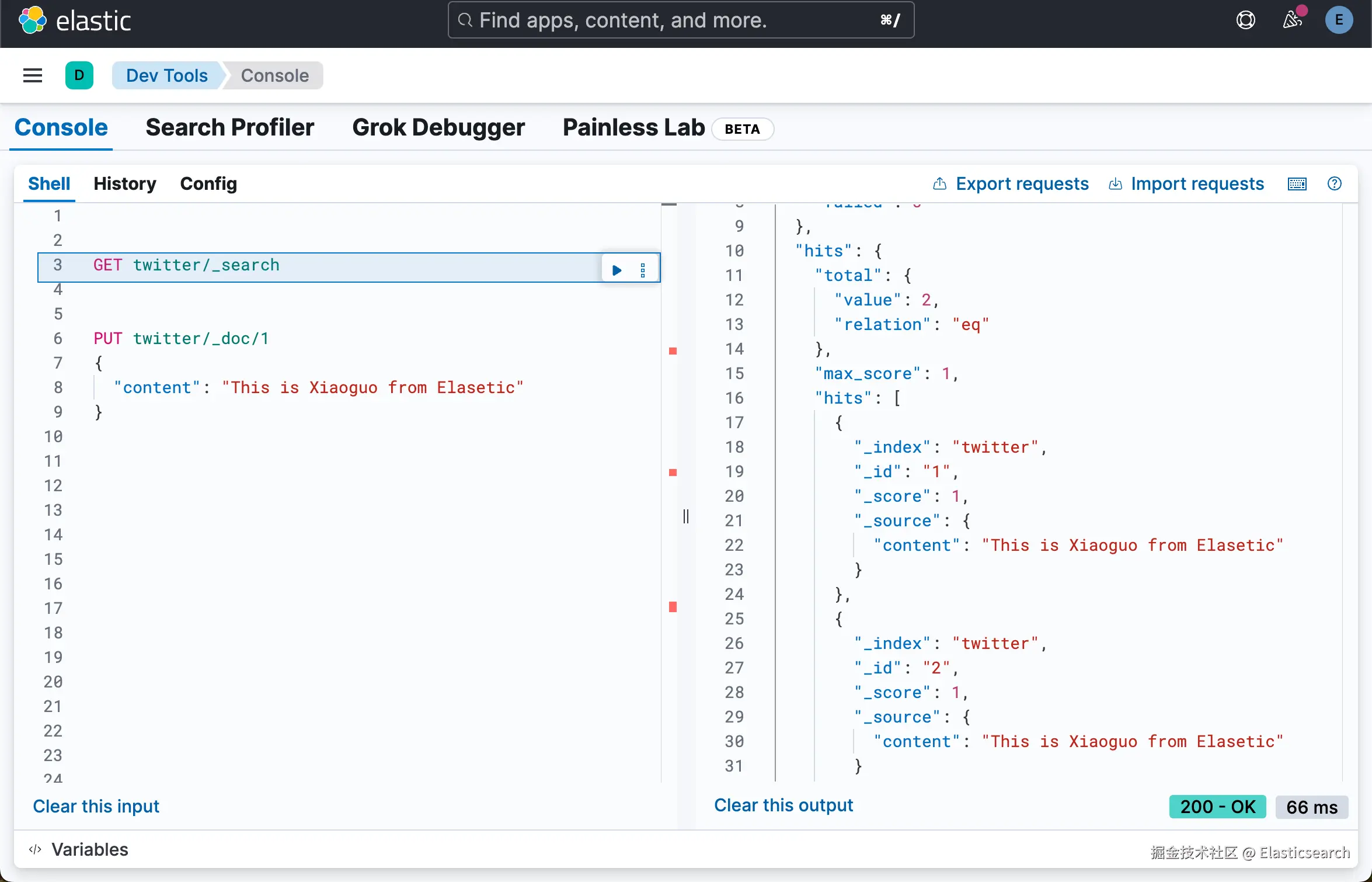

我们使用 Kibana 来查看我们已经写入的文档:

从上面的输出中,我们可以看出来,我们已经成功地写入了一个 id 为 2 的文档。

按照同样的方法,我们下面来使用 bulk 请求来写入一个 id 为 3 的文档。我们得到的代码是:

1.  import os
2.  from elasticsearch import Elasticsearch

4.  client = Elasticsearch(
5.      hosts=["https://192.168.101.107:9200"],
6.      api_key=os.getenv("ELASTIC_API_KEY"),
7.  )

9.  resp = client.bulk(
10.      operations=[
11.          {
12.              "index": {
13.                  "_index": "twitter",
14.                  "_id": "3"
15.              }
16.          },
17.          {
18.              "content": "this is from bulk"
19.          }
20.      ],
21.  )
22.  print(resp)

我们把上面的代码写入到之前的 main.py 中:

main.py



1.  import os
2.  from elasticsearch import Elasticsearch

5.  client = Elasticsearch(
6.      hosts=["https://192.168.101.107:9200"],
7.      api_key="eGhLNk41TUJ2NGtlT1d0R3R6Z3I6LWp0ckxuY0xSU09jaDAwVHNISmZUZw==",
8.      ca_certs="./http_ca.crt",
9.      verify_certs = True
10.  )

12.  print(client.info())

14.  resp = client.index(
15.      index="twitter",
16.      # id="2",
17.      document={
18.          "content": "This is Xiaoguo from Elastic"
19.      },
20.  )

22.  print(resp)

24.  resp = client.bulk(
25.      operations=[
26.          {
27.              "index": {
28.                  "_index": "twitter",
29.                  "_id": "3"
30.              }
31.          },
32.          {
33.              "content": "this is from bulk"
34.          }
35.      ],
36.  )

38.  print(resp)


请注意,这次我们写入文档时,我们在第一个写入中没有指定 id 这个字段(避免写入同样 id 2 造成的问题)。运行上面的代码:



1.  $ pwd
2.  /Users/liuxg/python/console
3.  $ ls
4.  http_ca.crt main.py
5.  $ python3 main.py
6.  {'name': 'liuxgm.local', 'cluster_name': 'elasticsearch', 'cluster_uuid': 'HF3DAYNQSnOq0D1NmsNubg', 'version': {'number': '8.16.0', 'build_flavor': 'default', 'build_type': 'tar', 'build_hash': '12ff76a92922609df4aba61a368e7adf65589749', 'build_date': '2024-11-08T10:05:56.292914697Z', 'build_snapshot': False, 'lucene_version': '9.12.0', 'minimum_wire_compatibility_version': '7.17.0', 'minimum_index_compatibility_version': '7.0.0'}, 'tagline': 'You Know, for Search'}
7.  {'_index': 'twitter', '_id': 'yBLFN5MBv4keOWtGQDiG', '_version': 1, 'result': 'created', '_shards': {'total': 2, 'successful': 1, 'failed': 0}, '_seq_no': 2, '_primary_term': 1}
8.  {'errors': False, 'took': 0, 'items': [{'index': {'_index': 'twitter', '_id': '3', '_version': 1, 'result': 'created', '_shards': {'total': 2, 'successful': 1, 'failed': 0}, '_seq_no': 3, '_primary_term': 1, 'status': 201}}]}

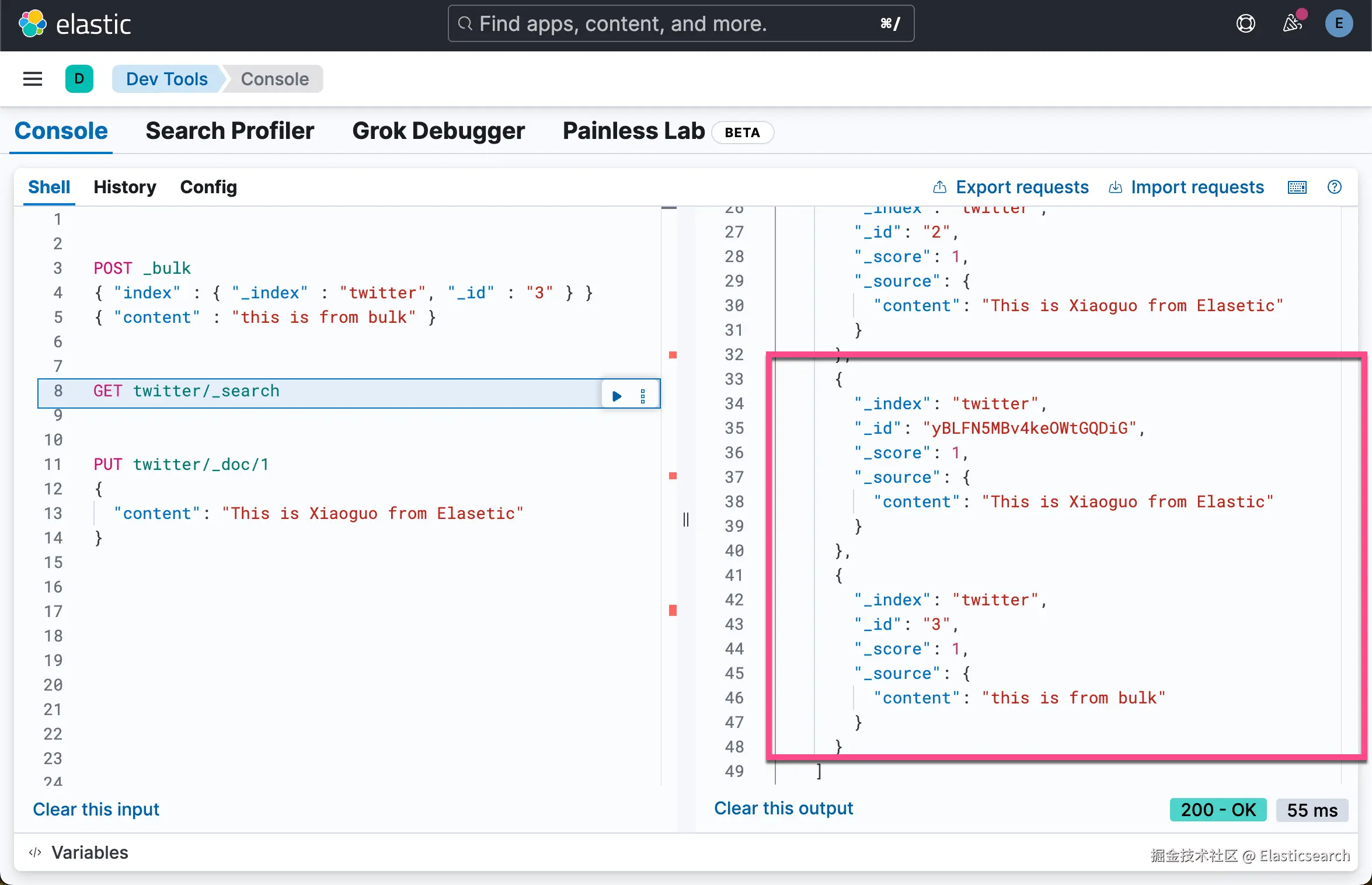

我们使用 Kibana 进行查看:

我们看见两个最新写入的文档。

我们可以使用同样的方法来针对 Nodejs 进行操作。这个留给你们自己进行尝试。针对 Nodejs 的 Elasticsearch 连接,你可以参考文章 “Elasticsearch:使用最新的 Nodejs client 8.x 来创建索引并搜索”。
