高效数据管理：利用PySpark和Apache Hudi实现数据湖中的插入与更新

在现代数据密集型任务中，高效的数据管理变得尤为重要。这篇文章介绍了一种利用PySpark与Apache Hudi进行数据处理的方案，通过对数据进行插入和更新操作，来保持数据湖中数据的一致性和准确性。

核心概述

这段代码展示了PySpark应用程序如何集成Apache Hudi进行数据插入和更新。通过创建DwdProdInst类，它能够：

使用SQL提取和过滤数据源中的新旧数据。
划分数据为需要插入或更新的记录。
利用Apache Hudi的特性，确保数据的增量更新和ACID事务的一致性。

整体工作流程

数据提取与过滤：
- 从源数据库中选择符合条件的数据，根据是否在目标表中存在，生成相应的插入和更新数据集。
合并处理：
- 利用Spark SQL进行合并操作，将插入和更新的结果整合在一个临时视图中。
数据写入：
- 使用Hudi实现数据的upsert操作，将合并后的结果写入指定的Hudi表路径中，有效地管理以增量更新为目标的大规模数据。

优势特点

高效更新：通过Hudi的Copy-On-Write模式，在逻辑上实现数据的更新和去重。
扩展性强：轻松适配不同的源数据表和目标路径，通过自定义SQL语句调整操作逻辑。
性能优化：使用Spark的cache()方法和合理的分区配置，提升整体计算效率。

这一解决方案提供了一种有效的数据处理方式，特别适合日益复杂的数据管理需求，通过灵活的SQL配置和精简的处理流程，实现数据湖中高效的插入与更新操作。

gbase 存储过程

gbase 存过转pyspark

存储过程 `sp_dwd_prod_inst_inc`

总体目标:
- 从 CUST.PROD_INST 表同步数据到 GBASE，具体操作包含三个步骤：
  1. 去重数据: 从 dws_cust.dws_prod_inst 表按主键 prod_inst_id 去重，确保保留最新的 update_date。
  2. 更新数据: 将 TMPDB.TMP_DWS_PROD_INST_01 中存在的数据更新到目标表 DWD_DB.DWD_PROD_INST。
  3. 插入数据: 将 DWD_DB.DWD_PROD_INST 中不存在的数据从 TMPDB.TMP_DWS_PROD_INST_01 插入。
错误处理: 使用 EXIT handler 捕获异常，将错误信息记录到 etl.log_sp_exec 表。
日志记录: 记录每个步骤的开始时间、处理行数、出现的任何错误及整个过程的结束。

Spark SQL with Hudi

总体目标:
- 使用 Hudi，处理从 db_dws_crm.dws_cus_prod_inst_flinksql_rt 表的数据，以更新或插入到 db_dwd.dwd_prod_inst_02 表。过滤选定的时间范围内的记录（2024-03-06 到 2024-04-06）。
步骤:
1. 插入数据: 创建 TMP_INSERT_RECORD_sparksql_j2 表存储在目标表 db_dwd.dwd_prod_inst_02 中不存在的新记录。
2. 更新数据: 使用 TMP_UPDATE_RECORD_sparksql_j2 表存储目标表中已存在的记录。
3. 合并数据: 将插入和更新的数据组合到 TMP_UNION_RECORD_sparksql_j2 表中。
4. 插入组合数据: 将组合后的数据插入到目标表 db_dwd.dwd_prod_inst_02。
Hudi 使用:
- 使用 cow 存储类型（Copy-on-write），适用于批量处理，以确保 ACID 事务和历史版本管理。

主要不同点

数据库：
- 存储过程中使用 MySQL 存储过程和 GBASE 表，适合于传统关系数据库的处理。
- Spark SQL 代码旨在利用大数据技术，特别是 Hudi 的增量更新和大规模数据处理能力，配合 Apache Spark 处理。
日志记录和错误处理:
- 存储过程详细记录日志信息和错误，而 Spark SQL 中未显式展示这种处理。

这些代码在相应数据库环境中，可用于批处理、数据同步和清洗操作，利用 GBASE 和 Hudi 的各自特点进行优化处理。

完整存过

CREATE DEFINER="e_exec_sp"@"%" PROCEDURE "sp_dwd_prod_inst_inc"(INOUT V_FLAG INT)
BEGIN
     /*过程名称：etl.sp_dwd_prod_inst_inc
    功能：从CRM复制库库同步prod_inst表数据到GBASE
    目标表：DWD_DB.DWD_PROD_INST
    源表：CUST.PROD_INST
    过程表：DWS_CUST.DWS_PROD_INST
    返回:1  成功
         0  失败


    日志信息：select * from etl.log_sp_exec
                         where sp_name='etl.sp_dwd_prod_inst_inc'
                         order by start_date desc;

    创建人员：tydic
    创建时间：2018-12-28
    关键指标：无

    修改人员：tydic
    修改时间：2019-4-22
    关键指标：新增STD_ADDR_ID字段

    修改人员：tydic
    修改时间：2019-5-15
    修改内容：新增ICCID字段

    修改人员：tydic
    修改时间：2020-2-24
    修改内容：新增asset_source_cd,version字段

    修改人员：tydic
    修改时间：2021-12-03
    修改内容：新增BRANCH_REGION_ID 字段

    程序目录：
    STEP1:按接口层表主键去重
    STEP2:更新目标表中已存在的数据
    STEP3:插入目标表中不存在的数据

    */

    /*日志变量申明*/
    /*错误日志代码*/
    DECLARE SQLCODE INT;
    /*错误日志信息*/
    DECLARE SQLERRM TEXT;
    /*处理步骤名称*/
    DECLARE V_EXEC_POINT VARCHAR(800);
    /*存储过程名称*/
    DECLARE V_SP_NAME VARCHAR(400);
    /*数据日期*/
    DECLARE V_PS_DATE DATETIME;
    /*步骤开始时间*/
    DECLARE V_SPSTEP_DT DATETIME;
    /*记录数统计*/
    DECLARE V_LOAD_ROWS DECIMAL(38);


    /*错误日志获取并记录*/
    DECLARE EXIT handler FOR sqlexception
    BEGIN
        GET diagnostics CONDITION 1 SQLCODE = gbase_errno,SQLERRM=message_text;
        INSERT INTO etl.log_sp_exec (sp_name,start_date,end_date,ps_date,exec_point,mysql_error,err_code)
        VALUES
       (V_SP_NAME,V_SPSTEP_DT,NOW(),V_PS_DATE,V_EXEC_POINT,SQLERRM,SQLCODE);
        COMMIT;
    END;

    /*变量赋值*/
    /*程序运行是否成功： 成功：1、失败：0*/
    SET V_FLAG = 0;
    SET V_PS_DATE = curdate();
    SET gbase_fast_update=1;
    SET V_SP_NAME = 'etl.sp_dwd_prod_inst_inc';


    SET V_SPSTEP_DT = NOW();
    SET V_EXEC_POINT = '程序开始';
    INSERT INTO etl.log_sp_exec (sp_name,start_date,end_date,ps_date,exec_point,upd_rows)
    VALUES (V_SP_NAME,V_SPSTEP_DT,NOW(),V_PS_DATE,V_EXEC_POINT,V_LOAD_ROWS);
    COMMIT;

    SET V_SPSTEP_DT = NOW();
    set V_EXEC_POINT = 'STEP1:按接口层表主键去重';
    drop table if exists tmpdb.tmp_dws_prod_inst_01;
    create table tmpdb.tmp_dws_prod_inst_01 distributed by('prod_inst_id') nolock as
    select t.*
      from (select a.*,row_number() over(partition by a.prod_inst_id order by a.update_date desc) rn
              from dws_cust.dws_prod_inst a) t
      where t.rn='1';
    SELECT COUNT(*) INTO v_load_rows FROM tmpdb.tmp_dws_prod_inst_01;
    INSERT INTO etl.log_sp_exec (sp_name,start_date,end_date,ps_date,ins_rows,exec_point)
    VALUES (V_SP_NAME,V_SPSTEP_DT,NOW(),V_PS_DATE,V_LOAD_ROWS,V_EXEC_POINT);
    COMMIT;

    SET V_SPSTEP_DT = NOW();
    SET V_EXEC_POINT = 'STEP2:更新目标表中已存在的数据';
    UPDATE DWD_DB.DWD_PROD_INST A,TMPDB.TMP_DWS_PROD_INST_01 B
       SET
           A.ACC_NUM=B.ACC_NUM,
           A.ACC_PROD_INST_ID=B.ACC_PROD_INST_ID,
           A.ACCOUNT=B.ACCOUNT,
           A.ACT_DATE=B.ACT_DATE,
           A.ADDRESS_DESC=B.ADDRESS_DESC,
           A.ADDRESS_ID=B.ADDRESS_ID,
           A.BEGIN_RENT_DATE=B.BEGIN_RENT_DATE,
           A.BUSI_MOD_DATE=B.BUSI_MOD_DATE,
           A.CREATE_DATE=B.CREATE_DATE,
           A.CREATE_ORG_ID=B.CREATE_ORG_ID,
           A.CREATE_STAFF=B.CREATE_STAFF,
           A.EXCH_ID=B.EXCH_ID,
           A.EXT_PROD_INST_ID=B.EXT_PROD_INST_ID,
           A.FIRST_FINISH_DATE=B.FIRST_FINISH_DATE,
           A.LAN_ID=B.LAN_ID,
           A.LAST_ORDER_ITEM_ID=B.LAST_ORDER_ITEM_ID,
           A.OWNER_CUST_ID=B.OWNER_CUST_ID,
           A.PAYMENT_MODE_CD=B.PAYMENT_MODE_CD,
           A.POINT_OWNER_ID=B.POINT_OWNER_ID,
           A.PROD_ID=B.PROD_ID,
           A.PROD_INST_PWD=B.PROD_INST_PWD,
           A.PROD_USE_TYPE=B.PROD_USE_TYPE,
           A.REGION_ID=B.REGION_ID,
           A.REMARK=B.REMARK,
           A.STATUS_CD=B.STATUS_CD,
           A.STATUS_DATE=B.STATUS_DATE,
           A.STOP_RENT_DATE=B.STOP_RENT_DATE,
           A.UPDATE_DATE=B.UPDATE_DATE,
           A.UPDATE_STAFF=B.UPDATE_STAFF,
           A.USE_CUST_ID=B.USE_CUST_ID,
           A.SIEBEL_ROW_ID=B.SIEBEL_ROW_ID,
           A.INTEGRATION_ID=B.INTEGRATION_ID,
           A.X_TRACK_NUM=B.X_TRACK_NUM,
           A.ACCT_ID=B.ACCT_ID,
           A.ACCT_CD=B.ACCT_CD,
           A.PAR_REGION_ID=B.PAR_REGION_ID,
           A.GRP_PROD_NBR=B.GRP_PROD_NBR,
           A.ACCT_BILLING_TYPE=B.ACCT_BILLING_TYPE,
           A.NEWCRM_FLAG=B.NEWCRM_FLAG,
           A.STD_ADDR_ID=B.STD_ADDR_ID,
           A.ICCID=B.ICCID,
           A.ASSET_SOURCE_CD=B.ASSET_SOURCE_CD,
           A.VERSION=B.VERSION,
           A.BRANCH_REGION_ID=B.BRANCH_REGION_ID,
           A.LST_UPD_TMP=NOW(),
           A.LST_UPD_BY='ETL_USER',
           A.BUSI_KEY=B.PROD_INST_ID,
           A.SRC_SYS='CRM'
     WHERE A.PROD_INST_ID=B.PROD_INST_ID;
    SET V_LOAD_ROWS = row_count();
    INSERT INTO etl.log_sp_exec (sp_name,start_date,end_date,ps_date,upd_rows,exec_point)
    VALUES (V_SP_NAME,V_SPSTEP_DT,NOW(),V_PS_DATE,V_LOAD_ROWS,V_EXEC_POINT);
    COMMIT;


    SET V_SPSTEP_DT = NOW();
    SET V_EXEC_POINT = 'STEP3:插入目标表中不存在的数据';
    INSERT INTO DWD_DB.DWD_PROD_INST
    (ACC_NUM,ACC_PROD_INST_ID,ACCOUNT,ACT_DATE,ADDRESS_DESC,ADDRESS_ID,BEGIN_RENT_DATE,BUSI_MOD_DATE,CREATE_DATE,CREATE_ORG_ID,CREATE_STAFF,EXCH_ID,EXT_PROD_INST_ID,FIRST_FINISH_DATE,LAN_ID,LAST_ORDER_ITEM_ID,OWNER_CUST_ID,PAYMENT_MODE_CD,POINT_OWNER_ID,PROD_ID,PROD_INST_ID,PROD_INST_PWD,PROD_USE_TYPE,REGION_ID,REMARK,STATUS_CD,STATUS_DATE,STOP_RENT_DATE,UPDATE_DATE,UPDATE_STAFF,USE_CUST_ID,SIEBEL_ROW_ID,INTEGRATION_ID,X_TRACK_NUM,ACCT_ID,ACCT_CD,PAR_REGION_ID,GRP_PROD_NBR,ACCT_BILLING_TYPE,NEWCRM_FLAG,STD_ADDR_ID,ICCID,ASSET_SOURCE_CD,VERSION,BRANCH_REGION_ID,CREATE_TMP,CREATE_BY,LST_UPD_TMP,LST_UPD_BY,BUSI_KEY,SRC_SYS)
    SELECT ACC_NUM,ACC_PROD_INST_ID,ACCOUNT,ACT_DATE,ADDRESS_DESC,ADDRESS_ID,BEGIN_RENT_DATE,BUSI_MOD_DATE,CREATE_DATE,CREATE_ORG_ID,CREATE_STAFF,EXCH_ID,EXT_PROD_INST_ID,FIRST_FINISH_DATE,LAN_ID,LAST_ORDER_ITEM_ID,OWNER_CUST_ID,PAYMENT_MODE_CD,POINT_OWNER_ID,PROD_ID,PROD_INST_ID,PROD_INST_PWD,PROD_USE_TYPE,REGION_ID,REMARK,STATUS_CD,STATUS_DATE,STOP_RENT_DATE,UPDATE_DATE,UPDATE_STAFF,USE_CUST_ID,SIEBEL_ROW_ID,INTEGRATION_ID,X_TRACK_NUM,ACCT_ID,ACCT_CD,PAR_REGION_ID,GRP_PROD_NBR,ACCT_BILLING_TYPE,NEWCRM_FLAG,STD_ADDR_ID,ICCID,ASSET_SOURCE_CD,VERSION,BRANCH_REGION_ID,NOW() CREATE_TMP,'ETL_USER' CREATE_BY,NOW() LST_UPD_TMP,'ETL_USER' LST_UPD_BY,PROD_INST_ID BUSI_KEY,'CRM' SRC_SYS
      FROM TMPDB.TMP_DWS_PROD_INST_01 A
     WHERE NOT EXISTS (SELECT 8 FROM DWD_DB.DWD_PROD_INST B WHERE A.PROD_INST_ID=B.PROD_INST_ID);
    SET V_LOAD_ROWS = row_count();
    INSERT INTO etl.log_sp_exec (sp_name,start_date,end_date,ps_date,ins_rows,exec_point)
    VALUES (V_SP_NAME,V_SPSTEP_DT,NOW(),V_PS_DATE,V_LOAD_ROWS,V_EXEC_POINT);
    COMMIT;

    SET v_spstep_dt=now();
    SET v_exec_point='程序结束';
    insert into etl.log_sp_exec (sp_name,start_date,end_date,ps_date,exec_point)
    values (v_sp_name,v_spstep_dt,now(),V_PS_DATE,v_exec_point);
    commit;

    SET v_flag=1;

   end

sparksql

sparksql操作hudi

数据插入处理

创建和插入新记录：
- 表 db_tmp.TMP_INSERT_RECORD_sparksql_j2 使用 Hudi 创建，储存从另一个表中提取的待插入的新记录。
- LEFT JOIN 确定在 db_dwd.dwd_prod_inst_02 表中不存在的 prod_inst_id，保证新增数据不与已有数据重复。
数据来源：
- 从 db_dws_crm.dws_cus_prod_inst_flinksql_rt t1 表提取数据。
- 过滤条件：t1.etl_time 范围在 '2024-03-06 00:00:00' 和 '2024-04-06 00:00:00' 之间，同时确保 t2.prod_inst_id 为 null，即不在目标表中的数据。

数据更新处理

创建和更新已存在的记录：
- 表 db_tmp.TMP_UPDATE_RECORD_sparksql_j2 使用 Hudi 创建，储存从另一个表中提取的待更新的记录。
- INNER JOIN 确保只更新 db_dwd.dwd_prod_inst_02 表中已存在的 prod_inst_id。
数据来源：
- 从 db_dws_crm.dws_cus_prod_inst_flinksql_rt t1 表提取数据。
- 同样过滤条件为：t1.etl_time 的范围在 '2024-03-06 00:00:00' 和 '2024-04-06 00:00:00' 之间。

合并处理

合并插入和更新的表：
- 表 db_tmp.TMP_UNION_RECORD_sparksql_j2 用于合并新插入和待更新的记录。
- 使用 UNION ALL 合并 TMP_INSERT_RECORD_sparksql_j2 和 TMP_UPDATE_RECORD_sparksql_j2 表的数据。

最终插入

将处理后的数据插入目标表：
- 将合并后的数据插入到目标表 db_dwd.dwd_prod_inst_02 中。
- CAST 操作为每列强制转换数据类型为字符串，因为目标表的列数据类型预期是字符串。

使用 Hudi 的好处

Hudi 特性：提供 ACID 事务，支持增量处理，可以高效管理日常数据更新。
Copy-on-write (COW) ：适用于批处理作业，能减少对数据的冲突，同时保持数据一致性。

这段代码通过 Hudi 管理数据湖中的数据更新和插入操作，能很好地处理大规模数据集的变更，让批处理和流处理任务更易于进行。

drop table
    IF EXISTS db_tmp.TMP_INSERT_RECORD_sparksql_j2;

create table
    IF NOT EXISTS db_tmp.TMP_INSERT_RECORD_sparksql_j2 using hudi TBLPROPERTIES (type = 'cow', primaryKey = 'prod_inst_id') as
SELECT
    cast(t1.prod_inst_id as string),
    t1.acc_num as acc_num,
    cast(t1.acc_prod_inst_id as string),
    t1.account,
    t1.act_date,
    t1.address_desc,
    t1.address_id,
    t1.begin_rent_date,
    t1.busi_mod_date,
    t1.create_date,
    cast(t1.create_org_id as string),
    cast(t1.create_staff as string),
    cast(t1.exch_id as string),
    t1.ext_prod_inst_id,
    t1.first_finish_date,
    cast(t1.lan_id as string),
    cast(t1.last_order_item_id as string),
    cast(t1.owner_cust_id as string),
    t1.payment_mode_cd,
    cast(t1.point_owner_id as string),
    cast(t1.prod_id as string),
    t1.prod_inst_pwd,
    t1.prod_use_type,
    cast(t1.region_id as string),
    t1.remark,
    t1.status_cd,
    t1.status_date,
    t1.stop_rent_date,
    t1.update_date,
    cast(t1.update_staff as string),
    cast(t1.use_cust_id as string),
    t1.siebel_row_id,
    t1.integration_id,
    cast(t1.acct_id as string),
    t1.acct_cd,
    t1.x_track_num,
    t1.grp_prod_nbr,
    cast(t1.par_region_id as string),
    t1.iccid,
    t1.acct_billing_type,
    t1.asset_source_cd,
    t1.newcrm_flag,
    cast(t1.version as string),
    cast(t1.std_addr_id as string),
    cast(t1.branch_region_id as string),
    DATE_FORMAT (now (), 'yyyy-MM-dd HH:mm:ss') as create_tmp,
    DATE_FORMAT (now (), 'yyyy-MM-dd HH:mm:ss') as lst_upd_tmp,
    'CRM-CUS' as src_sys,
    'ETL' as create_by,
    'ETL' as lst_upd_by,
    t1.prod_inst_id as busi_key
FROM
    db_dws_crm.dws_cus_prod_inst_flinksql_rt t1
    LEFT JOIN db_dwd.dwd_prod_inst_02 t2 ON t1.prod_inst_id = t2.prod_inst_id
WHERE
    t1.etl_time BETWEEN '2024-03-06 00:00:00' AND '2024-04-06 00:00:00'
    AND t2.prod_inst_id is null;

drop table
    IF EXISTS db_tmp.TMP_UPDATE_RECORD_sparksql_j2;

create table
    IF NOT EXISTS db_tmp.TMP_UPDATE_RECORD_sparksql_j2 using hudi TBLPROPERTIES (type = 'cow', primaryKey = 'prod_inst_id') as
SELECT
    cast(t1.prod_inst_id as string),
    t1.acc_num,
    cast(t1.acc_prod_inst_id as string),
    t1.account,
    t1.act_date,
    t1.address_desc,
    t1.address_id,
    t1.begin_rent_date,
    t1.busi_mod_date,
    t1.create_date,
    cast(t1.create_org_id as string),
    cast(t1.create_staff as string),
    cast(t1.exch_id as string),
    t1.ext_prod_inst_id,
    t1.first_finish_date,
    cast(t1.lan_id as string),
    cast(t1.last_order_item_id as string),
    cast(t1.owner_cust_id as string),
    t1.payment_mode_cd,
    cast(t1.point_owner_id as string),
    cast(t1.prod_id as string),
    t1.prod_inst_pwd,
    t1.prod_use_type,
    cast(t1.region_id as string),
    t1.remark,
    t1.status_cd,
    t1.status_date,
    t1.stop_rent_date,
    t1.update_date,
    cast(t1.update_staff as string),
    cast(t1.use_cust_id as string),
    t1.siebel_row_id,
    t1.integration_id,
    cast(t1.acct_id as string),
    t1.acct_cd,
    t1.x_track_num,
    t1.grp_prod_nbr,
    cast(t1.par_region_id as string),
    t1.iccid,
    t1.acct_billing_type,
    t1.asset_source_cd,
    t1.newcrm_flag,
    cast(t1.version as string),
    cast(t1.std_addr_id as string),
    cast(t1.branch_region_id as string),
    t2.create_tmp as create_tmp,
    DATE_FORMAT (now (), 'yyyy-MM-dd HH:mm:ss') as lst_upd_tmp,
    'CRM-CUS' as src_sys,
    'ETL' as create_by,
    'ETL' as lst_upd_by,
    t1.prod_inst_id as busi_key
FROM
    db_dws_crm.dws_cus_prod_inst_flinksql_rt t1
    INNER JOIN db_dwd.dwd_prod_inst_02 t2 on t1.prod_inst_id = t2.prod_inst_id
WHERE
    t1.etl_time BETWEEN '2024-03-06 00:00:00' AND '2024-04-06 00:00:00';

drop table
    IF EXISTS db_tmp.TMP_UNION_RECORD_sparksql_j2;

create table
    IF NOT EXISTS db_tmp.TMP_UNION_RECORD_sparksql_j2 using hudi TBLPROPERTIES (type = 'cow', primaryKey = 'prod_inst_id') as (
        SELECT
            *
        from
            db_tmp.TMP_INSERT_RECORD_sparksql_j2
        union all
        SELECT
            *
        from
            db_tmp.TMP_UPDATE_RECORD_sparksql_j2
    );

insert into
    db_dwd.dwd_prod_inst_02
select
    cast(acc_num as string),
    cast(acc_prod_inst_id as string),
    cast(account as string),
    cast(act_date as string),
    cast(address_desc as string),
    cast(address_id as string),
    cast(begin_rent_date as string),
    cast(busi_mod_date as string),
    cast(create_date as string),
    cast(create_org_id as string),
    cast(create_staff as string),
    cast(exch_id as string),
    cast(ext_prod_inst_id as string),
    cast(first_finish_date as string),
    cast(lan_id as string),
    cast(last_order_item_id as string),
    cast(owner_cust_id as string),
    cast(payment_mode_cd as string),
    cast(point_owner_id as string),
    cast(prod_id as string),
    cast(prod_inst_id as string),
    cast(prod_inst_pwd as string),
    cast(prod_use_type as string),
    cast(region_id as string),
    cast(remark as string),
    cast(status_cd as string),
    cast(status_date as string),
    cast(stop_rent_date as string),
    cast(update_date as string),
    cast(update_staff as string),
    cast(use_cust_id as string),
    cast(siebel_row_id as string),
    cast(integration_id as string),
    cast(x_track_num as string),
    cast(acct_id as string),
    cast(acct_cd as string),
    cast(par_region_id as string),
    cast(grp_prod_nbr as string),
    cast(acct_billing_type as string),
    cast(newcrm_flag as string),
    cast(std_addr_id as string),
    cast(iccid as string),
    cast(create_tmp as string),
    cast(create_by as string),
    cast(lst_upd_tmp as string),
    cast(lst_upd_by as string),
    cast(busi_key as string),
    cast(src_sys as string),
    cast(asset_source_cd as string),
    cast(version as string),
    cast(branch_region_id as string)
from
    db_tmp.TMP_UNION_RECORD_sparksql_j2;

pyspark

pyspark操作hudi

`DwdProdInst` 类

构造函数 (__init__) :
- 初始化 Spark Session、表名、基路径等。
- 配置 Hudi 的选项，包括表名、写入模式、主键字段 prod_inst_id、排序字段 lst_upd_tmp 等。
generate_insert 方法:
- 创建一个临时视图 TMP_INSERT_RECORD。
- 选择 db_dws_crm.dws_cus_prod_inst_flinksql_rt 中在 db_dwd.dwd_prod_inst_01 不存在的记录。
- 时间过滤条件会替换为类初始化时设置的 dataStartTime 和 dataEndTime。
generate_update 方法:
- 创建一个临时视图 TMP_UPDATE_RECORD。
- 选择 db_dws_crm.dws_cus_prod_inst_flinksql_rt 中在 db_dwd.dwd_prod_inst_01 已经存在的记录。
- 然后将数据集缓存以提高后续操作的效率。
union 方法:
- 合并插入和更新的临时视图，生成一个新的临时视图 TMP_UNION_RECORD。
- 利用 UNION ALL 将插入和更新记录整合。
upsert 方法:
- 从 TMP_UNION_RECORD 提取数据，确保所有字段均被类型转换为字符串。
- 使用 Hudi 将数据保存到指定路径。
- 使用 append 模式将数据写入，虽然设置为 append，但由于操作类型为 upsert，即使在存储方面是追加操作，但在逻辑上会进行更新或插入。

主程序

创建一个 Spark Session。
实例化 DwdProdInst 类。
执行插入生成、更新生成、合并和写入操作。

关键点

数据处理：
- 数据首先从源表中提取，根据是否存在于目标表中分为插入和更新两部分。
- 通过视图的方式将生成的数据集临时保存，以便下一个步骤使用。

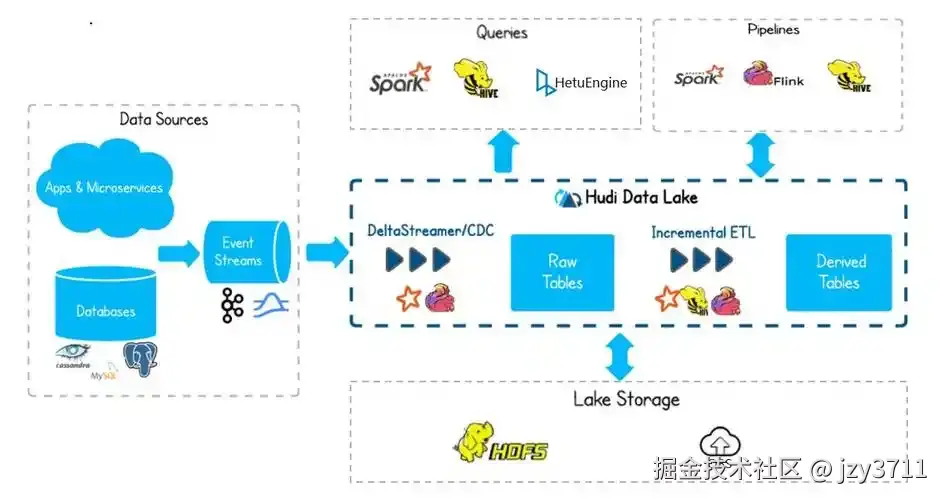

Apache Hudi：
- Hudi 用于确保数据的 ACID 特性，特别是在需要频繁更新的数据湖中很有用。
- Copy-On-Write 模式下，覆盖更新数据，并确保仅生成一个视图以持久化最新的数据。
性能优化：
- 使用 cache() 减少重复计算。
- 配置 spark.sql.shuffle.partitions 来优化数据的 shuffle 操作。
扩展性：
- 类的方法划分清晰，可以轻松调整数据选定范围或目标存储路径。
- 如果需要更新业务逻辑，只需更新相关 SQL 语句。

这个代码是大数据处理中的一个典型用例，展示了如何使用 PySpark 和 Hudi 高效管理和处理数据。

# -*- coding: utf-8 -*-
from pyspark.sql import SparkSession


class DwdProdInst:
    def __init__(self, spark, tableName, basePath):
        self.spark = spark
        self.basePath = basePath
        self.tableName = tableName
        self.hudi_options = {
            'hoodie.table.name': tableName,
            'hoodie.datasource.write.table.type': 'COPY_ON_WRITE',
            'hoodie.datasource.write.recordkey.field': 'prod_inst_id',
            'hoodie.datasource.write.precombine.field': 'lst_upd_tmp',
            'hoodie.datasource.write.operation': "upsert",
            'hoodie.upsert.shuffle.parallelism': 2,
            'hoodie.insert.shuffle.parallelism': 2
        }
        self.dataStartTime = '2024-03-06 00:00:00'
        self.dataEndTime = '2024-04-04 00:00:00' # todo

    def generate_insert(self):
        sql01 = """
            SELECT
                cast (t1.prod_inst_id as string),
                t1.acc_num as acc_num,
                cast (t1.acc_prod_inst_id as string),
                t1.account,
                t1.act_date,
                t1.address_desc,
                t1.address_id,
                t1.begin_rent_date,
                t1.busi_mod_date,
                t1.create_date,
                cast(t1.create_org_id as string),
                cast (t1.create_staff as string),
                cast (t1.exch_id as string),
                t1.ext_prod_inst_id,
                t1.first_finish_date,
                cast(t1.lan_id as string),
                cast(t1.last_order_item_id as string),
                cast(t1.owner_cust_id as string),
                t1.payment_mode_cd,
                cast(t1.point_owner_id as string),
                cast(t1.prod_id as string),
                t1.prod_inst_pwd,
                t1.prod_use_type,
                cast(t1.region_id as string),
                t1.remark,
                t1.status_cd,
                t1.status_date,
                t1.stop_rent_date,
                t1.update_date,
                cast(t1.update_staff as string),
                cast(t1.use_cust_id as string),
                t1.siebel_row_id,
                t1.integration_id,
                cast(t1.acct_id as string),
                t1.acct_cd,
                t1.x_track_num,
                t1.grp_prod_nbr,
                cast(t1.par_region_id as string),
                t1.iccid,
                t1.acct_billing_type,
                t1.asset_source_cd,
                t1.newcrm_flag,
                cast(t1.version as string),
                cast(t1.std_addr_id as string),
                cast(t1.branch_region_id as string),
                DATE_FORMAT(now(), 'yyyy-MM-dd HH:mm:ss') as create_tmp,
                DATE_FORMAT(now(), 'yyyy-MM-dd HH:mm:ss') as lst_upd_tmp,
                'CRM-CUS' as src_sys,
                'ETL' as create_by,
                'ETL' as lst_upd_by,
                t1.prod_inst_id as busi_key
            FROM db_dws_crm.dws_cus_prod_inst_flinksql_rt t1
            LEFT JOIN db_dwd.dwd_prod_inst_01 t2
            ON t1.prod_inst_id = t2.prod_inst_id
            WHERE t1.etl_time BETWEEN 'DATA_START_TIME' AND 'DATA_END_TIME'
                AND t2.prod_inst_id is null
        """
        sql01 = sql01.replace('DATA_START_TIME', self.dataStartTime).replace('DATA_END_TIME', self.dataEndTime)
        self.spark.sql(sql01).createOrReplaceTempView("TMP_INSERT_RECORD")

    def generate_update(self):
        sql02 = """
            SELECT
                cast (t1.prod_inst_id as string),
                t1.acc_num,
                cast (t1.acc_prod_inst_id as string),
                t1.account,
                t1.act_date,
                t1.address_desc,
                t1.address_id,
                t1.begin_rent_date,
                t1.busi_mod_date,
                t1.create_date,
                cast(t1.create_org_id as string),
                cast (t1.create_staff as string),
                cast (t1.exch_id as string),
                t1.ext_prod_inst_id,
                t1.first_finish_date,
                cast(t1.lan_id as string),
                cast(t1.last_order_item_id as string),
                cast(t1.owner_cust_id as string),
                t1.payment_mode_cd,
                cast(t1.point_owner_id as string),
                cast(t1.prod_id as string),
                t1.prod_inst_pwd,
                t1.prod_use_type,
                cast(t1.region_id as string),
                t1.remark,
                t1.status_cd,
                t1.status_date,
                t1.stop_rent_date,
                t1.update_date,
                cast(t1.update_staff as string),
                cast(t1.use_cust_id as string),
                t1.siebel_row_id,
                t1.integration_id,
                cast(t1.acct_id as string),
                t1.acct_cd,
                t1.x_track_num,
                t1.grp_prod_nbr,
                cast(t1.par_region_id as string),
                t1.iccid,
                t1.acct_billing_type,
                t1.asset_source_cd,
                t1.newcrm_flag,
                cast(t1.version as string),
                cast(t1.std_addr_id as string),
                cast(t1.branch_region_id as string),
                t2.create_tmp as create_tmp,
                DATE_FORMAT(now(), 'yyyy-MM-dd HH:mm:ss') as lst_upd_tmp,
                'CRM-CUS' as src_sys,
                'ETL' as create_by,
                'ETL' as lst_upd_by,
                t1.prod_inst_id as busi_key
                FROM db_dws_crm.dws_cus_prod_inst_flinksql_rt t1
                INNER JOIN db_dwd.dwd_prod_inst_01 t2 on t1.prod_inst_id = t2.prod_inst_id
                WHERE t1.etl_time BETWEEN 'DATA_START_TIME' AND 'DATA_END_TIME'"""
        sql02 = sql02.replace('DATA_START_TIME', self.dataStartTime).replace('DATA_END_TIME', self.dataEndTime)
        df02 = self.spark.sql(sql02)
        df02.createOrReplaceTempView("TMP_UPDATE_RECORD")
        df02.cache()

    def union(self):
        sql03 = """
            SELECT * from TMP_INSERT_RECORD
            union all
            SELECT * from TMP_UPDATE_RECORD
        """
        df03 = self.spark.sql(sql03)
        df03.createOrReplaceTempView("TMP_UNION_RECORD")
        df03.cache()

    def upsert(self):
        self.spark.sql("""
            select
            cast(acc_num as string),
            cast(acc_prod_inst_id as string),
            cast(account as string),
            cast(act_date as string),
            cast(address_desc as string),
            cast(address_id as string),
            cast(begin_rent_date as string),
            cast(busi_mod_date as string),
            cast(create_date as string),
            cast(create_org_id as string),
            cast(create_staff as string),
            cast(exch_id as string),
            cast(ext_prod_inst_id as string),
            cast(first_finish_date as string),
            cast(lan_id as string),
            cast(last_order_item_id as string),
            cast(owner_cust_id as string),
            cast(payment_mode_cd as string),
            cast(point_owner_id as string),
            cast(prod_id as string),
            cast(prod_inst_id as string),
            cast(prod_inst_pwd as string),
            cast(prod_use_type as string),
            cast(region_id as string),
            cast(remark as string),
            cast(status_cd as string),
            cast(status_date as string),
            cast(stop_rent_date as string),
            cast(update_date as string),
            cast(update_staff as string),
            cast(use_cust_id as string),
            cast(siebel_row_id as string),
            cast(integration_id as string),
            cast(x_track_num as string),
            cast(acct_id as string),
            cast(acct_cd as string),
            cast(par_region_id as string),
            cast(grp_prod_nbr as string),
            cast(acct_billing_type as string),
            cast(newcrm_flag as string),
            cast(std_addr_id as string),
            cast(iccid as string),
            cast(create_tmp as string),
            cast(create_by as string),
            cast(lst_upd_tmp as string),
            cast(lst_upd_by as string),
            cast(busi_key as string),
            cast(src_sys as string),
            cast(asset_source_cd as string),
            cast(version as string),
            cast(branch_region_id as string) from TMP_UNION_RECORD""") \
            .write.format("hudi"). \
            options(**self.hudi_options). \
            mode("append"). \
            save(self.basePath)


if __name__ == "__main__":
    spark = SparkSession.builder \
        .appName("pytispark_handle_data") \
        .enableHiveSupport() \
        .config("spark.sql.shuffle.partitions", "40") \
        .config("spark.serializer", "org.apache.spark.serializer.KryoSerializer") \
        .getOrCreate()

    dwdProdInst = DwdProdInst(spark, "dwd_prod_inst_01", "/domain/ns1/prd/hudi/shct/eda/db_dwd/dwd_prod_inst_01")
    dwdProdInst.generate_insert()
    dwdProdInst.generate_update()
    dwdProdInst.union()
    dwdProdInst.upsert()

高效数据管理：利用PySpark和Apache Hudi实现数据湖中的插入与更新

高效数据管理：利用PySpark和Apache Hudi实现数据湖中的插入与更新

核心概述

整体工作流程

优势特点

gbase 存储过程

存储过程 sp_dwd_prod_inst_inc

Spark SQL with Hudi

主要不同点

完整存过

sparksql

数据插入处理

数据更新处理

合并处理

最终插入

使用 Hudi 的好处

pyspark

DwdProdInst 类

主程序

关键点

存储过程 `sp_dwd_prod_inst_inc`

`DwdProdInst` 类
