OpenLayers上如何创建遮罩层

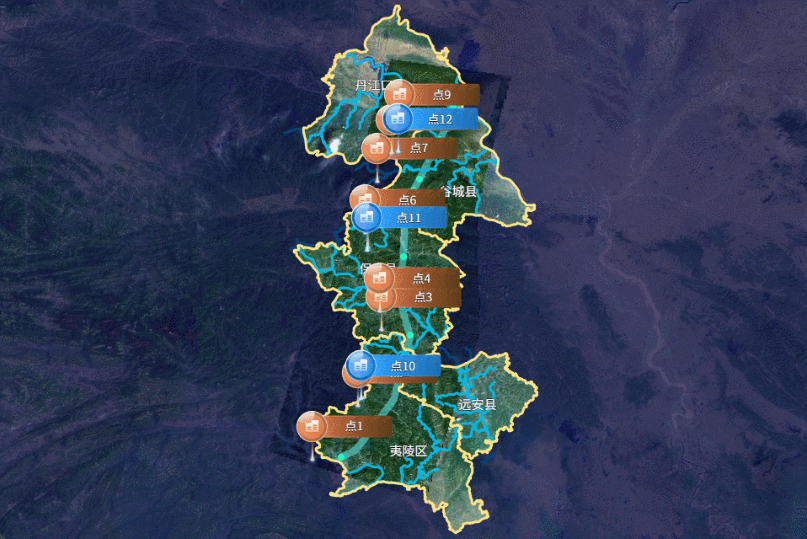

效果展示

代码展示

• 首先初始化创建openlayers地图并引用天地图

initMap(layerType) {
  const TIANDI_KEY = '天地图的Token';
  const layerTypeMap = {
    SL: ['vec', 'cva'], // [矢量底图, 矢量注记]
    YX: ['img', 'cia'], // [影像底图, 影像注记]
    DX: ['ter', 'cta'] // [地形晕渲, 地形注记]
  };
  // c: 经纬度投影 w: 球面墨卡托投影
  const matrixSet = 'c';
  // 底图
  const baseMap = new TileLayer({
    source: new WMTS({
      url: `http://t{0-6}.tianditu.gov.cn/${layerTypeMap[layerType][0]}_${matrixSet}/wmts?tk=${TIANDI_KEY}`,
      layer: layerTypeMap[layerType][0],
      matrixSet: matrixSet,
      style: 'default',
      crossOrigin: 'anonymous', // 解决跨域问题 如无该需求可不添加
      format: 'tiles',
      wrapX: true,
      tileGrid: new WMTSTileGrid({
        origin: getTopLeft(projectionExtent),
        resolutions: resolutions,
        matrixIds: ['0', '1', '2', '3', '4', '5', '6', '7', '8', '9', '10', '11', '12', '13', '14', '15', '16', '17', '18']
      })
    })
  });

  const viewMap = new View({
    center: [111.35891, 31.40299],
    projection: projection,
    zoom: 8.5,
    maxZoom: 18,
    minZoom: 1
  });
  this.gisMap = new Map({
    target: this.$refs.map,
    layers: [baseMap],
    view: viewMap
  });
}

• 在项目中安装@supermapgis/iclient-ol，通过该插件获取SuperMapiServer上的服务数据

npm install @supermapgis/iclient-ol

// 数据服务地址
const dataServices = [{
  width: 3,
  type: 'lineString',
  color: '#ffe384',
  url: '/data-XingZhengQuHua/rest/data',
  polygons: [
    [108.36246976300004, 29.03262404681424],
    [116.12996340900008, 33.277541923879795]
  ],
  datasetNames: ['行政区划:县']
}]

// 按需引入@supermapgis/iclient-ol的方法
import { TileSuperMapRest, FeatureService, GetFeaturesByBoundsParameters } from '@supermapgis/iclient-ol';

// 获取服务地址上数据
// this.iServerBaseUrl——superMapiServer的服务地址
featureService(serviceData) {
  const { polygons, datasetNames, color, width, type } = serviceData;
  const url = `${this.iServerBaseUrl}${serviceData.url}`;
  const polygon = new Polygon([polygons]);
  // 创建Bounds查询服务
  const boundsParam = new GetFeaturesByBoundsParameters({
    datasetNames,
    fromIndex: 0,
    toIndex: 180,
    bounds: polygon.getExtent()
  });
  new FeatureService(url)
    .getFeaturesByBounds(boundsParam)
    .then(res => {
      const { features } = res.result;
      this.addReverseBoundary(features, color, width);
    })
    .catch(error => {
      this.$message.error('数据服务请求失败');
    });
}

// 设置遮罩层
addReverseBoundary(featuresData, color, width) {
  let features = [];
  const format = new GeoJSON();
  // 循环拿到每一层的feature数据
  for (let i = 0; i < featuresData.features.length; i++) {
    const name = featuresData.features[i].properties.NAME;
    // 对行政区数据进行筛选过滤
    if (['夷陵区', '远安县', '谷城县', '丹江口市', '保康县'].includes(name)) {
      // 创建地区标注
      this.createLabel(featuresData.features[i]);
      let fes = format.readFeature(featuresData.features[i]);
      features.push(fes);
    }
  }
  // 对筛选后的矢量数据进行加工处理，这里的reversalGeometry方法就是实现遮罩数据的加工
  const reversalGeom = this.reversalGeometry(features);
  const feature = new Feature({
    geometry: reversalGeom
  });
  feature.setStyle(
    new Style({
      fill: new Fill({
        color: 'rgba(8,5,66,0.65)'
      }),
      stroke: new Stroke({
        color,
        width
      })
    })
  );

  const vectorLayer = new VectorLayer({
    source: new VectorSource({
      features: [feature]
    })
  });
  vectorLayer.setZIndex(2);
  this.gisMap.addLayer(vectorLayer);
}
// 创建地区标注
createLabel(polygon) {
  const centroid = turf.centroid(polygon);
  const name = polygon.properties.NAME;
  const lonLat = centroid.geometry.coordinates;
  const style = new Style({
    text: new Text({
      text: name,
      overflow: true,
      fill: new Fill({ color: '#fff' }),
      stroke: new Stroke({ color: '#000', width: 1 }),
      font: '15px Source Han Sans SC',
      textAlign: 'center',
      textBaseline: 'middle'
    })
  });

  const feature = new Feature({ geometry: new Point(lonLat) });
  const vectorSource = new VectorSource({
    features: [feature]
  });
  const vectorLayer = new VectorLayer({
    source: vectorSource,
    zIndex: 900,
    style
  });
  this.gisMap.addLayer(vectorLayer);
}
// 遮罩层数据的处理
reversalGeometry(fes) {
  // 先平铺一张遮罩层，遮罩层的大小当前屏幕视窗的四个角范围
  const polygonRing = fromExtent([-180, -90, 180, 90]);
  // 边界线数据可能是多个，所以需要循环操作
  for (let i = 0; i < fes.length; i++) {
    let geom = fes[i].getGeometry();
    let isMulti = false;
    // 判断数据类型是否为多边形
    if (geom instanceof MultiPolygon) isMulti = true;
    const coords = geom.getCoordinates();
    coords.forEach(coord => {
      let arr = coord[0];
      if (!isMulti) arr = coord;
      const linearRing = new LineString(arr);
      polygonRing.appendLinearRing(linearRing);
    });
  }
  return polygonRing;
}
