文章主要介绍了以二进制方式部署 Kubernetes 集群的详细过程，包括集群节点规划、软件版本、网络分配、环境准备、负载均衡器准备、配置免密登录、证书准备、各组件（etcd、kube-apiserver、kube-controller-manager、kube-scheduler、kubelet、kube-proxy、Calico、CoreDNS）的部署以及安装应用（nginx）验证集群可用。
1.1 集群主机规划
| 主机IP地址 | 主机名 | 主机配置 | 主机角色 | 安装软件 |
|---|---|---|---|---|
| 192.168.10.12 | k8s-master1 | 2C4G | master | kube-apiserver、kube-controller-manager、kube-scheduler、etcd、kubelet、kube-proxy、docker-ce |
| 192.168.10.13 | k8s-master2 | 2C4G | master | kube-apiserver、kube-controller-manager、kube-scheduler、etcd、kubelet、kube-proxy、docker-ce |
| 192.168.10.14 | k8s-master3 | 2C4G | master | kube-apiserver、kube-controller-manager、kube-scheduler、etcd、kubelet、kube-proxy、docker-ce |
| 192.168.10.15 | k8s-worker1 | 2C4G | worker | kubelet、kube-proxy、docker-ce |
| 192.168.10.10 | ha1 | 1C2G | LB | haproxy、keepalived |
| 192.168.10.11 | ha2 | 1C2G | LB | haproxy、keepalived |
| 192.168.10.100 | / | / | 虚拟ip(VIP) | / |
1.2 软件版本
| 软件名称 | 版本 | 备注 | |
| CentOS7 | kernel版本：5.16 | ||
| kubernetes | v1.21.10 | ||
| etcd | v3.5.2 | 最新版本 | |
| calico | v3.19.4 | ||
| coredns | v1.8.4 | ||
| docker-ce | 20.10.13 | YUM源默认 | |
| haproxy | 5.18 | YUM源默认 | |
| keepalived | 3.5 | YUM源默认 |
1.3 网络分配
| 网络名称 | 网段 | 备注 | |
| Node网络 | 192.168.10.0/24 | ||
| Service网络 | 10.96.0.0/16 | ||
| Pod网络 | 10.244.0.0/16 |
1.4 集群主机环境准备
这一章节可以参考前面的内容，主要是ip地址解析，防火墙，selinux,多机互信，关闭swap分区，时间同步，升级内核，ipvs,iptables，开启内核转发，配置网桥过滤等内容。这里不在详细赘述。
1.5 负载均衡器准备
同样的，这里也是安装haproxy,keepalived，前面章节也有详细步骤。
1.6 配置免密登录
在master1上操作
# ssh-keygen
# ssh-copy-id root@k8s-master1
# ssh-copy-id root@k8s-master2
# ssh-copy-id root@k8s-master3
# ssh-copy-id root@k8s-worker1
2.证书准备
在K8S-MASTER1操作
2.1 证书工具准备
二进制部署，需要工作目录，需要cfssl工具，它是用于创建证书的,需要配置CA证书。
2.1.1 创建工作目录
# mkdir -p /data/k8s-work
2.1.2 安装cfssl工具
# cd /data/k8s-work
# wget https://pkg.cfssl.org/R1.2/cfssl_linux-amd64
# wget https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64
# wget https://pkg.cfssl.org/R1.2/cfssl-certinfo_linux-amd64
说明：
cfssl是使用go编写，由CloudFlare开源的一款PKI/TLS工具。主要程序有：
- cfssl，是CFSSL的命令行工具
- cfssljson用来从cfssl程序获取JSON输出，并将证书，密钥，CSR和bundle写入文件中。
添加执行权限
chmod +x cfssl*
移动到指定目录下安装
mv cfssl_linux-amd64 /usr/local/bin/cfssl
mv cfssljson_linux-amd64 /usr/local/bin/cfssljson
mv cfssl-certinfo_linux-amd64 /usr/local/bin/cfssl-certinfo
验证是否安装成功
# cfssl version
Version: 1.2.0
Revision: dev
Runtime: go1.6
显示这个代表安装成功
2.2 配置CA证书
2.2.1 配置CA证书请求文件
# cat > ca-csr.json <<"EOF"
{
"CN": "kubernetes",
"key": {
"algo": "rsa",
"s
},
"names": [
{
"C": "CN",
"ST": "Beijing",
"L": "Beijing",
"O": "kubemsb",
"OU": "CN"
}
],
"ca": {
"expiry": "87600h"
}
}
EOF
2.2.2 创建CA证书
# cfssl gencert -initca ca-csr.json | cfssljson -bare ca
2.2.3 创建CA证书策略
# cat > ca-config.json <<"EOF"
{
"signing": {
"default": {
"expiry": "87600h"
},
"profiles": {
"kubernetes": {
"usages": [
"signing",
"key encipherment",
"server auth",
"client auth"
],
"expiry": "87600h"
}
}
}
}
EOF
server auth 表示client可以对使用该ca对server提供的证书进行验证
client auth 表示server可以使用该ca对client提供的证书进行验证
3.二进制部署软件
3.1 部署etcd
3.1.1 配置etcd请求文件
# cat > etcd-csr.json <<"EOF"
{
"CN": "etcd",
"hosts": [
"127.0.0.1",
"192.168.10.12", 三个master节点
"192.168.10.13",
"192.168.10.14"
],
"key": {
"algo": "rsa",
"size": 2048
},
"names": [{
"C": "CN",
"ST": "Beijing",
"L": "Beijing",
"O": "kubemsb",
"OU": "CN"
}]
}
EOF
3.1.2 生成etcd证书
cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes etcd-csr.json | cfssljson -bare etcd
生成后查看
# ls
ca-config.json ca.csr ca-csr.json ca-key.pem ca.pem etcd.csr etcd-csr.json etcd-key.pem etcd.pem
可以看到生成了4个文件关于etcd的

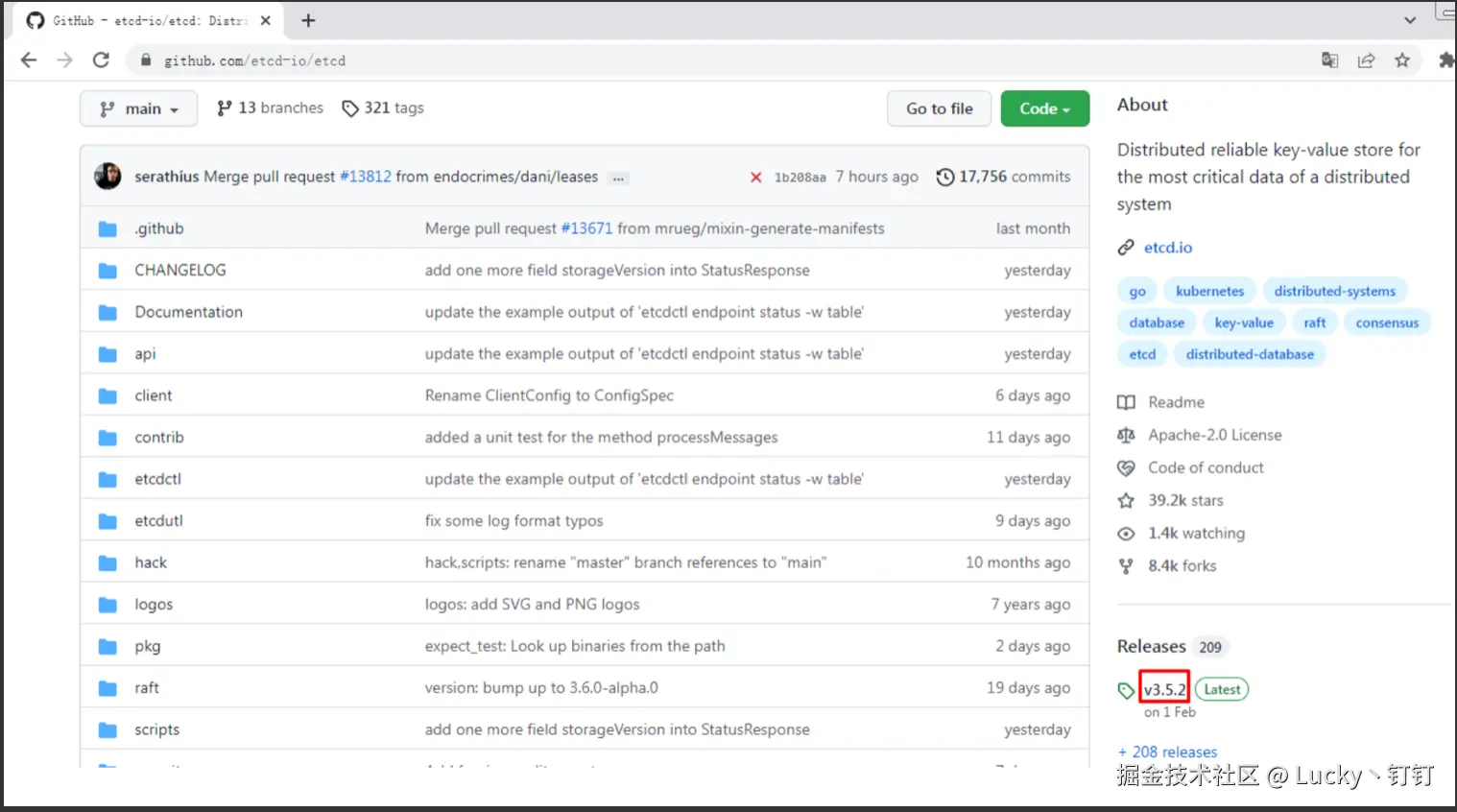

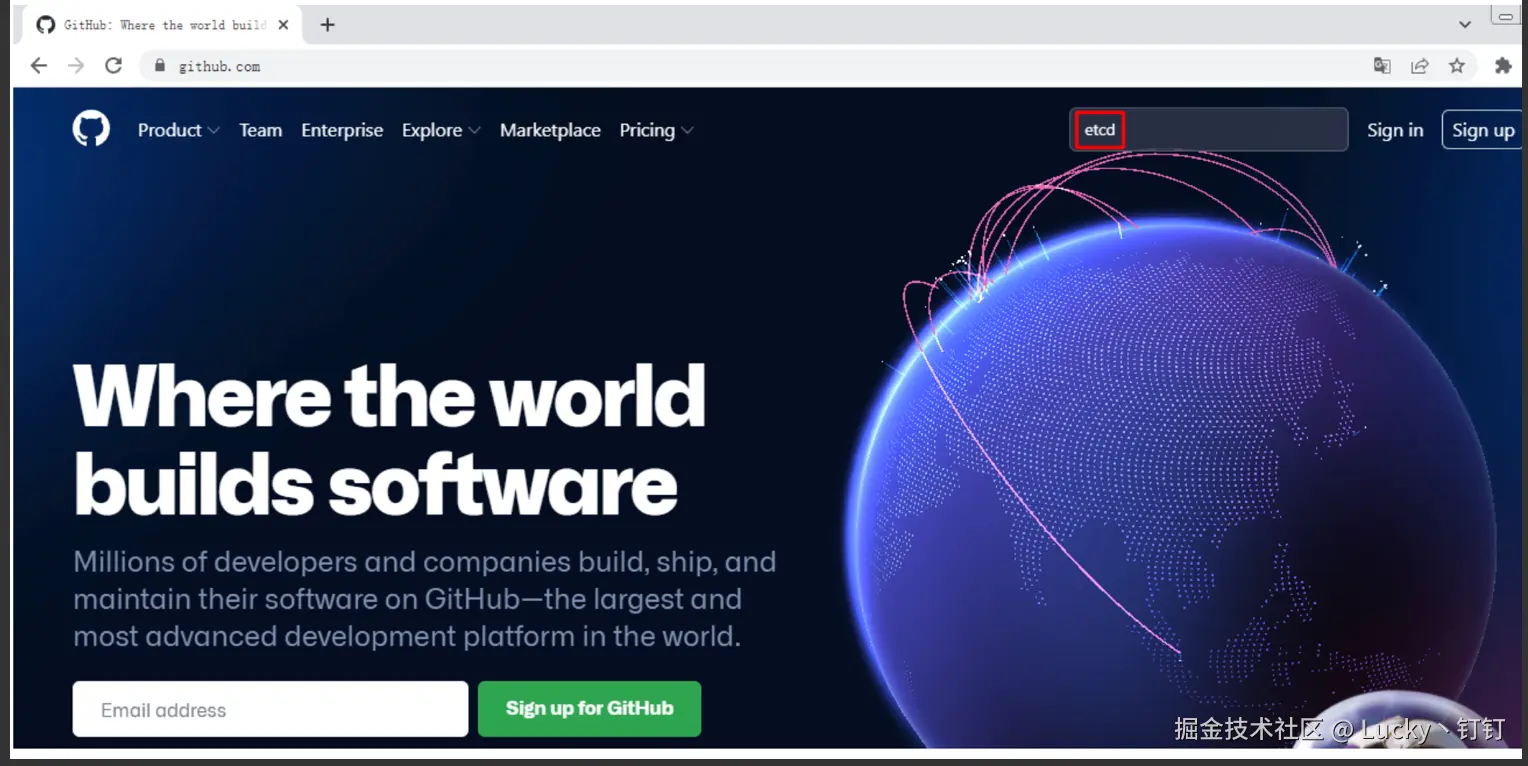

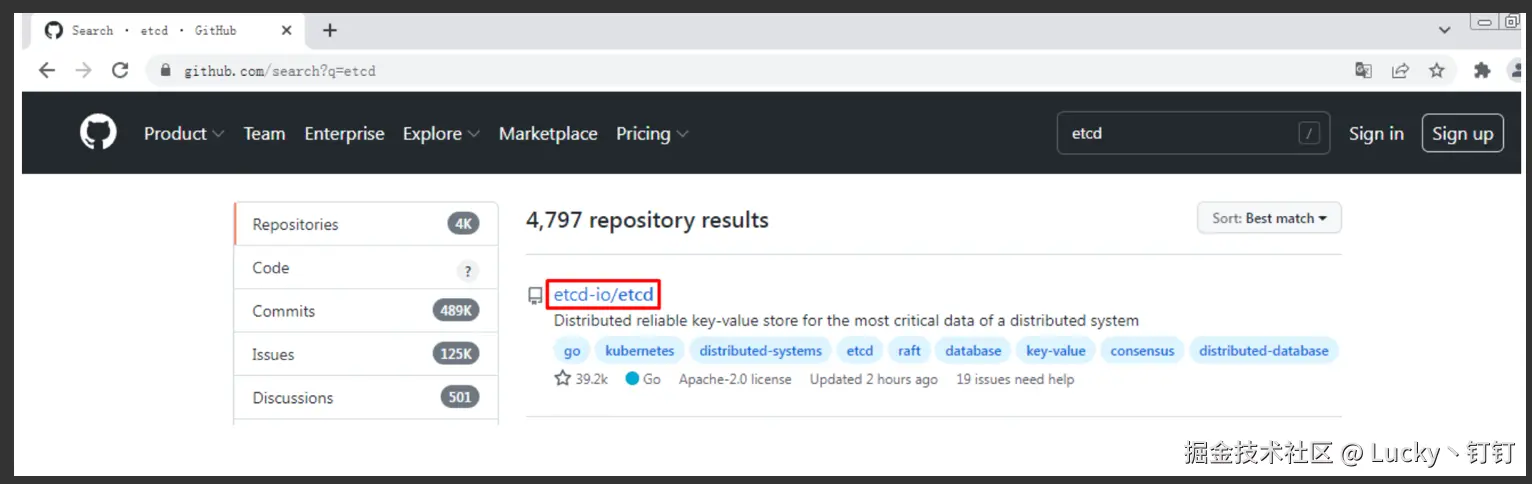

3.1.3 下载etcd
复制链接
# wget https://github.com/etcd-io/etcd/releases/download/v3.5.2/etcd-v3.5.2-linux-amd64.tar.gz
3.1.4 安装etcd
# tar -xvf etcd-v3.5.2-linux-amd64.tar.gz
# cp -p etcd-v3.5.2-linux-amd64/etcd* /usr/local/bin/
3.1.5 分发软件
因为k8s-master2、k8s-master3节点都需要安装etcd，所以通过scp分发到所有master节点
# scp etcd-v3.5.2-linux-amd64/etcd* k8s-master2:/usr/local/bin/
# scp etcd-v3.5.2-linux-amd64/etcd* k8s-master3:/usr/local/bin/
3.1.6 创建配置文件
首先在每个节点都创建一个etcd的文件夹,注意这个文件的ip地址需要随着节点而修改，在哪个节点就修改成哪个节点的IP地址，出了ETCD_INITIAL_CLUSTER的值是整个集群的地址外，其他的都要随之改变。
# mkdir /etc/etcd
# cat > /etc/etcd/etcd.conf <<"EOF"
#[Member]
ETCD_NAME="etcd1"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.10.12:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.10.12:2379,http://127.0.0.1:2379"
#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.10.12:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.10.12:2379"
ETCD_INITIAL_CLUSTER="etcd1=https://192.168.10.12:2380,etcd2=https://192.168.10.13:2380,etcd3=https://192.168.10.14:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"
EOF
说明：
ETCD_NAME：节点名称，集群中唯一
ETCD_DATA_DIR：数据目录
ETCD_LISTEN_PEER_URLS：集群通信监听地址
ETCD_LISTEN_CLIENT_URLS：客户端访问监听地址
ETCD_INITIAL_ADVERTISE_PEER_URLS：集群通告地址
ETCD_ADVERTISE_CLIENT_URLS：客户端通告地址
ETCD_INITIAL_CLUSTER：集群节点地址
ETCD_INITIAL_CLUSTER_TOKEN：集群Token
ETCD_INITIAL_CLUSTER_STATE：加入集群的当前状态，new是新集群，existing表示加入已有集群
3.1.7 创建服务配置文件
# mkdir -p /etc/etcd/ssl
# mkdir -p /var/lib/etcd/default.etcd
复制证书
cd /data/k8s-work
cp ca*.pem /etc/etcd/ssl
cp etcd*.pem /etc/etcd/ssl
3.1.8 服务启动配置文件
# cat > /etc/systemd/system/etcd.service <<"EOF"
[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target
[Service]
Type=notify
EnvironmentFile=-/etc/etcd/etcd.conf
WorkingDirectory=/var/lib/etcd/
ExecStart=/usr/local/bin/etcd \
--cert-file=/etc/etcd/ssl/etcd.pem \
--key-file=/etc/etcd/ssl/etcd-key.pem \
--trusted-ca-file=/etc/etcd/ssl/ca.pem \
--peer-cert-file=/etc/etcd/ssl/etcd.pem \
--peer-key-file=/etc/etcd/ssl/etcd-key.pem \
--peer-trusted-ca-file=/etc/etcd/ssl/ca.pem \
--peer-client-cert-auth \
--client-cert-auth
Restart=on-failure
RestartSec=5
LimitNOFILE=65536
[Install]
WantedBy=multi-user.target
EOF
3.1.9 同步etcd配置到其他master节点
# mkdir -p /etc/etcd
# mkdir -p /etc/etcd/ssl
# mkdir -p /var/lib/etcd/default.etcd
服务配置文件,需要修改etcd节点名称及IP地址
for i in k8s-master2 k8s-master3
do
scp /etc/etcd/etcd.conf $i:/etc/etcd/
done
证书文件
for i in k8s-master2 k8s-master3
do
scp /etc/etcd/ssl/* $i:/etc/etcd/ssl
done
服务启动配置文件
for i in k8s-master2 k8s-master3
do
scp /etc/systemd/system/etcd.service $i:/etc/systemd/system/ \
done
3.1.10 启动etcd
# systemctl daemon-reload
# systemctl enable --now etcd.service
# systemctl status etcd
3.1.11 验证etcd集群状态
ETCDCTL_API=3 /usr/local/bin/etcdctl --write-out=table --cacert=/etc/etcd/ssl/ca.pem --cert=/etc/etcd/ssl/etcd.pem --key=/etc/etcd/ssl/etcd-key.pem --endpoints=https://192.168.10.12:2379,https://192.168.1013144:2379,https://192.168.10.14:2379 endpoint health
+----------------------------+--------+-------------+-------+
| ENDPOINT | HEALTH | TOOK | ERROR |
+----------------------------+--------+-------------+-------+
| https://192.168.10.14:2379 | true | 10.393062ms | |
| https://192.168.10.12:2379 | true | 15.70437ms | |
| https://192.168.10.13:2379 | true | 15.871684ms | |
+----------------------------+--------+-------------+-------+
3.2 Kubernetes集群master部署
3.2.1 集群软件下载
wget https://dl.k8s.io/v1.21.10/kubernetes-server-linux-amd64.tar.gz
3.2.2 集群软件安装
# tar -xvf kubernetes-server-linux-amd64.tar.gz
# cd kubernetes/server/bin/
# cp kube-apiserver kube-controller-manager kube-scheduler kubectl /usr/local/bin/
3.2.3 集群软件分发
master节点需要kube-apiserver,kube-controller-manager,kube-scheduler,kubectl
# scp kube-apiserver kube-controller-manager kube-scheduler kubectl k8s-master2:/usr/local/bin/
# scp kube-apiserver kube-controller-manager kube-scheduler kubectl k8s-master3:/usr/local/bin/
所有节点需要kubelet,kube-proxy
# scp kubelet kube-proxy k8s-master1:/usr/local/bin
# scp kubelet kube-proxy k8s-master2:/usr/local/bin
# scp kubelet kube-proxy k8s-master3:/usr/local/bin
# scp kubelet kube-proxy k8s-worker1:/usr/local/bin
3.2.4 在集群节点上创建目录
在所有集群节点上执行
# mkdir -p /etc/kubernetes/
# mkdir -p /etc/kubernetes/ssl
# mkdir -p /var/log/kubernetes
3.2.5 部署kube-apiserver
3.2.5.1 创建apiserver证书请求文件
# cat > kube-apiserver-csr.json << "EOF"
{
"CN": "kubernetes",
"hosts": [
"127.0.0.1",
"192.168.10.12",
"192.168.10.13",
"192.168.10.14",
"192.168.10.15",这些是集群中已经存在的节点
"192.168.10.16",
"192.168.10.17",这些是可能添加的节点，先把它添加上，避免后期需要添加的时候再来修改，这是为后期扩展考虑
"192.168.10.10",
"192.168.10.11",
"192.168.10.100"
"10.96.0.1",
"kubernetes",
"kubernetes.default",
"kubernetes.default.svc",
"kubernetes.default.svc.cluster",
"kubernetes.default.svc.cluster.local"
],
"key": {
"algo": "rsa",
"size": 2048
},
"names": [
{
"C": "CN",
"ST": "Beijing",
"L": "Beijing",
"O": "kubemsb",
"OU": "CN"
}
]
}
EOF
说明：
如果 hosts 字段不为空则需要指定授权使用该证书的 IP（含VIP） 或域名列表。由于该证书被 集群使用，需要将节点的IP都填上，为了方便后期扩容可以多写几个预留的IP。
同时还需要填写 service 网络的首个IP(一般是 kube-apiserver 指定的 service-cluster-ip-range 网段的第一个IP，如 10.96.0.1)。
3.2.5.2 生成apiserver证书及token文件
# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-apiserver-csr.json | cfssljson -bare kube-apiserver
# cat > token.csv << EOF
$(head -c 16 /dev/urandom | od -An -t x | tr -d ' '),kubelet-bootstrap,10001,"system:kubelet-bootstrap"
EOF
说明：
创建TLS机制所需TOKEN
TLS Bootstraping：Master apiserver启用TLS认证后，Node节点kubelet和kube-proxy与kube-apiserver进行通信，
必须使用CA签发的有效证书才可以，当Node节点很多时，这种客户端证书颁发需要大量工作，同样也会增加集群扩展复杂度。
为了简化流程，Kubernetes引入了TLS bootstraping机制来自动颁发客户端证书，
kubelet会以一个低权限用户自动向apiserver申请证书，kubelet的证书由apiserver动态签署。
所以强烈建议在Node上使用这种方式，目前主要用于kubelet，kube-proxy还是由我们统一颁发一个证书。
3.2.5.3 创建apiserver配置文件
# cat > /etc/kubernetes/kube-apiserver.conf << "EOF"
KUBE_APISERVER_OPTS="--enable-admission-plugins=NamespaceLifecycle,NodeRestriction,LimitRanger,ServiceAccount,DefaultStorageClass,ResourceQuota \
--anonymous-auth=false \
--bind-address=192.168.10.12 \
--secure-port=6443 \
--advertise-address=192.168.10.12 \
--insecure-port=0 \
--authorization-mode=Node,RBAC \
--runtime-config=api/all=true \
--enable-bootstrap-token-auth \
--service-cluster-ip-range=10.96.0.0/16 \
--token-auth-file=/etc/kubernetes/token.csv \
--service-node-port-range=30000-32767 \
--tls-cert-file=/etc/kubernetes/ssl/kube-apiserver.pem \
--tls-private-key-file=/etc/kubernetes/ssl/kube-apiserver-key.pem \
--client-ca-file=/etc/kubernetes/ssl/ca.pem \
--kubelet-client-certificate=/etc/kubernetes/ssl/kube-apiserver.pem \
--kubelet-client-key=/etc/kubernetes/ssl/kube-apiserver-key.pem \
--service-account-key-file=/etc/kubernetes/ssl/ca-key.pem \
--service-account-signing-key-file=/etc/kubernetes/ssl/ca-key.pem \
--service-account-issuer=api \
--etcd-cafile=/etc/etcd/ssl/ca.pem \
--etcd-certfile=/etc/etcd/ssl/etcd.pem \
--etcd-keyfile=/etc/etcd/ssl/etcd-key.pem \
--etcd-servers=https://192.168.10.12:2379,https://192.168.10.13:2379,https://192.168.10.14:2379 \
--enable-swagger-ui=true \
--allow-privileged=true \
--apiserver-count=3 \
--audit-log-maxage=30 \
--audit-log-maxbackup=3 \
--audit-log-maxsize=100 \
--audit-log-path=/var/log/kube-apiserver-audit.log \
--event-ttl=1h \
--alsologtostderr=true \
--logtostderr=false \
--log-dir=/var/log/kubernetes \
--v=4"
EOF
3.2.5.4 创建apiserver服务管理配置文件
# cat > /etc/systemd/system/kube-apiserver.service << "EOF"
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=etcd.service
Wants=etcd.service
[Service]
EnvironmentFile=-/etc/kubernetes/kube-apiserver.conf
ExecStart=/usr/local/bin/kube-apiserver $KUBE_APISERVER_OPTS
Restart=on-failure
RestartSec=5
Type=notify
LimitNOFILE=65536
[Install]
WantedBy=multi-user.target
EOF
3.2.5.5 同步证书文件到集群其他节点
先复制ca证书到k8s-master1节点下
# cp ca*.pem /etc/kubernetes/ssl/
复制apiserver的证书到k8s-master1下
# cp kube-apiserver*.pem /etc/kubernetes/ssl/
复制token到k8s-master1下
# cp token.csv /etc/kubernetes/
将以上文件再同步到其他master节点
# scp /etc/kubernetes/token.csv k8s-master2:/etc/kubernetes
# scp /etc/kubernetes/token.csv k8s-master3:/etc/kubernetes
# scp /etc/kubernetes/ssl/kube-apiserver*.pem k8s-master2:/etc/kubernetes/ssl
# scp /etc/kubernetes/ssl/kube-apiserver*.pem k8s-master3:/etc/kubernetes/ssl
# scp /etc/kubernetes/ssl/ca*.pem k8s-master2:/etc/kubernetes/ssl
# scp /etc/kubernetes/ssl/ca*.pem k8s-master3:/etc/kubernetes/ssl
同步配置文件
# scp /etc/kubernetes/kube-apiserver.conf k8s-master2:/etc/kubernetes/kube-apiserver.conf
# scp /etc/kubernetes/kube-apiserver.conf k8s-master3:/etc/kubernetes/kube-apiserver.conf
注意这里需要修改其中的IP地址
同步服务管理配置文件
# scp /etc/systemd/system/kube-apiserver.service k8s-master2:/etc/systemd/system/kube-apiserver.service
# scp /etc/systemd/system/kube-apiserver.service k8s-master3:/etc/systemd/system/kube-apiserver.service
3.2.5.6 启动并验证
# systemctl daemon-reload
# systemctl enable --now kube-apiserver
# systemctl status kube-apiserver
# 测试
curl --insecure https://192.168.10.12:6443/
curl --insecure https://192.168.10.13:6443/
curl --insecure https://192.168.10.14:6443/
curl --insecure https://192.168.10.100:6443/
3.2.6 部署kubectl
3.2.6.1 创建kubectl证书请求文件
# cat > admin-csr.json << "EOF"
{
"CN": "admin",
"hosts": [],
"key": {
"algo": "rsa",
"size": 2048
},
"names": [
{
"C": "CN",
"ST": "Beijing",
"L": "Beijing",
"O": "system:masters",
"OU": "system"
}
]
}
EOF
说明：
后续 kube-apiserver 使用 RBAC 对客户端(如 kubelet、kube-proxy、Pod)请求进行授权；
kube-apiserver 预定义了一些 RBAC 使用的 RoleBindings，如 cluster-admin 将 Group system:masters 与 Role cluster-admin 绑定，该 Role 授予了调用kube-apiserver 的所有 API的权限；
O指定该证书的 Group 为 system:masters，kubelet 使用该证书访问 kube-apiserver 时 ，由于证书被 CA 签名，所以认证通过，同时由于证书用户组为经过预授权的 system:masters，所以被授予访问所有 API 的权限；
注：
这个admin 证书，是将来生成管理员用的kubeconfig 配置文件用的，现在我们一般建议使用RBAC 来对kubernetes 进行角色权限控制， kubernetes 将证书中的CN 字段 作为User， O 字段作为 Group；
"O": "system:masters", 必须是system:masters，否则后面kubectl create clusterrolebinding报错。
3.2.6.2 生成相关证书文件
# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes admin-csr.json | cfssljson -bare admin
3.2.6.3 复制到相关目录下
# cp admin*.pem /etc/kubernetes/ssl/
3.2.6.4 生成kubectl的kubeconfig
# kubectl config set-cluster kubernetes --certificate-authority=ca.pem --embed-certs=true --server=https://192.168.10.100:6443 --kubeconfig=kube.config
# kubectl config set-credentials admin --client-certificate=admin.pem --client-key=admin-key.pem --embed-certs=true --kubeconfig=kube.config
# kubectl config set-context kubernetes --cluster=kubernetes --user=admin --kubeconfig=kube.config
# kubectl config use-context kubernetes --kubeconfig=kube.config
3.2.6.5 准备kubectl配置文件并进行角色绑定
mkdir ~/.kube
cp kube.config ~/.kube/config
kubectl create clusterrolebinding kube-apiserver:kubelet-apis --clusterrole=system:kubelet-api-admin --user kubernetes --kubeconfig=/root/.kube/config
3.2.6.6 查看集群状态
# export KUBECONFIG=$HOME/.kube/config
# kubectl cluster-info
# kubectl get componentstatuses
# kubectl get all --all-namespaces
3.2.6.7 同步kubectl配置文件到其他节点
k8s-master2:
# mkdir /root/.kube
k8s-master3:
# mkdir /root/.kube
# scp /root/.kube/config k8s-master2:/root/.kube/config
# scp /root/.kube/config k8s-master3:/root/.kube/config
3.2.6.8 配置kubectl补全命令插件
# yum install -y bash-completion
# source /usr/share/bash-completion/bash_completion
# source <(kubectl completion bash)
# kubectl completion bash > ~/.kube/completion.bash.inc
# source '/root/.kube/completion.bash.inc'
# source $HOME/.bash_profile
3.2.7 部署kube-controller-manager
3.2.7.1 创建controller-manager证书请求文件
# cat > kube-controller-manager-csr.json << "EOF"
{
"CN": "system:kube-controller-manager",
"key": {
"algo": "rsa",
"size": 2048
},
"hosts": [
"127.0.0.1",
"192.168.10.12",
"192.168.10.13",
"192.168.10.14"
],
"names": [
{
"C": "CN",
"ST": "Beijing",
"L": "Beijing",
"O": "system:kube-controller-manager",
"OU": "system"
}
]
}
EOF
说明：
hosts 列表包含所有 kube-controller-manager 节点 IP；
CN 为 system:kube-controller-manager、O 为 system:kube-controller-manager，kubernetes 内置的 ClusterRoleBindings system:kube-controller-manager 赋予 kube-controller-manager 工作所需的权限
3.2.7.2 生成kube-controller-manager证书文件
# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-controller-manager-csr.json | cfssljson -bare kube-controller-manager
# ls
kube-controller-manager.csr
kube-controller-manager-csr.json
kube-controller-manager-key.pem
kube-controller-manager.pem
3.2.7.3 创建kube-controller-manager的kube-controller-manager.kubeconfig
# kubectl config set-cluster kubernetes --certificate-authority=ca.pem --embed-certs=true --server=https://192.168.10.100:6443 --kubeconfig=kube-controller-manager.kubeconfig
# kubectl config set-credentials system:kube-controller-manager --client-certificate=kube-controller-manager.pem --client-key=kube-controller-manager-key.pem --embed-certs=true --kubeconfig=kube-controller-manager.kubeconfig
# kubectl config set-context system:kube-controller-manager --cluster=kubernetes --user=system:kube-controller-manager --kubeconfig=kube-controller-manager.kubeconfig
# kubectl config use-context system:kube-controller-manager --kubeconfig=kube-controller-manager.kubeconfig
3.2.7.4 创建kube-controller-manager的配置文件
# cat > kube-controller-manager.conf << "EOF"
KUBE_CONTROLLER_MANAGER_OPTS="--port=10252 \
--secure-port=10257 \
--bind-address=127.0.0.1 \
--kubeconfig=/etc/kubernetes/kube-controller-manager.kubeconfig \
--service-cluster-ip-range=10.96.0.0/16 \
--cluster-name=kubernetes \
--cluster-signing-cert-file=/etc/kubernetes/ssl/ca.pem \
--cluster-signing-key-file=/etc/kubernetes/ssl/ca-key.pem \
--allocate-node-cidrs=true \
--cluster-cidr=10.244.0.0/16 \
--experimental-cluster-signing-duration=87600h \
--root-ca-file=/etc/kubernetes/ssl/ca.pem \
--service-account-private-key-file=/etc/kubernetes/ssl/ca-key.pem \
--leader-elect=true \
--feature-gates=RotateKubeletServerCertificate=true \
--controllers=*,bootstrapsigner,tokencleaner \
--horizontal-pod-autoscaler-use-rest-clients=true \
--horizontal-pod-autoscaler-sync-period=10s \
--tls-cert-file=/etc/kubernetes/ssl/kube-controller-manager.pem \
--tls-private-key-file=/etc/kubernetes/ssl/kube-controller-manager-key.pem \
--use-service-account-credentials=true \
--alsologtostderr=true \
--logtostderr=false \
--log-dir=/var/log/kubernetes \
--v=2"
EOF
3.2.7.5 创建kube-controller-manager的服务管理配置文件
# cat > kube-controller-manager.service << "EOF"
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/kubernetes/kubernetes
[Service]
EnvironmentFile=-/etc/kubernetes/kube-controller-manager.conf
ExecStart=/usr/local/bin/kube-controller-manager $KUBE_CONTROLLER_MANAGER_OPTS
Restart=on-failure
RestartSec=5
[Install]
WantedBy=multi-user.target
EOF
3.2.7.6 同步文件
复制到本节点相关目录下
# cp kube-controller-manager*.pem /etc/kubernetes/ssl/
# cp kube-controller-manager.kubeconfig /etc/kubernetes/
# cp kube-controller-manager.conf /etc/kubernetes/
# cp kube-controller-manager.service /usr/lib/systemd/system/
同步到其他节点
# scp kube-controller-manager*.pem k8s-master2:/etc/kubernetes/ssl/
# scp kube-controller-manager*.pem k8s-master3:/etc/kubernetes/ssl/
# scp kube-controller-manager.kubeconfig kube-controller-manager.conf k8s-master2:/etc/kubernetes/
# scp kube-controller-manager.kubeconfig kube-controller-manager.conf k8s-master3:/etc/kubernetes/
# scp kube-controller-manager.service k8s-master2:/usr/lib/systemd/system/
# scp kube-controller-manager.service k8s-master3:/usr/lib/systemd/system/
#查看证书
openssl x509 -in /etc/kubernetes/ssl/kube-controller-manager.pem -noout -text
3.2.7.7 启动服务
# systemctl daemon-reload
# systemctl enable --now kube-controller-manager
# systemctl status kube-controller-manager
3.2.8 部署kube-scheduler
3.2.8.1 创建kube-scheduler证书请求文件
# cat > kube-scheduler-csr.json << "EOF"
{
"CN": "system:kube-scheduler",
"hosts": [
"127.0.0.1",
"192.168.234.143",
"192.168.234.144",
"192.168.234.145"
],
"key": {
"algo": "rsa",
"size": 2048
},
"names": [
{
"C": "CN",
"ST": "Beijing",
"L": "Beijing",
"O": "system:kube-scheduler",
"OU": "system"
}
]
}
EOF
3.2.8.2 生成kube-scheduler相关证书
# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-scheduler-csr.json | cfssljson -bare kube-scheduler
# ls
kube-scheduler.csr
kube-scheduler-csr.json
kube-scheduler-key.pem
kube-scheduler.pem
3.2.8.3 生成kube-scheduler的kubeconfig
# kubectl config set-cluster kubernetes --certificate-authority=ca.pem --embed-certs=true --server=https://192.168.234.100:6443 --kubeconfig=kube-scheduler.kubeconfig
# kubectl config set-credentials system:kube-scheduler --client-certificate=kube-scheduler.pem --client-key=kube-scheduler-key.pem --embed-certs=true --kubeconfig=kube-scheduler.kubeconfig
# kubectl config set-context system:kube-scheduler --cluster=kubernetes --user=system:kube-scheduler --kubeconfig=kube-scheduler.kubeconfig
# kubectl config use-context system:kube-scheduler --kubeconfig=kube-scheduler.kubeconfig
3.2.8.4 创建kube-scheduler的配置文件
# cat > kube-scheduler.conf << "EOF"
KUBE_SCHEDULER_OPTS="--address=127.0.0.1 \
--kubeconfig=/etc/kubernetes/kube-scheduler.kubeconfig \
--leader-elect=true \
--alsologtostderr=true \
--logtostderr=false \
--log-dir=/var/log/kubernetes \
--v=2"
EOF
3.2.8.5 创建kube-scheduler的服务管理配置文件
# cat > kube-scheduler.service << "EOF"
[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/kubernetes/kubernetes
[Service]
EnvironmentFile=-/etc/kubernetes/kube-scheduler.conf
ExecStart=/usr/local/bin/kube-scheduler $KUBE_SCHEDULER_OPTS
Restart=on-failure
RestartSec=5
[Install]
WantedBy=multi-user.target
EOF
3.2.8.6 同步文件
复制到本节点目录下
# cp kube-scheduler*.pem /etc/kubernetes/ssl/
# cp kube-scheduler.kubeconfig /etc/kubernetes/
# cp kube-scheduler.conf /etc/kubernetes/
# cp kube-scheduler.service /usr/lib/systemd/system/
同步到其他节点
# scp kube-scheduler*.pem k8s-master2:/etc/kubernetes/ssl/
# scp kube-scheduler*.pem k8s-master3:/etc/kubernetes/ssl/
# scp kube-scheduler.kubeconfig kube-scheduler.conf k8s-master2:/etc/kubernetes/
# scp kube-scheduler.kubeconfig kube-scheduler.conf k8s-master3:/etc/kubernetes/
# scp kube-scheduler.service k8s-master2:/usr/lib/systemd/system/
# scp kube-scheduler.service k8s-master3:/usr/lib/systemd/system/
3.2.8.7 启动服务
# systemctl daemon-reload
# systemctl enable -now kube-scheduler
# systemctl status kube-scheduler
至此，master的节点主要软件安装完成。总结一下，其实整个二进制部署过程有一下几个步骤：
- 创建证书请求文件
- 生成证书
- 生成相关组件的kubeconfig文件
- 创建相关组件的配置文件
- 创建相关组件的服务管理配置文件
- 同步到其他master节点
- 启动
3.3 所有节点安装docker-ce
3.3.1 配置dockerYUM源
# wget -O /etc/yum.repos.d/docker-ce.repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
3.3.2 安装docker并启动
# yum -y install docker-ce-20.10.17 docker-ce-cli-20.10.17
# systemctl enable docker
# systemctl start docker
3.3.3 修改docker配置并重启
# cat <{
"exec-opts": ["native.cgroupdriver=systemd"]
}
EOF
重启docker
# systemctl restart docker
3.4 Kubernetes集群worker部署
worker节点部署主要是需要kebelet,kube-proxy
3.4.1 部署kubelet及kube-proxy
3.4.1.1 部署kubelet
在master1上操作
# BOOTSTRAP_TOKEN=$(awk -F "," '{print $1}' /etc/kubernetes/token.csv)
# kubectl config set-cluster kubernetes --certificate-authority=ca.pem --embed-certs=true --server=https://192.168.234.100:6443 --kubeconfig=kubelet-bootstrap.kubeconfig
# kubectl config set-credentials kubelet-bootstrap --token=${BOOTSTRAP_TOKEN} --kubeconfig=kubelet-bootstrap.kubeconfig
# kubectl config set-context default --cluster=kubernetes --user=kubelet-bootstrap --kubeconfig=kubelet-bootstrap.kubeconfig
# kubectl config use-context default --kubeconfig=kubelet-bootstrap.kubeconfig
# kubectl create clusterrolebinding cluster-system-anonymous --clusterrole=cluster-admin --user=kubelet-bootstrap
# kubectl create clusterrolebinding kubelet-bootstrap --clusterrole=system:node-bootstrapper --user=kubelet-bootstrap --kubeconfig=kubelet-bootstrap.kubeconfig
# kubectl describe clusterrolebinding cluster-system-anonymous
# kubectl describe clusterrolebinding kubelet-bootstrap
3.4.1.2 创建kubelet配置文件
# cat > kubelet.json << "EOF"
{
"kind": "KubeletConfiguration",
"apiVersion": "kubelet.config.k8s.io/v1beta1",
"authentication": {
"x509": {
"clientCAFile": "/etc/kubernetes/ssl/ca.pem"
},
"webhook": {
"enabled": true,
"cacheTTL": "2m0s"
},
"anonymous": {
"enabled": false
}
},
"authorization": {
"mode": "Webhook",
"webhook": {
"cacheAuthorizedTTL": "5m0s",
"cacheUnauthorizedTTL": "30s"
}
},
"address": "192.168.10.12",
"port": 10250,
"readOnlyPort": 10255,
"cgroupDriver": "systemd",
"hairpinMode": "promiscuous-bridge",
"serializeImagePulls": false,
"clusterDomain": "cluster.local.",
"clusterDNS": ["10.96.0.2"]
}
EOF
3.4.1.3 创建kubelet服务配置文件
# cat > kubelet.service << "EOF"
[Unit]
Description=Kubernetes Kubelet
Documentation=https://github.com/kubernetes/kubernetes
After=docker.service
Requires=docker.service
[Service]
WorkingDirectory=/var/lib/kubelet
ExecStart=/usr/local/bin/kubelet \
--bootstrap-kubeconfig=/etc/kubernetes/kubelet-bootstrap.kubeconfig \
--cert-dir=/etc/kubernetes/ssl \
--kubeconfig=/etc/kubernetes/kubelet.kubeconfig \
--config=/etc/kubernetes/kubelet.json \
--network-plugin=cni \
--rotate-certificates \
--pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.2 \
--alsologtostderr=true \
--logtostderr=false \
--log-dir=/var/log/kubernetes \
--v=2
Restart=on-failure
RestartSec=5
[Install]
WantedBy=multi-user.target
EOF
3.4.1.4 同步文件
复制到本地
# cp kubelet-bootstrap.kubeconfig /etc/kubernetes/
# cp kubelet.json /etc/kubernetes/
# cp kubelet.service /usr/lib/systemd/system/
分发到其他节点
for i in k8s-master2 k8s-master3 k8s-worker1;do scp kubelet-bootstrap.kubeconfig kubelet.json $i:/etc/kubernetes/;done
for i in k8s-master2 k8s-master3 k8s-worker1;do scp ca.pem $i:/etc/kubernetes/ssl/;done
for i in k8s-master2 k8s-master3 k8s-worker1;do scp kubelet.service $i:/usr/lib/systemd/system/;done
说明：
kubelet.json中address需要修改为当前主机IP地址。
3.4.1.5 创建目录
# mkdir -p /var/lib/kubelet
# mkdir -p /var/log/kubernetes
3.4.1.6 启动
# systemctl daemon-reload
# systemctl enable --now kubelet
# systemctl status kubelet
3.4.1.7 验证
# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master1 NotReady 2m55s v1.21.10
k8s-master2 NotReady 45s v1.21.10
k8s-master3 NotReady 39s v1.21.10
k8s-worker1 NotReady 5m1s v1.21.10
# kubectl get csr
NAME AGE SIGNERNAME REQUESTOR CONDITION
csr-b949p 7m55s kubernetes.io/kube-apiserver-client-kubelet kubelet-bootstrap Approved,Issued
csr-c9hs4 3m34s kubernetes.io/kube-apiserver-client-kubelet kubelet-bootstrap Approved,Issued
csr-r8vhp 5m50s kubernetes.io/kube-apiserver-client-kubelet kubelet-bootstrap Approved,Issued
csr-zb4sr 3m40s kubernetes.io/kube-apiserver-client-kubelet kubelet-bootstrap Approved,Issued
3.4.2 部署kube-proxy
3.4.2.1 创建kube-proxy证书请求文件
# cat > kube-proxy-csr.json << "EOF"
{
"CN": "system:kube-proxy",
"key": {
"algo": "rsa",
"size": 2048
},
"names": [
{
"C": "CN",
"ST": "Beijing",
"L": "Beijing",
"O": "kubemsb",
"OU": "CN"
}
]
}
EOF
3.4.2.2 生成证书
# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-proxy-csr.json | cfssljson -bare kube-proxy
查看生成的证书
# ls kube-proxy*
kube-proxy.csr kube-proxy-csr.json kube-proxy-key.pem kube-proxy.pem
3.4.2.3 创建kubeconfig文件
# kubectl config set-cluster kubernetes --certificate-authority=ca.pem --embed-certs=true --server=https://192.168.234.100:6443 --kubeconfig=kube-proxy.kubeconfig
# kubectl config set-credentials kube-proxy --client-certificate=kube-proxy.pem --client-key=kube-proxy-key.pem --embed-certs=true --kubeconfig=kube-proxy.kubeconfig
# kubectl config set-context default --cluster=kubernetes --user=kube-proxy --kubeconfig=kube-proxy.kubeconfig
# kubectl config use-context default --kubeconfig=kube-proxy.kubeconfig
3.4.2.4 创建服务配置文件
# cat > kube-proxy.yaml << "EOF"
apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 192.168.10.12
clientConnection:
kubeconfig: /etc/kubernetes/kube-proxy.kubeconfig
clusterCIDR: 10.244.0.0/16
healthzBindAddress: 192.168.10.12:10256
kind: KubeProxyConfiguration
metricsBindAddress: 192.168.10.12:10249
mode: "ipvs"
EOF
3.4.2.5 创建服务管理配置文件
# cat > kube-proxy.service << "EOF"
[Unit]
Description=Kubernetes Kube-Proxy Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target
[Service]
WorkingDirectory=/var/lib/kube-proxy
ExecStart=/usr/local/bin/kube-proxy \
--config=/etc/kubernetes/kube-proxy.yaml \
--alsologtostderr=true \
--logtostderr=false \
--log-dir=/var/log/kubernetes \
--v=2
Restart=on-failure
RestartSec=5
LimitNOFILE=65536
[Install]
WantedBy=multi-user.target
EOF
3.4.2.6 同步文件
复制到本地
# cp kube-proxy*.pem /etc/kubernetes/ssl/
# cp kube-proxy.kubeconfig kube-proxy.yaml /etc/kubernetes/
# cp kube-proxy.service /usr/lib/systemd/system/
同步到其他节点
# for i in k8s-master2 k8s-master3 k8s-worker1;do scp kube-proxy.kubeconfig kube-proxy.yaml $i:/etc/kubernetes/;done
# for i in k8s-master2 k8s-master3 k8s-worker1;do scp kube-proxy.service $i:/usr/lib/systemd/system/;done
说明：
同步后修改kube-proxy.yaml中IP地址为当前主机IP.
3.4.2.7 启动服务
# mkdir -p /var/lib/kube-proxy
# systemctl daemon-reload
# systemctl enable --now kube-proxy
# systemctl status kube-proxy
3.5 安装网络组件Calico
3.5.1 下载Calico
# wget https://docs.projectcalico.org/v3.19/manifests/calico.yaml
3.5.2 修改配置文件
# vim calico.yaml
修改文件第3683和3684行
3683 - name: CALICO_IPV4POOL_CIDR
3684 value: "10.244.0.0/16"
3.5.3 应用配置文件
# kubectl create -f calico.yaml
3.5.4 验证结果
# kubectl get pods -A
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system calico-kube-controllers-7cc8dd57d9-tf2m5 1/1 Running 0 72s
kube-system calico-node-llw5w 1/1 Running 0 72s
kube-system calico-node-mhh6g 1/1 Running 0 72s
kube-system calico-node-twj99 1/1 Running 0 72s
kube-system calico-node-zh6xl 1/1 Running 0 72s
# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master1 Ready 55m v1.21.10
k8s-master2 Ready 53m v1.21.10
k8s-master3 Ready 53m v1.21.10
k8s-worker1 Ready 57m v1.21.10
3.6 部署CoreDNS
3.6.1 创建CoreDNS配置文件
# cat > coredns.yaml << "EOF"
apiVersion: v1
kind: ServiceAccount
metadata:
name: coredns
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
kubernetes.io/bootstrapping: rbac-defaults
name: system:coredns
rules:
- apiGroups:
- ""
resources:
- endpoints
- services
- pods
- namespaces
verbs:
- list
- watch
- apiGroups:
- discovery.k8s.io
resources:
- endpointslices
verbs:
- list
- watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
annotations:
rbac.authorization.kubernetes.io/autoupdate: "true"
labels:
kubernetes.io/bootstrapping: rbac-defaults
name: system:coredns
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: system:coredns
subjects:
- kind: ServiceAccount
name: coredns
namespace: kube-system
---
apiVersion: v1
kind: ConfigMap
metadata:
name: coredns
namespace: kube-system
data:
Corefile: |
.:53 {
errors
health {
lameduck 5s
}
ready
kubernetes cluster.local in-addr.arpa ip6.arpa {
fallthrough in-addr.arpa ip6.arpa
}
prometheus :9153
forward . /etc/resolv.conf {
max_concurrent 1000
}
cache 30
loop
reload
loadbalance
}
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: coredns
namespace: kube-system
labels:
k8s-app: kube-dns
kubernetes.io/name: "CoreDNS"
spec:
# replicas: not specified here:
# 1. Default is 1.
# 2. Will be tuned in real time if DNS horizontal auto-scaling is turned on.
strategy:
type: RollingUpdate
rollingUpdate:
maxUnavailable: 1
selector:
matchLabels:
k8s-app: kube-dns
template:
metadata:
labels:
k8s-app: kube-dns
spec:
priorityClassName: system-cluster-critical
serviceAccountName: coredns
tolerations:
- key: "CriticalAddonsOnly"
operator: "Exists"
nodeSelector:
kubernetes.io/os: linux
affinity:
podAntiAffinity:
preferredDuringSchedulingIgnoredDuringExecution:
- weight: 100
podAffinityTerm:
labelSelector:
matchExpressions:
- key: k8s-app
operator: In
values: ["kube-dns"]
topologyKey: kubernetes.io/hostname
containers:
- name: coredns
image: coredns/coredns:1.8.4
imagePullPolicy: IfNotPresent
resources:
limits:
memory: 170Mi
requests:
cpu: 100m
memory: 70Mi
args: [ "-conf", "/etc/coredns/Corefile" ]
volumeMounts:
- name: config-volume
mountPath: /etc/coredns
readOnly: true
ports:
- containerPort: 53
name: dns
protocol: UDP
- containerPort: 53
name: dns-tcp
protocol: TCP
- containerPort: 9153
name: metrics
protocol: TCP
securityContext:
allowPrivilegeEscalation: false
capabilities:
add:
- NET_BIND_SERVICE
drop:
- all
readOnlyRootFilesystem: true
livenessProbe:
httpGet:
path: /health
port: 8080
scheme: HTTP
initialDelaySeconds: 60
timeoutSeconds: 5
successThreshold: 1
failureThreshold: 5
readinessProbe:
httpGet:
path: /ready
port: 8181
scheme: HTTP
dnsPolicy: Default
volumes:
- name: config-volume
configMap:
name: coredns
items:
- key: Corefile
path: Corefile
---
apiVersion: v1
kind: Service
metadata:
name: kube-dns
namespace: kube-system
annotations:
prometheus.io/port: "9153"
prometheus.io/scrape: "true"
labels:
k8s-app: kube-dns
kubernetes.io/cluster-service: "true"
kubernetes.io/name: "CoreDNS"
spec:
selector:
k8s-app: kube-dns
clusterIP: 10.96.0.2
ports:
- name: dns
port: 53
protocol: UDP
- name: dns-tcp
port: 53
protocol: TCP
- name: metrics
port: 9153
protocol: TCP
EOF
3.6.2 应用配置文件
# kubectl create -f coredns.yaml
3.6.3 验证
# kubectl get pods -A
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system calico-kube-controllers-7cc8dd57d9-tf2m5 1/1 Running 0 4m7s
kube-system calico-node-llw5w 1/1 Running 0 4m7s
kube-system calico-node-mhh6g 1/1 Running 0 4m7s
kube-system calico-node-twj99 1/1 Running 0 4m7s
kube-system calico-node-zh6xl 1/1 Running 0 4m7s
kube-system coredns-675db8b7cc-ncnf6 1/1 Running 0 26s
至此，k8s二进制部署集群完成。
4.1 安装应用验证集群
这里，我们安装一个nginx作为集群可用的验证
4.1.1 创建nginx配置文件
# cat > nginx.yaml << "EOF"
---
apiVersion: v1
kind: ReplicationController
metadata:
name: nginx-web
spec:
replicas: 2
selector:
name: nginx
template:
metadata:
labels:
name: nginx
spec:
containers:
- name: nginx
image: nginx:1.19.6
ports:
- containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
name: nginx-service-nodeport
spec:
ports:
- port: 80
targetPort: 80
nodePort: 30001
protocol: TCP
type: NodePort
selector:
name: nginx
EOF
4.1.2 应用配置文件
# kubectl create -f nginx.yaml

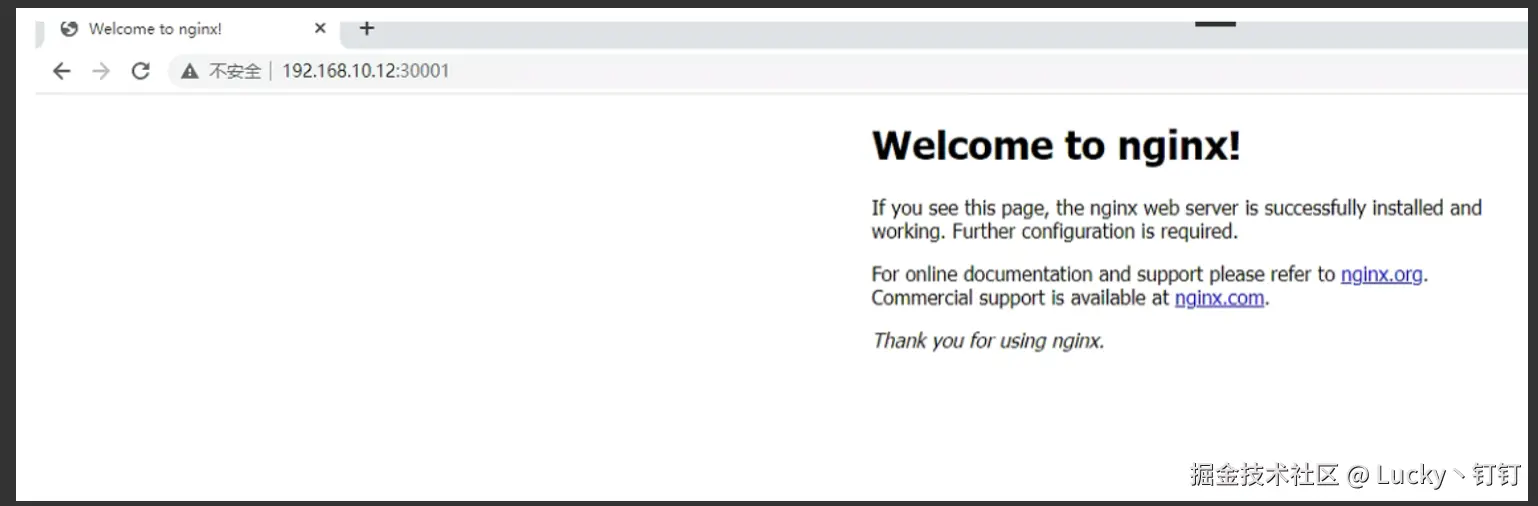

4.1.3 验证nginx是否可用
# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx-web-qzvw4 1/1 Running 0 58s 10.244.194.65 k8s-worker1
nginx-web-spw5t 1/1 Running 0 58s 10.244.224.1 k8s-master2
# kubectl get all
NAME READY STATUS RESTARTS AGE
pod/nginx-web-qzvw4 1/1 Running 0 2m2s
pod/nginx-web-spw5t 1/1 Running 0 2m2s
NAME DESIRED CURRENT READY AGE
replicationcontroller/nginx-web 2 2 2 2m2s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kubernetes ClusterIP 10.96.0.1 443/TCP 3h37m
service/nginx-service-nodeport NodePort 10.96.165.114 80:30001/TCP 2m2s
