一、Android启动流程分析
Init进程分析
1. 创建和挂载所需要的文件目录
2. 初始化和启动属性服务
3. 解析init.rc配置文件，并启动zygote进程
二、zygote分析
Zygote: (Zygote通过socket与其他进程通讯，主要是与systemserver系统进程通讯) 这里看下init.zygote64.rc的文件信息
service zygote /system/bin/app_process64 -Xzygote /system/bin --zygote --start-system-server
class main
priority -20
user root
group root readproc reserved_disk
socket zygote stream 660 root system
onrestart write /sys/android_power/request_state wake
onrestart write /sys/power/state on
onrestart restart audioserver
onrestart restart cameraserver
onrestart restart media
onrestart restart netd
onrestart restart wificond
writepid /dev/cpuset/foreground/tasks
这里主要是执行app_process64的可执行文件，并传入一些参数"--zygote" , "--start-system-server"
app_process64的可执行文件是由对应的c代码编译过来的，这个代码的主函数在这里： 看下这个文件的main函数
//frameworks\base\cmds\app_process\app_main.cpp
int main(int argc, char* const argv[])
{
//创建 AppRuntime对象；
AppRuntime runtime(argv[0], computeArgBlockSize(argc, argv));
bool zygote = false;
bool startSystemServer = false;
bool application = false;
String8 niceName;
String8 className;
++i;
//解析参数
while (i < argc) {
const char* arg = argv[i++];
if (strcmp(arg, "--zygote") == 0) {
zygote = true;
niceName = ZYGOTE_NICE_NAME;
} else if (strcmp(arg, "--start-system-server") == 0) {
startSystemServer = true;
} else if (strcmp(arg, "--application") == 0) {
application = true;
} else if (strncmp(arg, "--nice-name=", 12) == 0) {
niceName = (arg + 12);
} else if (strncmp(arg, "--", 2) != 0) {
className = arg;
break;
} else {
--i;
break;
}
}
//这里zygote = true;
//niceName=ZYGOTE_NICE_NAME="zygote64";
//className="start-system-server"
//args是一个Vector<String8>;参数有start-system-server
if (!niceName.empty()) {
runtime.setArgv0(niceName.c_str(), true /* setProcName */);
}
//这里通过AppRuntime（AndroidRuntime）启动
if (zygote) {
runtime.start("com.android.internal.os.ZygoteInit", args, zygote);
} else if (!className.empty()) {
runtime.start("com.android.internal.os.RuntimeInit", args, zygote);
} else {
fprintf(stderr, "Error: no class name or --zygote supplied.\n");
app_usage();
LOG_ALWAYS_FATAL("app_process: no class name or --zygote supplied.");
}
}
接着看下AndroidRuntime的start方法
\frameworks\base\core\jni\AndroidRuntime.cpp
void AndroidRuntime::start(const char* className, const Vector<String8>& options, bool zygote)
{
JniInvocation jni_invocation;
jni_invocation.Init(NULL);
JNIEnv* env;
//startVm这个方法比较重要，主要功能就是启动java虚拟机，并获取mJavaVM，env对象
if (startVm(&mJavaVM, &env, zygote, primary_zygote) != 0) {
return;
}
onVmCreated(env);
if (startReg(env) < 0) {
ALOGE("Unable to register all android natives\n");
return;
}
jclass stringClass;
jobjectArray strArray;
jstring classNameStr;
stringClass = env->FindClass("java/lang/String");
assert(stringClass != NULL);
strArray = env->NewObjectArray(options.size() + 1, stringClass, NULL);
assert(strArray != NULL);
classNameStr = env->NewStringUTF(className);
assert(classNameStr != NULL);
env->SetObjectArrayElement(strArray, 0, classNameStr);
for (size_t i = 0; i < options.size(); ++i) {
jstring optionsStr = env->NewStringUTF(options.itemAt(i).c_str());
assert(optionsStr != NULL);
env->SetObjectArrayElement(strArray, i + 1, optionsStr);
}
/*
* Start VM. This thread becomes the main thread of the VM, and will
* not return until the VM exits.
*/
//找到className对应的类，通过env去执行其java中类的main方法；
//从app_main.cpp可以知道这里是执行ZygoteInit和RuntimeInit
char* slashClassName = toSlashClassName(className != NULL ? className : "");
jclass startClass = env->FindClass(slashClassName);
jmethodID startMeth = env->GetStaticMethodID(startClass, "main",
"([Ljava/lang/String;)V");
if (startMeth == NULL) {
ALOGE("JavaVM unable to find main() in '%s'\n", className);
} else {
env->CallStaticVoidMethod(startClass, startMeth, strArray);
}
free(slashClassName);
}
\frameworks\base\core\jni\AndroidRuntime.cpp
int AndroidRuntime::startVm(JavaVM** pJavaVM, JNIEnv** pEnv, bool zygote, bool primary_zygote)
{
JavaVMInitArgs initArgs;
......
initArgs.version = JNI_VERSION_1_4;
initArgs.options = mOptions.editArray();
initArgs.nOptions = mOptions.size();
initArgs.ignoreUnrecognized = JNI_FALSE;
//这个前面把虚拟机的启动参数放到mOptions中并调用libart.so提供的接口JNI_CreateJavaVM
if (JNI_CreateJavaVM(pJavaVM, pEnv, &initArgs) < 0) {
ALOGE("JNI_CreateJavaVM failed\n");
return -1;
}
return 0;
}
/art/runtime/java_vm_ext.cc
extern "C" jint JNI_CreateJavaVM(JavaVM** p_vm, JNIEnv** p_env, void* vm_args) {
ScopedTrace trace(__FUNCTION__);
const JavaVMInitArgs* args = static_cast<JavaVMInitArgs*>(vm_args);
//判断版本是否正确
if (JavaVMExt::IsBadJniVersion(args->version)) {
LOG(ERROR) << "Bad JNI version passed to CreateJavaVM: " << args->version;
return JNI_EVERSION;
}
RuntimeOptions options;
for (int i = 0; i < args->nOptions; ++i) {
JavaVMOption* option = &args->options[i];
options.push_back(std::make_pair(std::string(option->optionString), option->extraInfo));
}
bool ignore_unrecognized = args->ignoreUnrecognized;
//创建Runtime对象
if (!Runtime::Create(options, ignore_unrecognized)) {
return JNI_ERR;
}
// Initialize native loader. This step makes sure we have
// everything set up before we start using JNI.
android::InitializeNativeLoader();
Runtime* runtime = Runtime::Current();
bool started = runtime->Start();
if (!started) {
delete Thread::Current()->GetJniEnv();
delete runtime->GetJavaVM();
LOG(WARNING) << "CreateJavaVM failed";
return JNI_ERR;
}
//创建完成后，返回java虚拟机对象
*p_env = Thread::Current()->GetJniEnv();
*p_vm = runtime->GetJavaVM();
return JNI_OK;
}
从上面的逻辑中，知道了startVM创建java虚拟机，并获取env对象，用于执行java类中的逻辑；也就是执行ZygoteInit和RuntimeInit的main方法； 接下来看下RuntimeInit
\frameworks\base\core\java\com\android\internal\os\RuntimeInit.java
public static final void main(String[] argv) {
preForkInit();
if (argv.length == 2 && argv[1].equals("application")) {
if (DEBUG) Slog.d(TAG, "RuntimeInit: Starting application");
redirectLogStreams();
} else {
if (DEBUG) Slog.d(TAG, "RuntimeInit: Starting tool");
}
commonInit();
//初始化完成。里面会有一些onStarted的回调函数
nativeFinishInit();
}
public static void preForkInit() {
//enableDdms; ddms ：Android开发很熟悉的工具，
RuntimeInit.enableDdms();
MimeMap.setDefaultSupplier(DefaultMimeMapFactory::create);
}
protected static final void commonInit() {
/*
* set handlers; these apply to all threads in the VM. Apps can replace
* the default handler, but not the pre handler.
*/
LoggingHandler loggingHandler = new LoggingHandler();
RuntimeHooks.setUncaughtExceptionPreHandler(loggingHandler);
//设置一个不捕获异常的handler：FATAL EXCEPTION:
Thread.setDefaultUncaughtExceptionHandler(new KillApplicationHandler(loggingHandler));
//设置时区？
RuntimeHooks.setTimeZoneIdSupplier(() -> SystemProperties.get("persist.sys.timezone"));
LogManager.getLogManager().reset();
new AndroidConfig();
initialized = true;
}
再看下ZygoteInit
public static void main(String[] argv) {
ZygoteServer zygoteServer = null;
// Mark zygote start. This ensures that thread creation will throw
// an error.
ZygoteHooks.startZygoteNoThreadCreation();
Runnable caller;
try {
RuntimeInit.preForkInit();
boolean startSystemServer = false;
String zygoteSocketName = "zygote";
String abiList = null;
boolean enableLazyPreload = false;
for (int i = 1; i < argv.length; i++) {
if ("start-system-server".equals(argv[i])) {
startSystemServer = true;
} else if ("--enable-lazy-preload".equals(argv[i])) {
enableLazyPreload = true;
} else if (argv[i].startsWith(ABI_LIST_ARG)) {
abiList = argv[i].substring(ABI_LIST_ARG.length());
} else if (argv[i].startsWith(SOCKET_NAME_ARG)) {
zygoteSocketName = argv[i].substring(SOCKET_NAME_ARG.length());
} else {
throw new RuntimeException("Unknown command line argument: " + argv[i]);
}
}
//很明显这里enableLazyPreload为false；因为没有--enable-lazy-preload
if (!enableLazyPreload) {
bootTimingsTraceLog.traceBegin("ZygotePreload");
//五星，预加载资源；这个一般有trace跟踪，因为比较耗时，手机开启启动耗时的原因
preload(bootTimingsTraceLog);
bootTimingsTraceLog.traceEnd(); // ZygotePreload
}
//五星：这里创建socketServer，循环监听socket的客户端
zygoteServer = new ZygoteServer(isPrimaryZygote);
//很明显这里startSystemServer为true；从init.zygote64.rc中传入的参数在这里用到了
if (startSystemServer) {
Runnable r = forkSystemServer(abiList, zygoteSocketName, zygoteServer);
the
// child (system_server) process.
if (r != null) {
r.run();
return;
}
}
// The select loop returns early in the child process after a fork and
// loops forever in the zygote.
/ /继续五星：循环监听，源码的英文注释我也不删了，
// 但是runSelectLoop这个是接收客户端的连接，不属于启动流程，先放在这里后续再说
caller = zygoteServer.runSelectLoop(abiList);
} catch (Throwable ex) {
throw ex;
} finally {
if (zygoteServer != null) {
zygoteServer.closeServerSocket();
}
}
// We're in the child process and have exited the select loop. Proceed to execute the
// command.
if (caller != null) {
caller.run();
}
}
先看第一个五星：preload：预加载
static void preload(TimingsTraceLog bootTimingsTraceLog) {
Log.d(TAG, "begin preload");
beginPreload();
//源码中这里几乎每个方法前后都有trace，记录加载消耗的时间
preloadClasses();
cacheNonBootClasspathClassLoaders();
//资源加载
Resources.preloadResources();
nativePreloadAppProcessHALs();
//加载openGL
maybePreloadGraphicsDriver();
//共享库的加载
preloadSharedLibraries();
//文字，字体加载
preloadTextResources();
// Ask the WebViewFactory to do any initialization that must run in the zygote process,
// for memory sharing purposes.
WebViewFactory.prepareWebViewInZygote();
endPreload();
warmUpJcaProviders();
Log.d(TAG, "end preload");
sPreloadComplete = true;
}
private static void beginPreload() {
Log.i(TAG, "Calling ZygoteHooks.beginPreload()");
ZygoteHooks.onBeginPreload();
}
private static void endPreload() {
ZygoteHooks.onEndPreload();
Log.i(TAG, "Called ZygoteHooks.endPreload()");
}
zygote预加载的优点：将资源preload预加载到zygote进程后，所有从zygote进程fork的子进程将共享这份空间，无需重新加载，大大减少app的启动时间，只是增加的系统的启动时间（开机时间）
private static void preloadClasses() {
final VMRuntime runtime = VMRuntime.getRuntime();
//获取文件流，肯定是为了加载文件PRELOADED_CLASSES;
//private static final String PRELOADED_CLASSES = "/system/etc/preloaded-classes";

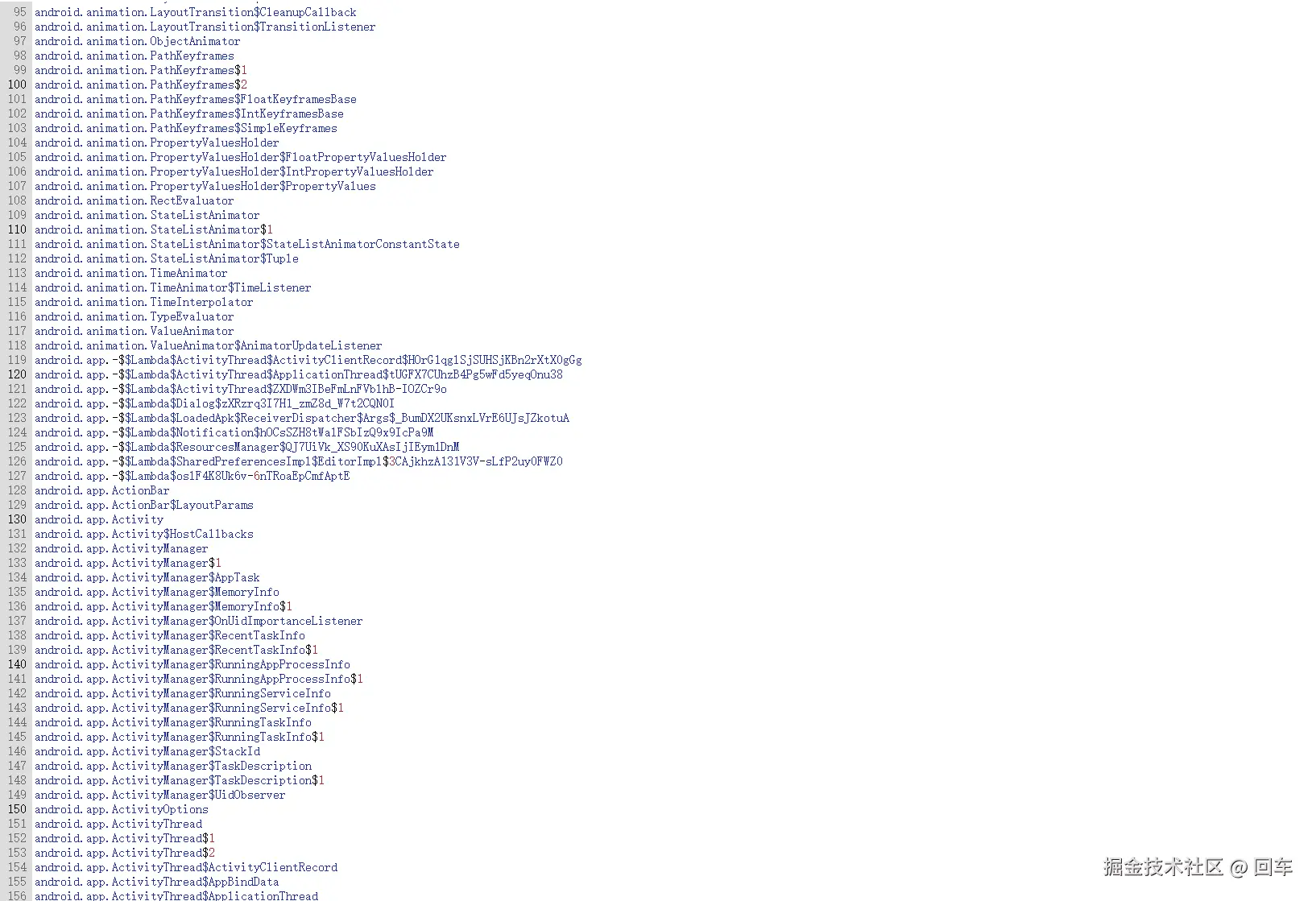

//下面有个图，可以大致看下这个文件是啥样的
InputStream is;
try {
is = new FileInputStream(PRELOADED_CLASSES);
} catch (FileNotFoundException e) {
Log.e(TAG, "Couldn't find " + PRELOADED_CLASSES + ".");
return;
}
try {
BufferedReader br =
new BufferedReader(new InputStreamReader(is), Zygote.SOCKET_BUFFER_SIZE);
int count = 0;
int missingLambdaCount = 0;
String line;
while ((line = br.readLine()) != null) {
// Skip comments and blank lines.
line = line.trim();
if (line.startsWith("#") || line.equals("")) {
continue;
}
//按行将对应的类加载到内存
Class.forName(line, true, null);
count++;
}
} catch (IOException e) {
Log.e(TAG, "Error reading " + PRELOADED_CLASSES + ".", e);
} finally {
IoUtils.closeQuietly(is);
runtime.preloadDexCaches();
Trace.traceEnd(Trace.TRACE_TAG_DALVIK);
if (isExperimentEnabled("profilebootclasspath")) {
Trace.traceBegin(Trace.TRACE_TAG_DALVIK, "ResetJitCounters");
VMRuntime.resetJitCounters();
}
}
}
forkSystemServer
private static Runnable forkSystemServer(String abiList, String socketName,
ZygoteServer zygoteServer) {
long capabilities =
(1L << OsConstants.CAP_IPC_LOCK) |
(1L << OsConstants.CAP_KILL) |
(1L << OsConstants.CAP_NET_ADMIN) |
(1L << OsConstants.CAP_NET_BIND_SERVICE) |
(1L << OsConstants.CAP_NET_BROADCAST) |
(1L << OsConstants.CAP_NET_RAW) |
(1L << OsConstants.CAP_SYS_MODULE) |
(1L << OsConstants.CAP_SYS_NICE) |
(1L << OsConstants.CAP_SYS_PTRACE) |
(1L << OsConstants.CAP_SYS_TIME) |
(1L << OsConstants.CAP_SYS_TTY_CONFIG) |
(1L << OsConstants.CAP_WAKE_ALARM) |
(1L << OsConstants.CAP_BLOCK_SUSPEND);
/* Containers run without some capabilities, so drop any caps that are not available. */
StructCapUserHeader header = new StructCapUserHeader(
OsConstants._LINUX_CAPABILITY_VERSION_3, 0);
StructCapUserData[] data;
try {
data = Os.capget(header);
} catch (ErrnoException ex) {
throw new RuntimeException("Failed to capget()", ex);
}
capabilities &= Integer.toUnsignedLong(data[0].effective) |
(Integer.toUnsignedLong(data[1].effective) << 32);
/* Hardcoded command line to start the system server */
//启动systemserver的命令行
String[] args = {
"--setuid=1000",
"--setgid=1000",
"--setgroups=1001,1002,1003,1004,1005,1006,1007,1008,1009,1010,1018,1021,1023,"
+ "1024,1032,1065,3001,3002,3003,3005,3006,3007,3009,3010,3011,3012",
"--capabilities=" + capabilities + "," + capabilities,
"--nice-name=system_server",
"--runtime-args",
"--target-sdk-version=" + VMRuntime.SDK_VERSION_CUR_DEVELOPMENT,
"com.android.server.SystemServer",
};
ZygoteArguments parsedArgs;
int pid;
try {
ZygoteCommandBuffer commandBuffer = new ZygoteCommandBuffer(args);
try {
parsedArgs = ZygoteArguments.getInstance(commandBuffer);
} catch (EOFException e) {
throw new AssertionError("Unexpected argument error for forking system server", e);
}
commandBuffer.close();
Zygote.applyDebuggerSystemProperty(parsedArgs);
Zygote.applyInvokeWithSystemProperty(parsedArgs);
if (Zygote.nativeSupportsMemoryTagging()) {
String mode = SystemProperties.get("persist.arm64.memtag.system_server", "");
if (mode.isEmpty()) {
/* The system server has ASYNC MTE by default, in order to allow
* system services to specify their own MTE level later, as you
* can't re-enable MTE once it's disabled. */
mode = SystemProperties.get("persist.arm64.memtag.default", "async");
}
if (mode.equals("async")) {
parsedArgs.mRuntimeFlags |= Zygote.MEMORY_TAG_LEVEL_ASYNC;
} else if (mode.equals("sync")) {
parsedArgs.mRuntimeFlags |= Zygote.MEMORY_TAG_LEVEL_SYNC;
} else if (!mode.equals("off")) {
parsedArgs.mRuntimeFlags |= Zygote.nativeCurrentTaggingLevel();
}
} else if (Zygote.nativeSupportsTaggedPointers()) {
parsedArgs.mRuntimeFlags |= Zygote.MEMORY_TAG_LEVEL_TBI;
}
parsedArgs.mRuntimeFlags |= Zygote.GWP_ASAN_LEVEL_LOTTERY;
if (shouldProfileSystemServer()) {
parsedArgs.mRuntimeFlags |= Zygote.PROFILE_SYSTEM_SERVER;
}
/* Request to fork the system server process */
//fork出systemserver进程；parsedArgs由上面args解析出来的
//parsedArgs.mUid=1000, parsedArgs.mGid=1000
pid = Zygote.forkSystemServer(
parsedArgs.mUid, parsedArgs.mGid,
parsedArgs.mGids,
parsedArgs.mRuntimeFlags,
null,
parsedArgs.mPermittedCapabilities,
parsedArgs.mEffectiveCapabilities);
} catch (IllegalArgumentException ex) {
throw new RuntimeException(ex);
}
/* For child process */
if (pid == 0) {//systemserver进程，
if (hasSecondZygote(abiList)) {
waitForSecondaryZygote(socketName);
}
// systemserver进程中关闭zygoteServer
zygoteServer.closeServerSocket();
// 初始化systemserver相关
return handleSystemServerProcess(parsedArgs);
}
return null;
}
//fork出systemserver进程，返回pid
static int forkSystemServer(int uid, int gid, int[] gids, int runtimeFlags,
int[][] rlimits, long permittedCapabilities, long effectiveCapabilities) {
int pid = nativeForkSystemServer(uid, gid, gids, runtimeFlags, rlimits,
permittedCapabilities, effectiveCapabilities);
// Set the Java Language thread priority to the default value for new apps.
Thread.currentThread().setPriority(Thread.NORM_PRIORITY);
return pid;
}
private static Runnable handleSystemServerProcess(ZygoteArguments parsedArgs) {
Os.umask(S_IRWXG | S_IRWXO);
if (parsedArgs.mNiceName != null) {
Process.setArgV0(parsedArgs.mNiceName);
}
//系统环境变量，在device/google/cuttlefish/shared/config/profile.root中
//export SYSTEMSERVERCLASSPATH = system/framework/services.jar:/system/framework/ethernet-service.jar:/system/framework/wifi-service.jar
final String systemServerClasspath = Os.getenv("SYSTEMSERVERCLASSPATH");
if (systemServerClasspath != null) {
// Capturing profiles is only supported for debug or eng builds since selinux normally
// prevents it.
if (shouldProfileSystemServer() && (Build.IS_USERDEBUG || Build.IS_ENG)) {
try {
Log.d(TAG, "Preparing system server profile");
final String standaloneSystemServerJars =
Os.getenv("STANDALONE_SYSTEMSERVER_JARS");
final String systemServerPaths = standaloneSystemServerJars != null
? String.join(":", systemServerClasspath, standaloneSystemServerJars)
: systemServerClasspath;
//将SYSTEMSERVERCLASSPATH中的AppInfo加载到VM中
prepareSystemServerProfile(systemServerPaths);
} catch (Exception e) {
Log.wtf(TAG, "Failed to set up system server profile", e);
}
}
}
//判断parsedArgs 为空
if (parsedArgs.mInvokeWith != null) {
WrapperInit.execApplication(parsedArgs.mInvokeWith,
parsedArgs.mNiceName, parsedArgs.mTargetSdkVersion,
VMRuntime.getCurrentInstructionSet(), null, args);
} else {
//systemserver对应的路径构建出类加载器
ClassLoader cl = getOrCreateSystemServerClassLoader();
if (cl != null) {
Thread.currentThread().setContextClassLoader(cl);
}
/*
* Pass the remaining arguments to SystemServer.
*/
//将保存的参数以及类加载器 传递到ZygoteInit中
//parsedArgs.mRemainingArgs是forkSystemServer中args的参数
//比较重要的是com.android.server.SystemServer
return ZygoteInit.zygoteInit(parsedArgs.mTargetSdkVersion,
parsedArgs.mDisabledCompatChanges,
parsedArgs.mRemainingArgs, cl);
}
}
public static Runnable zygoteInit(int targetSdkVersion, long[] disabledCompatChanges,
String[] argv, ClassLoader classLoader) {
//初始化
RuntimeInit.commonInit();
ZygoteInit.nativeZygoteInit();
//又到RuntimeInit的applicationInit中
return RuntimeInit.applicationInit(targetSdkVersion, disabledCompatChanges, argv,
classLoader);
}
protected static Runnable applicationInit(int targetSdkVersion,
long[] disabledCompatChanges,
String[] argv, ClassLoader classLoader) {
final Arguments args = new Arguments(argv);
return findStaticMain(args.startClass, args.startArgs, classLoader);
}
protected static Runnable findStaticMain(String className, String[] argv,
ClassLoader classLoader) {
Class<?> cl;
try {
//className这个是forkSystemServer()方法中的字符串硬编码而来；
//就是前面说的 com.android.server.SystemServer
cl = Class.forName(className, true, classLoader);
} catch (ClassNotFoundException ex) {
throw new RuntimeException(
"Missing class when invoking static main " + className,
ex);
}
Method m;
try {
//com.android.server.SystemServer的main方法
m = cl.getMethod("main", new Class[] { String[].class });
} catch (NoSuchMethodException ex) {
throw new RuntimeException(
"Missing static main on " + className, ex);
} catch (SecurityException ex) {
throw new RuntimeException(
"Problem getting static main on " + className, ex);
}
MethodAndArgsCaller 通过抛出异常来清空堆栈，
并调用com.android.server.SystemServer的main方法
*/
return new MethodAndArgsCaller(m, argv);
}
static class MethodAndArgsCaller implements Runnable {
/** method to call */
private final Method mMethod;
/** argument array */
private final String[] mArgs;
public MethodAndArgsCaller(Method method, String[] args) {
mMethod = method;
mArgs = args;
}
public void run() {
try {
//这里调用的SystemServer的main方法
mMethod.invoke(null, new Object[] { mArgs });
} catch (IllegalAccessException ex) {
throw new RuntimeException(ex);
} catch (InvocationTargetException ex) {
Throwable cause = ex.getCause();
if (cause instanceof RuntimeException) {
throw (RuntimeException) cause;
} else if (cause instanceof Error) {
throw (Error) cause;
}
throw new RuntimeException(ex);
}
}
}
在ZygoteInit的main方法中又调用了
if (r != null) {
r.run();
return;
}
也就是调用了MethodAndArgsCaller的run方法，也就是执行了SystemServer的main方法，然后就return了；
注意，这里的return只是ZygoteInit的main方法return了；但是对于SystemServer进程会执行到SystemServer的main方法里面
三、systemserver启动流程
上面看到了forkSystemServer通过zygote fork出了systemserver进程，并调用了com.android.server.SystemServer的main方法
//frameworks\base\services\java\com\android\server\SystemServer.java
//终于看到了最简单的方法，就一行
public static void main(String[] args) {
new SystemServer().run();
}
//接着是run方法，好像不少
private void run() {
TimingsTraceAndSlog t = new TimingsTraceAndSlog();
try {
// Prepare the main looper thread (this thread).
android.os.Process.setThreadPriority(
android.os.Process.THREAD_PRIORITY_FOREGROUND);
android.os.Process.setCanSelfBackground(false);
Looper.prepareMainLooper();
Looper.getMainLooper().setSlowLogThresholdMs(
SLOW_DISPATCH_THRESHOLD_MS, SLOW_DELIVERY_THRESHOLD_MS);
SystemServiceRegistry.sEnableServiceNotFoundWtf = true;
// Initialize native services.
System.loadLibrary("android_servers");
// Initialize the system context.
//系统上下文context，
createSystemContext();
// Call per-process mainline module initialization.
ActivityThread.initializeMainlineModules();
// Sets the dumper service
ServiceManager.addService("system_server_dumper", mDumper);
mDumper.addDumpable(this);
// Create the system service manager.
//五星：创建SystemServiceManager
mSystemServiceManager = new SystemServiceManager(mSystemContext);
mSystemServiceManager.setStartInfo(mRuntimeRestart,
mRuntimeStartElapsedTime, mRuntimeStartUptime);
mDumper.addDumpable(mSystemServiceManager);
LocalServices.addService(SystemServiceManager.class, mSystemServiceManager);
// Prepare the thread pool for init tasks that can be parallelized
SystemServerInitThreadPool tp = SystemServerInitThreadPool.start();
mDumper.addDumpable(tp);
// Attach JVMTI agent if this is a debuggable build and the system property is set.
if (Build.IS_DEBUGGABLE) {
// Property is of the form "library_path=parameters".
String jvmtiAgent = SystemProperties.get("persist.sys.dalvik.jvmtiagent");
if (!jvmtiAgent.isEmpty()) {
int equalIndex = jvmtiAgent.indexOf('=');
String libraryPath = jvmtiAgent.substring(0, equalIndex);
String parameterList =
jvmtiAgent.substring(equalIndex + 1, jvmtiAgent.length());
// Attach the agent.
try {
Debug.attachJvmtiAgent(libraryPath, parameterList, null);
} catch (Exception e) {
Slog.e("System", "*************************************************");
Slog.e("System", "********** Failed to load jvmti plugin: " + jvmtiAgent);
}
}
}
} finally {
t.traceEnd(); // InitBeforeStartServices
}
// Setup the default WTF handler
RuntimeInit.setDefaultApplicationWtfHandler(SystemServer::handleEarlySystemWtf);
// Start services.
try {
t.traceBegin("StartServices");
//五星：启动相关service
//启动BootstrapServices,就是系统必须需要的服务，
//这些服务与其他服务相关性很高，所以干脆就放在一个方法里面一起启动，
//如PowerManagerService,RecoverySvstemService、DisplaylanagerService、ActivityManagerService等等启动以基本的核心Service，很简单，只有三个BatteryService、比 如UsageStatsService、WebViewUpdateService启动其它需要用到的Service,NetworkScoreService、AlarmManagerservice
startBootstrapServices(t);
startCoreServices(t);
startOtherServices(t);
startApexServices(t);
// Only update the timeout after starting all the services so that we use
// the default timeout to start system server.
updateWatchdogTimeout(t);
CriticalEventLog.getInstance().logSystemServerStarted();
} catch (Throwable ex) {
Slog.e("System", "******************************************");
Slog.e("System", "************ Failure starting system services", ex);
throw ex;
} finally {
t.traceEnd(); // StartServices
}
// Loop forever.
Looper.loop();
throw new RuntimeException("Main thread loop unexpectedly exited");
}
创建系统上下文的代码逻辑
// \frameworks\base\services\java\com\android\server\SystemServer.java
private void createSystemContext() {
ActivityThread activityThread = ActivityThread.systemMain();
mSystemContext = activityThread.getSystemContext();
mSystemContext.setTheme(DEFAULT_SYSTEM_THEME);
final Context systemUiContext = activityThread.getSystemUiContext();
systemUiContext.setTheme(DEFAULT_SYSTEM_THEME);
Trace.registerWithPerfetto();
}
// \frameworks\base\core\java\android\app\ActivityThread.java
public static ActivityThread systemMain() {
ThreadedRenderer.initForSystemProcess();
ActivityThread thread = new ActivityThread();
thread.attach(true, 0);
return thread;
}
在这里创建的context
public ContextImpl getSystemContext() {
synchronized (this) {
if (mSystemContext == null) {
mSystemContext = ContextImpl.createSystemContext(this);
}
return mSystemContext;
}
}
//代码开始逐渐熟悉了
static ContextImpl createSystemContext(ActivityThread mainThread) {
LoadedApk packageInfo = new LoadedApk(mainThread);
ContextImpl context = new ContextImpl(null, mainThread, packageInfo,
ContextParams.EMPTY, null, null, null, null, null, 0, null, null,
DEVICE_ID_DEFAULT, false);
context.setResources(packageInfo.getResources());
context.mResources.updateConfiguration(context.mResourcesManager.getConfiguration(),
context.mResourcesManager.getDisplayMetrics());
context.mContextType = CONTEXT_TYPE_SYSTEM_OR_SYSTEM_UI;
return context;
}
- init 根据init.rc 运行 app_process，并携带-zygote’和startsystemserver参数。
- AndroidRuntime.cpp: :start()里将启动JavaVM，并且注册所有framework相关的系统JNI接口。
- 第一次进入Java世界，运行ZygoteInit.java::main()函数初始化Zygote.Zygote 并创建Socket的 server 端。
- 然后fork一个新的进程并在新进程里初始化SystemServer.Fork之前，Zygote是preload常用的Java类库， 以及系统的resources, 同时GC()清理内存空间，为子进程省去重复的工作。
- SystemServer 里将所有的系统Service初始化，包括ActivityManager 和WindowManager,他们 是应用程序运行起来的前提。
- 依次同时，Zygote监听服务端Socket，等待新的应用启动请求。
- ActivityManager ready之后寻找系统的“Startup” Application，将请求发给Zygote。
- Zygote收到请求后，fork出一个新的进程。
- Zygote监听并处理SystemServer 的 SIGCHID 信号，一旦System Server崩溃，立即将自己杀死。 init会重启Zygote.
