vxe-table 3.10+ 分享单元格数据校验、自定义验证，自定义校验提示样式的详细用法

自由的云h
832 阅读3分钟

官网：vxetable.cn/
Gitee：gitee.com/x-extends/v…
Github：github.com/x-extends/v…

在公司开发ERP系统中，最常用的就是表格，而且表格很复杂，分享一下 vxe-table v3.10+在使用可编辑表格中数据校验的用法，由于数据校验有很多种方式，可以是字符型、数值、数组类型等，也可以是同步或异步校验，也有很多涉及到业务的自定义验证。

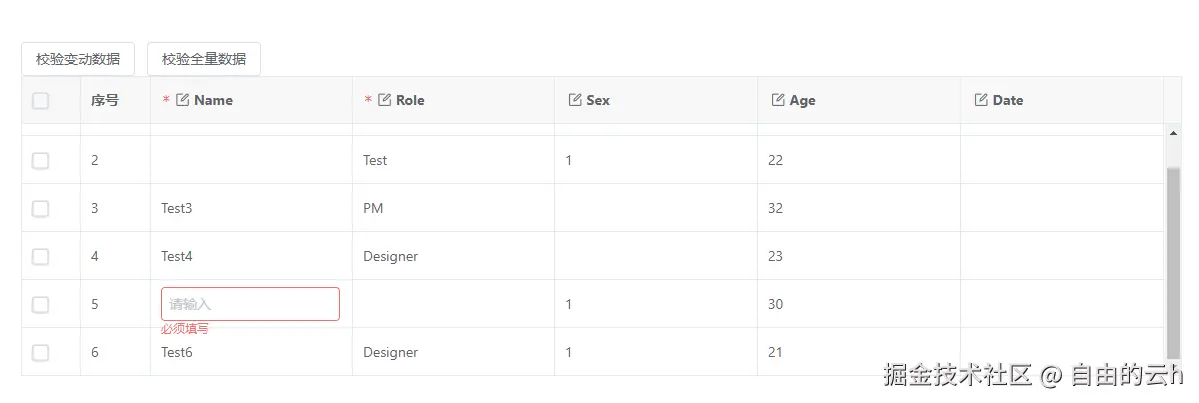

校验规则配置

通过 edit-rules 配置规则，是一个对象，对应每个列字段的规则，规则是一个数组。
调用校验有2个方法可以使用，用法都是一模一样的，
validate(full?: boolean) 默认只会校验变动过的数据，如果传 true 则会全量校验每一行
fullValidate(full?: boolean) 用于valid-config.mode='full' ，可以同时显示多个校验提示


<template>
  <div>
    <div>
      <vxe-button @click="validEvent">校验变动数据</vxe-button>
      <vxe-button @click="fullValidEvent">校验全量数据</vxe-button>
    </div>
    <vxe-grid ref="gridRef" v-bind="gridOptions"></vxe-grid>
  </div>
</template>

<script>
import { VxeUI } from 'vxe-table'

export default {
  data () {
    const gridOptions = {
      border: true,
      showOverflow: true,
      keepSource: true,
      height: 300,
      editConfig: {
        trigger: 'click',
        mode: 'cell',
        showStatus: true
      },
      editRules: {
        name: [
          { required: true, message: '必须填写' }
        ],
        role: [
          { required: true, message: '必须填写' }
        ]
      },
      columns: [
        { type: 'checkbox', width: 60 },
        { type: 'seq', width: 70 },
        { field: 'name', title: 'Name', editRender: { name: 'VxeInput' } },
        { field: 'role', title: 'Role', editRender: { name: 'VxeInput' } },
        { field: 'sex', title: 'Sex', editRender: { name: 'VxeInput' } },
        { field: 'age', title: 'Age', editRender: { name: 'VxeInput' } },
        { field: 'date', title: 'Date', editRender: { name: 'VxeInput' } }
      ],
      data: [
        { id: 10001, name: 'Test1', role: 'Develop', sex: '0', age: 28, address: 'test abc' },
        { id: 10002, name: '', role: 'Test', sex: '1', age: 22, address: 'Guangzhou' },
        { id: 10003, name: 'Test3', role: 'PM', sex: '', age: 32, address: 'Shanghai' },
        { id: 10004, name: 'Test4', role: 'Designer', sex: '', age: 23, address: 'test abc' },
        { id: 10005, name: '', role: '', sex: '1', age: 30, address: 'Shanghai' },
        { id: 10006, name: 'Test6', role: 'Designer', sex: '1', age: 21, address: 'test abc' }
      ]
    }
    return {
      gridOptions
    }
  },
  methods: {
    async validEvent () {
      const $grid = this.$refs.gridRef
      if ($grid) {
        const errMap = await $grid.validate()
        if (errMap) {
          VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
        } else {
          VxeUI.modal.message({ status: 'success', content: '校验成功！' })
        }
      }
    },
    async fullValidEvent () {
      const $grid = this.$refs.gridRef
      if ($grid) {
        const errMap = await $grid.validate(true)
        if (errMap) {
          VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
        } else {
          VxeUI.modal.message({ status: 'success', content: '校验成功！' })
        }
      }
    }
  }
}
</script>

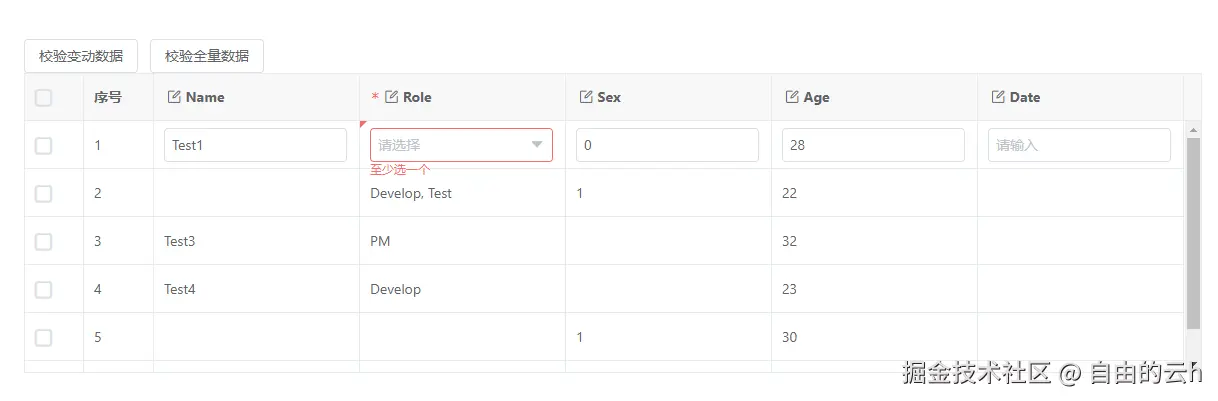

数组校验


<template>
  <div>
    <div>
      <vxe-button @click="validEvent">校验变动数据</vxe-button>
      <vxe-button @click="fullValidEvent">校验全量数据</vxe-button>
    </div>
    <vxe-grid ref="gridRef" v-bind="gridOptions"></vxe-grid>
  </div>
</template>

<script>
import { VxeUI } from 'vxe-table'

export default {
  data () {
    const roleListEditRender = {
      name: 'VxeSelect',
      props: {
        multiple: true
      },
      options: [
        { label: 'Develop', value: 'develop' },
        { label: 'Test', value: 'test' },
        { label: 'PM', value: 'pm' }
      ]
    }
    const gridOptions = {
      border: true,
      showOverflow: true,
      keepSource: true,
      height: 300,
      editConfig: {
        trigger: 'click',
        mode: 'row',
        showStatus: true
      },
      editRules: {
        roleList: [
          { required: true, type: 'array', message: '至少选一个' }
        ]
      },
      columns: [
        { type: 'checkbox', width: 60 },
        { type: 'seq', width: 70 },
        { field: 'name', title: 'Name', editRender: { name: 'VxeInput' } },
        { field: 'roleList', title: 'Role', editRender: roleListEditRender },
        { field: 'sex', title: 'Sex', editRender: { name: 'VxeInput' } },
        { field: 'age', title: 'Age', editRender: { name: 'VxeInput' } },
        { field: 'date', title: 'Date', editRender: { name: 'VxeInput' } }
      ],
      data: [
        { id: 10001, name: 'Test1', roleList: ['develop'], sex: '0', age: 28, address: 'test abc' },
        { id: 10002, name: '', roleList: ['develop', 'test'], sex: '1', age: 22, address: 'Guangzhou' },
        { id: 10003, name: 'Test3', roleList: ['pm'], sex: '', age: 32, address: 'Shanghai' },
        { id: 10004, name: 'Test4', roleList: ['develop'], sex: '', age: 23, address: 'test abc' },
        { id: 10005, name: '', roleList: [], sex: '1', age: 30, address: 'Shanghai' },
        { id: 10006, name: 'Test6', roleList: ['pm'], sex: '1', age: 21, address: 'test abc' }
      ]
    }
    return {
      gridOptions
    }
  },
  methods: {
    async validEvent () {
      const $grid = this.$refs.gridRef
      if ($grid) {
        const errMap = await $grid.validate()
        if (errMap) {
          VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
        } else {
          VxeUI.modal.message({ status: 'success', content: '校验成功！' })
        }
      }
    },
    async fullValidEvent () {
      const $grid = this.$refs.gridRef
      if ($grid) {
        const errMap = await $grid.validate(true)
        if (errMap) {
          VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
        } else {
          VxeUI.modal.message({ status: 'success', content: '校验成功！' })
        }
      }
    }
  }
}
</script>

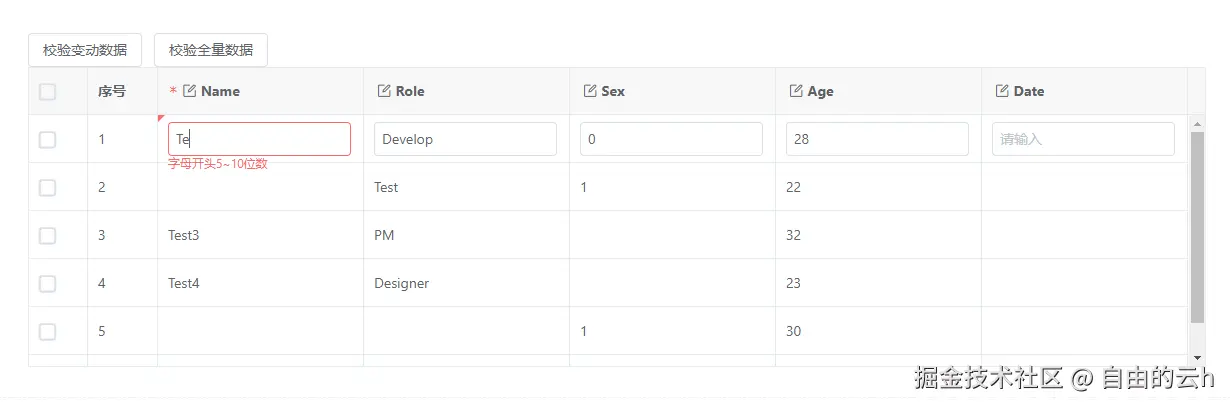

正则校验


<template>
  <div>
    <div>
      <vxe-button @click="validEvent">校验变动数据</vxe-button>
      <vxe-button @click="fullValidEvent">校验全量数据</vxe-button>
    </div>
    <vxe-grid ref="gridRef" v-bind="gridOptions"></vxe-grid>
  </div>
</template>

<script>
import { VxeUI } from 'vxe-table'

export default {
  data () {
    const gridOptions = {
      border: true,
      showOverflow: true,
      keepSource: true,
      height: 300,
      editConfig: {
        trigger: 'click',
        mode: 'row',
        showStatus: true
      },
      editRules: {
        name: [
          { required: true, pattern: '^[a-zA-Z]\\w{5,7}$', message: '字母开头5~10位数' }
        ]
      },
      columns: [
        { type: 'checkbox', width: 60 },
        { type: 'seq', width: 70 },
        { field: 'name', title: 'Name', editRender: { name: 'VxeInput' } },
        { field: 'role', title: 'Role', editRender: { name: 'VxeInput' } },
        { field: 'sex', title: 'Sex', editRender: { name: 'VxeInput' } },
        { field: 'age', title: 'Age', editRender: { name: 'VxeInput' } },
        { field: 'date', title: 'Date', editRender: { name: 'VxeInput' } }
      ],
      data: [
        { id: 10001, name: 'Test1', role: 'Develop', sex: '0', age: 28, address: 'test abc' },
        { id: 10002, name: '', role: 'Test', sex: '1', age: 22, address: 'Guangzhou' },
        { id: 10003, name: 'Test3', role: 'PM', sex: '', age: 32, address: 'Shanghai' },
        { id: 10004, name: 'Test4', role: 'Designer', sex: '', age: 23, address: 'test abc' },
        { id: 10005, name: '', role: '', sex: '1', age: 30, address: 'Shanghai' },
        { id: 10006, name: 'Test6', role: 'Designer', sex: '1', age: 21, address: 'test abc' }
      ]
    }
    return {
      gridOptions
    }
  },
  methods: {
    async validEvent () {
      const $grid = this.$refs.gridRef
      if ($grid) {
        const errMap = await $grid.validate()
        if (errMap) {
          VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
        } else {
          VxeUI.modal.message({ status: 'success', content: '校验成功！' })
        }
      }
    },
    async fullValidEvent () {
      const $grid = this.$refs.gridRef
      if ($grid) {
        const errMap = await $grid.validate(true)
        if (errMap) {
          VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
        } else {
          VxeUI.modal.message({ status: 'success', content: '校验成功！' })
        }
      }
    }
  }
}
</script>

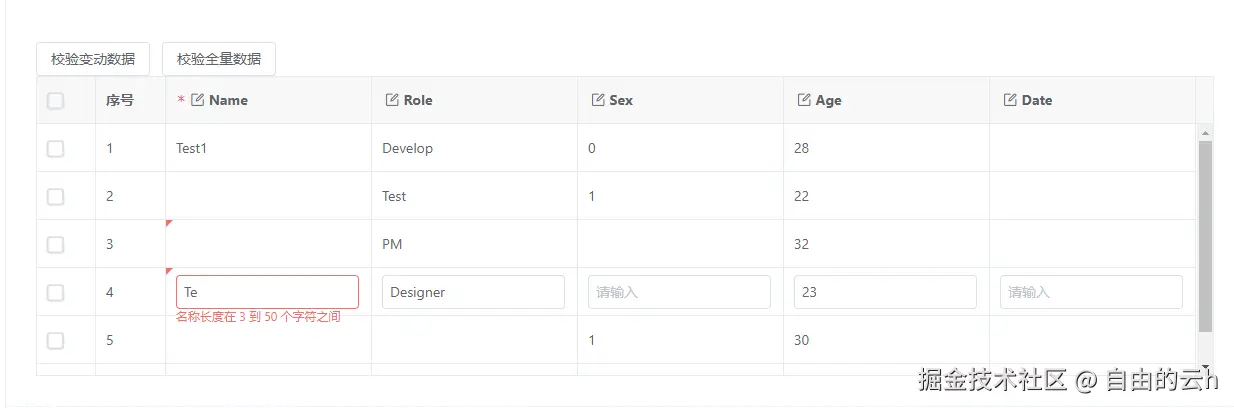

自定义校验方法


<template>
  <div>
    <div>
      <vxe-button @click="validEvent">校验变动数据</vxe-button>
      <vxe-button @click="fullValidEvent">校验全量数据</vxe-button>
    </div>
    <vxe-grid ref="gridRef" v-bind="gridOptions"></vxe-grid>
  </div>
</template>

<script>
import { VxeUI } from 'vxe-table'

export default {
  data () {
    const gridOptions = {
      border: true,
      showOverflow: true,
      keepSource: true,
      height: 300,
      editConfig: {
        trigger: 'click',
        mode: 'row',
        showStatus: true
      },
      editRules: {
        name: [
          { required: true, content: '必须填写' },
          {
            validator ({ cellValue }) {
              if (cellValue && (cellValue.length < 3 || cellValue.length > 50)) {
                return new Error('名称长度在 3 到 50 个字符之间')
              }
            }
          }
        ],
        role: [
          {
            validator ({ cellValue }) {
              // 模拟服务端校验
              return new Promise((resolve, reject) => {
                setTimeout(() => {
                  if (cellValue && !['Develop', 'Test', 'PM'].includes(cellValue)) {
                    reject(new Error('角色不正确'))
                  } else {
                    resolve()
                  }
                }, 100)
              })
            }
          }
        ]
      },
      columns: [
        { type: 'checkbox', width: 60 },
        { type: 'seq', width: 70 },
        { field: 'name', title: 'Name', editRender: { name: 'VxeInput' } },
        { field: 'role', title: 'Role', editRender: { name: 'VxeInput' } },
        { field: 'sex', title: 'Sex', editRender: { name: 'VxeInput' } },
        { field: 'age', title: 'Age', editRender: { name: 'VxeInput' } },
        { field: 'date', title: 'Date', editRender: { name: 'VxeInput' } }
      ],
      data: [
        { id: 10001, name: 'Test1', role: 'Develop', sex: '0', age: 28, address: 'test abc' },
        { id: 10002, name: '', role: 'Test', sex: '1', age: 22, address: 'Guangzhou' },
        { id: 10003, name: 'Test3', role: 'PM', sex: '', age: 32, address: 'Shanghai' },
        { id: 10004, name: 'Test4', role: 'Designer', sex: '', age: 23, address: 'test abc' },
        { id: 10005, name: '', role: '', sex: '1', age: 30, address: 'Shanghai' },
        { id: 10006, name: 'Test6', role: 'Designer', sex: '1', age: 21, address: 'test abc' }
      ]
    }
    return {
      gridOptions
    }
  },
  methods: {
    async validEvent () {
      const $grid = this.$refs.gridRef
      if ($grid) {
        const errMap = await $grid.validate()
        if (errMap) {
          VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
        } else {
          VxeUI.modal.message({ status: 'success', content: '校验成功！' })
        }
      }
    },
    async fullValidEvent () {
      const $grid = this.$refs.gridRef
      if ($grid) {
        const errMap = await $grid.validate(true)
        if (errMap) {
          VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
        } else {
          VxeUI.modal.message({ status: 'success', content: '校验成功！' })
        }
      }
    }
  }
}
</script>

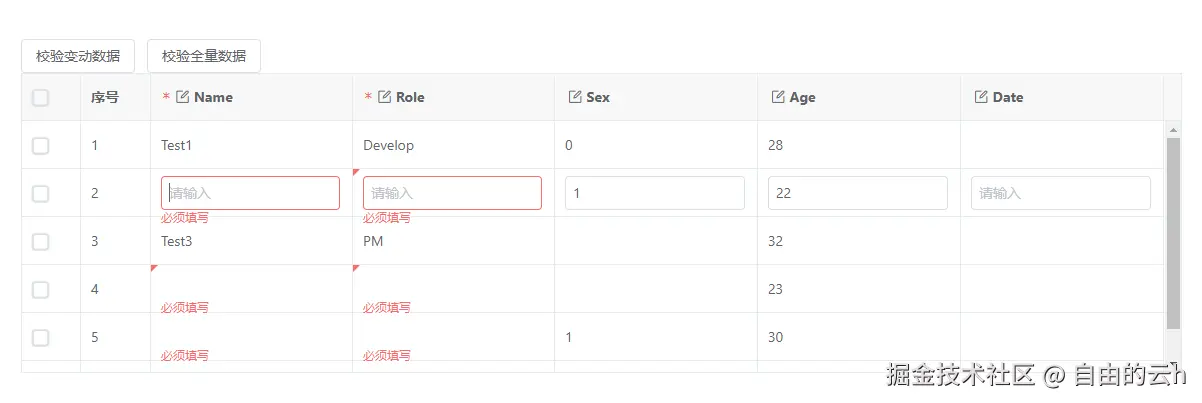

校验模式 -支持同时显示多个错误提示

当需要同时显示多个错误提示时，可以通过设置 valid-config.mode='full' 开启


<template>
  <div>
    <div>
      <vxe-button @click="validEvent">校验变动数据</vxe-button>
      <vxe-button @click="fullValidEvent">校验全量数据</vxe-button>
    </div>
    <vxe-grid ref="gridRef" v-bind="gridOptions"></vxe-grid>
  </div>
</template>

<script>
import { VxeUI } from 'vxe-table'

export default {
  data () {
    const gridOptions = {
      border: true,
      showOverflow: true,
      keepSource: true,
      height: 300,
      editConfig: {
        trigger: 'click',
        mode: 'row',
        showStatus: true
      },
      validConfig: {
        msgMode: 'full'
      },
      editRules: {
        name: [
          { required: true, message: '必须填写' }
        ],
        role: [
          { required: true, message: '必须填写' }
        ]
      },
      columns: [
        { type: 'checkbox', width: 60 },
        { type: 'seq', width: 70 },
        { field: 'name', title: 'Name', editRender: { name: 'VxeInput' } },
        { field: 'role', title: 'Role', editRender: { name: 'VxeInput' } },
        { field: 'sex', title: 'Sex', editRender: { name: 'VxeInput' } },
        { field: 'age', title: 'Age', editRender: { name: 'VxeInput' } },
        { field: 'date', title: 'Date', editRender: { name: 'VxeInput' } }
      ],
      data: [
        { id: 10001, name: 'Test1', role: 'Develop', sex: '0', age: 28, address: 'test abc' },
        { id: 10002, name: '', role: 'Test', sex: '1', age: 22, address: 'Guangzhou' },
        { id: 10003, name: 'Test3', role: 'PM', sex: '', age: 32, address: 'Shanghai' },
        { id: 10004, name: 'Test4', role: 'Designer', sex: '', age: 23, address: 'test abc' },
        { id: 10005, name: '', role: '', sex: '1', age: 30, address: 'Shanghai' },
        { id: 10006, name: 'Test6', role: 'Designer', sex: '1', age: 21, address: 'test abc' }
      ]
    }
    return {
      gridOptions
    }
  },
  methods: {
    async validEvent () {
      const $grid = this.$refs.gridRef
      if ($grid) {
        const errMap = await $grid.fullValidate()
        if (errMap) {
          VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
        } else {
          VxeUI.modal.message({ status: 'success', content: '校验成功！' })
        }
      }
    },
    async fullValidEvent () {
      const $grid = this.$refs.gridRef
      if ($grid) {
        const errMap = await $grid.fullValidate(true)
        if (errMap) {
          VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
        } else {
          VxeUI.modal.message({ status: 'success', content: '校验成功！' })
        }
      }
    }
  }
}
</script>

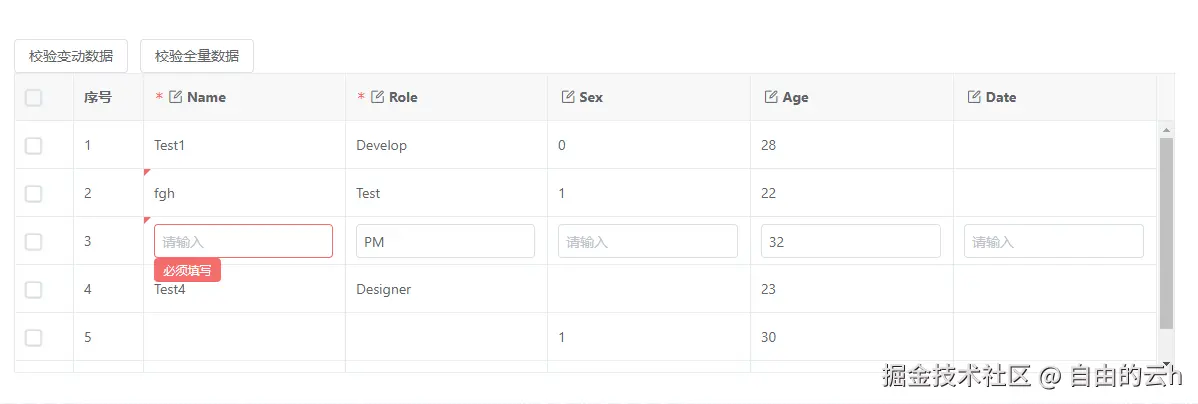

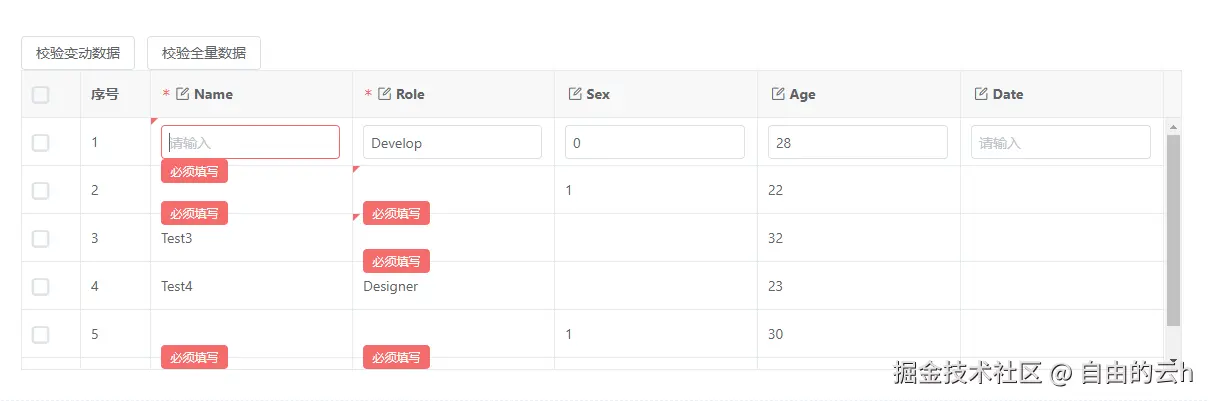

错误提示的主题样式

内置2种样式，一样的普通样式、一种的带背景的样式



<template>
  <div>
    <div>
      <vxe-button @click="validEvent">校验变动数据</vxe-button>
      <vxe-button @click="fullValidEvent">校验全量数据</vxe-button>
    </div>
    <vxe-grid ref="gridRef" v-bind="gridOptions"></vxe-grid>
  </div>
</template>

<script>
import { VxeUI } from 'vxe-table'

export default {
  data () {
    const gridOptions = {
      border: true,
      showOverflow: true,
      keepSource: true,
      height: 300,
      editConfig: {
        trigger: 'click',
        mode: 'row',
        showStatus: true
      },
      validConfig: {
        msgMode: 'full',
        theme: 'beautify'
      },
      editRules: {
        name: [
          { required: true, message: '必须填写' }
        ],
        role: [
          { required: true, message: '必须填写' }
        ]
      },
      columns: [
        { type: 'checkbox', width: 60 },
        { type: 'seq', width: 70 },
        { field: 'name', title: 'Name', editRender: { name: 'VxeInput' } },
        { field: 'role', title: 'Role', editRender: { name: 'VxeInput' } },
        { field: 'sex', title: 'Sex', editRender: { name: 'VxeInput' } },
        { field: 'age', title: 'Age', editRender: { name: 'VxeInput' } },
        { field: 'date', title: 'Date', editRender: { name: 'VxeInput' } }
      ],
      data: [
        { id: 10001, name: 'Test1', role: 'Develop', sex: '0', age: 28, address: 'test abc' },
        { id: 10002, name: '', role: 'Test', sex: '1', age: 22, address: 'Guangzhou' },
        { id: 10003, name: 'Test3', role: 'PM', sex: '', age: 32, address: 'Shanghai' },
        { id: 10004, name: 'Test4', role: 'Designer', sex: '', age: 23, address: 'test abc' },
        { id: 10005, name: '', role: '', sex: '1', age: 30, address: 'Shanghai' },
        { id: 10006, name: 'Test6', role: 'Designer', sex: '1', age: 21, address: 'test abc' }
      ]
    }
    return {
      gridOptions
    }
  },
  methods: {
    async validEvent () {
      const $grid = this.$refs.gridRef
      if ($grid) {
        const errMap = await $grid.fullValidate()
        if (errMap) {
          VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
        } else {
          VxeUI.modal.message({ status: 'success', content: '校验成功！' })
        }
      }
    },
    async fullValidEvent () {
      const $grid = this.$refs.gridRef
      if ($grid) {
        const errMap = await $grid.fullValidate(true)
        if (errMap) {
          VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
        } else {
          VxeUI.modal.message({ status: 'success', content: '校验成功！' })
        }
      }
    }
  }
}
</script>

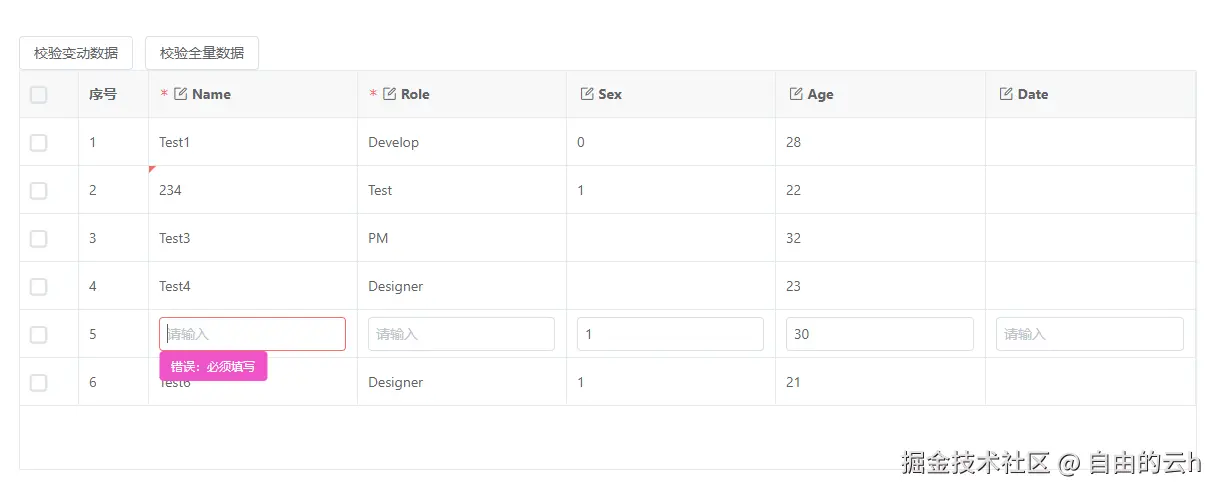

自定义插槽模板-错误提示

如果自带的样式不能满足，还可以通过自定义插槽模板来自定义，非常灵活。


<template>
  <div>
    <div>
      <vxe-button @click="validEvent">校验变动数据</vxe-button>
      <vxe-button @click="fullValidEvent">校验全量数据</vxe-button>
    </div>
    <vxe-grid ref="gridRef" v-bind="gridOptions">
      <template #nameValid="{ content }">
        <div class="col-error-tip">错误：{{ content }}</div>
      </template>
      <template #roleValid="{ content }">
        <div class="col-error-tip">错误：{{ content }}</div>
      </template>
    </vxe-grid>
  </div>
</template>

<script>
import { VxeUI } from 'vxe-table'
export default {
  data () {
    const gridOptions = {
      border: true,
      showOverflow: true,
      keepSource: true,
      height: 400,
      editConfig: {
        trigger: 'click',
        mode: 'row',
        showStatus: true
      },
      editRules: {
        name: [
          { required: true, message: '必须填写' }
        ],
        role: [
          { required: true, message: '必须填写' }
        ]
      },
      columns: [
        { type: 'checkbox', width: 60 },
        { type: 'seq', width: 70 },
        { field: 'name', title: 'Name', editRender: { name: 'VxeInput' }, slots: { valid: 'nameValid' } },
        { field: 'role', title: 'Role', editRender: { name: 'VxeInput' }, slots: { valid: 'roleValid' } },
        { field: 'sex', title: 'Sex', editRender: { name: 'VxeInput' } },
        { field: 'age', title: 'Age', editRender: { name: 'VxeInput' } },
        { field: 'date', title: 'Date', editRender: { name: 'VxeInput' } }
      ],
      data: [
        { id: 10001, name: 'Test1', role: 'Develop', sex: '0', age: 28, address: 'test abc' },
        { id: 10002, name: '', role: 'Test', sex: '1', age: 22, address: 'Guangzhou' },
        { id: 10003, name: 'Test3', role: 'PM', sex: '', age: 32, address: 'Shanghai' },
        { id: 10004, name: 'Test4', role: 'Designer', sex: '', age: 23, address: 'test abc' },
        { id: 10005, name: '', role: '', sex: '1', age: 30, address: 'Shanghai' },
        { id: 10006, name: 'Test6', role: 'Designer', sex: '1', age: 21, address: 'test abc' }
      ]
    }
    return {
      gridOptions
    }
  },
  methods: {
    async validEvent () {
      const $grid = this.$refs.gridRef
      if ($grid) {
        const errMap = await $grid.validate()
        if (errMap) {
          VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
        } else {
          VxeUI.modal.message({ status: 'success', content: '校验成功！' })
        }
      }
    },
    async fullValidEvent () {
      const $grid = this.$refs.gridRef
      if ($grid) {
        const errMap = await $grid.validate(true)
        if (errMap) {
          VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
        } else {
          VxeUI.modal.message({ status: 'success', content: '校验成功！' })
        }
      }
    }
  }
}
</script>

<style lang="scss" scoped>
.col-error-tip {
  display: inline-block;
  border-radius: 4px;
  padding: 8px 12px;
  color: #fff;
  background-color: #ef54c7;
}
</style>

github
gitee

avatar
文章
阅读
粉丝
