vue3复习-源码-vue-router

jason_yang
150 阅读4分钟

vue-router 使用

npm install vue-router@next

src/router/index.js

// src/router/index.js
import { createRouter, createWebHistory } from 'vue-router';
import Home from '../views/Home.vue';
import About from '../views/About.vue';

const routes = [
  {
    path: '/',
    name: 'Home',
    component: Home
  },
  {
    path: '/about',
    name: 'About',
    component: About
  }
];

const router = createRouter({
  history: createWebHistory(),
  routes
});

export default router;

src/main.js

// src/main.js
import { createApp } from 'vue';
import App from './App.vue';
import router from './router';

const app = createApp(App);
app.use(router);
app.mount('#app');

src/App.vue

<!-- src/App.vue -->
<template>
  <div id="app">
    <nav>
      <router-link to="/">Home</router-link>
      <router-link to="/about">About</router-link>
    </nav>
    <router-view></router-view>
  </div>
</template>

使用


<template>
  <div>
    <button @click="goToHome">Go to Home</button>
    <p>当前页面: {{ route.name }}</p>
  </div>
</template>

<script setup>
import { useRouter, useRoute } from 'vue-router';

const router = useRouter(); // 用于编程式导航
const route = useRoute();   // 用于获取当前路由信息

function goToHome() {
  router.push({ name: 'About' }); // 跳转到 Home 路由
  router.push('/about'); // 跳转到 Home 路由
}

console.log('当前路由的参数：', route.params); // 可以获取路径参数
console.log('当前路由的查询：', route.query); // 可以获取查询参数


// 路由守卫
router.beforeEach((to, from, next) => {
  console.log('Navigating to:', to.name);
  next();
});
</script>

迷你版源码实现

说明

  • hash
    • 通过#锚点实现
    • hashChange监听变化
  • history
    • 通过history.pushState，replaceState
    • history.popState监听变化

实现

vueRouterMini.js


import {ref,inject} from 'vue'
import RouterLink from './RouterLink.vue'
import RouterView from './RouterView.vue'
const ROUTER_KEY = '__router__'
function createRouter(options){
    return new Router(options)
}
function useRouter(){
    return inject(ROUTER_KEY)
}
function createWebHashHistory(){//构造方法 返回 {bindEvents:xx, url:xxx}
    function bindEvents(fn){
        window.addEventListener('hashchange',fn)
    }
    return {
        bindEvents,
        url:window.location.hash.slice(1) || '/'
    }
    // 等价于
    // this.current = ref("/")
    // window.addEventListener('hashchange', () => {
    //     this.current.value = window.location.hash.slice(1)|| '/'
    // })
}
class Router{
    constructor(options){
        this.history = options.history
        this.current = ref(this.history.url)
        this.history.bindEvents(()=>{
            this.current.value = window.location.hash.slice(1)
        })
        this.routes = options.routes
    }
    install(app){
        app.provide(ROUTER_KEY,this)
        app.component("router-link",RouterLink)
        app.component("router-view",RouterView)
    }
}
export {createRouter,createWebHashHistory,useRouter}

RouterLink.vue

<template>
    <a :href="'#'+props.to">
        <slot />
    </a>
</template>
<script setup>
import {defineProps} from 'vue'
let props = defineProps({
    to:{type:String,required:true}
})
</script>

RouterView.vue

<template>
    <component :is="comp"></component>
</template>
<script setup>
import {computed } from 'vue'
import { useRouter } from './routerMini.js'
let router = useRouter()
const comp = computed(()=>{
    const route = router.routes.find(
        (route) => route.path === router.current.value
    )
    return route?route.component : null
})
</script>

使用

router/index.js


import {
    createRouter,
    createWebHashHistory,
  } from './routerMini'
  import Home from '../pages/home.vue'
  import About from '../pages/about.vue'


  const routes = [
    {
      path: '/',
      name: 'Home',
      component: Home
    },
    {
      path: '/about',
      name: 'About',
      component: About
    }
  ]
  const router = createRouter({
    history: createWebHashHistory(),
    routes
  })

  export default router

源码学习

环境搭建

源码版本 4.4.5

git clone https://github.com/vuejs/router.git
pnpm i #安装依赖
pnpm play # 运行

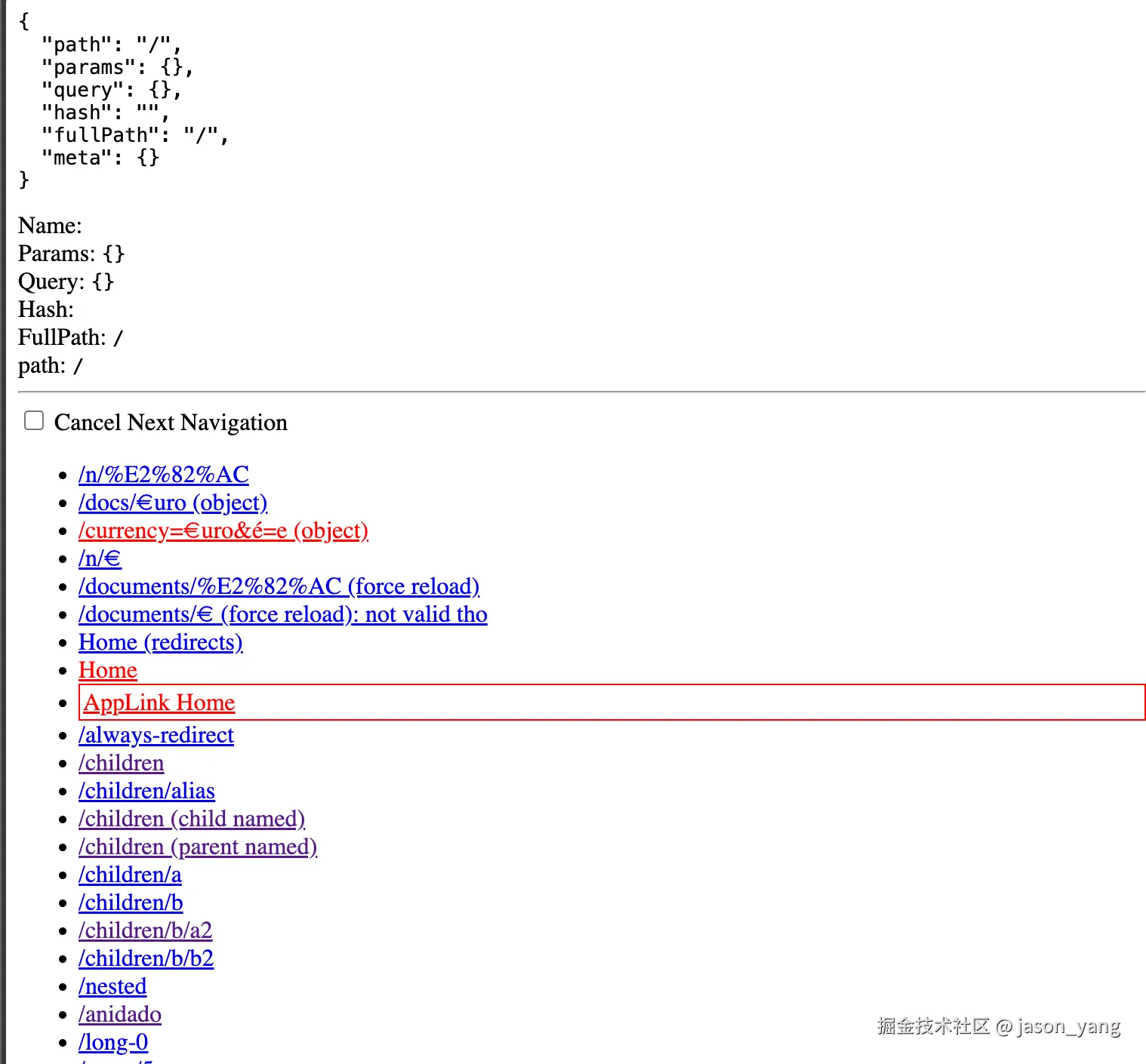

运行的效果

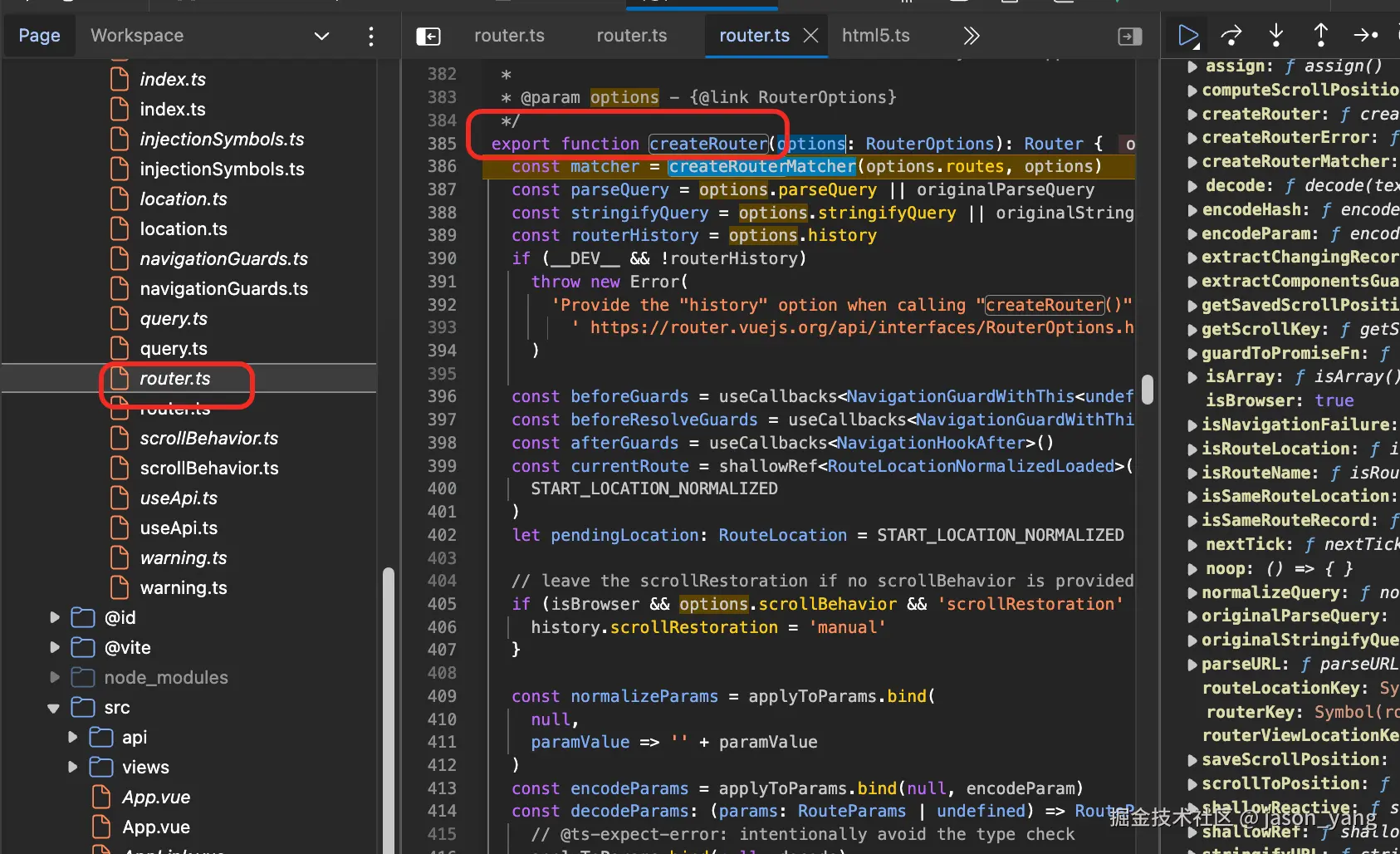

加入调试

在 ./router 中加入 debugger


主要流程

  1. createRouter方法传入 RouterHistory对象
  2. 内部定义了一个 router 对象并返回，里面包含 addRoute，removeRoute，push 等
  3. 并且定义了install 用于注册 RouterLink 和 RouterView
  4. 使用 app.provide(routerKey, router)挂载到全局
  5. 使用 currentRoute 记录当前激活的路由，默认为START_LOCATION_NORMALIZED
  6. 并通过 Object.defineProperty 实现app.config.globalProperties.$route等价于currentRoute
  7. createRouterMatcher负责把传入的routes，内部循环输出routes.forEach(route => addRoute(route)),返回 {getRoutes}
  8. 循环的时候 通过createRouteRecordMatcher方法 加入parent、children等信息。
  9. 返回的router对象也包含getRoutes的信息，并且赋值给 matchedRoute

createWebHistory

这里调用了 createWebHistory创建

在 src/history/html5.ts

  1. 使用useHistoryStateNavigation方法创建了 push和replace方法
  2. 使用useHistoryListeners 实现路由监听逻辑
export function createWebHistory(base?: string): RouterHistory {
  base = normalizeBase(base)

  const historyNavigation = useHistoryStateNavigation(base)
  const historyListeners = useHistoryListeners(
    base,
    historyNavigation.state,
    historyNavigation.location,
    historyNavigation.replace
  )
  function go(delta: number, triggerListeners = true) {
    if (!triggerListeners) historyListeners.pauseListeners()
    history.go(delta)
  }

  const routerHistory: RouterHistory = assign(
    {
      // it's overridden right after
      location: '',
      base,
      go,
      createHref: createHref.bind(null, base),
    },

    historyNavigation,
    historyListeners
  )

  Object.defineProperty(routerHistory, 'location', {
    enumerable: true,
    get: () => historyNavigation.location.value,
  })

  Object.defineProperty(routerHistory, 'state', {
    enumerable: true,
    get: () => historyNavigation.state.value,
  })

  return routerHistory
}

function useHistoryListeners(
  base: string,
  historyState: ValueContainer<StateEntry>,
  currentLocation: ValueContainer<HistoryLocation>,
  replace: RouterHistory['replace']
) {
  let listeners: NavigationCallback[] = []
  let teardowns: Array<() => void> = []
  // TODO: should it be a stack? a Dict. Check if the popstate listener
  // can trigger twice
  let pauseState: HistoryLocation | null = null

  const popStateHandler: PopStateListener = ({
    state,
  }: {
    state: StateEntry | null
  }) => {
    const to = createCurrentLocation(base, location)
    const from: HistoryLocation = currentLocation.value
    const fromState: StateEntry = historyState.value
    let delta = 0

    if (state) {
      currentLocation.value = to
      historyState.value = state

      // ignore the popstate and reset the pauseState
      if (pauseState && pauseState === from) {
        pauseState = null
        return
      }
      delta = fromState ? state.position - fromState.position : 0
    } else {
      replace(to)
    }
    listeners.forEach(listener => {
      listener(currentLocation.value, from, {
        delta,
        type: NavigationType.pop,
        direction: delta
          ? delta > 0
            ? NavigationDirection.forward
            : NavigationDirection.back
          : NavigationDirection.unknown,
      })
    })
  }

  function pauseListeners() {
    pauseState = currentLocation.value
  }

  function listen(callback: NavigationCallback) {
    // set up the listener and prepare teardown callbacks
    listeners.push(callback)

    const teardown = () => {
      const index = listeners.indexOf(callback)
      if (index > -1) listeners.splice(index, 1)
    }

    teardowns.push(teardown)
    return teardown
  }

  function beforeUnloadListener() {
    const { history } = window
    if (!history.state) return
    history.replaceState(
      assign({}, history.state, { scroll: computeScrollPosition() }),
      ''
    )
  }

  function destroy() {
    for (const teardown of teardowns) teardown()
    teardowns = []
    window.removeEventListener('popstate', popStateHandler)
    window.removeEventListener('beforeunload', beforeUnloadListener)
  }

  // set up the listeners and prepare teardown callbacks
  window.addEventListener('popstate', popStateHandler)
  // TODO: could we use 'pagehide' or 'visibilitychange' instead?
  // https://developer.chrome.com/blog/page-lifecycle-api/
  window.addEventListener('beforeunload', beforeUnloadListener, {
    passive: true,
  })

  return {
    pauseListeners,
    listen,
    destroy,
  }
}


//返回 push 和 replace方法
function useHistoryStateNavigation(base: string) {
  const { history, location } = window

  // private variables
  const currentLocation: ValueContainer<HistoryLocation> = {
    value: createCurrentLocation(base, location),
  }
  const historyState: ValueContainer<StateEntry> = { value: history.state }
  // build current history entry as this is a fresh navigation
  if (!historyState.value) {
    changeLocation(
      currentLocation.value,
      {
        back: null,
        current: currentLocation.value,
        forward: null,
        position: history.length - 1,
        replaced: true,
        scroll: null,
      },
      true
    )
  }

  function changeLocation(
    to: HistoryLocation,
    state: StateEntry,
    replace: boolean
  ): void {
    const hashIndex = base.indexOf('#')
    const url =
      hashIndex > -1
        ? (location.host && document.querySelector('base')
            ? base
            : base.slice(hashIndex)) + to
        : createBaseLocation() + base + to
    try {
      // BROWSER QUIRK
      // NOTE: Safari throws a SecurityError when calling this function 100 times in 30 seconds
      history[replace ? 'replaceState' : 'pushState'](state, '', url)
      historyState.value = state
    } catch (err) {
      if (__DEV__) {
        warn('Error with push/replace State', err)
      } else {
        console.error(err)
      }
      // Force the navigation, this also resets the call count
      location[replace ? 'replace' : 'assign'](url)
    }
  }

  function replace(to: HistoryLocation, data?: HistoryState) {
    const state: StateEntry = assign(
      {},
      history.state,
      buildState(
        historyState.value.back,
        to,
        historyState.value.forward,
        true
      ),
      data,
      { position: historyState.value.position }
    )

    changeLocation(to, state, true)
    currentLocation.value = to
  }

  function push(to: HistoryLocation, data?: HistoryState) {
    const currentState = assign(
      {},
      historyState.value,
      history.state as Partial<StateEntry> | null,
      {
        forward: to,
        scroll: computeScrollPosition(),
      }
    )

    changeLocation(currentState.current, currentState, true)

    const state: StateEntry = assign(
      {},
      buildState(currentLocation.value, to, null),
      { position: currentState.position + 1 },
      data
    )

    changeLocation(to, state, false)
    currentLocation.value = to
  }

  return {
    location: currentLocation,
    state: historyState,

    push,
    replace,
  }
}

RouterHistory


export interface RouterHistory {
  readonly base: string
  readonly location: HistoryLocation
  readonly state: HistoryState
  push(to: HistoryLocation, data?: HistoryState): void
  replace(to: HistoryLocation, data?: HistoryState): void
  go(delta: number, triggerListeners?: boolean): void
  listen(callback: NavigationCallback): () => void
  createHref(location: HistoryLocation): string
  destroy(): void
}

顺便看一下 hash

src/history/hash.ts

hash模式最终还是调用了createWebHistory 的方法

import { RouterHistory } from './common'
import { createWebHistory } from './html5'
import { warn } from '../warning'
export function createWebHashHistory(base?: string): RouterHistory {
  base = location.host ? base || location.pathname + location.search : ''
  // allow the user to provide a `#` in the middle: `/base/#/app`
  if (!base.includes('#')) base += '#'
  return createWebHistory(base)
}

START_LOCATION_NORMALIZED

定义了一个默认路由的空值

export const START_LOCATION_NORMALIZED: RouteLocationNormalizedLoaded = {
  path: '/',
  // TODO: could we use a symbol in the future?
  name: undefined,
  params: {},
  query: {},
  hash: '',
  fullPath: '/',
  matched: [],
  meta: {},
  redirectedFrom: undefined,
}

createRouter

createRouter 初始化

使用

export const router = createRouter({
  history: routerHistory,
  strict: true,
  routes: [
    { path: '/home', redirect: '/' },
    ....
  ]
  })


packages/router/src/router.ts

大致的代码

export function createRouter(options: RouterOptions): Router {
....
  let started: boolean | undefined
  const installedApps = new Set<App>()
  // 路由对象
  const router: Router = {
    currentRoute,
    addRoute,
    push,
    replace,
    install(app: App) {
      const router = this
      // 注册全局组件 router-link和router-view
      app.component('RouterLink', RouterLink)
      app.component('RouterView', RouterView)
      app.config.globalProperties.$router = router
      // 提供全局配置
      app.provide(routerKey, router)
      app.provide(routeLocationKey, reactive(reactiveRoute))
      app.provide(routerViewLocationKey, currentRoute)
    },
  }
  return router
}

传入参数

RouterOptions

export interface RouterOptions extends PathParserOptions {
  history: RouterHistory
  routes: Readonly<RouteRecordRaw[]>
  scrollBehavior?: RouterScrollBehavior
  parseQuery?: typeof originalParseQuery
  stringifyQuery?: typeof originalStringifyQuery
  linkActiveClass?: string
  linkExactActiveClass?: string
}
RouteRecordRaw

由多个类型 组合


export type RouteRecordRaw =
  | RouteRecordSingleView
  | RouteRecordSingleViewWithChildren
  | RouteRecordMultipleViews
  | RouteRecordMultipleViewsWithChildren
  | RouteRecordRedirect


export interface RouteRecordSingleView extends _RouteRecordBase {
  component: RawRouteComponent
  components?: never
  children?: never
  redirect?: never
  props?: _RouteRecordProps
}

export interface RouteRecordSingleViewWithChildren extends _RouteRecordBase {
  component?: RawRouteComponent | null | undefined
  components?: never
  children: RouteRecordRaw[]
  props?: _RouteRecordProps
}
export interface RouteRecordMultipleViews extends _RouteRecordBase {
  components: Record<string, RawRouteComponent>
  component?: never
  children?: never
  redirect?: never
  props?: Record<string, _RouteRecordProps> | boolean
}
export interface RouteRecordMultipleViewsWithChildren extends _RouteRecordBase {
  components?: Record<string, RawRouteComponent> | null | undefined
  component?: never
  children: RouteRecordRaw[]
  props?: Record<string, _RouteRecordProps> | boolean
}
export interface RouteRecordRedirect extends _RouteRecordBase {
  redirect: RouteRecordRedirectOption
  component?: never
  components?: never
  props?: never
}

返回对象

Router

创建后返回的router对象，这是定义的属性和方法


export interface Router {
  readonly currentRoute: Ref<RouteLocationNormalizedLoaded>
  readonly options: RouterOptions
  listening: boolean
  addRoute(
    parentName: NonNullable<RouteRecordNameGeneric>,
    route: RouteRecordRaw
  ): () => void
  addRoute(route: RouteRecordRaw): () => void
  removeRoute(name: NonNullable<RouteRecordNameGeneric>): void
  hasRoute(name: NonNullable<RouteRecordNameGeneric>): boolean
  getRoutes(): RouteRecord[]
  clearRoutes(): void
  resolve<Name extends keyof RouteMap = keyof RouteMap>(
    to: RouteLocationAsRelativeTyped<RouteMap, Name>,
    currentLocation?: RouteLocationNormalizedLoaded
  ): RouteLocationResolved<Name>
  resolve(
    to: RouteLocationAsString | RouteLocationAsRelative | RouteLocationAsPath,
    currentLocation?: RouteLocationNormalizedLoaded
  ): RouteLocationResolved
  push(to: RouteLocationRaw): Promise<NavigationFailure | void | undefined>
  replace(to: RouteLocationRaw): Promise<NavigationFailure | void | undefined>
  back(): ReturnType<Router['go']>
  forward(): ReturnType<Router['go']>
  go(delta: number): void
  beforeEach(guard: NavigationGuardWithThis<undefined>): () => void
  beforeResolve(guard: NavigationGuardWithThis<undefined>): () => void
  afterEach(guard: NavigationHookAfter): () => void
  onError(handler: _ErrorListener): () => void
  isReady(): Promise<void>
  install(app: App): void
}

返回的对象


  const router: Router = {
    currentRoute,
    listening: true,

    addRoute,
    removeRoute,
    clearRoutes: matcher.clearRoutes,
    hasRoute,
    getRoutes,
    resolve,
    options,

    push,
    replace,
    go,
    back: () => go(-1),
    forward: () => go(1),

    beforeEach: beforeGuards.add,
    beforeResolve: beforeResolveGuards.add,
    afterEach: afterGuards.add,

    onError: errorListeners.add,
    isReady,

    install(app: App) {
      const router = this
      app.component('RouterLink', RouterLink) // 注册组件
      app.component('RouterView', RouterView)// 注册组件

      app.config.globalProperties.$router = router
      Object.defineProperty(app.config.globalProperties, '$route', { // 这里支持app.$route 访问当前路由
        enumerable: true,
        get: () => unref(currentRoute),
      })

      if (
        isBrowser &&
        !started &&
        currentRoute.value === START_LOCATION_NORMALIZED
      ) {
        // see above
        started = true
        push(routerHistory.location).catch(err => {
        })
      }

      const reactiveRoute = {} as RouteLocationNormalizedLoaded
      for (const key in START_LOCATION_NORMALIZED) {
        Object.defineProperty(reactiveRoute, key, {
          get: () => currentRoute.value[key as keyof RouteLocationNormalized],
          enumerable: true,
        })
      }

      app.provide(routerKey, router)
      app.provide(routeLocationKey, shallowReactive(reactiveRoute))
      app.provide(routerViewLocationKey, currentRoute)

      const unmountApp = app.unmount
      installedApps.add(app)
      app.unmount = function () {
        installedApps.delete(app)
        // the router is not attached to an app anymore
        if (installedApps.size < 1) {
          // invalidate the current navigation
          pendingLocation = START_LOCATION_NORMALIZED
          removeHistoryListener && removeHistoryListener()
          removeHistoryListener = null
          currentRoute.value = START_LOCATION_NORMALIZED
          started = false
          ready = false
        }
        unmountApp()
      }
    },
  }

createRouterMatcher 加工路由对象

export function createRouterMatcher(
  routes: Readonly<RouteRecordRaw[]>,
  globalOptions: PathParserOptions
): RouterMatcher {
  // normalized ordered array of matchers
  const matchers: RouteRecordMatcher[] = []
  const matcherMap = new Map<
    NonNullable<RouteRecordNameGeneric>,
    RouteRecordMatcher
  >()
  globalOptions = mergeOptions(
    { strict: false, end: true, sensitive: false } as PathParserOptions,
    globalOptions
  )

  function getRecordMatcher(name: NonNullable<RouteRecordNameGeneric>) {
    return matcherMap.get(name)
  }

  function addRoute(
    record: RouteRecordRaw,
    parent?: RouteRecordMatcher,
    originalRecord?: RouteRecordMatcher
  ) {
    // used later on to remove by name
    const isRootAdd = !originalRecord
    const mainNormalizedRecord = normalizeRouteRecord(record)
    mainNormalizedRecord.aliasOf = originalRecord && originalRecord.record
    const options: PathParserOptions = mergeOptions(globalOptions, record)
    const normalizedRecords: RouteRecordNormalized[] = [mainNormalizedRecord]
    if ('alias' in record) {
      const aliases =
        typeof record.alias === 'string' ? [record.alias] : record.alias!
      for (const alias of aliases) {
        normalizedRecords.push(
          normalizeRouteRecord(
            assign({}, mainNormalizedRecord, {
              components: originalRecord
                ? originalRecord.record.components
                : mainNormalizedRecord.components,
              path: alias,
              aliasOf: originalRecord
                ? originalRecord.record
                : mainNormalizedRecord,
            })
          )
        )
      }
    }

    let matcher: RouteRecordMatcher
    let originalMatcher: RouteRecordMatcher | undefined

    for (const normalizedRecord of normalizedRecords) {
      const { path } = normalizedRecord
      if (parent && path[0] !== '/') {
        const parentPath = parent.record.path
        const connectingSlash =
          parentPath[parentPath.length - 1] === '/' ? '' : '/'
        normalizedRecord.path =
          parent.record.path + (path && connectingSlash + path)
      }

      // create the object beforehand, so it can be passed to children
      matcher = createRouteRecordMatcher(normalizedRecord, parent, options) // 添加扩展的属性

      if (originalRecord) {
        originalRecord.alias.push(matcher)
      } else {
        // otherwise, the first record is the original and others are aliases
        originalMatcher = originalMatcher || matcher
        if (originalMatcher !== matcher) originalMatcher.alias.push(matcher)
        if (isRootAdd && record.name && !isAliasRecord(matcher)) {
          removeRoute(record.name)
        }
      }
      if (isMatchable(matcher)) {
        insertMatcher(matcher)
      }

      if (mainNormalizedRecord.children) {
        const children = mainNormalizedRecord.children
        for (let i = 0; i < children.length; i++) {
          addRoute(
            children[i],
            matcher,
            originalRecord && originalRecord.children[i]
          )
        }
      }
      originalRecord = originalRecord || matcher
    }

    return originalMatcher
      ? () => {
          removeRoute(originalMatcher!)
        }
      : noop
  }

  function removeRoute(
    matcherRef: NonNullable<RouteRecordNameGeneric> | RouteRecordMatcher
  ) {
    if (isRouteName(matcherRef)) {
      const matcher = matcherMap.get(matcherRef)
      if (matcher) {
        matcherMap.delete(matcherRef)
        matchers.splice(matchers.indexOf(matcher), 1)
        matcher.children.forEach(removeRoute)
        matcher.alias.forEach(removeRoute)
      }
    } else {
      const index = matchers.indexOf(matcherRef)
      if (index > -1) {
        matchers.splice(index, 1)
        if (matcherRef.record.name) matcherMap.delete(matcherRef.record.name)
        matcherRef.children.forEach(removeRoute)
        matcherRef.alias.forEach(removeRoute)
      }
    }
  }

  function getRoutes() {
    return matchers
  }

  function insertMatcher(matcher: RouteRecordMatcher) {
    const index = findInsertionIndex(matcher, matchers)
    matchers.splice(index, 0, matcher)
    // only add the original record to the name map
    if (matcher.record.name && !isAliasRecord(matcher))
      matcherMap.set(matcher.record.name, matcher)
  }

  function resolve(
    location: Readonly<MatcherLocationRaw>,
    currentLocation: Readonly<MatcherLocation>
  ): MatcherLocation {
    let matcher: RouteRecordMatcher | undefined
    let params: PathParams = {}
    let path: MatcherLocation['path']
    let name: MatcherLocation['name']

    if ('name' in location && location.name) {
      matcher = matcherMap.get(location.name)

      if (!matcher)
        throw createRouterError<MatcherError>(ErrorTypes.MATCHER_NOT_FOUND, {
          location,
        })


      name = matcher.record.name
      params = assign(
        // paramsFromLocation is a new object
        paramsFromLocation(
          currentLocation.params,
          matcher.keys
            .filter(k => !k.optional)
            .concat(
              matcher.parent ? matcher.parent.keys.filter(k => k.optional) : []
            )
            .map(k => k.name)
        ),
        location.params &&
          paramsFromLocation(
            location.params,
            matcher.keys.map(k => k.name)
          )
      )
      // throws if cannot be stringified
      path = matcher.stringify(params)
    } else if (location.path != null) {
      path = location.path

      matcher = matchers.find(m => m.re.test(path))

      if (matcher) {
        params = matcher.parse(path)!
        name = matcher.record.name
      }
    } else {
      matcher = currentLocation.name
        ? matcherMap.get(currentLocation.name)
        : matchers.find(m => m.re.test(currentLocation.path))
      if (!matcher)
        throw createRouterError<MatcherError>(ErrorTypes.MATCHER_NOT_FOUND, {
          location,
          currentLocation,
        })
      name = matcher.record.name
      params = assign({}, currentLocation.params, location.params)
      path = matcher.stringify(params)
    }

    const matched: MatcherLocation['matched'] = []
    let parentMatcher: RouteRecordMatcher | undefined = matcher
    while (parentMatcher) {
      matched.unshift(parentMatcher.record)
      parentMatcher = parentMatcher.parent
    }

    return {
      name,
      path,
      params,
      matched,
      meta: mergeMetaFields(matched),
    }
  }

  // add initial routes
  routes.forEach(route => addRoute(route))

  function clearRoutes() {
    matchers.length = 0
    matcherMap.clear()
  }

  return {
    addRoute,
    resolve,
    removeRoute,
    clearRoutes,
    getRoutes,
    getRecordMatcher,
  }
}

pushWithRedirect路由守卫

路由守卫

  1. 通过pushWithRedirect 控制跳转前的入口
  2. routerHistory.push 或者 replace 更新路由 currentRoute.value
  3. 每次跳转都会使用finalizeNavigation， 更新 toLocation到 currentRoute.value 当前路由
  4. handleScroll滚动到指定的位置
// 路由守卫
  function pushWithRedirect(
    to: RouteLocationRaw | RouteLocation,
    redirectedFrom?: RouteLocation
  ): Promise<NavigationFailure | void | undefined> {
    const targetLocation: RouteLocation = (pendingLocation = resolve(to))
    const from = currentRoute.value
    const data: HistoryState | undefined = (to as RouteLocationOptions).state
    const force: boolean | undefined = (to as RouteLocationOptions).force
    // to could be a string where `replace` is a function
    const replace = (to as RouteLocationOptions).replace === true

    const shouldRedirect = handleRedirectRecord(targetLocation)

    if (shouldRedirect)
      return pushWithRedirect(
        assign(locationAsObject(shouldRedirect), {
          state:
            typeof shouldRedirect === 'object'
              ? assign({}, data, shouldRedirect.state)
              : data,
          force,
          replace,
        }),
        // keep original redirectedFrom if it exists
        redirectedFrom || targetLocation
      )

    // if it was a redirect we already called `pushWithRedirect` above
    const toLocation = targetLocation as RouteLocationNormalized

    toLocation.redirectedFrom = redirectedFrom
    let failure: NavigationFailure | void | undefined

    if (!force && isSameRouteLocation(stringifyQuery, from, targetLocation)) {
      failure = createRouterError<NavigationFailure>(
        ErrorTypes.NAVIGATION_DUPLICATED,
        { to: toLocation, from }
      )
      // trigger scroll to allow scrolling to the same anchor
      handleScroll(
        from,
        from,
        true,
        false
      )
    }

    return (failure ? Promise.resolve(failure) : navigate(toLocation, from))
      .catch((error: NavigationFailure | NavigationRedirectError) =>
        isNavigationFailure(error)
          ? // navigation redirects still mark the router as ready
            isNavigationFailure(error, ErrorTypes.NAVIGATION_GUARD_REDIRECT)
            ? error
            : markAsReady(error) // also returns the error
          : // reject any unknown error
            triggerError(error, toLocation, from)
      )
      .then((failure: NavigationFailure | NavigationRedirectError | void) => {
        if (failure) {
          if (
            isNavigationFailure(failure, ErrorTypes.NAVIGATION_GUARD_REDIRECT)
          ) {

            return pushWithRedirect(
              // keep options
              assign(
                {
                  // preserve an existing replacement but allow the redirect to override it
                  replace,
                },
                locationAsObject(failure.to),
                {
                  state:
                    typeof failure.to === 'object'
                      ? assign({}, data, failure.to.state)
                      : data,
                  force,
                }
              ),
              // preserve the original redirectedFrom if any
              redirectedFrom || toLocation
            )
          }
        } else {
          // if we fail we don't finalize the navigation
          failure = finalizeNavigation(
            toLocation as RouteLocationNormalizedLoaded,
            from,
            true,
            replace,
            data
          )
        }
        triggerAfterEach(
          toLocation as RouteLocationNormalizedLoaded,
          from,
          failure
        )
        return failure
      })
  }

// routerHistory.push 或者 replace  更新路由 currentRoute.value
// 每次跳转都会 更新 toLocation到 currentRoute.value 当前路由
  function finalizeNavigation(
    toLocation: RouteLocationNormalizedLoaded,
    from: RouteLocationNormalizedLoaded,
    isPush: boolean,
    replace?: boolean,
    data?: HistoryState
  ): NavigationFailure | void {
    // a more recent navigation took place
    const error = checkCanceledNavigation(toLocation, from)
    if (error) return error

    // only consider as push if it's not the first navigation
    const isFirstNavigation = from === START_LOCATION_NORMALIZED
    const state: Partial<HistoryState> | null = !isBrowser ? {} : history.state

    if (isPush) {
      if (replace || isFirstNavigation)
        routerHistory.replace(
          toLocation.fullPath,
          assign(
            {
              scroll: isFirstNavigation && state && state.scroll,
            },
            data
          )
        )
      else routerHistory.push(toLocation.fullPath, data)
    }

    // accept current navigation
    currentRoute.value = toLocation
    handleScroll(toLocation, from, isPush, isFirstNavigation)

    markAsReady()
  }
  function markAsReady<E = any>(err?: E): E | void {
    if (!ready) {
      // still not ready if an error happened
      ready = !err
      setupListeners()
      readyHandlers
        .list()
        .forEach(([resolve, reject]) => (err ? reject(err) : resolve()))
      readyHandlers.reset()
    }
    return err
  }

createRouter完整的代码

export function createRouter(options: RouterOptions): Router {

  const matcher = createRouterMatcher(options.routes, options)
  const parseQuery = options.parseQuery || originalParseQuery
  const stringifyQuery = options.stringifyQuery || originalStringifyQuery
  const routerHistory = options.history

  const beforeGuards = useCallbacks<NavigationGuardWithThis<undefined>>()
  const beforeResolveGuards = useCallbacks<NavigationGuardWithThis<undefined>>()
  const afterGuards = useCallbacks<NavigationHookAfter>()
  const currentRoute = shallowRef<RouteLocationNormalizedLoaded>(
    START_LOCATION_NORMALIZED
  )
  let pendingLocation: RouteLocation = START_LOCATION_NORMALIZED

  // leave the scrollRestoration if no scrollBehavior is provided
  if (isBrowser && options.scrollBehavior && 'scrollRestoration' in history) {
    history.scrollRestoration = 'manual'
  }

  const normalizeParams = applyToParams.bind(
    null,
    paramValue => '' + paramValue
  )
  const encodeParams = applyToParams.bind(null, encodeParam)
  const decodeParams: (params: RouteParams | undefined) => RouteParams =
    // @ts-expect-error: intentionally avoid the type check
    applyToParams.bind(null, decode)

  function addRoute(
    parentOrRoute: NonNullable<RouteRecordNameGeneric> | RouteRecordRaw,
    route?: RouteRecordRaw
  ) {
    let parent: Parameters<(typeof matcher)['addRoute']>[1] | undefined
    let record: RouteRecordRaw
    if (isRouteName(parentOrRoute)) {
      parent = matcher.getRecordMatcher(parentOrRoute)
      record = route!
    } else {
      record = parentOrRoute
    }

    return matcher.addRoute(record, parent)
  }

  function removeRoute(name: NonNullable<RouteRecordNameGeneric>) {
    const recordMatcher = matcher.getRecordMatcher(name)
    if (recordMatcher) {
      matcher.removeRoute(recordMatcher)
    }
  }

  function getRoutes() {
    return matcher.getRoutes().map(routeMatcher => routeMatcher.record)
  }

  function hasRoute(name: NonNullable<RouteRecordNameGeneric>): boolean {
    return !!matcher.getRecordMatcher(name)
  }

  function resolve(
    rawLocation: RouteLocationRaw,
    currentLocation?: RouteLocationNormalizedLoaded
  ): RouteLocationResolved {
    currentLocation = assign({}, currentLocation || currentRoute.value)
    if (typeof rawLocation === 'string') {
      const locationNormalized = parseURL(
        parseQuery,
        rawLocation,
        currentLocation.path
      )
      const matchedRoute = matcher.resolve(
        { path: locationNormalized.path },
        currentLocation
      )

      const href = routerHistory.createHref(locationNormalized.fullPath)

      // locationNormalized is always a new object
      return assign(locationNormalized, matchedRoute, {
        params: decodeParams(matchedRoute.params),
        hash: decode(locationNormalized.hash),
        redirectedFrom: undefined,
        href,
      })
    }

    let matcherLocation: MatcherLocationRaw

    // path could be relative in object as well
    if (rawLocation.path != null) {
      matcherLocation = assign({}, rawLocation, {
        path: parseURL(parseQuery, rawLocation.path, currentLocation.path).path,
      })
    } else {
      // remove any nullish param
      const targetParams = assign({}, rawLocation.params)
      for (const key in targetParams) {
        if (targetParams[key] == null) {
          delete targetParams[key]
        }
      }
      // pass encoded values to the matcher, so it can produce encoded path and fullPath
      matcherLocation = assign({}, rawLocation, {
        params: encodeParams(targetParams),
      })
      // current location params are decoded, we need to encode them in case the
      // matcher merges the params
      currentLocation.params = encodeParams(currentLocation.params)
    }

    const matchedRoute = matcher.resolve(matcherLocation, currentLocation)
    const hash = rawLocation.hash || ''

    matchedRoute.params = normalizeParams(decodeParams(matchedRoute.params))

    const fullPath = stringifyURL(
      stringifyQuery,
      assign({}, rawLocation, {
        hash: encodeHash(hash),
        path: matchedRoute.path,
      })
    )

    const href = routerHistory.createHref(fullPath)

    return assign(
      {
        fullPath,
        hash,
        query:
          stringifyQuery === originalStringifyQuery
            ? normalizeQuery(rawLocation.query)
            : ((rawLocation.query || {}) as LocationQuery),
      },
      matchedRoute,
      {
        redirectedFrom: undefined,
        href,
      }
    )
  }

  function locationAsObject(
    to: RouteLocationRaw | RouteLocationNormalized
  ): Exclude<RouteLocationRaw, string> | RouteLocationNormalized {
    return typeof to === 'string'
      ? parseURL(parseQuery, to, currentRoute.value.path)
      : assign({}, to)
  }

  function checkCanceledNavigation(
    to: RouteLocationNormalized,
    from: RouteLocationNormalized
  ): NavigationFailure | void {
    if (pendingLocation !== to) {
      return createRouterError<NavigationFailure>(
        ErrorTypes.NAVIGATION_CANCELLED,
        {
          from,
          to,
        }
      )
    }
  }

  function push(to: RouteLocationRaw) {
    return pushWithRedirect(to)
  }

  function replace(to: RouteLocationRaw) {
    return push(assign(locationAsObject(to), { replace: true }))
  }

  function handleRedirectRecord(to: RouteLocation): RouteLocationRaw | void {
    const lastMatched = to.matched[to.matched.length - 1]
    if (lastMatched && lastMatched.redirect) {
      const { redirect } = lastMatched
      let newTargetLocation =
        typeof redirect === 'function' ? redirect(to) : redirect

      if (typeof newTargetLocation === 'string') {
        newTargetLocation =
          newTargetLocation.includes('?') || newTargetLocation.includes('#')
            ? (newTargetLocation = locationAsObject(newTargetLocation))
            : // force empty params
              { path: newTargetLocation }
        // @ts-expect-error: force empty params when a string is passed to let
        // the router parse them again
        newTargetLocation.params = {}
      }


      return assign(
        {
          query: to.query,
          hash: to.hash,
          // avoid transferring params if the redirect has a path
          params: newTargetLocation.path != null ? {} : to.params,
        },
        newTargetLocation
      )
    }
  }

    // 路由守卫
  function pushWithRedirect(
    to: RouteLocationRaw | RouteLocation,
    redirectedFrom?: RouteLocation
  ): Promise<NavigationFailure | void | undefined> {
    const targetLocation: RouteLocation = (pendingLocation = resolve(to))
    const from = currentRoute.value
    const data: HistoryState | undefined = (to as RouteLocationOptions).state
    const force: boolean | undefined = (to as RouteLocationOptions).force
    // to could be a string where `replace` is a function
    const replace = (to as RouteLocationOptions).replace === true

    const shouldRedirect = handleRedirectRecord(targetLocation)

    if (shouldRedirect)
      return pushWithRedirect(
        assign(locationAsObject(shouldRedirect), {
          state:
            typeof shouldRedirect === 'object'
              ? assign({}, data, shouldRedirect.state)
              : data,
          force,
          replace,
        }),
        // keep original redirectedFrom if it exists
        redirectedFrom || targetLocation
      )

    // if it was a redirect we already called `pushWithRedirect` above
    const toLocation = targetLocation as RouteLocationNormalized

    toLocation.redirectedFrom = redirectedFrom
    let failure: NavigationFailure | void | undefined

    if (!force && isSameRouteLocation(stringifyQuery, from, targetLocation)) {
      failure = createRouterError<NavigationFailure>(
        ErrorTypes.NAVIGATION_DUPLICATED,
        { to: toLocation, from }
      )
      // trigger scroll to allow scrolling to the same anchor
      handleScroll(
        from,
        from,
        true,
        false
      )
    }

    return (failure ? Promise.resolve(failure) : navigate(toLocation, from))
      .catch((error: NavigationFailure | NavigationRedirectError) =>
        isNavigationFailure(error)
          ? // navigation redirects still mark the router as ready
            isNavigationFailure(error, ErrorTypes.NAVIGATION_GUARD_REDIRECT)
            ? error
            : markAsReady(error) // also returns the error
          : // reject any unknown error
            triggerError(error, toLocation, from)
      )
      .then((failure: NavigationFailure | NavigationRedirectError | void) => {
        if (failure) {
          if (
            isNavigationFailure(failure, ErrorTypes.NAVIGATION_GUARD_REDIRECT)
          ) {

            return pushWithRedirect(
              // keep options
              assign(
                {
                  // preserve an existing replacement but allow the redirect to override it
                  replace,
                },
                locationAsObject(failure.to),
                {
                  state:
                    typeof failure.to === 'object'
                      ? assign({}, data, failure.to.state)
                      : data,
                  force,
                }
              ),
              // preserve the original redirectedFrom if any
              redirectedFrom || toLocation
            )
          }
        } else {
          // if we fail we don't finalize the navigation
          failure = finalizeNavigation(
            toLocation as RouteLocationNormalizedLoaded,
            from,
            true,
            replace,
            data
          )
        }
        triggerAfterEach(
          toLocation as RouteLocationNormalizedLoaded,
          from,
          failure
        )
        return failure
      })
  }

  /**
   * Helper to reject and skip all navigation guards if a new navigation happened
   * @param to
   * @param from
   */
  function checkCanceledNavigationAndReject(
    to: RouteLocationNormalized,
    from: RouteLocationNormalized
  ): Promise<void> {
    const error = checkCanceledNavigation(to, from)
    return error ? Promise.reject(error) : Promise.resolve()
  }

  function runWithContext<T>(fn: () => T): T {
    const app: App | undefined = installedApps.values().next().value
    // support Vue < 3.3
    return app && typeof app.runWithContext === 'function'
      ? app.runWithContext(fn)
      : fn()
  }

  // TODO: refactor the whole before guards by internally using router.beforeEach

  function navigate(
    to: RouteLocationNormalized,
    from: RouteLocationNormalizedLoaded
  ): Promise<any> {
    let guards: Lazy<any>[]

    const [leavingRecords, updatingRecords, enteringRecords] =
      extractChangingRecords(to, from)

    // all components here have been resolved once because we are leaving
    guards = extractComponentsGuards(
      leavingRecords.reverse(),
      'beforeRouteLeave',
      to,
      from
    )

    // leavingRecords is already reversed
    for (const record of leavingRecords) {
      record.leaveGuards.forEach(guard => {
        guards.push(guardToPromiseFn(guard, to, from))
      })
    }

    const canceledNavigationCheck = checkCanceledNavigationAndReject.bind(
      null,
      to,
      from
    )

    guards.push(canceledNavigationCheck)

    // run the queue of per route beforeRouteLeave guards
    return (
      runGuardQueue(guards)
        .then(() => {
          // check global guards beforeEach
          guards = []
          for (const guard of beforeGuards.list()) {
            guards.push(guardToPromiseFn(guard, to, from))
          }
          guards.push(canceledNavigationCheck)

          return runGuardQueue(guards)
        })
        .then(() => {
          // check in components beforeRouteUpdate
          guards = extractComponentsGuards(
            updatingRecords,
            'beforeRouteUpdate',
            to,
            from
          )

          for (const record of updatingRecords) {
            record.updateGuards.forEach(guard => {
              guards.push(guardToPromiseFn(guard, to, from))
            })
          }
          guards.push(canceledNavigationCheck)

          // run the queue of per route beforeEnter guards
          return runGuardQueue(guards)
        })
        .then(() => {
          // check the route beforeEnter
          guards = []
          for (const record of enteringRecords) {
            // do not trigger beforeEnter on reused views
            if (record.beforeEnter) {
              if (isArray(record.beforeEnter)) {
                for (const beforeEnter of record.beforeEnter)
                  guards.push(guardToPromiseFn(beforeEnter, to, from))
              } else {
                guards.push(guardToPromiseFn(record.beforeEnter, to, from))
              }
            }
          }
          guards.push(canceledNavigationCheck)

          // run the queue of per route beforeEnter guards
          return runGuardQueue(guards)
        })
        .then(() => {
          // NOTE: at this point to.matched is normalized and does not contain any () => Promise<Component>

          // clear existing enterCallbacks, these are added by extractComponentsGuards
          to.matched.forEach(record => (record.enterCallbacks = {}))

          // check in-component beforeRouteEnter
          guards = extractComponentsGuards(
            enteringRecords,
            'beforeRouteEnter',
            to,
            from,
            runWithContext
          )
          guards.push(canceledNavigationCheck)

          // run the queue of per route beforeEnter guards
          return runGuardQueue(guards)
        })
        .then(() => {
          // check global guards beforeResolve
          guards = []
          for (const guard of beforeResolveGuards.list()) {
            guards.push(guardToPromiseFn(guard, to, from))
          }
          guards.push(canceledNavigationCheck)

          return runGuardQueue(guards)
        })
        // catch any navigation canceled
        .catch(err =>
          isNavigationFailure(err, ErrorTypes.NAVIGATION_CANCELLED)
            ? err
            : Promise.reject(err)
        )
    )
  }

  function triggerAfterEach(
    to: RouteLocationNormalizedLoaded,
    from: RouteLocationNormalizedLoaded,
    failure?: NavigationFailure | void
  ): void {
    afterGuards
      .list()
      .forEach(guard => runWithContext(() => guard(to, from, failure)))
  }

  function finalizeNavigation(
    toLocation: RouteLocationNormalizedLoaded,
    from: RouteLocationNormalizedLoaded,
    isPush: boolean,
    replace?: boolean,
    data?: HistoryState
  ): NavigationFailure | void {
    // a more recent navigation took place
    const error = checkCanceledNavigation(toLocation, from)
    if (error) return error

    // only consider as push if it's not the first navigation
    const isFirstNavigation = from === START_LOCATION_NORMALIZED
    const state: Partial<HistoryState> | null = !isBrowser ? {} : history.state

    if (isPush) {
      if (replace || isFirstNavigation)
        routerHistory.replace(
          toLocation.fullPath,
          assign(
            {
              scroll: isFirstNavigation && state && state.scroll,
            },
            data
          )
        )
      else routerHistory.push(toLocation.fullPath, data)
    }

    // accept current navigation
    currentRoute.value = toLocation
    handleScroll(toLocation, from, isPush, isFirstNavigation)

    markAsReady()
  }

  let removeHistoryListener: undefined | null | (() => void)
  // attach listener to history to trigger navigations
  function setupListeners() {
    // avoid setting up listeners twice due to an invalid first navigation
    if (removeHistoryListener) return
    removeHistoryListener = routerHistory.listen((to, _from, info) => {
      if (!router.listening) return
      const toLocation = resolve(to) as RouteLocationNormalized

      const shouldRedirect = handleRedirectRecord(toLocation)
      if (shouldRedirect) {
        pushWithRedirect(
          assign(shouldRedirect, { replace: true }),
          toLocation
        ).catch(noop)
        return
      }

      pendingLocation = toLocation
      const from = currentRoute.value

      // TODO: should be moved to web history?
      if (isBrowser) {
        saveScrollPosition(
          getScrollKey(from.fullPath, info.delta),
          computeScrollPosition()
        )
      }

      navigate(toLocation, from)
        .catch((error: NavigationFailure | NavigationRedirectError) => {
          if (
            isNavigationFailure(
              error,
              ErrorTypes.NAVIGATION_ABORTED | ErrorTypes.NAVIGATION_CANCELLED
            )
          ) {
            return error
          }
          if (
            isNavigationFailure(error, ErrorTypes.NAVIGATION_GUARD_REDIRECT)
          ) {
            pushWithRedirect(
              (error as NavigationRedirectError).to,
              toLocation
              // avoid an uncaught rejection, let push call triggerError
            )
              .then(failure => {
                if (
                  isNavigationFailure(
                    failure,
                    ErrorTypes.NAVIGATION_ABORTED |
                      ErrorTypes.NAVIGATION_DUPLICATED
                  ) &&
                  !info.delta &&
                  info.type === NavigationType.pop
                ) {
                  routerHistory.go(-1, false)
                }
              })
              .catch(noop)
            // avoid the then branch
            return Promise.reject()
          }
          // do not restore history on unknown direction
          if (info.delta) {
            routerHistory.go(-info.delta, false)
          }
          // unrecognized error, transfer to the global handler
          return triggerError(error, toLocation, from)
        })
        .then((failure: NavigationFailure | void) => {
          failure =
            failure ||
            finalizeNavigation(
              // after navigation, all matched components are resolved
              toLocation as RouteLocationNormalizedLoaded,
              from,
              false
            )

          // revert the navigation
          if (failure) {
            if (
              info.delta &&
              !isNavigationFailure(failure, ErrorTypes.NAVIGATION_CANCELLED)
            ) {
              routerHistory.go(-info.delta, false)
            } else if (
              info.type === NavigationType.pop &&
              isNavigationFailure(
                failure,
                ErrorTypes.NAVIGATION_ABORTED | ErrorTypes.NAVIGATION_DUPLICATED
              )
            ) {
              // manual change in hash history #916
              // it's like a push but lacks the information of the direction
              routerHistory.go(-1, false)
            }
          }

          triggerAfterEach(
            toLocation as RouteLocationNormalizedLoaded,
            from,
            failure
          )
        })
        // avoid warnings in the console about uncaught rejections, they are logged by triggerErrors
        .catch(noop)
    })
  }

  // Initialization and Errors

  let readyHandlers = useCallbacks<OnReadyCallback>()
  let errorListeners = useCallbacks<_ErrorListener>()
  let ready: boolean

  function triggerError(
    error: any,
    to: RouteLocationNormalized,
    from: RouteLocationNormalizedLoaded
  ): Promise<unknown> {
    markAsReady(error)
    const list = errorListeners.list()
    if (list.length) {
      list.forEach(handler => handler(error, to, from))
    }
    // reject the error no matter there were error listeners or not
    return Promise.reject(error)
  }

  function isReady(): Promise<void> {
    if (ready && currentRoute.value !== START_LOCATION_NORMALIZED)
      return Promise.resolve()
    return new Promise((resolve, reject) => {
      readyHandlers.add([resolve, reject])
    })
  }

  function markAsReady<E = any>(err: E): E
  function markAsReady<E = any>(): void
  function markAsReady<E = any>(err?: E): E | void {
    if (!ready) {
      // still not ready if an error happened
      ready = !err
      setupListeners()
      readyHandlers
        .list()
        .forEach(([resolve, reject]) => (err ? reject(err) : resolve()))
      readyHandlers.reset()
    }
    return err
  }

  // Scroll behavior
  function handleScroll(
    to: RouteLocationNormalizedLoaded,
    from: RouteLocationNormalizedLoaded,
    isPush: boolean,
    isFirstNavigation: boolean
  ): // the return is not meant to be used
  Promise<unknown> {
    const { scrollBehavior } = options
    if (!isBrowser || !scrollBehavior) return Promise.resolve()

    const scrollPosition: _ScrollPositionNormalized | null =
      (!isPush && getSavedScrollPosition(getScrollKey(to.fullPath, 0))) ||
      ((isFirstNavigation || !isPush) &&
        (history.state as HistoryState) &&
        history.state.scroll) ||
      null

    return nextTick()
      .then(() => scrollBehavior(to, from, scrollPosition))
      .then(position => position && scrollToPosition(position))
      .catch(err => triggerError(err, to, from))
  }

  const go = (delta: number) => routerHistory.go(delta)

  let started: boolean | undefined
  const installedApps = new Set<App>()

  const router: Router = {
    currentRoute,
    listening: true,

    addRoute,
    removeRoute,
    clearRoutes: matcher.clearRoutes,
    hasRoute,
    getRoutes,
    resolve,
    options,

    push,
    replace,
    go,
    back: () => go(-1),
    forward: () => go(1),

    beforeEach: beforeGuards.add,
    beforeResolve: beforeResolveGuards.add,
    afterEach: afterGuards.add,

    onError: errorListeners.add,
    isReady,

    install(app: App) {
      const router = this
      app.component('RouterLink', RouterLink)
      app.component('RouterView', RouterView)

      app.config.globalProperties.$router = router
      Object.defineProperty(app.config.globalProperties, '$route', { // 在访问 app.config.globalProperties.$route 等价于访问当前的 currentRoute
        enumerable: true,
        get: () => unref(currentRoute),
      })

      if (
        isBrowser &&
        !started &&
        currentRoute.value === START_LOCATION_NORMALIZED
      ) {
        // see above
        started = true
        push(routerHistory.location).catch(err => {})
      }

      const reactiveRoute = {} as RouteLocationNormalizedLoaded
      for (const key in START_LOCATION_NORMALIZED) {
        Object.defineProperty(reactiveRoute, key, {
          get: () => currentRoute.value[key as keyof RouteLocationNormalized],
          enumerable: true,
        })
      }

      app.provide(routerKey, router)
      app.provide(routeLocationKey, shallowReactive(reactiveRoute))
      app.provide(routerViewLocationKey, currentRoute)

      const unmountApp = app.unmount
      installedApps.add(app)
      app.unmount = function () {
        installedApps.delete(app)
        // the router is not attached to an app anymore
        if (installedApps.size < 1) {
          // invalidate the current navigation
          pendingLocation = START_LOCATION_NORMALIZED
          removeHistoryListener && removeHistoryListener()
          removeHistoryListener = null
          currentRoute.value = START_LOCATION_NORMALIZED
          started = false
          ready = false
        }
        unmountApp()
      }
    },
  }

  // TODO: type this as NavigationGuardReturn or similar instead of any
  function runGuardQueue(guards: Lazy<any>[]): Promise<any> {
    return guards.reduce(
      (promise, guard) => promise.then(() => runWithContext(guard)),
      Promise.resolve()
    )
  }

  return router
}

RouterView

packages/router/src/RouterView.ts

  1. inject(routerViewLocationKey)!拿到全局注入的 currentRoute 当前路由
  2. 通过while 循环找到当前有效的 depth值
  3. 通过routeToDisplay.value.matched[depth.value] 拿到当前有效的matchedRouteRef
  4. 通过 matchedRoute.components![currentName]拿到 ViewComponent
  5. matchedRoute!.props[props.name] 拿到 routeProps
  6. h函数再通过h函数 传入ViewComponent和 routeProps 返回一个component

export const RouterViewImpl = /*#__PURE__*/ defineComponent({
  name: 'RouterView',
  inheritAttrs: false,
  props: {
    name: {
      type: String as PropType<string>,
      default: 'default',
    },
    route: Object as PropType<RouteLocationNormalizedLoaded>,
  },

  compatConfig: { MODE: 3 },

  setup(props, { attrs, slots }) {

    const injectedRoute = inject(routerViewLocationKey)!
    const routeToDisplay = computed<RouteLocationNormalizedLoaded>(
      () => props.route || injectedRoute.value
    )
    const injectedDepth = inject(viewDepthKey, 0)
    const depth = computed<number>(() => {
      let initialDepth = unref(injectedDepth)
      const { matched } = routeToDisplay.value
      let matchedRoute: RouteLocationMatched | undefined
      while (
        (matchedRoute = matched[initialDepth]) &&
        !matchedRoute.components
      ) {
        initialDepth++
      }
      return initialDepth
    })
    const matchedRouteRef = computed<RouteLocationMatched | undefined>(
      () => routeToDisplay.value.matched[depth.value]
    )

    provide(
      viewDepthKey,
      computed(() => depth.value + 1)
    )
    provide(matchedRouteKey, matchedRouteRef)
    provide(routerViewLocationKey, routeToDisplay)

    const viewRef = ref<ComponentPublicInstance>()
    watch( // 实时监听
      () => [viewRef.value, matchedRouteRef.value, props.name] as const,
      ([instance, to, name], [oldInstance, from, oldName]) => {
        // copy reused instances
        if (to) {
          to.instances[name] = instance
          if (from && from !== to && instance && instance === oldInstance) {
            if (!to.leaveGuards.size) {
              to.leaveGuards = from.leaveGuards
            }
            if (!to.updateGuards.size) {
              to.updateGuards = from.updateGuards
            }
          }
        }

        if (
          instance &&
          to &&
          (!from || !isSameRouteRecord(to, from) || !oldInstance)
        ) {
          ;(to.enterCallbacks[name] || []).forEach(callback =>
            callback(instance)
          )
        }
      },
      { flush: 'post' }
    )

    return () => {
      const route = routeToDisplay.value
      const currentName = props.name
      const matchedRoute = matchedRouteRef.value
      const ViewComponent =
        matchedRoute && matchedRoute.components![currentName]

      if (!ViewComponent) {
        return normalizeSlot(slots.default, { Component: ViewComponent, route })
      }

      const routePropsOption = matchedRoute.props[currentName]
      const routeProps = routePropsOption
        ? routePropsOption === true
          ? route.params
          : typeof routePropsOption === 'function'
          ? routePropsOption(route)
          : routePropsOption
        : null

      const onVnodeUnmounted: VNodeProps['onVnodeUnmounted'] = vnode => {
        if (vnode.component!.isUnmounted) {
          matchedRoute.instances[currentName] = null
        }
      }

      const component = h(
        ViewComponent,
        assign({}, routeProps, attrs, {
          onVnodeUnmounted,
          ref: viewRef,
        })
      )


      return (
        normalizeSlot(slots.default, { Component: component, route }) ||
        component
      )
    }
  },
})

RouterLink

packages/router/src/RouterLink.ts

内部渲染一个a标签，点击时候通过navigate方法 执行 'replace' 或者 'push' 跳转路由


export interface RouterLinkOptions {
  to: RouteLocationRaw
  replace?: boolean
}

export interface RouterLinkProps extends RouterLinkOptions {
  custom?: boolean
  activeClass?: string
  exactActiveClass?: string
  ariaCurrentValue?:
    | 'page'
    | 'step'
    | 'location'
    | 'date'
    | 'time'
    | 'true'
    | 'false'
}
// a标签跳转
 function navigate(
    e: MouseEvent = {} as MouseEvent
  ): Promise<void | NavigationFailure> {
    if (guardEvent(e)) {
      return router[unref(props.replace) ? 'replace' : 'push'](
        unref(props.to)
        // avoid uncaught errors are they are logged anyway
      ).catch(noop)
    }
    return Promise.resolve()
  }

export const RouterLinkImpl = /*#__PURE__*/ defineComponent({
  name: 'RouterLink',
  compatConfig: { MODE: 3 },
  props: {
    to: {
      type: [String, Object] as PropType<RouteLocationRaw>,
      required: true,
    },
    replace: Boolean,
    activeClass: String,
    exactActiveClass: String,
    custom: Boolean,
    ariaCurrentValue: {
      type: String as PropType<RouterLinkProps['ariaCurrentValue']>,
      default: 'page',
    },
  },

  useLink,

  setup(props, { slots }) {
    const link = reactive(useLink(props))
    const { options } = inject(routerKey)!

    const elClass = computed(() => ({
      [getLinkClass(
        props.activeClass,
        options.linkActiveClass,
        'router-link-active'
      )]: link.isActive,
      [getLinkClass(
        props.exactActiveClass,
        options.linkExactActiveClass,
        'router-link-exact-active'
      )]: link.isExactActive,
    }))

//    内部渲染一个a标签
    return () => {
      const children = slots.default && preferSingleVNode(slots.default(link))
      return props.custom
        ? children
        : h(
            'a',
            {
              'aria-current': link.isExactActive
                ? props.ariaCurrentValue
                : null,
              href: link.href,
              onClick: link.navigate,
              class: elClass.value,
            },
            children
          )
    }
  },
})

参考

玩转vue3

avatar
文章
阅读
粉丝
