PowerDesiger 从数据库转为模型

1. 选择 "文件" >> "逆向工程" >> "从数据库"

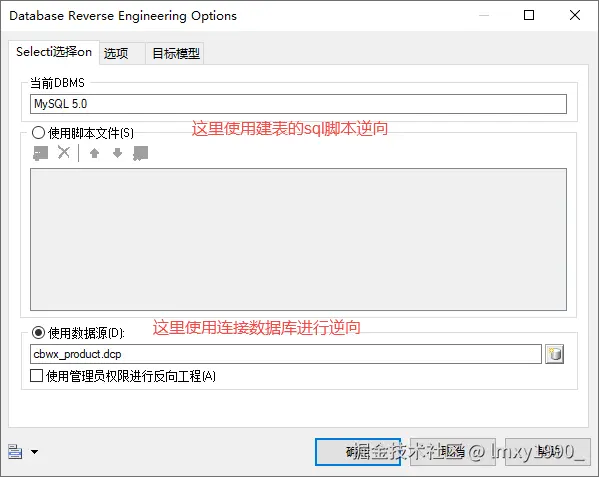

2. 然后选择从脚本还是从数据库进行逆向

3. 选择需要逆向的表

4. 查看属性的时候,也能查看comment设置

5. 批量修改name为comment的值,按下Ctrl+shift + X,运行脚本.执行以下代码

    Option   Explicit
    ValidationMode   =   True
    InteractiveMode   =   im_Batch
    Dim blankStr
    blankStr   =   Space(1)
    Dim   mdl   '   the   current   model

    '   get   the   current   active   model
    Set   mdl   =   ActiveModel
    If   (mdl   Is   Nothing)   Then
          MsgBox   "There   is   no   current   Model "
    ElseIf   Not   mdl.IsKindOf(PdPDM.cls_Model)   Then
          MsgBox   "The   current   model   is   not   an   Physical   Data   model. "
    Else
          ProcessFolder   mdl
    End   If

    Private   sub   ProcessFolder(folder)
    On Error Resume Next
          Dim   Tab   'running     table
          for   each   Tab   in   folder.tables
                if   not   tab.isShortcut   then
                      tab.name   =   tab.code & "(" & tab.comment & ")"
                      Dim   col   '   running   column
                      for   each   col   in   tab.columns
                      if col.comment = "" or replace(col.comment," ", "")=""  Then
                            col.name = col.code
                      else
                            col.name = col.comment
                      end if
                      next
                end   if
          next

          Dim   view   'running   view
          for   each   view   in   folder.Views
                if   not   view.isShortcut   then
                      view.name   =   view.comment
                end   if
          next

          '   go   into   the   sub-packages
          Dim   f   '   running   folder
          For   Each   f   In   folder.Packages
                if   not   f.IsShortcut   then
                      ProcessFolder   f
                end   if
          Next
    end   sub

6. 批量调整图形大小

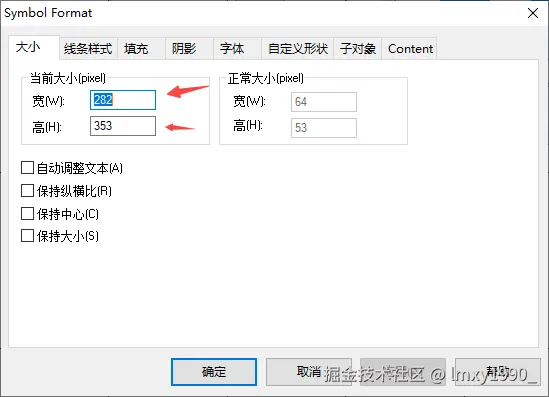

选择需要批量调整的图形,右键 >> 选择 "格式"

这里可以批量设置图形大小,文字字体. 大小等
