鸿蒙开发-页面级一多开发步骤

1. 根据窗口获取断点值

export default class EntryAbility extends UIAbility {
  private curBp: string = ''
  // 其余略
  onWindowStageCreate(windowStage: window.WindowStage): void {
    windowStage.getMainWindow()
      .then((windowObj) => {
        // 获取应用启动时的窗口尺寸
        this.updateBreakpoint(windowObj.getWindowProperties()
          .windowRect
          .width)
        // 注册回调函数，监听窗口尺寸变化
        windowObj.on('windowSizeChange', (windowSize) => {
          this.updateBreakpoint(windowSize.width)
        })
      });
  // 其余略

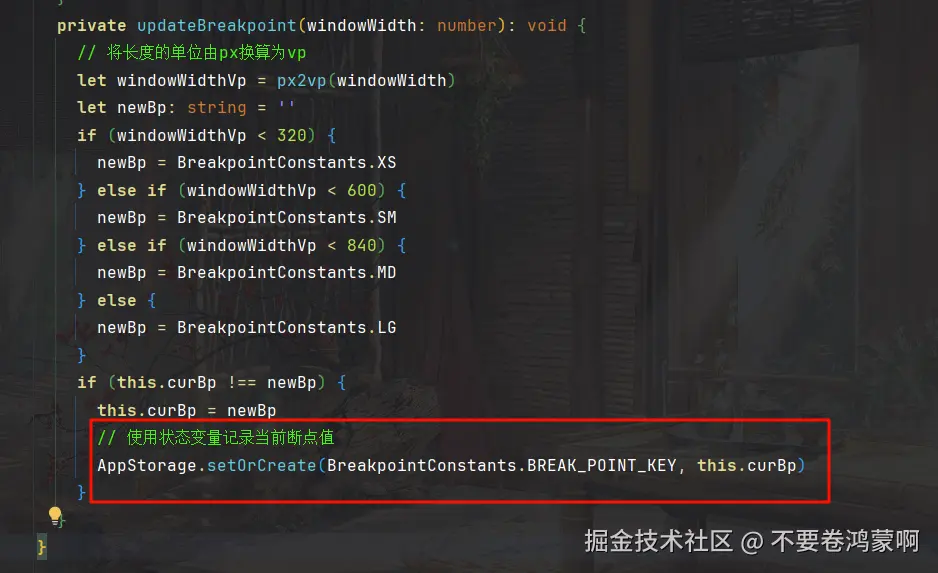

  private updateBreakpoint(windowWidth: number): void {
    // 将长度的单位由px换算为vp
    let windowWidthVp = px2vp(windowWidth)
    let newBp: string = ''
    if (windowWidthVp < 320) {
      newBp = BreakpointConstants.XS
    } else if (windowWidthVp < 600) {
      newBp = BreakpointConstants.SM
    } else if (windowWidthVp < 840) {
      newBp = BreakpointConstants.MD
    } else {
      newBp = BreakpointConstants.LG
    }
    if (this.curBp !== newBp) {
      this.curBp = newBp
      // 使用状态变量记录当前断点值
      AppStorage.setOrCreate(BreakpointConstants.BREAK_POINT_KEY, this.curBp)
    }
  }
}

2. 通过 AppStorage 进行共享

3. 创建BreakPointType.ets

根据当前断点类型（如 xs, sm, md, lg）获取对应的值

flowchart TD
    A[开始] --> B{当前断点类型是 xs?}
    B -->|Yes| C[返回 xs 对应的值]
    B -->|No| D{当前断点类型是 sm?}
    D -->|Yes| E[返回 sm 对应的值]
    D -->|No| F{当前断点类型是 md?}
    F -->|Yes| G[返回 md 对应的值]
    F -->|No| H{当前断点类型是 lg?}
    H -->|Yes| I[返回 lg 对应的值]
    H -->|No| J[返回 undefined]

declare interface BreakPointTypeOption<T> {
  xs?: T
  sm?: T
  md?: T
  lg?: T
}

export class BreakPointType<T> {
  options: BreakPointTypeOption<T>

  constructor(option: BreakPointTypeOption<T>) {
    this.options = option
  }

  getValue(currentBreakPoint: string) {
    if (currentBreakPoint === 'xs') {
      return this.options.xs
    } else if (currentBreakPoint === 'sm') {
      return this.options.sm
    } else if (currentBreakPoint === 'md') {
      return this.options.md
    } else if (currentBreakPoint === 'lg') {
      return this.options.lg
    } else {
      return undefined
    }
  }
}

4. 导入，实例化工具对象，获取断点值

@StorageProp(BreakpointConstants.BREAK_POINT_KEY) breakPoint: string = 'xs'

5. 根据断点值，调整 tabs 的位置

flowchart TD
    A[开始] --> B{判断断点类型}
    B -->|sm 或 md| C[设置栏位位置为 End]
    B -->|lg| D[设置栏位位置为 Start]
    C --> E{判断断点类型}
    D --> E
    E -->|lg| F[设置布局为垂直]
    E -->|其他| G[设置布局为水平]
    F --> H[结束]
    G --> H

@Entry
@Component
struct Index {
  @StorageProp(BreakpointConstants.BREAK_POINT_KEY) breakPoint: string = 'xs'
  build() {
    Navigation(this.stackPath){
      Tabs() {

          }
          .tabBar(this.TabItemBuilder(item, index))
      }
      .barPosition(new BreakPointType({
        sm: BarPosition.End,
        md: BarPosition.End,
        lg: BarPosition.Start
      }).getValue(this.breakPoint))
      .vertical(this.breakPoint == 'lg' ? true : false)
      .onTabBarClick(index => {
        this.activeIndex = index
      })
    }
    .hideTitleBar(true) // 隐藏标题栏
    .mode(NavigationMode.Stack) // 设置单栏
    .padding({bottom: this.bottomBarHeight})
  }
}

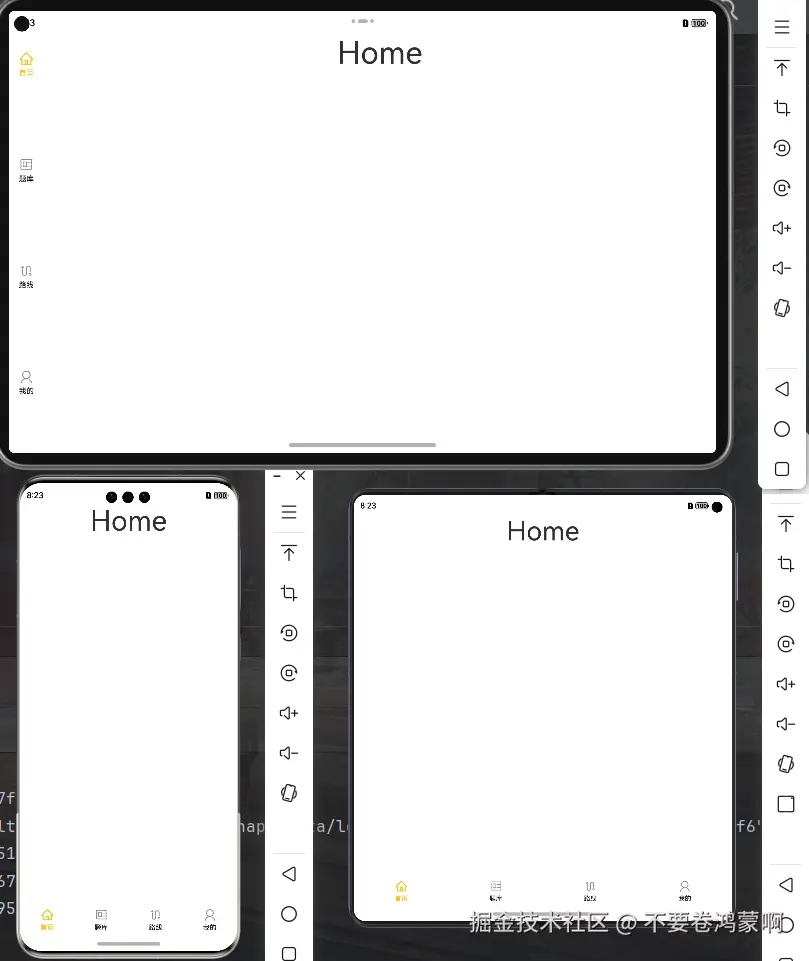

效果展示

补充-常量抽取

export class BreakpointConstants {
  // 手表等超小屏
  static readonly XS: string = 'xs';
  // 手机竖屏
  static readonly SM: string = 'sm';
  // 手机横屏，折叠屏
  static readonly MD: string = 'md';
  // 平板，2in1 设备
  static readonly LG: string = 'lg';
  // AppStorage 中的 key
  static readonly BREAK_POINT_KEY: string = 'currentBreakpoint'
}
