1. 部署
Apache APISIX 是一个开源的高性能 API 网关，支持动态路由、负载均衡、流量控制和插件扩展。它基于 NGINX 和 Lua 构建，具备极高的可扩展性和灵活性，能够处理大规模的 API 流量。APISIX 提供丰富的监控和管理功能，适用于微服务架构和云原生环境，帮助开发者简化 API 的管理与优化。
通过官方推荐的helm安装，或者通过github的chart来安装 通过helm安装apisix
➜ ~ helm install apisix apisix/apisix --create-namespace --namespace apisix
NAME: apisix
LAST DEPLOYED: Tue Mar 5 18:31:31 2024
NAMESPACE: apisix
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
1. Get the application URL by running these commands:
export NODE_PORT=$(kubectl get --namespace apisix -o jsonpath="{.spec.ports[0].nodePort}" services apisix-gateway)
export NODE_IP=$(kubectl get nodes --namespace apisix -o jsonpath="{.items[0].status.addresses[0].address}")
echo http://$NODE_IP:$NODE_PORT
➜ ~
版本信息查看
- apisix helm chart版本：
- Apisix 2.6.0
- Apisix dashboard 0.8.2
- apisix版本：3.8.0
- etcd cluster版本：3.5.0
# apisix helm chat version
➜ apisix git:(0da1bd0) ✗ helm list
NAME NAMESPACE REVISION UPDATED STATUS CHART APP VERSION
apisix apisix 1 2024-03-07 13:35:26.20196 +0800 CST deployed apisix-2.6.0 3.8.0
# apisix version
➜ apisix git:(0da1bd0) ✗ k exec apisix-68d87594b5-gbp4h -it -- bash
Defaulted container "apisix" out of: apisix, wait-etcd (init)
apisix@apisix-68d87594b5-gbp4h:/usr/local/apisix$ apisix version
/usr/local/openresty//luajit/bin/luajit ./apisix/cli/apisix.lua version
3.8.0
apisix@apisix-68d87594b5-gbp4h:/usr/local/apisix$
#etcd version
➜ apisix git:(0da1bd0) ✗ curl http://127.0.0.1:2379/version
{"etcdserver":"3.5.7","etcdcluster":"3.5.0"}%
Helm install命令执行完成之后遇到以下问题需要手动处理。
- 镜像拉去失败
- PVC 一直pending 针对以上两个问题分别处理：
1.1 部署问题处理
1.1.1 镜像拉取失败
通过本地拉取镜像，然后在推送到harbo仓库，替换deploy中的镜像。
➜ apisix git:(0da1bd0) ✗ docker image ls | grep apisix
apache/apisix 3.8.0-debian 614799026bce 2 weeks ago 320MB
reg.apx.com/library/apisix 3.8.0-debian 614799026bce 2 weeks ago 320MB
➜ apisix git:(0da1bd0) ✗ docker image ls | grep etcd
bitnami/etcd 3.5.7-debian-11-r14 73feeccc2b47
12 months ago 150MB
reg.apx.com/library/etcd 3.5.7-debian-11-r14 73feeccc2b47 12 months ago 150MB
1.1.2 PVC pending
helm安装命令执行完成后，查看pod状态都处于pending阶段。根据依赖关系来看主要因为apisix-etcd由于pvc pending状态被阻塞，因此需要处理pvc pending的问题。
➜ Downloads k get pvc,sts,deploy,pod,svc
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
persistentvolumeclaim/data-apisix-etcd-0 Pending nfs-client 66m
persistentvolumeclaim/data-apisix-etcd-1 Pending nfs-client 66m
persistentvolumeclaim/data-apisix-etcd-2 Pending nfs-client 66m
NAME READY AGE
statefulset.apps/apisix-etcd 0/3 21h
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/apisix 0/1 0 0 21h
NAME READY STATUS RESTARTS AGE
pod/apisix-68d87594b5-7p6pg 0/1 Init:0/1 0 5h15m
pod/apisix-etcd-0 0/1 Pending 0 66m
pod/apisix-etcd-1 0/1 Pending 0 66m
pod/apisix-etcd-2 0/1 Pending 0 66m
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/apisix-admin ClusterIP 10.109.190.60 <none> 9180/TCP 21h
service/apisix-etcd ClusterIP 10.99.49.181 <none> 2379/TCP,2380/TCP 21h
service/apisix-etcd-headless ClusterIP None <none> 2379/TCP,2380/TCP 21h
service/apisix-gateway NodePort 10.102.60.239 <none> 80:30491/TCP 21h
➜ Downloads
通过describe来查看apisix-etcd pod以及对应的pvc event信息，定位pvc pending原因。 Describe pod
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Warning FailedScheduling 65m default-scheduler 0/12 nodes are available: pod has unbound immediate PersistentVolumeClaims. preemption: 0/12 nodes are available: 12 Preemption is not helpful for scheduling..
Describe pvc
➜ Downloads k describe pvc data-apisix-etcd-0
Name: data-apisix-etcd-0
Namespace: apisix
StorageClass: nfs-client
Status: Pending
Volume:
Labels: app.kubernetes.io/instance=apisix
app.kubernetes.io/name=etcd
Annotations: volume.beta.kubernetes.io/storage-provisioner: cluster.local/nfs-client-nfs-client-provisioner
volume.kubernetes.io/storage-provisioner: cluster.local/nfs-client-nfs-client-provisioner
Finalizers: [kubernetes.io/pvc-protection]
Capacity:
Access Modes:
VolumeMode: Filesystem
Used By: apisix-etcd-0
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal ExternalProvisioning 107s (x264 over 66m) persistentvolume-controller waiting for a volume to be created, either by external provisioner "cluster.local/nfs-client-nfs-client-provisioner" or manually created by system administrator
根据pvc describe来看是因为pv创建受阻导致pvc pending，集群中通过nfs-client来作为外部挂载资源，并且集群其他服务也有使用nfs-client。因此通过查看nfs-client pod日志发现。
k logs -f --tail=500 nfs-client-nfs-client-provisioner-5f77b74777-9xpsq -n default
I0306 08:15:16.392219 1 controller.go:987] provision "apisix/data-apisix-etcd-0" class "nfs-client": started
I0306 08:15:16.392509 1 controller.go:987] provision "apisix/data-apisix-etcd-1" class "nfs-client": started
I0306 08:15:16.392219 1 controller.go:987] provision "apisix/data-apisix-etcd-2" class "nfs-client": started
E0306 08:15:16.400103 1 controller.go:1004] provision "apisix/data-apisix-etcd-0" class "nfs-client": unexpected error getting claim reference: selfLink was empty, can't make reference
E0306 08:15:16.401448 1 controller.go:1004] provision "apisix/data-apisix-etcd-1" class "nfs-client": unexpected error getting claim reference: selfLink was empty, can't make reference
E0306 08:15:16.401562 1 controller.go:1004] provision "apisix/data-apisix-etcd-2" class "nfs-client": unexpected error getting claim reference: selfLink was empty, can't make reference
根据日志分析可能造成的原因
- 集群nfs-client服务调用异常导致pv自动创建失败
- Apisix NS下的SA账号权限问题导致pvc创建pv失败
因此针对以上问题需要进行以下调整。
- 对SA添加权限
- 手动创建pvc所需的pv（创建pv之前确保nfs server上已创建对应目录）
- 重新部署api-six sts
- 调整apisix-etcd pv，sts，svc中的标签 以上调整均以整理到以下资源中，按照apisix-rbac，apisix-pv，apisix-etcd，apisix-etcd-svc的顺序分别执行以下资源文件。
apisix-rbac.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
namespace: apisix
name: apisix-default-sa
rules:
- apiGroups: [""] # Core API Groups
resources: ["*"] # All resources within the core group
verbs: ["*"] # All verbs for these resources
- apiGroups: ["apps", "batch", "extensions", "networking.k8s.io", "policy", "rbac.authorization.k8s.io"] # Some common API groups
resources: ["*"]
verbs: ["*"]
- apiGroups: ["storage.k8s.io"]
resources: ["storageclasses", "volumeattachments", "csinodes"]
verbs: ["*"]
# For PersistentVolume and PersistentVolumeClaim operations
- apiGroups: [""] # PersistentVolumes are in the core API group
resources: ["persistentvolumes"]
verbs: ["get", "list", "watch"] # Note: Creating or deleting PersistentVolumes is typically managed by the cluster administrator, not by a namespace-specific role
# However, full control of PersistentVolumeClaims can be given in the namespace
- apiGroups: [""] # PersistentVolumeClaims are in the core API group
resources: ["persistentvolumeclaims"]
verbs: ["*"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
namespace: apisix
name: apisix-default-sa
subjects:
- kind: ServiceAccount
name: default
namespace: apisix
roleRef:
kind: Role
name: apisix-default-sa
apiGroup: rbac.authorization.k8s.io
#使用apisix集成k8s服务发现需要添加以下clusterrole
#通过clusterrole给apisix的sa添加读取k8s集群服务发现相关权限
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: apisix-k8s-discovery
rules:
- apiGroups: [""]
resources: ["endpoints","endpointslices"]
verbs: ["get", "list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: apisix-default-account-endpoints-binding
subjects:
- kind: ServiceAccount
name: default
namespace: apisix
roleRef:
kind: ClusterRole
name: apisix-k8s-discovery
apiGroup: rbac.authorization.k8s.io
apisix-pv.yaml
apiVersion: v1
kind: PersistentVolume
metadata:
name: data-apisix-etcd-0 # PV 的名称，可以根据实际情况命名
labels:
app.kubernetes.io/instance: apisix
app.kubernetes.io/name: etcd
spec:
accessModes:
- ReadWriteOnce
capacity:
storage: 8Gi # 存储容量
claimRef:
apiVersion: v1
kind: PersistentVolumeClaim
name: data-apisix-etcd-0 #和pvc对应
namespace: apisix
nfs:
path: /data/nfs_data/apisix/0
server: 192.168.101.55
persistentVolumeReclaimPolicy: Retain
storageClassName: nfs-client
volumeMode: Filesystem
---
# 创建第二个 PV
apiVersion: v1
kind: PersistentVolume
metadata:
name: data-apisix-etcd-1
labels:
app.kubernetes.io/instance: apisix
app.kubernetes.io/name: etcd
spec:
accessModes:
- ReadWriteOnce
capacity:
storage: 8Gi
claimRef:
apiVersion: v1
kind: PersistentVolumeClaim
name: data-apisix-etcd-1
namespace: apisix
nfs:
path: /data/nfs_data/apisix/1
server: 192.168.101.55
persistentVolumeReclaimPolicy: Retain
storageClassName: nfs-client
volumeMode: Filesystem
---
# 创建第三个 PV
apiVersion: v1
kind: PersistentVolume
metadata:
name: data-apisix-etcd-2
labels:
app.kubernetes.io/instance: apisix
app.kubernetes.io/name: etcd
spec:
accessModes:
- ReadWriteOnce
capacity:
storage: 8Gi
claimRef:
apiVersion: v1
kind: PersistentVolumeClaim
name: data-apisix-etcd-2
namespace: apisix
nfs:
path: /data/nfs_data/apisix/2
server: 192.168.101.55
persistentVolumeReclaimPolicy: Retain
storageClassName: nfs-client
volumeMode: Filesystem
apisix-etcd.yaml
# 执行之前先执行apisix-rbac添加sa权限
# 在通过apisix-pv手动创建pv
apiVersion: apps/v1
kind: StatefulSet
metadata:
labels:
app.kubernetes.io/instance: apisix
app.kubernetes.io/name: etcd
name: apisix-etcd
namespace: apisix
resourceVersion: "24664633"
uid: 9ccf7383-3e45-472c-a69e-af5d1fd8baaf
spec:
podManagementPolicy: Parallel
replicas: 3
revisionHistoryLimit: 10
selector:
matchLabels:
app.kubernetes.io/instance: apisix
app.kubernetes.io/name: etcd
serviceName: apisix-etcd-headless
template:
metadata:
annotations:
checksum/token-secret: 2c80697c2db647500dc3c7c4f3812c6115edd6394aac0c6f99c5387fc83bd228
creationTimestamp: null
labels:
app.kubernetes.io/instance: apisix
app.kubernetes.io/name: etcd
spec:
affinity:
podAntiAffinity:
preferredDuringSchedulingIgnoredDuringExecution:
- podAffinityTerm:
labelSelector:
matchLabels:
app.kubernetes.io/instance: apisix
app.kubernetes.io/name: etcd
topologyKey: kubernetes.io/hostname
weight: 1
containers:
- env:
- name: BITNAMI_DEBUG
value: "false"
- name: MY_POD_IP
valueFrom:
fieldRef:
apiVersion: v1
fieldPath: status.podIP
- name: MY_POD_NAME
valueFrom:
fieldRef:
apiVersion: v1
fieldPath: metadata.name
- name: MY_STS_NAME
value: apisix-etcd
- name: ETCDCTL_API
value: "3"
- name: ETCD_ON_K8S
value: "yes"
- name: ETCD_START_FROM_SNAPSHOT
value: "no"
- name: ETCD_DISASTER_RECOVERY
value: "no"
- name: ETCD_NAME
value: $(MY_POD_NAME)
- name: ETCD_DATA_DIR
value: /bitnami/etcd/data
- name: ETCD_LOG_LEVEL
value: info
- name: ALLOW_NONE_AUTHENTICATION
value: "yes"
- name: ETCD_AUTH_TOKEN
value: jwt,priv-key=/opt/bitnami/etcd/certs/token/jwt-token.pem,sign-method=RS256,ttl=10m
- name: ETCD_ADVERTISE_CLIENT_URLS
value: http://$(MY_POD_NAME).apisix-etcd-headless.apisix.svc.cluster.local:2379,http://apisix-etcd.apisix.svc.cluster.local:2379
- name: ETCD_LISTEN_CLIENT_URLS
value: http://0.0.0.0:2379
- name: ETCD_INITIAL_ADVERTISE_PEER_URLS
value: http://$(MY_POD_NAME).apisix-etcd-headless.apisix.svc.cluster.local:2380
- name: ETCD_LISTEN_PEER_URLS
value: http://0.0.0.0:2380
- name: ETCD_INITIAL_CLUSTER_TOKEN
value: etcd-cluster-k8s
- name: ETCD_INITIAL_CLUSTER_STATE
value: new
- name: ETCD_INITIAL_CLUSTER
value: apisix-etcd-0=http://apisix-etcd-0.apisix-etcd-headless.apisix.svc.cluster.local:2380,apisix-etcd-1=http://apisix-etcd-1.apisix-etcd-headless.apisix.svc.cluster.local:2380,apisix-etcd-2=http://apisix-etcd-2.apisix-etcd-headless.apisix.svc.cluster.local:2380
- name: ETCD_CLUSTER_DOMAIN
value: apisix-etcd-headless.apisix.svc.cluster.local
image: reg.apx.com/library/etcd:3.5.7-debian-11-r14
imagePullPolicy: IfNotPresent
lifecycle:
preStop:
exec:
command:
- /opt/bitnami/scripts/etcd/prestop.sh # todo后期调整为正常脚本
livenessProbe:
exec:
command:
- cat
- /opt/bitnami/scripts/etcd/healthcheck.sh # todo后期调整为正常的健康检查
failureThreshold: 5
initialDelaySeconds: 60
periodSeconds: 30
successThreshold: 1
timeoutSeconds: 5
name: etcd
ports:
- containerPort: 2379
name: client
protocol: TCP
- containerPort: 2380
name: peer
protocol: TCP
readinessProbe:
exec:
command:
- cat
- /opt/bitnami/scripts/etcd/healthcheck.sh # todo后期调整为正常的健康检查
failureThreshold: 5
initialDelaySeconds: 60
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 5
resources: {}
securityContext:
allowPrivilegeEscalation: false
runAsNonRoot: true
runAsUser: 1001
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
volumeMounts:
- mountPath: /bitnami/etcd
name: data
- mountPath: /opt/bitnami/etcd/certs/token/
name: etcd-jwt-token
readOnly: true
dnsPolicy: ClusterFirst
restartPolicy: Always
schedulerName: default-scheduler
securityContext:
fsGroup: 1001
serviceAccount: default
serviceAccountName: default
terminationGracePeriodSeconds: 30
volumes:
- name: etcd-jwt-token
secret:
defaultMode: 256
secretName: apisix-etcd-jwt-token
updateStrategy:
type: RollingUpdate
volumeClaimTemplates:
- metadata:
name: data
spec:
accessModes:
- ReadWriteOnce
storageClassName: nfs-client
resources:
requests:
storage: 8Gi
apisix-etcd-svc.yaml
apiVersion: v1
kind: Service
metadata:
creationTimestamp: "2024-03-07T05:35:32Z"
labels:
app.kubernetes.io/instance: apisix
app.kubernetes.io/name: etcd
name: apisix-etcd
namespace: apisix
resourceVersion: "24699168"
uid: 9991d1f5-b348-4e46-b318-1590c4b5dd00
spec:
clusterIP: 10.102.60.214
clusterIPs:
- 10.102.60.214
internalTrafficPolicy: Cluster
ipFamilies:
- IPv4
ipFamilyPolicy: SingleStack
ports:
- name: client
port: 2379
protocol: TCP
targetPort: client
- name: peer
port: 2380
protocol: TCP
targetPort: peer
selector:
app.kubernetes.io/instance: apisix
app.kubernetes.io/name: etcd
sessionAffinity: None
type: ClusterIP
---
apiVersion: v1
kind: Service
metadata:
creationTimestamp: "2024-03-07T05:35:32Z"
labels:
app.kubernetes.io/instance: apisix
app.kubernetes.io/name: etcd
name: apisix-etcd-headless
namespace: apisix
resourceVersion: "24699259"
uid: f584879d-0670-4e32-a28f-08d8fdcd9dc5
spec:
clusterIP: None
clusterIPs:
- None
internalTrafficPolicy: Cluster
ipFamilies:
- IPv4
ipFamilyPolicy: SingleStack
ports:
- name: client
port: 2379
protocol: TCP
targetPort: client
- name: peer
port: 2380
protocol: TCP
targetPort: peer
publishNotReadyAddresses: true
selector:
app.kubernetes.io/instance: apisix
app.kubernetes.io/name: etcd
sessionAffinity: None
type: ClusterIP
调整之后再次查看状态服务运行正常，如果过程中pv对应目录存在脏数据导致etcd cluster版本较低。清理nfs-server对应目录文件，重新执行失败处理逻辑即可。
➜ apisix git:(0da1bd0) ✗ k get pvc,pod,deploy,sts,svc,endpoints
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
persistentvolumeclaim/data-apisix-etcd-0 Bound data-apisix-etcd-0 8Gi RWO nfs-client 15h
persistentvolumeclaim/data-apisix-etcd-1 Bound data-apisix-etcd-1 8Gi RWO nfs-client 15h
persistentvolumeclaim/data-apisix-etcd-2 Bound data-apisix-etcd-2 8Gi RWO nfs-client 15h
NAME READY STATUS RESTARTS AGE
pod/apisix-68d87594b5-gbp4h 1/1 Running 0 15h
pod/apisix-etcd-0 1/1 Running 1 (15h ago) 15h
pod/apisix-etcd-1 1/1 Running 1 (15h ago) 15h
pod/apisix-etcd-2 1/1 Running 0 15h
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/apisix 1/1 1 1 20h
NAME READY AGE
statefulset.apps/apisix-etcd 3/3 15h
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/apisix-admin ClusterIP 10.104.59.46 <none> 9180/TCP 20h
service/apisix-etcd ClusterIP 10.102.60.214 <none> 2379/TCP,2380/TCP 20h
service/apisix-etcd-headless ClusterIP None <none> 2379/TCP,2380/TCP 20h
service/apisix-gateway NodePort 10.103.204.62 <none> 80:30290/TCP 20h
NAME ENDPOINTS AGE
endpoints/apisix-admin 10.244.11.4:9180 20h
endpoints/apisix-etcd 10.244.11.3:2380,10.244.5.73:2380,10.244.6.174:2380 + 3 more... 20h
endpoints/apisix-etcd-headless 10.244.11.3:2380,10.244.5.73:2380,10.244.6.174:2380 + 3 more... 20h
endpoints/apisix-gateway 10.244.11.4:9080 20h
➜ apisix git:(0da1bd0) ✗
1.2 配置调整
在apisix服务可以正常运行之后，满足正常开发需要还需要进行一些配置调整，具体参考下面资源。
如果只是通过helloworld熟悉apisix功能，1.2小节可以直接跳过。
1.2.1 Apisix-configmap更新
文件是更新后的configmap全部内容，添加了对于服务发现，prometheus，外部ip访问admin api的更新
apiVersion: v1
data:
config.yaml: |-
#
# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements. See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#
apisix: # universal configurations
node_listen: # APISIX listening port
- 9080
enable_heartbeat: true
enable_admin: true
enable_admin_cors: true
enable_debug: false
enable_dev_mode: false # Sets nginx worker_processes to 1 if set to true
enable_reuseport: true # Enable nginx SO_REUSEPORT switch if set to true.
enable_ipv6: true # Enable nginx IPv6 resolver
enable_server_tokens: true # Whether the APISIX version number should be shown in Server header
# proxy_protocol: # Proxy Protocol configuration
# listen_http_port: 9181 # The port with proxy protocol for http, it differs from node_listen and admin_listen.
# # This port can only receive http request with proxy protocol, but node_listen & admin_listen
# # can only receive http request. If you enable proxy protocol, you must use this port to
# # receive http request with proxy protocol
# listen_https_port: 9182 # The port with proxy protocol for https
# enable_tcp_pp: true # Enable the proxy protocol for tcp proxy, it works for stream_proxy.tcp option
# enable_tcp_pp_to_upstream: true # Enables the proxy protocol to the upstream server
proxy_cache: # Proxy Caching configuration
cache_ttl: 10s # The default caching time if the upstream does not specify the cache time
zones: # The parameters of a cache
- name: disk_cache_one # The name of the cache, administrator can be specify
# which cache to use by name in the admin api
memory_size: 50m # The size of shared memory, it's used to store the cache index
disk_size: 1G # The size of disk, it's used to store the cache data
disk_path: "/tmp/disk_cache_one" # The path to store the cache data
cache_levels: "1:2" # The hierarchy levels of a cache
# - name: disk_cache_two
# memory_size: 50m
# disk_size: 1G
# disk_path: "/tmp/disk_cache_two"
# cache_levels: "1:2"
router:
http: radixtree_host_uri # radixtree_uri: match route by uri(base on radixtree)
# radixtree_host_uri: match route by host + uri(base on radixtree)
# radixtree_uri_with_parameter: match route by uri with parameters
ssl: 'radixtree_sni' # radixtree_sni: match route by SNI(base on radixtree)
proxy_mode: http
# dns_resolver:
#
# - 127.0.0.1
#
# - 172.20.0.10
#
# - 114.114.114.114
#
# - 223.5.5.5
#
# - 1.1.1.1
#
# - 8.8.8.8
#
dns_resolver_valid: 30
resolver_timeout: 5
ssl:
enable: true #开启https ssl
listen:
- port: 9443
enable_http2: true
ssl_protocols: "TLSv1.2 TLSv1.3"
ssl_ciphers: "ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384:DHE-RSA-CHACHA20-POLY1305:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA256:ECDHE-ECDSA-AES128-SHA:ECDHE-RSA-AES128-SHA:ECDHE-ECDSA-AES256-SHA384:ECDHE-RSA-AES256-SHA384:ECDHE-ECDSA-AES256-SHA:ECDHE-RSA-AES256-SHA:DHE-RSA-AES128-SHA256:DHE-RSA-AES256-SHA256:AES128-GCM-SHA256:AES256-GCM-SHA384:AES128-SHA256:AES256-SHA256:AES128-SHA:AES256-SHA:DES-CBC3-SHA"
nginx_config: # config for render the template to genarate nginx.conf
error_log: "/dev/stderr"
error_log_level: "warn" # warn,error
worker_processes: "auto"
enable_cpu_affinity: true
worker_rlimit_nofile: 20480 # the number of files a worker process can open, should be larger than worker_connections
event:
worker_connections: 10620
http:
enable_access_log: true
access_log: "/dev/stdout"
access_log_format: '$remote_addr - $remote_user [$time_local] $http_host "$request" $status $body_bytes_sent $request_time "$http_referer" "$http_user_agent" $upstream_addr $upstream_status $upstream_response_time "$upstream_scheme://$upstream_host$upstream_uri"'
access_log_format_escape: default
keepalive_timeout: "60s"
client_header_timeout: 60s # timeout for reading client request header, then 408 (Request Time-out) error is returned to the client
client_body_timeout: 60s # timeout for reading client request body, then 408 (Request Time-out) error is returned to the client
send_timeout: 10s # timeout for transmitting a response to the client.then the connection is closed
underscores_in_headers: "on" # default enables the use of underscores in client request header fields
real_ip_header: "X-Real-IP" # http://nginx.org/en/docs/http/ngx_http_realip_module.html#real_ip_header
real_ip_from: # http://nginx.org/en/docs/http/ngx_http_realip_module.html#set_real_ip_from
- 127.0.0.1
- 'unix:'
discovery: # Service Discovery
kubernetes: # Kubernetes service discovery
service:
schema: https # apiserver schema, options [http, https], default https
host: "kubernetes.default.svc.cluster.local" #${KUBERNETES_SERVICE_HOST} # apiserver host, options [ipv4, ipv6, domain, environment variable], default ${KUBERNETES_SERVICE_HOST}
port: "443" #${KUBERNETES_SERVICE_PORT} # apiserver port, options [port number, environment variable], default ${KUBERNETES_SERVICE_PORT}
client:
# serviceaccount token or path of serviceaccount token_file
token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
namespace_selector:
match:
- apisix
# label_selector: |-
# app=cmp,
# shared_size: 1m #default 1m
ext-plugin:
cmd: ["/usr/local/apisix/configs/go-runner", "run"]
plugin_attr: # Plugin attributes # export opentelemetry variables to nginx variables
prometheus: # Plugin: prometheus
export_uri: /apisix/prometheus/metrics # Set the URI for the Prometheus metrics endpoint.
metric_prefix: apisix_ # Set the prefix for Prometheus metrics generated by APISIX.
enable_export_server: true # Enable the Prometheus export server.
export_addr: # Set the address for the Prometheus export server.
ip: 0.0.0.0 # Set the IP.
port: 9091
deployment:
role: traditional
role_traditional:
config_provider: etcd
admin:
allow_admin: # http://nginx.org/en/docs/http/ngx_http_access_module.html#allow
- 127.0.0.1/24
- 192.168.101.1/24
# - "::/64"
admin_listen:
ip: 0.0.0.0
port: 9180
# Default token when use API to call for Admin API.
# *NOTE*: Highly recommended to modify this value to protect APISIX's Admin API.
# Disabling this configuration item means that the Admin API does not
# require any authentication.
admin_key:
# admin: can everything for configuration data
- name: "admin"
key: edd1c9f034335f136f87ad84b625c8f1
role: admin
# viewer: only can view configuration data
- name: "viewer"
key: 4054f7cf07e344346cd3f287985e76a2
role: viewer
etcd:
host: # it's possible to define multiple etcd hosts addresses of the same etcd cluster.
- "http://apisix-etcd.apisix.svc.cluster.local:2379"
prefix: "/apisix" # configuration prefix in etcd
timeout: 30 # 30 seconds
kind: ConfigMap
metadata:
annotations:
meta.helm.sh/release-name: apisix
meta.helm.sh/release-namespace: apisix
creationTimestamp: "2024-03-07T05:35:32Z"
labels:
app.kubernetes.io/managed-by: Helm
name: apisix
namespace: apisix
resourceVersion: "24664574"
uid: 699abd13-0c63-4d04-a546-9b7b3d11ce5d
1.2.2 添加apisix prometheus svc
方便对外部prometheus集成添加ip:port，添加svc暴露apisix prometheus metric endpoint
apiVersion: v1
kind: Service
metadata:
annotations:
meta.helm.sh/release-name: apisix
meta.helm.sh/release-namespace: apisix
creationTimestamp: "2024-03-07T05:35:32Z"
labels:
app.kubernetes.io/instance: apisix
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/name: apisix
app.kubernetes.io/service: apisix-prometheus
app.kubernetes.io/version: 3.8.0
helm.sh/chart: apisix-2.6.0
name: apisix-prometheus
namespace: apisix
spec:
ports:
- name: apisix-prometheus
nodePort: 30291
port: 80
protocol: TCP
targetPort: 9091
selector:
app.kubernetes.io/instance: apisix
app.kubernetes.io/name: apisix
type: NodePort
1.2.3 更新deploy挂载自定义插件到apisix
apiVersion: apps/v1
kind: Deployment
metadata:
annotations:
deployment.kubernetes.io/revision: "2"
meta.helm.sh/release-name: apisix
meta.helm.sh/release-namespace: apisix
creationTimestamp: "2024-03-07T05:35:32Z"
generation: 9
labels:
app.kubernetes.io/instance: apisix
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/name: apisix
app.kubernetes.io/version: 3.8.0
helm.sh/chart: apisix-2.6.0
name: apisix
namespace: apisix
spec:
progressDeadlineSeconds: 600
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
app.kubernetes.io/instance: apisix
app.kubernetes.io/name: apisix
strategy:
rollingUpdate:
maxSurge: 25%
maxUnavailable: 25%
type: RollingUpdate
template:
metadata:
annotations:
checksum/config: 8ff3f1d7102abb3264b1b593afaf29ace53bfa2556ec768e59378471fcb8c3e7
creationTimestamp: null
labels:
app.kubernetes.io/instance: apisix
app.kubernetes.io/name: apisix
spec:
containers:
- image: reg.apx.com/library/apisix:3.8.0-debian
imagePullPolicy: IfNotPresent
lifecycle:
preStop:
exec:
command:
- /bin/sh
- -c
- sleep 30
name: apisix
ports:
- containerPort: 9080
name: http
protocol: TCP
- containerPort: 9443
name: tls
protocol: TCP
- containerPort: 9180
name: admin
protocol: TCP
readinessProbe:
failureThreshold: 6
initialDelaySeconds: 10
periodSeconds: 10
successThreshold: 1
tcpSocket:
port: 9080
timeoutSeconds: 1
resources: {}
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
volumeMounts:
- mountPath: /usr/local/apisix/conf/config.yaml
name: apisix-config
subPath: config.yaml
- mountPath: /usr/local/apisix/configs
name: ext-plugin
dnsPolicy: ClusterFirst
initContainers:
- command:
- sh
- -c
- until nc -z apisix-etcd.apisix.svc.cluster.local 2379; do echo waiting for
etcd `date`; sleep 2; done;
image: busybox:1.28
imagePullPolicy: IfNotPresent
name: wait-etcd
resources: {}
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
restartPolicy: Always
schedulerName: default-scheduler
securityContext: {}
serviceAccount: default
serviceAccountName: default
terminationGracePeriodSeconds: 30
volumes:
- configMap:
defaultMode: 420
name: apisix
name: apisix-config
- name: ext-plugin
persistentVolumeClaim:
claimName: apisix-ext-plugin-pvc
添加deployment中使用的pv和pvc
将插件的二进制文件和所需要的配置文件提前copy到nfs server中
[root@nfs-server apisix_plugin]# pwd
/data/nfs_data/apisix_plugin
[root@nfs-server apisix_plugin]# ls
config.dev.yaml go-runner
[root@nfs-server apisix_plugin]#
#apisix挂载外部插件使用的pv和pvc
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: apisix-ext-plugin-pvc
namespace: apisix
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 2Gi
storageClassName: nfs-client
volumeMode: Filesystem
volumeName: apisix-ext-plugin-pv
status:
accessModes:
- ReadWriteMany
capacity:
storage: 2Gi
phase: Bound
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: apisix-ext-plugin-pv
spec:
accessModes:
- ReadWriteMany
capacity:
storage: 2Gi
claimRef:
apiVersion: v1
kind: PersistentVolumeClaim
name: apisix-ext-plugin-pvc
namespace: apisix
nfs:
path: /data/nfs_data/apisix_plugin
server: 192.168.101.55
persistentVolumeReclaimPolicy: Retain
storageClassName: nfs-client
volumeMode: Filesystem
2. 基本功能演示
2.1 路由配置
~ curl https://httpbin.org/ip
{
"origin": "222.90.142.120"
}
➜ ~
调用apisix-admin接口添加路由信息，添加路由执行httpbin.org，路由添加完成后我们通过访问api-gateway服务验证路由。
添加路由之前访问/ip路径失败
curl -i http://192.168.101.23:30290/ip
HTTP/1.1 404 Not Found
Date: Fri, 08 Mar 2024 02:48:03 GMT
Content-Type: text/plain; charset=utf-8
Transfer-Encoding: chunked
Connection: keep-alive
Server: APISIX/3.8.0
{"error_msg":"404 Route Not Found"}
添加/ip路由
➜ ~ curl -i "http://127.0.0.1:9180/apisix/admin/routes" -H 'X-API-KEY: edd1c9f034335f136f87ad84b625c8f1' -X PUT -d '
{
"id": "getting-started-ip",
"uri": "/ip",
"upstream": {
"type": "roundrobin",
"nodes": {
"httpbin.org:80": 1
}
}
}'
HTTP/1.1 201 Created
Date: Fri, 08 Mar 2024 02:43:17 GMT
Content-Type: application/json
Transfer-Encoding: chunked
Connection: keep-alive
Server: APISIX/3.8.0
Access-Control-Allow-Origin: *
Access-Control-Allow-Credentials: true
Access-Control-Expose-Headers: *
Access-Control-Max-Age: 3600
X-API-VERSION: v3
{
"value": {
"status": 1,
"upstream": {
"scheme": "http",
"type": "roundrobin",
"pass_host": "pass",
"nodes": {
"httpbin.org:80": 1
},
"hash_on": "vars"
},
"uri": "/ip",
"id": "getting-started-ip",
"priority": 0,
"update_time": 1709865797,
"create_time": 1709865797
},
"key": "/apisix/routes/getting-started-ip"
}
➜ ~
再次通过apisix gateway服务访问/ip路径可以看到请求被分配到到upstream中配置的httpbin服务中，可以看出来配置的路由生效。
➜ ~ curl -i http://192.168.101.23:30290/ip
HTTP/1.1 200 OK
Content-Type: application/json
Content-Length: 47
Connection: keep-alive
Date: Fri, 08 Mar 2024 02:47:19 GMT
Access-Control-Allow-Origin: *
Access-Control-Allow-Credentials: true
Server: APISIX/3.8.0
{
"origin": "192.168.101.23, 43.254.54.39"
}
➜ ~
2.2 负载均衡
在演示了单个请求的路由配置之后，我们接下来通过对于同一个路由配置不同的两个服务，从而通过apisix实现对请求通过负载均衡分配到upstream中配置的不同服务来处理请求。
创建/headers路径路由，请求将被转发到 httpbin.org 和 mock.api7.ai 这两个上游服务，并且会返回请求头。有时候可能会因为网络原因失败。
curl -i "http://127.0.0.1:9180/apisix/admin/routes" -H 'X-API-KEY: edd1c9f034335f136f87ad84b625c8f1' -X PUT -d '
{
"id": "getting-started-headers",
"uri": "/headers",
"upstream" : {
"type": "roundrobin",
"nodes": {
"httpbin.org:443": 1,
"mock.api7.ai:443": 1
},
"pass_host": "node",
"scheme": "https"
}}'
HTTP/1.1 201 Created
Date: Fri, 08 Mar 2024 06:48:53 GMT
Content-Type: application/json
Transfer-Encoding: chunked
Connection: keep-alive
Server: APISIX/3.8.0
Access-Control-Allow-Origin: *
Access-Control-Allow-Credentials: true
Access-Control-Expose-Headers: *
Access-Control-Max-Age: 3600
X-API-VERSION: v3
{
"value": {
"status": 1,
"upstream": {
"scheme": "https",
"type": "roundrobin",
"pass_host": "node",
"nodes": {
"httpbin.org:443": 1,
"mock.api7.ai:443": 1
},
"hash_on": "vars"
},
"uri": "/headers",
"id": "getting-started-headers",
"priority": 0,
"update_time": 1709880533,
"create_time": 1709880533
},
"key": "/apisix/routes/getting-started-headers"
}
通过apisix-gateway服务访问查看均衡效果
➜ ~ curl -i http://192.168.101.23:30290/headers
HTTP/1.1 200 OK
Content-Type: application/json
Content-Length: 652
Connection: keep-alive
Date: Fri, 08 Mar 2024 06:49:03 GMT
Host: mock.api7.ai
X-Real-IP: 43.254.54.39
X-Forwarded-Proto: https
CF-Ray: 8610e215ab94fabe-SJC
Accept-Encoding: gzip, br
Accept: */*
User-Agent: curl/7.88.1
CF-Connecting-IP: 43.254.54.39
CF-IPCountry: CN
CF-Visitor: {"scheme":"https"}
X-Application-Owner: API7.ai
X-Forwarded-For: 192.168.101.23
X-Forwarded-Host: 192.168.101.23
X-Forwarded-Port: 9080
Report-To: {"endpoints":[{"url":"https://a.nel.cloudflare.com/report/v3?s=ooZHryJQuJiov4YHSZtj2Pc7vHwoS8RShdd12N57qhGu6DXnHtAgKExmDGbh6JwWEhomPIDsMGu%2B7A%2Brn9ZojD4NIxN9zLf76n0F4xMSTvfaZQkO6EsxHAX6FpE8pgA%3D"}],"group":"cf-nel","max_age":604800}
NEL: {"success_fraction":0,"report_to":"cf-nel","max_age":604800}
alt-svc: h3=":443"; ma=86400
Server: APISIX/3.8.0
{
"headers": {
"accept": "*/*",
"accept-encoding": "gzip, br",
"cf-connecting-ip": "43.254.54.39",
"cf-ipcountry": "CN",
"cf-ray": "8610e215ab94fabe",
"cf-visitor": "{"scheme":"https"}",
"connection": "Keep-Alive",
"content-type": "application/json",
"host": "mock.api7.ai",
"user-agent": "curl/7.88.1",
"x-application-owner": "API7.ai",
"x-forwarded-for": "192.168.101.23",
"x-forwarded-host": "192.168.101.23",
"x-forwarded-port": "9080",
"x-forwarded-proto": "https",
"x-real-ip": "43.254.54.39",
"X-Application-Owner": "API7.ai",
"Content-Type": "application/json"
}
}%
➜ ~ curl -i http://192.168.101.23:30290/headers
HTTP/1.1 200 OK
Content-Type: application/json
Content-Length: 652
Connection: keep-alive
Date: Fri, 08 Mar 2024 06:49:09 GMT
Host: mock.api7.ai
X-Real-IP: 43.254.54.39
X-Forwarded-Proto: https
CF-Ray: 8610e239dc5d6438-SJC
Accept-Encoding: gzip, br
Accept: */*
User-Agent: curl/7.88.1
CF-Connecting-IP: 43.254.54.39
CF-IPCountry: CN
CF-Visitor: {"scheme":"https"}
X-Application-Owner: API7.ai
X-Forwarded-For: 192.168.101.23
X-Forwarded-Host: 192.168.101.23
X-Forwarded-Port: 9080
Report-To: {"endpoints":[{"url":"https://a.nel.cloudflare.com/report/v3?s=C%2BNMgFaueng9qnjDvur1CFIzu0ukoWh3DBvyncdjbLnH%2F0Gh3KRAqEOxacsHyfBRf8icZoC016uScXu2LS1pA8HOYXs4KHKKwjsSyC4OCTCgLMalfUBZimhnyocdIyo%3D"}],"group":"cf-nel","max_age":604800}
NEL: {"success_fraction":0,"report_to":"cf-nel","max_age":604800}
alt-svc: h3=":443"; ma=86400
Server: APISIX/3.8.0
{
"headers": {
"accept": "*/*",
"accept-encoding": "gzip, br",
"cf-connecting-ip": "43.254.54.39",
"cf-ipcountry": "CN",
"cf-ray": "8610e239dc5d6438",
"cf-visitor": "{"scheme":"https"}",
"connection": "Keep-Alive",
"content-type": "application/json",
"host": "mock.api7.ai",
"user-agent": "curl/7.88.1",
"x-application-owner": "API7.ai",
"x-forwarded-for": "192.168.101.23",
"x-forwarded-host": "192.168.101.23",
"x-forwarded-port": "9080",
"x-forwarded-proto": "https",
"x-real-ip": "43.254.54.39",
"X-Application-Owner": "API7.ai",
"Content-Type": "application/json"
}
}%
➜ ~ curl -i http://192.168.101.23:30290/headers
HTTP/1.1 200 OK
Content-Type: application/json
Content-Length: 216
Connection: keep-alive
Date: Fri, 08 Mar 2024 06:49:24 GMT
Access-Control-Allow-Origin: *
Access-Control-Allow-Credentials: true
Server: APISIX/3.8.0
{
"headers": {
"Accept": "*/*",
"Host": "httpbin.org",
"User-Agent": "curl/7.88.1",
"X-Amzn-Trace-Id": "Root=1-65eab4f4-6a4b817e59a56d1e395bdde1",
"X-Forwarded-Host": "192.168.101.23"
}
}
➜ ~ curl -i http://192.168.101.23:30290/headers
HTTP/1.1 200 OK
Content-Type: application/json
Content-Length: 652
Connection: keep-alive
Date: Fri, 08 Mar 2024 06:49:28 GMT
Host: mock.api7.ai
X-Real-IP: 43.254.54.39
X-Forwarded-Proto: https
CF-Ray: 8610e2b40f6467af-SJC
Accept-Encoding: gzip, br
Accept: */*
User-Agent: curl/7.88.1
CF-Connecting-IP: 43.254.54.39
CF-IPCountry: CN
CF-Visitor: {"scheme":"https"}
X-Application-Owner: API7.ai
X-Forwarded-For: 192.168.101.23
X-Forwarded-Host: 192.168.101.23
X-Forwarded-Port: 9080
Report-To: {"endpoints":[{"url":"https://a.nel.cloudflare.com/report/v3?s=MEnhNqgDadE8gs1q6T7tAyS1mCknbUqUCfG9VwyQJUAFUhZL5%2F5yOS5SZ63d7tU4PvaO4EPPtB%2B92Zna2qPiNippm5beuH1l%2FxKamQHeHIQiectN58Rn3X3cLkjOX90%3D"}],"group":"cf-nel","max_age":604800}
NEL: {"success_fraction":0,"report_to":"cf-nel","max_age":604800}
alt-svc: h3=":443"; ma=86400
Server: APISIX/3.8.0
{
"headers": {
"accept": "*/*",
"accept-encoding": "gzip, br",
"cf-connecting-ip": "43.254.54.39",
"cf-ipcountry": "CN",
"cf-ray": "8610e2b40f6467af",
"cf-visitor": "{"scheme":"https"}",
"connection": "Keep-Alive",
"content-type": "application/json",
"host": "mock.api7.ai",
"user-agent": "curl/7.88.1",
"x-application-owner": "API7.ai",
"x-forwarded-for": "192.168.101.23",
"x-forwarded-host": "192.168.101.23",
"x-forwarded-port": "9080",
"x-forwarded-proto": "https",
"x-real-ip": "43.254.54.39",
"X-Application-Owner": "API7.ai",
"Content-Type": "application/json"
}
}%
3. # 安装apisix-dashboard
apisix也提供了图形化界面来管理apisix服务以及配置，从而简化对于apisix的操作。
下面通过helm安装apisix-dashboard可视化工具，通过客户端来管理apisix服务。
helm install apisix-dashboard apisix/apisix-dashboard --namespace apisix
查看apisix-dashboard对应的helm chart和apisix-dashboard服务版本信息
apisix git:(0da1bd0) ✗ helm list
NAME NAMESPACE REVISION UPDATED STATUS CHART APP VERSION
apisix apisix 1 2024-03-07 13:35:26.20196 +0800 CST deployed apisix-2.6.0 3.8.0
apisix-dashboard apisix 1 2024-03-08 14:13:28.980674 +0800 CST deployed apisix-dashboard-0.8.2 3.0.0

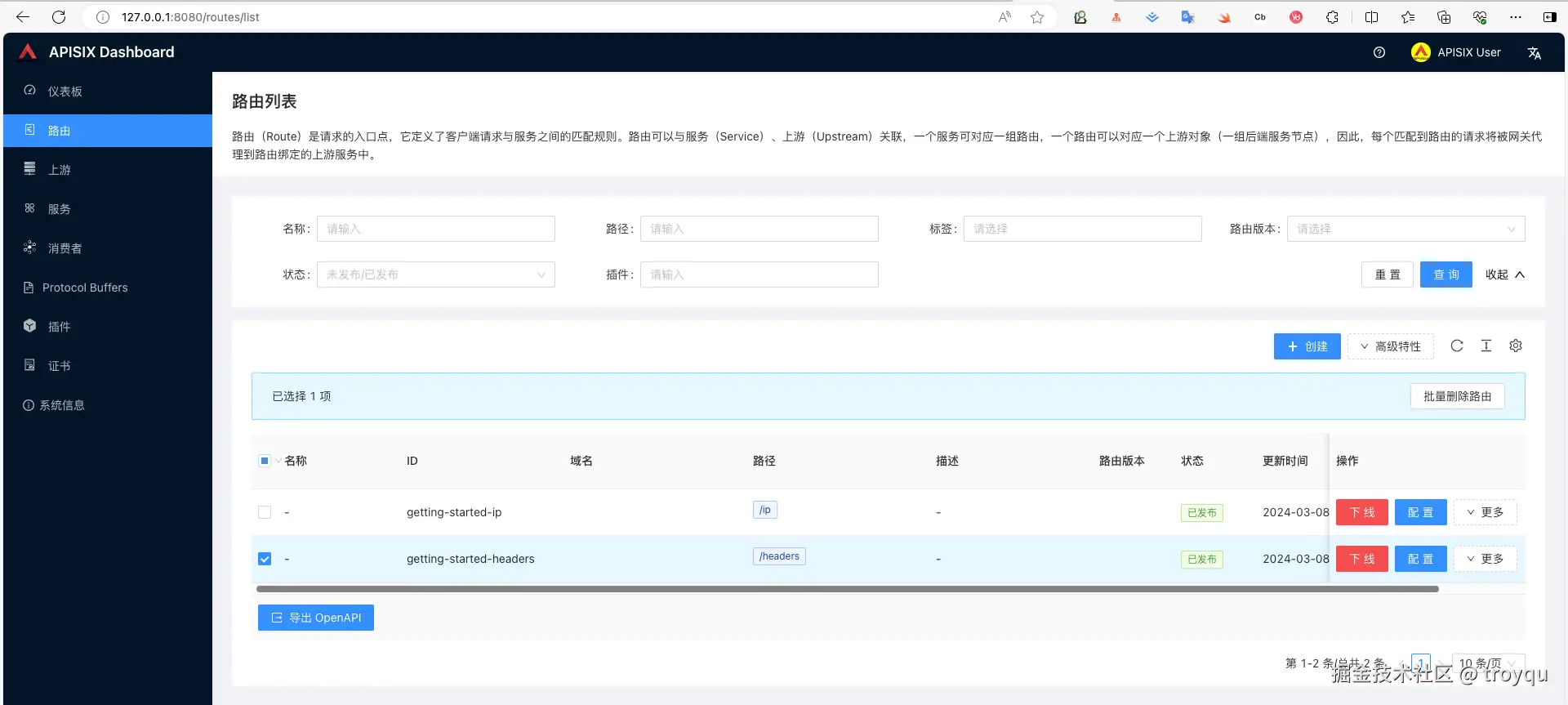

通过浏览器访问查看之前创建的路由信息。
-
总结
到这里已经对于apisix有一个初步的认识了，通过本文可以了解到。
- apisix，apisix-dashboard服务的快速部署
- 在apisix怎么配置路由，upstream并且将请求路由到我们期望的后端服务中
有一点要注意的是，本文作为快速入门只是介绍了如何快速完成以上功能，但是如果涉及到具体使用，还需要对于细节进行深入的了解。尤其是要在prod环境使用的时候，更是要了解详细的参数配置，以避免因为参数配置不当导致的服务一致性等问题。
附录
相关链接
apisix.apache.org/docs/apisix… apisix.apache.org/docs/apisix…
