一.了解nameservice
NameServer是一个简单的 Topic 路由注册中心，支持 Topic、Broker 的动态注册与发现。
主要包括两个功能：
- Broker管理，NameServer接受Broker集群的注册信息并且保存下来作为路由信息的基本数据。然后提供心跳检测机制，检查Broker是否还存活；
- 路由信息管理，每个NameServer将保存关于 Broker 集群的整个路由信息和用于客户端查询的队列信息。Producer和Consumer通过NameServer就可以知道整个Broker集群的路由信息，从而进行消息的投递和消费。
NameServer通常会有多个实例部署，各实例间相互不进行信息通讯。Broker是向每一台NameServer注册自己的路由信息，所以每一个NameServer实例上面都保存一份完整的路由信息。当某个NameServer因某种原因下线了，客户端仍然可以向其它NameServer获取路由信息。
ps：可以先简单理解成一个无状态的注册中心。
二.nameservice具体实现
我是手抄了一下官网的项目，接下来我简单介绍一下重点。
2.1.nameservice_types
import (
corev1 "k8s.io/api/core/v1"
metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
)
// EDIT THIS FILE! THIS IS SCAFFOLDING FOR YOU TO OWN!
// NOTE: json tags are required. Any new fields you add must have json tags for the fields to be serialized.
// NameServiceSpec defines the desired state of NameService
type NameServiceSpec struct {
// INSERT ADDITIONAL SPEC FIELDS - desired state of cluster
// Important: Run "make" to regenerate code after modifying this file
// Size is the number of the name service Pod
Size int32 `json:"size"`
//NameServiceImage is the name service image
NameServiceImage string `json:"nameServiceImage"`
// ImagePullPolicy defines how the image is pulled.
ImagePullPolicy corev1.PullPolicy `json:"imagePullPolicy"`
// HostNetwork can be true or false
HostNetwork bool `json:"hostNetwork"`
// dnsPolicy defines how a pod's DNS will be configured
DNSPolicy corev1.DNSPolicy `json:"dnsPolicy"`
// Resources describes the compute resource requirements
Resources corev1.ResourceRequirements `json:"resources"`
// StorageMode can be EmptyDir, HostPath, StorageClass
StorageMode string `json:"storageMode"`
// HostPath is the local path to store data
HostPath string `json:"hostPath"`
// Env defines custom env, e.g. JAVA_OPT_EXT
Env []corev1.EnvVar `json:"env,omitempty"`
// VolumeClaimTemplates defines the StorageClass
VolumeClaimTemplates []corev1.PersistentVolumeClaim `json:"volumeClaimTemplates"`
// Pod Security Context
PodSecurityContext *corev1.PodSecurityContext `json:"securityContext,omitempty"`
// Container Security Context
ContainerSecurityContext *corev1.SecurityContext `json:"containerSecurityContext,omitempty"`
// The secrets used to pull image from private registry
ImagePullSecrets []corev1.LocalObjectReference `json:"imagePullSecrets,omitempty"`
// Affinity the pod's scheduling constraints
Affinity *corev1.Affinity `json:"affinity,omitempty"`
// Tolerations the pod's tolerations.
Tolerations []corev1.Toleration `json:"tolerations,omitempty"`
// NodeSelector is a selector which must be true for the pod to fit on a node
NodeSelector map[string]string `json:"nodeSelector,omitempty"`
// PriorityClassName indicates the pod's priority
PriorityClassName string `json:"priorityClassName,omitempty"`
// ServiceAccountName
ServiceAccountName string `json:"serviceAccountName,omitempty"`
}
// NameServiceStatus defines the observed state of NameService
type NameServiceStatus struct {
// INSERT ADDITIONAL STATUS FIELD - define observed state of cluster
// Important: Run "make" to regenerate code after modifying this file
// NameServers is the name service ip list
NameServices []string `json:"nameServices"`
}
// +kubebuilder:object:root=true
// +kubebuilder:subresource:status
// NameService is the Schema for the nameservices API
type NameService struct {
metav1.TypeMeta `json:",inline"`
metav1.ObjectMeta `json:"metadata,omitempty"`
Spec NameServiceSpec `json:"spec,omitempty"`
Status NameServiceStatus `json:"status,omitempty"`
}
// +kubebuilder:object:root=true
// NameServiceList contains a list of NameService
type NameServiceList struct {
metav1.TypeMeta `json:",inline"`
metav1.ListMeta `json:"metadata,omitempty"`
Items []NameService `json:"items"`
}
func init() {
SchemeBuilder.Register(&NameService{}, &NameServiceList{})
}
这个文件没什么可以说的，主要是定义了NameService的期望状态和集群的当前状态。
2.2.nameservice_controller
2.2.1Reconcile方法
核心，无需多言
func (r *NameServiceReconciler) Reconcile(ctx context.Context, req ctrl.Request) (ctrl.Result, error) {
reqLogger := log.WithValues("Request.Namespace", req.Namespace, "Request.Name", req.Name)
reqLogger.Info("Reconciling NameService")
// Fetch the NameService instance
instance := &appsv1s.NameService{}
err := r.Client.Get(context.TODO(), req.NamespacedName, instance)
if err != nil {
if errors.IsNotFound(err) {
return reconcile.Result{}, nil
}
return reconcile.Result{}, err
}
// Check if the statefulSet already exists, if not create a new one
found := &appsv1.StatefulSet{}
//返回一个statefulSet，注意这里并没有创建
dep := r.statefulSetForNameService(instance)
err = r.Client.Get(context.TODO(), types.NamespacedName{Name: dep.Name, Namespace: dep.Namespace}, found)
if err != nil && errors.IsNotFound(err) {
//没有找到就创建
err = r.Client.Create(context.TODO(), dep)
if err != nil {
reqLogger.Error(err, "Failed to create new StatefulSet of NameService", "StatefulSet.Namespace", dep.Namespace, "StatefulSet.Name", dep.Name)
}
// StatefulSet created successfully - return and requeue
return reconcile.Result{Requeue: true}, nil
} else if err != nil {
reqLogger.Error(err, "Failed to get NameService StatefulSet.")
}
// Ensure the statefulSet size is the same as the spec
size := instance.Spec.Size
if *found.Spec.Replicas != size {
found.Spec.Replicas = &size
//数量不够？
err = r.Client.Update(context.TODO(), found)
reqLogger.Info("NameService Updated")
if err != nil {
reqLogger.Error(err, "Failed to update StatefulSet.", "StatefulSet.Namespace", found.Namespace, "StatefulSet.Name", found.Name)
return reconcile.Result{}, err
}
}
return r.updateNameServiceStatus(instance, req, true)
}

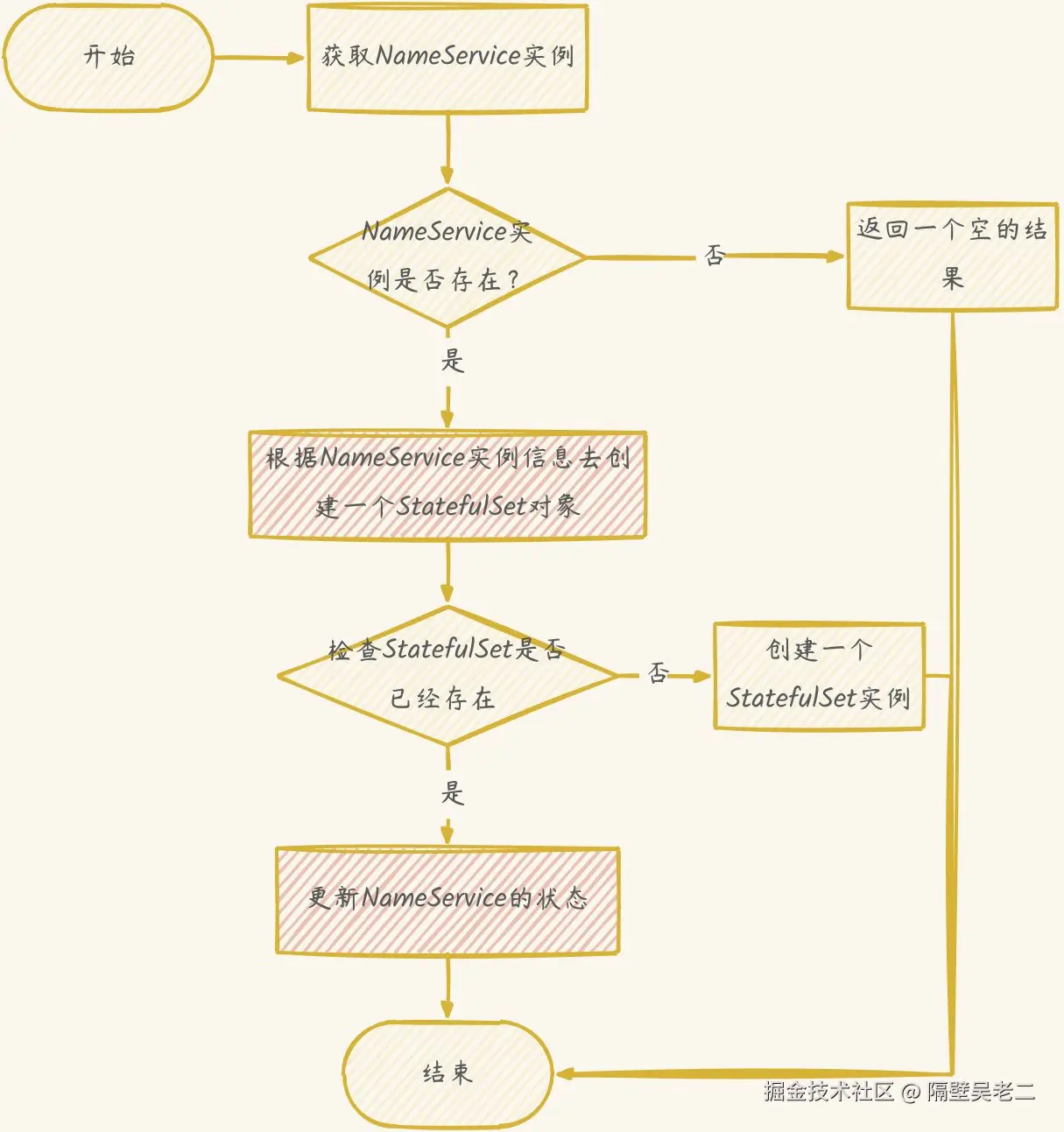

逻辑如下：
2.2.2statefulSetForNameService方法
主要的逻辑是创建StatefulSet，也就是我们上一个流程图中第一个红框的位置。
func (r *NameServiceReconciler) statefulSetForNameService(nameService *appsv1s.NameService) *appsv1.StatefulSet {
//Convert to this structure
//{"app": "name_service", "name_service_cr": nameService.Name}
ls := labelsForNameService(nameService.Name)
//如果没有设置VCT的名字，则随机生成一个,
//因为只需要一个VCT去挂载log目录的数据所以这里是[0]
if strings.EqualFold(nameService.Spec.VolumeClaimTemplates[0].Name, "") {
nameService.Spec.VolumeClaimTemplates[0].Name = uuid.New().String()
}
dep := &appsv1.StatefulSet{
ObjectMeta: ctrl.ObjectMeta{
Name: nameService.Name,
Namespace: nameService.Namespace,
},
Spec: appsv1.StatefulSetSpec{
Replicas: &nameService.Spec.Size,
Selector: &metav1.LabelSelector{
MatchLabels: ls,
},
Template: corev1.PodTemplateSpec{
ObjectMeta: metav1.ObjectMeta{
Labels: ls,
},
Spec: corev1.PodSpec{
ServiceAccountName: nameService.Spec.ServiceAccountName,
Affinity: nameService.Spec.Affinity,
Tolerations: nameService.Spec.Tolerations,
NodeSelector: nameService.Spec.NodeSelector,
PriorityClassName: nameService.Spec.PriorityClassName,
HostNetwork: nameService.Spec.HostNetwork,
DNSPolicy: nameService.Spec.DNSPolicy,
ImagePullSecrets: nameService.Spec.ImagePullSecrets,
Containers: []corev1.Container{{
Resources: nameService.Spec.Resources,
Image: nameService.Spec.NameServiceImage,
Name: "name-service",
ImagePullPolicy: nameService.Spec.ImagePullPolicy,
Env: nameService.Spec.Env,
Ports: []corev1.ContainerPort{{
ContainerPort: constants.NameServiceMainContainerPort,
Name: constants.NameServiceMainContainerPortName,
}},
VolumeMounts: []corev1.VolumeMount{{
MountPath: constants.LogMountPath,
Name: nameService.Spec.VolumeClaimTemplates[0].Name,
SubPath: constants.LogSubPathName,
}},
//为 Pod 或容器配置安全上下文
SecurityContext: getContainerSecurityContext(nameService),
}},
Volumes: getVolumes(nameService),
SecurityContext: getPodSecurityContext(nameService),
},
},
VolumeClaimTemplates: getVolumeClaimTemplates(nameService),
},
}
//Set Broker instance as the owner and controller
//可以确保当 nameService 这个资源被删除时，Kubernetes 会自动清理掉由它控制的 dep 资源
controllerutil.SetControllerReference(nameService, dep, r.Scheme)
return dep
}
这里主要存储，也就是getVolumes函数和getVolumeClaimTemplates函数。

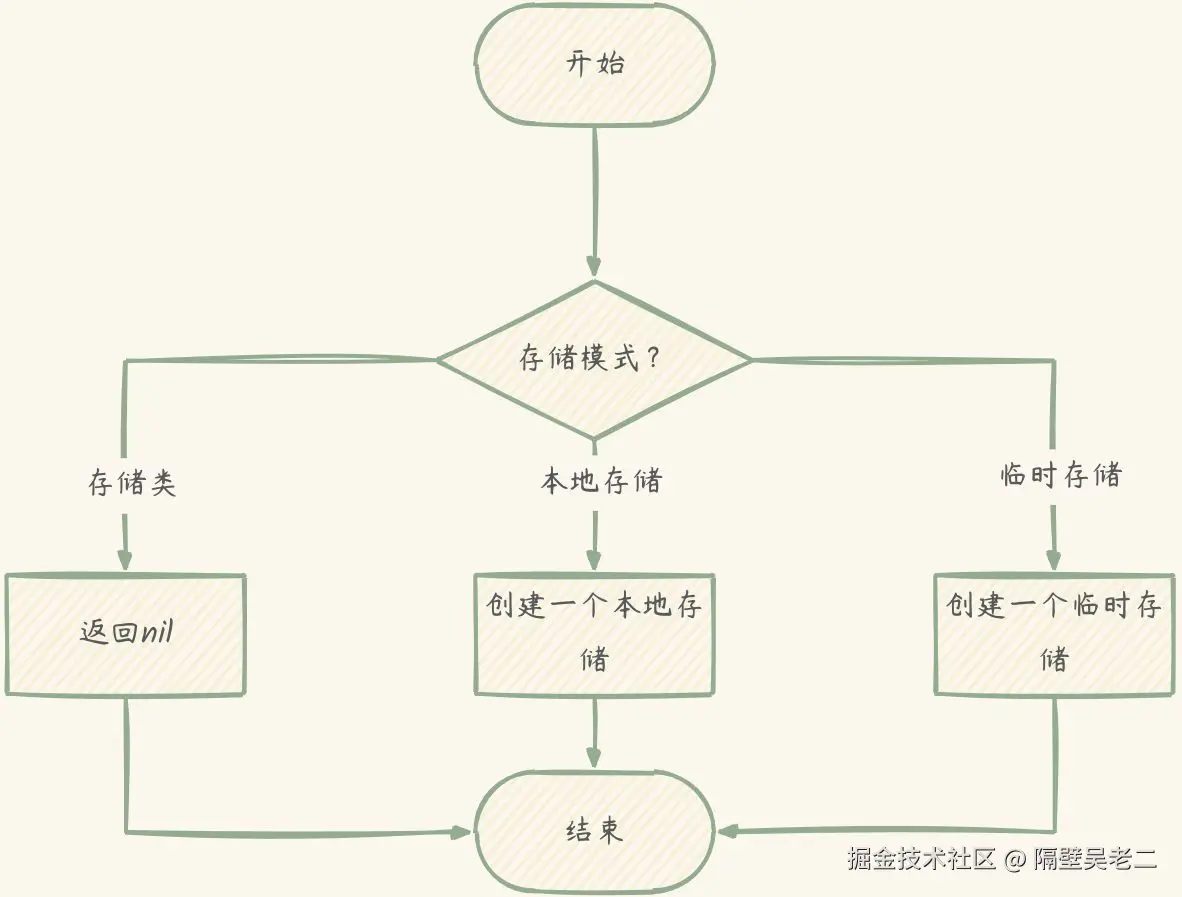

- getVolumes
// getVolumes 根据存储模式，创建卷
func getVolumes(nameService *appsv1s.NameService) []corev1.Volume {
switch nameService.Spec.StorageMode {
//不需要创建卷
case ss:
return nil
case constants.StorageModeEmptyDir:
//创建一个临时
volumes := []corev1.Volume{{
Name: nameService.Spec.VolumeClaimTemplates[0].Name,
VolumeSource: corev1.VolumeSource{
EmptyDir: &corev1.EmptyDirVolumeSource{},
},
}}
return volumes
case constants.StorageModeHostPath:
fallthrough
default:
//创建一个本地
volumes := []corev1.Volume{{
Name: nameService.Spec.VolumeClaimTemplates[0].Name,
VolumeSource: corev1.VolumeSource{
HostPath: &corev1.HostPathVolumeSource{
Path: nameService.Spec.HostPath,
}},
}}
return volumes
}
}

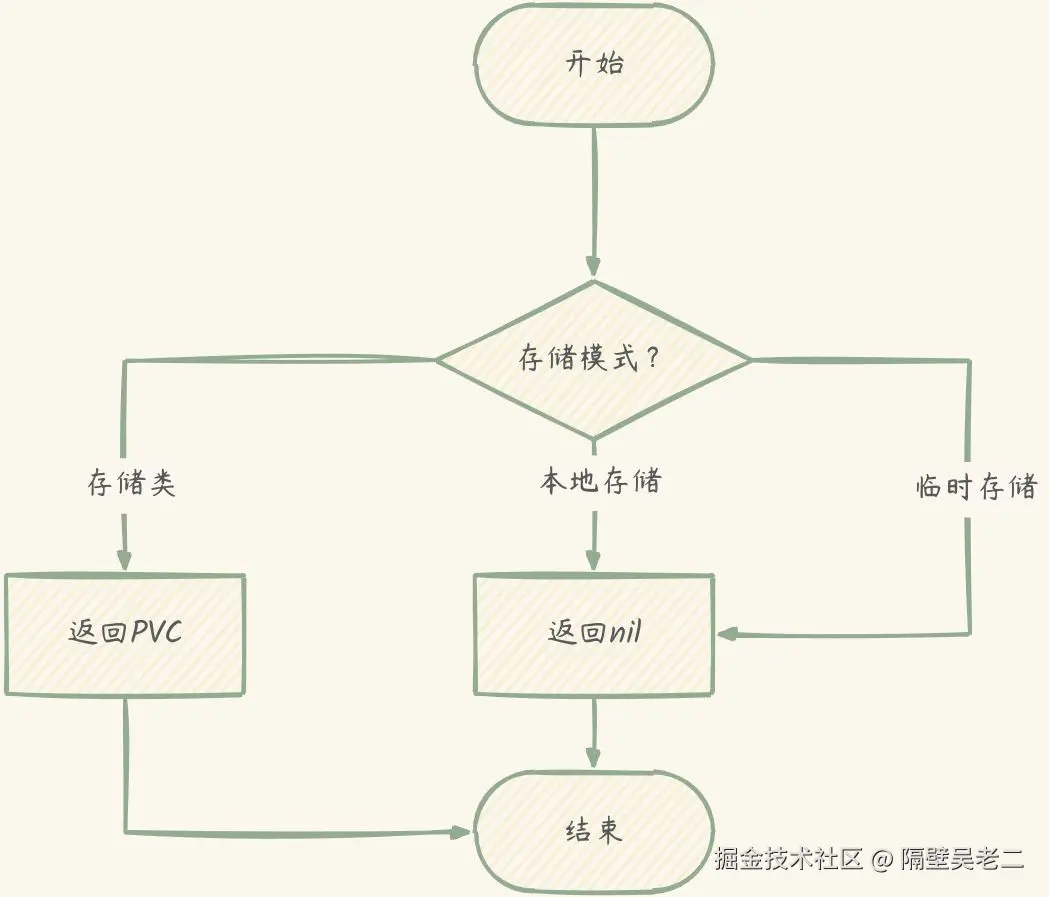

- getVolumeClaimTemplates
// getVolumeClaimTemplates 为StorageClass创建一个PVC
func getVolumeClaimTemplates(nameService *appsv1s.NameService) []corev1.PersistentVolumeClaim {
switch nameService.Spec.StorageMode {
case constants.StorageModeStorageClass:
return nameService.Spec.VolumeClaimTemplates
case constants.StorageModeEmptyDir, constants.StorageModeHostPath:
fallthrough
default:
return nil
}
}
总结一下，如果是本地或临时就去创建对应类型的volume,如果是存储类，那么就去通过PVC里指定的StorageClass去创建volume。

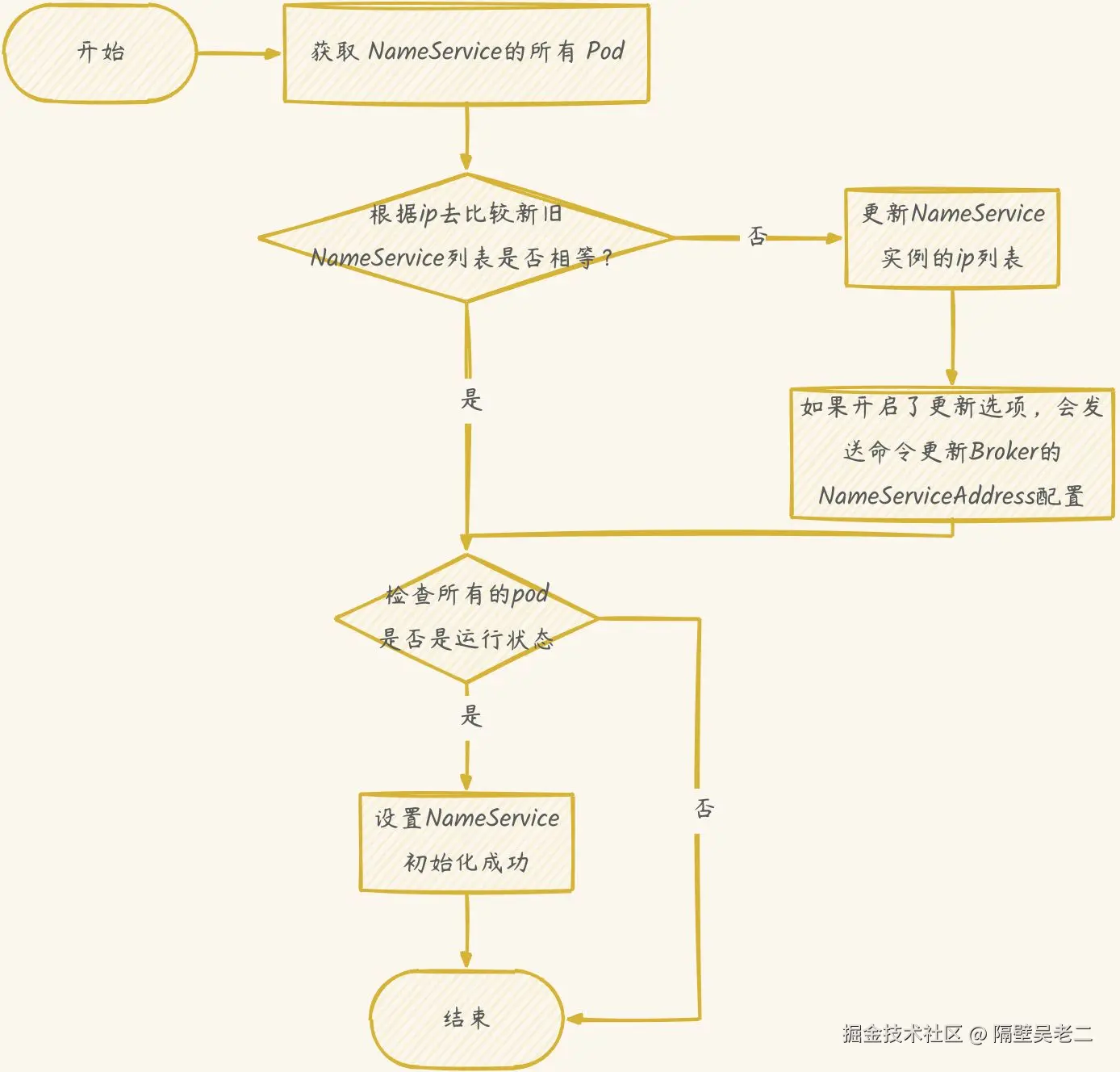

2.2.3.updateNameServiceStatus
func (r *NameServiceReconciler) updateNameServiceStatus(instance *appsv1s.NameService, request reconcile.Request, requeue bool) (reconcile.Result, error) {
reqLogger := log.WithValues("Request.Namespace", request.Namespace, "Request.Name", request.Name)
reqLogger.Info("Check the NameServers status")
// List the pods for this nameService's statefulSet
podList := &corev1.PodList{}
labelSelector := labels.SelectorFromSet(labelsForNameService(instance.Name))
listOps := &client.ListOptions{
Namespace: instance.Namespace,
LabelSelector: labelSelector,
}
err := r.Client.List(context.TODO(), podList, listOps)
if err != nil {
reqLogger.Error(err, "Failed to list pods.", "NameService.Namespace", instance.Namespace, "NameService.Name", instance.Name)
return reconcile.Result{Requeue: true}, err
}
//获取所有pod的ip
hostIps := getNameServers(podList.Items)
//排序
sort.Strings(hostIps)
sort.Strings(instance.Status.NameServices)
//生成类似
//192.168.1.1:9876;192.168.1.2:9876;192.168.1.3:9876;
nameServerListStr := ""
for _, value := range hostIps {
nameServerListStr = nameServerListStr + value + ":9876;"
}
// Update status.NameServers if needed
// 两个数组不相等，需要更新状态
if !reflect.DeepEqual(hostIps, instance.Status.NameServices) {
//原来的pod列表
oldNameServerListStr := ""
for _, value := range instance.Status.NameServices {
oldNameServerListStr = oldNameServerListStr + value + ":9876;"
}
//从新的复制一份数组并去除;
share.NameServersStr = nameServerListStr[:len(nameServerListStr)-1]
reqLogger.Info("share.NameServersStr:" + share.NameServersStr)
//老的小于8，就是ip不可能小于8只能说明有问题
if len(oldNameServerListStr) <= constants.MinIpListLength {
oldNameServerListStr = share.NameServersStr
} else if len(share.NameServersStr) > constants.MinIpListLength {
//正常更新状态
oldNameServerListStr = oldNameServerListStr[:len(oldNameServerListStr)-1]
share.IsNameServersStrUpdated = true
}
reqLogger.Info("oldNameServerListStr:" + oldNameServerListStr)
//更新状态
instance.Status.NameServices = hostIps
err := r.Client.Status().Update(context.TODO(), instance)
// Update the NameServers status with the host ips
reqLogger.Info("Updated the NameServers status with the host IP")
if err != nil {
reqLogger.Error(err, "Failed to update NameServers status of NameService.")
return reconcile.Result{Requeue: true}, err
}
//use admin tool to update broker config
//就是将broker的配置文件中关于nameServer的配置更新，同admin的方式
if share.IsNameServersStrUpdated && (len(oldNameServerListStr) > constants.MinIpListLength) &&
(len(share.NameServersStr) > constants.MinIpListLength) {
mqAdmin := constants.AdminToolDir
subCmd := constants.UpdateBrokerConfig
key := constants.ParamNameServiceAddress
reqLogger.Info("share.GroupNum=broker.Spec.Size=" + strconv.Itoa(share.GroupNum))
clusterName := share.BrokerClusterName
reqLogger.Info("Updating config " + key + " of cluster" + clusterName)
command := mqAdmin + " " + subCmd + " -c " + clusterName + " -k " + key + " -n " + oldNameServerListStr + " -v" + share.NameServersStr
cmd := osexec.Command("sh", mqAdmin, subCmd, "-c", clusterName, "-k", key, "-n", oldNameServerListStr, "-v", share.NameServersStr)
output, err := cmd.Output()
if err != nil {
reqLogger.Error(err, "Update Broker config "+key+" failed of cluster "+clusterName+", command: "+command)
return reconcile.Result{Requeue: true}, err
}
reqLogger.Info("Successfully updated Broker config " + key + " of cluster " + clusterName + ", command: " + command + ", with output: " + string(output))
}
}
// Print NameServers IP
for i, value := range instance.Status.NameServices {
reqLogger.Info("NameService IP[" + strconv.Itoa(i) + "]: " + value)
}
runningNameServerNum := getRunningNameServersNum(podList.Items)
if runningNameServerNum == instance.Spec.Size {
share.IsNameServersStrInitialized = true
share.NameServersStr = nameServerListStr //reassign if operator restarts
}
reqLogger.Info("Share variables", "GroupNum", share.GroupNum,
"NameServersStr", share.NameServersStr, "IsNameServersStrUpdated", share.IsNameServersStrUpdated,
"IsNameServersStrInitialized", share.IsNameServersStrInitialized, "BrokerClusterName", share.BrokerClusterName)
if requeue {
return reconcile.Result{Requeue: true, RequeueAfter: time.Duration(constants.RequeueIntervalInSecond) * time.Second}, nil
}
return reconcile.Result{}, nil
}
这里的逻辑就是不断的更新NameService的ip，也就是所有pod的ip地址组合的列表，如果有变化也会更新broker的nameservice地址。但是还需要重启broker的pod，这部分说Broker的时候会提到
总结
我感觉总结起来只有一句话：实现了新扩容的Name Server 自动被所有Broker感知（只实现了一半更新broker的nameservice地址，另一半重启broker在broker控制器中实现）
