vue3复习-源码-编译原理-源码分析

1.例子

老规矩，先跑具体例子debugger一下

<script src="../../dist/vue.global.js"></script>

<div id="demo">
  --{{val}}--
</div>

<script>
  debugger
const app = Vue.createApp({
  setup() {
   const val = Vue.ref("oooo")
    return {
      val,
    }
  }
})
app.mount('#demo')
</script>

<style>
</style>

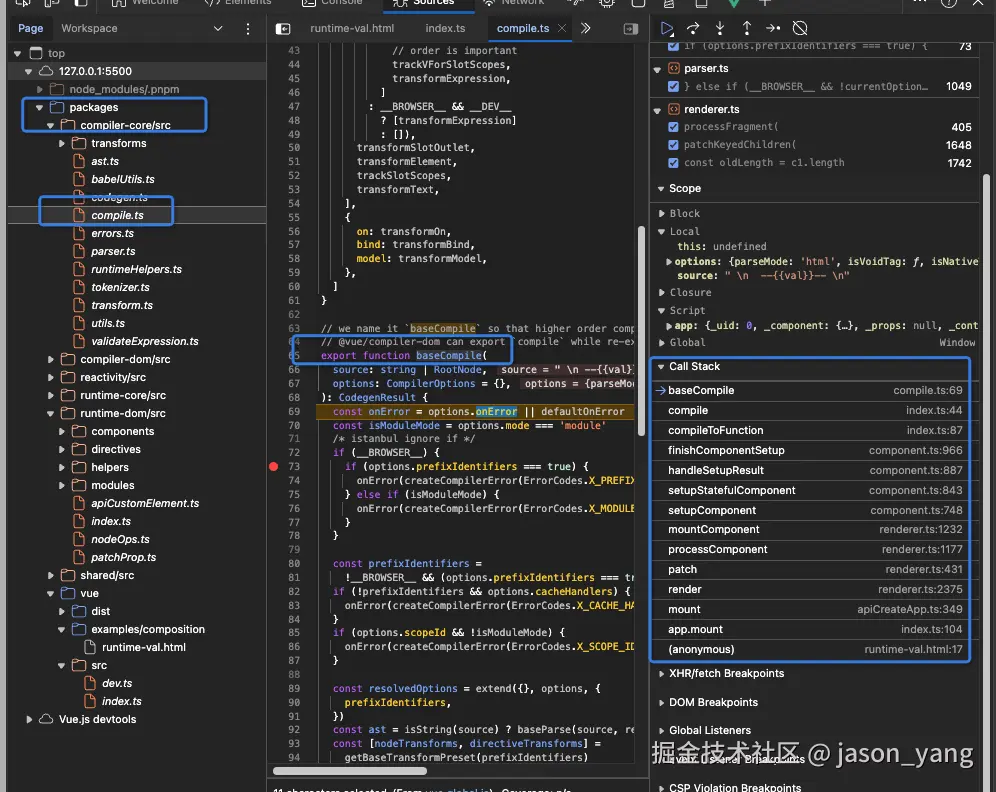

我们在 compile.ts的 baseCompile方法文件上加上断点

运行逻辑

我们可以看到整个调用的链条

• app.mount (runtime-dom/src/index.ts)
• mount 挂载 (apiCreateApp.ts)
• render 渲染 (renderer.ts)
• patch 对比更新 (renderer.ts)
• processComponent 对比更新 (renderer.ts)
• mountComponent 对比更新 (renderer.ts)
• setupComponent (component.ts)
• setupStatefulComponent (component.ts) 这里调用了自定定义个setup方法
• handleSetupResult (component.ts)
• finishComponentSetup (component.ts)
• compileToFunction (vue/src/index.ts) 这里的vue定义的compileToFunction 内部调用了compile
• compile (component.ts) 这里开始做模板转化

我们看到核心两个逻辑

• compileToFunction使用的是vue文件定义的方法
• 主要逻辑集中在实例化setup的时候component.ts文件，下面我们会具体分析

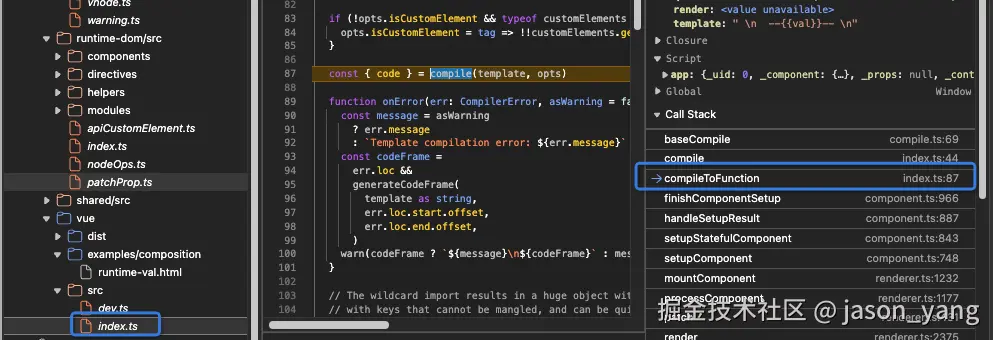

compileToFunction

我们先看一下 vue.js里面都定义了啥

• 引入的compiler-dom的compile方法
• 声明了compileToFunction方法
• 在方法里面使用compile方法生成字符串转成render函数导出

// This entry is the "full-build" that includes both the runtime
// and the compiler, and supports on-the-fly compilation of the template option.
import { initDev } from './dev'
import {
  type CompilerError,
  type CompilerOptions,
  compile, //这里引入的compiler-dom的compile方法
} from '@vue/compiler-dom'
import {
  type RenderFunction,
  registerRuntimeCompiler,
  warn,
} from '@vue/runtime-dom'
import * as runtimeDom from '@vue/runtime-dom'
import type { InternalRenderFunction } from 'packages/runtime-core/src/component'

const compileCache = new WeakMap<
  CompilerOptions,
  Record<string, RenderFunction>
>()

//主要定义了compileToFunction
function compileToFunction(
  template: string | HTMLElement,
  options?: CompilerOptions,
): RenderFunction {
  if (!isString(template)) {
    if (template.nodeType) {
      template = template.innerHTML
    } else {
      return NOOP
    }
  }

  const key = template
  const cache = getCache(options)
  const cached = cache[key]
  if (cached) {
    return cached
  }

  if (template[0] === '#') {
    const el = document.querySelector(template)
    if (__DEV__ && !el) {
      warn(`Template element not found or is empty: ${template}`)
    }
    template = el ? el.innerHTML : ``
  }

  const opts = extend(
    {
      hoistStatic: true,
      onError: __DEV__ ? onError : undefined,
      onWarn: __DEV__ ? e => onError(e, true) : NOOP,
    } as CompilerOptions,
    options,
  )

  if (!opts.isCustomElement && typeof customElements !== 'undefined') {
    opts.isCustomElement = tag => !!customElements.get(tag)
  }

  const { code } = compile(template, opts) // 这里调用的compiler-dom的compile方法

  function onError(err: CompilerError, asWarning = false) {
    const message = asWarning
      ? err.message
      : `Template compilation error: ${err.message}`
    const codeFrame =
      err.loc &&
      generateCodeFrame(
        template as string,
        err.loc.start.offset,
        err.loc.end.offset,
      )
    warn(codeFrame ? `${message}\n${codeFrame}` : message)
  }
  //创建了一个render 里面执行的是上面生成的code
  const render = (
    __GLOBAL__ ? new Function(code)() : new Function('Vue', code)(runtimeDom)
  ) as RenderFunction

  // mark the function as runtime compiled
  ;(render as InternalRenderFunction)._rc = true

  return (cache[key] = render)
}

registerRuntimeCompiler(compileToFunction)

export { compileToFunction as compile }
export * from '@vue/runtime-dom'

component.ts

component.ts 文件分析

• 先执行自定义setup的方法
• 调用compile 方法生成render函数

export function setupComponent(
  instance: ComponentInternalInstance,
  isSSR = false,
) {
  isSSR && setInSSRSetupState(isSSR)

  const { props, children } = instance.vnode
  const isStateful = isStatefulComponent(instance)
  initProps(instance, props, isStateful, isSSR)
  initSlots(instance, children)

  const setupResult = isStateful
    ? setupStatefulComponent(instance, isSSR)
    : undefined

  isSSR && setInSSRSetupState(false)
  return setupResult
}

function setupStatefulComponent(
  instance: ComponentInternalInstance,
  isSSR: boolean,
) {
  const Component = instance.type as ComponentOptions

  ...
  // 0. create render proxy property access cache
  instance.accessCache = Object.create(null)
  // 1. create public instance / render proxy
  instance.proxy = new Proxy(instance.ctx, PublicInstanceProxyHandlers)
  if (__DEV__) {
    exposePropsOnRenderContext(instance)
  }
  // 2. call setup()
  const { setup } = Component
  if (setup) {
    const setupContext = (instance.setupContext =
      setup.length > 1 ? createSetupContext(instance) : null)

    const reset = setCurrentInstance(instance)
    pauseTracking()
    //这里执行自定义setup的方法
    const setupResult = callWithErrorHandling(
      setup,
      instance,
      ErrorCodes.SETUP_FUNCTION,
      [
        __DEV__ ? shallowReadonly(instance.props) : instance.props,
        setupContext,
      ],
    )
    resetTracking()
    reset()

    if (isPromise(setupResult)) {
      setupResult.then(unsetCurrentInstance, unsetCurrentInstance)

    } else {
      handleSetupResult(instance, setupResult, isSSR)
    }
  } else {
    finishComponentSetup(instance, isSSR) //这里区实现
  }
}

export function handleSetupResult(
  instance: ComponentInternalInstance,
  setupResult: unknown,
  isSSR: boolean,
) {
  if (isFunction(setupResult)) {
    // setup returned an inline render function
    if (__SSR__ && (instance.type as ComponentOptions).__ssrInlineRender) {
      // when the function's name is `ssrRender` (compiled by SFC inline mode),
      // set it as ssrRender instead.
      instance.ssrRender = setupResult
    } else {
      instance.render = setupResult as InternalRenderFunction
    }
  } else if (isObject(setupResult)) {
    instance.setupState = proxyRefs(setupResult)
  }
  finishComponentSetup(instance, isSSR)
}


export function finishComponentSetup(
  instance: ComponentInternalInstance,
  isSSR: boolean,
  skipOptions?: boolean,
) {
  const Component = instance.type as ComponentOptions

  // template / render function normalization
  // could be already set when returned from setup()
  if (!instance.render) {
    // only do on-the-fly compile if not in SSR - SSR on-the-fly compilation
    // is done by server-renderer
    if (!isSSR && compile && !Component.render) {
      const template =
        (__COMPAT__ &&
          instance.vnode.props &&
          instance.vnode.props['inline-template']) ||
        Component.template ||
        resolveMergedOptions(instance).template
      if (template) {
        const { isCustomElement, compilerOptions } = instance.appContext.config
        const { delimiters, compilerOptions: componentCompilerOptions } =
          Component
        const finalCompilerOptions: CompilerOptions = extend(
          extend(
            {
              isCustomElement,
              delimiters,
            },
            compilerOptions,
          ),
          componentCompilerOptions,
        )
        //这里开始生成render函数
        Component.render = compile(template, finalCompilerOptions) //这里使用 dom-compiler的compile的方法生成render函数
      }
    }
    instance.render = (Component.render || NOOP) as InternalRenderFunction

    // for runtime-compiled render functions using `with` blocks, the render
    // proxy used needs a different `has` handler which is more performant and
    // also only allows a whitelist of globals to fallthrough.
    if (installWithProxy) {
      installWithProxy(instance)
    }
  }
}

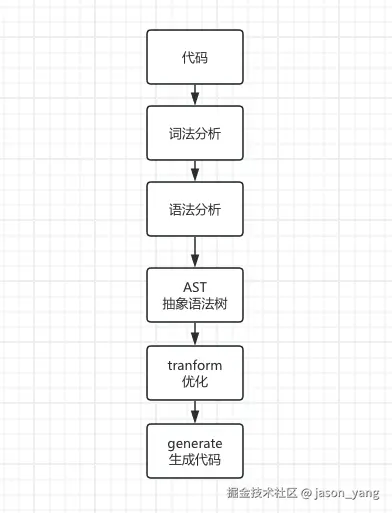

2.编译流程

• 使用complie方法为入口，传入template内容
• 把template内容进行分析调用baseParse

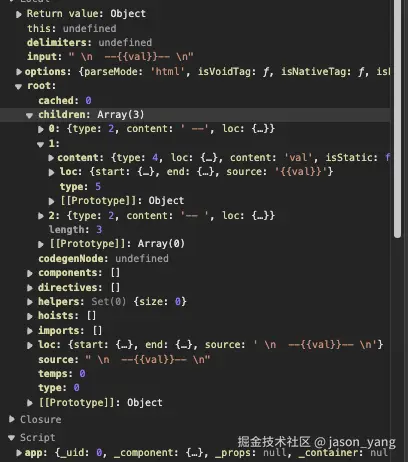

• baseParse内部使用tokenizer.parse()解析内容返回AST
• 使用transform方法对AST进行递归优化
• 最后调用generate生成字符串函数（这里同时处理v-if v-for等逻辑）

3.重要的文件分析

运行时编译主要用到两个模块

• compiler-core 核心都在这里
• complier-dom

我们分析compiler-core的index，主要导出的complie

packages/compiler-core/src/index.ts

export { baseCompile } from './compile'

compile.ts

packages/compiler-core/src/compile.ts

import type { CompilerOptions } from './options'
import { baseParse } from './parser'
import {
  type DirectiveTransform,
  type NodeTransform,
  transform,
} from './transform'
import { type CodegenResult, generate } from './codegen'
import type { RootNode } from './ast'
import { extend, isString } from '@vue/shared'
import { transformIf } from './transforms/vIf'
import { transformFor } from './transforms/vFor'
import { transformExpression } from './transforms/transformExpression'
import { transformSlotOutlet } from './transforms/transformSlotOutlet'
import { transformElement } from './transforms/transformElement'
import { transformOn } from './transforms/vOn'
import { transformBind } from './transforms/vBind'
import { trackSlotScopes, trackVForSlotScopes } from './transforms/vSlot'
import { transformText } from './transforms/transformText'
import { transformOnce } from './transforms/vOnce'
import { transformModel } from './transforms/vModel'
import { transformFilter } from './compat/transformFilter'
import { ErrorCodes, createCompilerError, defaultOnError } from './errors'
import { transformMemo } from './transforms/vMemo'

export type TransformPreset = [
  NodeTransform[],
  Record<string, DirectiveTransform>,
]

export function getBaseTransformPreset(
  prefixIdentifiers?: boolean,
): TransformPreset {
  return [
    [
      transformOnce,
      transformIf,
      transformMemo,
      transformFor,
      ...(__COMPAT__ ? [transformFilter] : []),
      ...(!__BROWSER__ && prefixIdentifiers
        ? [
            // order is important
            trackVForSlotScopes,
            transformExpression,
          ]
        : __BROWSER__ && __DEV__
          ? [transformExpression]
          : []),
      transformSlotOutlet,
      transformElement,
      trackSlotScopes,
      transformText,
    ],
    {
      on: transformOn,
      bind: transformBind,
      model: transformModel,
    },
  ]
}

// we name it `baseCompile` so that higher order compilers like
// @vue/compiler-dom can export `compile` while re-exporting everything else.
export function baseCompile(
  source: string | RootNode,
  options: CompilerOptions = {},
): CodegenResult {
  const onError = options.onError || defaultOnError
  const isModuleMode = options.mode === 'module'
  ...

  const resolvedOptions = extend({}, options, {
    prefixIdentifiers,
  })

  //先转换抽象语法树
  const ast = isString(source) ? baseParse(source, resolvedOptions) : source
  const [nodeTransforms, directiveTransforms] =
    getBaseTransformPreset(prefixIdentifiers) // 这里生成处理v-if v-for等逻辑处理

  if (!__BROWSER__ && options.isTS) {
    const { expressionPlugins } = options
    if (!expressionPlugins || !expressionPlugins.includes('typescript')) {
      options.expressionPlugins = [...(expressionPlugins || []), 'typescript']
    }
  }
  //优化节点
  transform(
    ast,
    extend({}, resolvedOptions, {
      nodeTransforms: [
        ...nodeTransforms,
        ...(options.nodeTransforms || []), // user transforms
      ],
      directiveTransforms: extend(
        {},
        directiveTransforms,
        options.directiveTransforms || {}, // user transforms
      ),
    }),
  )
  //生成代码
  return generate(ast, resolvedOptions)
}

先分析 入口baseCompile 传入的两个参数source和options

• source为要解析的<template>内容
• options是处理的参数

export function baseCompile(
  source: string | RootNode,
  options: CompilerOptions = {},
)

CompilerOptions 包括三个参数信息

• ParserOptions 解析参数
• TransformOptions 转化参数
• CodegenOptions 生成参数

export type CompilerOptions = ParserOptions & TransformOptions & CodegenOptions

ParserOptions 处理解析的信息，包括isHTMLTag 判断是否html原生标签，不是才走自定义组件逻辑

import { Namespaces, NodeTypes, type ParserOptions } from '@vue/compiler-core'
import { isHTMLTag, isMathMLTag, isSVGTag, isVoidTag } from '@vue/shared'
import { TRANSITION, TRANSITION_GROUP } from './runtimeHelpers'
import { decodeHtmlBrowser } from './decodeHtmlBrowser'

export const parserOptions: ParserOptions = {
  parseMode: 'html',
  isVoidTag,
  isNativeTag: tag => isHTMLTag(tag) || isSVGTag(tag) || isMathMLTag(tag),
  isPreTag: tag => tag === 'pre',
  decodeEntities: __BROWSER__ ? decodeHtmlBrowser : undefined,

  isBuiltInComponent: tag => {
    if (tag === 'Transition' || tag === 'transition') {
      return TRANSITION
    } else if (tag === 'TransitionGroup' || tag === 'transition-group') {
      return TRANSITION_GROUP
    }
  },

  // https://html.spec.whatwg.org/multipage/parsing.html#tree-construction-dispatcher
  getNamespace(tag, parent, rootNamespace) {
    let ns = parent ? parent.ns : rootNamespace
    if (parent && ns === Namespaces.MATH_ML) {
      if (parent.tag === 'annotation-xml') {
        if (tag === 'svg') {
          return Namespaces.SVG
        }
        if (
          parent.props.some(
            a =>
              a.type === NodeTypes.ATTRIBUTE &&
              a.name === 'encoding' &&
              a.value != null &&
              (a.value.content === 'text/html' ||
                a.value.content === 'application/xhtml+xml'),
          )
        ) {
          ns = Namespaces.HTML
        }
      } else if (
        /^m(?:[ions]|text)$/.test(parent.tag) &&
        tag !== 'mglyph' &&
        tag !== 'malignmark'
      ) {
        ns = Namespaces.HTML
      }
    } else if (parent && ns === Namespaces.SVG) {
      if (
        parent.tag === 'foreignObject' ||
        parent.tag === 'desc' ||
        parent.tag === 'title'
      ) {
        ns = Namespaces.HTML
      }
    }

    if (ns === Namespaces.HTML) {
      if (tag === 'svg') {
        return Namespaces.SVG
      }
      if (tag === 'math') {
        return Namespaces.MATH_ML
      }
    }
    return ns
  },
}

packages/shared/src/domTagConfig.ts

// These tag configs are shared between compiler-dom and runtime-dom, so they
// must be extracted in shared to avoid creating a dependency between the two.
import { makeMap } from './makeMap'

// https://developer.mozilla.org/en-US/docs/Web/HTML/Element
const HTML_TAGS =
  'html,body,base,head,link,meta,style,title,address,article,aside,footer,' +
  'header,hgroup,h1,h2,h3,h4,h5,h6,nav,section,div,dd,dl,dt,figcaption,' +
  'figure,picture,hr,img,li,main,ol,p,pre,ul,a,b,abbr,bdi,bdo,br,cite,code,' +
  'data,dfn,em,i,kbd,mark,q,rp,rt,ruby,s,samp,small,span,strong,sub,sup,' +
  'time,u,var,wbr,area,audio,map,track,video,embed,object,param,source,' +
  'canvas,script,noscript,del,ins,caption,col,colgroup,table,thead,tbody,td,' +
  'th,tr,button,datalist,fieldset,form,input,label,legend,meter,optgroup,' +
  'option,output,progress,select,textarea,details,dialog,menu,' +
  'summary,template,blockquote,iframe,tfoot'

// https://developer.mozilla.org/en-US/docs/Web/SVG/Element
const SVG_TAGS =
  'svg,animate,animateMotion,animateTransform,circle,clipPath,color-profile,' +
  'defs,desc,discard,ellipse,feBlend,feColorMatrix,feComponentTransfer,' +
  'feComposite,feConvolveMatrix,feDiffuseLighting,feDisplacementMap,' +
  'feDistantLight,feDropShadow,feFlood,feFuncA,feFuncB,feFuncG,feFuncR,' +
  'feGaussianBlur,feImage,feMerge,feMergeNode,feMorphology,feOffset,' +
  'fePointLight,feSpecularLighting,feSpotLight,feTile,feTurbulence,filter,' +
  'foreignObject,g,hatch,hatchpath,image,line,linearGradient,marker,mask,' +
  'mesh,meshgradient,meshpatch,meshrow,metadata,mpath,path,pattern,' +
  'polygon,polyline,radialGradient,rect,set,solidcolor,stop,switch,symbol,' +
  'text,textPath,title,tspan,unknown,use,view'

// https://www.w3.org/TR/mathml4/ (content elements excluded)
const MATH_TAGS =
  'annotation,annotation-xml,maction,maligngroup,malignmark,math,menclose,' +
  'merror,mfenced,mfrac,mfraction,mglyph,mi,mlabeledtr,mlongdiv,' +
  'mmultiscripts,mn,mo,mover,mpadded,mphantom,mprescripts,mroot,mrow,ms,' +
  'mscarries,mscarry,msgroup,msline,mspace,msqrt,msrow,mstack,mstyle,msub,' +
  'msubsup,msup,mtable,mtd,mtext,mtr,munder,munderover,none,semantics'

const VOID_TAGS =
  'area,base,br,col,embed,hr,img,input,link,meta,param,source,track,wbr'

/**
 * Compiler only.
 * Do NOT use in runtime code paths unless behind `__DEV__` flag.
 */
export const isHTMLTag = /*#__PURE__*/ makeMap(HTML_TAGS) //这里直接split(',')new Set判断字符串是否存在
/**
 * Compiler only.
 * Do NOT use in runtime code paths unless behind `__DEV__` flag.
 */
export const isSVGTag = /*#__PURE__*/ makeMap(SVG_TAGS)
/**
 * Compiler only.
 * Do NOT use in runtime code paths unless behind `__DEV__` flag.
 */
export const isMathMLTag = /*#__PURE__*/ makeMap(MATH_TAGS)
/**
 * Compiler only.
 * Do NOT use in runtime code paths unless behind `__DEV__` flag.
 */
export const isVoidTag = /*#__PURE__*/ makeMap(VOID_TAGS)

baseParse

处理返回AST

export function baseParse(input: string, options?: ParserOptions): RootNode {
  reset()
  currentInput = input
  currentOptions = extend({}, defaultParserOptions)

  if (options) {
    let key: keyof ParserOptions
    for (key in options) {
      if (options[key] != null) {
        // @ts-expect-error
        currentOptions[key] = options[key]
      }
    }
  }


  tokenizer.mode =
    currentOptions.parseMode === 'html'
      ? ParseMode.HTML
      : currentOptions.parseMode === 'sfc'
        ? ParseMode.SFC
        : ParseMode.BASE

  tokenizer.inXML =
    currentOptions.ns === Namespaces.SVG ||
    currentOptions.ns === Namespaces.MATH_ML

  const delimiters = options && options.delimiters
  if (delimiters) {
    tokenizer.delimiterOpen = toCharCodes(delimiters[0])
    tokenizer.delimiterClose = toCharCodes(delimiters[1])
  }

  const root = (currentRoot = createRoot([], input)) // 生成根节点
  tokenizer.parse(currentInput) // 开始递归生成树节点
  root.loc = getLoc(0, input.length) //获取当前操作的节点信息
  root.children = condenseWhitespace(root.children) // 处理子节点，同时根据tokenizer里面记录的信息组装属性给root.children
  currentRoot = null
  return root
}

节点返回的结构

{
    "type": 0,
    "source": " \n  --{{val}}-- \n",
    "children": [
        {
            "type": 2,
            "content": " --",
            "loc": {
                "start": {
                    "column": 1,
                    "line": 1,
                    "offset": 0
                },
                "end": {
                    "column": 5,
                    "line": 2,
                    "offset": 6
                },
                "source": " \n  --"
            }
        },
        {
            "type": 5,
            "content": {
                "type": 4,
                "loc": {
                    "start": {
                        "column": 7,
                        "line": 2,
                        "offset": 8
                    },
                    "end": {
                        "column": 10,
                        "line": 2,
                        "offset": 11
                    },
                    "source": "val"
                },
                "content": "val",
                "isStatic": false,
                "constType": 0
            },
            "loc": {
                "start": {
                    "column": 5,
                    "line": 2,
                    "offset": 6
                },
                "end": {
                    "column": 12,
                    "line": 2,
                    "offset": 13
                },
                "source": "{{val}}"
            }
        },
        {
            "type": 2,
            "content": "-- ",
            "loc": {
                "start": {
                    "column": 12,
                    "line": 2,
                    "offset": 13
                },
                "end": {
                    "column": 1,
                    "line": 3,
                    "offset": 17
                },
                "source": "-- \n"
            }
        }
    ],
    "helpers": {},
    "components": [],
    "directives": [],
    "hoists": [],
    "imports": [],
    "cached": 0,
    "temps": 0,
    "loc": {
        "start": {
            "column": 1,
            "line": 1,
            "offset": 0
        },
        "end": {
            "column": 1,
            "line": 3,
            "offset": 17
        },
        "source": " \n  --{{val}}-- \n"
    }
}

transform

• createRootCodegen创建根节点
• traverseNode优化当前节点
• 优化方法会判断如果有子节点，调用traverseChildren 递归处理优化

export function transform(root: RootNode, options: TransformOptions) {
  const context = createTransformContext(root, options)
  traverseNode(root, context) // 优化节点
  if (options.hoistStatic) {
    hoistStatic(root, context) // 静态提升
  }
  if (!options.ssr) {
    createRootCodegen(root, context) // 创建根节点
  }
  // finalize meta information
  root.helpers = new Set([...context.helpers.keys()])
  root.components = [...context.components]
  root.directives = [...context.directives]
  root.imports = context.imports
  root.hoists = context.hoists
  root.temps = context.temps
  root.cached = context.cached
  root.transformed = true

}
//创建根节点
function createRootCodegen(root: RootNode, context: TransformContext) {
  const { helper } = context
  const { children } = root
  if (children.length === 1) {
    const child = children[0]
    // if the single child is an element, turn it into a block.
    if (isSingleElementRoot(root, child) && child.codegenNode) {
      // single element root is never hoisted so codegenNode will never be
      // SimpleExpressionNode
      const codegenNode = child.codegenNode
      if (codegenNode.type === NodeTypes.VNODE_CALL) {
        convertToBlock(codegenNode, context)
      }
      root.codegenNode = codegenNode
    } else {
      // - single <slot/>, IfNode, ForNode: already blocks.
      // - single text node: always patched.
      // root codegen falls through via genNode()
      root.codegenNode = child
    }
  } else if (children.length > 1) {
    // root has multiple nodes - return a fragment block.
    let patchFlag = PatchFlags.STABLE_FRAGMENT
    let patchFlagText = PatchFlagNames[PatchFlags.STABLE_FRAGMENT]
    // check if the fragment actually contains a single valid child with
    // the rest being comments
    if (
      __DEV__ &&
      children.filter(c => c.type !== NodeTypes.COMMENT).length === 1
    ) {
      patchFlag |= PatchFlags.DEV_ROOT_FRAGMENT
      patchFlagText += `, ${PatchFlagNames[PatchFlags.DEV_ROOT_FRAGMENT]}`
    }
    root.codegenNode = createVNodeCall(
      context,
      helper(FRAGMENT),
      undefined,
      root.children,
      patchFlag + (__DEV__ ? ` /* ${patchFlagText} */` : ``),
      undefined,
      undefined,
      true,
      undefined,
      false /* isComponent */,
    )
  } else {
    // no children = noop. codegen will return null.
  }
}
//优化子节点
export function traverseChildren(
  parent: ParentNode,
  context: TransformContext,
) {
  let i = 0
  const nodeRemoved = () => {
    i--
  }
  for (; i < parent.children.length; i++) {
    const child = parent.children[i]
    if (isString(child)) continue
    context.grandParent = context.parent
    context.parent = parent
    context.childIndex = i
    context.onNodeRemoved = nodeRemoved
    traverseNode(child, context)
  }
}
// 优化节点
export function traverseNode(
  node: RootNode | TemplateChildNode,
  context: TransformContext,
) {
  context.currentNode = node
  // apply transform plugins
  const { nodeTransforms } = context
  const exitFns = []
  for (let i = 0; i < nodeTransforms.length; i++) {
    const onExit = nodeTransforms[i](node, context)
    if (onExit) {
      if (isArray(onExit)) {
        exitFns.push(...onExit)
      } else {
        exitFns.push(onExit)
      }
    }
    if (!context.currentNode) {
      // node was removed
      return
    } else {
      // node may have been replaced
      node = context.currentNode
    }
  }

  switch (node.type) {
    case NodeTypes.COMMENT:
      if (!context.ssr) {
        // inject import for the Comment symbol, which is needed for creating
        // comment nodes with `createVNode`
        context.helper(CREATE_COMMENT)
      }
      break
    case NodeTypes.INTERPOLATION:
      // no need to traverse, but we need to inject toString helper
      if (!context.ssr) {
        context.helper(TO_DISPLAY_STRING)
      }
      break

    // for container types, further traverse downwards
    case NodeTypes.IF: // 处理v-if
      for (let i = 0; i < node.branches.length; i++) {
        traverseNode(node.branches[i], context)
      }
      break
    case NodeTypes.IF_BRANCH:
    case NodeTypes.FOR:
    case NodeTypes.ELEMENT:
    case NodeTypes.ROOT:
      traverseChildren(node, context) //递归处理子节点
      break
  }

  // exit transforms
  context.currentNode = node
  let i = exitFns.length
  while (i--) {
    exitFns[i]()
  }
}

优化后的格式

• 多了一些"constType": 0 和 "isStatic": false等

{
    "type": 0,
    "source": " \n  --{{val}}-- \n",
    "children": [
        {
            "type": 8,
            "loc": {
                "start": {
                    "column": 1,
                    "line": 1,
                    "offset": 0
                },
                "end": {
                    "column": 5,
                    "line": 2,
                    "offset": 6
                },
                "source": " \n  --"
            },
            "children": [
                {
                    "type": 2,
                    "content": " --",
                    "loc": {
                        "start": {
                            "column": 1,
                            "line": 1,
                            "offset": 0
                        },
                        "end": {
                            "column": 5,
                            "line": 2,
                            "offset": 6
                        },
                        "source": " \n  --"
                    }
                },
                " + ",
                {
                    "type": 5,
                    "content": {
                        "type": 4,
                        "loc": {
                            "start": {
                                "column": 7,
                                "line": 2,
                                "offset": 8
                            },
                            "end": {
                                "column": 10,
                                "line": 2,
                                "offset": 11
                            },
                            "source": "val"
                        },
                        "content": "val",
                        "isStatic": false,
                        "constType": 0
                    },
                    "loc": {
                        "start": {
                            "column": 5,
                            "line": 2,
                            "offset": 6
                        },
                        "end": {
                            "column": 12,
                            "line": 2,
                            "offset": 13
                        },
                        "source": "{{val}}"
                    }
                },
                " + ",
                {
                    "type": 2,
                    "content": "-- ",
                    "loc": {
                        "start": {
                            "column": 12,
                            "line": 2,
                            "offset": 13
                        },
                        "end": {
                            "column": 1,
                            "line": 3,
                            "offset": 17
                        },
                        "source": "-- \n"
                    }
                }
            ]
        }
    ],
    "helpers": {},
    "components": [],
    "directives": [],
    "hoists": [],
    "imports": [],
    "cached": 0,
    "temps": 0,
    "codegenNode": {
        "type": 8,
        "loc": {
            "start": {
                "column": 1,
                "line": 1,
                "offset": 0
            },
            "end": {
                "column": 5,
                "line": 2,
                "offset": 6
            },
            "source": " \n  --"
        },
        "children": [
            {
                "type": 2,
                "content": " --",
                "loc": {
                    "start": {
                        "column": 1,
                        "line": 1,
                        "offset": 0
                    },
                    "end": {
                        "column": 5,
                        "line": 2,
                        "offset": 6
                    },
                    "source": " \n  --"
                }
            },
            " + ",
            {
                "type": 5,
                "content": {
                    "type": 4,
                    "loc": {
                        "start": {
                            "column": 7,
                            "line": 2,
                            "offset": 8
                        },
                        "end": {
                            "column": 10,
                            "line": 2,
                            "offset": 11
                        },
                        "source": "val"
                    },
                    "content": "val",
                    "isStatic": false,
                    "constType": 0
                },
                "loc": {
                    "start": {
                        "column": 5,
                        "line": 2,
                        "offset": 6
                    },
                    "end": {
                        "column": 12,
                        "line": 2,
                        "offset": 13
                    },
                    "source": "{{val}}"
                }
            },
            " + ",
            {
                "type": 2,
                "content": "-- ",
                "loc": {
                    "start": {
                        "column": 12,
                        "line": 2,
                        "offset": 13
                    },
                    "end": {
                        "column": 1,
                        "line": 3,
                        "offset": 17
                    },
                    "source": "-- \n"
                }
            }
        ]
    },
    "loc": {
        "start": {
            "column": 1,
            "line": 1,
            "offset": 0
        },
        "end": {
            "column": 1,
            "line": 3,
            "offset": 17
        },
        "source": " \n  --{{val}}-- \n"
    },
    "transformed": true
}

generate

根据优化过后的AST生成render字符串代码

• 生成动态的import的内容
• 生成一个function函数
• 函数里面根据ast 读取不同的类型生成对应的create方法。

export function generate(
  ast: RootNode,
  options: CodegenOptions & {
    onContextCreated?: (context: CodegenContext) => void
  } = {},
): CodegenResult {
  const context = createCodegenContext(ast, options) //创建一个上下文
  if (options.onContextCreated) options.onContextCreated(context)
  const {
    mode,
    push,
    prefixIdentifiers,
    indent,
    deindent,
    newline,
    scopeId,
    ssr,
  } = context

  const helpers = Array.from(ast.helpers) //用来记录import的包如： 0: Symbol(toDisplayString)
  const hasHelpers = helpers.length > 0
  const useWithBlock = !prefixIdentifiers && mode !== 'module'
  const genScopeId = !__BROWSER__ && scopeId != null && mode === 'module'
  const isSetupInlined = !__BROWSER__ && !!options.inline

  // preambles
  // in setup() inline mode, the preamble is generated in a sub context
  // and returned separately.
  const preambleContext = isSetupInlined
    ? createCodegenContext(ast, options)
    : context
  if (!__BROWSER__ && mode === 'module') {
  //获取预设的代码模板
    genModulePreamble(ast, preambleContext, genScopeId, isSetupInlined)
  } else {
   //获取预设的函数代码模板
    genFunctionPreamble(ast, preambleContext)
  }
  // enter render function
  const functionName = ssr ? `ssrRender` : `render`
  const args = ssr ? ['_ctx', '_push', '_parent', '_attrs'] : ['_ctx', '_cache']
  if (!__BROWSER__ && options.bindingMetadata && !options.inline) {
    // binding optimization args
    args.push('$props', '$setup', '$data', '$options')
  }
  const signature =
    !__BROWSER__ && options.isTS
      ? args.map(arg => `${arg}: any`).join(',')
      : args.join(', ')

  if (isSetupInlined) {
    push(`(${signature}) => {`)
  } else {
    push(`function ${functionName}(${signature}) {`)
  }
  indent()

  if (useWithBlock) {
    push(`with (_ctx) {`)
    indent()
    // function mode const declarations should be inside with block
    // also they should be renamed to avoid collision with user properties
    if (hasHelpers) {
      push(
        `const { ${helpers.map(aliasHelper).join(', ')} } = _Vue\n`, //这里生成导入语句
        NewlineType.End,
      )
      newline()
    }
  }

  // generate asset resolution statements
  if (ast.components.length) {//生成组件
    genAssets(ast.components, 'component', context)
    if (ast.directives.length || ast.temps > 0) {
      newline()
    }
  }
  if (ast.directives.length) {
    genAssets(ast.directives, 'directive', context)
    if (ast.temps > 0) {
      newline()
    }
  }
  if (__COMPAT__ && ast.filters && ast.filters.length) {
    newline()
    genAssets(ast.filters, 'filter', context)
    newline()
  }

  if (ast.temps > 0) {
    push(`let `)
    for (let i = 0; i < ast.temps; i++) {
      push(`${i > 0 ? `, ` : ``}_temp${i}`)
    }
  }
  if (ast.components.length || ast.directives.length || ast.temps) {
    push(`\n`, NewlineType.Start)
    newline()
  }

  // generate the VNode tree expression
  if (!ssr) {
    push(`return `)
  }
  if (ast.codegenNode) {
    genNode(ast.codegenNode, context)
  } else {
    push(`null`)
  }

  if (useWithBlock) {
    deindent()
    push(`}`)
  }

  deindent()
  push(`}`)

  return {
    ast,
    code: context.code,
    preamble: isSetupInlined ? preambleContext.code : ``,
    map: context.map ? context.map.toJSON() : undefined,
  }
}


//预设的代码模板格式
function genModulePreamble(
  ast: RootNode,
  context: CodegenContext,
  genScopeId: boolean,
  inline?: boolean,
) {
  const {
    push,
    newline,
    optimizeImports,
    runtimeModuleName,
    ssrRuntimeModuleName,
  } = context

  if (genScopeId && ast.hoists.length) {
    ast.helpers.add(PUSH_SCOPE_ID)
    ast.helpers.add(POP_SCOPE_ID)
  }

  // generate import statements for helpers
  if (ast.helpers.size) {
    const helpers = Array.from(ast.helpers)
    if (optimizeImports) {
      // when bundled with webpack with code-split, calling an import binding
      // as a function leads to it being wrapped with `Object(a.b)` or `(0,a.b)`,
      // incurring both payload size increase and potential perf overhead.
      // therefore we assign the imports to variables (which is a constant ~50b
      // cost per-component instead of scaling with template size)
      push(
        `import { ${helpers
          .map(s => helperNameMap[s])
          .join(', ')} } from ${JSON.stringify(runtimeModuleName)}\n`,
        NewlineType.End,
      )
      push(
        `\n// Binding optimization for webpack code-split\nconst ${helpers
          .map(s => `_${helperNameMap[s]} = ${helperNameMap[s]}`)
          .join(', ')}\n`,
        NewlineType.End,
      )
    } else {
      push(
        `import { ${helpers
          .map(s => `${helperNameMap[s]} as _${helperNameMap[s]}`)
          .join(', ')} } from ${JSON.stringify(runtimeModuleName)}\n`,
        NewlineType.End,
      )
    }
  }

  if (ast.ssrHelpers && ast.ssrHelpers.length) {
    push(
      `import { ${ast.ssrHelpers
        .map(s => `${helperNameMap[s]} as _${helperNameMap[s]}`)
        .join(', ')} } from "${ssrRuntimeModuleName}"\n`,
      NewlineType.End,
    )
  }

  if (ast.imports.length) {
    genImports(ast.imports, context)
    newline()
  }

  genHoists(ast.hoists, context)
  newline()

  if (!inline) {
    push(`export `)
  }
}

genNode通过不同的类型生成创建方法，包括v-if 和 v-for

function genNode(node: CodegenNode | symbol | string, context: CodegenContext) {
  if (isString(node)) {
    context.push(node, NewlineType.Unknown)
    return
  }
  if (isSymbol(node)) {
    context.push(context.helper(node))
    return
  }
  switch (node.type) {
    case NodeTypes.ELEMENT:
    case NodeTypes.IF:
    case NodeTypes.FOR:
      __DEV__ &&
        assert(
          node.codegenNode != null,
          `Codegen node is missing for element/if/for node. ` +
            `Apply appropriate transforms first.`,
        )
      genNode(node.codegenNode!, context) // 如果是if 和 for  递归重写调用自己
      break
    case NodeTypes.TEXT:
      genText(node, context)
      break
    case NodeTypes.SIMPLE_EXPRESSION:
      genExpression(node, context)
      break
    case NodeTypes.INTERPOLATION:
      genInterpolation(node, context)
      break
    case NodeTypes.TEXT_CALL:
      genNode(node.codegenNode, context)
      break
    case NodeTypes.COMPOUND_EXPRESSION:
      genCompoundExpression(node, context)
      break
    case NodeTypes.COMMENT:
      genComment(node, context)
      break
    case NodeTypes.VNODE_CALL:
      genVNodeCall(node, context)
      break

    case NodeTypes.JS_CALL_EXPRESSION:
      genCallExpression(node, context)
      break
    case NodeTypes.JS_OBJECT_EXPRESSION:
      genObjectExpression(node, context)
      break
    case NodeTypes.JS_ARRAY_EXPRESSION:
      genArrayExpression(node, context)
      break
    case NodeTypes.JS_FUNCTION_EXPRESSION:
      genFunctionExpression(node, context)
      break
    case NodeTypes.JS_CONDITIONAL_EXPRESSION:
      genConditionalExpression(node, context)
      break
    case NodeTypes.JS_CACHE_EXPRESSION:
      genCacheExpression(node, context)
      break
    case NodeTypes.JS_BLOCK_STATEMENT:
      genNodeList(node.body, context, true, false) // 这里递归执行
      break

    // SSR only types
    case NodeTypes.JS_TEMPLATE_LITERAL:
      !__BROWSER__ && genTemplateLiteral(node, context)
      break
    case NodeTypes.JS_IF_STATEMENT:
      !__BROWSER__ && genIfStatement(node, context)
      break
    case NodeTypes.JS_ASSIGNMENT_EXPRESSION:
      !__BROWSER__ && genAssignmentExpression(node, context)
      break
    case NodeTypes.JS_SEQUENCE_EXPRESSION:
      !__BROWSER__ && genSequenceExpression(node, context)
      break
    case NodeTypes.JS_RETURN_STATEMENT:
      !__BROWSER__ && genReturnStatement(node, context)
      break

    /* istanbul ignore next */
    case NodeTypes.IF_BRANCH:
      // noop
      break
    default:
      if (__DEV__) {
        assert(false, `unhandled codegen node type: ${(node as any).type}`)
        // make sure we exhaust all possible types
        const exhaustiveCheck: never = node
        return exhaustiveCheck
      }
  }
}


//直接生成文本
function genText(
  node: TextNode | SimpleExpressionNode,
  context: CodegenContext,
) {
  context.push(JSON.stringify(node.content), NewlineType.Unknown, node)
}
//生成json内容
function genExpression(node: SimpleExpressionNode, context: CodegenContext) {
  const { content, isStatic } = node
  context.push(
    isStatic ? JSON.stringify(content) : content,
    NewlineType.Unknown,
    node,
  )
}
//生成import的包
function genInterpolation(node: InterpolationNode, context: CodegenContext) {
  const { push, helper, pure } = context
  if (pure) push(PURE_ANNOTATION)
  push(`${helper(TO_DISPLAY_STRING)}(`)
  genNode(node.content, context)
  push(`)`)
}

//非原生html标签，生成vnode
function genVNodeCall(node: VNodeCall, context: CodegenContext) {
  const { push, helper, pure } = context
  const {
    tag,
    props,
    children,
    patchFlag,
    dynamicProps,
    directives,
    isBlock,
    disableTracking,
    isComponent,
  } = node
  if (directives) {
    push(helper(WITH_DIRECTIVES) + `(`)
  }
  if (isBlock) {
    push(`(${helper(OPEN_BLOCK)}(${disableTracking ? `true` : ``}), `)
  }
  if (pure) {
    push(PURE_ANNOTATION)
  }
  const callHelper: symbol = isBlock
    ? getVNodeBlockHelper(context.inSSR, isComponent)
    : getVNodeHelper(context.inSSR, isComponent)
  push(helper(callHelper) + `(`, NewlineType.None, node)
  genNodeList(
    genNullableArgs([tag, props, children, patchFlag, dynamicProps]),
    context,
  )
  push(`)`)
  if (isBlock) {
    push(`)`)
  }
  if (directives) {
    push(`, `)
    genNode(directives, context)
    push(`)`)
  }
}
...

这里依赖一个工具类 里面的，专门做字符串的拼接

• push
• indent
• deindent
• newline

function createCodegenContext(
  ast: RootNode,
  {
    mode = 'function',
    prefixIdentifiers = mode === 'module',
    sourceMap = false,
    filename = `template.vue.html`,
    scopeId = null,
    optimizeImports = false,
    runtimeGlobalName = `Vue`,
    runtimeModuleName = `vue`,
    ssrRuntimeModuleName = 'vue/server-renderer',
    ssr = false,
    isTS = false,
    inSSR = false,
  }: CodegenOptions,
): CodegenContext {
  const context: CodegenContext = {
    mode,
    prefixIdentifiers,
    sourceMap,
    filename,
    scopeId,
    optimizeImports,
    runtimeGlobalName,
    runtimeModuleName,
    ssrRuntimeModuleName,
    ssr,
    isTS,
    inSSR,
    source: ast.source,
    code: ``,
    column: 1,
    line: 1,
    offset: 0,
    indentLevel: 0,
    pure: false,
    map: undefined,
    helper(key) {
      return `_${helperNameMap[key]}`
    },
    push(code, newlineIndex = NewlineType.None, node) {
      context.code += code
      if (!__BROWSER__ && context.map) {
        if (node) {
          let name
          if (node.type === NodeTypes.SIMPLE_EXPRESSION && !node.isStatic) {
            const content = node.content.replace(/^_ctx\./, '')
            if (content !== node.content && isSimpleIdentifier(content)) {
              name = content
            }
          }
          addMapping(node.loc.start, name)
        }
        if (newlineIndex === NewlineType.Unknown) {
          // multiple newlines, full iteration
          advancePositionWithMutation(context, code)
        } else {
          // fast paths
          context.offset += code.length
          if (newlineIndex === NewlineType.None) {
            // no newlines; fast path to avoid newline detection
            if (__TEST__ && code.includes('\n')) {
              throw new Error(
                `CodegenContext.push() called newlineIndex: none, but contains` +
                  `newlines: ${code.replace(/\n/g, '\\n')}`,
              )
            }
            context.column += code.length
          } else {
            // single newline at known index
            if (newlineIndex === NewlineType.End) {
              newlineIndex = code.length - 1
            }
            if (
              __TEST__ &&
              (code.charAt(newlineIndex) !== '\n' ||
                code.slice(0, newlineIndex).includes('\n') ||
                code.slice(newlineIndex + 1).includes('\n'))
            ) {
              throw new Error(
                `CodegenContext.push() called with newlineIndex: ${newlineIndex} ` +
                  `but does not conform: ${code.replace(/\n/g, '\\n')}`,
              )
            }
            context.line++
            context.column = code.length - newlineIndex
          }
        }
        if (node && node.loc !== locStub) {
          addMapping(node.loc.end)
        }
      }
    },
    indent() {
      newline(++context.indentLevel)
    },
    deindent(withoutNewLine = false) {
      if (withoutNewLine) {
        --context.indentLevel
      } else {
        newline(--context.indentLevel)
      }
    },
    newline() {
      newline(context.indentLevel)
    },
  }

生成的函数字符串

'const _Vue = Vue\n\n
return function render(_ctx, _cache) {\n
with (_ctx) {\n
const { toDisplayString: _toDisplayString } = _Vue\n\n
return " --" + _toDisplayString(val) + "-- "\n
}\n}'

getBaseTransformPreset

前面我们调用过getBaseTransformPreset，获得转化的v-xx标签处理对象nodeTransforms和directiveTransforms

const [nodeTransforms, directiveTransforms] =
    getBaseTransformPreset(prefixIdentifiers) // 这里生成处理v-if v-for等逻辑处理

getBaseTransformPreset

这里我们看到处理 v-if v-for 等标签的处理

这里我们看到数组的顺序是先transformIf，再transformFor，所以如果同时使用v-if和v-for ，v-if将会优先执行

import { transformIf } from './transforms/vIf'
import { transformFor } from './transforms/vFor'
import { transformMemo } from './transforms/vMemo'

export function getBaseTransformPreset(
  prefixIdentifiers?: boolean,
): TransformPreset {
  return [
    [
      transformOnce,
      transformIf,
      transformMemo,
      transformFor,
      ...(__COMPAT__ ? [transformFilter] : []),
      ...(!__BROWSER__ && prefixIdentifiers
        ? [
            // order is important
            trackVForSlotScopes,
            transformExpression,
          ]
        : __BROWSER__ && __DEV__
          ? [transformExpression]
          : []),
      transformSlotOutlet,
      transformElement,
      trackSlotScopes,
      transformText,
    ],
    {
      on: transformOn,
      bind: transformBind,
      model: transformModel,
    },
  ]
}

v-if

export const transformIf = createStructuralDirectiveTransform(
  /^(if|else|else-if)$/,
  (node, dir, context) => {
    return processIf(node, dir, context, (ifNode, branch, isRoot) => {
      // #1587: We need to dynamically increment the key based on the current
      // node's sibling nodes, since chained v-if/else branches are
      // rendered at the same depth
      const siblings = context.parent!.children
      let i = siblings.indexOf(ifNode)
      let key = 0
      while (i-- >= 0) {
        const sibling = siblings[i]
        if (sibling && sibling.type === NodeTypes.IF) {
          key += sibling.branches.length
        }
      }

      // Exit callback. Complete the codegenNode when all children have been
      // transformed.
      return () => {
        if (isRoot) {
          ifNode.codegenNode = createCodegenNodeForBranch(
            branch,
            key,
            context,
          ) as IfConditionalExpression
        } else {
          // attach this branch's codegen node to the v-if root.
          const parentCondition = getParentCondition(ifNode.codegenNode!)
          parentCondition.alternate = createCodegenNodeForBranch(
            branch,
            key + ifNode.branches.length - 1,
            context,
          )
        }
      }
    })
  },
)

// target-agnostic transform used for both Client and SSR
export function processIf(
  node: ElementNode,
  dir: DirectiveNode,
  context: TransformContext,
  processCodegen?: (
    node: IfNode,
    branch: IfBranchNode,
    isRoot: boolean,
  ) => (() => void) | undefined,
) {
  if (
    dir.name !== 'else' &&
    (!dir.exp || !(dir.exp as SimpleExpressionNode).content.trim())
  ) {
    const loc = dir.exp ? dir.exp.loc : node.loc
    context.onError(
      createCompilerError(ErrorCodes.X_V_IF_NO_EXPRESSION, dir.loc),
    )
    dir.exp = createSimpleExpression(`true`, false, loc)
  }

  if (!__BROWSER__ && context.prefixIdentifiers && dir.exp) {
    // dir.exp can only be simple expression because vIf transform is applied
    // before expression transform.
    dir.exp = processExpression(dir.exp as SimpleExpressionNode, context)
  }

  if (__DEV__ && __BROWSER__ && dir.exp) {
    validateBrowserExpression(dir.exp as SimpleExpressionNode, context)
  }

  if (dir.name === 'if') {
    const branch = createIfBranch(node, dir)
    const ifNode: IfNode = {
      type: NodeTypes.IF,
      loc: node.loc,
      branches: [branch],
    }
    context.replaceNode(ifNode)
    if (processCodegen) {
      return processCodegen(ifNode, branch, true)
    }
  } else {
    // locate the adjacent v-if
    const siblings = context.parent!.children
    const comments = []
    let i = siblings.indexOf(node)
    while (i-- >= -1) {
      const sibling = siblings[i]
      if (sibling && sibling.type === NodeTypes.COMMENT) {
        context.removeNode(sibling)
        __DEV__ && comments.unshift(sibling)
        continue
      }

      if (
        sibling &&
        sibling.type === NodeTypes.TEXT &&
        !sibling.content.trim().length
      ) {
        context.removeNode(sibling)
        continue
      }

      if (sibling && sibling.type === NodeTypes.IF) {
        // Check if v-else was followed by v-else-if
        if (
          dir.name === 'else-if' &&
          sibling.branches[sibling.branches.length - 1].condition === undefined
        ) {
          context.onError(
            createCompilerError(ErrorCodes.X_V_ELSE_NO_ADJACENT_IF, node.loc),
          )
        }

        // move the node to the if node's branches
        context.removeNode()
        const branch = createIfBranch(node, dir)


        sibling.branches.push(branch)
        const onExit = processCodegen && processCodegen(sibling, branch, false)
        // since the branch was removed, it will not be traversed.
        // make sure to traverse here.
        traverseNode(branch, context)
        // call on exit
        if (onExit) onExit()
        // make sure to reset currentNode after traversal to indicate this
        // node has been removed.
        context.currentNode = null
      } else {
        context.onError(
          createCompilerError(ErrorCodes.X_V_ELSE_NO_ADJACENT_IF, node.loc),
        )
      }
      break
    }
  }
}

function createIfBranch(node: ElementNode, dir: DirectiveNode): IfBranchNode {
  const isTemplateIf = node.tagType === ElementTypes.TEMPLATE
  return {
    type: NodeTypes.IF_BRANCH,
    loc: node.loc,
    condition: dir.name === 'else' ? undefined : dir.exp,
    children: isTemplateIf && !findDir(node, 'for') ? node.children : [node],
    userKey: findProp(node, `key`),
    isTemplateIf,
  }
}

function createCodegenNodeForBranch(
  branch: IfBranchNode,
  keyIndex: number,
  context: TransformContext,
): IfConditionalExpression | BlockCodegenNode | MemoExpression {
}

function createChildrenCodegenNode(
  branch: IfBranchNode,
  keyIndex: number,
  context: TransformContext,
): BlockCodegenNode | MemoExpression {
}

function isSameKey(
  a: AttributeNode | DirectiveNode | undefined,
  b: AttributeNode | DirectiveNode,
): boolean {
}

function getParentCondition(
  node: IfConditionalExpression | CacheExpression,
): IfConditionalExpression {
}

v-for

export const transformFor = createStructuralDirectiveTransform(
  'for',
  (node, dir, context) => {
    const { helper, removeHelper } = context
    return processFor(node, dir, context, forNode => {
      // create the loop render function expression now, and add the
      // iterator on exit after all children have been traversed
      const renderExp = createCallExpression(helper(RENDER_LIST), [
        forNode.source,
      ]) as ForRenderListExpression
      const isTemplate = isTemplateNode(node)
      const memo = findDir(node, 'memo')
      const keyProp = findProp(node, `key`, false, true)
      if (keyProp && keyProp.type === NodeTypes.DIRECTIVE && !keyProp.exp) {
        // resolve :key shorthand #10882
        transformBindShorthand(keyProp, context)
      }
      const keyExp =
        keyProp &&
        (keyProp.type === NodeTypes.ATTRIBUTE
          ? keyProp.value
            ? createSimpleExpression(keyProp.value.content, true)
            : undefined
          : keyProp.exp)
      const keyProperty =
        keyProp && keyExp ? createObjectProperty(`key`, keyExp) : null

      const isStableFragment =
        forNode.source.type === NodeTypes.SIMPLE_EXPRESSION &&
        forNode.source.constType > ConstantTypes.NOT_CONSTANT
      const fragmentFlag = isStableFragment
        ? PatchFlags.STABLE_FRAGMENT
        : keyProp
          ? PatchFlags.KEYED_FRAGMENT
          : PatchFlags.UNKEYED_FRAGMENT

      forNode.codegenNode = createVNodeCall(
        context,
        helper(FRAGMENT),
        undefined,
        renderExp,
        fragmentFlag +
          (__DEV__ ? ` /* ${PatchFlagNames[fragmentFlag]} */` : ``),
        undefined,
        undefined,
        true /* isBlock */,
        !isStableFragment /* disableTracking */,
        false /* isComponent */,
        node.loc,
      ) as ForCodegenNode

      return () => {
        // finish the codegen now that all children have been traversed
        let childBlock: BlockCodegenNode
        const { children } = forNode

        // check <template v-for> key placement
        if ((__DEV__ || !__BROWSER__) && isTemplate) {
          node.children.some(c => {
            if (c.type === NodeTypes.ELEMENT) {
              const key = findProp(c, 'key')
              if (key) {
                context.onError(
                  createCompilerError(
                    ErrorCodes.X_V_FOR_TEMPLATE_KEY_PLACEMENT,
                    key.loc,
                  ),
                )
                return true
              }
            }
          })
        }

        const needFragmentWrapper =
          children.length !== 1 || children[0].type !== NodeTypes.ELEMENT
        const slotOutlet = isSlotOutlet(node)
          ? node
          : isTemplate &&
              node.children.length === 1 &&
              isSlotOutlet(node.children[0])
            ? (node.children[0] as SlotOutletNode) // api-extractor somehow fails to infer this
            : null

        if (slotOutlet) {
          // <slot v-for="..."> or <template v-for="..."><slot/></template>
          childBlock = slotOutlet.codegenNode as RenderSlotCall
          if (isTemplate && keyProperty) {
            // <template v-for="..." :key="..."><slot/></template>
            // we need to inject the key to the renderSlot() call.
            // the props for renderSlot is passed as the 3rd argument.
            injectProp(childBlock, keyProperty, context)
          }
        } else if (needFragmentWrapper) {
          // <template v-for="..."> with text or multi-elements
          // should generate a fragment block for each loop
          childBlock = createVNodeCall(
            context,
            helper(FRAGMENT),
            keyProperty ? createObjectExpression([keyProperty]) : undefined,
            node.children,
            PatchFlags.STABLE_FRAGMENT +
              (__DEV__
                ? ` /* ${PatchFlagNames[PatchFlags.STABLE_FRAGMENT]} */`
                : ``),
            undefined,
            undefined,
            true,
            undefined,
            false /* isComponent */,
          )
        } else {
          // Normal element v-for. Directly use the child's codegenNode
          // but mark it as a block.
          childBlock = (children[0] as PlainElementNode)
            .codegenNode as VNodeCall
          if (isTemplate && keyProperty) {
            injectProp(childBlock, keyProperty, context)
          }
          if (childBlock.isBlock !== !isStableFragment) {
            if (childBlock.isBlock) {
              // switch from block to vnode
              removeHelper(OPEN_BLOCK)
              removeHelper(
                getVNodeBlockHelper(context.inSSR, childBlock.isComponent),
              )
            } else {
              // switch from vnode to block
              removeHelper(
                getVNodeHelper(context.inSSR, childBlock.isComponent),
              )
            }
          }
          childBlock.isBlock = !isStableFragment
          if (childBlock.isBlock) {
            helper(OPEN_BLOCK)
            helper(getVNodeBlockHelper(context.inSSR, childBlock.isComponent))
          } else {
            helper(getVNodeHelper(context.inSSR, childBlock.isComponent))
          }
        }

        if (memo) {
          const loop = createFunctionExpression(
            createForLoopParams(forNode.parseResult, [
              createSimpleExpression(`_cached`),
            ]),
          )
          loop.body = createBlockStatement([
            createCompoundExpression([`const _memo = (`, memo.exp!, `)`]),
            createCompoundExpression([
              `if (_cached`,
              ...(keyExp ? [` && _cached.key === `, keyExp] : []),
              ` && ${context.helperString(
                IS_MEMO_SAME,
              )}(_cached, _memo)) return _cached`,
            ]),
            createCompoundExpression([`const _item = `, childBlock as any]),
            createSimpleExpression(`_item.memo = _memo`),
            createSimpleExpression(`return _item`),
          ])
          renderExp.arguments.push(
            loop as ForIteratorExpression,
            createSimpleExpression(`_cache`),
            createSimpleExpression(String(context.cached++)),
          )
        } else {
          renderExp.arguments.push(
            createFunctionExpression(
              createForLoopParams(forNode.parseResult),
              childBlock,
              true /* force newline */,
            ) as ForIteratorExpression,
          )
        }
      }
    })
  },
)

// target-agnostic transform used for both Client and SSR
export function processFor(
  node: ElementNode,
  dir: DirectiveNode,
  context: TransformContext,
  processCodegen?: (forNode: ForNode) => (() => void) | undefined,
) {
  if (!dir.exp) {
    context.onError(
      createCompilerError(ErrorCodes.X_V_FOR_NO_EXPRESSION, dir.loc),
    )
    return
  }

  const parseResult = dir.forParseResult

  if (!parseResult) {
    context.onError(
      createCompilerError(ErrorCodes.X_V_FOR_MALFORMED_EXPRESSION, dir.loc),
    )
    return
  }

  finalizeForParseResult(parseResult, context)

  const { addIdentifiers, removeIdentifiers, scopes } = context
  const { source, value, key, index } = parseResult

  const forNode: ForNode = {
    type: NodeTypes.FOR,
    loc: dir.loc,
    source,
    valueAlias: value,
    keyAlias: key,
    objectIndexAlias: index,
    parseResult,
    children: isTemplateNode(node) ? node.children : [node],
  }

  context.replaceNode(forNode)

  // bookkeeping
  scopes.vFor++
  if (!__BROWSER__ && context.prefixIdentifiers) {
    // scope management
    // inject identifiers to context
    value && addIdentifiers(value)
    key && addIdentifiers(key)
    index && addIdentifiers(index)
  }

  const onExit = processCodegen && processCodegen(forNode)

  return () => {
    scopes.vFor--
    if (!__BROWSER__ && context.prefixIdentifiers) {
      value && removeIdentifiers(value)
      key && removeIdentifiers(key)
      index && removeIdentifiers(index)
    }
    if (onExit) onExit()
  }
}

export function finalizeForParseResult(
  result: ForParseResult,
  context: TransformContext,
) {
}

export function createForLoopParams(
  { value, key, index }: ForParseResult,
  memoArgs: ExpressionNode[] = [],
): ExpressionNode[] {
  return createParamsList([value, key, index, ...memoArgs])
}

function createParamsList(
  args: (ExpressionNode | undefined)[],
): ExpressionNode[] {
  let i = args.length
  while (i--) {
    if (args[i]) break
  }
  return args
    .slice(0, i + 1)
    .map((arg, i) => arg || createSimpleExpression(`_`.repeat(i + 1), false))
}

源码

github.com/mjsong07/vu…

参考

[玩转vue3](time.geekbang.org/column/intr…
