React 源码的状态管理

React 状态管理

react 的 state 解析成 fiber 属性的 memoryState，在更新的时候会也会根据updateQueue去更新属性。 react 状态更新是通过成环的链表去实现

ReactFiberHooks

---

在ReactFiberHooks文件中这是所有的hook的Dispatcher

const HooksDispatcherOnMount: Dispatcher = {
  useCallback: mountCallback,
  useContext: readContext,
  useEffect: mountEffect,
  useImperativeHandle: mountImperativeHandle,
  useLayoutEffect: mountLayoutEffect,
  useInsertionEffect: mountInsertionEffect,
  useMemo: mountMemo,
  useReducer: mountReducer,
  useRef: mountRef,
  useState: mountState,
  useDebugValue: mountDebugValue,
  useDeferredValue: mountDeferredValue,
  useTransition: mountTransition,
  useMutableSource: mountMutableSource,
  useSyncExternalStore: mountSyncExternalStore,
  useId: mountId,
};

mountWorkInProgressHook

这个函数在大部分hook里会使用，其实也就是把hook通过链表连接起来

function mountWorkInProgressHook(): Hook {
  const hook: Hook = {
    memoizedState: null,

    baseState: null,
    baseQueue: null,
    queue: null,

    next: null,
  };

  if (workInProgressHook === null) {
    // 第一次个hook，fiber是通过链表连接的
    currentlyRenderingFiber.memoizedState = workInProgressHook = hook;
  } else {
    // .next 连接起来
    workInProgressHook = workInProgressHook.next = hook;
  }
  return workInProgressHook;
}

dispatchSetState

// 更新队列
function enqueueUpdate<S, A>(
  fiber: Fiber,
  queue: UpdateQueue<S, A>,
  update: Update<S, A>,
  lane: Lane,
) {
	....

    // 拿到fiber上的pending update链表
    const pending = queue.pending;
    if (pending === null) {
      // This is the first update. Create a circular list.
      update.next = update;
    } else {
      update.next = pending.next;
      pending.next = update;
    }
    queue.pending = update;
}

function dispatchSetState<S, A>(
	fiber: Fiber,
  queue: UpdateQueue<S, A>,
  action: A
) {
	// 一个update对象
  const update: Update<S, A> = {
    lane,
    action,
    hasEagerState: false,
    eagerState: null,
    next: (null: any),
  };

  // 停止更新
  if (isRenderPhaseUpdate(fiber)) {
    // 一些不合法的写法会走到这个分支语句，比如在react组件顶部修改state
    enqueueRenderPhaseUpdate(queue, update);
  } else {
    enqueueUpdate(fiber, queue, update, lane);

    // fiber 可以通过 alternate 访问另一个fiber tree， 比如current tree 和 work in tree
    const alternate = fiber.alternate;
    if (
      fiber.lanes === NoLanes &&
      (alternate === null || alternate.lanes === NoLanes)
    ) {
      const lastRenderedReducer = queue.lastRenderedReducer;
      if (lastRenderedReducer !== null) {
        let prevDispatcher;
        if (__DEV__) {
          prevDispatcher = ReactCurrentDispatcher.current;
          ReactCurrentDispatcher.current = InvalidNestedHooksDispatcherOnUpdateInDEV;
        }
        try {
          const currentState: S = (queue.lastRenderedState: any);
          const eagerState = lastRenderedReducer(currentState, action);

          update.hasEagerState = true;
          update.eagerState = eagerState;
	  // 优先使用 Object.is 来判断，两个值相同就不更新，直接return
          if (is(eagerState, currentState)) {
            return;
          }

        } catch (error) {
          // Suppress the error. It will throw again in the render phase.
        } finally {
          if (__DEV__) {
            ReactCurrentDispatcher.current = prevDispatcher;
          }
        }
      }
    }
    const eventTime = requestEventTime();

		// 更新完重新进入调度
    const root = scheduleUpdateOnFiber(fiber, lane, eventTime);
    if (root !== null) {
      entangleTransitionUpdate(root, queue, lane);
    }
  }

  markUpdateInDevTools(fiber, lane, action);
}

useState

function mountState<S>(
  initialState: (() => S) | S, // 可以是值或者返回值的函数
): [S, Dispatch<BasicStateAction<S>>] {
  const hook = mountWorkInProgressHook();

  // 返回值 useState(() => '123');
  if (typeof initialState === 'function') {
    // $FlowFixMe: Flow doesn't like mixed types
    initialState = initialState();
  }

  // 连续赋值,给hook上赋上state
  hook.memoizedState = hook.baseState = initialState;

  // fiber 上的queue，用于更新
  const queue: UpdateQueue<S, BasicStateAction<S>> = {
    pending: null,
    interleaved: null,
    lanes: NoLanes,
    dispatch: null,
    lastRenderedReducer: basicStateReducer,
    lastRenderedState: (initialState: any),
  }
  hook.queue = queue;

  // 返回更新的函数dispatch，同时赋给queue对象
  const dispatch: Dispatch<BasicStateAction<S>> =
		(queue.dispatch = (dispatchSetState.bind(
	    null,
	    currentlyRenderingFiber,
	    queue,
  ): any));

  return [hook.memoizedState, dispatch];
}

updateState

function updateState<S>(
  initialState: (() => S) | S,
): [S, Dispatch<BasicStateAction<S>>] {
  return updateReducer(basicStateReducer, (initialState: any));
}

function updateReducer<S, I, A>(
  reducer: (S, A) => S,
  initialArg: I,
  init?: I => S,
): [S, Dispatch<A>] {
  const hook = updateWorkInProgressHook();
  const queue = hook.queue;

  if (queue === null) {
    throw new Error(
      'Should have a queue. This is likely a bug in React. Please file an issue.',
    );
  }

  queue.lastRenderedReducer = reducer;

  const current: Hook = (currentHook: any);

  let baseQueue = current.baseQueue;

  const pendingQueue = queue.pending;
  if (pendingQueue !== null) {
    if (baseQueue !== null) {
      // 合并需要更新的队列
      const baseFirst = baseQueue.next;
      const pendingFirst = pendingQueue.next;
      baseQueue.next = pendingFirst;
      pendingQueue.next = baseFirst;
    }
    if (__DEV__) {
      if (current.baseQueue !== baseQueue) {
        // Internal invariant that should never happen, but feasibly could in
        // the future if we implement resuming, or some form of that.
        console.error(
          'Internal error: Expected work-in-progress queue to be a clone. ' +
            'This is a bug in React.',
        );
      }
    }
    current.baseQueue = baseQueue = pendingQueue;
    queue.pending = null;
  }

  if (baseQueue !== null) {
    // 合并完pendingQueue后，从pending的第一个节点开始do while循环来计算state
    const first = baseQueue.next;
    let newState = current.baseState;

    let newBaseState = null;
    let newBaseQueueFirst = null;
    let newBaseQueueLast = null;
    let update = first;
    do {
      const updateLane = update.lane;
      if (!isSubsetOfLanes(renderLanes, updateLane)) {

        const clone: Update<S, A> = {
          lane: updateLane,
          action: update.action,
          hasEagerState: update.hasEagerState,
          eagerState: update.eagerState,
          next: (null: any),
        };
        if (newBaseQueueLast === null) {
          newBaseQueueFirst = newBaseQueueLast = clone;
          newBaseState = newState;
        } else {
          newBaseQueueLast = newBaseQueueLast.next = clone;
        }
        // Update the remaining priority in the queue.
        // TODO: Don't need to accumulate this. Instead, we can remove
        // renderLanes from the original lanes.
        currentlyRenderingFiber.lanes = mergeLanes(
          currentlyRenderingFiber.lanes,
          updateLane,
        );
        markSkippedUpdateLanes(updateLane);
      } else {
        // This update does have sufficient priority.

        if (newBaseQueueLast !== null) {
          const clone: Update<S, A> = {
            // This update is going to be committed so we never want uncommit
            // it. Using NoLane works because 0 is a subset of all bitmasks, so
            // this will never be skipped by the check above.
            lane: NoLane,
            action: update.action,
            hasEagerState: update.hasEagerState,
            eagerState: update.eagerState,
            next: (null: any),
          };
          newBaseQueueLast = newBaseQueueLast.next = clone;
        }

        // Process this update.
        if (update.hasEagerState) {
          // If this update is a state update (not a reducer) and was processed eagerly,
          // we can use the eagerly computed state
          newState = ((update.eagerState: any): S);
        } else {
          const action = update.action;
          // 计算新的state
          newState = reducer(newState, action);
        }
      }
      update = update.next;
    } while (update !== null && update !== first);

    if (newBaseQueueLast === null) {
      newBaseState = newState;
    } else {
      newBaseQueueLast.next = (newBaseQueueFirst: any);
    }

    // 新的state和旧的state做比较，这里也是上面提到的优先用Object.is
    if (!is(newState, hook.memoizedState)) {
      markWorkInProgressReceivedUpdate();
    }

    // 设置state
    hook.memoizedState = newState;
    hook.baseState = newBaseState;
    hook.baseQueue = newBaseQueueLast;

    queue.lastRenderedState = newState;
  }

  // Interleaved updates are stored on a separate queue. We aren't going to
  // process them during this render, but we do need to track which lanes
  // are remaining.
  const lastInterleaved = queue.interleaved;
  if (lastInterleaved !== null) {
    let interleaved = lastInterleaved;
    do {
      const interleavedLane = interleaved.lane;
      currentlyRenderingFiber.lanes = mergeLanes(
        currentlyRenderingFiber.lanes,
        interleavedLane,
      );
      markSkippedUpdateLanes(interleavedLane);
      interleaved = ((interleaved: any).next: Update<S, A>);
    } while (interleaved !== lastInterleaved);
  } else if (baseQueue === null) {
    // `queue.lanes` is used for entangling transitions. We can set it back to
    // zero once the queue is empty.
    queue.lanes = NoLanes;
  }

  const dispatch: Dispatch<A> = (queue.dispatch: any);
  return [hook.memoizedState, dispatch];
}

那么其实看到这里也能看到，hook的原理其实就是操作这个baseQueue和updateQueue来计算state的值，然后在通知调度

再看一个useEffect的

function mountEffectImpl(fiberFlags, hookFlags, create, deps): void {
  // 上面提到的记录hook链表信息
  const hook = mountWorkInProgressHook();
  // 依赖
  const nextDeps = deps === undefined ? null : deps;
  currentlyRenderingFiber.flags |= fiberFlags;
  // 调用pushEffect更新memorizedState
  hook.memoizedState = pushEffect(
    HookHasEffect | hookFlags,
    create,
    undefined,
    nextDeps,
  );
}

function pushEffect(tag, create, destroy, deps) {
  const effect: Effect = {
    tag,
    create,
    destroy,
    deps,
    // Circular
    next: (null: any),
  };

  let componentUpdateQueue: null | FunctionComponentUpdateQueue = (currentlyRenderingFiber.updateQueue: any);

  // 没有effect的更新队列，创建一个{ lastEffect: null, stores: null };
  // lastEffect 记录的是最后一个链表，因为这里的链表会成环
  if (componentUpdateQueue === null) {
    componentUpdateQueue = createFunctionComponentUpdateQueue();
    currentlyRenderingFiber.updateQueue = (componentUpdateQueue: any);
    componentUpdateQueue.lastEffect = effect.next = effect;
  } else {
    const lastEffect = componentUpdateQueue.lastEffect;
    if (lastEffect === null) {
			// 没有的lastEffect说明当前的effect是第一个，同时让当前effect成环
      componentUpdateQueue.lastEffect = effect.next = effect;
    } else {
      // 因为是成环，lastEffect的next就是链表的头部
      const firstEffect = lastEffect.next;
      // 尾部挂上
      lastEffect.next = effect;
      // 尾部连接到头部
      effect.next = firstEffect;
      // 设置新的尾部链表节点
      componentUpdateQueue.lastEffect = effect;
    }
  }
  return effect;
}

再看下useMemo、useCallback的实现，很简单，判断依赖项是否一致，然后设置memoizedState

useMemo

function updateMemo<T>(
  nextCreate: () => T,
  deps: Array<mixed> | void | null,
): T {
  const hook = updateWorkInProgressHook();
  const nextDeps = deps === undefined ? null : deps;
  const prevState = hook.memoizedState;
  if (prevState !== null) {
    // Assume these are defined. If they're not, areHookInputsEqual will warn.
    if (nextDeps !== null) {
      const prevDeps: Array<mixed> | null = prevState[1];
      // 依赖项不变就直接return
      if (areHookInputsEqual(nextDeps, prevDeps)) {
        return prevState[0];
      }
    }
  }
  const nextValue = nextCreate();
  hook.memoizedState = [nextValue, nextDeps];
  return nextValue;
}

useCallback

function updateCallback<T>(callback: T, deps: Array<mixed> | void | null): T {
  const hook = updateWorkInProgressHook();
  const nextDeps = deps === undefined ? null : deps;
  const prevState = hook.memoizedState;
  if (prevState !== null) {
    if (nextDeps !== null) {
      const prevDeps: Array<mixed> | null = prevState[1];
      if (areHookInputsEqual(nextDeps, prevDeps)) {
        return prevState[0];
      }
    }
  }
  hook.memoizedState = [callback, nextDeps];
  return callback;
}

❗一些设计上的疑问：

• react 设置链表成环的原因：

  • 顺序一致性
  • 高效更新和状态管理
  • 动态渲染、条件渲染
  • 错误检测

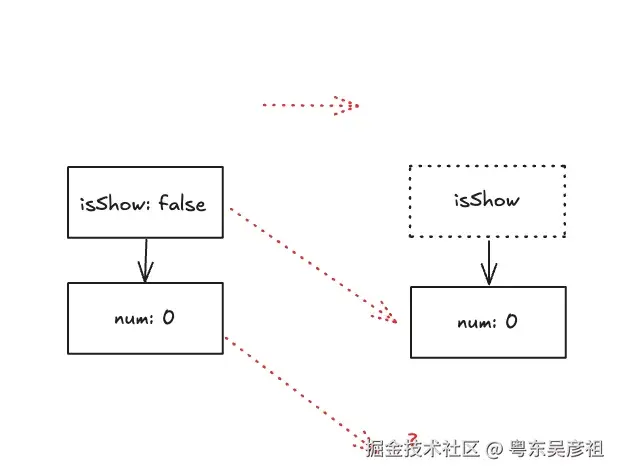

• react 不能再条件分支语句或者for语句中使用hook的原因：就是hook的链表是要有个前后比较的过程，比如这面这段代码，如果使用分支语句，前后两次的hook链就会对不上
