vue vxe-form 表单的多种布局以及加边框和背景

官网文档：vxeui.com

vxe-from 使用多种布局方式，在表单中加边框，实现跟表格一样的效果

左右布局

<template>
  <div>
    <vxe-form v-bind="formOptions" v-on="formEvents" ></vxe-form>
  </div>
</template>

<script setup>
import { reactive } from 'vue'
import { VxeUI } from 'vxe-pc-ui'
const formOptions = reactive({
  data: {
    name: 'test1',
    nickname: 'Testing',
    sex: '',
    age: '',
    address: ''
  },
  items: [
    { field: 'name', title: '名称', span: 24, itemRender: { name: 'VxeInput' } },
    { field: 'sex', title: '性别', span: 12, itemRender: { name: 'VxeInput' } },
    { field: 'age', title: '年龄', span: 12, itemRender: { name: 'VxeInput' } },
    { field: 'address', title: '地址', span: 24, itemRender: { name: 'VxeTextarea' } },
    {
      align: 'center',
      span: 24,
      itemRender: {
        name: 'VxeButtonGroup',
        options: [
          { type: 'submit', content: '提交', status: 'primary' },
          { type: 'reset', content: '重置' }
        ]
      }
    }
  ]
})
const formEvents = {
  submit () {
    VxeUI.modal.message({ content: '保存成功', status: 'success' })
  },
  reset () {
    VxeUI.modal.message({ content: '重置事件', status: 'info' })
  }
}

</script>

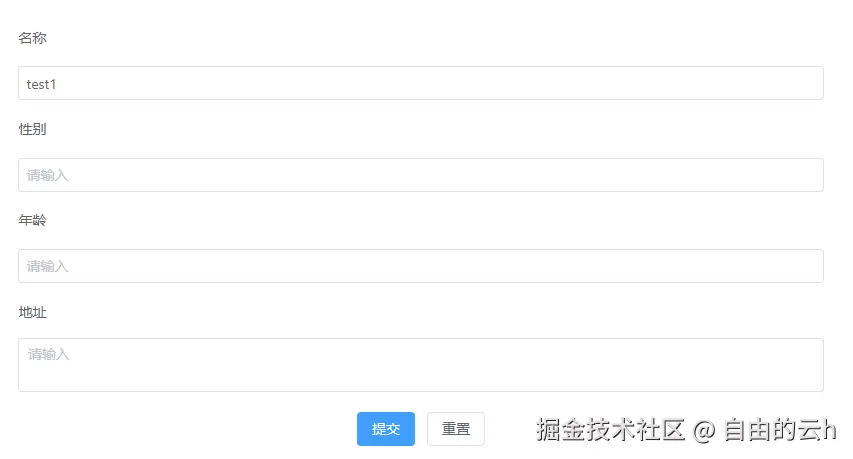

上下布局

<template>
  <div>
    <vxe-form v-bind="formOptions" v-on="formEvents" ></vxe-form>
  </div>
</template>

<script setup>
import { reactive } from 'vue'
import { VxeUI } from 'vxe-pc-ui'
const formOptions = reactive({
  vertical: true,
  data: {
    name: 'test1',
    nickname: '',
    sex: '',
    age: '',
    address: ''
  },
  items: [
    { field: 'name', title: '名称', span: 24, itemRender: { name: 'VxeInput' } },
    { field: 'sex', title: '性别', span: 24, itemRender: { name: 'VxeInput' } },
    { field: 'age', title: '年龄', span: 24, itemRender: { name: 'VxeInput' } },
    { field: 'address', title: '地址', span: 24, itemRender: { name: 'VxeTextarea' } },
    {
      align: 'center',
      span: 24,
      itemRender: {
        name: 'VxeButtonGroup',
        options: [
          { type: 'submit', content: '提交', status: 'primary' },
          { type: 'reset', content: '重置' }
        ]
      }
    }
  ]
})
const formEvents = {
  submit () {
    VxeUI.modal.message({ content: '保存成功', status: 'success' })
  },
  reset () {
    VxeUI.modal.message({ content: '重置事件', status: 'info' })
  }
}

</script>

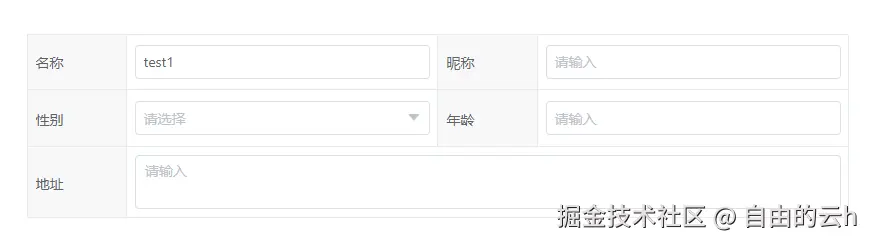

带边框，模拟表格

<template>
  <div>
    <vxe-form v-bind="formOptions"></vxe-form>
  </div>
</template>

<script setup>
import { reactive } from 'vue'
const sexItemRender = reactive({
  name: 'VxeSelect',
  options: [
    { label: '女', value: 'Women' },
    { label: '男', value: 'Man' }
  ]
})
const formOptions = reactive({
  border: true,
  verticalAlign: 'center',
  titleWidth: 100,
  data: {
    name: 'test1',
    nickname: '',
    sex: '',
    age: '',
    address: ''
  },
  items: [
    { field: 'name', title: '名称', span: 12, itemRender: { name: 'VxeInput' } },
    { field: 'nickname', title: '昵称', span: 12, itemRender: { name: 'VxeInput' } },
    { field: 'sex', title: '性别', span: 12, itemRender: sexItemRender },
    { field: 'age', title: '年龄', span: 12, itemRender: { name: 'VxeInput' } },
    { field: 'address', title: '地址', span: 24, itemRender: { name: 'VxeTextarea' } }
  ]
})

</script>

带边框背景

<template>
  <div>
    <vxe-form v-bind="formOptions"></vxe-form>
  </div>
</template>

<script setup>
import { reactive } from 'vue'
const sexItemRender = reactive({
  name: 'VxeSelect',
  options: [
    { label: '女', value: 'Women' },
    { label: '男', value: 'Man' }
  ]
})
const formOptions = reactive({
  border: true,
  titleBackground: true,
  verticalAlign: 'center',
  titleWidth: 100,
  data: {
    name: 'test1',
    nickname: '',
    sex: '',
    age: '',
    address: ''
  },
  items: [
    { field: 'name', title: '名称', span: 12, itemRender: { name: 'VxeInput' } },
    { field: 'nickname', title: '昵称', span: 12, itemRender: { name: 'VxeInput' } },
    { field: 'sex', title: '性别', span: 12, itemRender: sexItemRender },
    { field: 'age', title: '年龄', span: 12, itemRender: { name: 'VxeInput' } },
    { field: 'address', title: '地址', span: 24, itemRender: { name: 'VxeTextarea' } }
  ]
})

</script>

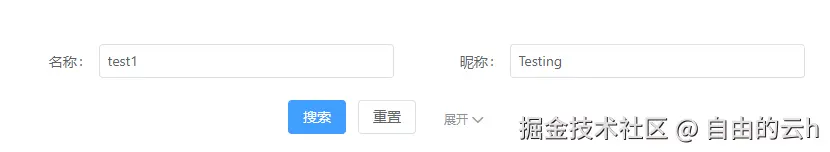

折叠表单

<template>
  <div>
    <vxe-form v-bind="formOptions" v-on="formEvents" ></vxe-form>
  </div>
</template>

<script setup>
import { reactive } from 'vue'
import { VxeUI } from 'vxe-pc-ui'
const formOptions = reactive({
  titleWidth: 100,
  titleColon: true,
  titleAlign: 'right',
  data: {
    name: 'test1',
    role: '',
    nickname: 'Testing',
    sex: '',
    age: '',
    num: '',
    createDate: '',
    updateDate: ''
  },
  items: [
    { field: 'name', title: '名称', span: 12, itemRender: { name: 'VxeInput' } },
    { field: 'nickname', title: '昵称', span: 12, itemRender: { name: 'VxeInput' } },
    { field: 'role', title: '角色', span: 12, folding: true, itemRender: { name: 'VxeInput' } },
    { field: 'sex', title: '性别', span: 12, folding: true, itemRender: { name: 'VxeInput' } },
    { field: 'age', title: '年龄', span: 12, folding: true, itemRender: { name: 'VxeInput' } },
    { field: 'num', title: '大小', span: 12, folding: true, itemRender: { name: 'VxeInput' } },
    { field: 'createDate', title: '创建时间', span: 12, folding: true, itemRender: { name: 'VxeInput' } },
    { field: 'updateDate', title: '更新时间', span: 12, folding: true, itemRender: { name: 'VxeInput' } },
    {
      align: 'center',
      span: 24,
      collapseNode: true,
      itemRender: {
        name: 'VxeButtonGroup',
        options: [
          { type: 'submit', content: '搜索', status: 'primary' },
          { type: 'reset', content: '重置' }
        ]
      }
    }
  ]
})
const formEvents = {
  submit () {
    VxeUI.modal.message({ content: '搜索', status: 'success' })
  }
}

</script>

表单校验

<template>
  <div>
    <vxe-form v-bind="formOptions" v-on="formEvents" ></vxe-form>
  </div>
</template>

<script setup>
import { reactive } from 'vue'
import { VxeUI } from 'vxe-pc-ui'
const formOptions = reactive({
  data: {
    name: 'test1',
    nickname: 'Testing',
    sex: '',
    age: ''
  },
  rules: {
    name: [
      { required: true, message: '请输入名称' },
      { min: 3, max: 5, message: '长度在 3 到 5 个字符' }
    ],
    sex: [
      { required: true, message: '请选择性别' }
    ],
    age: [
      { required: true, message: '请输入年龄' },
      {
        validator ({ itemValue }) {
          // 自定义校验
          if (Number(itemValue) > 35 || Number(itemValue) < 18) {
            return new Error('年龄在 18 ~ 35 之间')
          }
        }
      }
    ]
  },
  items: [
    { field: 'name', title: '名称', span: 24, itemRender: { name: 'VxeInput' } },
    { field: 'sex', title: '性别', span: 12, itemRender: { name: 'VxeInput' } },
    { field: 'age', title: '年龄', span: 12, itemRender: { name: 'VxeInput' } },
    {
      align: 'center',
      span: 24,
      itemRender: {
        name: 'VxeButtonGroup',
        options: [
          { type: 'submit', content: '提交', status: 'primary' },
          { type: 'reset', content: '重置' }
        ]
      }
    }
  ]
})
const formEvents = {
  submit () {
    VxeUI.modal.message({ content: '保存成功', status: 'success' })
  },
  reset () {
    VxeUI.modal.message({ content: '重置事件', status: 'info' })
  }
}

</script>
