init进程的一个核心部分，是通过解析rc文件，执行Action和启动Service，配置文件解析相关代码如下：
//system/core/init/init.cpp
int SecondStageMain(int argc, char** argv) {
...省略代码
const BuiltinFunctionMap function_map;
Action::set_function_map(&function_map);
ActionManager& am = ActionManager::GetInstance();
ServiceList& sm = ServiceList::GetInstance();
LoadBootScripts(am, sm);
...省略代码
}
首先这里创建了一个function_map，然后将其赋值给Action对象的function_map_变量；那么function_map是什么呢，它其实是个工具类
//system/core/init/keyword_map.h
class KeywordMap {
public:
using FunctionInfo = std::tuple<std::size_t, std::size_t, Function>;
using Map = std::map<std::string, FunctionInfo>;
virtual ~KeywordMap() {
}
const Result<Function> FindFunction(const std::vector<std::string>& args) const {
using android::base::StringPrintf;
if (args.empty()) return Error() << "Keyword needed, but not provided";
auto& keyword = args[0];
auto num_args = args.size() - 1;
auto function_info_it = map().find(keyword);
if (function_info_it == map().end()) {
return Error() << StringPrintf("Invalid keyword '%s'", keyword.c_str());
}
auto function_info = function_info_it->second;
auto min_args = std::get<0>(function_info);
auto max_args = std::get<1>(function_info);
if (min_args == max_args && num_args != min_args) {
return Error() << StringPrintf("%s requires %zu argument%s", keyword.c_str(), min_args,
(min_args > 1 || min_args == 0) ? "s" : "");
}
if (num_args < min_args || num_args > max_args) {
if (max_args == std::numeric_limits<decltype(max_args)>::max()) {
return Error() << StringPrintf("%s requires at least %zu argument%s",
keyword.c_str(), min_args, min_args > 1 ? "s" : "");
} else {
return Error() << StringPrintf("%s requires between %zu and %zu arguments",
keyword.c_str(), min_args, max_args);
}
}
return std::get<Function>(function_info);
}
private:
// Map of keyword ->
// (minimum number of arguments, maximum number of arguments, function pointer)
virtual const Map& map() const = 0;
};
//system/core/init/builtins.h
using KeywordFunctionMap = KeywordMap<std::pair<bool, BuiltinFunction>>;
class BuiltinFunctionMap : public KeywordFunctionMap {
public:
BuiltinFunctionMap() {}
private:
const Map& map() const override;
};
//system/core/init/service.cpp
class Service::OptionParserMap : public KeywordMap<OptionParser> {
public:
OptionParserMap() {}
private:
const Map& map() const override;
};
如下 2 个类比较重要
- BuiltinFunctionMap
- OptionParserMap
它们都继承KeywordMap,KeywordMap中FindFunction和map两个方法比较重要
- FindFunction在KeywordMap中有实现，对于Action而言，FindFunction返回Action中commond对应功能实现函数；对Service而言，FindFunction返回Service中option对应解析函数
- map的实现KeywordMap中，它根据Acton和Service不同，在各自实现中返回不同的函数描述
在这里将这些内容提前进行说明，后续会涉及到。
ActionManager& am = ActionManager::GetInstance();
ServiceList& sm = ServiceList::GetInstance();
创建了用于管理从rc配置文件解析的Action和Service，实际的解析是调用LoadBootScripts开始进行的。
static void LoadBootScripts(ActionManager& action_manager, ServiceList& service_list) {
Parser parser = CreateParser(action_manager, service_list);
std::string bootscript = GetProperty("ro.boot.init_rc", "");
if (bootscript.empty()) {
parser.ParseConfig("/init.rc");
if (!parser.ParseConfig("/system/etc/init")) {
late_import_paths.emplace_back("/system/etc/init");
}
if (!parser.ParseConfig("/product/etc/init")) {
late_import_paths.emplace_back("/product/etc/init");
}
if (!parser.ParseConfig("/product_services/etc/init")) {
late_import_paths.emplace_back("/product_services/etc/init");
}
if (!parser.ParseConfig("/odm/etc/init")) {
late_import_paths.emplace_back("/odm/etc/init");
}
if (!parser.ParseConfig("/vendor/etc/init")) {
late_import_paths.emplace_back("/vendor/etc/init");
}
} else {
parser.ParseConfig(bootscript);
}
}
调用CreateParser构建解析器
Parser CreateParser(ActionManager& action_manager, ServiceList& service_list) {
Parser parser;
parser.AddSectionParser("service", std::make_unique<ServiceParser>(&service_list, subcontexts));
parser.AddSectionParser("on", std::make_unique<ActionParser>(&action_manager, subcontexts));
parser.AddSectionParser("import", std::make_unique<ImportParser>(&parser));
return parser;
}
这里实际上和前面讲的rc文件格式是对应的，三种关键字srvice、on、import都有其对应的解析器ServiceParser、ActionParser、ImportParser，其中ServiceParser、ActionParser分别又传入了service_list和action_manager。这三个都是section解析器，会被添加到section_parsers_变量中保存。
parser.ParseConfig("")
bool Parser::ParseConfig(const std::string& path) {
if (is_dir(path.c_str())) {
return ParseConfigDir(path);
}
return ParseConfigFile(path);
}
然后调用ParseConfig解析文件，可以看到其支持目录下遍历查找文件解析的，其中最重要的就是解析根目录下的/init.rc，我们以此作为主线进行分析
parser.ParseConfig("/init.rc");
bool Parser::ParseConfigFile(const std::string& path) {
LOG(INFO) << "Parsing file " << path << "...";
android::base::Timer t;
auto config_contents = ReadFile(path);
if (!config_contents) {
LOG(INFO) << "Unable to read config file '" << path << "': " << config_contents.error();
return false;
}
ParseData(path, &config_contents.value());
LOG(VERBOSE) << "(Parsing " << path << " took " << t << ".)";
return true;
}
读取文件内容调用ParseData
void Parser::ParseData(const std::string& filename, std::string* data) {
...省略代码
for (;;) {
switch (next_token(&state)) {
case T_EOF:
end_section();
for (const auto& [section_name, section_parser] : section_parsers_) {
section_parser->EndFile();
}
return;
case T_NEWLINE: {
state.line++;
if (args.empty()) break;
// If we have a line matching a prefix we recognize, call its callback and unset any
// current section parsers. This is meant for /sys/ and /dev/ line entries for
// uevent.
auto line_callback = std::find_if(
line_callbacks_.begin(), line_callbacks_.end(),
[&args](const auto& c) { return android::base::StartsWith(args[0], c.first); });
if (line_callback != line_callbacks_.end()) {
end_section();
if (auto result = line_callback->second(std::move(args)); !result) {
parse_error_count_++;
LOG(ERROR) << filename << ": " << state.line << ": " << result.error();
}
} else if (section_parsers_.count(args[0])) {
end_section();
section_parser = section_parsers_[args[0]].get();
section_start_line = state.line;
if (auto result =
section_parser->ParseSection(std::move(args), filename, state.line);
!result) {
parse_error_count_++;
LOG(ERROR) << filename << ": " << state.line << ": " << result.error();
section_parser = nullptr;
bad_section_found = true;
}
} else if (section_parser) {
if (auto result = section_parser->ParseLineSection(std::move(args), state.line);
!result) {
parse_error_count_++;
LOG(ERROR) << filename << ": " << state.line << ": " << result.error();
}
} else if (!bad_section_found) {
parse_error_count_++;
LOG(ERROR) << filename << ": " << state.line
<< ": Invalid section keyword found";
}
args.clear();
break;
}
case T_TEXT:
args.emplace_back(state.text);
break;
}
}
}
整个文本的解析是按section来解析的（以 import, on, service 开头的， 都表示一个 section(段落)， 意味着一个关键词出现之后到出现第二个关键词 之前， 关键词后面的内容都属于一个 section）
- T_NEWLINE：新行
- T_TEXT：一行（除去关键字）中的参数
- T_EOF：section结束
Action解析
以如下片段看看其解析流程
on early-init
# Disable sysrq from keyboard
write /proc/sys/kernel/sysrq 0
# Set the security context of /adb_keys if present.
restorecon /adb_keys
# Set the security context of /postinstall if present.
restorecon /postinstall
mkdir /acct/uid
# memory.pressure_level used by lmkd
chown root system /dev/memcg/memory.pressure_level
chmod 0040 /dev/memcg/memory.pressure_level
# app mem cgroups, used by activity manager, lmkd and zygote
mkdir /dev/memcg/apps/ 0755 system system
# cgroup for system_server and surfaceflinger
mkdir /dev/memcg/system 0550 system system
start ueventd
exec_start apexd-bootstrap
首先解析
on early-init
line_callback此时为空（后面会简单讲解一下line_callback），会执行如下代码
if (section_parsers_.count(args[0])) {
end_section();
section_parser = section_parsers_[args[0]].get();
section_start_line = state.line;
if (auto result =
section_parser->ParseSection(std::move(args), filename, state.line);
!result) {
parse_error_count_++;
LOG(ERROR) << filename << ": " << state.line << ": " << result.error();
section_parser = nullptr;
bad_section_found = true;
}
}
- 此时args[0]为字符串"on"，因此获取的section解析器，这个解析器就是ActionParser
- 当section_parser被赋值后，那就说明一个section要开始解析了
- 调用ParseSection解析关键字on所在的行
//system/core/init/action_parser.cpp
Result<Success> ActionParser::ParseSection(std::vector<std::string>&& args,
const std::string& filename, int line) {
std::string event_trigger;
std::map<std::string, std::string> property_triggers;
if (auto result = ParseTriggers(triggers, action_subcontext, &event_trigger, &property_triggers);
!result) {
return Error() << "ParseTriggers() failed: " << result.error();
}
auto action = std::make_unique<Action>(false, action_subcontext, filename, line, event_trigger,
property_triggers);
action_ = std::move(action);
return Success();
}
action的定义如下
on <trigger> [&& <trigger>]*
<command>
<command>
<command>
- trigger 作为触发器，trigger 有两种， event 和 proptery。
显然上面的代码将字符串中的event 和 proptery两种trigger解析到event_trigger和property_triggers变量中，然后创建一个Action对象，最后赋值给action_。
接下来继续解析command，因为section_parser变量已被赋值，则会调用如下代码进行command解析
if (section_parser) {
if (auto result = section_parser->ParseLineSection(std::move(args), state.line);
!result) {
parse_error_count_++;
LOG(ERROR) << filename << ": " << state.line << ": " << result.error();
}
}
//system/core/init/action_parser.cpp
Result<Success> ActionParser::ParseLineSection(std::vector<std::string>&& args, int line) {
return action_ ? action_->AddCommand(std::move(args), line) : Success();
}

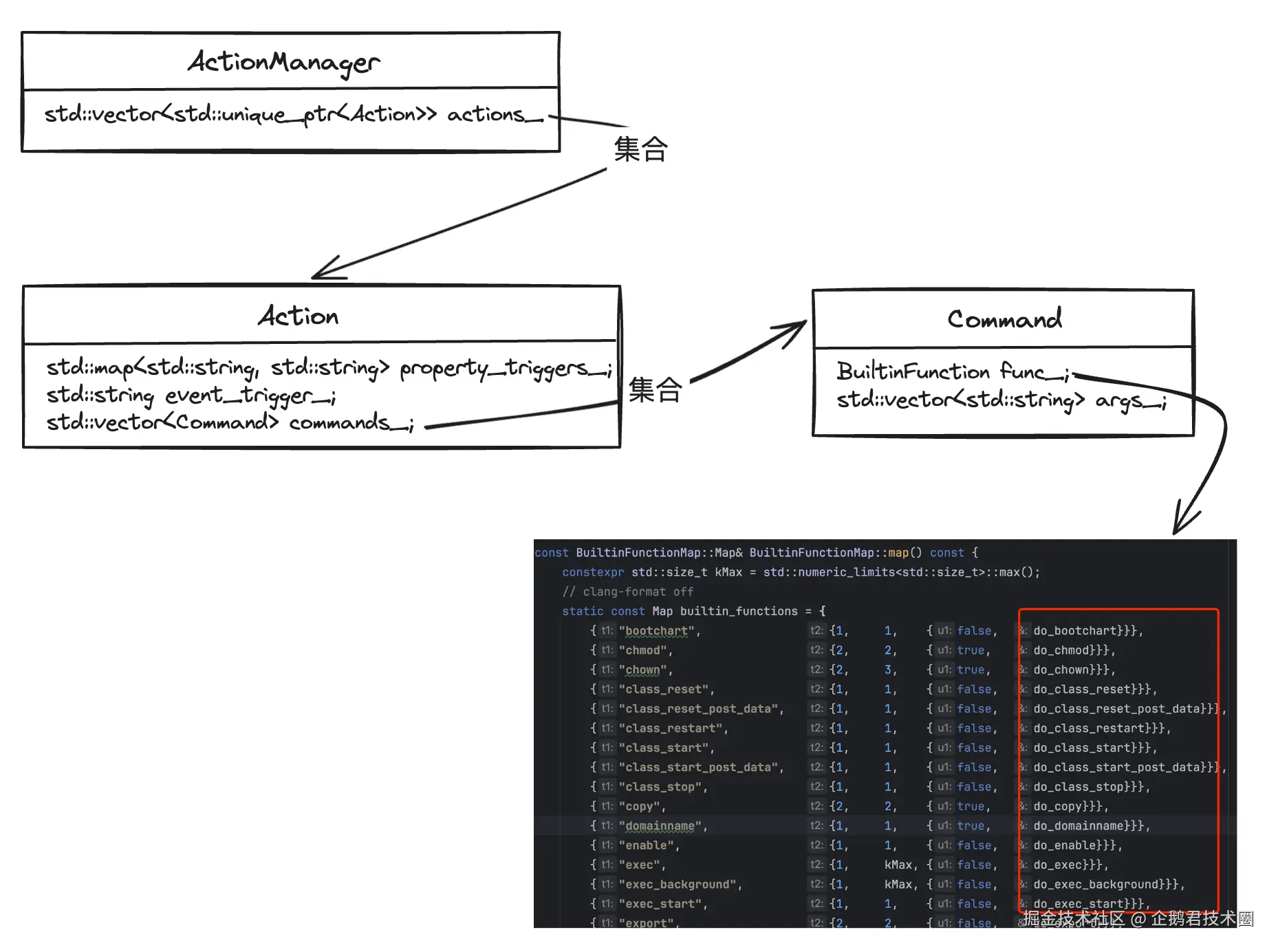

ParseLineSection最终调用Action类的AddCommand
Result<Success> Action::AddCommand(std::vector<std::string>&& args, int line) {
if (!function_map_) {
return Error() << "no function map available";
}
auto function = function_map_->FindFunction(args);
if (!function) return Error() << function.error();
commands_.emplace_back(function->second, function->first, std::move(args), line);
return Success();
}
FindFunction前面已经讲过是怎么来的了，其中调用了map方法，map方法实现如下
//system/core/init/builtins.cpp
const BuiltinFunctionMap::Map& BuiltinFunctionMap::map() const {
constexpr std::size_t kMax = std::numeric_limits<std::size_t>::max();
// clang-format off
static const Map builtin_functions = {
{"bootchart", {1, 1, {false, do_bootchart}}},
{"chmod", {2, 2, {true, do_chmod}}},
{"chown", {2, 3, {true, do_chown}}},
{"class_reset", {1, 1, {false, do_class_reset}}},
{"class_reset_post_data", {1, 1, {false, do_class_reset_post_data}}},
{"class_restart", {1, 1, {false, do_class_restart}}},
{"class_start", {1, 1, {false, do_class_start}}},
{"class_start_post_data", {1, 1, {false, do_class_start_post_data}}},
{"class_stop", {1, 1, {false, do_class_stop}}},
{"copy", {2, 2, {true, do_copy}}},
{"domainname", {1, 1, {true, do_domainname}}},
{"enable", {1, 1, {false, do_enable}}},
{"exec", {1, kMax, {false, do_exec}}},
{"exec_background", {1, kMax, {false, do_exec_background}}},
{"exec_start", {1, 1, {false, do_exec_start}}},
{"export", {2, 2, {false, do_export}}},
{"hostname", {1, 1, {true, do_hostname}}},
{"ifup", {1, 1, {true, do_ifup}}},
{"init_user0", {0, 0, {false, do_init_user0}}},
{"insmod", {1, kMax, {true, do_insmod}}},
{"installkey", {1, 1, {false, do_installkey}}},
{"interface_restart", {1, 1, {false, do_interface_restart}}},
{"interface_start", {1, 1, {false, do_interface_start}}},
{"interface_stop", {1, 1, {false, do_interface_stop}}},
{"load_persist_props", {0, 0, {false, do_load_persist_props}}},
{"load_system_props", {0, 0, {false, do_load_system_props}}},
{"loglevel", {1, 1, {false, do_loglevel}}},
{"mark_post_data", {0, 0, {false, do_mark_post_data}}},
{"mkdir", {1, 4, {true, do_mkdir}}},
// TODO: Do mount operations in vendor_init.
// mount_all is currently too complex to run in vendor_init as it queues action triggers,
// imports rc scripts, etc. It should be simplified and run in vendor_init context.
// mount and umount are run in the same context as mount_all for symmetry.
{"mount_all", {1, kMax, {false, do_mount_all}}},
{"mount", {3, kMax, {false, do_mount}}},
{"parse_apex_configs", {0, 0, {false, do_parse_apex_configs}}},
{"umount", {1, 1, {false, do_umount}}},
{"umount_all", {1, 1, {false, do_umount_all}}},
{"readahead", {1, 2, {true, do_readahead}}},
{"restart", {1, 1, {false, do_restart}}},
{"restorecon", {1, kMax, {true, do_restorecon}}},
{"restorecon_recursive", {1, kMax, {true, do_restorecon_recursive}}},
{"rm", {1, 1, {true, do_rm}}},
{"rmdir", {1, 1, {true, do_rmdir}}},
{"setprop", {2, 2, {true, do_setprop}}},
{"setrlimit", {3, 3, {false, do_setrlimit}}},
{"start", {1, 1, {false, do_start}}},
{"stop", {1, 1, {false, do_stop}}},
{"swapon_all", {1, 1, {false, do_swapon_all}}},
{"enter_default_mount_ns", {0, 0, {false, do_enter_default_mount_ns}}},
{"symlink", {2, 2, {true, do_symlink}}},
{"sysclktz", {1, 1, {false, do_sysclktz}}},
{"trigger", {1, 1, {false, do_trigger}}},
{"verity_load_state", {0, 0, {false, do_verity_load_state}}},
{"verity_update_state", {0, 0, {false, do_verity_update_state}}},
{"wait", {1, 2, {true, do_wait}}},
{"wait_for_prop", {2, 2, {false, do_wait_for_prop}}},
{"write", {2, 2, {true, do_write}}},
};
// clang-format on
return builtin_functions;
}
Action中所有commond命令都有其对应实现。
const Result<Function> FindFunction(const std::vector<std::string>& args) const {
using android::base::StringPrintf;
if (args.empty()) return Error() << "Keyword needed, but not provided";
auto& keyword = args[0];
auto num_args = args.size() - 1;
auto function_info_it = map().find(keyword);
if (function_info_it == map().end()) {
return Error() << StringPrintf("Invalid keyword '%s'", keyword.c_str());
}
auto function_info = function_info_it->second;
auto min_args = std::get<0>(function_info);
auto max_args = std::get<1>(function_info);
if (min_args == max_args && num_args != min_args) {
return Error() << StringPrintf("%s requires %zu argument%s", keyword.c_str(), min_args,
(min_args > 1 || min_args == 0) ? "s" : "");
}
if (num_args < min_args || num_args > max_args) {
if (max_args == std::numeric_limits<decltype(max_args)>::max()) {
return Error() << StringPrintf("%s requires at least %zu argument%s",
keyword.c_str(), min_args, min_args > 1 ? "s" : "");
} else {
return Error() << StringPrintf("%s requires between %zu and %zu arguments",
keyword.c_str(), min_args, max_args);
}
}
return std::get<Function>(function_info);
}
- 通过keyword，调用map找到对应的commond处理对象，也就是如下内容
{1, 1, {false, do_start}}
- 然后校验其参数个数是否合法
- 最后返回std::get(function_info)，实际上是如下内容
{false, do_start}
这样就找到了每个commond对应实现的方法是哪个，最后解析出来数据会构建出一个commond对象，这个对象被保存到commands_变量中。
commands_.emplace_back(function->second, function->first, std::move(args), line);
除了commond关键字的解析外，commond命令可能还会有参数，这些参数就是通过如下代码保存到args中的。
case T_TEXT:
args.emplace_back(state.text);
break;
最后，当section全部解析完成后，会调用如下代码结束section的解析
case T_EOF:
end_section();
for (const auto& [section_name, section_parser] : section_parsers_) {
section_parser->EndFile();
}
return;
end_section最后调用对应解析器的ActionParser类的EndSection
Result<Success> ActionParser::EndSection() {
if (action_ && action_->NumCommands() > 0) {
action_manager_->AddAction(std::move(action_));
}
return Success();
}
将action_添加到action_manager_的actions_集合对象中进行管理。
最后，所有rc文件中的Action都会按照如下数据结构方式进行管理：
Service解析
Service与Action解析根本的不同点就在于如下代码
if (section_parsers_.count(args[0])) {
end_section();
section_parser = section_parsers_[args[0]].get();
section_start_line = state.line;
if (auto result =
section_parser->ParseSection(std::move(args), filename, state.line);
!result) {
parse_error_count_++;
LOG(ERROR) << filename << ": " << state.line << ": " << result.error();
section_parser = nullptr;
bad_section_found = true;
}
}
对于Action，section_parser为ActionParser;对于service，section_parser为ServiceParser；这也就导致后续调用的三个核心函数ParseSection、ParseLineSection、EndSection实现代码有所不同。
以如下service解析为例
service zygote /system/bin/app_process64 -Xzygote /system/bin --zygote --start-system-server
class main
priority -20
user root
group root readproc reserved_disk
socket zygote stream 660 root system
socket usap_pool_primary stream 660 root system
onrestart write /sys/android_power/request_state wake
onrestart write /sys/power/state on
onrestart restart audioserver
onrestart restart cameraserver
onrestart restart media
onrestart restart netd
onrestart restart wificond
writepid /dev/cpuset/foreground/tasks
//system/core/init/service.cpp
Result<Success> ServiceParser::ParseSection(std::vector<std::string>&& args,
const std::string& filename, int line) {
if (args.size() < 3) {
return Error() << "services must have a name and a program";
}
const std::string& name = args[1];
if (!IsValidName(name)) {
return Error() << "invalid service name '" << name << "'";
}
filename_ = filename;
...
std::vector<std::string> str_args(args.begin() + 2, args.end());
service_ = std::make_unique<Service>(name, restart_action_subcontext, str_args);
return Success();
}
- 获取服务名name=“zygote”
- 然后将后续参数放到str_args中(/system/bin/app_process64 -Xzygote /system/bin --zygote --start-system-server)
- 最后使用name和str_args创建Service，并赋值给service_
//system/core/init/service.cpp
Result<Success> ServiceParser::ParseLineSection(std::vector<std::string>&& args, int line) {
return service_ ? service_->ParseLine(std::move(args)) : Success();
}
Result<Success> Service::ParseLine(std::vector<std::string>&& args) {
static const OptionParserMap parser_map;
auto parser = parser_map.FindFunction(args);
if (!parser) return parser.error();
return std::invoke(*parser, this, std::move(args));
}
ParseLineSection最终是调用Service中的ParseLine：
- OptionParserMap在前面有提到，它继承至KeywordMap
- parser_map.FindFunction实际就是调用的KeywordMap.FindFunction
- KeywordMap.FindFunction中会调用map()方法，这个方法被OptionParserMap所覆盖，实现如下：
const Service::OptionParserMap::Map& Service::OptionParserMap::map() const {
constexpr std::size_t kMax = std::numeric_limits<std::size_t>::max();
// clang-format off
static const Map option_parsers = {
{"capabilities",
{0, kMax, &Service::ParseCapabilities}},
{"class", {1, kMax, &Service::ParseClass}},
{"console", {0, 1, &Service::ParseConsole}},
{"critical", {0, 0, &Service::ParseCritical}},
{"disabled", {0, 0, &Service::ParseDisabled}},
{"enter_namespace",
{2, 2, &Service::ParseEnterNamespace}},
{"file", {2, 2, &Service::ParseFile}},
{"group", {1, NR_SVC_SUPP_GIDS + 1, &Service::ParseGroup}},
{"interface", {2, 2, &Service::ParseInterface}},
{"ioprio", {2, 2, &Service::ParseIoprio}},
{"keycodes", {1, kMax, &Service::ParseKeycodes}},
{"memcg.limit_in_bytes",
{1, 1, &Service::ParseMemcgLimitInBytes}},
{"memcg.limit_percent",
{1, 1, &Service::ParseMemcgLimitPercent}},
{"memcg.limit_property",
{1, 1, &Service::ParseMemcgLimitProperty}},
{"memcg.soft_limit_in_bytes",
{1, 1, &Service::ParseMemcgSoftLimitInBytes}},
{"memcg.swappiness",
{1, 1, &Service::ParseMemcgSwappiness}},
{"namespace", {1, 2, &Service::ParseNamespace}},
{"oneshot", {0, 0, &Service::ParseOneshot}},
{"onrestart", {1, kMax, &Service::ParseOnrestart}},
{"oom_score_adjust",
{1, 1, &Service::ParseOomScoreAdjust}},
{"override", {0, 0, &Service::ParseOverride}},
{"priority", {1, 1, &Service::ParsePriority}},
{"restart_period",
{1, 1, &Service::ParseRestartPeriod}},
{"rlimit", {3, 3, &Service::ParseProcessRlimit}},
{"seclabel", {1, 1, &Service::ParseSeclabel}},
{"setenv", {2, 2, &Service::ParseSetenv}},
{"shutdown", {1, 1, &Service::ParseShutdown}},
{"sigstop", {0, 0, &Service::ParseSigstop}},
{"socket", {3, 6, &Service::ParseSocket}},
{"timeout_period",
{1, 1, &Service::ParseTimeoutPeriod}},
{"updatable", {0, 0, &Service::ParseUpdatable}},
{"user", {1, 1, &Service::ParseUser}},
{"writepid", {1, kMax, &Service::ParseWritepid}},
};
// clang-format on
return option_parsers;
}
FindFunction实际返回的就是&Service::*，这里Service中所实现的方法主要是用来解析rc脚本中Service的Option选项，例如：
class main
priority -20
user root
group root readproc reserved_disk
socket zygote stream 660 root system
socket usap_pool_primary stream 660 root system
onrestart write /sys/android_power/request_state wake
onrestart write /sys/power/state on
onrestart restart audioserver
onrestart restart cameraserver
onrestart restart media
onrestart restart netd
onrestart restart wificond
writepid /dev/cpuset/foreground/tasks
- std::invoke(*parser, this, std::move(args))就是调用&Service::*方法，在这里方法中会将Option中解析的数据填充到前面创建的_service对象中
Result<Success> ServiceParser::EndSection() {
if (service_) {
Service* old_service = service_list_->FindService(service_->name());
if (old_service) {
if (!service_->is_override()) {
return Error() << "ignored duplicate definition of service '" << service_->name()
<< "'";
}
if (StartsWith(filename_, "/apex/") && !old_service->is_updatable()) {
return Error() << "cannot update a non-updatable service '" << service_->name()
<< "' with a config in APEX";
}
service_list_->RemoveService(*old_service);
old_service = nullptr;
}
service_list_->AddService(std::move(service_));
}
return Success();
}

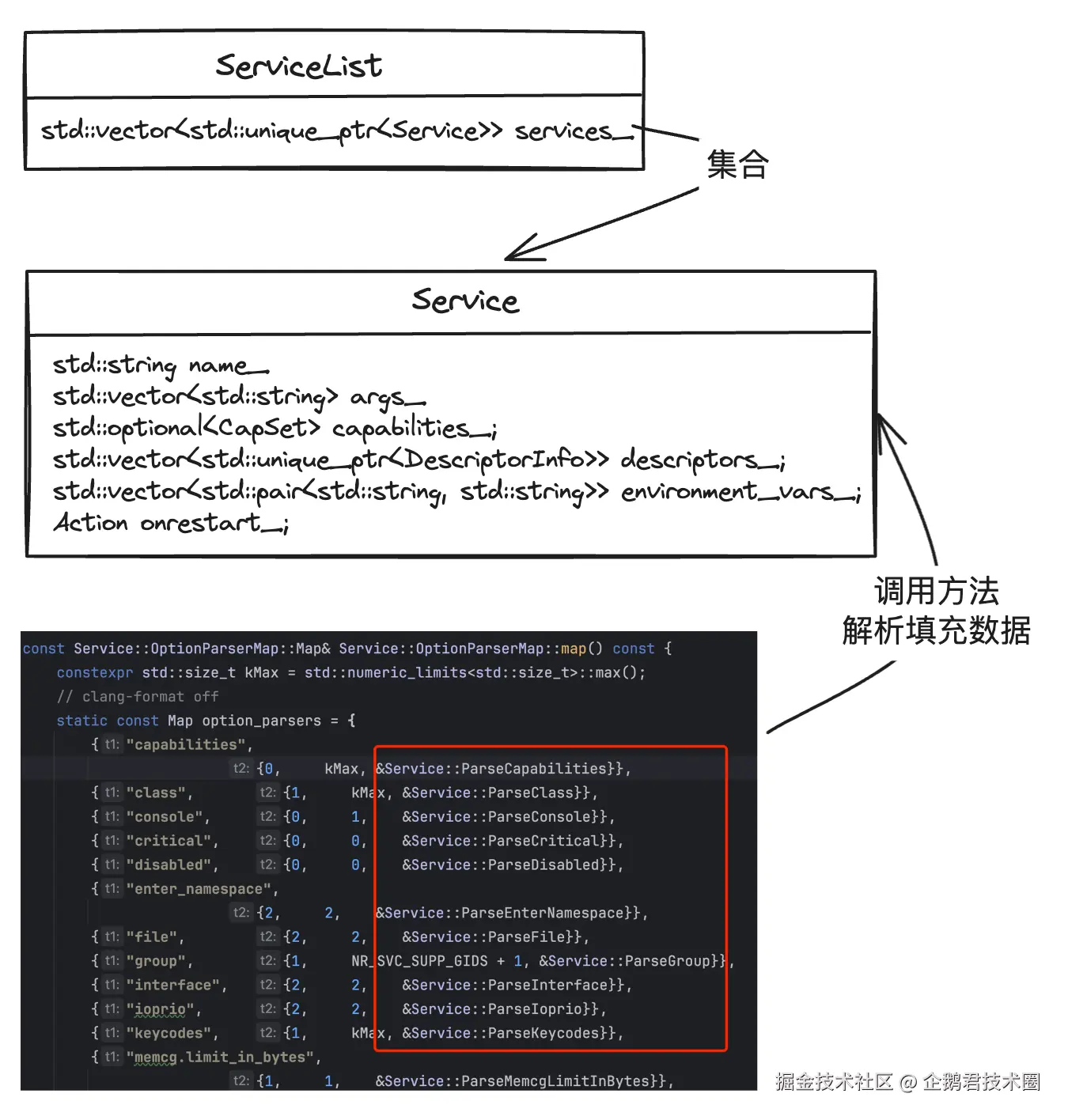

最后当一个Service section解析完后就被添加到service_list_中管理，整个过程构建的数据结构如下：
line_callback
line_callback这个不是一个重要的内容，在这里简单提一下即可，它并不是init进程在使用，而是ueventd进程使用的；在前面init进程执行流程中讲解了ueventd进程是如何启动的，启动入口ueventd_main如下
// system/core/init/main.cpp
int main(int argc, char** argv) {
#if __has_feature(address_sanitizer)
__asan_set_error_report_callback(AsanReportCallback);
#endif
if (!strcmp(basename(argv[0]), "ueventd")) {
return ueventd_main(argc, argv);
}
if (argc > 1) {
if (!strcmp(argv[1], "subcontext")) {
android::base::InitLogging(argv, &android::base::KernelLogger);
const BuiltinFunctionMap function_map;
return SubcontextMain(argc, argv, &function_map);
}
if (!strcmp(argv[1], "selinux_setup")) {
return SetupSelinux(argv);
}
if (!strcmp(argv[1], "second_stage")) {
return SecondStageMain(argc, argv);
}
}
return FirstStageMain(argc, argv);
}
在ueventd_main会解析与ueventd相关的rc文件
int ueventd_main(int argc, char** argv) {
...
auto ueventd_configuration = ParseConfig({"/ueventd.rc", "/vendor/ueventd.rc",
"/odm/ueventd.rc", "/ueventd." + hardware + ".rc"});
...
return 0;
}
在这里面会调用AddSingleLineParser添加一个行解析器，前面讲解init.rc都是调用AddSectionParser添加的段解析器
UeventdConfiguration ParseConfig(const std::vector<std::string>& configs) {
Parser parser;
UeventdConfiguration ueventd_configuration;
parser.调用AddSectionParser添加的段解析器("subsystem",
std::make_unique<SubsystemParser>(&ueventd_configuration.subsystems));
using namespace std::placeholders;
parser.AddSingleLineParser(
"/sys/",
std::bind(ParsePermissionsLine, _1, &ueventd_configuration.sysfs_permissions, nullptr));
parser.AddSingleLineParser("/dev/", std::bind(ParsePermissionsLine, _1, nullptr,
&ueventd_configuration.dev_permissions));
parser.AddSingleLineParser("firmware_directories",
std::bind(ParseFirmwareDirectoriesLine, _1,
&ueventd_configuration.firmware_directories));
parser.AddSingleLineParser("modalias_handling",
std::bind(ParseModaliasHandlingLine, _1,
&ueventd_configuration.enable_modalias_handling));
parser.AddSingleLineParser("uevent_socket_rcvbuf_size",
std::bind(ParseUeventSocketRcvbufSizeLine, _1,
&ueventd_configuration.uevent_socket_rcvbuf_size));
for (const auto& config : configs) {
parser.ParseConfig(config);
}
return ueventd_configuration;
}
AddSingleLineParser就是将解析器添加到了line_callbacks_中
void Parser::AddSingleLineParser(const std::string& prefix, LineCallback callback) {
line_callbacks_.emplace_back(prefix, callback);
}
到这里，我们就明白了为什么前面分析init.rc解析时，直接忽略line_callbacks_了。
为什么需要这个行解析器呢，我们看一下ueventd.rc文件内容就明白了
firmware_directories /etc/firmware/ /odm/firmware/ /vendor/firmware/ /firmware/image/
uevent_socket_rcvbuf_size 16M
subsystem graphics
devname uevent_devpath
dirname /dev/graphics
subsystem drm
devname uevent_devpath
dirname /dev/dri
subsystem input
devname uevent_devpath
dirname /dev/input
subsystem sound
devname uevent_devpath
dirname /dev/snd
# ueventd can only set permissions on device nodes and their associated
# sysfs attributes, not on arbitrary paths.
#
# format for /dev rules: devname mode uid gid
# format for /sys rules: nodename attr mode uid gid
# shortcut: "mtd@NN" expands to "/dev/mtd/mtdNN"
/dev/null 0666 root root
/dev/zero 0666 root root
/dev/full 0666 root root
/dev/ptmx 0666 root root
/dev/tty 0666 root root
/dev/random 0666 root root
/dev/urandom 0666 root root
# Make HW RNG readable by group system to let EntropyMixer read it.
/dev/hw_random 0440 root system
/dev/ashmem 0666 root root
/dev/binder 0666 root root
/dev/hwbinder 0666 root root
/dev/vndbinder 0666 root root
/dev/pmsg0 0222 root log
# kms driver for drm based gpu
/dev/dri/* 0666 root graphics
# these should not be world writable
/dev/uhid 0660 uhid uhid
/dev/uinput 0660 uhid uhid
/dev/rtc0 0640 system system
/dev/tty0 0660 root system
/dev/graphics/* 0660 root graphics
/dev/input/* 0660 root input
/dev/v4l-touch* 0660 root input
/dev/snd/* 0660 system audio
/dev/bus/usb/* 0660 root usb
/dev/mtp_usb 0660 root mtp
/dev/usb_accessory 0660 root usb
/dev/tun 0660 system vpn
# CDMA radio interface MUX
/dev/ppp 0660 radio vpn
# sysfs properties
/sys/devices/platform/trusty.* trusty_version 0440 root log
/sys/devices/virtual/input/input* enable 0660 root input
/sys/devices/virtual/input/input* poll_delay 0660 root input
/sys/devices/virtual/usb_composite/* enable 0664 root system
/sys/devices/system/cpu/cpu* cpufreq/scaling_max_freq 0664 system system
/sys/devices/system/cpu/cpu* cpufreq/scaling_min_freq 0664 system system
因为它里面有很多独立的行，所以定义了一个专门的解析器用于解析这些独立行。
