Element-plus的el-table组件实现分组表格

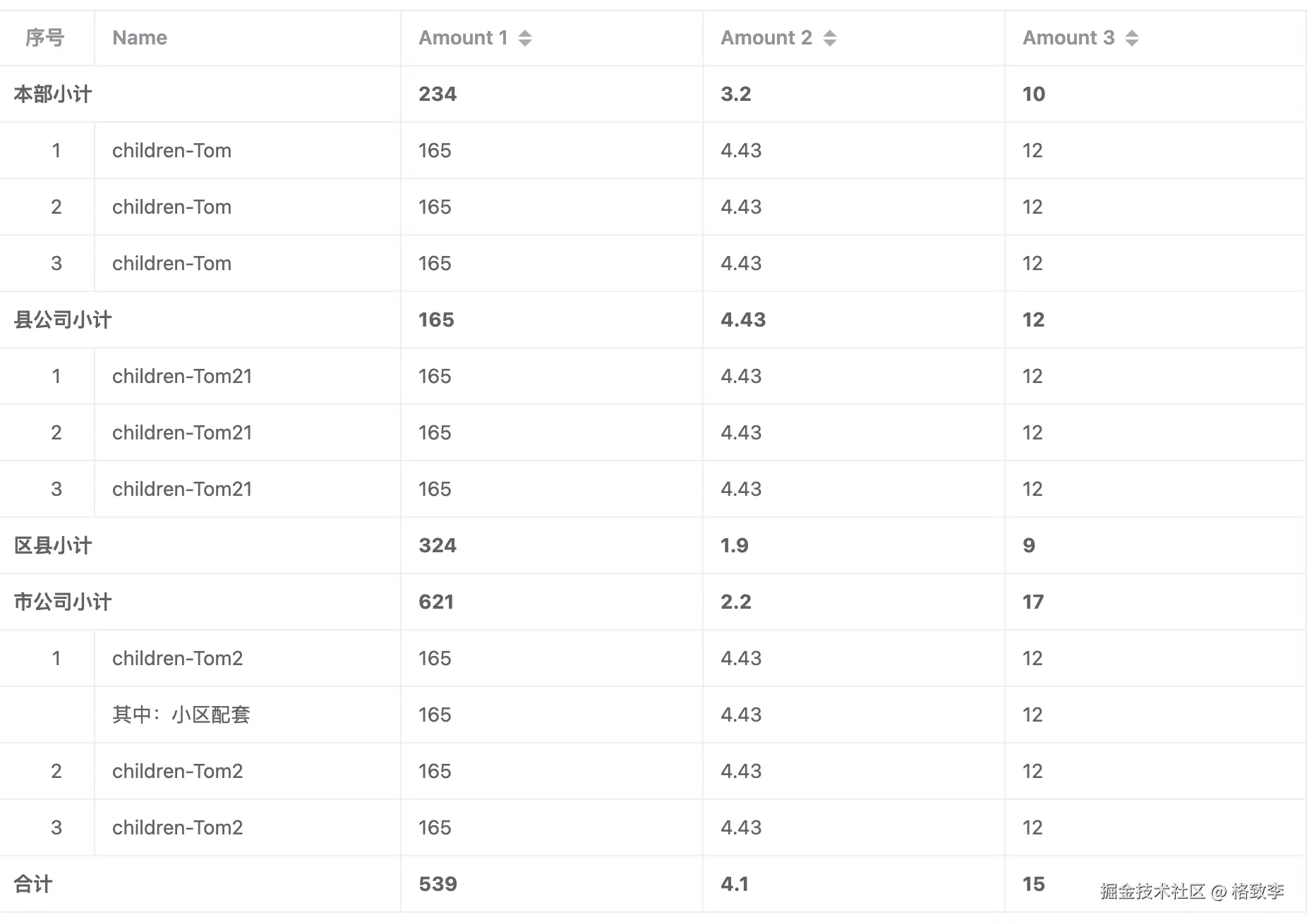

实现效果图

实现思路

1. 接口返回树形数据；
2. 树形第一级第一级合并单元格

const arraySpanMethod = ({
  row,
  column,
  rowIndex,
  columnIndex,
}: SpanMethodProps) => {
  if(row.level == 0 && row.children){
    if(columnIndex == 0){
      return [0, 0]
    }else if(columnIndex == 1){
      return [1,2]
    }
  }

}

4. 自定义序号，实现分组内序号；

const deep=(list, level = 0)=>{
    return list.map((item, index)=>{
      item.level = level;
      if(level<2){
        item.index = index + 1;
      }
      if(item.children){
        item.children = deep(item.children, level+1);
      }
      return item;
    })
}

5. 不考虑分页；

实现代码

    <template>
      <div>
        <el-table
          :data="tableData"
          :span-method="arraySpanMethod"
          border
          row-key="id"
          style="width: 100%"
          default-expand-all
        >
          <el-table-column label="序号" prop="index" align="center" width="70" :index2="indexMethod"  />
          <el-table-column prop="name" label="Name" />
          <el-table-column prop="amount1" sortable label="Amount 1" />
          <el-table-column prop="amount2" sortable label="Amount 2" />
          <el-table-column prop="amount3" sortable label="Amount 3" />
        </el-table>
      </div>
    </template>

    <script lang="ts" setup>
    import { onMounted } from 'vue';
    import type { TableColumnCtx } from 'element-plus'

    interface User {
      id: string
      name: string
      amount1: string
      amount2: string
      amount3: number
      index: number
      level: number
      children?: Array<User>
    }

    interface SpanMethodProps {
      row: User
      column: TableColumnCtx<User>
      rowIndex: number
      columnIndex: number
    }

    const indexMethod =()=>{
      return 0;
    }

    const arraySpanMethod = ({
      row,
      column,
      rowIndex,
      columnIndex,
    }: SpanMethodProps) => {
      if(row.level == 0 && row.children){
        if(columnIndex == 0){
          return [0, 0]
        }else if(columnIndex == 1){
          return [1,2]
        }
      }

    }

    const deep=(list, level = 0)=>{
        return list.map((item, index)=>{
          item.level = level;
          if(level<2){
            item.index = index + 1;
          }
          if(item.children){
            item.children = deep(item.children, level+1);
          }
          return item;
        })
    }



    onMounted(()=>{
       deep(tableData)
       console.log('tableData', tableData, deep(tableData))
    })


    const tableData: User[] = [
      {
        id: '12987122',
        name: '本部小计',
        amount1: '234',
        amount2: '3.2',
        amount3: 10,
        children: [
          {
            id: '12987123',
            name: 'children-Tom',
            amount1: '165',
            amount2: '4.43',
            amount3: 12,
          },
          {
            id: '12987123',
            name: 'children-Tom',
            amount1: '165',
            amount2: '4.43',
            amount3: 12,
          },
          {
            id: '12987123',
            name: 'children-Tom',
            amount1: '165',
            amount2: '4.43',
            amount3: 12,
          },
        ]
      },
      {
        id: '12987123',
        name: '县公司小计',
        amount1: '165',
        amount2: '4.43',
        amount3: 12,
        children: [
          {
            id: '1298712321',
            name: 'children-Tom21',
            amount1: '165',
            amount2: '4.43',
            amount3: 12,
          },
          {
            id: '1298712321',
            name: 'children-Tom21',
            amount1: '165',
            amount2: '4.43',
            amount3: 12,
          },
          {
            id: '1298712321',
            name: 'children-Tom21',
            amount1: '165',
            amount2: '4.43',
            amount3: 12,
          },
        ]
      },
      {
        id: '12987124',
        name: '区县小计',
        amount1: '324',
        amount2: '1.9',
        amount3: 9,
        children: []
      },
      {
        id: '12987125',
        name: '市公司小计',
        amount1: '621',
        amount2: '2.2',
        amount3: 17,
        children: [
          {
            id: '129871232',
            name: 'children-Tom2',
            amount1: '165',
            amount2: '4.43',
            amount3: 12,
            children: [
                {
                  id: '1298712323',
                  name: '其中：小区配套',
                  amount1: '165',
                  amount2: '4.43',
                  amount3: 12,
                }
            ]
          },
          {
            id: '129871232',
            name: 'children-Tom2',
            amount1: '165',
            amount2: '4.43',
            amount3: 12,
          },
          {
            id: '129871232',
            name: 'children-Tom2',
            amount1: '165',
            amount2: '4.43',
            amount3: 12,
          },
        ]
      },
      {
        id: '12987126',
        name: '合计',
        amount1: '539',
        amount2: '4.1',
        amount3: 15,
        children: []
      },
    ]
    </script>
    <style>
    .el-table__expand-icon .el-icon {
      display: none;
    }
    .el-table__placeholder,
    .el-table__expand-icon--expanded {
      display: none !important;
    }
    .el-table__row--level-0{
      font-weight: bold;
    }
    .el-table__row:not([class*="--level-"]){
      font-weight: bold;
    }
    </style>
