基于Android 9.0
1.概述

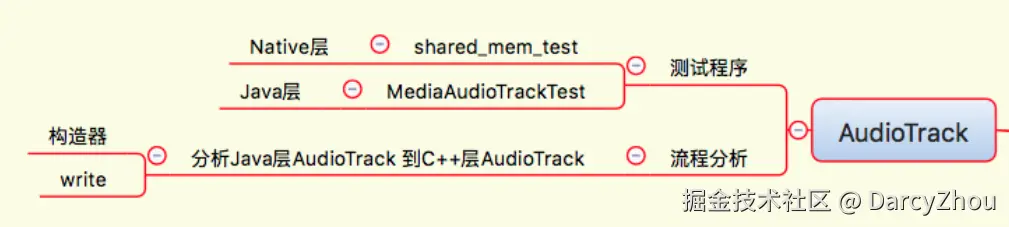

以上思维导图AudioTrack部分，主要是分析了两个测试程（ C++层的shared_mem_test和Java层的MediaAudioTrackTest.java）进而分析了Java层AudioTrack到C++层AudioTrack调用流程（构造器流程和write流程）。
2.shared_mem_test测试程序分析
shared_mem_test测试程序的入口main函数为：
// frameworks/base/media/tests/audiotests/shared_mem_test.cpp
int main() {
return android::main();
}
继续分析，android::main()，代码实现如下：
// frameworks/base/media/tests/audiotests/shared_mem_test.cpp
int main() {
ProcessState::self()->startThreadPool();
AudioTrackTest *test;
test = new AudioTrackTest();
test->Execute();
delete test;
return 0;
}
这里主要分析两个关键点：AudioTrackTest构造器和它的Execute方法。
2.1 AudioTrackTest构造器
// frameworks/base/media/tests/audiotests/shared_mem_test.cpp
AudioTrackTest::AudioTrackTest(void) {
InitSine(); // init sine table
}
继续分析InitSine，代码实现如下：
// frameworks/base/media/tests/audiotests/shared_mem_test.cpp
void AudioTrackTest::InitSine(void) {
double phi = 0;
double dPhi = 2 * M_PI / SIN_SZ;
for(int i0 = 0; i0<SIN_SZ; i0++) {
long d0;
d0 = 32768. * sin(phi);
phi += dPhi;
if(d0 >= 32767) d0 = 32767;
if(d0 <= -32768) d0 = -32768;
sin1024[i0] = (short)d0;
}
}
这里主要是构造数据和波形，为下一步做准备。
2.2 AudioTrackTest的Execute方法
// frameworks/base/media/tests/audiotests/shared_mem_test.cpp
void AudioTrackTest::Execute(void) {
if (Test01() == 0) {
ALOGD("01 passed\n");
} else {
ALOGD("01 failed\n");
}
}
继续分析Test01，代码实现如下：
// frameworks/base/media/tests/audiotests/shared_mem_test.cpp
int AudioTrackTest::Test01() {
sp<MemoryDealer> heap;
sp<IMemory> iMem;
uint8_t* p;
short smpBuf[BUF_SZ];
long rate = 44100;
unsigned long phi;
unsigned long dPhi;
long amplitude;
long freq = 1237;
float f0;
f0 = pow(2., 32.) * freq / (float)rate;
dPhi = (unsigned long)f0;
amplitude = 1000;
phi = 0;
Generate(smpBuf, BUF_SZ, amplitude, phi, dPhi); // fill buffer
for (int i = 0; i < 1024; i++) {
heap = new MemoryDealer(1024*1024, "AudioTrack Heap Base");
iMem = heap->allocate(BUF_SZ*sizeof(short));
p = static_cast<uint8_t*>(iMem->pointer());
memcpy(p, smpBuf, BUF_SZ*sizeof(short));
//关键点1：创建一个AudioTrack对象，并传递数据
sp<AudioTrack> track = new AudioTrack(AUDIO_STREAM_MUSIC,// stream type
rate,
AUDIO_FORMAT_PCM_16_BIT,// word length, PCM
AUDIO_CHANNEL_OUT_MONO,
iMem);
status_t status = track->initCheck();
if(status != NO_ERROR) {
track.clear();
ALOGD("Failed for initCheck()");
return -1;
}
// start play
//关键点2：开始播放
ALOGD("start");
track->start();
usleep(20000);
ALOGD("stop");
track->stop();
iMem.clear();
heap.clear();
usleep(20000);
}
return 0;
}
通过上面的分析可以知道，Native层的AudioTrack的使用流程是：
- 构建参数并传递给AudioTrack，注意，这里iMem中含有带数据的Buffer；
- 执行start操作开始播放。
3.MediaAudioTrackTest测试程序分析
MediaAudioTrackTest中有很多测试用例，这里分析其中一个用例，代码实现如下：
// frameworks/base/media/tests/MediaFrameworkTest/src/com/android/mediaframeworktest/functional/audio/MediaAudioTrackTest.java
public class MediaAudioTrackTest extends ActivityInstrumentationTestCase2<MediaFrameworkTest> {
private String TAG = "MediaAudioTrackTest";
//...
//Test case 1: setPlaybackHeadPosition() on playing track
@LargeTest
public void testSetPlaybackHeadPositionPlaying() throws Exception {
// constants for test
final String TEST_NAME = "testSetPlaybackHeadPositionPlaying";
final int TEST_SR = 22050;
final int TEST_CONF = AudioFormat.CHANNEL_OUT_MONO;
final int TEST_FORMAT = AudioFormat.ENCODING_PCM_16BIT;
final int TEST_MODE = AudioTrack.MODE_STREAM;
final int TEST_STREAM_TYPE = AudioManager.STREAM_MUSIC;
//-------- initialization --------------
int minBuffSize = AudioTrack.getMinBufferSize(TEST_SR, TEST_CONF, TEST_FORMAT);
//关键点1：构建并传递参数给AudioTrack对象
AudioTrack track = new AudioTrack(TEST_STREAM_TYPE, TEST_SR, TEST_CONF, TEST_FORMAT,
2*minBuffSize, TEST_MODE);
byte data[] = new byte[minBuffSize];
//-------- test --------------
assumeTrue(TEST_NAME, track.getState() == AudioTrack.STATE_INITIALIZED);
track.write(data, 0, data.length);
track.write(data, 0, data.length);
//关键点2：播放
track.play();
assertTrue(TEST_NAME,
track.setPlaybackHeadPosition(10) == AudioTrack.ERROR_INVALID_OPERATION);
//-------- tear down --------------
track.release();
}
//...
}
通过上面的分析可以知道，Java层的AudioTrack的使用流程是：
-
构建参数并传递给AudioTrack。
-
执行wrtie写入数据，相当于 shared_mem_test中的iMem。
-
执行start操作开始播放。

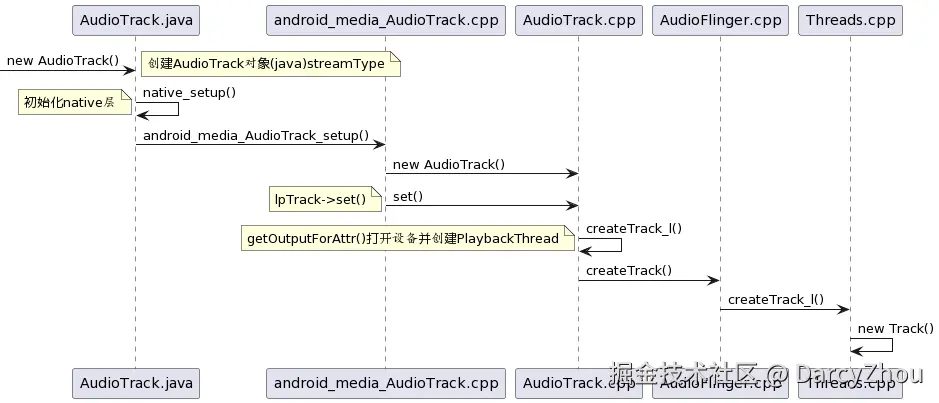

接下来我们分析Java层AudioTrack 到C++层AudioTrack的调用过程，一个是构造器，一个是write函数。
4.AudioTrack从Java层到C++层
4.1 构造器分析
同时这里Java层AudioTrack对象的创建，最后也导致了Native层的AudioTrack对象的创建。分析Java层的AudioTrack，代码实现如下：
// frameworks/base/media/java/android/media/AudioTrack.java
private AudioTrack(AudioAttributes attributes, AudioFormat format, int bufferSizeInBytes,
int mode, int sessionId, boolean offload)
throws IllegalArgumentException {
super(attributes, AudioPlaybackConfiguration.PLAYER_TYPE_JAM_AUDIOTRACK);
// ......
int[] sampleRate = new int[] {mSampleRate};
int[] session = new int[1];
session[0] = sessionId;
// native initialization
int initResult = native_setup(new WeakReference<AudioTrack>(this), mAttributes,
sampleRate, mChannelMask, mChannelIndexMask, mAudioFormat,
mNativeBufferSizeInBytes, mDataLoadMode, session, 0 /*nativeTrackInJavaObj*/,
offload);
if (initResult != SUCCESS) {
loge("Error code "+initResult+" when initializing AudioTrack.");
return; // with mState == STATE_UNINITIALIZED
}
// ......
}
根据JNI的映射关系：
// frameworks/base/core/jni/android_media_AudioTrack.cpp
{"native_setup", "(Ljava/lang/Object;Ljava/lang/Object;IIIII[I)I",
(void *)android_media_AudioTrack_setup},
继续分析android_media_AudioTrack_setup的实现，代码如下：
// frameworks/base/core/jni/android_media_AudioTrack.cpp
static jint
android_media_AudioTrack_setup(JNIEnv *env, jobject thiz, jobject weak_this, jobject jaa,
jintArray jSampleRate, jint channelPositionMask, jint channelIndexMask,
jint audioFormat, jint buffSizeInBytes, jint memoryMode, jintArray jSession,
jlong nativeAudioTrack, jboolean offload) {
// ......
// create the native AudioTrack object
//关键点1:创建native AudioTrack对象
lpTrack = new AudioTrack();
// ...
// 省略部分代码
// ...
status_t status = NO_ERROR;
//这里开始针对两种模式MODE_STREAM和MODE_STATIC进行不同参数的设置
switch (memoryMode) {
case MODE_STREAM:
//关键点1:set方法，设置参数
status = lpTrack->set(
AUDIO_STREAM_DEFAULT,// stream type, but more info conveyed in paa (last argument)
sampleRateInHertz,
format,// word length, PCM
nativeChannelMask,
frameCount,
AUDIO_OUTPUT_FLAG_NONE,
audioCallback, &(lpJniStorage->mCallbackData),//callback, callback data (user)
0,// notificationFrames == 0 since not using EVENT_MORE_DATA to feed the AudioTrack
0,// shared mem
true,// thread can call Java
sessionId,// audio session ID
AudioTrack::TRANSFER_SYNC,
offload ? &offloadInfo : NULL,
-1, -1, // default uid, pid values
paa);
break;
case MODE_STATIC:
// AudioTrack is using shared memory
// 应用端申请共享内存
if (!lpJniStorage->allocSharedMem(buffSizeInBytes)) {
ALOGE("Error creating AudioTrack in static mode: error creating mem heap base");
goto native_init_failure;
}
//关键点2:set方法，设置参数
status = lpTrack->set(
AUDIO_STREAM_DEFAULT,// stream type, but more info conveyed in paa (last argument)
sampleRateInHertz,
format,// word length, PCM
nativeChannelMask,
frameCount,
AUDIO_OUTPUT_FLAG_NONE,
audioCallback, &(lpJniStorage->mCallbackData),//callback, callback data (user));
0,// notificationFrames == 0 since not using EVENT_MORE_DATA to feed the AudioTrack
lpJniStorage->mMemBase,// shared mem
true,// thread can call Java
sessionId,// audio session ID
AudioTrack::TRANSFER_SHARED,
NULL, // default offloadInfo
-1, -1, // default uid, pid values
paa);
break;
// ...
// 省略部分代码
// ...
}
这里执行了两个关键操作，一个是创建C++层的AudioTrack对象，另一个是执行它的set方法，而C++层的AudioTrack对象它的构造器代码如下：
// frameworks/av/media/libaudioclient/AudioTrack.cpp
//无参构造方法，后再调用set方法
AudioTrack::AudioTrack()
: mStatus(NO_INIT),
mState(STATE_STOPPED),
mPreviousPriority(ANDROID_PRIORITY_NORMAL),
mPreviousSchedulingGroup(SP_DEFAULT),
mPausedPosition(0),
mSelectedDeviceId(AUDIO_PORT_HANDLE_NONE),
mRoutedDeviceId(AUDIO_PORT_HANDLE_NONE)
{
mAttributes.content_type = AUDIO_CONTENT_TYPE_UNKNOWN;
mAttributes.usage = AUDIO_USAGE_UNKNOWN;
mAttributes.flags = 0x0;
strcpy(mAttributes.tags, "");
}
// ---------------
//有参对象，不需再调用set方法
AudioTrack::AudioTrack(
audio_stream_type_t streamType,
uint32_t sampleRate,
audio_format_t format,
audio_channel_mask_t channelMask,
size_t frameCount,
audio_output_flags_t flags,
callback_t cbf,
void* user,
int32_t notificationFrames,
audio_session_t sessionId,
transfer_type transferType,
const audio_offload_info_t *offloadInfo,
uid_t uid,
pid_t pid,
const audio_attributes_t* pAttributes,
bool doNotReconnect,
float maxRequiredSpeed,
audio_port_handle_t selectedDeviceId)
: mStatus(NO_INIT),
mState(STATE_STOPPED),
mPreviousPriority(ANDROID_PRIORITY_NORMAL),
mPreviousSchedulingGroup(SP_DEFAULT),
mPausedPosition(0)
{
// 构造方法里面自动调用set()方法
(void)set(streamType, sampleRate, format, channelMask,
frameCount, flags, cbf, user, notificationFrames,
0 /*sharedBuffer*/, false /*threadCanCallJava*/, sessionId, transferType,
offloadInfo, uid, pid, pAttributes, doNotReconnect, maxRequiredSpeed, selectedDeviceId);
}
可以看到 AudioTrack的使用有两种情况：
- 无参数构造器，后期需要再执行set方法 设置参数。
- 有参数构造器，会直接调用set方法 设置参数。
总结下：播放声音时都要创建AudioTrack对象，java的AudioTrack对象创建时会导致c++的AudioTrack对象被创建；所以分析的核心是c++的AudioTrack类，创建AudioTrack时涉及一个重要函数：set。同时AudioTrack只能确定声音的属性，并不能确定声音从哪个设备播放。
4.2 write函数
这里的写函数有很多，如下：
// frameworks/base/media/java/android/media/AudioTrack.java
public int write(byte[] audioData, int offsetInBytes, int sizeInBytes) {
//...
int ret = native_write_byte(audioData, offsetInBytes, sizeInBytes, mAudioFormat,
true /*isBlocking*/);
//...
return ret;
}
public int write(short[] audioData, int offsetInShorts, int sizeInShorts) {
//...
int ret = native_write_short(audioData, offsetInShorts, sizeInShorts, mAudioFormat);
//...
return ret;
}
public int write(float[] audioData, int offsetInFloats, int sizeInFloats,
@WriteMode int writeMode) {
//...
int ret = native_write_float(audioData, offsetInFloats, sizeInFloats, mAudioFormat,
writeMode == WRITE_BLOCKING);
//...
return ret;
}
public int write(ByteBuffer audioData, int sizeInBytes,
@WriteMode int writeMode) {
int ret = 0;
if (audioData.isDirect()) {
ret = native_write_native_bytes(audioData,
audioData.position(), sizeInBytes, mAudioFormat,
writeMode == WRITE_BLOCKING);
} else {
ret = native_write_byte(NioUtils.unsafeArray(audioData),
NioUtils.unsafeArrayOffset(audioData) + audioData.position(),
sizeInBytes, mAudioFormat,
writeMode == WRITE_BLOCKING);
}
return ret;
}
这里均为native层的调用，继续跟进，代码如下：
// frameworks/base/core/jni/android_media_AudioTrack.cpp
static jint android_media_AudioTrack_write_byte(JNIEnv *env, jobject thiz,
jbyteArray javaAudioData,
jint offsetInBytes, jint sizeInBytes,
jint javaAudioFormat,
jboolean isWriteBlocking) {
sp<AudioTrack> lpTrack = getAudioTrack(env, thiz);
//...
jint written = writeToTrack(lpTrack, javaAudioFormat, cAudioData, offsetInBytes, sizeInBytes,
isWriteBlocking == JNI_TRUE /* blocking */);
//...
return written;
}
static jint android_media_AudioTrack_write_native_bytes(JNIEnv *env, jobject thiz,
jbyteArray javaBytes, jint byteOffset, jint sizeInBytes,
jint javaAudioFormat, jboolean isWriteBlocking) {
sp<AudioTrack> lpTrack = getAudioTrack(env, thiz);
//...
jint written = writeToTrack(lpTrack, javaAudioFormat, bytes.get(), byteOffset,
sizeInBytes, isWriteBlocking == JNI_TRUE /* blocking */);
return written;
}
static jint android_media_AudioTrack_write_short(JNIEnv *env, jobject thiz,
jshortArray javaAudioData,
jint offsetInShorts, jint sizeInShorts,
jint javaAudioFormat) {
sp<AudioTrack> lpTrack = getAudioTrack(env, thiz);
//...
jint written = writeToTrack(lpTrack, javaAudioFormat, (jbyte *)cAudioData,
offsetInShorts * sizeof(short), sizeInShorts * sizeof(short),
true /*blocking write, legacy behavior*/);
//...
return written;
}
static jint android_media_AudioTrack_write_float(JNIEnv *env, jobject thiz,
jfloatArray javaAudioData,
jint offsetInFloats, jint sizeInFloats,
jint javaAudioFormat,
jboolean isWriteBlocking) {
sp<AudioTrack> lpTrack = getAudioTrack(env, thiz);
//...
jint written = writeToTrack(lpTrack, javaAudioFormat, (jbyte *)cAudioData,
offsetInFloats * sizeof(float), sizeInFloats * sizeof(float),
isWriteBlocking == JNI_TRUE /* blocking */);
//...
return written;
}
这里native相关函数最终都调用了writeToTrack函数，代码实现如下：
// frameworks/base/core/jni/android_media_AudioTrack.cpp
static jint writeToTrack(const sp<AudioTrack>& track, jint audioFormat, const T *data,
jint offsetInSamples, jint sizeInSamples, bool blocking) {
// give the data to the native AudioTrack object (the data starts at the offset)
ssize_t written = 0;
// regular write() or copy the data to the AudioTrack's shared memory?
size_t sizeInBytes = sizeInSamples * sizeof(T);
//playbackthread提供共享内存，调用C++层track的write函数
if (track->sharedBuffer() == 0) {
written = track->write(data + offsetInSamples, sizeInBytes, blocking);
// for compatibility with earlier behavior of write(), return 0 in this case
if (written == (ssize_t) WOULD_BLOCK) {
written = 0;
}
} else {//应用端 提供共享内存，直接执行memcpy
// writing to shared memory, check for capacity
if ((size_t)sizeInBytes > track->sharedBuffer()->size()) {
sizeInBytes = track->sharedBuffer()->size();
}
//这里将data数据拷贝给 共享内存
memcpy(track->sharedBuffer()->pointer(), data + offsetInSamples, sizeInBytes);
written = sizeInBytes;
}
if (written >= 0) {
return written / sizeof(T);
}
return interpretWriteSizeError(written);
}
接下来就调用 C++层 track的一些基本操作了，本段代码简要解读如下：
- 如果track->sharedBuffer() == 0，即由playbackthread提供共享内存，则执行C++层track的write方法。
- 如果track->sharedBuffer() != 0，即由APP端提供共享内存，则直接执行memcpy操作，给track->sharedBuffer()赋值。
