Android 音频子系统--05：AudioFlinger启动分析

DarcyZhou
845 阅读7分钟

本文转载自：Android Framework 音频子系统（04）AudioFlinger启动分析

基于Android 9.0

1.概述

  在《Android 音频子系统--03：从开机到audioserver启动》章节中，分析的audioserver启动过程中，audioserver的main()方法中会启动音频框架中两大服务：AudioFlinger和AudioPolicyService，这章将继续从启动AudioFlinger服务开始，分析AudioFlinger相关的流程。

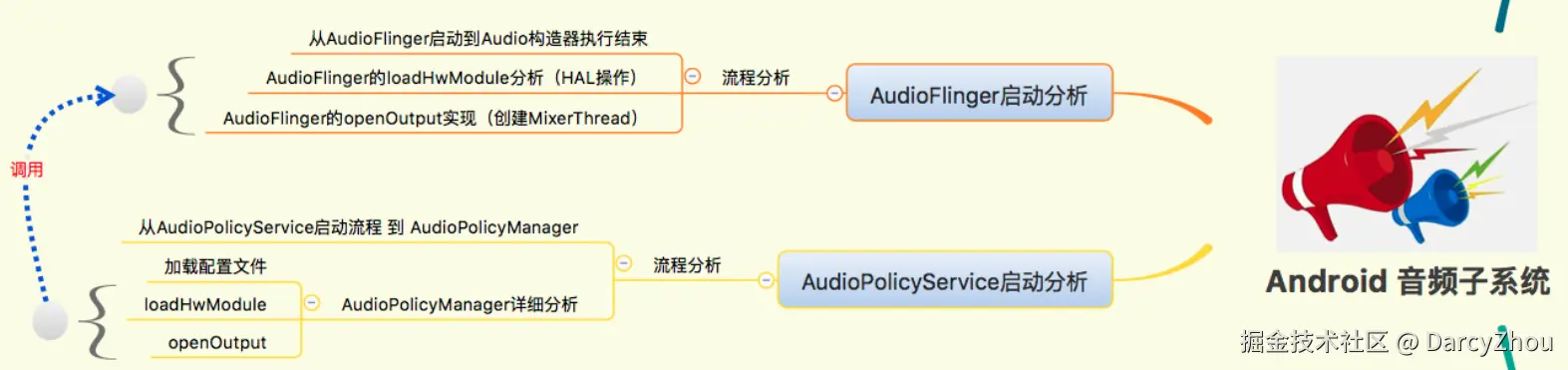

  本章节关注上面思维导图即可。主要是对AudioFlinger启动的分析，涉及从AudioFlinger启动到Audio构造器执行结束、AudioFlinger的loadHwModule分析（HAL操作）、AudioFlinger的openOutput实现（创建MixerThread），。

2.初始化

  AudioFinger和AudioPolicyService一样在main_audioserver.cpp中启动，流程上基本一样。会创建一个AudioFinger并将其注册到service_manager中，然后会执行onFirstRef做一些初始化工作。

// frameworks/av/media/audioserver/main_audioserver.cpp
int main(int argc __unused, char **argv)
{
        // ......
        android::hardware::configureRpcThreadpool(4, false /*callerWillJoin*/);
        sp<ProcessState> proc(ProcessState::self());
        sp<IServiceManager> sm = defaultServiceManager();
        ALOGI("ServiceManager: %p", sm.get());
        AudioFlinger::instantiate(); // 启动AudioFlinger
        AudioPolicyService::instantiate(); // 启动AudioPolicyService
        // .....
}

这里专注分析AudioFlinger::instantiate()的实现，代码如下：

// frameworks/native/include/binder/BinderService.h
static void instantiate() { publish(); }

继续分析publish，代码如下：

 // frameworks/native/libs/binder/include/binder/BinderService.h
    static status_t publish(bool allowIsolated = false,
                            int dumpFlags = IServiceManager::DUMP_FLAG_PRIORITY_DEFAULT) {
        sp<IServiceManager> sm(defaultServiceManager());
        return sm->addService(String16(SERVICE::getServiceName()), new SERVICE(), allowIsolated,
                              dumpFlags);//注册服务到servicemanager中
    }

这里会创建 一个AudioFlinger，并将该服务注册到service_manager 中。创建服务会执行AudioFlinger的构造器，代码如下：

 // frameworks/av/services/audioflinger/AudioFlinger.cpp
AudioFlinger::AudioFlinger()
    : BnAudioFlinger(),
      mMediaLogNotifier(new AudioFlinger::MediaLogNotifier()),
      mPrimaryHardwareDev(NULL),
      mAudioHwDevs(NULL),
      mHardwareStatus(AUDIO_HW_IDLE),
      mMasterVolume(1.0f),
      mMasterMute(false),
      // mNextUniqueId(AUDIO_UNIQUE_ID_USE_MAX),
      mMode(AUDIO_MODE_INVALID),
      mBtNrecIsOff(false),
      mIsLowRamDevice(true),
      mIsDeviceTypeKnown(false),
      mTotalMemory(0),
      // Clitent对应的内存大小，一个应用一个Clitent许多个AudioTrack的和AudioFlinger内存共享从这里分配
      mClientSharedHeapSize(kMinimumClientSharedHeapSizeBytes),
      mGlobalEffectEnableTime(0),
      mSystemReady(false)
{
    // unsigned instead of audio_unique_id_use_t, because ++ operator is unavailable for enum
    for (unsigned use = AUDIO_UNIQUE_ID_USE_UNSPECIFIED; use < AUDIO_UNIQUE_ID_USE_MAX; use++) {
        // zero ID has a special meaning, so unavailable
        mNextUniqueIds[use] = AUDIO_UNIQUE_ID_USE_MAX;
    }

    getpid_cached = getpid();
    const bool doLog = property_get_bool("ro.test_harness", false);
    if (doLog) {
        mLogMemoryDealer = new MemoryDealer(kLogMemorySize, "LogWriters",
                MemoryHeapBase::READ_ONLY);
        (void) pthread_once(&sMediaLogOnce, sMediaLogInit);
    }

    // reset battery stats.
    // if the audio service has crashed, battery stats could be left
    // in bad state, reset the state upon service start.
    BatteryNotifier::getInstance().noteResetAudio();

    mDevicesFactoryHal = DevicesFactoryHalInterface::create();
    mEffectsFactoryHal = EffectsFactoryHalInterface::create();

    mMediaLogNotifier->run("MediaLogNotifier");
}

主要是一些变量的初始化，之后主要看onFirstRef的实现，代码如下：

// frameworks/av/services/audioflinger/AudioFlinger.cpp
void AudioFlinger::onFirstRef()
{
    Mutex::Autolock _l(mLock);

    /* TODO: move all this work into an Init() function */
    char val_str[PROPERTY_VALUE_MAX] = { 0 };
    if (property_get("ro.audio.flinger_standbytime_ms", val_str, NULL) >= 0) {
        uint32_t int_val;
        if (1 == sscanf(val_str, "%u", &int_val)) {
            mStandbyTimeInNsecs = milliseconds(int_val);
            ALOGI("Using %u mSec as standby time.", int_val);
        } else {
            mStandbyTimeInNsecs = kDefaultStandbyTimeInNsecs;
            ALOGI("Using default %u mSec as standby time.",
                    (uint32_t)(mStandbyTimeInNsecs / 1000000));
        }
    }

    mPatchPanel = new PatchPanel(this);

    mMode = AUDIO_MODE_NORMAL;

    // 这里只是将AudioFlinger对象传递给了gAudioFlinger
    gAudioFlinger = this;
}

经过上面的分析可以知道，AudioFlinger注册服务后还是很被动的，并不会主动创建线程和执行操作。之后便一直等待被调用。这里基于上一章节的loadHwModule和openOutput 进行分析。

3.AudioFlinger的loadHwModule分析

  这里继续上一章节af->loadHwModule(name);进行分析，AudioFlinger的loadHwModle代码实现如下：

// frameworks/av/services/audioflinger/AudioFlinger.cpp
audio_module_handle_t AudioFlinger::loadHwModule(const char *name)
{
    if (name == NULL) {
        return AUDIO_MODULE_HANDLE_NONE;
    }
    if (!settingsAllowed()) {
        return AUDIO_MODULE_HANDLE_NONE;
    }
    Mutex::Autolock _l(mLock);
    return loadHwModule_l(name);
}

这里继续分析loadHwModule_l，代码实现如下：

// frameworks/av/services/audioflinger/AudioFlinger.cpp
audio_module_handle_t AudioFlinger::loadHwModule_l(const char *name)
{
    for (size_t i = 0; i < mAudioHwDevs.size(); i++) {
        if (strncmp(mAudioHwDevs.valueAt(i)->moduleName(), name, strlen(name)) == 0) {
            ALOGW("loadHwModule() module %s already loaded", name);
            return mAudioHwDevs.keyAt(i);
        }
    }

    sp<DeviceHalInterface> dev;

    //关键点:打开audio.primary.XXX.so，构造audio_hw_device
    int rc = mDevicesFactoryHal->openDevice(name, &dev);
    if (rc) {
        ALOGE("loadHwModule() error %d loading module %s", rc, name);
        return AUDIO_MODULE_HANDLE_NONE;
    }

    mHardwareStatus = AUDIO_HW_INIT;
    //初始化
    rc = dev->initCheck();
    mHardwareStatus = AUDIO_HW_IDLE;
    // ......
    audio_module_handle_t handle = (audio_module_handle_t) nextUniqueId(AUDIO_UNIQUE_ID_USE_MODULE);
    //通过dev构建AudioHwDevice，将AudioHwDevice加入到mAudioHwDevs中
    mAudioHwDevs.add(handle, new AudioHwDevice(handle, name, dev, flags));

    ALOGI("loadHwModule() Loaded %s audio interface, handle %d", name, handle);

    return handle;

}

这里继续分析openDevice()方法，代码实现如下：

// frameworks/av/media/libaudiohal/DevicesFactoryHalHybrid.cpp
status_t DevicesFactoryHalHybrid::openDevice(const char *name, sp<DeviceHalInterface> *device) {
    if (mHidlFactory != 0 && strcmp(AUDIO_HARDWARE_MODULE_ID_A2DP, name) != 0 &&
        strcmp(AUDIO_HARDWARE_MODULE_ID_HEARING_AID, name) != 0) {
        return mHidlFactory->openDevice(name, device);
    }
    return mLocalFactory->openDevice(name, device);
}

继续分析一下mLocalFactory->openDevice，代码实现如下：

// frameworks/av/media/libaudiohal/DevicesFactoryHalLocal.cpp
status_t DevicesFactoryHalLocal::openDevice(const char *name, sp<DeviceHalInterface> *device) {
    audio_hw_device_t *dev;
    status_t rc = load_audio_interface(name, &dev);
    if (rc == OK) {
        *device = new DeviceHalLocal(dev);
    }
    return rc;
}

继续看一下load_audio_interface，代码实现：

// frameworks/av/media/libaudiohal/DevicesFactoryHalLocal.cpp
static status_t load_audio_interface(const char *if_name, audio_hw_device_t **dev)
{
    const hw_module_t *mod;
    int rc;

    //通过hw_get_module_by_class->load->dlopen->dlsym->dlclose)
    //获得第三方厂家库的hw_module_t结构体指针 &mod
    rc = hw_get_module_by_class(AUDIO_HARDWARE_MODULE_ID, if_name, &mod);
    if (rc) {
        ALOGE("%s couldn't load audio hw module %s.%s (%s)", __func__,
                AUDIO_HARDWARE_MODULE_ID, if_name, strerror(-rc));
        goto out;
    }
    //通过&mod构建audio_hw_device_t类型结构体 dev
    rc = audio_hw_device_open(mod, dev);
    if (rc) {
        ALOGE("%s couldn't open audio hw device in %s.%s (%s)", __func__,
                AUDIO_HARDWARE_MODULE_ID, if_name, strerror(-rc));
        goto out;
    }
    if ((*dev)->common.version < AUDIO_DEVICE_API_VERSION_MIN) {
        ALOGE("%s wrong audio hw device version %04x", __func__, (*dev)->common.version);
        rc = BAD_VALUE;
        audio_hw_device_close(*dev);
        goto out;
    }
    return OK;

out:
    *dev = NULL;
    return rc;
}

继续分析audio_hw_device_open()方法，代码实现如下：

// hardware/libhardware/include/hardware/audio.h
static inline int audio_hw_device_open(const struct hw_module_t* module,
                                       struct audio_hw_device** device)
{
    return module->methods->open(module, AUDIO_HARDWARE_INTERFACE,
                                 TO_HW_DEVICE_T_OPEN(device));
}

这里会调用到了HAL层的legacy_adev_open方法，代码实现如下：

// hardware/libhardware_legacy/audio/audio_hw_hal.cpp
static int legacy_adev_open(const hw_module_t* module, const char* name,
                            hw_device_t** device)
{
    struct legacy_audio_device *ladev;
    int ret;

    if (strcmp(name, AUDIO_HARDWARE_INTERFACE) != 0)
        return -EINVAL;

    ladev = (struct legacy_audio_device *)calloc(1, sizeof(*ladev));
    if (!ladev)
        return -ENOMEM;

    //结构体赋值
    ladev->device.common.tag = HARDWARE_DEVICE_TAG;
    ladev->device.common.version = AUDIO_DEVICE_API_VERSION_2_0;
    ladev->device.common.module = const_cast<hw_module_t*>(module);
    ladev->device.common.close = legacy_adev_close;

    ladev->device.init_check = adev_init_check;
    ladev->device.set_voice_volume = adev_set_voice_volume;
    ladev->device.set_master_volume = adev_set_master_volume;
    ladev->device.get_master_volume = adev_get_master_volume;
    ladev->device.set_mode = adev_set_mode;
    ladev->device.set_mic_mute = adev_set_mic_mute;
    ladev->device.get_mic_mute = adev_get_mic_mute;
    ladev->device.set_parameters = adev_set_parameters;
    ladev->device.get_parameters = adev_get_parameters;
    ladev->device.get_input_buffer_size = adev_get_input_buffer_size;
    ladev->device.open_output_stream = adev_open_output_stream;
    ladev->device.close_output_stream = adev_close_output_stream;
    ladev->device.open_input_stream = adev_open_input_stream;
    ladev->device.close_input_stream = adev_close_input_stream;
    ladev->device.dump = adev_dump;

    /* 关键点：
     * audio_hw_device_t结构体 和 hwif（hardwareInterface）接口之间建立联系
     * 这里通过createAudioHardware 获取 实现hardwareInterface接口的厂商指针
     * 后面调用hwif的相关操作 <=等价=> 使用厂商的库函数中的方法
     */
    ladev->hwif = createAudioHardware();
    if (!ladev->hwif) {
        ret = -EIO;
        goto err_create_audio_hw;
    }

    *device = &ladev->device.common;

    return 0;

err_create_audio_hw:
    free(ladev);
    return ret;
}

这里总结下 loadHwModule对硬件的封装:

  • AudioFlinger： AudioHwDevice (放入mAudioHwDevs数组中)；
  • audio_hw_hal.cpp：audio_hw_device；
  • 厂家： AudioHardware (派生自: AudioHardwareInterface)；
  • AudioHwDevice： 对audio_hw_device的封装；
  • audio_hw_device： 函数的实现要通过AudioHardware类对象。

4.AudioFlinger的openOutput实现

  这里继续上一章节af->openOutput(module, output, config, devices, address, latencyMs, flags);进行分析，AudioFlinger的openOutput代码实现如下：

// frameworks/av/services/audioflinger/AudioFlinger.cpp
status_t AudioFlinger::openOutput(audio_module_handle_t module,
                                  audio_io_handle_t *output,
                                  audio_config_t *config,
                                  audio_devices_t *devices,
                                  const String8& address,
                                  uint32_t *latencyMs,
                                  audio_output_flags_t flags)
{
    ALOGI("openOutput() this %p, module %d Device %#x, SamplingRate %d, Format %#08x, "
              "Channels %#x, flags %#x",
              this, module,
              (devices != NULL) ? *devices : 0,
              config->sample_rate,
              config->format,
              config->channel_mask,
              flags);

    if (devices == NULL || *devices == AUDIO_DEVICE_NONE) {
        return BAD_VALUE;
    }

    Mutex::Autolock _l(mLock);
    //关键点
    sp<ThreadBase> thread = openOutput_l(module, output, config, *devices, address, flags);
    if (thread != 0) {
        if ((flags & AUDIO_OUTPUT_FLAG_MMAP_NOIRQ) == 0) {
            PlaybackThread *playbackThread = (PlaybackThread *)thread.get();
            *latencyMs = playbackThread->latency();

            // notify client processes of the new output creation
            playbackThread->ioConfigChanged(AUDIO_OUTPUT_OPENED);

            // the first primary output opened designates the primary hw device
            if ((mPrimaryHardwareDev == NULL) && (flags & AUDIO_OUTPUT_FLAG_PRIMARY)) {
                ALOGI("Using module %d as the primary audio interface", module);
                mPrimaryHardwareDev = playbackThread->getOutput()->audioHwDev;

                AutoMutex lock(mHardwareLock);
                mHardwareStatus = AUDIO_HW_SET_MODE;
                mPrimaryHardwareDev->hwDevice()->setMode(mMode);
                mHardwareStatus = AUDIO_HW_IDLE;
            }
        } else {
            MmapThread *mmapThread = (MmapThread *)thread.get();
            mmapThread->ioConfigChanged(AUDIO_OUTPUT_OPENED);
        }
        return NO_ERROR;
    }

    return NO_INIT;
}

这里专注openOutput_l的实现，代码如下：

// frameworks/av/services/audioflinger/AudioFlinger.cpp
sp<AudioFlinger::ThreadBase> AudioFlinger::openOutput_l(audio_module_handle_t module,
                                                            audio_io_handle_t *output,
                                                            audio_config_t *config,
                                                            audio_devices_t devices,
                                                            const String8& address,
                                                            audio_output_flags_t flags)
{
    //查找相应的audio interface
    AudioHwDevice *outHwDev = findSuitableHwDev_l(module, devices);
    if (outHwDev == NULL) {
        return 0;
    }

    if (*output == AUDIO_IO_HANDLE_NONE) {
        *output = nextUniqueId(AUDIO_UNIQUE_ID_USE_OUTPUT);
    } else {
        // Audio Policy does not currently request a specific output handle.
        // If this is ever needed, see openInput_l() for example code.
        ALOGE("openOutput_l requested output handle %d is not AUDIO_IO_HANDLE_NONE", *output);
        return 0;
    }

    mHardwareStatus = AUDIO_HW_OUTPUT_OPEN;
    // ......
    //对于每个module中每一个output profile，
    //如果flags不是特殊的则执行openOutputStream
    AudioStreamOut *outputStream = NULL;
    status_t status = outHwDev->openOutputStream(
            &outputStream,
            *output,
            devices,
            flags,
            config,
            address.string());

    mHardwareStatus = AUDIO_HW_IDLE;

    //创建playbackThread
    if (status == NO_ERROR) {
        if (flags & AUDIO_OUTPUT_FLAG_MMAP_NOIRQ) {
            sp<MmapPlaybackThread> thread =
                    new MmapPlaybackThread(this, *output, outHwDev, outputStream,
                                          devices, AUDIO_DEVICE_NONE, mSystemReady);
            mMmapThreads.add(*output, thread);
            ALOGV("openOutput_l() created mmap playback thread: ID %d thread %p",
                  *output, thread.get());
            return thread;
        } else {
            sp<PlaybackThread> thread;
            if (flags & AUDIO_OUTPUT_FLAG_COMPRESS_OFFLOAD) {
                thread = new OffloadThread(this, outputStream, *output, devices, mSystemReady);
                ALOGV("openOutput_l() created offload output: ID %d thread %p",
                      *output, thread.get());
            } else if ((flags & AUDIO_OUTPUT_FLAG_DIRECT)
                    || !isValidPcmSinkFormat(config->format)
                    || !isValidPcmSinkChannelMask(config->channel_mask)) {
                thread = new DirectOutputThread(this, outputStream, *output, devices, mSystemReady);
                ALOGV("openOutput_l() created direct output: ID %d thread %p",
                      *output, thread.get());
            } else {
                //一般是创建混音线程，代表AudioStreamOut对象的output也传递进去了
                thread = new MixerThread(this, outputStream, *output, devices, mSystemReady);
                ALOGV("openOutput_l() created mixer output: ID %d thread %p",
                      *output, thread.get());
            }
            //将创建的线程添加到播放线程列表 mPlaybackThreads中
            mPlaybackThreads.add(*output, thread);
            mPatchPanel.notifyStreamOpened(outHwDev, *output);
            return thread;
        }
    }

    return 0;
}

这里最关键的是创建了一个MixerThread。这里的每一个线程都对应一个output。

avatar
文章
阅读
粉丝
