一，简介
为便于对源码进行调试分析，本篇将以seata官方案例AT模式为基础，逐步展示如何搭建seata本地源码环境。
本地环境版本信息：
SpringBoot2.2.2
Dubbo 2.7.5
Mybatis 3.4.2
Nacos 2.1.0
Seata 1.0.0
MySQL 8.0.29
二，环境配置与服务启动
本地环境主要涉及：注册中心Nacos，Seata-Server，Buiness-Server
1，Nacos本地源码启动
官网下载源码：

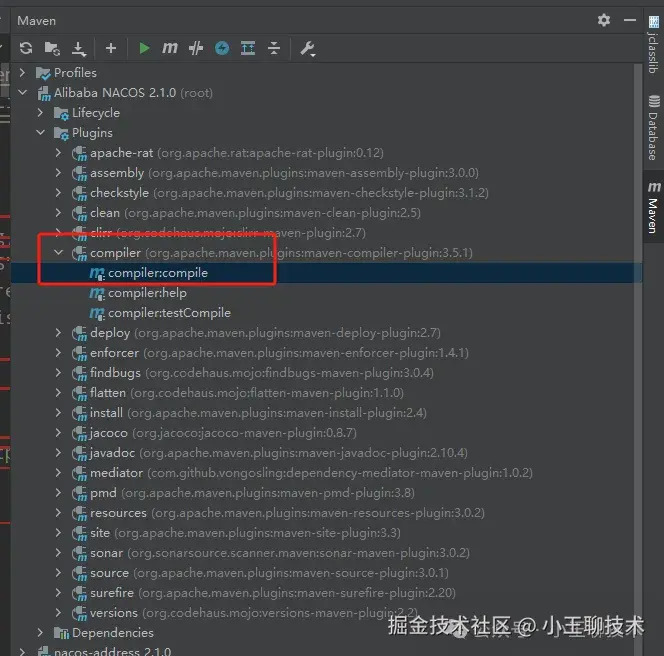

将下载的Nacos源码作为maven工程用IDEA打开，并进行编译，如图所示
编译完成之后，修改配置文件中的MySQL信息为本地信息：
#文件路径\console\src\main\resources\application.properties
server.servlet.contextPath=/nacos
db.url.0=jdbc:mysql://127.0.0.1:3306/nacos?characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useUnicode=true&useSSL=false&serverTimezone=UTC
db.user.0=root
db.password.0=123456
nacos.naming.empty-service.auto-clean=true
nacos.naming.empty-service.clean.initial-delay-ms=50000
nacos.naming.empty-service.clean.period-time-ms=30000
management.metrics.export.elastic.enabled=false
management.metrics.export.influx.enabled=false
server.tomcat.accesslog.enabled=true
server.tomcat.accesslog.max-days=30
server.tomcat.accesslog.pattern=%h %l %u %t "%r" %s %b %D %{User-Agent}i %{Request-Source}i
server.tomcat.basedir=file:.
nacos.security.ignore.urls=/,/error,/**/*.css,/**/*.js,/**/*.html,/**/*.map,/**/*.svg,/**/*.png,/**/*.ico,/console-ui/public/**,/v1/auth/**,/v1/console/health/**,/actuator/**,/v1/console/server/**
nacos.core.auth.system.type=nacos
nacos.core.auth.enabled=false
nacos.core.auth.caching.enabled=true
nacos.core.auth.enable.userAgentAuthWhite=false
nacos.core.auth.server.identity.key=serverIdentity
nacos.core.auth.server.identity.value=security
nacos.core.auth.plugin.nacos.token.expire.seconds=18000
nacos.core.auth.plugin.nacos.token.secret.key=SecretKey012345678901234567890123456789012345678901234567890123456789
nacos.istio.mcp.server.enabled=false
创建MySQL表：
CREATE SCHEMA nacos AUTHORIZATION nacos;
CREATE TABLE config_info ( id bigint NOT NULL generated by default as identity, data_id varchar(255) NOT NULL, group_id varchar(128) NOT NULL, tenant_id varchar(128) default '', app_name varchar(128), content CLOB, md5 varchar(32) DEFAULT NULL, gmt_create timestamp NOT NULL DEFAULT '2010-05-05 00:00:00', gmt_modified timestamp NOT NULL DEFAULT '2010-05-05 00:00:00', src_user varchar(128) DEFAULT NULL, src_ip varchar(20) DEFAULT NULL, c_desc varchar(256) DEFAULT NULL, c_use varchar(64) DEFAULT NULL, effect varchar(64) DEFAULT NULL, type varchar(64) DEFAULT NULL, c_schema LONG VARCHAR DEFAULT NULL, encrypted_data_key LONG VARCHAR DEFAULT NULL, constraint configinfo_id_key PRIMARY KEY (id), constraint uk_configinfo_datagrouptenant UNIQUE (data_id,group_id,tenant_id));
CREATE INDEX configinfo_dataid_key_idx ON config_info(data_id);CREATE INDEX configinfo_groupid_key_idx ON config_info(group_id);CREATE INDEX configinfo_dataid_group_key_idx ON config_info(data_id, group_id);
CREATE TABLE his_config_info ( id bigint NOT NULL, nid bigint NOT NULL generated by default as identity, data_id varchar(255) NOT NULL, group_id varchar(128) NOT NULL, tenant_id varchar(128) default '', app_name varchar(128), content CLOB, md5 varchar(32) DEFAULT NULL, gmt_create timestamp NOT NULL DEFAULT '2010-05-05 00:00:00.000', gmt_modified timestamp NOT NULL DEFAULT '2010-05-05 00:00:00.000', src_user varchar(128), src_ip varchar(20) DEFAULT NULL, op_type char(10) DEFAULT NULL, encrypted_data_key LONG VARCHAR DEFAULT NULL, constraint hisconfiginfo_nid_key PRIMARY KEY (nid));
CREATE INDEX hisconfiginfo_dataid_key_idx ON his_config_info(data_id);CREATE INDEX hisconfiginfo_gmt_create_idx ON his_config_info(gmt_create);CREATE INDEX hisconfiginfo_gmt_modified_idx ON his_config_info(gmt_modified);
CREATE TABLE config_info_beta ( id bigint NOT NULL generated by default as identity, data_id varchar(255) NOT NULL, group_id varchar(128) NOT NULL, tenant_id varchar(128) default '', app_name varchar(128), content CLOB, beta_ips varchar(1024), md5 varchar(32) DEFAULT NULL, gmt_create timestamp NOT NULL DEFAULT '2010-05-05 00:00:00', gmt_modified timestamp NOT NULL DEFAULT '2010-05-05 00:00:00', src_user varchar(128), src_ip varchar(20) DEFAULT NULL, encrypted_data_key LONG VARCHAR DEFAULT NULL, constraint configinfobeta_id_key PRIMARY KEY (id), constraint uk_configinfobeta_datagrouptenant UNIQUE (data_id,group_id,tenant_id));
CREATE TABLE config_info_tag ( id bigint NOT NULL generated by default as identity, data_id varchar(255) NOT NULL, group_id varchar(128) NOT NULL, tenant_id varchar(128) default '', tag_id varchar(128) NOT NULL, app_name varchar(128), content CLOB, md5 varchar(32) DEFAULT NULL, gmt_create timestamp NOT NULL DEFAULT '2010-05-05 00:00:00', gmt_modified timestamp NOT NULL DEFAULT '2010-05-05 00:00:00', src_user varchar(128), src_ip varchar(20) DEFAULT NULL, constraint configinfotag_id_key PRIMARY KEY (id), constraint uk_configinfotag_datagrouptenanttag UNIQUE (data_id,group_id,tenant_id,tag_id));
CREATE TABLE config_info_aggr ( id bigint NOT NULL generated by default as identity, data_id varchar(255) NOT NULL, group_id varchar(128) NOT NULL, tenant_id varchar(128) default '', datum_id varchar(255) NOT NULL, app_name varchar(128), content CLOB, gmt_modified timestamp NOT NULL DEFAULT '2010-05-05 00:00:00', constraint configinfoaggr_id_key PRIMARY KEY (id), constraint uk_configinfoaggr_datagrouptenantdatum UNIQUE (data_id,group_id,tenant_id,datum_id));
CREATE TABLE app_list ( id bigint NOT NULL generated by default as identity, app_name varchar(128) NOT NULL, is_dynamic_collect_disabled smallint DEFAULT 0, last_sub_info_collected_time timestamp DEFAULT '1970-01-01 08:00:00.0', sub_info_lock_owner varchar(128), sub_info_lock_time timestamp DEFAULT '1970-01-01 08:00:00.0', constraint applist_id_key PRIMARY KEY (id), constraint uk_appname UNIQUE (app_name));
CREATE TABLE app_configdata_relation_subs ( id bigint NOT NULL generated by default as identity, app_name varchar(128) NOT NULL, data_id varchar(255) NOT NULL, group_id varchar(128) NOT NULL, gmt_modified timestamp DEFAULT '2010-05-05 00:00:00', constraint configdatarelationsubs_id_key PRIMARY KEY (id), constraint uk_app_sub_config_datagroup UNIQUE (app_name, data_id, group_id));
CREATE TABLE app_configdata_relation_pubs ( id bigint NOT NULL generated by default as identity, app_name varchar(128) NOT NULL, data_id varchar(255) NOT NULL, group_id varchar(128) NOT NULL, gmt_modified timestamp DEFAULT '2010-05-05 00:00:00', constraint configdatarelationpubs_id_key PRIMARY KEY (id), constraint uk_app_pub_config_datagroup UNIQUE (app_name, data_id, group_id));
CREATE TABLE config_tags_relation ( id bigint NOT NULL, tag_name varchar(128) NOT NULL, tag_type varchar(64) DEFAULT NULL, data_id varchar(255) NOT NULL, group_id varchar(128) NOT NULL, tenant_id varchar(128) DEFAULT '', nid bigint NOT NULL generated by default as identity, constraint config_tags_id_key PRIMARY KEY (nid), constraint uk_configtagrelation_configidtag UNIQUE (id, tag_name, tag_type));
CREATE INDEX config_tags_tenant_id_idx ON config_tags_relation(tenant_id);
CREATE TABLE group_capacity ( id bigint NOT NULL generated by default as identity, group_id varchar(128) DEFAULT '', quota int DEFAULT 0, usage int DEFAULT 0, max_size int DEFAULT 0, max_aggr_count int DEFAULT 0, max_aggr_size int DEFAULT 0, max_history_count int DEFAULT 0, gmt_create timestamp DEFAULT '2010-05-05 00:00:00', gmt_modified timestamp DEFAULT '2010-05-05 00:00:00', constraint group_capacity_id_key PRIMARY KEY (id), constraint uk_group_id UNIQUE (group_id));
CREATE TABLE tenant_capacity ( id bigint NOT NULL generated by default as identity, tenant_id varchar(128) DEFAULT '', quota int DEFAULT 0, usage int DEFAULT 0, max_size int DEFAULT 0, max_aggr_count int DEFAULT 0, max_aggr_size int DEFAULT 0, max_history_count int DEFAULT 0, gmt_create timestamp DEFAULT '2010-05-05 00:00:00', gmt_modified timestamp DEFAULT '2010-05-05 00:00:00', constraint tenant_capacity_id_key PRIMARY KEY (id), constraint uk_tenant_id UNIQUE (tenant_id));
CREATE TABLE tenant_info ( id bigint NOT NULL generated by default as identity, kp varchar(128) NOT NULL, tenant_id varchar(128) DEFAULT '', tenant_name varchar(128) DEFAULT '', tenant_desc varchar(256) DEFAULT NULL, create_source varchar(32) DEFAULT NULL, gmt_create bigint NOT NULL, gmt_modified bigint NOT NULL, constraint tenant_info_id_key PRIMARY KEY (id), constraint uk_tenant_info_kptenantid UNIQUE (kp,tenant_id));CREATE INDEX tenant_info_tenant_id_idx ON tenant_info(tenant_id);
CREATE TABLE users ( username varchar(50) NOT NULL PRIMARY KEY, password varchar(500) NOT NULL, enabled boolean NOT NULL DEFAULT true);
CREATE TABLE roles ( username varchar(50) NOT NULL, role varchar(50) NOT NULL, constraint uk_username_role UNIQUE (username,role));
CREATE TABLE permissions ( role varchar(50) NOT NULL, resource varchar(512) NOT NULL, action varchar(8) NOT NULL, constraint uk_role_permission UNIQUE (role,resource,action));
INSERT INTO users (username, password, enabled) VALUES ('nacos', '$2a$10$EuWPZHzz32dJN7jexM34MOeYirDdFAZm2kuWj7VEOJhhZkDrxfvUu', TRUE);
INSERT INTO roles (username, role) VALUES ('nacos', 'ROLE_ADMIN');

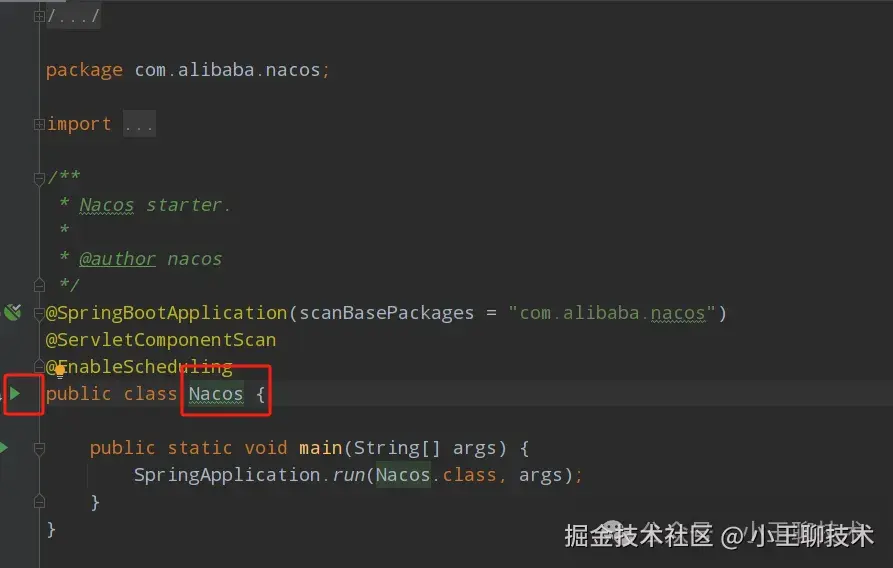

找到Nacos启动类，启动Nacos:
路径：console/src/main/java/com/alibaba/nacos/Nacos.java
启动成功之后，访问如下地址：
http://192.168.138.1:8848/nacos/index.html
2，Seata Server本地源码启动
官网下载源码：github.com/apache/incu…
导入本地IDEA，编译之后修改相关配置：
配置文件路径：server/src/main/resources/application.yml
server:
port: 7091
spring:
application:
name: seata-server
service:
vgroup_mapping:
my_test_tx_group: default
logging:
config: classpath:logback-spring.xml
file:
path: ${user.home}/logs/seata
extend:
logstash-appender:
destination: 127.0.0.1:4560
kafka-appender:
bootstrap-servers: 127.0.0.1:9092
topic: logback_to_logstash
console:
user:
username: seata
password: seata
seata:
config:
# 修改配置中心为Nacos
type: nacos
nacos:
#本地Nacos地址
server-addr: 192.168.138.1:8848
group: SEATA_GROUP
namespace:
username:
password:
context-path:
##if use MSE Nacos with auth, mutex with username/password attribute
#access-key: ""
#secret-key: ""
registry:
# 修改注册中心为Nacos
type: nacos
nacos:
application: seata-server
server-addr: 192.168.138.1:8848
group: SEATA_GROUP
namespace:
cluster: default
username:
password:
context-path:
##if use MSE Nacos with auth, mutex with username/password attribute
#access-key: ""
#secret-key: ""
store:
# 存储模式为DB
mode: db
db:
datasource: druid
db-type: mysql
driver-class-name: com.mysql.cj.jdbc.Driver
url: jdbc:mysql://192.168.80.141:3306/seata?rewriteBatchedStatements=true
user: root
password: 123456
min-conn: 5
max-conn: 100
global-table: global_table
branch-table: branch_table
lock-table: lock_table
distributed-lock-table: distributed_lock
query-limit: 100
max-wait: 5000
# server:
# service-port: 8091 #If not configured, the default is '${server.port} + 1000'
security:
secretKey: SeataSecretKey0c382ef121d778043159209298fd40bf3850a017
tokenValidityInMilliseconds: 1800000
ignore:
urls: /,/**/*.css,/**/*.js,/**/*.html,/**/*.map,/**/*.svg,/**/*.png,/**/*.ico,/console-fe/public/**,/api/v1/auth/login
按照源码中的数据库脚本添加数据库表相关信息：
全局事务会话信息由3块内容构成，全局事务-->分支事务-->全局锁，对应表global_table, branch_table, lock_table
配置文件路径：script\server\db\mysql.sql

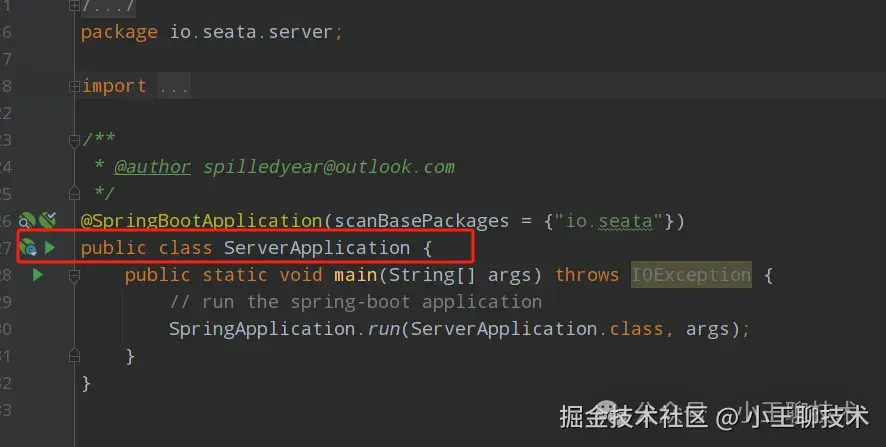

Seata-Server启动类：
server\src\main\java\io\seata\server\ServerApplication.java

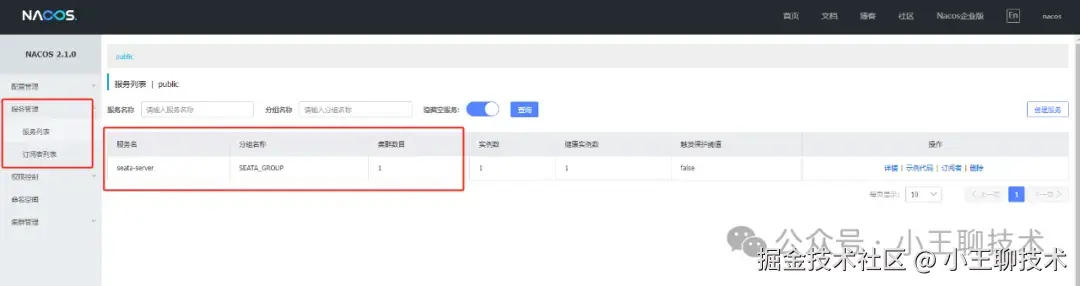

启动成功之后，在Nacos注册中心可以看到Seata-Server已经注册：
3，业务系统启动
整个业务逻辑由 3 个微服务提供支持：仓储服务：对给定的商品扣除仓储数量。订单服务：根据采购需求创建订单。帐户服务：从用户帐户中扣除余额。
官方业务案例架构图：
Seata官方案例下载：github.com/apache/incu…
创建数据库表：
SEATA AT 模式需要 UNDO_LOG 表：
-- for AT mode you must to init this sql for you business database. the seata server not need it.
CREATE TABLE IF NOT EXISTS `undo_log`
(
`branch_id` BIGINT NOT NULL COMMENT 'branch transaction id',
`xid` VARCHAR(128) NOT NULL COMMENT 'global transaction id',
`context` VARCHAR(128) NOT NULL COMMENT 'undo_log context,such as serialization',
`rollback_info` LONGBLOB NOT NULL COMMENT 'rollback info',
`log_status` INT(11) NOT NULL COMMENT '0:normal status,1:defense status',
`log_created` DATETIME(6) NOT NULL COMMENT 'create datetime',
`log_modified` DATETIME(6) NOT NULL COMMENT 'modify datetime',
UNIQUE KEY `ux_undo_log` (`xid`, `branch_id`)
) ENGINE = InnoDB
AUTO_INCREMENT = 1
DEFAULT CHARSET = utf8mb4 COMMENT ='AT transaction mode undo table';
创建业务数据表：
CREATE TABLE `t_account` (
`id` int NOT NULL AUTO_INCREMENT,
`user_id` varchar(255) COLLATE utf8mb4_unicode_ci DEFAULT NULL,
`amount` double(14,2) DEFAULT '0.00',
PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci;
-- seata_pay.t_order definition
CREATE TABLE `t_order` (
`id` int NOT NULL AUTO_INCREMENT,
`order_no` varchar(255) COLLATE utf8mb4_unicode_ci DEFAULT NULL,
`user_id` varchar(255) COLLATE utf8mb4_unicode_ci DEFAULT NULL,
`commodity_code` varchar(255) COLLATE utf8mb4_unicode_ci DEFAULT NULL,
`count` int DEFAULT '0',
`amount` double(14,2) DEFAULT '0.00',
PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=64 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci;
-- seata_pay.t_stock definition
CREATE TABLE `t_stock` (
`id` int NOT NULL AUTO_INCREMENT,
`commodity_code` varchar(255) COLLATE utf8mb4_unicode_ci DEFAULT NULL,
`name` varchar(255) COLLATE utf8mb4_unicode_ci DEFAULT NULL,
`count` int DEFAULT '0',
PRIMARY KEY (`id`),
UNIQUE KEY `commodity_code` (`commodity_code`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci;
account-server配置：
server:
port: 8102
#====================================stream =============================================
spring:
datasource:
driver-class-name: com.mysql.jdbc.Driver
url: jdbc:mysql://192.168.80.141:3306/seata?useSSL=false&useUnicode=true&characterEncoding=utf-8&allowMultiQueries=true
username: root
password: 123456
application:
name: dubbo-account-example
#====================================Dubbo config===============================================
dubbo:
application:
id: dubbo-account-example
name: dubbo-account-example
qosEnable: false
protocol:
id: dubbo
name: dubbo
port: 20883
registry:
id: dubbo-account-example-registry
address: nacos://127.0.0.1:8848
config-center:
address: nacos://127.0.0.1:8848
metadata-report:
address: nacos://127.0.0.1:8848
#====================================mybatis-plus config===============================================
mybatis-plus:
mapper-locations: classpath*:/mapper/*.xml
typeAliasesPackage: io.seata.samples.integration.*.entity
configuration:
map-underscore-to-camel-case: true
global-config:
db-config:
id-type: auto
#====================================Seata Config===============================================
seata:
enabled: true
application-id: account-seata-example
tx-service-group: my_test_tx_group # 事务群组（可以每个应用独立取名，也可以使用相同的名字）
client:
rm-report-success-enable: true
rm-table-meta-check-enable: false # 自动刷新缓存中的表结构（默认false）
rm-report-retry-count: 5 # 一阶段结果上报TC重试次数（默认5）
rm-async-commit-buffer-limit: 10000 # 异步提交缓存队列长度（默认10000）
rm:
lock:
lock-retry-internal: 10 # 校验或占用全局锁重试间隔（默认10ms）
lock-retry-times: 30 # 校验或占用全局锁重试次数（默认30）
lock-retry-policy-branch-rollback-on-conflict: true # 分支事务与其它全局回滚事务冲突时锁策略（优先释放本地锁让回滚成功）
tm-commit-retry-count: 3 # 一阶段全局提交结果上报TC重试次数（默认1次，建议大于1）
tm-rollback-retry-count: 3 # 一阶段全局回滚结果上报TC重试次数（默认1次，建议大于1）
undo:
undo-data-validation: true # 二阶段回滚镜像校验（默认true开启）
undo-log-serialization: jackson # undo序列化方式（默认jackson）
undo-log-table: undo_log # 自定义undo表名（默认undo_log）
log:
exceptionRate: 100 # 日志异常输出概率（默认100）
support:
spring:
datasource-autoproxy: true
service:
vgroup-mapping:
my_test_tx_group: default # TC 集群（必须与seata-server保持一致）
enable-degrade: false # 降级开关
disable-global-transaction: false # 禁用全局事务（默认false）
grouplist:
default: 127.0.0.1:8091
transport:
shutdown:
wait: 3
thread-factory:
boss-thread-prefix: NettyBoss
worker-thread-prefix: NettyServerNIOWorker
server-executor-thread-prefix: NettyServerBizHandler
share-boss-worker: false
client-selector-thread-prefix: NettyClientSelector
client-selector-thread-size: 1
client-worker-thread-prefix: NettyClientWorkerThread
type: TCP
server: NIO
heartbeat: true
serialization: seata
compressor: none
enable-client-batch-send-request: true # 客户端事务消息请求是否批量合并发送（默认true）
registry:
# file:
# name: file.conf
type: nacos
nacos:
server-addr: localhost:8848
namespace:
cluster: default
group: SEATA_GROUP
username: nacos
password: nacos
config:
# file:
# name: file.conf
type: nacos
nacos:
namespace:
server-addr: localhost:8848
group: SEATA_GROUP
username: nacos
password: nacos
dataId: nacos-server.properties
business-server配置：
server:
port: 8104
spring:
application:
name: dubbo-business-example
#====================================Dubbo config===============================================
dubbo:
application:
id: dubbo-business-example
name: dubbo-business-example
qosEnable: false
protocol:
id: dubbo
name: dubbo
port: 10001
registry:
id: dubbo-business-example-registry
address: nacos://127.0.0.1:8848
config-center:
address: nacos://127.0.0.1:8848
metadata-report:
address: nacos://127.0.0.1:8848
#====================================Seata Config===============================================
seata:
enabled: true
application-id: business-seata-example
tx-service-group: my_test_tx_group # 事务群组（可以每个应用独立取名，也可以使用相同的名字）
client:
rm-report-success-enable: true
rm-table-meta-check-enable: false # 自动刷新缓存中的表结构（默认false）
rm-report-retry-count: 5 # 一阶段结果上报TC重试次数（默认5）
rm-async-commit-buffer-limit: 10000 # 异步提交缓存队列长度（默认10000）
rm:
lock:
lock-retry-internal: 10 # 校验或占用全局锁重试间隔（默认10ms）
lock-retry-times: 30 # 校验或占用全局锁重试次数（默认30）
lock-retry-policy-branch-rollback-on-conflict: true # 分支事务与其它全局回滚事务冲突时锁策略（优先释放本地锁让回滚成功）
tm-commit-retry-count: 3 # 一阶段全局提交结果上报TC重试次数（默认1次，建议大于1）
tm-rollback-retry-count: 3 # 一阶段全局回滚结果上报TC重试次数（默认1次，建议大于1）
undo:
undo-data-validation: true # 二阶段回滚镜像校验（默认true开启）
undo-log-serialization: jackson # undo序列化方式（默认jackson）
undo-log-table: undo_log # 自定义undo表名（默认undo_log）
log:
exceptionRate: 100 # 日志异常输出概率（默认100）
support:
spring:
datasource-autoproxy: true
service:
vgroup-mapping:
my_test_tx_group: default # TC 集群（必须与seata-server保持一致）
enable-degrade: false # 降级开关
disable-global-transaction: false # 禁用全局事务（默认false）
grouplist:
default: 127.0.0.1:8091
transport:
shutdown:
wait: 3
thread-factory:
boss-thread-prefix: NettyBoss
worker-thread-prefix: NettyServerNIOWorker
server-executor-thread-prefix: NettyServerBizHandler
share-boss-worker: false
client-selector-thread-prefix: NettyClientSelector
client-selector-thread-size: 1
client-worker-thread-prefix: NettyClientWorkerThread
type: TCP
server: NIO
heartbeat: true
serialization: seata
compressor: none
enable-client-batch-send-request: true # 客户端事务消息请求是否批量合并发送（默认true）
registry:
# file:
# name: file.conf
type: nacos
nacos:
server-addr: localhost:8848
namespace:
cluster: default
group: SEATA_GROUP
username: nacos
password: nacos
config:
# file:
# name: file.conf
type: nacos
nacos:
namespace:
server-addr: localhost:8848
group: SEATA_GROUP
username: nacos
password: nacos
dataId: nacos-server.properties
order-server配置：
server:
port: 8101
#====================================stream =============================================
spring:
datasource:
driver-class-name: com.mysql.jdbc.Driver
url: jdbc:mysql://192.168.80.141:3306/seata?useSSL=false&useUnicode=true&characterEncoding=utf-8&allowMultiQueries=true
username: root
password: 123456
application:
name: dubbo-order-example
#====================================Dubbo config===============================================
dubbo:
application:
id: dubbo-order-example
name: dubbo-order-example
qosEnable: false
protocol:
id: dubbo
name: dubbo
port: 20880
registry:
id: dubbo-order-example-registry
address: nacos://127.0.0.1:8848
config-center:
address: nacos://127.0.0.1:8848
metadata-report:
address: nacos://127.0.0.1:8848
#====================================mybatis-plus config===============================================
mybatis-plus:
mapper-locations: classpath*:/mapper/*.xml
typeAliasesPackage: io.seata.samples.integration.*.entity
configuration:
map-underscore-to-camel-case: true
global-config:
db-config:
id-type: auto
#====================================Seata Config===============================================
seata:
enabled: true
application-id: order-seata-example
tx-service-group: my_test_tx_group # 事务群组（可以每个应用独立取名，也可以使用相同的名字）
client:
rm-report-success-enable: true
rm-table-meta-check-enable: false # 自动刷新缓存中的表结构（默认false）
rm-report-retry-count: 5 # 一阶段结果上报TC重试次数（默认5）
rm-async-commit-buffer-limit: 10000 # 异步提交缓存队列长度（默认10000）
rm:
lock:
lock-retry-internal: 10 # 校验或占用全局锁重试间隔（默认10ms）
lock-retry-times: 30 # 校验或占用全局锁重试次数（默认30）
lock-retry-policy-branch-rollback-on-conflict: true # 分支事务与其它全局回滚事务冲突时锁策略（优先释放本地锁让回滚成功）
tm-commit-retry-count: 3 # 一阶段全局提交结果上报TC重试次数（默认1次，建议大于1）
tm-rollback-retry-count: 3 # 一阶段全局回滚结果上报TC重试次数（默认1次，建议大于1）
undo:
undo-data-validation: true # 二阶段回滚镜像校验（默认true开启）
undo-log-serialization: jackson # undo序列化方式（默认jackson）
undo-log-table: undo_log # 自定义undo表名（默认undo_log）
log:
exceptionRate: 100 # 日志异常输出概率（默认100）
support:
spring:
datasource-autoproxy: true
service:
vgroup-mapping:
my_test_tx_group: default # TC 集群（必须与seata-server保持一致）
enable-degrade: false # 降级开关
disable-global-transaction: false # 禁用全局事务（默认false）
grouplist:
default: 127.0.0.1:8091
transport:
shutdown:
wait: 3
thread-factory:
boss-thread-prefix: NettyBoss
worker-thread-prefix: NettyServerNIOWorker
server-executor-thread-prefix: NettyServerBizHandler
share-boss-worker: false
client-selector-thread-prefix: NettyClientSelector
client-selector-thread-size: 1
client-worker-thread-prefix: NettyClientWorkerThread
type: TCP
server: NIO
heartbeat: true
serialization: seata
compressor: none
enable-client-batch-send-request: true # 客户端事务消息请求是否批量合并发送（默认true）
registry:
# file:
# name: file.conf
type: nacos
nacos:
server-addr: localhost:8848
namespace:
cluster: default
group: SEATA_GROUP
username: nacos
password: nacos
config:
# file:
# name: file.conf
type: nacos
nacos:
namespace:
server-addr: localhost:8848
group: SEATA_GROUP
username: nacos
password: nacos
dataId: nacos-server.properties
stock-server配置：
server:
port: 8109
#====================================stream =============================================
spring:
datasource:
driver-class-name: com.mysql.jdbc.Driver
url: jdbc:mysql://192.168.80.141:3306/seata?useSSL=false&useUnicode=true&characterEncoding=utf-8&allowMultiQueries=true
username: root
password: 123456
application:
name: dubbo-stock-example
#====================================Dubbo config===============================================
dubbo:
application:
id: dubbo-stock-example
name: dubbo-stock-example
qosEnable: false
protocol:
id: dubbo
name: dubbo
port: 20888
registry:
id: dubbo-stock-example-registry
address: nacos://127.0.0.1:8848
config-center:
address: nacos://127.0.0.1:8848
metadata-report:
address: nacos://127.0.0.1:8848
#====================================mybatis-plus config===============================================
mybatis-plus:
mapper-locations: classpath*:/mapper/*.xml
typeAliasesPackage: io.seata.samples.integration.*.entity
configuration:
map-underscore-to-camel-case: true
global-config:
db-config:
id-type: auto
#====================================Seata Config===============================================
seata:
enabled: true
application-id: stock-seata-example
tx-service-group: my_test_tx_group # 事务群组（可以每个应用独立取名，也可以使用相同的名字）
client:
rm-report-success-enable: true
rm-table-meta-check-enable: false # 自动刷新缓存中的表结构（默认false）
rm-report-retry-count: 5 # 一阶段结果上报TC重试次数（默认5）
rm-async-commit-buffer-limit: 10000 # 异步提交缓存队列长度（默认10000）
rm:
lock:
lock-retry-internal: 10 # 校验或占用全局锁重试间隔（默认10ms）
lock-retry-times: 30 # 校验或占用全局锁重试次数（默认30）
lock-retry-policy-branch-rollback-on-conflict: true # 分支事务与其它全局回滚事务冲突时锁策略（优先释放本地锁让回滚成功）
tm-commit-retry-count: 3 # 一阶段全局提交结果上报TC重试次数（默认1次，建议大于1）
tm-rollback-retry-count: 3 # 一阶段全局回滚结果上报TC重试次数（默认1次，建议大于1）
undo:
undo-data-validation: true # 二阶段回滚镜像校验（默认true开启）
undo-log-serialization: jackson # undo序列化方式（默认jackson）
undo-log-table: undo_log # 自定义undo表名（默认undo_log）
log:
exceptionRate: 100 # 日志异常输出概率（默认100）
support:
spring:
datasource-autoproxy: true
service:
vgroup-mapping:
my_test_tx_group: default # TC 集群（必须与seata-server保持一致）
enable-degrade: false # 降级开关
disable-global-transaction: false # 禁用全局事务（默认false）
grouplist:
default: 127.0.0.1:8091
transport:
shutdown:
wait: 3
thread-factory:
boss-thread-prefix: NettyBoss
worker-thread-prefix: NettyServerNIOWorker
server-executor-thread-prefix: NettyServerBizHandler
share-boss-worker: false
client-selector-thread-prefix: NettyClientSelector
client-selector-thread-size: 1
client-worker-thread-prefix: NettyClientWorkerThread
type: TCP
server: NIO
heartbeat: true
serialization: seata
compressor: none
enable-client-batch-send-request: true # 客户端事务消息请求是否批量合并发送（默认true）
registry:
# file:
# name: file.conf
type: nacos
nacos:
server-addr: localhost:8848
namespace:
cluster: default
group: SEATA_GROUP
username: nacos
password: nacos
config:
# file:
# name: file.conf
type: nacos
nacos:
namespace:
server-addr: localhost:8848
group: SEATA_GROUP
username: nacos
password: nacos
dataId: nacos-server.properties
配置完成之后依次启动各个服务。
三，结果查看

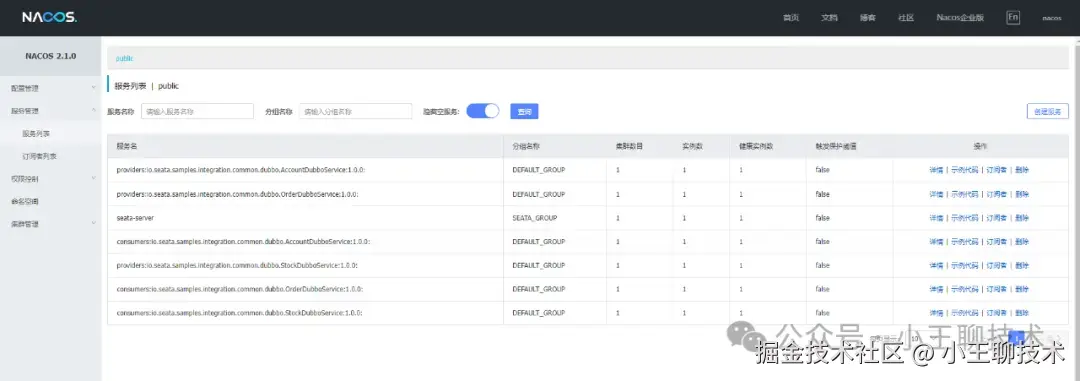

上述步骤完成之后，就可以在Nacos注册中心，看到各个服务已经完成启动并注册到了注册中心。后续我将以该环境为基础，深入分析Seata的运行机制与代码实现，敬请期待。
欢迎关注微信公众号，获取小王第一手技术文章：小王聊技术
