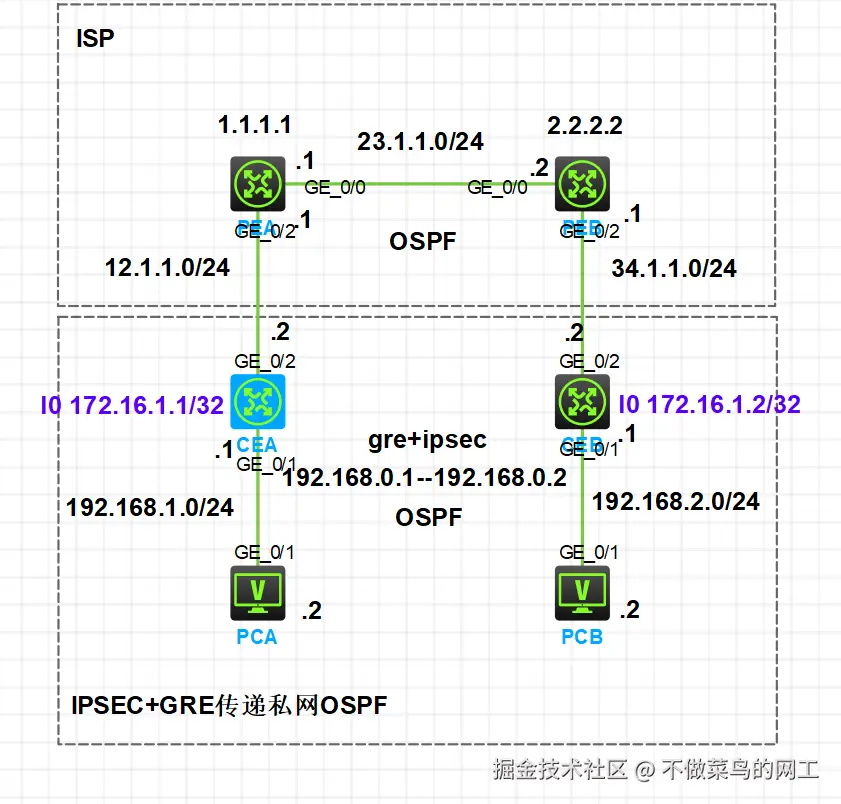

拓扑
配置
# 此处为cea配置 ceb配置与之类似
# nat匹配数据流
acl advanced 3000
rule 15 permit ip source 192.168.1.0 0.0.0.255
rule 20 deny ip
# 创建ospf进程
ospf 1
area 0.0.0.0
# 配置接口地址
interface LoopBack0
ip address 172.16.1.1 255.255.255.255
ospf 1 area 0.0.0.0
#
interface GigabitEthernet0/1
ip address 192.168.1.1 255.255.255.0
ospf 1 area 0.0.0.0
#
interface GigabitEthernet0/2
ip address 12.1.1.2 255.255.255.0
nat outbound 3000
--------------------------------------------------------------
# 创建gre隧道
interface Tunnel0 mode gre
ip address 192.168.0.1 255.255.255.252
ospf 1 area 0.0.0.0
source GigabitEthernet0/2
destination 34.1.1.2
--------------------------------------------------------------
# 感兴趣流
acl advanced 3001
rule 15 permit gre source 12.1.1.2 0 destination 34.1.1.2 0
# ipsec提议
ipsec transform-set cea
encapsulation-mode transport
esp encryption-algorithm aes-cbc-192
esp authentication-algorithm sha1
# ipsec策略
ipsec policy P1 10 manual
transform-set cea
security acl 3001
remote-address 34.1.1.2
sa spi inbound esp 54321
sa string-key inbound esp cipher abcdefg
sa spi outbound esp 12345
sa string-key outbound esp cipher gfedcba
# 应用ipsec
interface GigabitEthernet0/2
ip address 12.1.1.2 255.255.255.0
分析
# ospf邻居已经建立
[CEA]display ospf peer
OSPF Process 1 with Router ID 172.16.1.1
Neighbor Brief Information
Area: 0.0.0.0
Router ID Address Pri Dead-Time State Interface
172.16.1.2 192.168.0.2 1 36 Full/ - Tun0
[CEA]
# 路由表已经存在对端路由
[CEA]display ip routing-table
Destinations : 20 Routes : 20
Destination/Mask Proto Pre Cost NextHop Interface
0.0.0.0/0 Static 60 0 12.1.1.1 GE0/2
0.0.0.0/32 Direct 0 0 127.0.0.1 InLoop0
12.1.1.0/24 Direct 0 0 12.1.1.2 GE0/2
12.1.1.2/32 Direct 0 0 127.0.0.1 InLoop0
12.1.1.255/32 Direct 0 0 12.1.1.2 GE0/2
127.0.0.0/8 Direct 0 0 127.0.0.1 InLoop0
127.0.0.1/32 Direct 0 0 127.0.0.1 InLoop0
127.255.255.255/32 Direct 0 0 127.0.0.1 InLoop0
172.16.1.1/32 Direct 0 0 127.0.0.1 InLoop0
172.16.1.2/32 O_INTRA 10 1562 192.168.0.2 Tun0
192.168.0.0/30 Direct 0 0 192.168.0.1 Tun0
192.168.0.1/32 Direct 0 0 127.0.0.1 InLoop0
192.168.0.3/32 Direct 0 0 192.168.0.1 Tun0
192.168.1.0/24 Direct 0 0 192.168.1.1 GE0/1
192.168.1.1/32 Direct 0 0 127.0.0.1 InLoop0
192.168.1.255/32 Direct 0 0 192.168.1.1 GE0/1
192.168.2.0/24 O_INTRA 10 1563 192.168.0.2 Tun0
224.0.0.0/4 Direct 0 0 0.0.0.0 NULL0
224.0.0.0/24 Direct 0 0 0.0.0.0 NULL0
255.255.255.255/32 Direct 0 0 127.0.0.1 InLoop0
[CEA]
# 连通性测试
[CEA]ping 192.168.2.2
Ping 192.168.2.2 (192.168.2.2): 56 data bytes, press CTRL+C to break
56 bytes from 192.168.2.2: icmp_seq=0 ttl=254 time=1.571 ms
56 bytes from 192.168.2.2: icmp_seq=1 ttl=254 time=1.428 ms
56 bytes from 192.168.2.2: icmp_seq=2 ttl=254 time=1.375 ms
56 bytes from 192.168.2.2: icmp_seq=3 ttl=254 time=1.500 ms
56 bytes from 192.168.2.2: icmp_seq=4 ttl=254 time=1.674 ms
--- Ping statistics for 192.168.2.2 ---
5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss
round-trip min/avg/max/std-dev = 1.375/1.510/1.674/0.106 ms
[CEA]%Oct 5 19:41:43:843 2024 CEA PING/6/PING_STATISTICS: Ping statistics for 192.168.2.2: 5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss, round-trip min/avg/max/std-dev = 1.375/1.510/1.674/0.106 ms.

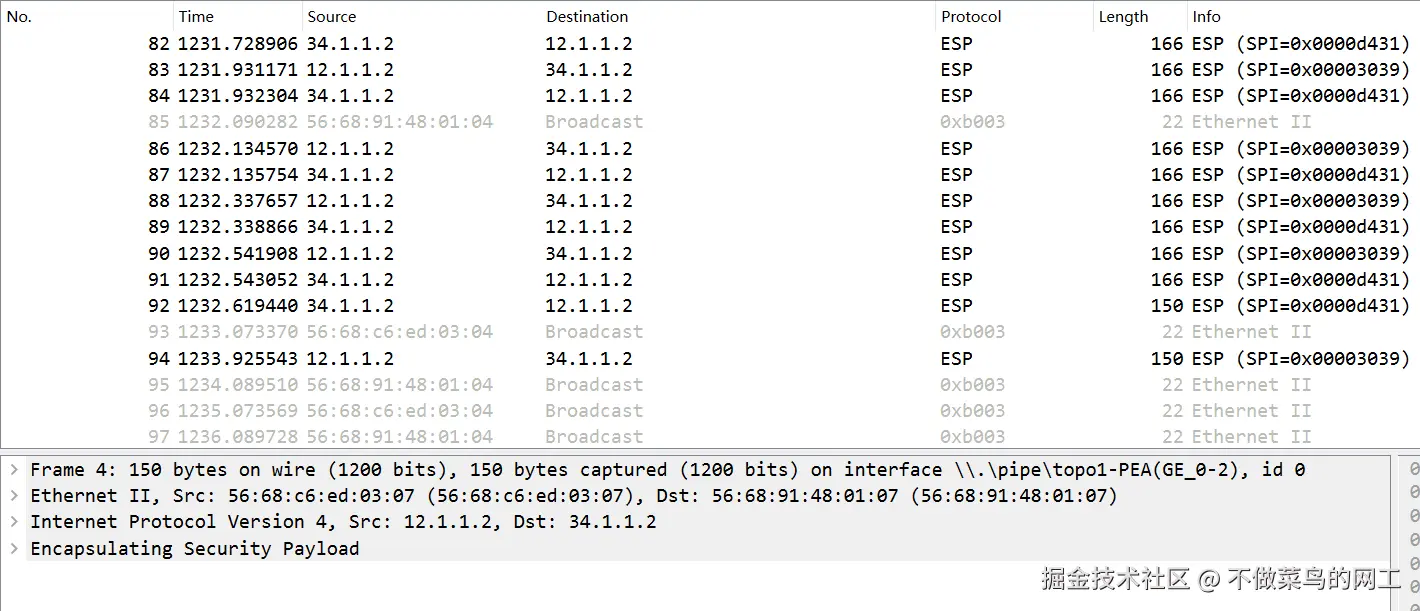

ospf的hello组播包以及ping单播包已经加密
