随笔12 简易spirngWeb程序

94 阅读2分钟

在 Spring Boot 中,你可以使用控制器返回视图的名称,从而跳转到指定的 HTML 页面。这通常是通过 Spring MVC 的 @Controller 注解和 @RequestMapping(或 @GetMapping 等)来完成的。返回的视图名称会映射到 src/main/resources/templates 目录下的模板文件,比如 Thymeleaf 模板引擎。

下面是实现跳转的步骤:

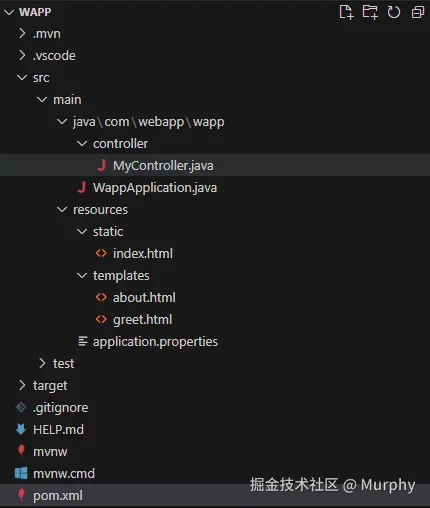

0. 文件结构


1. 配置 Thymeleaf 依赖

首先,如果你使用 Thymeleaf 来渲染 HTML 页面,你需要在 pom.xml 中添加以下依赖:

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>3.3.4</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.webapp</groupId>
	<artifactId>wapp</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>wapp</name>
	<description>Demo project for Spring Boot</description>
	<url/>
	<licenses>
		<license/>
	</licenses>
	<developers>
		<developer/>
	</developers>
	<scm>
		<connection/>
		<developerConnection/>
		<tag/>
		<url/>
	</scm>
	<properties>
		<java.version>17</java.version>
	</properties>
	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-thymeleaf</artifactId>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

2. 编写控制器类

你需要在MyController.class控制器中定义一个方法,该方法返回视图的名称。假设你有一个名为 index.html 的页面:

MyController.class

package com.webapp.wapp.controller;

import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;

@Controller
@RequestMapping("/")
public class MyController {

    @GetMapping("/home")
    public String home() {
        return "redirect:/index.html";
    }

    @GetMapping("/about")
    public String about() {
        return "about";
    }

    @GetMapping("/greet")
    public String greet(@RequestParam(name = "name", required = false, defaultValue = "Guest") String name,
            Model model) {
        model.addAttribute("username", name);
        return "greet";
    }
}

3. 配置 HTML 文件

index.html 文件放在 src/main/resources/templates/ 目录下。Spring Boot 会自动寻找这个目录下的 HTML 文件进行渲染。

例如,src/main/resources/static/index.html 可以是:

src\main\resources\static\index.html

http://localhost:8080/home

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Home Page</title>
</head>
<body>
    <h1>Welcome to the Home Page</h1>
</body>
</html>

src\main\resources\templates\about.html

http://localhost:8080/about

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>About Page</title>
</head>
<body>
    <h1>About Us</h1>
    <p>This is the about page of our application.</p>
</body>
</html>

src\main\resources\templates\greet.html

http://localhost:8080/greet?name=Taka

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Greeting Page</title>
</head>
<body>
    <h1>Welcome, <span th:text="${username}">User</span>!</h1>
    <p>This is your personalized greeting page.</p>
</body>
</html>

4. 访问方法并跳转到页面

启动 Spring Boot 应用后,访问 http://localhost:8080/home,它将会自动跳转并渲染 index.html 页面。

如果一切配置正确,访问 /home 路径时,Spring Boot 会自动将控制器返回的视图名(即 "index")映射到 src/main/resources/templates/index.html 并渲染这个页面。

http://localhost:8080/home

http://localhost:8080/about

http://localhost:8080/greet?name=Taka

注意:

  • 你需要确保正确配置了模板引擎(如 Thymeleaf)并将 HTML 文件放在 templates 目录下。
  • 如果你使用了其他模板引擎,步骤基本类似,但可能需要调整配置。

通过这种方式,你就可以在访问指定 URL 时跳转到对应的 HTML 页面了。
