Flink Join 介绍

1. DataStream API Join

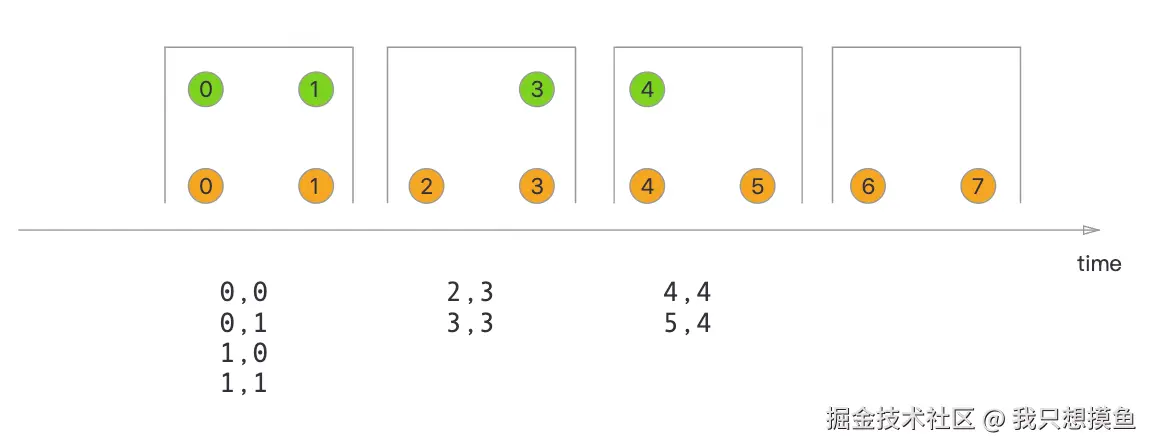

DataStream 中的 Join 即 Window Join，通过把两个流的数据分配到同一个窗口，来把两个流的数据 join 到一起，分配到同一个窗口的元素做笛卡尔积作为输出结果。所以跟 flink 中的 window 一样，Window Join 也支持 Tumbling Window Join、Sliding Window Join、Session Window Join，除此以外还支持 Interval Join。

1.1 Window Join

以 Tumbling Window Join 为例

示例代码如下

import cn.hutool.core.date.DateUtil;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.apache.flink.api.common.eventtime.WatermarkStrategy;
import org.apache.flink.api.common.functions.FilterFunction;
import org.apache.flink.api.common.functions.JoinFunction;
import org.apache.flink.api.java.functions.KeySelector;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.windowing.assigners.TumblingEventTimeWindows;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.junit.Test;

@Slf4j
public class SocketDemo {

    @Test
    public void windowJoinTest() throws Exception {
        // nc -lk 12345
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        // 从 1.12 开始, 默认 TimeCharacteristic 是 EventTime
        // env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);
        DataStreamSource<String> dataStreamSource = env.socketTextStream("localhost", 12345);
        // watermark 产生周期, 默认就是 200ms, 一般不需要做修改
        // env.getConfig().setAutoWatermarkInterval(200);

        // 设置 watermark 生成规则, 简单当做顺序时间来处理
        SingleOutputStreamOperator<String> watermarkStream = dataStreamSource.assignTimestampsAndWatermarks(
                WatermarkStrategy
                    .<String>forMonotonousTimestamps()
                    .withTimestampAssigner((element, recordTimestamp) -> {
                        // yyyyMMddHHmmss test message
                        String[] ss = StringUtils.split(element, StringUtils.SPACE);
                        return DateUtil.parse(ss[0]).getTime();
                    })).uid("source");

        // 分成两个流, 为下面的 join 做准备
        SingleOutputStreamOperator<String> firstStream = watermarkStream.filter(new FilterFunction<String>() {
            @Override
            public boolean filter(String value) throws Exception {
                return StringUtils.startsWith(StringUtils.split(value, StringUtils.SPACE)[1], "A");
            }
        }).uid("first_stream");
        SingleOutputStreamOperator<String> secondStream = watermarkStream.filter(new FilterFunction<String>() {
            @Override
            public boolean filter(String value) throws Exception {
                return StringUtils.startsWith(StringUtils.split(value, StringUtils.SPACE)[1], "B");
            }
        }).uid("second_stream");

        firstStream.join(secondStream)
            .where(new KeySelector<String, String>() {
                @Override
                public String getKey(String value) throws Exception {
                    return StringUtils.split(value, StringUtils.SPACE)[2];
                }
            })
            .equalTo(new KeySelector<String, String>() {
                @Override
                public String getKey(String value) throws Exception {
                    return StringUtils.split(value, StringUtils.SPACE)[2];
                }
            })
            .window(TumblingEventTimeWindows.of(Time.seconds(5)))
            .apply(new JoinFunction<String, String, String>() {
                @Override
                public String join(String first, String second) throws Exception {
                    return first + "->" + second;
                }
            }).print();

        env.execute("demo");
    }

}

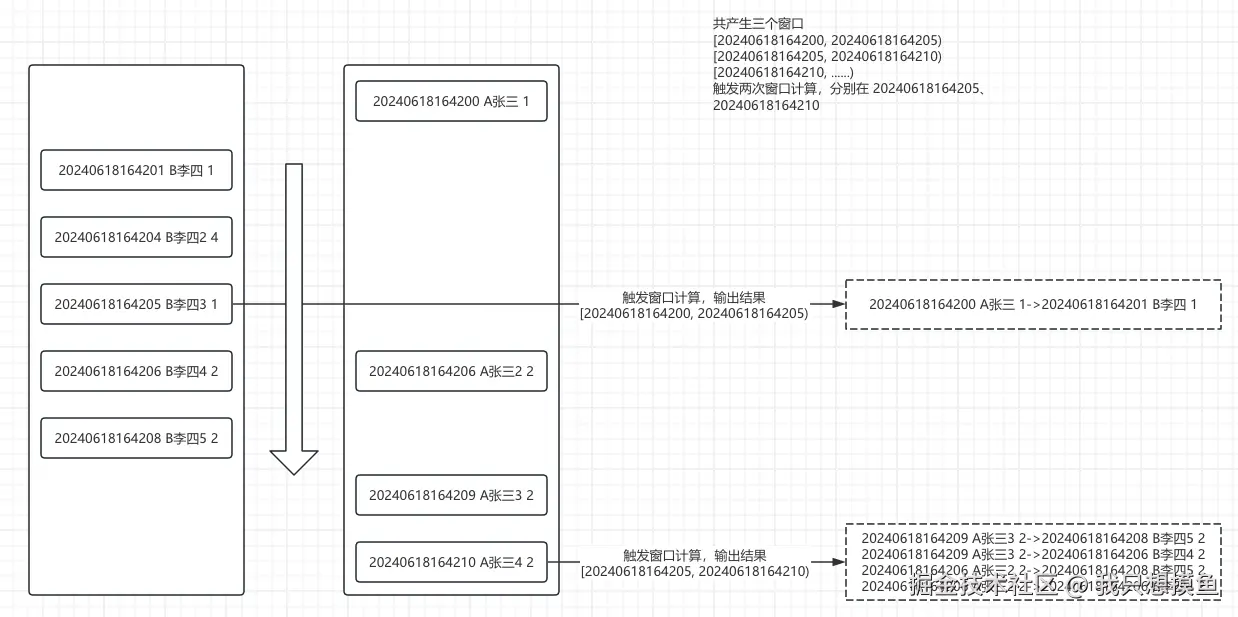

输入与输出

1.2 Interval Join

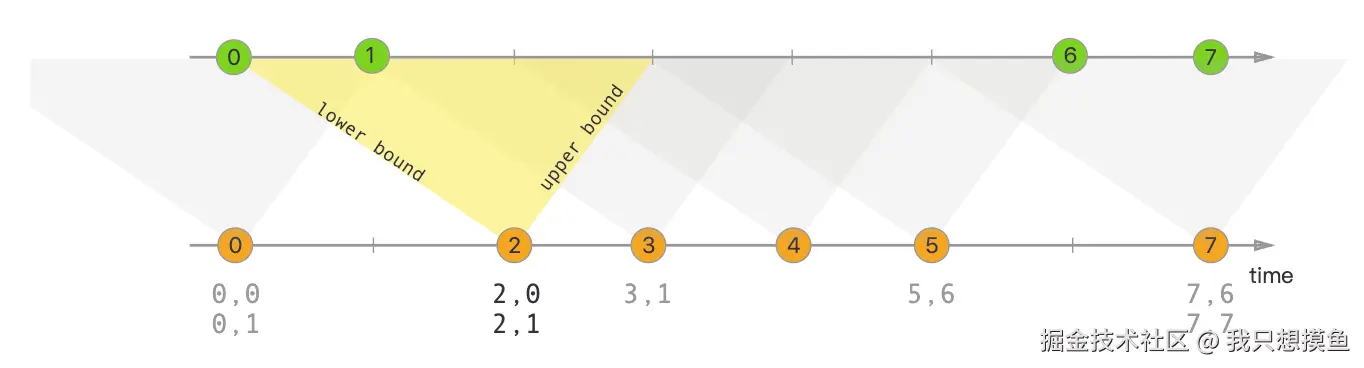

Interval Join 是通过构造类似窗口的方式来把数据 join 到一起，目前只持支 Event Time
构造窗口方式: orangeElem.ts + lowerBound <= greenElem.ts <= orangeElem.ts + upperBound
示例代码如下

import cn.hutool.core.date.DateUtil;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.apache.flink.api.common.eventtime.WatermarkStrategy;
import org.apache.flink.api.common.functions.FilterFunction;
import org.apache.flink.api.java.functions.KeySelector;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.co.ProcessJoinFunction;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.util.Collector;
import org.junit.Test;

@Slf4j
public class SocketDemo {

    @Test
    public void intervalJoinTest() throws Exception {
        // nc -lk 12345
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        // 从 1.12 开始, 默认 TimeCharacteristic 是 EventTime
        // env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);
        DataStreamSource<String> dataStreamSource = env.socketTextStream("localhost", 12345);
        // watermark 产生周期, 默认就是 200ms, 一般不需要做修改
        // env.getConfig().setAutoWatermarkInterval(200);

        // 设置 watermark 生成规则, 简单当做顺序时间来处理
        SingleOutputStreamOperator<String> watermarkStream = dataStreamSource.assignTimestampsAndWatermarks(
            WatermarkStrategy
                .<String>forMonotonousTimestamps()
                .withTimestampAssigner((element, recordTimestamp) -> {
                    // yyyyMMddHHmmss test message
                    String[] ss = StringUtils.split(element, StringUtils.SPACE);
                    return DateUtil.parse(ss[0]).getTime();
                })).uid("source");

        // 分成两个流, 为下面的 join 做准备
        SingleOutputStreamOperator<String> firstStream = watermarkStream.filter(new FilterFunction<String>() {
            @Override
            public boolean filter(String value) throws Exception {
                return StringUtils.startsWith(StringUtils.split(value, StringUtils.SPACE)[1], "A");
            }
        }).uid("first_stream");
        SingleOutputStreamOperator<String> secondStream = watermarkStream.filter(new FilterFunction<String>() {
            @Override
            public boolean filter(String value) throws Exception {
                return StringUtils.startsWith(StringUtils.split(value, StringUtils.SPACE)[1], "B");
            }
        }).uid("second_stream");

        firstStream.keyBy(new KeySelector<String, String>() {
                @Override
                public String getKey(String value) throws Exception {
                    return StringUtils.split(value, StringUtils.SPACE)[2];
                }
            })
            .intervalJoin(secondStream.keyBy(new KeySelector<String, String>() {
                @Override
                public String getKey(String value) throws Exception {
                    return StringUtils.split(value, StringUtils.SPACE)[2];
                }
            }))
            .between(Time.seconds(-2), Time.seconds(1))
            .process(new ProcessJoinFunction<String, String, String>() {
                @Override
                public void processElement(String left, String right, ProcessJoinFunction<String, String, String>.Context ctx, Collector<String> out) throws Exception {
                    out.collect(left + "->" + right);
                }
            })
            .uid("interval_join")
            .print();

        env.execute("demo");
    }

}

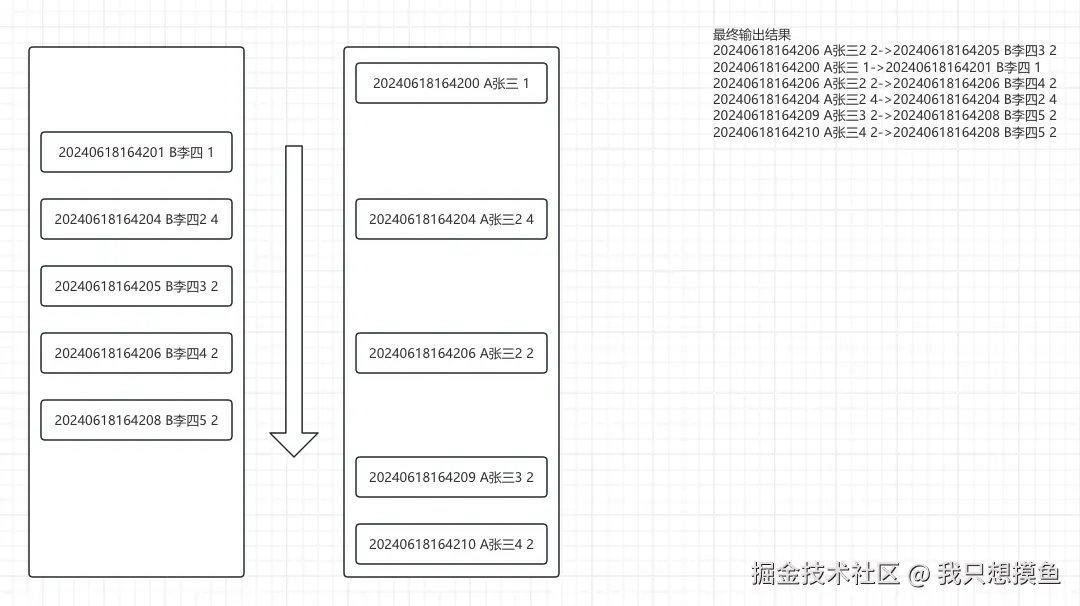

输入输出
