VXLAN手动建立隧道二层转发配置举例前言配置VXLAN 配置说明配置VXLAN隧道工作模式必选创建VSI和V

前言

本次内容涉及二层转发同网段同vlan的vxlan配置实验以及一些配置命令暂不涉及跨网段转发

配置VXLAN

配置	说明
配置VXLAN隧道工作模式	必选
创建VSI和VXLAN	必选
关联VXLAN与VXLAN隧道	必选
配置AC与VSI关联	必选
关闭VXLAN远端ARP自动学习功能	可选
配置VXLAN流量统计	可选
关闭远端MAC地址自动学习功能	可选

配置命令

配置VXLAN隧道工作模式 [默认为二层转发]

当设备作为VXLAN IP网关时，需要配置VXLAN隧道工作在三层转发模式。当设备作为VTEP时， VXLAN隧道工作在二层转发模式、三层转发模式均可。
如果VXLAN隧道工作在三层转发模式，则设备将VXLAN封装后的报文转发给下一跳时是否携带VLAN tag，由本命令中的tagged、untagged参数决定，而不是由报文的出接口类型决定。请根据实际情况选择tagged、untagged参数：
- 设备通过Access端口、Trunk或Hybrid端口的PVID连接下一跳时，需要指定untagged参数。
- 设备通过Trunk或Hybrid端口的非PVID连接下一跳时，需要指定tagged参数。
执行本配置时，需要注意：
- 重复执行vxlan ip-forwarding命令切换二层、三层转发模式前，必须先删除设备上的所有VSI、VSI虚接口和VXLAN隧道，否则将配置失败。因此，配置VXLAN前，用户需要先做好VXLAN网络规划，确定设备使用的VXLAN隧道工作模式，完成本配置后，再进行其他配置。
- 重复执行vxlan ip-forwarding命令修改tagged和untagged参数前，必须先删除设备上所有的VXLAN隧道。
- 设备通过Access端口、Trunk或Hybrid端口的PVID连接下一跳时，需要指定untagged参数。
- 设备通过Trunk或Hybrid端口的非PVID连接下一跳时，需要指定tagged参数。

操作	命令	说明
进入系统视图	system-view	-
配置VXLAN隧道工作在二层转发模式	undo vxlan ip-forwarding	二者选其一缺省情况下，VXLAN隧道工作在三层转发模式执行vxlan ip-forwarding命令时如果没有指定tagged和untagged参数，则缺省为untagged，即转发VXLAN封装后的报文时，不携带VLAN tag

创建VSI和VXLAN

操作	命令	说明
进入系统视图	system-view	-
开启L2VPN功能	l2vpn enable	缺省情况下，L2VPN功能处于关闭状态
创建VSI，并进入VSI视图	vsi vsi-name	缺省情况下，不存在VSI
配置VSI的描述信息	description text	缺省情况下，未配置VSI的描述信息
开启VSI	undo shutdown	缺省情况下，VSI处于开启状态
创建VXLAN，并进入VXLAN视图	vxlan vxlan-id	缺省情况下，不存在VXLAN在一个VSI下只能创建一个VXLAN不同VSI下创建的VXLAN，其VXLAN ID不能相同

创建VXLAN隧道

手工创建VXLAN隧道时，隧道的源端地址和目的端地址需要分别手工指定为本地和远端VTEP的接口地址。
在同一台设备上，VXLAN隧道模式的不同Tunnel接口建议不要同时配置完全相同的源端地址和目的端地址。
请不要将VXLAN隧道出接口和AC口配置为同一个接口，以避免流量转发失败。
如果设备上配置了通过EVPN自动建立并关联VXLAN隧道，则隧道目的地址相同的EVPN自动创建隧道和手工创建隧道不能关联同一个VXLAN。

操作	命令	说明
进入系统视图	system-view	-
配置VXLAN隧道的全局源地址	tunnel global source-address ip-address	缺省情况下，未配置VXLAN隧道的全局源地址如果隧道下未配置源地址或源接口，则隧道会使用全局源地址作为隧道的源地址
创建模式为VXLAN隧道的Tunnel接口，并进入Tunnel接口视图	interface tunnel tunnel-number mode vxlan	缺省情况下，不存在Tunnel接口在隧道的两端应配置相同的隧道模式，否则会造成报文传输失败通过本配置创建的前2048条VXLAN隧道支持ECMP功能
配置隧道的源端地址或源接口	source { ipv4-address / interface-type interface-number }	缺省情况下，未设置VXLAN隧道的源端地址和源接口如果设置的是隧道的源端地址，则该地址将作为封装后VXLAN报文的源IP地址；如果设置的是隧道的源接口，则该接口的主IP地址将作为封装后VXLAN报文的源IP地址采用VXLAN组播路由泛洪方式时，VXLAN隧道的源接口不能是Loopback接口、源端地址不能是Loopback接口的地址
配置隧道的目的端地址	destination ipv4-address	缺省情况下，未指定隧道的目的端地址隧道的目的端地址是对端设备上接口的IP地址，该地址将作为封装后VXLAN报文的目的地址

关联VXLAN与VXLAN隧道

操作	命令	说明
进入系统视图	system-view	-
进入VSI视图	vsi vsi-name	-
进入VXLAN视图	vxlan vxlan-id	-
配置VXLAN与VXLAN隧道关联	tunnel { tunnel-number [ flooding-proxy ] / all }	缺省情况下，VXLAN未关联VXLAN隧道VTEP必须与相同VXLAN内的其它VTEP建立VXLAN隧道，并将该隧道与VXLAN关联如果指定了flooding-proxy参数，则VXLAN内的广播、组播和未知单播流量将通过该隧道发送到泛洪代理服务器，由代理服务器进行复制并转发到其他远端VTEP

配置AC与VSI关联

操作	命令	说明
进入系统视图	system-view	-
进入二层以太网接口视图	interface interface-type interface-number	-
进入二层聚合接口视图	interface bridge-aggregation interface-number	-
创建以太网服务实例，并进入以太网服务实例视图	service-instance instance-id	缺省情况下，不存在以太网服务实例
将以太网服务实例与VSI关联	xconnect vsi vsi-name [ access-mode { ethernet / vlan } ] [ track track-entry-number&<1-3> ]	缺省情况下，以太网服务实例未关联VSI

关闭远端MAC地址自动学习功能

操作命令说明
进入系统视图 system-view -
关闭远端MAC地址自动学习功能 vxlan tunnel mac-learning disable 缺省情况下，远端MAC地址自动学习功能处于开启状态
关闭VXLAN远端ARP自动学习功能

操作命令说明
进入系统视图 system-view -
关闭远端ARP自动学习功能 vxlan tunnel arp-learning disable 缺省情况下，远端ARP自动学习功能处于开启状态

VXLAN二层转发配置举例

网络拓扑

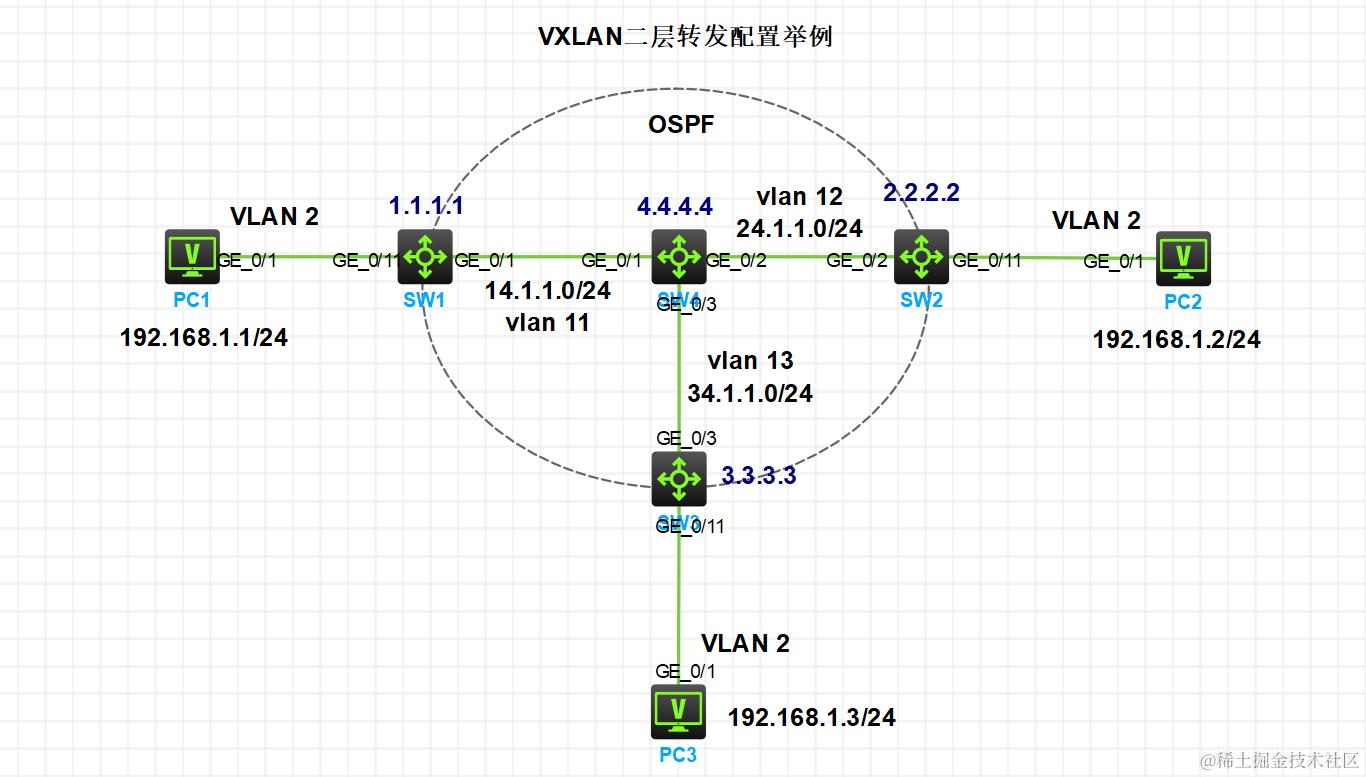

Sw1、Sw2、Sw3为与PC连接的VTEP设备 PC1 PC2 PC3 同属一个网段一个vlan 通过vxlan实现不同站点间的二层互联

SW1

[SW1]dis current-configuration
#
 version 7.1.070, Alpha 7170
#
 sysname SW1
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
 router id 1.1.1.1
#
ospf 1   // ospf进程
 area 0.0.0.0
  network 1.1.1.1 0.0.0.0
  network 14.1.1.0 0.0.0.255
#
 lldp global enable
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
vlan 2
#
vlan 11
#
 stp global enable
#
 l2vpn enable // 开启l2vpn
#
vsi vxlan10   // 进入vsi
 vxlan 10     // 创建vxlan
  tunnel 0    // 绑定vxlan隧道
  tunnel 1
#
interface NULL0
#
interface LoopBack0
 ip address 1.1.1.1 255.255.255.255
#
interface Vlan-interface2
 ip address 192.168.1.254 255.255.255.0
#
interface Vlan-interface11  // 配置互联接口地址
 ip address 14.1.1.1 255.255.255.0
#
interface FortyGigE1/0/53
 port link-mode bridge
#
interface FortyGigE1/0/54
 port link-mode bridge
#
interface GigabitEthernet1/0/1
 port link-mode bridge
 port access vlan 11
 combo enable fiber
#
interface GigabitEthernet1/0/2
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/3
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/4
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/5
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/6
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/7
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/8
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/9
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/10
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/11
 port link-mode bridge
 port access vlan 2
 combo enable fiber
 #
 service-instance 1000  // 创建以太网服务模板
  encapsulation s-vid 2    // 匹配vlan
  xconnect vsi vxlan10     // 绑定vxlan
#
interface GigabitEthernet1/0/12
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/13
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/14
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/15
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/16
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/17
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/18
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/19
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/20
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/21
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/22
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/23
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/24
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/25
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/26
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/27
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/28
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/29
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/30
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/31
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/32
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/33
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/34
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/35
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/36
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/37
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/38
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/39
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/40
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/41
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/42
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/43
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/44
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/45
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/46
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/47
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/48
 port link-mode bridge
 combo enable fiber
#
interface M-GigabitEthernet0/0/0
#
interface Ten-GigabitEthernet1/0/49
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/50
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/51
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/52
 port link-mode bridge
 combo enable fiber
#
interface Tunnel0 mode vxlan  // 配置vxlan隧道
 source 1.1.1.1   // 源地址
 destination 2.2.2.2   // 目的地址
#
interface Tunnel1 mode vxlan
 source 1.1.1.1
 destination 3.3.3.3
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
radius scheme system
 user-name-format without-domain
#
domain system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
return
[SW1]

SW2

[SW2]display current-configuration
#
 version 7.1.070, Alpha 7170
#
 sysname SW2
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
 router id 2.2.2.2
#
ospf 1
 area 0.0.0.0
  network 2.2.2.2 0.0.0.0
  network 24.1.1.0 0.0.0.255
#
 lldp global enable
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
vlan 2
#
vlan 12
#
 stp global enable
#
 l2vpn enable
#
vsi vxlan10
 vxlan 10
  tunnel 0
  tunnel 2
#
interface NULL0
#
interface LoopBack0
 ip address 2.2.2.2 255.255.255.255
#
interface Vlan-interface2
 ip address 192.168.1.254 255.255.255.0
#
interface Vlan-interface12
 ip address 24.1.1.2 255.255.255.0
#
interface FortyGigE1/0/53
 port link-mode bridge
#
interface FortyGigE1/0/54
 port link-mode bridge
#
interface GigabitEthernet1/0/1
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/2
 port link-mode bridge
 port access vlan 12
 combo enable fiber
#
interface GigabitEthernet1/0/3
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/4
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/5
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/6
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/7
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/8
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/9
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/10
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/11
 port link-mode bridge
 port access vlan 2
 combo enable fiber
 #
 service-instance 1000
  encapsulation s-vid 2
  xconnect vsi vxlan10
#
interface GigabitEthernet1/0/12
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/13
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/14
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/15
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/16
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/17
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/18
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/19
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/20
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/21
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/22
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/23
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/24
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/25
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/26
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/27
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/28
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/29
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/30
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/31
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/32
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/33
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/34
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/35
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/36
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/37
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/38
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/39
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/40
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/41
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/42
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/43
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/44
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/45
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/46
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/47
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/48
 port link-mode bridge
 combo enable fiber
#
interface M-GigabitEthernet0/0/0
#
interface Ten-GigabitEthernet1/0/49
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/50
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/51
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/52
 port link-mode bridge
 combo enable fiber
#
interface Tunnel0 mode vxlan
 source 2.2.2.2
 destination 1.1.1.1
#
interface Tunnel2 mode vxlan
 source 2.2.2.2
 destination 3.3.3.3
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
radius scheme system
 user-name-format without-domain
#
domain system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
return
[SW2]

SW3

[SW3]display current-configuration
#
 version 7.1.070, Alpha 7170
#
 sysname SW3
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
 router id 3.3.3.3
#
ospf 1
 area 0.0.0.0
  network 3.3.3.3 0.0.0.0
  network 34.1.1.0 0.0.0.255
#
 lldp global enable
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
vlan 2
#
vlan 13
#
 stp global enable
#
 l2vpn enable
#
vsi vxlan10
 vxlan 10
  tunnel 1
  tunnel 2
#
interface NULL0
#
interface LoopBack0
 ip address 3.3.3.3 255.255.255.255
#
interface Vlan-interface13
 ip address 34.1.1.2 255.255.255.0
#
interface FortyGigE1/0/53
 port link-mode bridge
#
interface FortyGigE1/0/54
 port link-mode bridge
#
interface GigabitEthernet1/0/1
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/2
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/3
 port link-mode bridge
 port access vlan 13
 combo enable fiber
#
interface GigabitEthernet1/0/4
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/5
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/6
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/7
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/8
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/9
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/10
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/11
 port link-mode bridge
 port access vlan 2
 combo enable fiber
 #
 service-instance 1000
  encapsulation s-vid 2
  xconnect vsi vxlan10
#
interface GigabitEthernet1/0/12
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/13
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/14
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/15
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/16
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/17
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/18
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/19
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/20
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/21
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/22
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/23
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/24
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/25
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/26
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/27
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/28
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/29
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/30
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/31
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/32
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/33
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/34
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/35
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/36
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/37
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/38
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/39
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/40
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/41
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/42
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/43
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/44
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/45
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/46
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/47
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/48
 port link-mode bridge
 combo enable fiber
#
interface M-GigabitEthernet0/0/0
#
interface Ten-GigabitEthernet1/0/49
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/50
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/51
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/52
 port link-mode bridge
 combo enable fiber
#
interface Tunnel1 mode vxlan
 source 3.3.3.3
 destination 1.1.1.1
#
interface Tunnel2 mode vxlan
 source 3.3.3.3
 destination 2.2.2.2
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
radius scheme system
 user-name-format without-domain
#
domain system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
return
[SW3]

SW4

[SW4]display current-configuration
#
 version 7.1.070, Alpha 7170
#
 sysname SW4
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
 router id 4.4.4.4
#
ospf 1
 area 0.0.0.0
  network 4.4.4.4 0.0.0.0
  network 14.1.1.0 0.0.0.255
  network 24.1.1.0 0.0.0.255
  network 34.1.1.0 0.0.0.255
#
 lldp global enable
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
vlan 11 to 13
#
 stp global enable
#
interface NULL0
#
interface LoopBack0
 ip address 4.4.4.4 255.255.255.255
#
interface Vlan-interface11
 ip address 14.1.1.4 255.255.255.0
#
interface Vlan-interface12
 ip address 24.1.1.4 255.255.255.0
#
interface Vlan-interface13
 ip address 34.1.1.1 255.255.255.0
#
interface FortyGigE1/0/53
 port link-mode bridge
#
interface FortyGigE1/0/54
 port link-mode bridge
#
interface GigabitEthernet1/0/1
 port link-mode bridge
 port access vlan 11
 combo enable fiber
#
interface GigabitEthernet1/0/2
 port link-mode bridge
 port access vlan 12
 combo enable fiber
#
interface GigabitEthernet1/0/3
 port link-mode bridge
 port access vlan 13
 combo enable fiber
#
interface GigabitEthernet1/0/4
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/5
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/6
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/7
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/8
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/9
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/10
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/11
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/12
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/13
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/14
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/15
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/16
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/17
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/18
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/19
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/20
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/21
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/22
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/23
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/24
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/25
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/26
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/27
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/28
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/29
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/30
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/31
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/32
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/33
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/34
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/35
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/36
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/37
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/38
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/39
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/40
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/41
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/42
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/43
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/44
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/45
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/46
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/47
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/48
 port link-mode bridge
 combo enable fiber
#
interface M-GigabitEthernet0/0/0
#
interface Ten-GigabitEthernet1/0/49
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/50
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/51
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/52
 port link-mode bridge
 combo enable fiber
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
radius scheme system
 user-name-format without-domain
#
domain system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
return
[SW4]

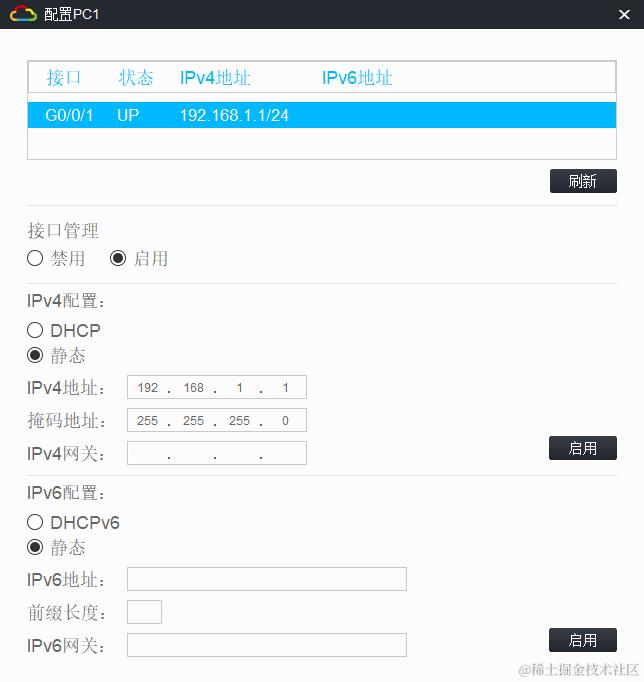

PC1

验证连通性

<H3C>ping 192.168.1.3
Ping 192.168.1.3 (192.168.1.3): 56 data bytes, press CTRL_C to break
Request time out
56 bytes from 192.168.1.3: icmp_seq=1 ttl=255 time=1.484 ms
56 bytes from 192.168.1.3: icmp_seq=2 ttl=255 time=1.392 ms
56 bytes from 192.168.1.3: icmp_seq=3 ttl=255 time=1.598 ms
56 bytes from 192.168.1.3: icmp_seq=4 ttl=255 time=1.022 ms

--- Ping statistics for 192.168.1.3 ---
5 packet(s) transmitted, 4 packet(s) received, 20.0% packet loss
round-trip min/avg/max/std-dev = 1.022/1.374/1.598/0.216 ms
<H3C>%Jun 29 10:42:36:181 2024 H3C PING/6/PING_STATISTICS: Ping statistics for 192.168.1.3: 5 packet(s) transmitted, 4 packet(s) received, 20.0% packet loss, round-trip min/avg/max/std-dev = 1.022/1.374/1.598/0.216 ms.

<H3C>ping 192.168.1.2
Ping 192.168.1.2 (192.168.1.2): 56 data bytes, press CTRL_C to break
Request time out
56 bytes from 192.168.1.2: icmp_seq=1 ttl=255 time=1.624 ms
56 bytes from 192.168.1.2: icmp_seq=2 ttl=255 time=1.849 ms
56 bytes from 192.168.1.2: icmp_seq=3 ttl=255 time=1.350 ms
56 bytes from 192.168.1.2: icmp_seq=4 ttl=255 time=1.458 ms

--- Ping statistics for 192.168.1.2 ---
5 packet(s) transmitted, 4 packet(s) received, 20.0% packet loss
round-trip min/avg/max/std-dev = 1.350/1.570/1.849/0.188 ms
<H3C>%Jun 29 10:43:28:738 2024 H3C PING/6/PING_STATISTICS: Ping statistics for 192.168.1.2: 5 packet(s) transmitted, 4 packet(s) received, 20.0% packet loss, round-trip min/avg/max/std-dev = 1.350/1.570/1.849/0.188 ms.

显示与维护

显示VSI的MAC地址表信息

[SW1]display l2vpn mac-address
* - The output interface is issued to another VSI
MAC Address    State     VSI Name                        Link ID/Name   Aging
1e72-12c8-0506 Dynamic   vxlan10                         GE1/0/11       Aging
1e72-25b4-0606 Dynamic   vxlan10                         Tunnel0        Aging
1e72-2ec6-0706 Dynamic   vxlan10                         Tunnel1        Aging
--- 3 mac address(es) found  ---
[SW1]

查看接口状态

[SW1]display interface Tunnel 0 brief
Brief information on interfaces in route mode:
Link: ADM - administratively down; Stby - standby
Protocol: (s) - spoofing
Interface            Link Protocol Primary IP        Description
Tun0                 UP   UP       --
[SW1]
[SW1]display interface Tunnel 1
Tunnel1
Current state: UP
Line protocol state: UP
Description: Tunnel1 Interface
Bandwidth: 64 kbps
Maximum transmission unit: 1464
Internet protocol processing: Disabled
Last clearing of counters: Never
Tunnel source 1.1.1.1, destination 3.3.3.3
Tunnel protocol/transport UDP_VXLAN/IP
Last 300 seconds input rate: 12 bytes/sec, 96 bits/sec, 0 packets/sec
Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec
Input: 309 packets, 19414 bytes, 0 drops
Output: 204 packets, 13190 bytes, 0 drops

[SW1]

查看关联的隧道状态

[SW1]display vxlan tunnel
Total number of VXLANs: 1
Total number of VXLAN tunnels: 2

VXLAN ID: 10, VSI name: vxlan10, Total tunnels: 2 (2 up, 0 down, 0 defect, 0 blocked)
Tunnel name Source          Destination     State   Type   Flood proxy Out VNI
Tun0        1.1.1.1         2.2.2.2         UP      Manual Disabled    -
Tun1        1.1.1.1         3.3.3.3         UP      Manual Disabled    -
[SW1]

查看vsi状态

[SW1]display l2vpn vsi verbose
VSI Name: vxlan10
  VSI Index               : 0
  VSI State               : Up
  MTU                     : 1500
  Bandwidth               : -
  Broadcast Restrain      : -
  Multicast Restrain      : -
  Unknown Unicast Restrain: -
  MAC Learning            : Enabled
  MAC Table Limit         : -
  MAC Learning rate       : -
  Drop Unknown            : -
  Flooding                : Enabled
  VXLAN ID                : 10
  Tunnels:
    Tunnel Name          Link ID    State    Type        Flood proxy
    Tunnel0              0x5000000  UP       Manual      Disabled
    Tunnel1              0x5000001  UP       Manual      Disabled
  ACs:
    AC                                 Link ID    State       Type
    GE1/0/11 srv1000                   0          Up          Manual
[SW1]

操作	命令	说明
进入系统视图	system-view	-
关闭远端ARP自动学习功能	vxlan tunnel arp-learning disable	缺省情况下，远端ARP自动学习功能处于开启状态
